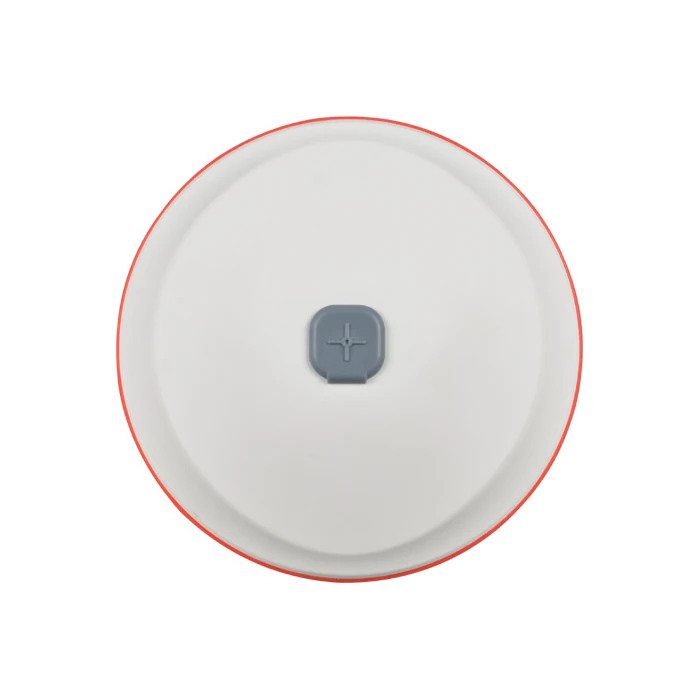

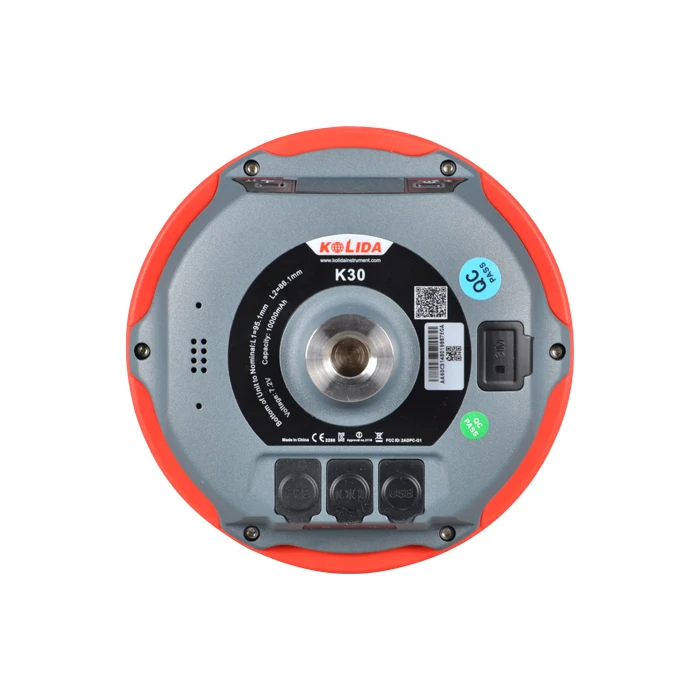

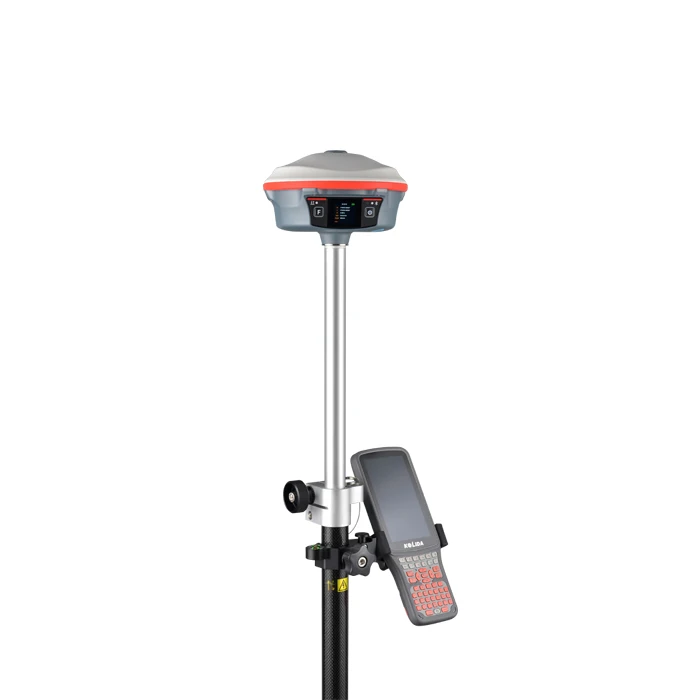

1598 Channels Long Range UHF Radio KOLIDA K30 Gnss Rtk with 1.3 Inches Colorful Screen
- Category: >>>
- Supplier: Jiangsu Bangjie Trading Co. Ltd.
Share on (1600836620879):
Product Overview
Description
Product Description
1598 Channels Long Range UHF Radio KOLIDA K30 Gnss Rtk with 1.3 Inches Colorful Screen
K30 is designed to enhance your performance in the field survey and to provide the most reliable positioning result.
It integrates a 1598 channels world leading GNSS positioning engine, a high precision IMU, a long range UHF radio, and a newinteract operating system.
All Constellations and More Channels
With 1598 GNSS channels solution, the usability of Glonass&Galileo satellites is greatly improved, so in harsh environment K1 PRO is able to track more satellite than other receivers and provide more reliable positioning result.
More Powerful and More Durable
Thanks to the 3W Farlink radio, when it works as an UHF base station K30 Pro is able to transmit correction data farther than others, in optimal condition the working range can be 10 to 15 km. The shock-resistant frame, water-proof frame all have been enhanced, now the overall proof level is IP68.
Superior Endurance, Up to 25 hours working
The newly developed power management system allows K30 Pro to work for 10 to 25 hours and can be recharged by a type-C connector.

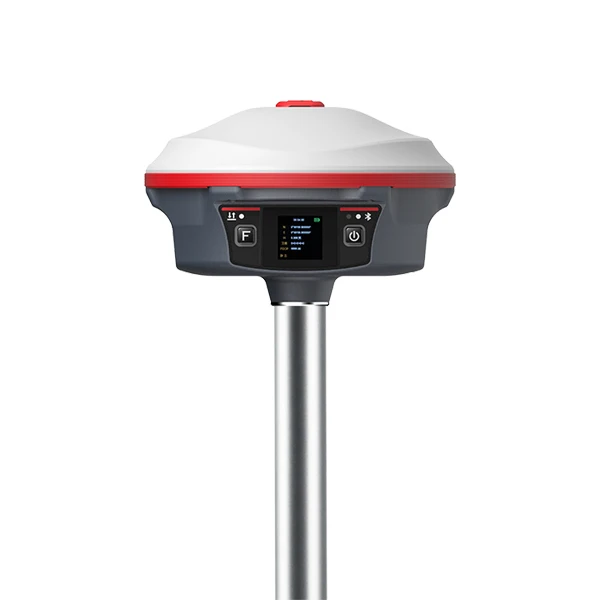

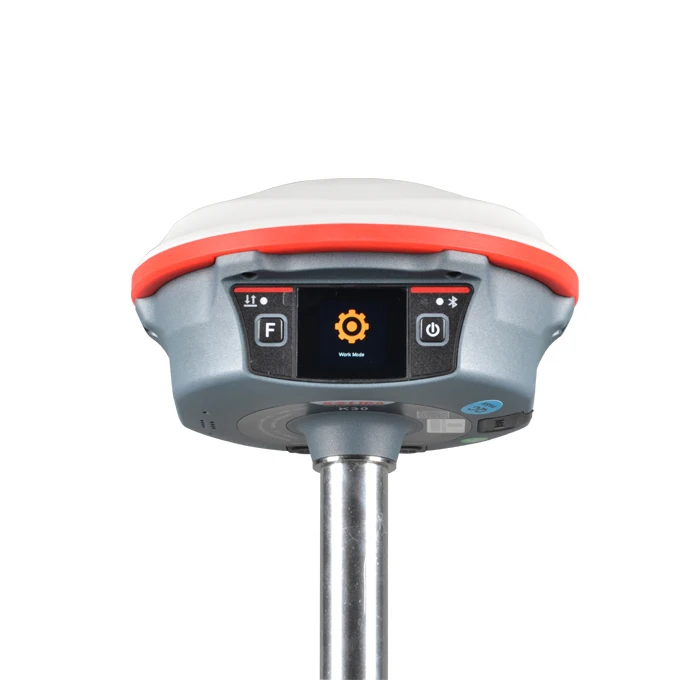

Color Touch Screen, Makes Workflow Simpler
Users can operate K30 Pro by touch screen and key buttons, easy and fast.
Star-Fill
This function will let you continue working a few minutes when radio or mobile signal is becoming very poor or even lose in blind area, the accuracy is down to 2 cm.
Star-Link Correction via L-band
2cm accuracy Star-Link correction service is available on K30 Pro. After subscribing to it, surveyor can work almost anywhere in the world without a base station or VRS network.
It integrates a 1598 channels world leading GNSS positioning engine, a high precision IMU, a long range UHF radio, and a newinteract operating system.
All Constellations and More Channels
With 1598 GNSS channels solution, the usability of Glonass&Galileo satellites is greatly improved, so in harsh environment K1 PRO is able to track more satellite than other receivers and provide more reliable positioning result.
More Powerful and More Durable
Thanks to the 3W Farlink radio, when it works as an UHF base station K30 Pro is able to transmit correction data farther than others, in optimal condition the working range can be 10 to 15 km. The shock-resistant frame, water-proof frame all have been enhanced, now the overall proof level is IP68.
Superior Endurance, Up to 25 hours working
The newly developed power management system allows K30 Pro to work for 10 to 25 hours and can be recharged by a type-C connector.
Color Touch Screen, Makes Workflow Simpler
Users can operate K30 Pro by touch screen and key buttons, easy and fast.
Star-Fill
This function will let you continue working a few minutes when radio or mobile signal is becoming very poor or even lose in blind area, the accuracy is down to 2 cm.
Star-Link Correction via L-band
2cm accuracy Star-Link correction service is available on K30 Pro. After subscribing to it, surveyor can work almost anywhere in the world without a base station or VRS network.
Specification
Satellites Signals Tracked Simultaneously | ||
Signal tracking | 1598 channels | |
GPS: L1C/A,L2P,L2C,L5,L1C* | ||
GLONASS:G1,G2,G3* | ||
BeiDou: B1, B2, B3; | ||
GALILEO: E1,E5b,E5a,E5 AltBoc*,E6c* | ||
SBAS:L1C/A,L5*, IRNSS: L5, QZSS: L1 ,L2C, L5,L5 | ||
GNSS Features | Postioning output rate: 1Hz~50Hz Initialization time:<10s initialization reliability: >99.99%. RTCM 2.1,RTCM 2.3 RTCM 3.0 RTCM 3.1 RTCM 3.2 CMR,CMR+,NMEA 0183, PJK plane coordinates, Binary code, Trimble GSOF | |
L-Band Correction Service | Star-fill: 5 minutes, down to 2 cm accuracy. Star-Link: down to 2cm accuracy (need subscription) Inertial Measurement: Tilt angle: up to 60 degrees. accuracy: down to 2cm | |
Positioning precision | ||
Code differential GNSS positioning | Horizontal: 0.25 m + 1 ppm RMS Vertical: 0.50 m + 1 ppm RMS | |
SBAS positioning accuracy: typically<5m 3DRMS | ||
Static GNSS surveying | Horizontal: ±(2.5mm+0.5×10-6 D) Vertical: ±(5.0mm+0.5×10-6 D) | |
RTK surveying | Horizontal: ±(8mm+1×10-6 D) Vertical: ±(15mm+1×10-6 D) | |
Network RTK | Horizontal: ±8mm+0.5ppm Vertical: ±15mm+0.5ppm | |
Horizontal | 8mm+1ppm RMS | |
Vertical / RTK Initialization time | 15mm+1ppm RMS/ 2-8s | |
User Interaction | ||
Operating Tine | Linux | |
Buttons | Double button operation | |
Indicator | Five indicators light | |
Web UI | Freely to configure and monitor the receiver by accessing to the Web server via WIFI or USB | |
Voice guide | Ivoice intellight voice technology provides status and voice guide. Supporting Chineses, Korean, Russian, Portuguese, Spanish, Turkish and user define | |
Secondary development | Providing secondary development kit | |
Hardware Performance | ||
Dimension(W*H) | 165mm×108mm | |
Weight | 1.3kg(two batteries included) | |
Material | Magnesium aluminum alloy shell | |
Operating | -45ºC~+75ºC | |
Storage | -55ºC~+85ºC | |
Humidity | 100% non-condensing | |
Waterproof/Dustproof | IP67 Standard, protected from short time immersion to depth of 1m | |
IP67 Standard, fully protected against blowing dust | ||
Shock&Vibration | withstand 2 meters pole drop onto the cement ground naturally | |
Power Supply | 9-25V DC, overvoltage protection | |
Battery | Rechargeble , Lithium-ion battery, 7.4V Dual batteries hot-swappable | |
Battery Life | Dual batteries>14h (static mode), >10h(internal UHF base mode), >12h(rover mode) | |
Communications | ||
I/O port | 5pin LEMO external power port+RS232, 7 PIN external USB(OTG)+Ethernet, 1 radio antenna interface, SIM card slot | |
Wireless modem | Built-in radio, 1w/2w/3w switchable, typically work range can be 8km. "Barrier-Free" measurement technology: Repeater/Router/CSD mode | |
Frequency Range | 410-470MHz | |
Communication Protocol | TrimTalk450S, TrimMark3, South(Kolida) | |
Cellular Mobile network | WCDMA/CDMA2000/TDD-LTE/FDD-LTE 4G network modem, downward compatible with 3G GPRS/ EDGE | |
Double Module | 4.0standard, support for android, IOS cellphone connection. 2.1+EDR standard | |
NFC Communication | Realizing close range (shorter than 10cm) automatic pair between receiver and controller(controller equipped NFC wireless communication module needed) | |
External Devices | Optional external GPRS/EDGE dual-mode communication module, switchable; Allow to connet external WLAN card | |
WIFI | ||
Standard | 802.11b/g standard | |
WIFI Hotspot | The WIFI hotsopt allows smart mobile terminal to connect and access to the internal webserver to control and monitor receiver | |
WIFI data link | To work as the datalink that receiver is able to broadcast and receive differential data via WIFI | |
Data storage/Transmission | ||
Data Storage | 8GB SSD internal storage, support external USB storage(up to 32GB) and outomatical cycle storage, Changeable record interval, up to 50Hz raw data collection | |
Data Transmission | USB data transmission, support FTP/HTTP data download | |
Data Format | Differential data format: CMR+, CMR×, RTCM2.1, RTCM2.3, RTCM3.0, RTCM3.1, RTCM3.2. GPS output data format: NMEA0183, PJK plane coordinates, Binary code, Trimble GSOF. Network model support: VRS, FKP, MAC, Fully support NTRIP protocol | |
Inertial sensing system | ||
Tilt Survey | Built-in tilt compensator, correcting coordinates automatically according to the tilt direction and angle of the centering rod | |
Electronic Bubble | Controller software display electronic bubble, checking leveling status of the centering rod real time | |
Thermometer | Built-in thermomter sensors, adopting intelligent temperature control technology which can monitor and adjust the temperature of receiver in real time | |
Packing & Delivery
Standard package including carrying case and carton
