65inch Interact Display Touch Screen Flat Panel Whiteboard Smart monitor for meetings smart tv advertising screen
- Category: >>>
- Supplier: Dongguan Cjtouch Electronic Co. Ltd.
Share on (1600836648294):
Product Overview
Description

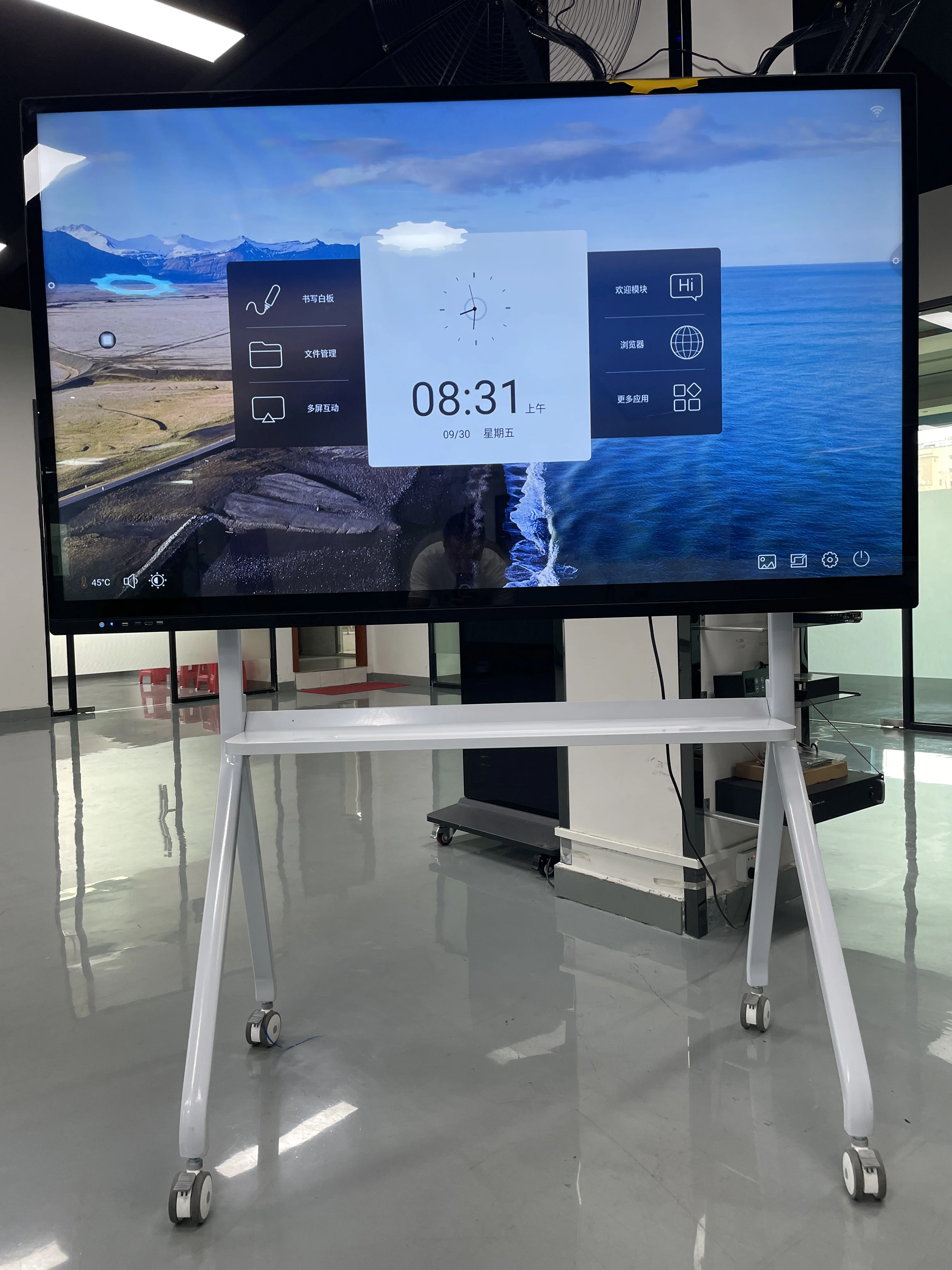

65inch Interact Display Touch Screen Flat Panel Whiteboard Smart monitor for meetings smart tv advertising screen
Product Description

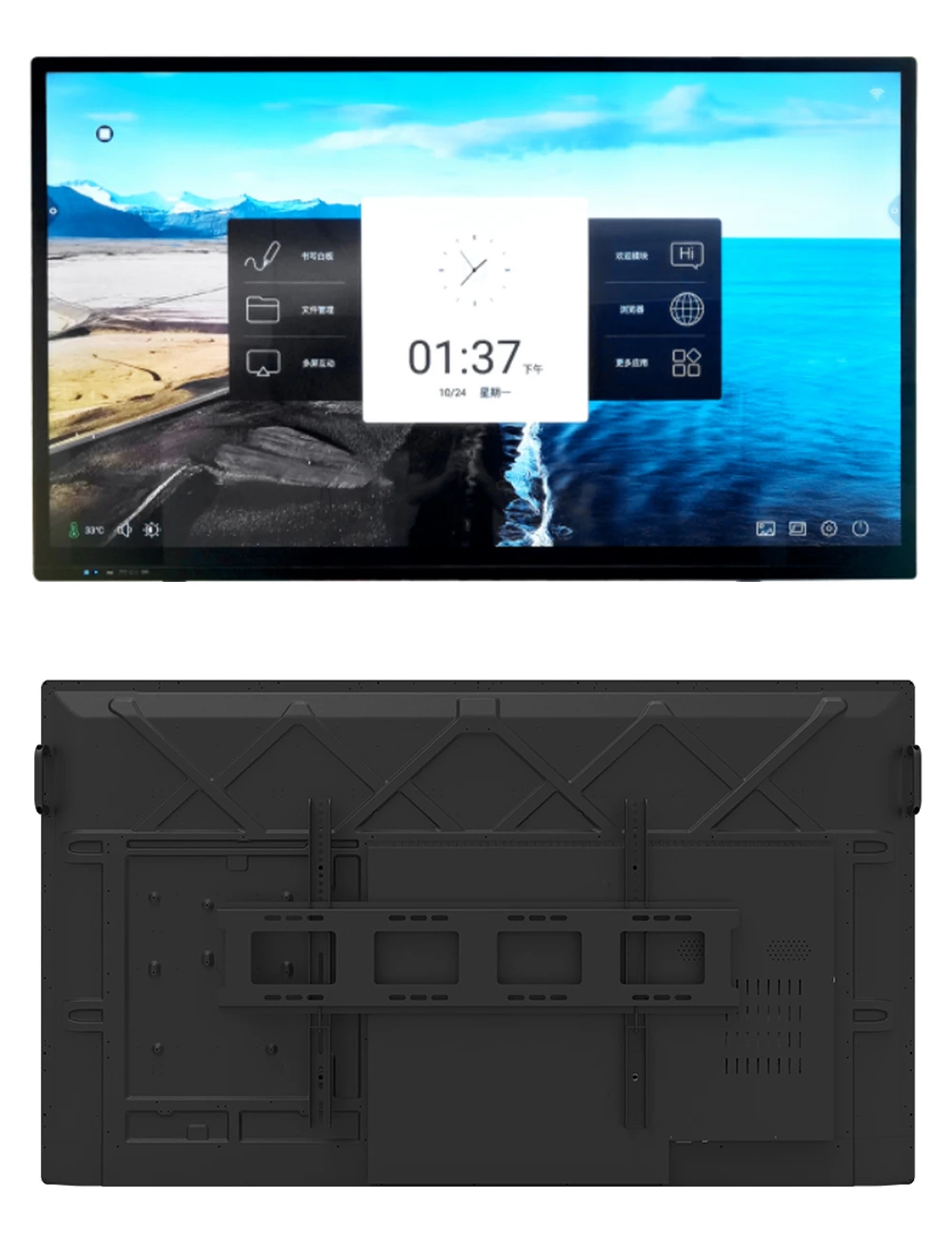

Pictures
Features
- Physically tempered anti-glare glass; enhance the visual effect and enhance the touch experience; standard 20-point touch control, faster writing speed, and the best writing experience
- Aluminum alloy frame, sandblasted and anodized surface, iron shell back cover, active heat dissipation; ultra-narrow sandblasted frame, ultra-narrow design, the single side of the frame of the whole machine is only 29mm.
- Using the OPS slot of the international general standard, the integrated plug-in design is convenient for upgrading and maintenance. There is no visible external connection line of the computer module, and the body is beautiful.
- Front front expansion port: front front one-button start switch, realizing the three-in-one TV, computer, and energy-saving integrated switch function; easy to operate, simple and elegant appearance
- The front remote control window is convenient for users to operate with the remote control and set up and debug the machine. Speaker sound front, honeycomb sound hole.
- The Android motherboard and the PC end of the machine have built-in WIFI modules, which are convenient for users to perform wireless transmission and network operations through WIFI.
- Support the side-pull touch menu, support any channel writing, annotation, and screenshot functions; child lock function, the button function can be blocked by setting, etc.
Specifications
| Display | Effective display area | 1428(H)×803(V) (mm) | Color | 1.07B | |
| Display life | 50000h(min.) | Backlight type | TFT LED | ||
| Brightness | 350cd/M2 | Viewing angle | 178° | ||
| Contrast | 1200:01:00 | Resolution | 3840 * 2160 | ||
| Machine | Video format | PAL/SECAM | Sound system | DK/BG/I | |
| Sound output power | 2X12W | Machine life | 30000h | ||
| Overall size | 1486*898.5*82.4mm | Input power | 100-240V, 50/60Hz | ||
| Package size | 1600*1000*200mm | Gross weight | 48kg | ||
| Overall power consumption | ≤135W | Net weight | 40kg | ||
| Standby power consumption | ≤0.5W | Bluetooth | Support | ||
| Working environment | Working temperature: 0°C~50°C; Working humidity: 10%RH~80%RH; | ||||
| Storage environment | Storage temperature: -20°C ~ 60°C; Storage humidity: 10%RH ~ 90%RH; | ||||
| Input port | Front port: USB2.0*1; USB3.0*1; HDMI*1; USB Touch*1 | ||||
| Rear ports: HDMI*2, USB*2, RS232*1, RJ45*1, 2 *AV input | |||||
| Output port | 1*AV output; 1*coaxial terminal; HDMI OUT (optional) | ||||
| WIFI | 5G module (compatible with 2.4+5G) | ||||

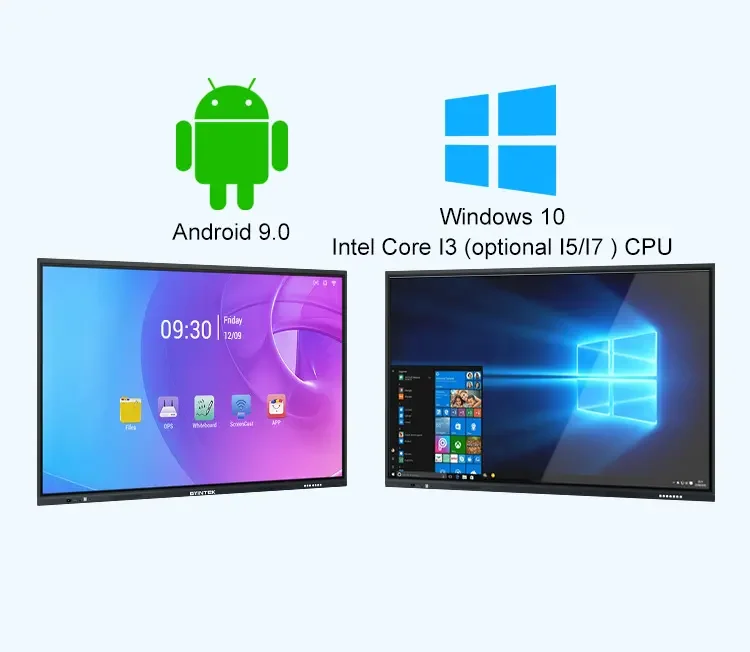

| Android system (Optional) | CPU | Quad-core Cortex-A55 | GPU | ARM Mali-G52 MP2 (2EE), up to 1.8G | |
| RAM | 4G | FLASH | 32G | ||
| Android version | Andriod11.0 | OSD language | Chinese, English | ||
| OPS computer (Optional) | CPU | I3/i5/i7 optional | Memory | 4g/8g/16g optional | |
| Operating system | Window7 /window10 | Interface | Depends on motherboard specification | ||
| Solid state drive (ssd) | 128g/256g/512g optional | WIFI | Support 802.11b/g/n | ||
| Touch screen | Touch type | Capacitive sensing | Touch pressure | Zero pressure | |
| Operating voltage | Dc 5.0v±5% | Multi point | 10-40points | ||
| Responding speed | ≤6 milliseconds | Touch method | Finger, touch pen, etc. | ||
| Anti-light strength | 88k lux | Resolution | 4096(w)x4096(d) | ||
| Communication interface | Usb (usb powered) | Drive | Drive free | ||
| Touch support os | Win7,win8,win10,linux | Service life | Click 8000000 (times) | ||
| Touch screen glass | Fully tempered glass, light transmittance > 90% | ||||
| Anti-external light test | All-angle resistance to ambient light | ||||
| Camera (Optional) | Pixel | 800w; 1200w; 4800w optional | Main Camera Focus Method | Focus | |
| Image Sensor | 1/2.8 inch cmos | Video Output | Mjpg yuy2 | ||
| Drive | Drive free | Max Number Of Frames | 30 | ||
| Lens | Fixed focus lens, effective focal length 4.11mm | ||||
| Angle Of View | The horizontal viewing angle is 68.6 degrees and the diagonal angle is 76.1 degrees; | ||||
| Microphone (Optional) | Microphone type | Array microphone | Number of samples | 16/24bit | |
| Number of wheat heads | 6 arrays; 8 arrays optional | Sampling rate | 16khz-48khz | ||
| Sensitivity | 38db | Drive | Win10 free drive | ||
| SNR | 63db | Echo cancellation | Support | ||
| Pickup distance | 8 meters | ||||
| Accessories | Remote control | 1pc | Warranty card | 1pc | |
| Power cable | 1.5 meter 1pc | Certificate | 1pc | ||
| Antenna | 3pcs | Wall mount | 1set | ||
| Battery | 2pcs | Manual | 1pc | ||

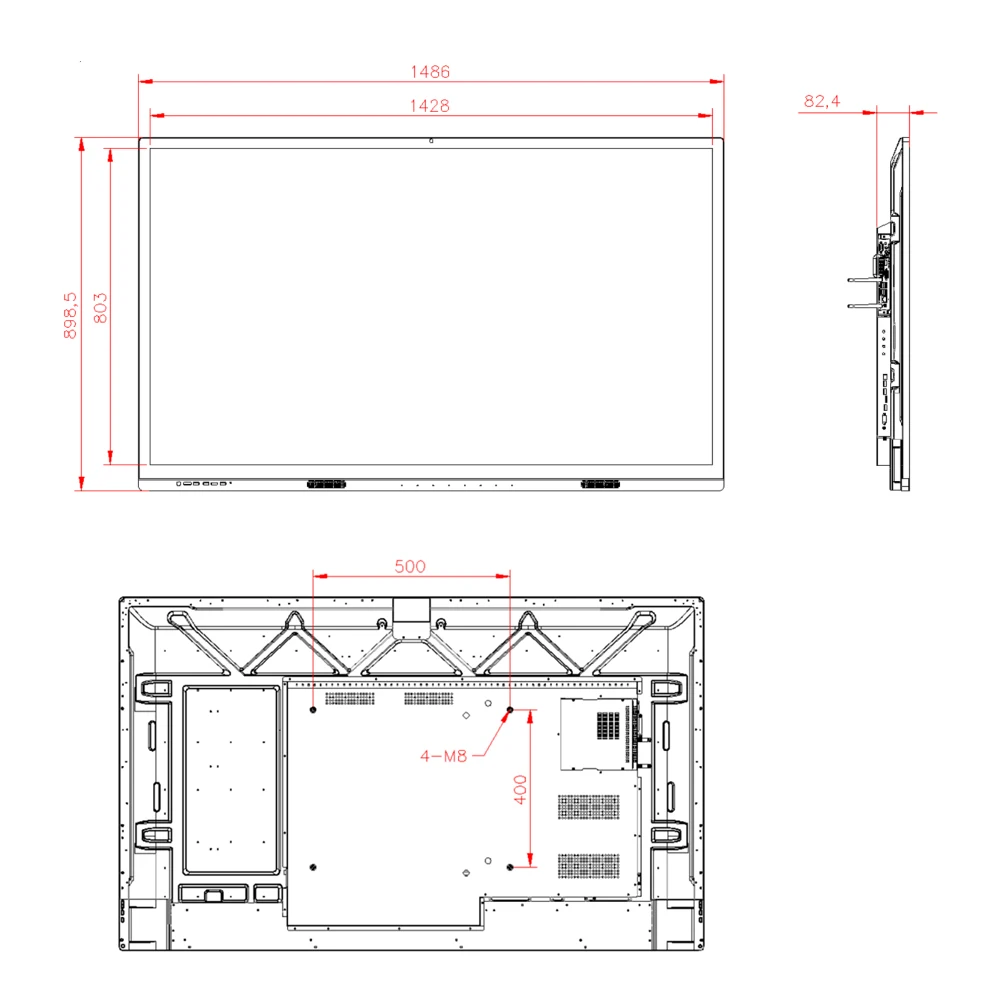

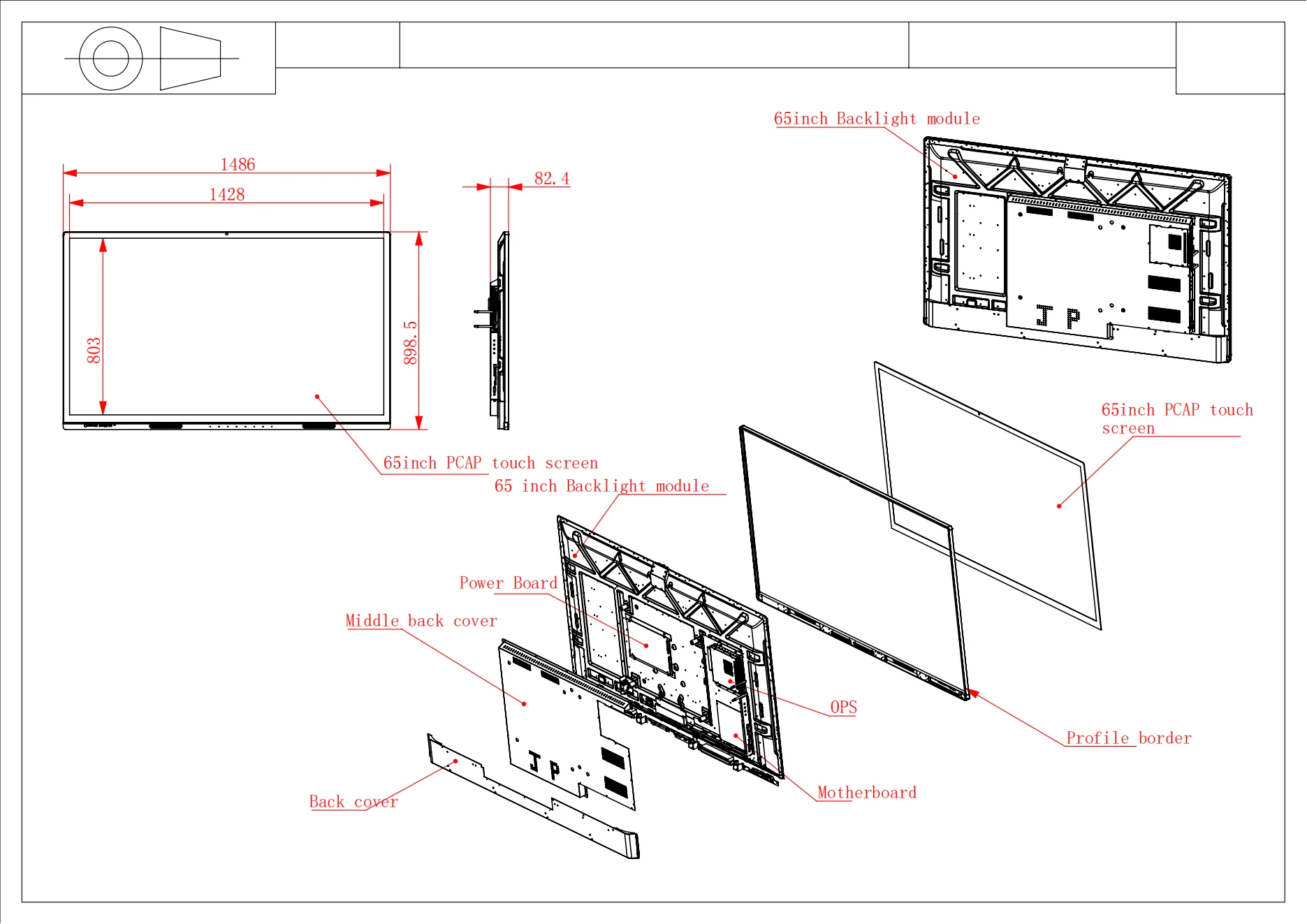

Drawing

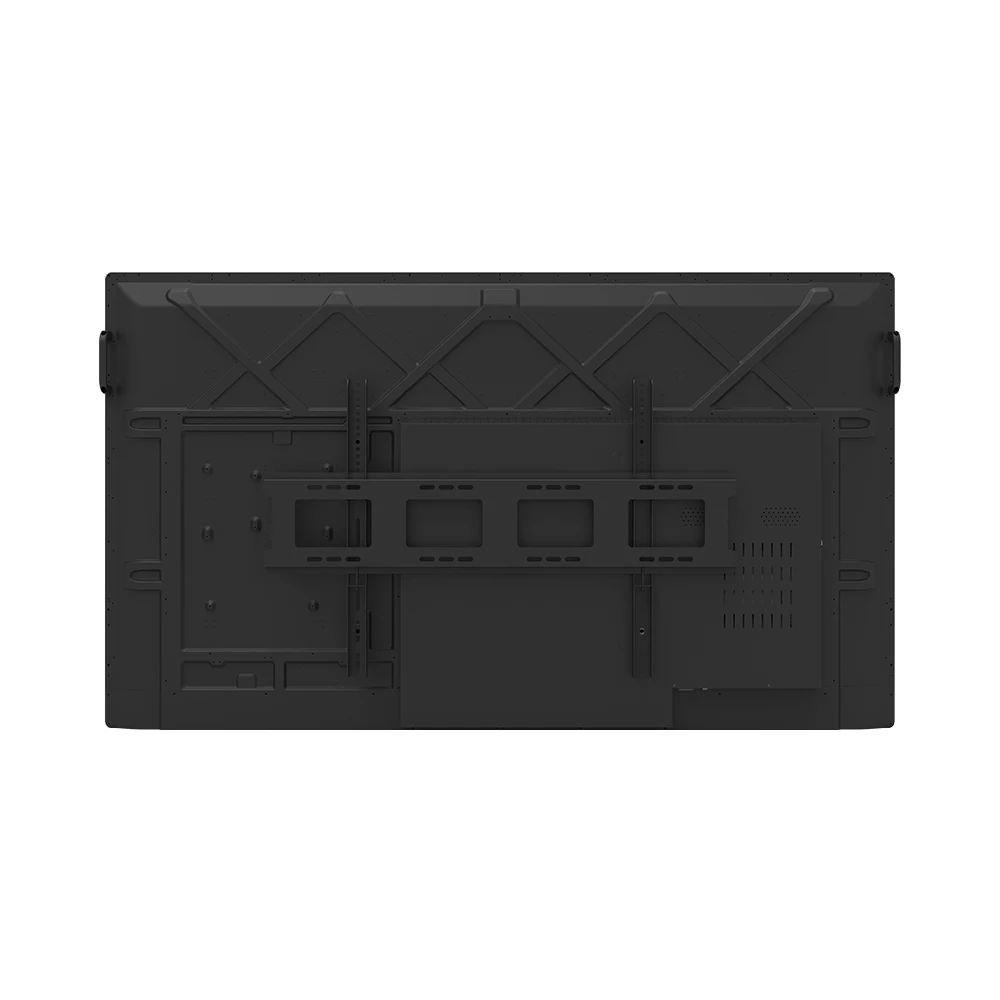

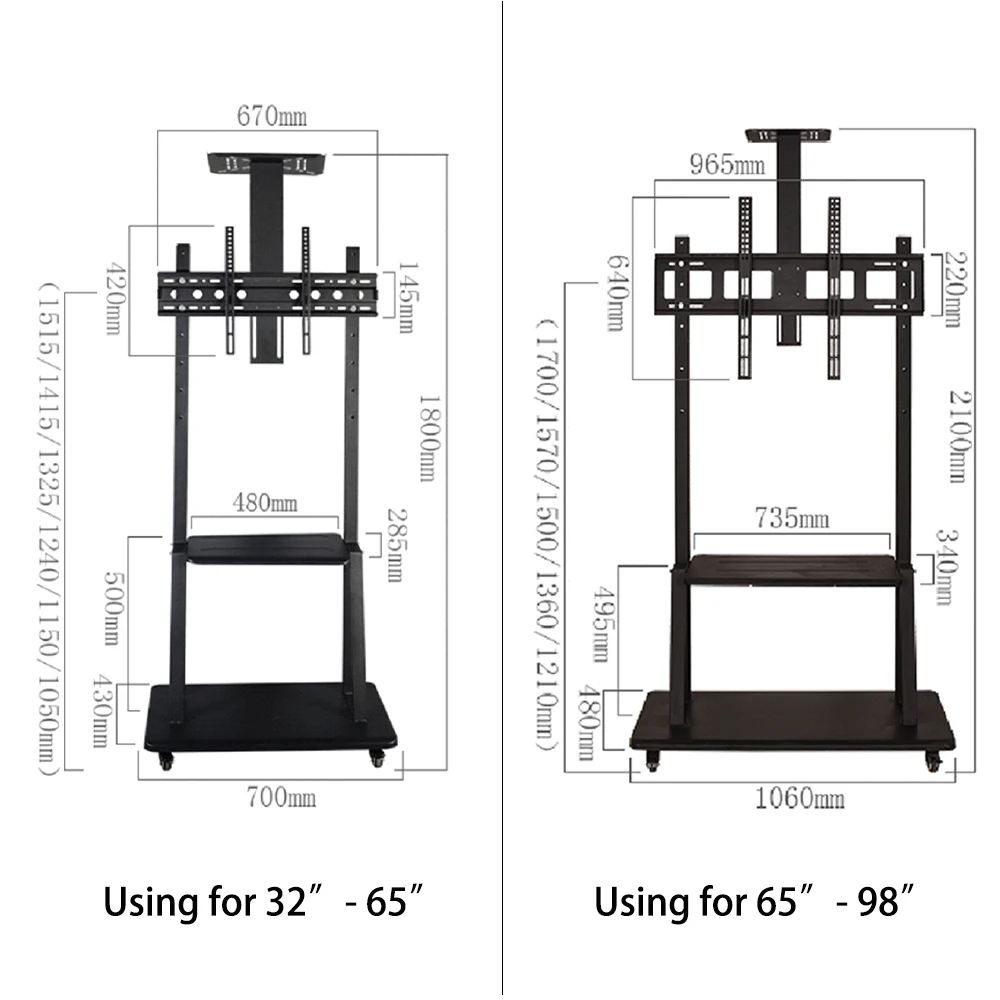

Standing Drawing
Packaging & Shipping

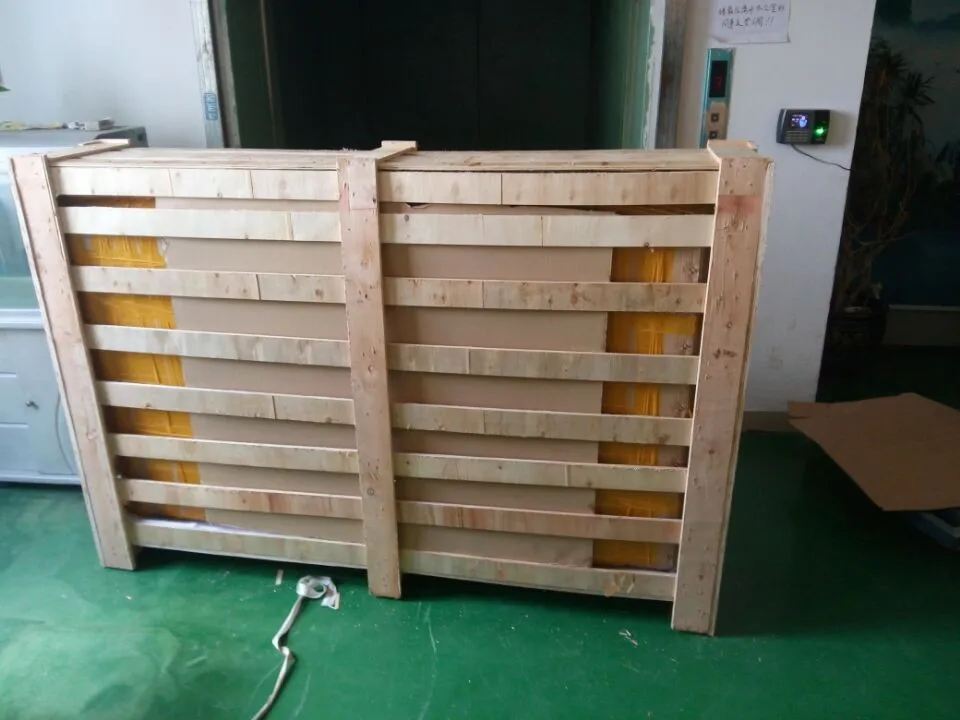

Honeycomb carton packaging or wooden box packaging
Application
Company Information
CJTOUCH is a leading touch product manufacturer and touch solution supplier. Founded in 2011. By putting the customer’s interest first, CJTOUCH consistently offers exceptional customer experience and satisfaction through its wide variety of touch technologies and solutions including All-in-One touch systems.
CJTOUCH makes available advanced touch technology at a sensible price for its clientele.The versatility of CJTOUCH’s touch products is evident from their presence in varying industries such as Gaming, Kiosks, POS, Banking, HMI, Healthcare and Public Transportation.
CJTOUCH heavily invests in R&D so as to produce touchscreens with broad range of sizes (7” to 86”), for wide range of applications and for long periods of utilization.
CJTOUCH’s Pcap/ SAW/ IR touchscreens have garnered loyal and prolonged support from international brands. CJTOUCH even offers up its touch products for ‘adoption’, empowering customers who have proudly branded CJTOUCH’s touch products as their own (OEM), thus, increasing their corporate stature and extending their market reach.
Products list :
- Pcap/ SAW/ IR Touchscreen Components
- Pcap/ SAW/ IR touch monitor
- Industrial Touch Computer All-in-One PC
- High Brightness TFT LCD/LED Panel kits
- High Brightness Touch Monitor
- Outdoor/Indoor Digital Advertising Display
- Customized Glass & Metal Frame
- Other OEM/ODM touch products
Contact
1. Q: Are you a manufacturer or trading company?
A:We are a manufacturer who has been specializing in producing LCD display for years.
2. Q: How does your factory do regarding quality control?

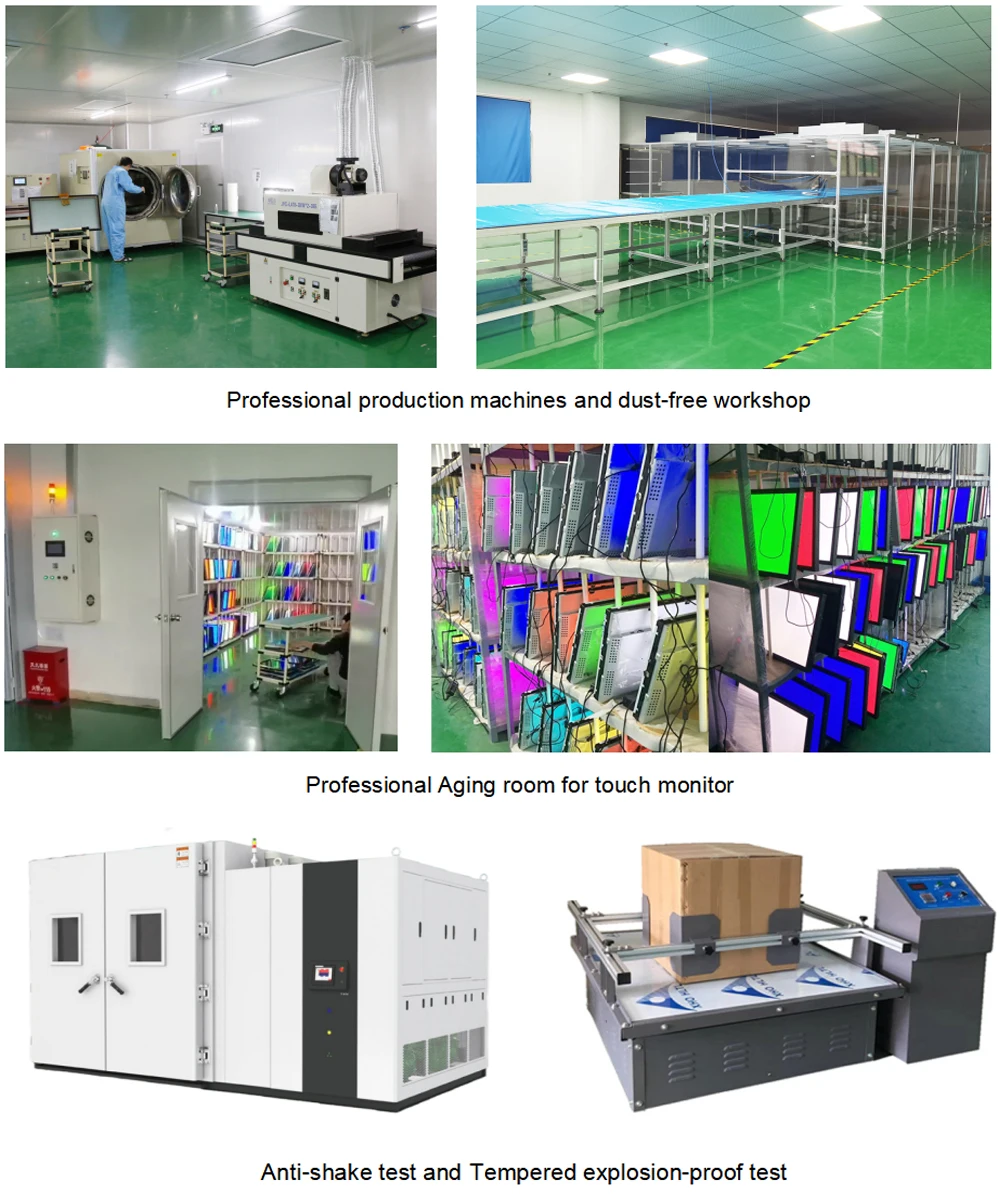

A:Quality is priority.CJTOUCH people always attach great importance to quality controlling from the very beginning to the very end.
