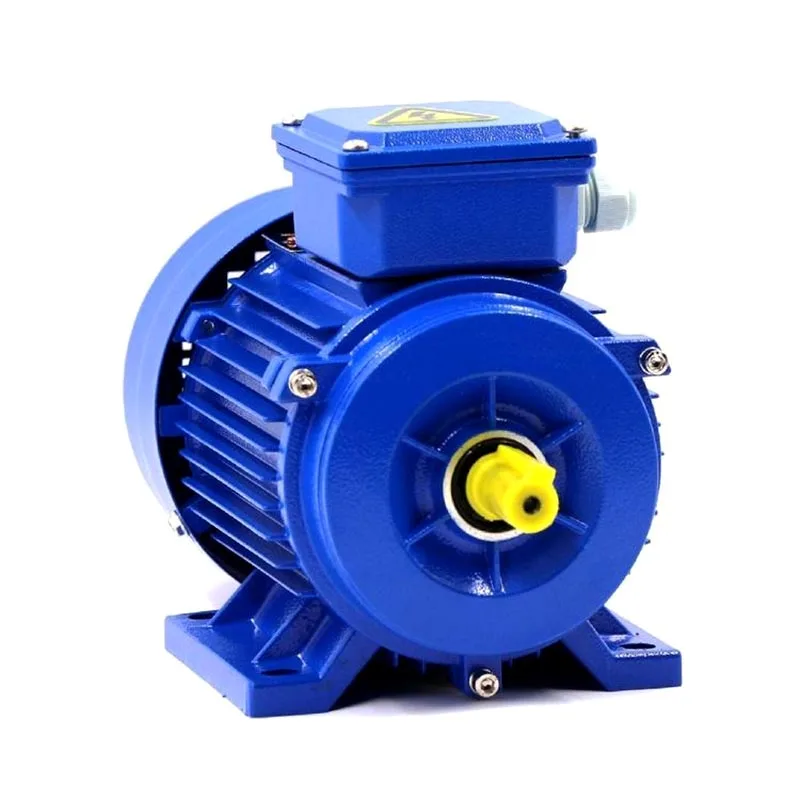

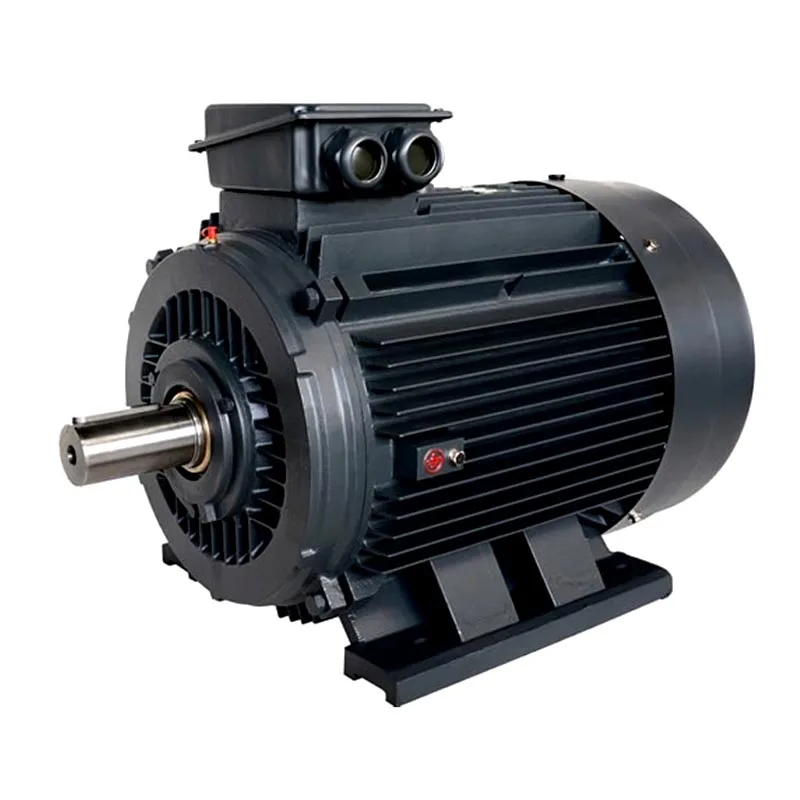

YE3 315L1 8 ye3 Three Phase Induction Motor High Efficiency Induction Motor
- Category: >>>
- Supplier: Shenyang Vishida Motor Co. Ltd.
Share on (1600836655769):
Product Overview
Description

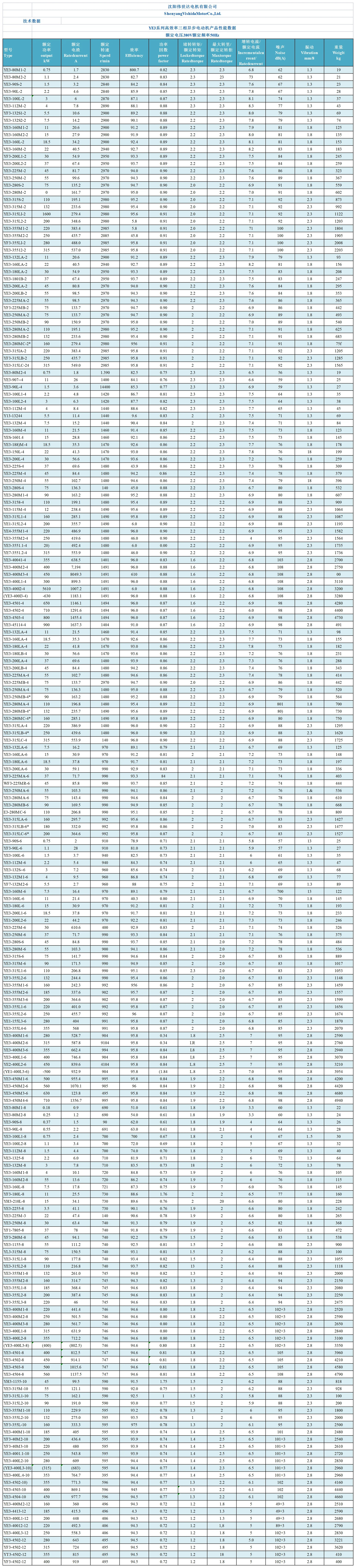

Product Paramenters
YEF3variable frequency adjustable speed three-phase asynchronous motor
YE2, YE3,YE4 series (IP55) increased power and high efficiency three-phase asynchronous motors are general-purpose three-phase asynchronous motors derived from YE2, YE3,YE4 series products. The efficiency index of the three-phase asynchronous motors with
increased power and high efficiency meets the efficiency levels of IE2, IE3 and IE4 of GB/T 32891.1-2016, and reaches the level 3, level 2 and level 1 of the GB 18613-2012 standard. The three-phase asynchronous motors with increased power and high efficiency with the same number of poles and the same power are more electric than the IEC standard. A smaller frame size provides greater value to equipment manufacturers and end users in terms of product volume and weight.
Power range | 0.12~315KW | ||||||
Centrehigh of frame | 63~355mm | ||||||
Rated voltage | 380V or order | ||||||
Products Description

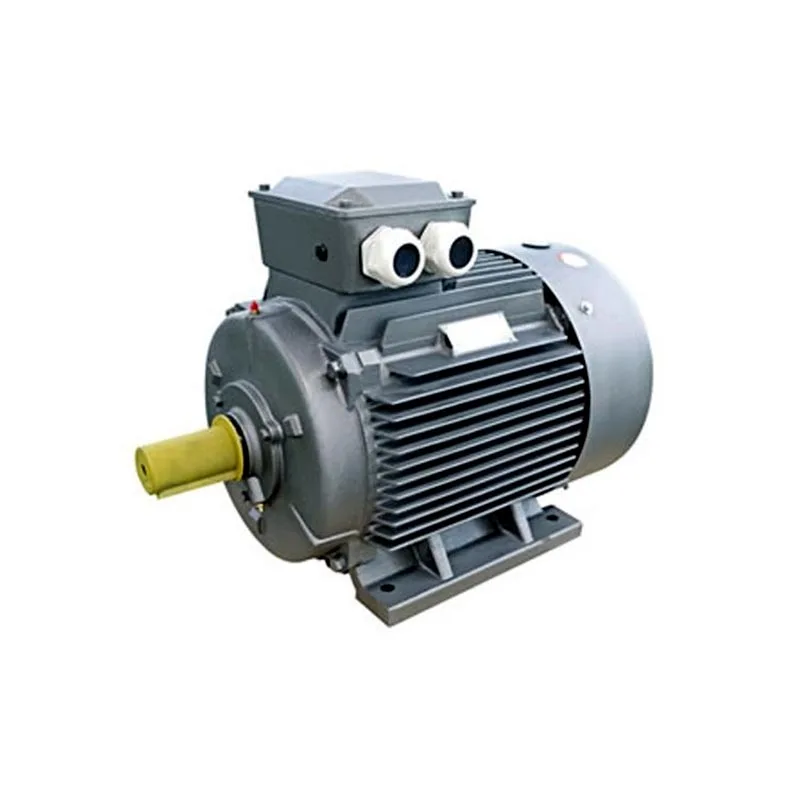

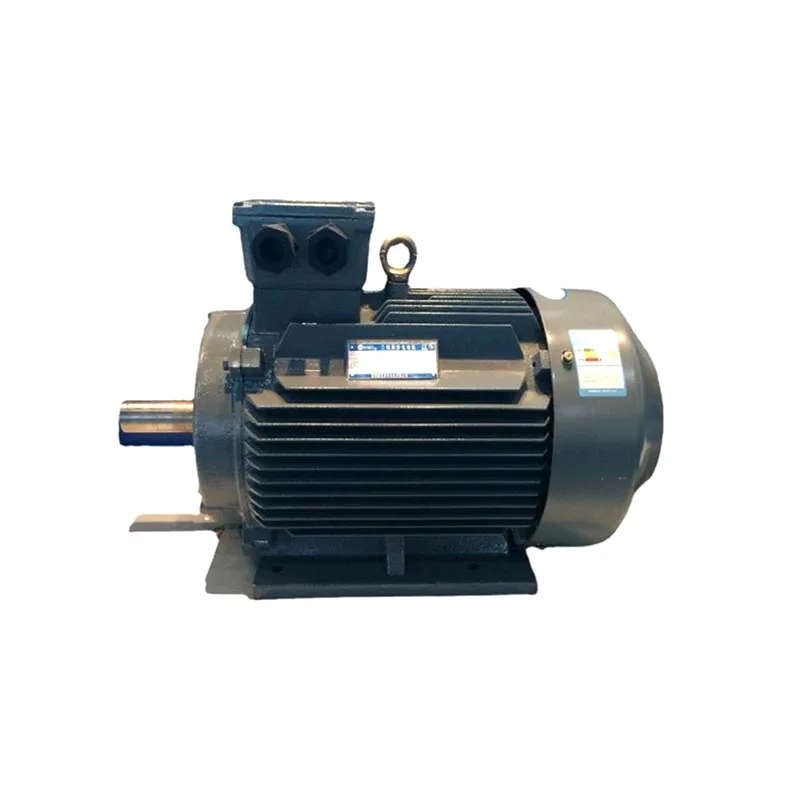

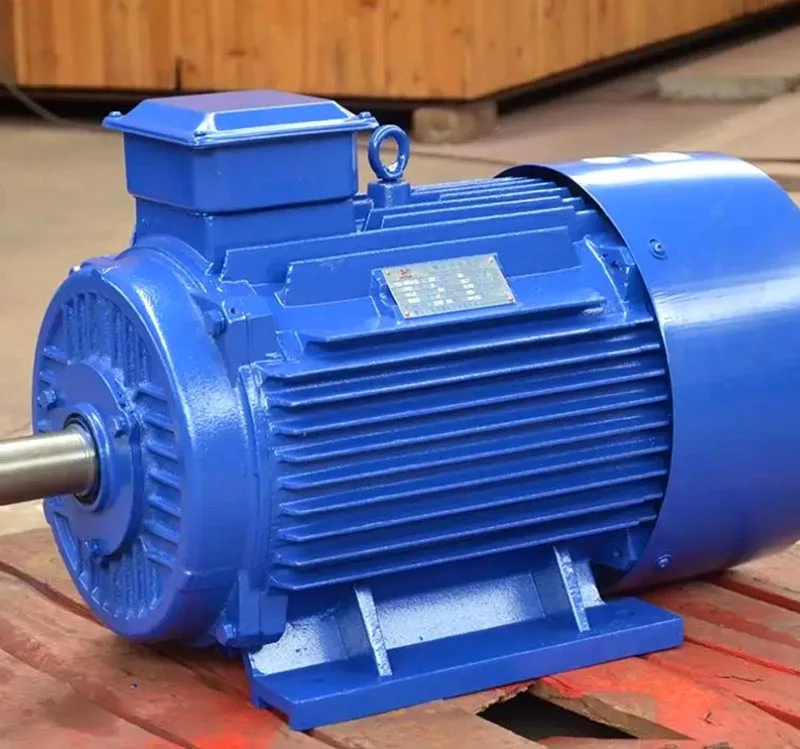

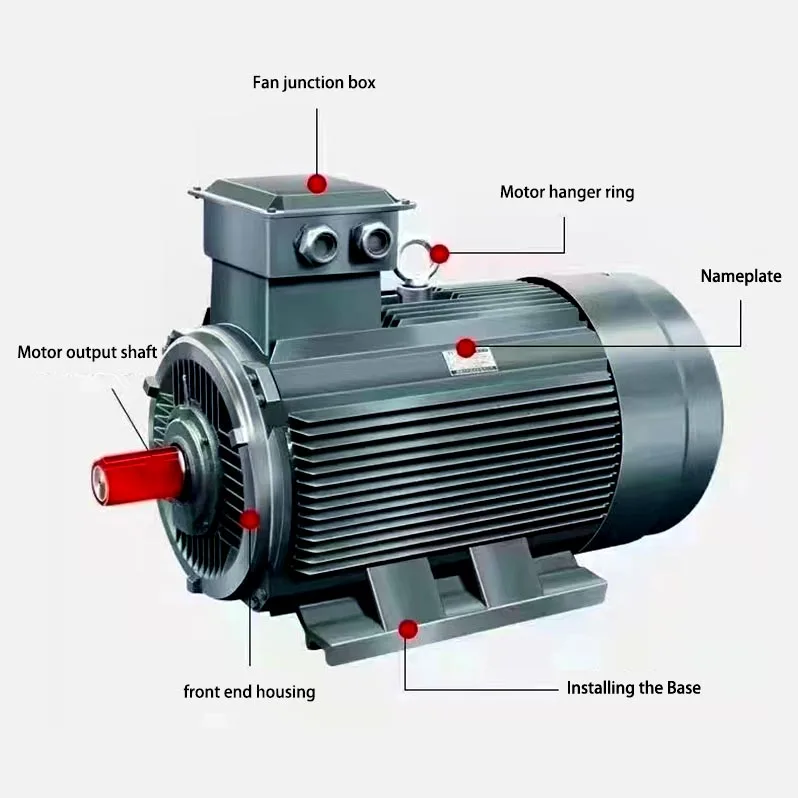

Details Images
YE2, YE3,YE4 series (IP55) increased power and high efficiency three-phase asynchronous motors
Product technical characteristics:
1. Rated voltage 380V, rated frequency 50Hz;
2, protection level IP55,F insulation, B temperature rise assessment, S1 working system;
3. Conditions of use; Ambient temperature -20℃ -40 ℃, altitude ≤1000 meters;
4. Cooling method IC411;
5. Y connection for 3KW and below motors, △ connection for 4kW and above motors.
Increased power and high efficiency three-phase asynchronous motor can be widely used in all kinds of general purpose mechanical equipment, such as fans, water pumps, compressors, metal cutting machine, etc., can improve the market competitiveness of supporting host products, while reducing the energy consumption of end users during operation.

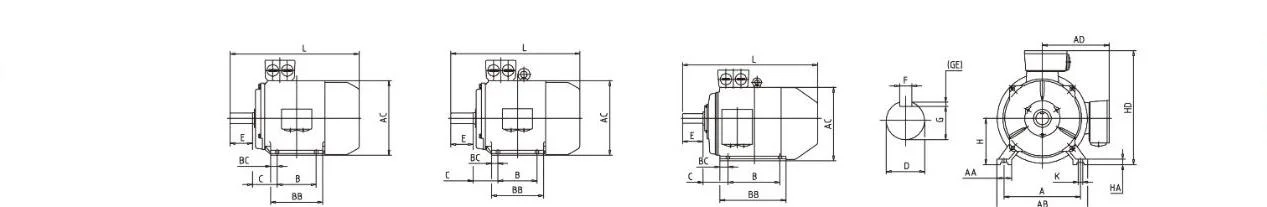

Note:The installation size of the power-increasing high-efficiency three-phase asynchronous motor is basically the same as that of the corresponding frame size YE3 motor. In order to ensure installation and use, technical confirmation is required when ordering.
1. Rated voltage 380V, rated frequency 50Hz;
2, protection level IP55,F insulation, B temperature rise assessment, S1 working system;
3. Conditions of use; Ambient temperature -20℃ -40 ℃, altitude ≤1000 meters;
4. Cooling method IC411;
5. Y connection for 3KW and below motors, △ connection for 4kW and above motors.
Increased power and high efficiency three-phase asynchronous motor can be widely used in all kinds of general purpose mechanical equipment, such as fans, water pumps, compressors, metal cutting machine, etc., can improve the market competitiveness of supporting host products, while reducing the energy consumption of end users during operation.
Note:The installation size of the power-increasing high-efficiency three-phase asynchronous motor is basically the same as that of the corresponding frame size YE3 motor. In order to ensure installation and use, technical confirmation is required when ordering.

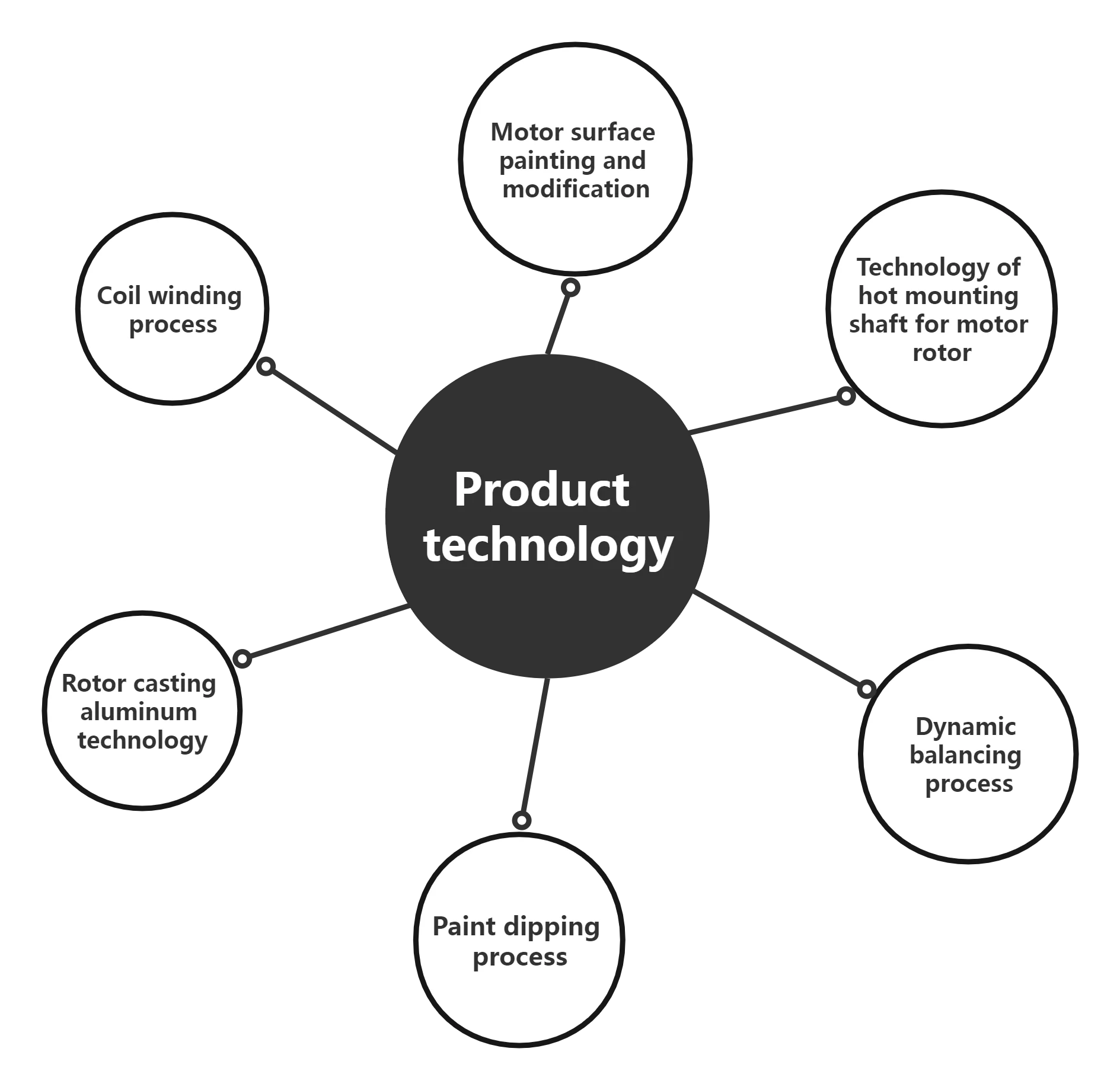

Process Flow
Why Choose Us

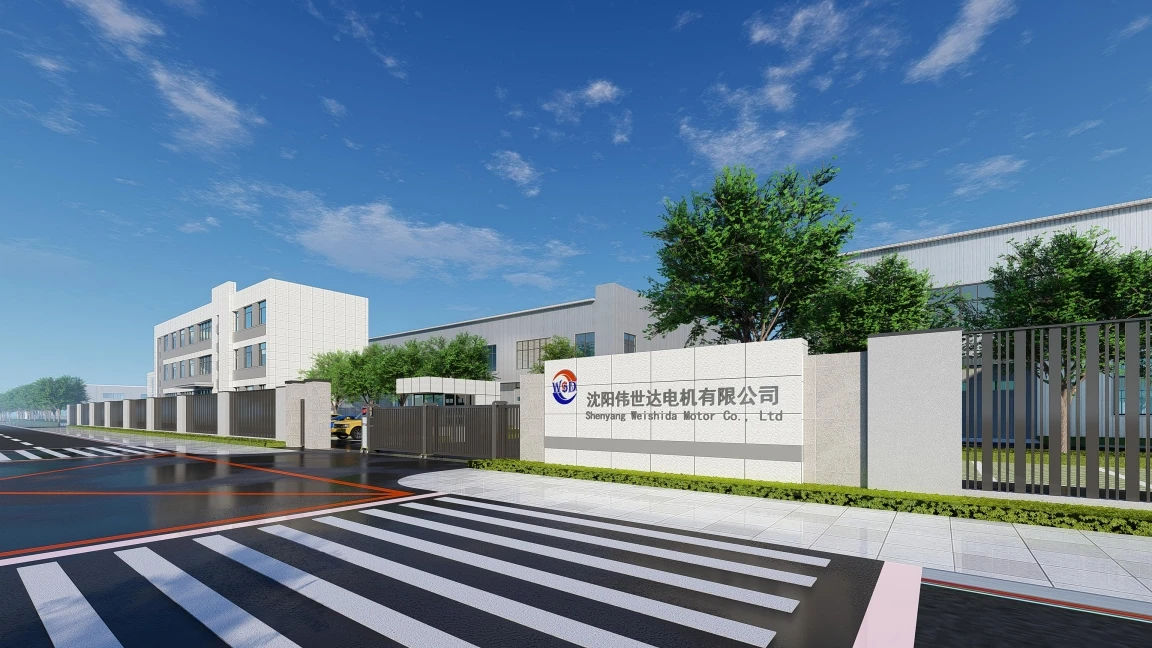

Our company
Shenyang Vishida Motor Co., Ltd. covers an area of 15000 square meters, with a total construction area of 9500 square meters, a modern factory area of 8500 square meters, and a comprehensive office building of 2000 square meters. The annual output value is about 50 million yuan. Main products of the company: High-efficiency energy-saving motor YE2 YE3YE4 series, explosion-proof motor YBX3 YBX4 series, frequency conversion motor YVP2 YVF2 YPT series, high-voltage series motor YKK YXKK more than 100 varieties more than 500 specifications, It can be used for fan pump, mine machine tool, chemical industry, pharmaceutical construction, coal mine, oil and other industries.
