Product Overview
Description
Product Description

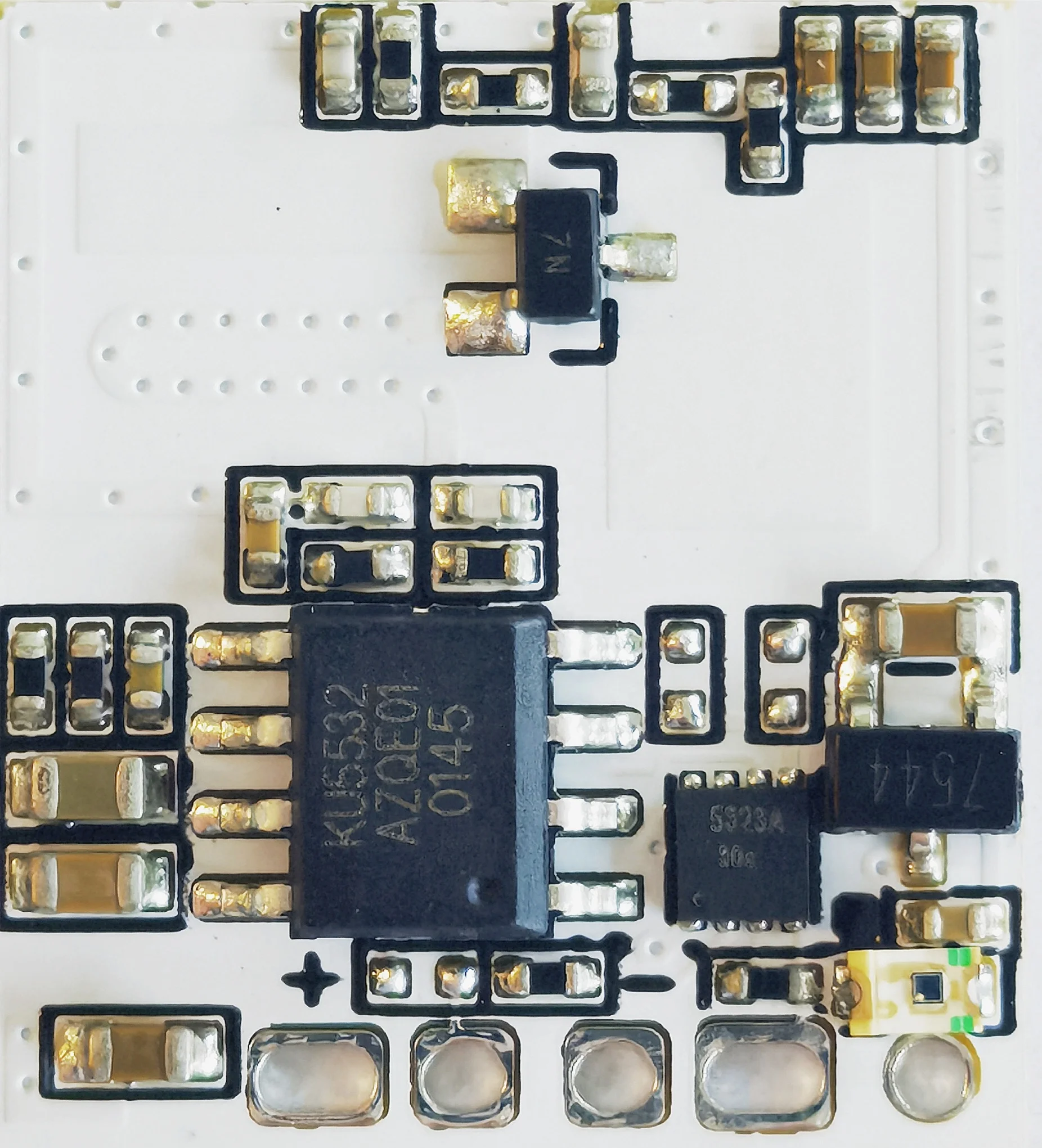

The K32S07 Microwave Motion Sensor Module is adopted the planar antennas to transmit and receive the signals. The moving objects are targets like people and vehicles. After inducting the targets, the K32S07 Microwave Motion Sensor Module would output the voltage signals and turn into active sensors. The induction angle is 180 *360 degree on the front of ball.
Where to use
The K32S07 Microwave Motion Sensor Module is widely used in LED illumination, power switch, garage, corridor, road, automatic door control system and other places.
Advantages
1. No impact on temperature, humidity, airflow, dust, noise, light, dark and other factors because of its stronger anti-interference capacity.
2. Wide coverage without blind zone because of its field pattern emission.
3. The sensitive of the product indoor is better than outdoor's because the microwave is easier to reflect on the transmission
4. The signals can go through glass, door, wall and other obstacles.
5. Professional design of the microwave with flat antenna, low-power , ROSH and high product consistency.
Advantages
1. No impact on temperature, humidity, airflow, dust, noise, light, dark and other factors because of its stronger anti-interference capacity.
2. Wide coverage without blind zone because of its field pattern emission.
3. The sensitive of the product indoor is better than outdoor's because the microwave is easier to reflect on the transmission
4. The signals can go through glass, door, wall and other obstacles.
5. Professional design of the microwave with flat antenna, low-power , ROSH and high product consistency.

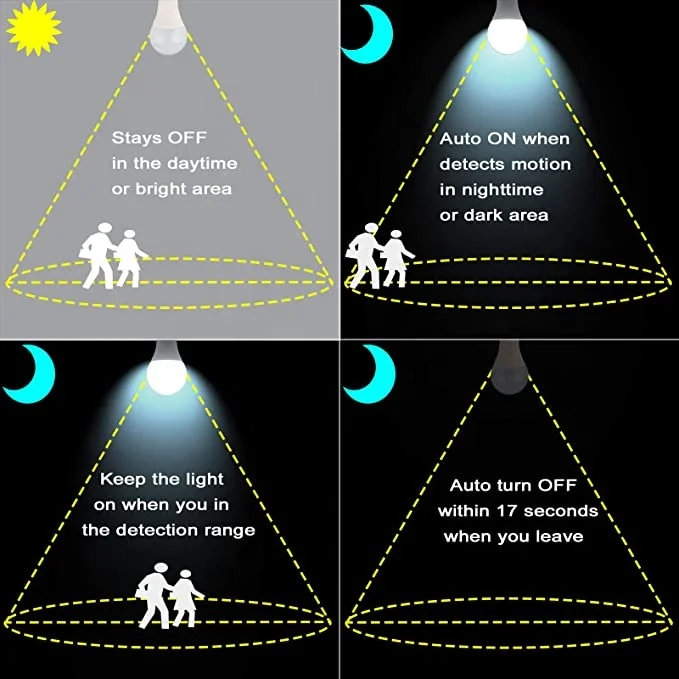

1. In daylight and in bright light .
When someone passes by, the microwave motion sensor module won't work.
2. When the light is low at night, as long as one passes by, microwave motion sensor module won't work either.
3. When the light is dark at night, when someone passes by, microwave motion sensor module works automaticcally.
4. When people leave here, microwave motion sensor module will automatically delay to stop working.

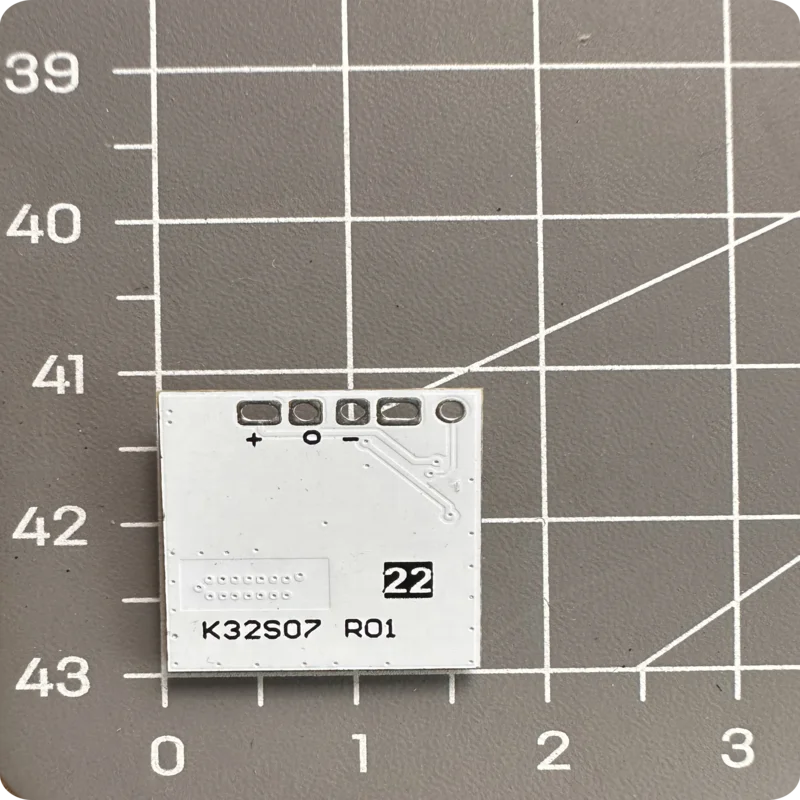

Pin Description | ||||
Pin No. | PIN Name | Description | ||
1 | VIN（v） | Module power supply | ||
2 | OUT （o） | Module output control pin, the signal is high and low level | ||
3 | GND (-) | Ground | ||
4 | CDS (+) | Photocell Input | ||
Specification
Model No. | K32S07 |

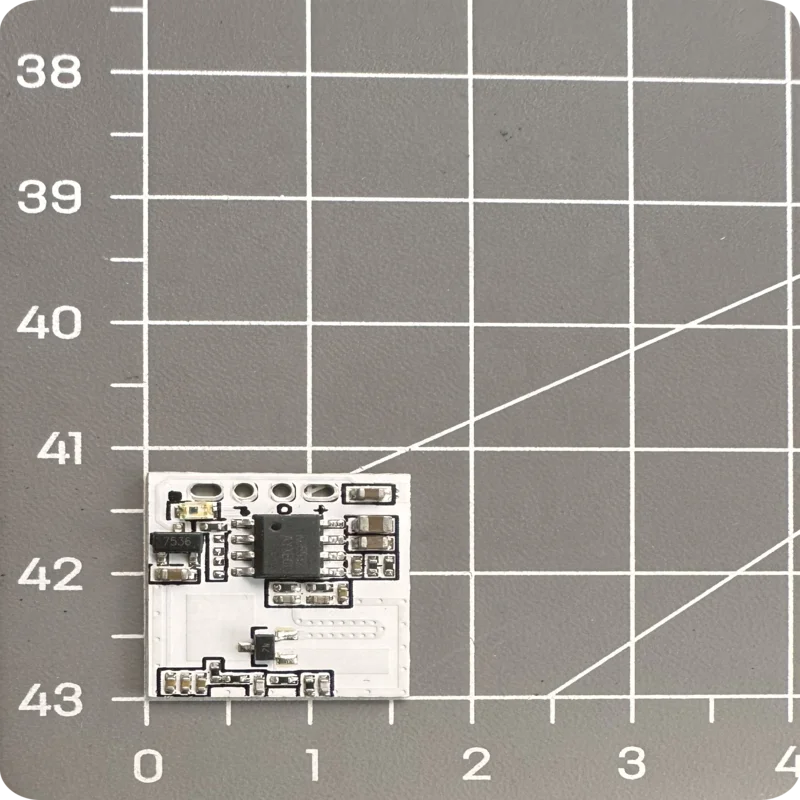

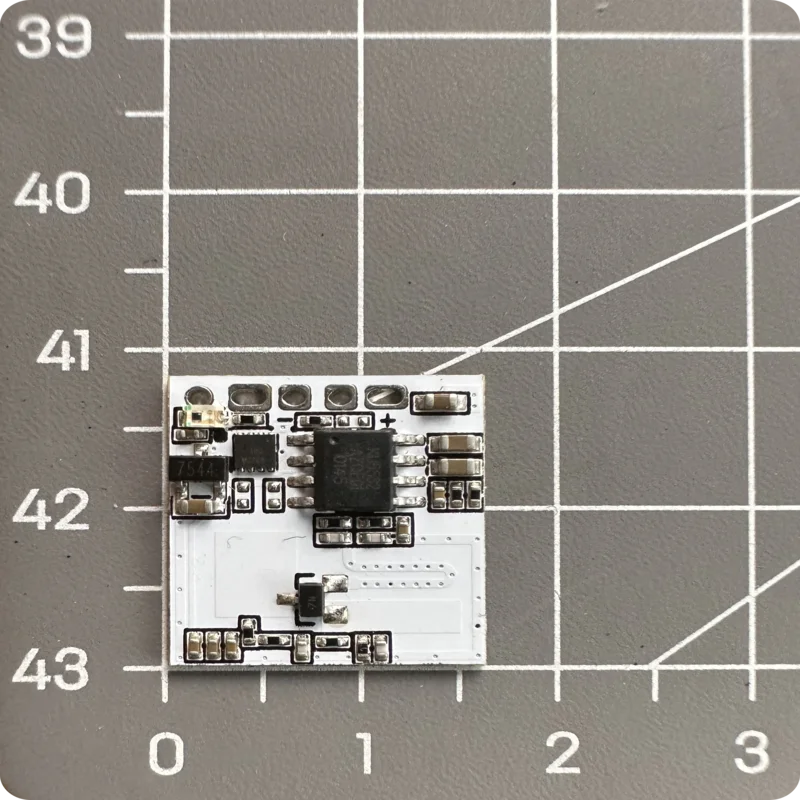

Size | 16*18mm |
Operation Voltage | 5~12V DC |
Operation Current | 3.3mA |
Frequency Range | 4.2-4.6GHz |
4Detection Area(Radius) | 4m @3m height |
Drive Capability | 2mA |
Output High Level | 4.4V |
Output Low Level | 0V |
Dealy time | 30±3s, can be customized. |
Photocell Threshold | 20 Lux |
Operation Temperature | -20~85℃ |
Interface | 2.0/2.54mm |
Applications | ||||||||
LED bulbs, ceiling panel lights, down lights,Tube lights, etc. | ||||||||
Wall switches, automatic door, body induction lamp, etc. | ||||||||
Expand the induction function of ordinary lamps and sockets. | ||||||||
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Packaging Details : Blister Box + Electrostatic Bag
40pcs per blister box;
1,000pcs per electrostatic bag;
5,000pcs per carton box.
