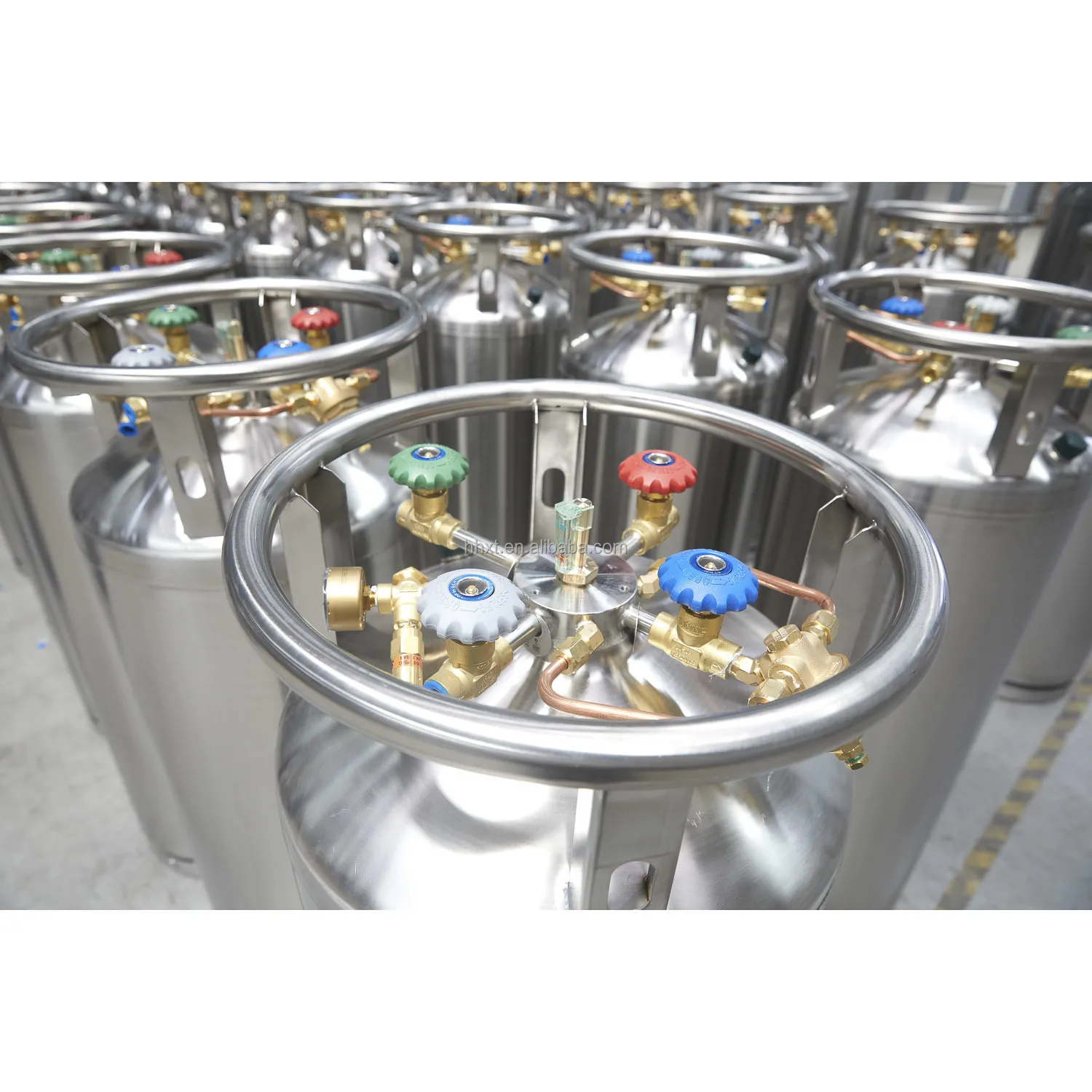

LNG LN2 LO2 Use Cryogenic Liquid Cylinder 175L/ 195L/210L
- Category: >>>
- Supplier: Huanghua Baihengda Xiangtong Machinery Co. Ltd.
Share on (1600836699841):
Product Overview
Description
Specification

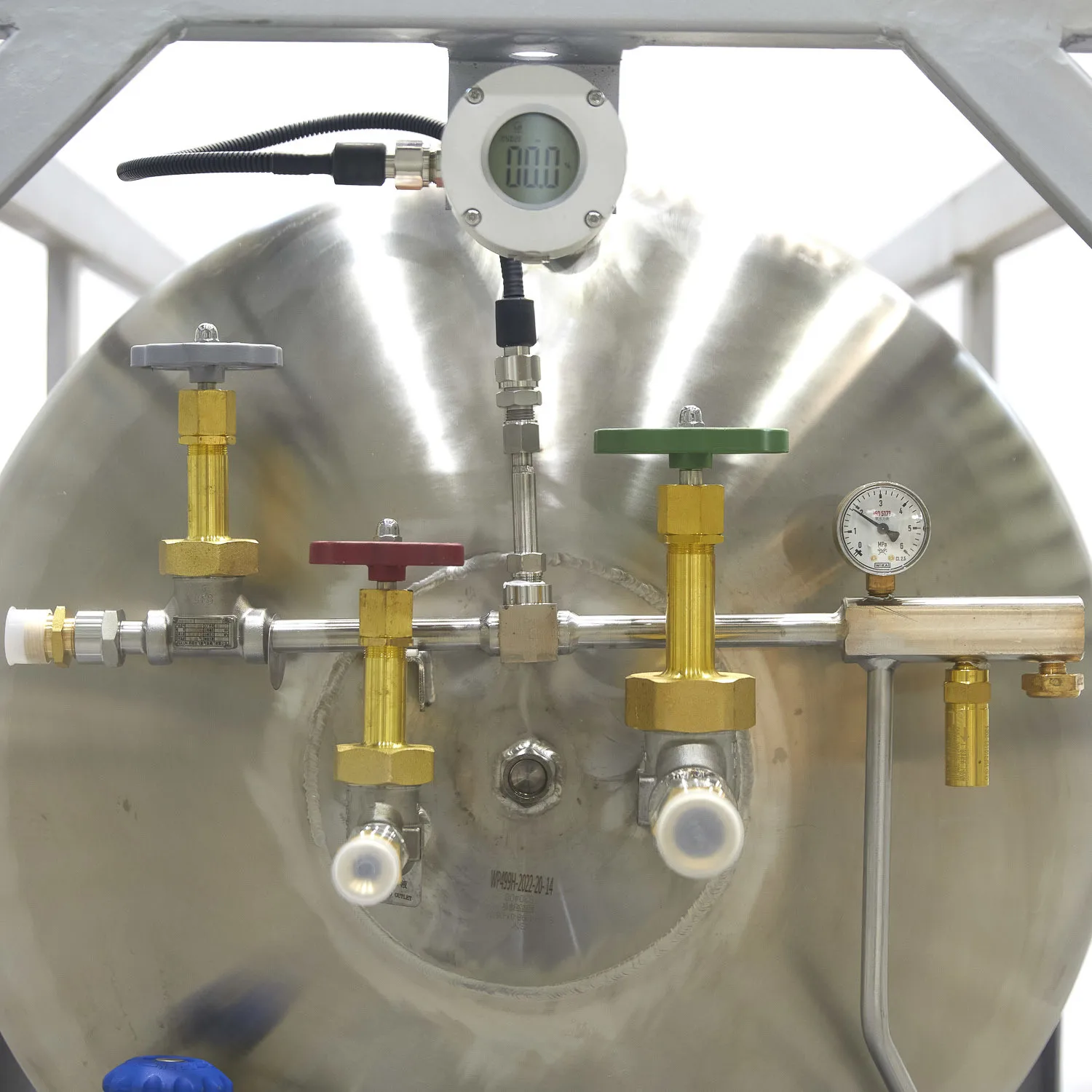

Horizontal Type of Cryogenic Liquid Cylinder
Model | DPW650-499-1.59 | DPW650-499-2.5 | ||
Geometric volume(L) | 499 | 499 | ||
Effective Volume(L) | 449 | 449 | ||
Size( L*W*H)(mm) | 2155*750*1035 | 2155*750*1035 | ||
Working pressure( Mpa) | 1.59 | 2.5 | ||
Set pressure of main safety valve( Mpa) | 1.72 | 2.75 | ||
Set pressure of bursting discset/Set pressure of assisant safety valve( Mpa) | 2.41 | 3.84 | ||
Evaporation rate( Liquid nitrogen) | 1.70% | 1.70% | ||
Empty weight( kg) | 360 | 425 | ||
Maximum filling weight(kg) | LO2(KG) | 511 | 511 | |
LN2(KG) | 364 | 364 | ||
LAR(KG) | 629 | 629 | ||
LNG(KG) | 191 | ~ | ||
LCO2(KG) | ~ | 457 | ||
Level gauge | Capacitance | Capacitance | ||
Surface treatment | Polishing | Polishing | ||
The base style | Frame Style | Frame Style | ||

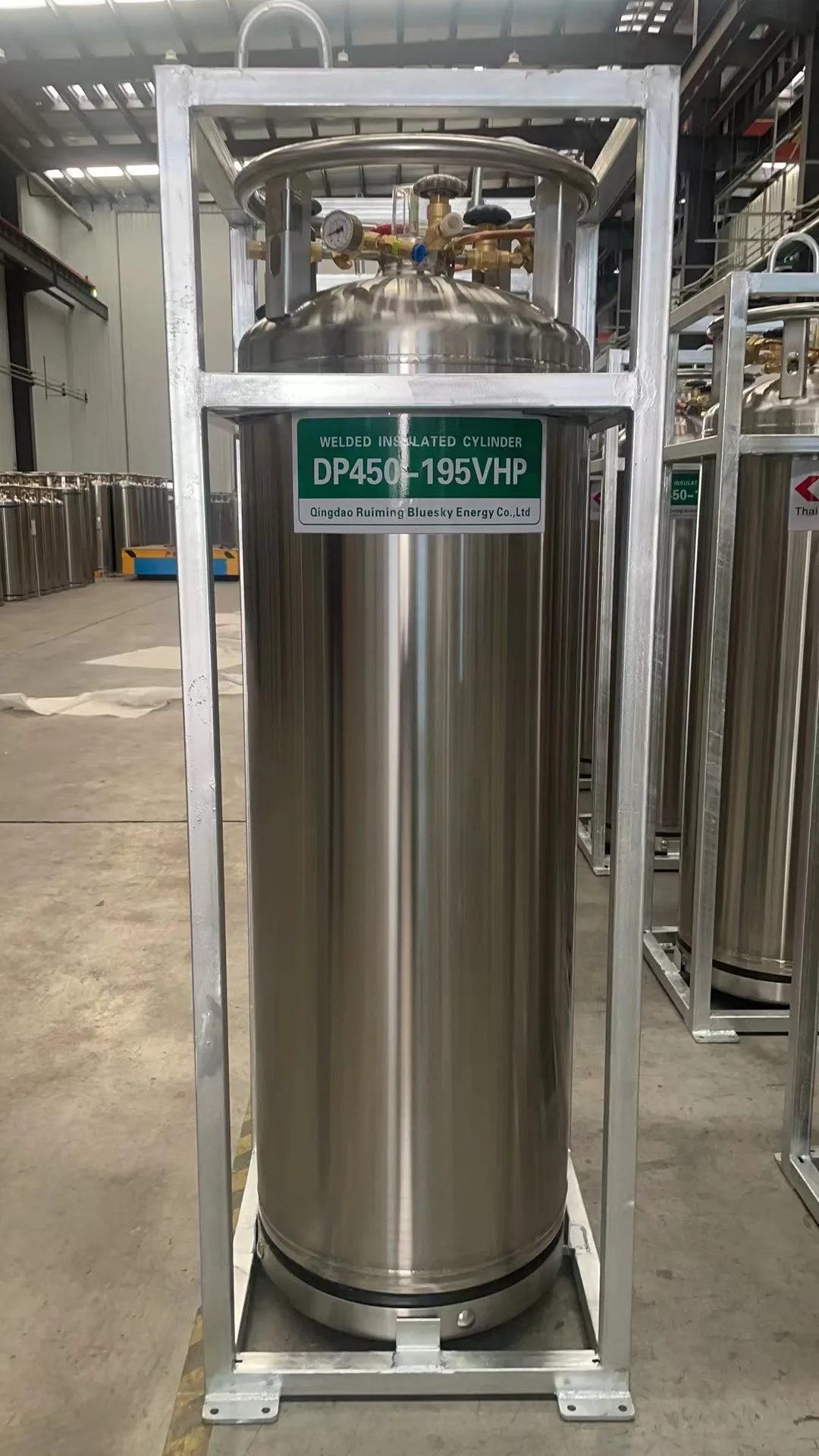

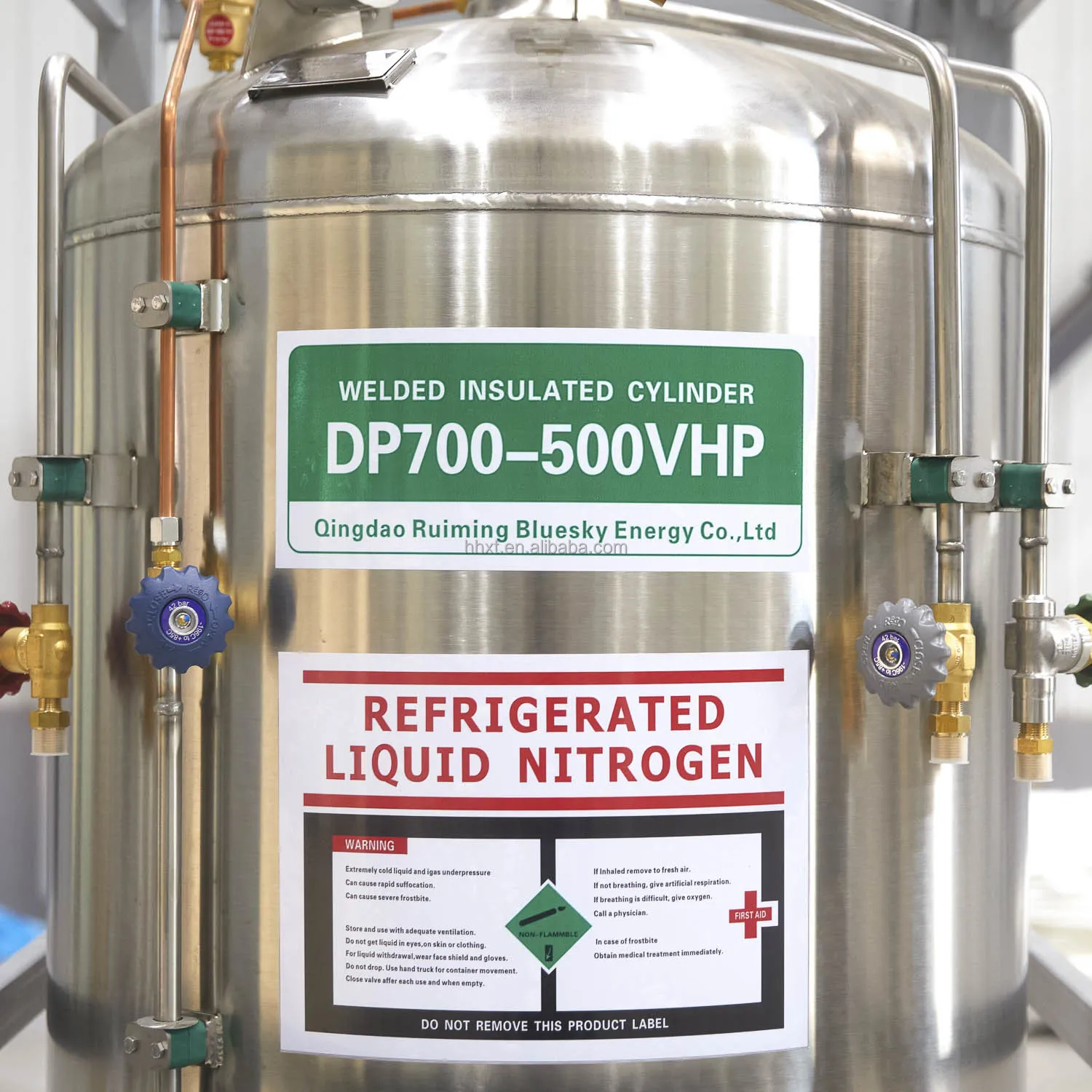

Vertical Type of Cryogenic Liquid Cylinder
Model | DPL450-175-1.37 | DPL450-175-2.3 | DPL450-195-1.37 | DPL450-195-2.3 | DPL450-210-1.37 | DPL450-210-2.3 | DPL450-210-2.88 | ||
Geometric volume(L) | 175 | 175 | 195 | 195 | 210 | 210 | 210 | ||
Effective Volume(L) | 163 | 163 | 181 | 181 | 195 | 195 | 195 | ||
Size(D*H)(mm) | 508*1498 | 508*1498 | 508*1624 | 508*1624 | 508*1718 | 508*1718 | 508*1718 | ||
Working pressure( Mpa) | 1.37 | 2.3 | 1.37 | 2.3 | 1.37 | 2.3 | 2.88 | ||
Set pressure of main safety valve( Mpa) | 1.59 | 2.41 | 1.59 | 2.41 | 1.59 | 2.41 | 3.1 | ||
Set pressure of bursting discset/Set pressure of assisant safety valve( Mpa) | 2.5/2.41 | 3.84 | 2.5/2.41 | 3.84 | 2.5/2.41 | 3.84 | 4.9 | ||
Evaporation rate( Liquid nitrogen) | ≤2.1% | ≤2.1% | ≤2.1% | ≤2.1% | ≤2.1% | ≤2.1% | ≤2.1% | ||
Empty weight( kg) | 115 | 138 | 121 | 145 | 128 | 153 | 173 | ||
Maximum filling weight(kg) | LO2(KG) | 186 | 186 | 207 | 207 | 223 | 223 | 223 | |
LN2(KG) | 131 | 131 | 146 | 146 | 157 | 157 | 157 | ||
LAR(KG) | 227 | 227 | 253 | 253 | 272 | 272 | 272 | ||
LNG(KG) | 69 | ~ | 77 | ~ | 82 | ~ | ~ | ||
LCO2(KG) | ~ | 188 | ~ | 209 | ~ | 225 | 225 | ||
Level gauge | float type | float type | float type | float type | float type | float type | float type | ||
Surface treatment | Polishing | Polishing | Polishing | Polishing | Polishing | Polishing | Polishing | ||
The base style | Rubber base | Rubber base | Rubber base | Rubber base | Rubber base | Rubber base | Rubber base | ||
Product Description
The cryogenic cylinders mainly used for the storage & transport & using of liquid argon/oxygen/nitrogen/carbon dioxide/LNG etc.
* Vaporizer installed inside can supply 10m3/h gas continuously
* Adopt the international standard connectors, all valves are imported brands.
* We can customize according to the customers.
* Damping ring design to make sure the transportation safely
* Are widely used in the industries of Chemical /machinery /shipbuilding/ hospital /electronic /medical /material /energy
/research/fish-heat preservation, etc.
* Vaporizer installed inside can supply 10m3/h gas continuously
* Adopt the international standard connectors, all valves are imported brands.
* We can customize according to the customers.
* Damping ring design to make sure the transportation safely
* Are widely used in the industries of Chemical /machinery /shipbuilding/ hospital /electronic /medical /material /energy
/research/fish-heat preservation, etc.
Why Choose Us
* Ideal for liquid nitrogen, oxygen, argon, CO2 or nitrous oxide
* Different sizes, pressure, and features to meet your needs
* Stainless steel bottle construction
* Thick, dent-resistant outer shell
* Durable inner-vessel support system

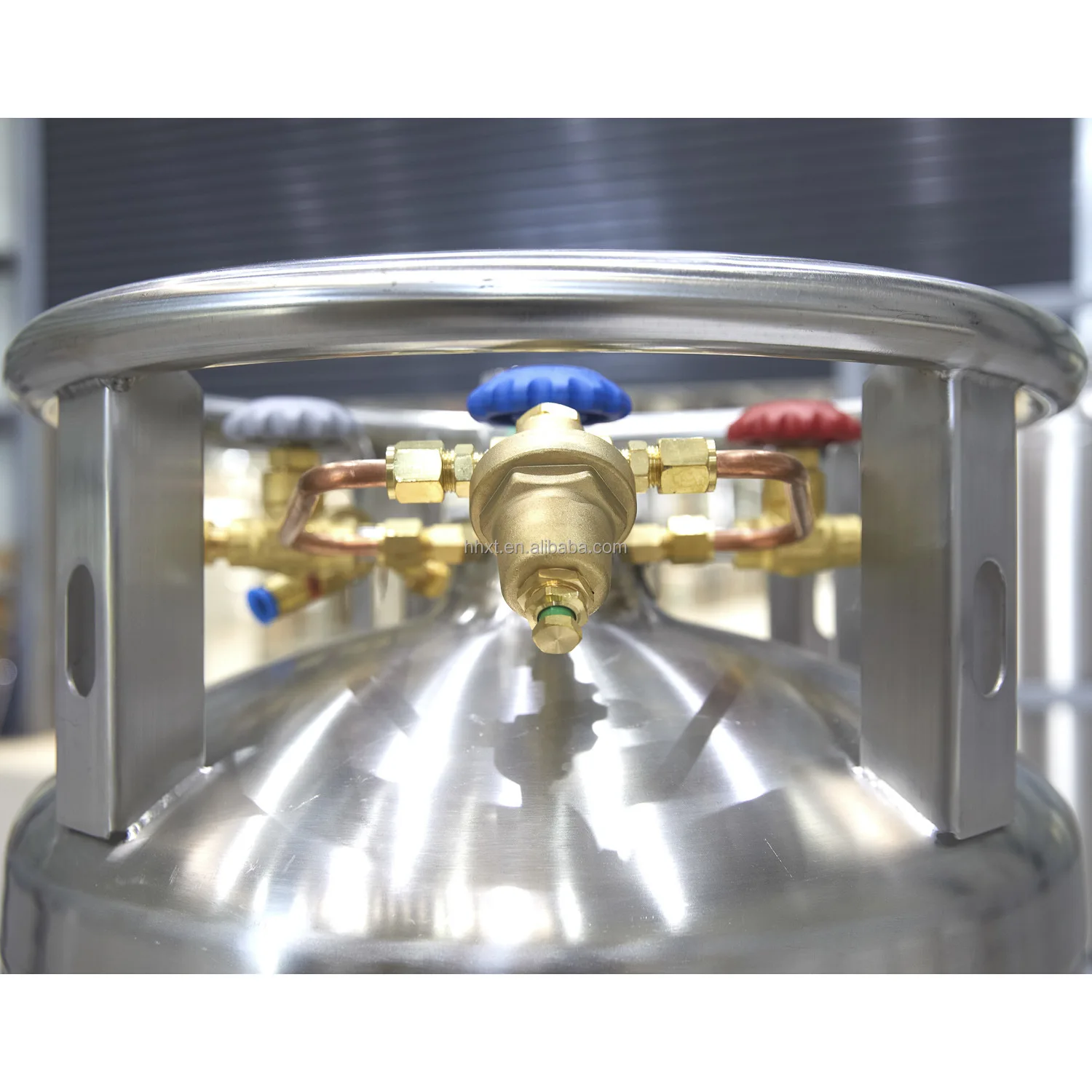

* Heavy-duty footring and large diameter handling ring with four supports
1. We strive to offer the best all round value for money;
2. Products chosen to match the high quality demanded by our customers;
3. We keep our promises and if we cannot we will let you know;
4. Products and advice that you can trust;
5. Our experience and technical expertise often results in customer referrals;
6. Range comprehensive, we meet most needs;
7. We care how our customers view us and feel about us today decides our success of failure tomorrow.
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Certifications
Company Profile
Huanghua Baihengda Xiangtong Co., Ltd are recognised by our customers as offering unparalleled technical knowledge & support resulting in the ability to provide cost effective and competitive solutions. We strive for our customers to enjoy working with us due to our friendly, reliable and professional attitude in all that we do.
Main products:
1. Gas products: Helium gas, hydrogen gas, Carbon oxide( CO2), ect;
2. All kind of high pressure gas cylinder and welded gas cylinders;
Oxygen Cylinder( GB 5099/ ISO 9809-3/ DOT/ EN standard gas cylinders)
3. Acetylene Gas cylinder;
4. Dewar Flask: 175L 195L 495L capacity liquid tanks.
1. Gas products: Helium gas, hydrogen gas, Carbon oxide( CO2), ect;
2. All kind of high pressure gas cylinder and welded gas cylinders;
Oxygen Cylinder( GB 5099/ ISO 9809-3/ DOT/ EN standard gas cylinders)
3. Acetylene Gas cylinder;
4. Dewar Flask: 175L 195L 495L capacity liquid tanks.
Mission:
To deliver top quality products, technical expertise and service in order to achieve total customer satisfaction by providing a best value supply package.
FAQ
1. What’s the warranty for the Storage Tank?
Our warranty is one year after shipment. Within one year, we will send broken spare parts at our expense upon request if it is proved to be our production defect. In fact, we rarely receive any spare parts request. If the tanks are maintained properly, they can be used for 15-20 years.
Our warranty is one year after shipment. Within one year, we will send broken spare parts at our expense upon request if it is proved to be our production defect. In fact, we rarely receive any spare parts request. If the tanks are maintained properly, they can be used for 15-20 years.
2. What is your production standard? Can you manufacture your products under ASME standard?
Our products are designed, manufactured and tested as per reference standards of GB150, safety technology supervision
regulations of pressure vessels and some other reference Chinese standards. If you ask for ASME stamp, we are able to manufacture your products under ASME standard.
Our products are designed, manufactured and tested as per reference standards of GB150, safety technology supervision
regulations of pressure vessels and some other reference Chinese standards. If you ask for ASME stamp, we are able to manufacture your products under ASME standard.
3. What's your Term of Payment?
LC; T/T; Pay Pal; Western Union.
4. How long is the delivery time?
Generally, 30 working days when in the off season; 30-90 working days in the peak season, if you are urgent, please let us know, we will do the best.
