TKG PT2.10 performance sound system transformer class d 2 channels power amplifier 1000w
- Category: >>>
- Supplier: Guangzhou Bochuang Audio Equipment Co. Ltd.Guangzhou Ltd.
Share on (1600836732029):
Product Overview
Description

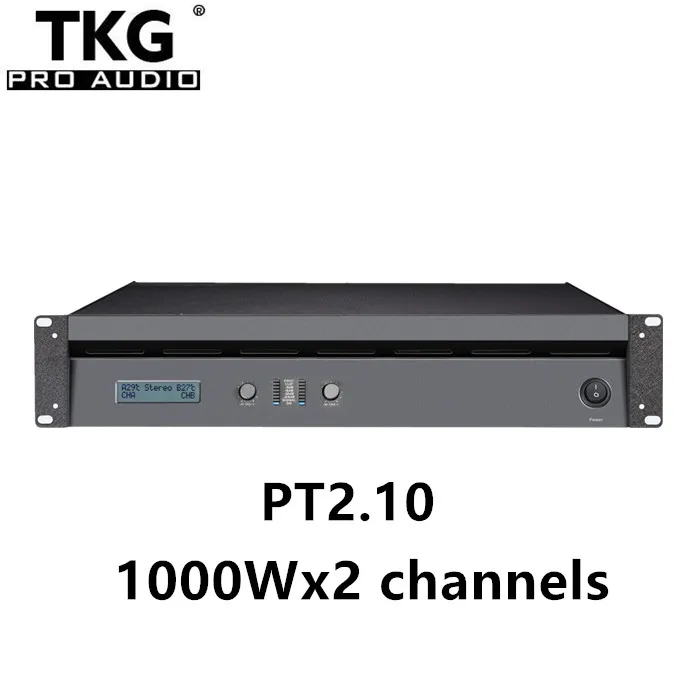

TKG PT2.10 performance sound system transformer class d 2 channels power amplifier 1000w
| Model number: | PT2.1 |
| channels: | 2 |
| Type: | class D |
8 Ω Stereo RMS: 1000W*2
4 Ω Stereo RMS: 1450W*2
Frequency response :20HZ-20KHZ(±0.1db)
Sensitivity :0.775v/26/32db
THD: <0.02%@8Ω1KHZ
Phase response: ≤±1.5°
Conversion rate:≥50V/μs
Crosstalk attenuation:≥75dB
SNR :≥108dB
Damping coefficient:≥800
Intermodulation distortion: ≤0.02%
Output circuit type : CLASS-D
Height: 2U
Produce size: 482×88×475mm
4 Ω Stereo RMS: 1450W*2
Frequency response :20HZ-20KHZ(±0.1db)
Sensitivity :0.775v/26/32db
THD: <0.02%@8Ω1KHZ
Phase response: ≤±1.5°
Conversion rate:≥50V/μs
Crosstalk attenuation:≥75dB
SNR :≥108dB
Damping coefficient:≥800
Intermodulation distortion: ≤0.02%
Output circuit type : CLASS-D
Height: 2U
Produce size: 482×88×475mm
Net weight: 15 kg
More designs, please contact us !
With progressive imported test instrument, professional technology research and development team, provide OEM & ODM project to all the clients from all over the world based on the management principle " Quality & Service & Innovation".
Packaging details:
1. First layer packaging: Produce own package box.(different designs have different packaging)
2. Second layer packaging: a outer kraft box.
