Fire Extinguisher Making System Automatic Cylinder Making Machine for Dry Powder CO2 Fire Extinguisher Cylinder
- Category: >>>
- Supplier: Wuxi Hansheng Pressure Vessel Industrial Co. Ltd.
Share on (1600836774237):
Product Overview
Description
Product Features
Product Details
I. Technical specification of fire extinguisher
1. Cylinder material: 34CrMo4 (35CrMo), 37Mn, 30CrMo, 45#, 20#
2. Specifications for cylinder
2.1. Diameter range: φ76~180mm
2.2. Length range:330~1100mm (The max length of the tube is 1250mm)
Fire extinguisher welding production line is composed of the following parts:
2. Specifications for cylinder
2.1. Diameter range: φ76~180mm
2.2. Length range:330~1100mm (The max length of the tube is 1250mm)
Fire extinguisher welding production line is composed of the following parts:

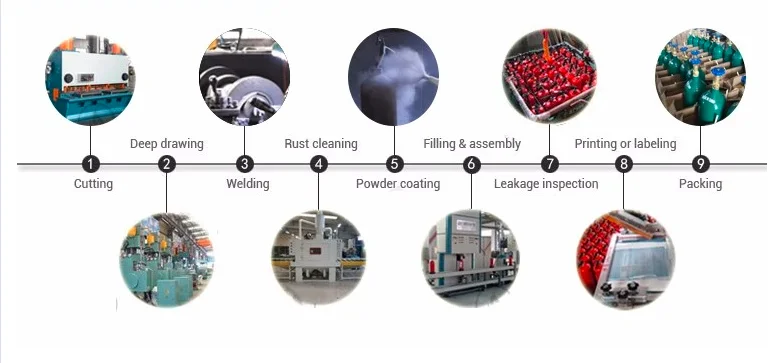

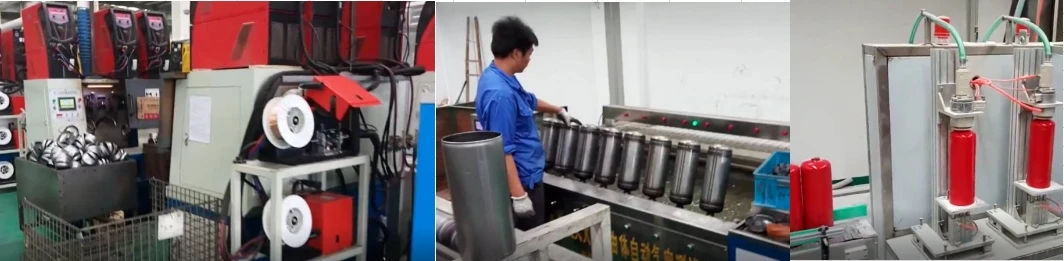

Decoiler ,Stragihting , Blanking→cover production line→sheet cutting→Sheet rolling→Seam welding &Double-head joggling →Hydro testing→Powder coating→Filling

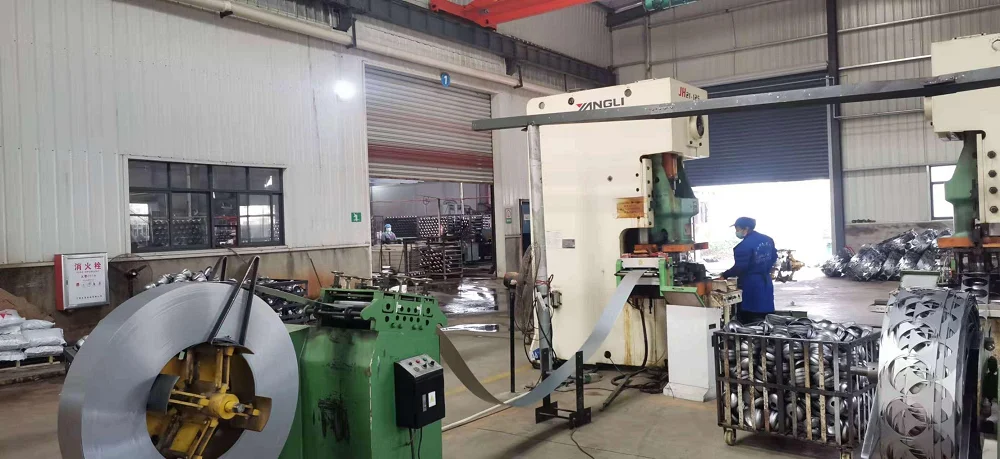

Decoiler ,Stragihting , Blanking machine

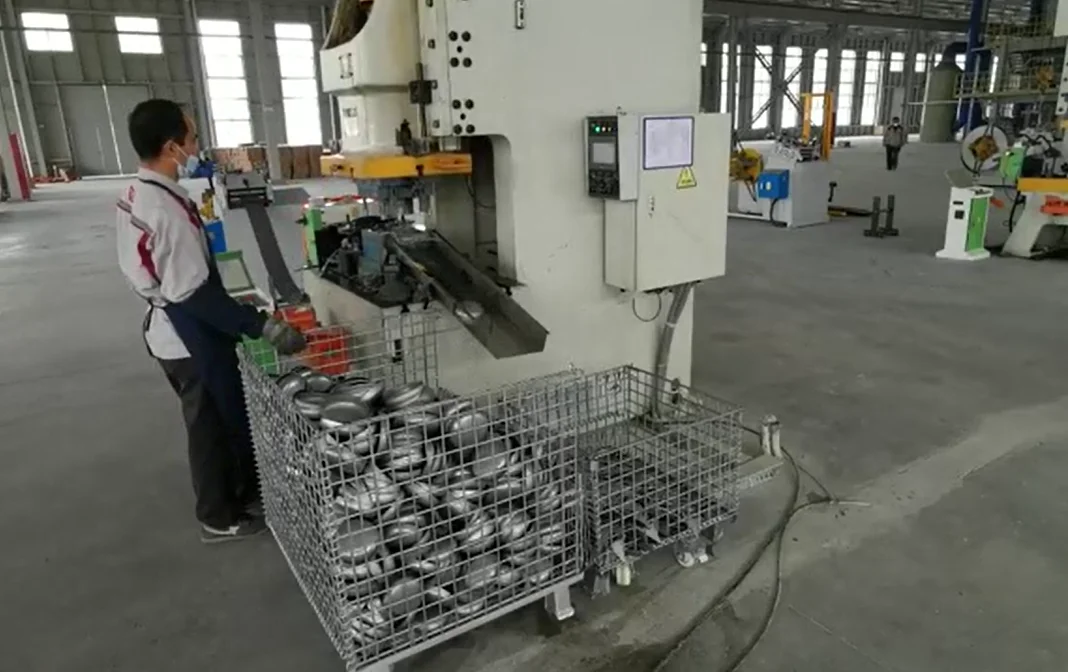

Automatic punching machine

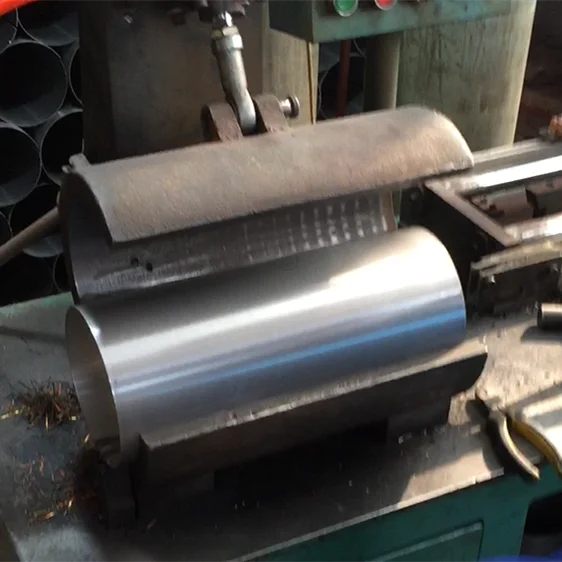

Up/bottom cover trimming machine (edge cutting machine )
NO | Item | Basic paremeter(mm) |
1 | Max diameter | Φ200 |
2 | Min diameter | Φ90 |
3 | Max workpiece length | 650 |
4 | Rated input voltage | AC380V Three phase |
5 | Frequency | 50HZ |
6 | Rated input capacity | 5KW |
Shearing machine
Hydraulic two-roller rolling machine

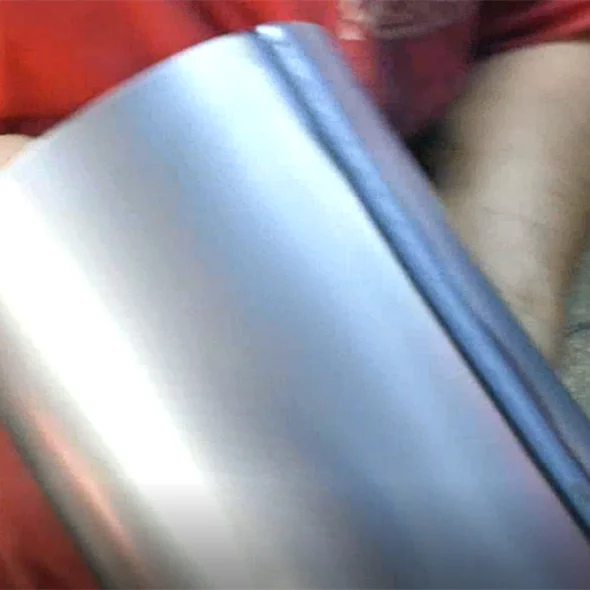

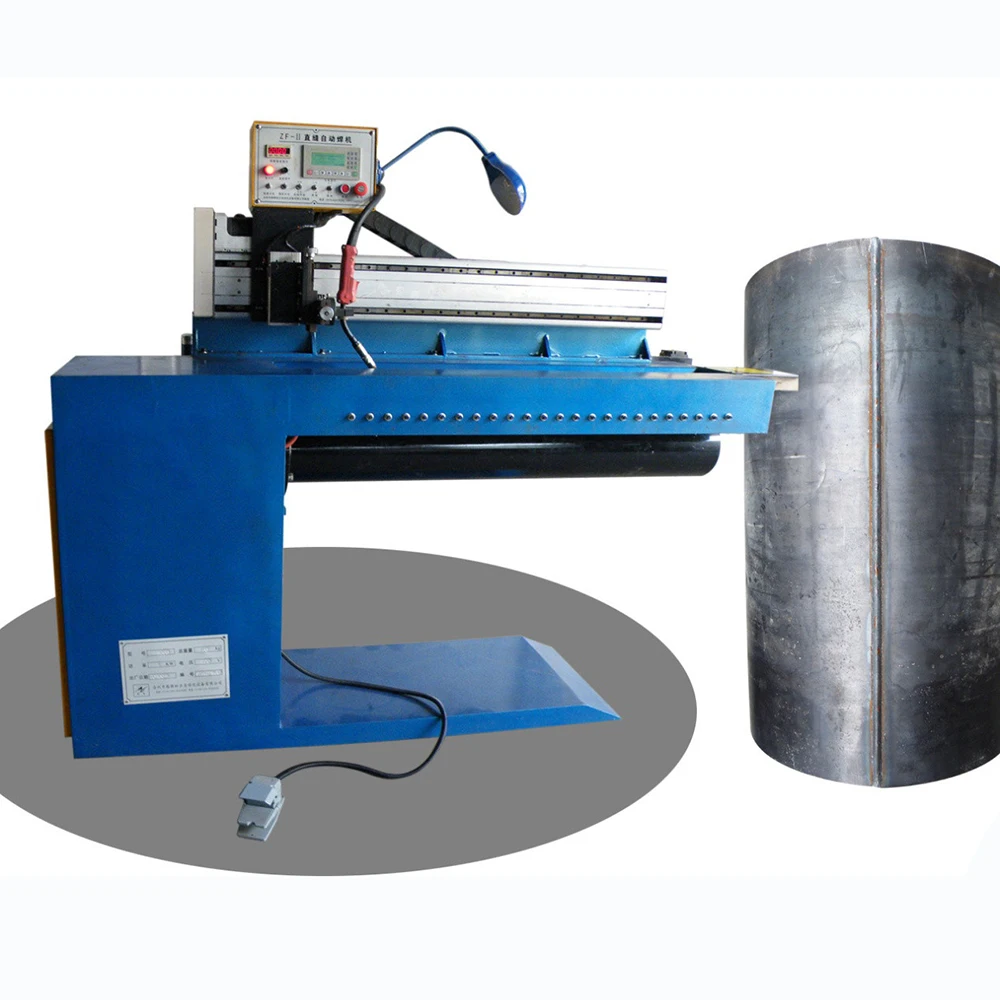

Cylinder body Linear (Seam)Welding Machine
No | Item | Main parameter(mm) |
1 | Max necking diameter | Φ200 |
2 | Min necking diameter | Φ90 |
2 | Max length | 550 |
4 | Rated input voltage | AC380V three phase |
5 | Frequency | 50HZ |
6 | Rated Input Capacity | 5KW |

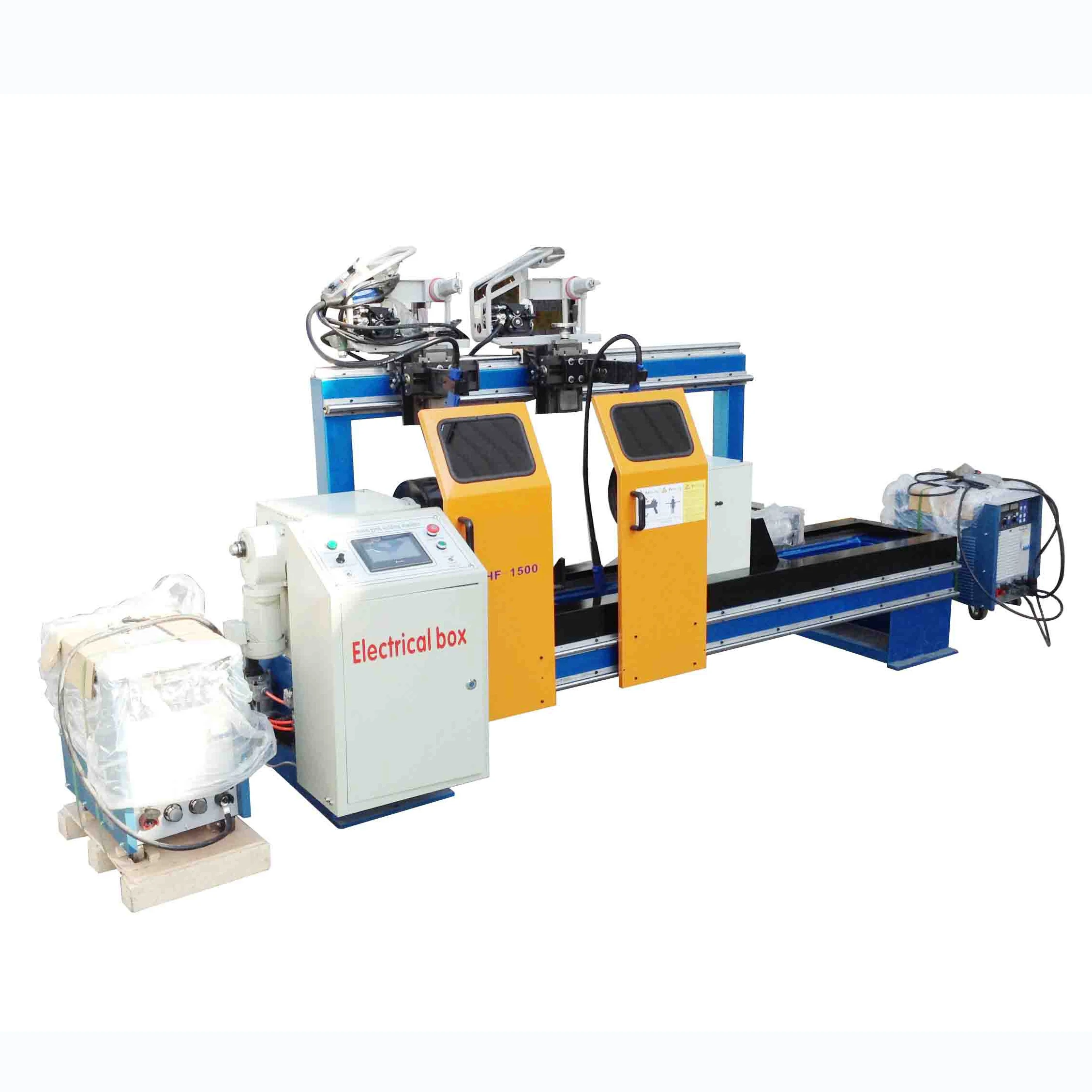

Circumferencial seam welding machine （three welding gun）
No | Item | Basic parameter(mm) |
1 | Max diameter of pressure test | 200 |
2 | Min diameter of pressure test | 90（M30*1.5） |
3 | Max workpiece length of pressure test | 650 |
4 | Testing efficiency | 1000pcs/ 8hours |
5 | Rated input voltage | AC380V Three phase |
6 | Frequency | 50HZ |
7 | Power | 5KW |

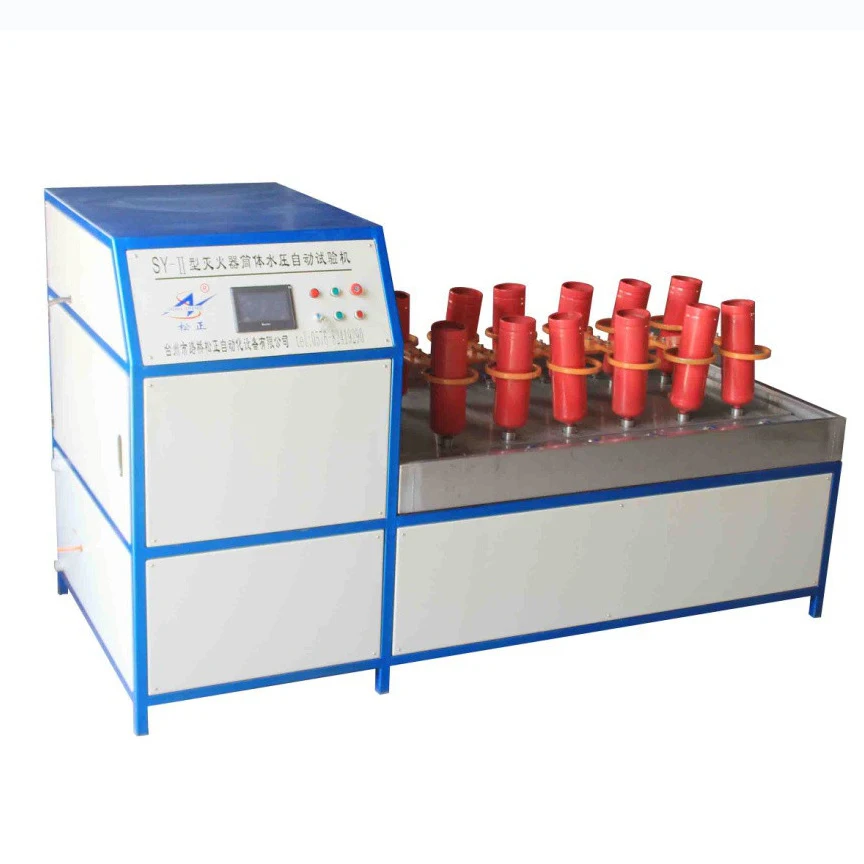

12 stations hydro testing machine
NO | Item | Basic parameter(mm) |
1 | Max diameter of pressure test | Φ200 |
2 | Min diameter of pressure test | Φ90 |
3 | Max workpiece length of pressure test | 650 |
4 | Rated input voltage | AC3800V Three phase |
5 | Frequency | 50HZ |

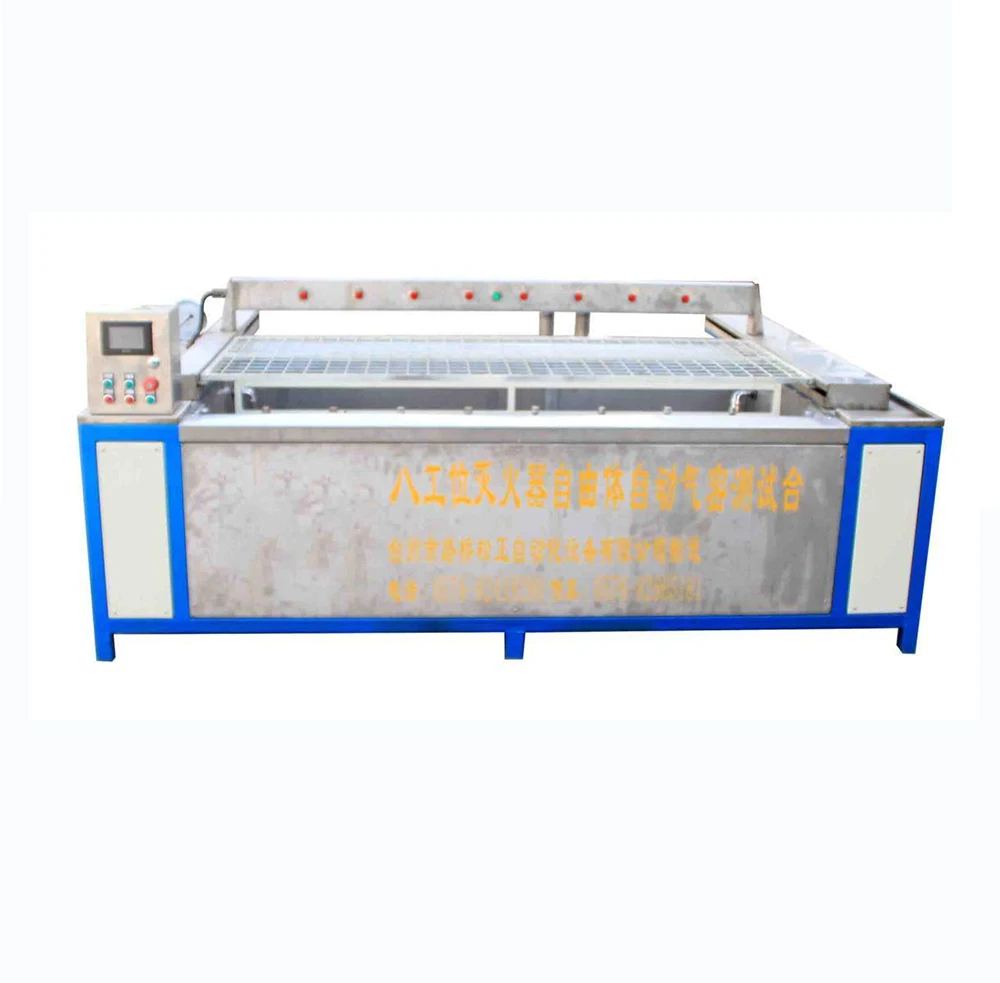

8 station air leakage tesing machine
Spray painting machine
Dry power filling machine
Machine Configuration

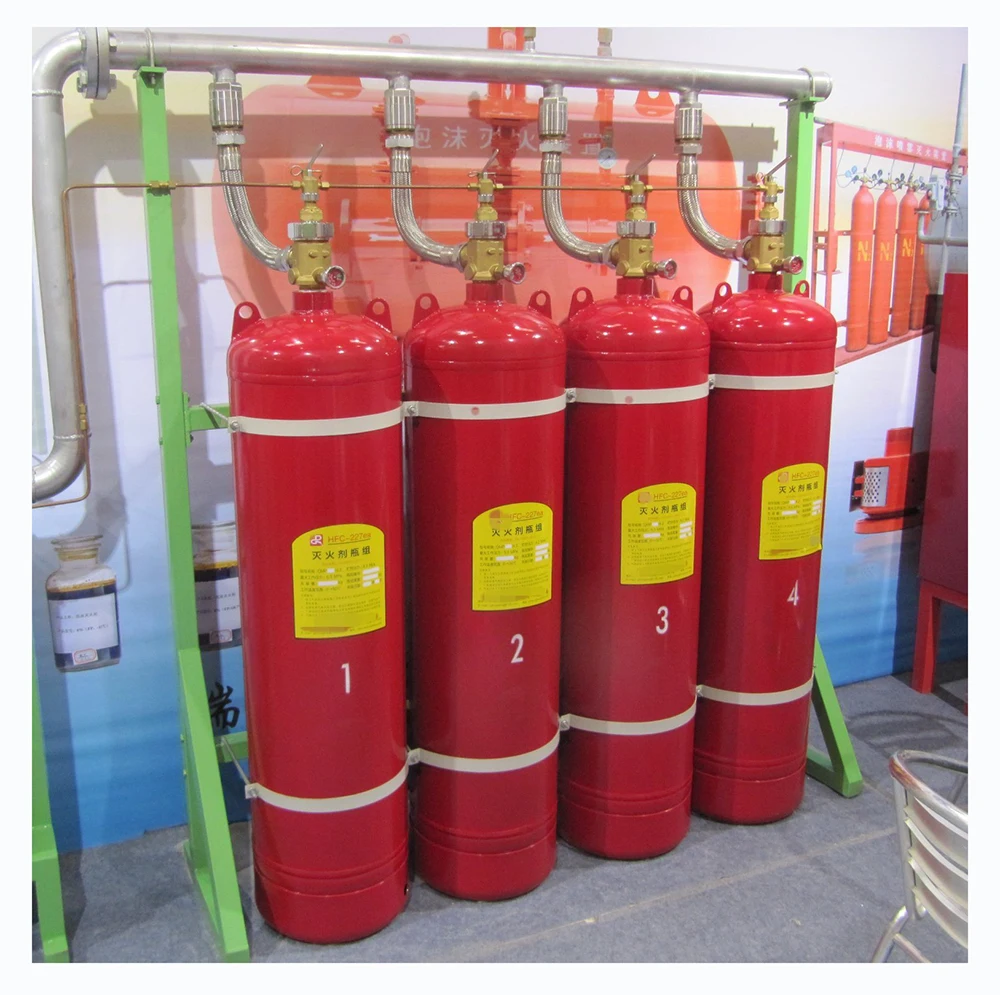

Other Type of Fire Extinguisher-CO2 Fire Extinguisher Manufacture
CO2 fire extinguishers also called Carbon dioxide fire extinguishers are highly effective against B & C fire classes. These Carbon dioxide fire extinguishers are perfect for preventing fire break in IT rooms, Server rooms, Labs, Food storage and Processing areas, etc.

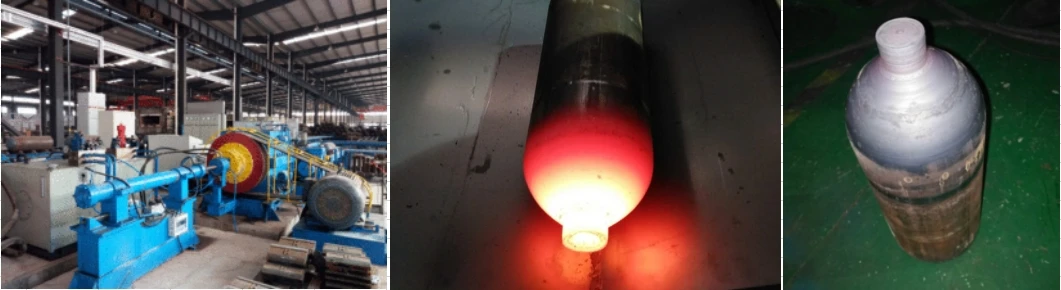

Because of the high pressure requirements of this fire extinguisher, different manufacturing techniques are used. We usually used hot spinning machine. A link to such a machine is attached at the end of this introduction!

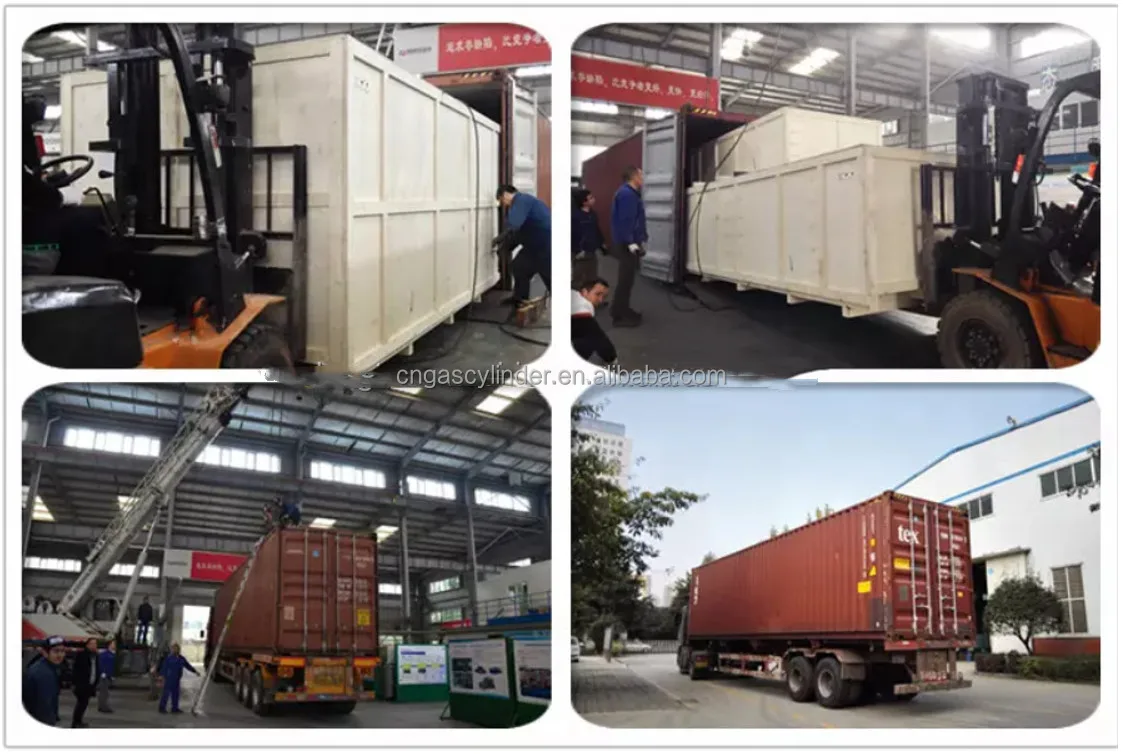

Packing & Delivery
Standard seaworthy package suitable for sea transportation.
Company Profile
Wuxi Hansheng Pressure Vessel Co., Ltd. specializes in LPG cylinder machinery with 30 years' background, supplying the better machine to help our customers gain more profits is the motivation to let us move forward all the time, the experienced technicians and the well-trained sales are the guarantee for each project, whatever the turnkey project or the existing plant upgrade project, we provide the pro-support of each aspect to serve our customers well all the time.
Thus far, our machine is sold to US, Brazil, Turkey, Argentina, Thailand, Vietnam, Kenya, Tunisia, Nigeria, Bangladesh,
Philippines, Uganda, Sudan, Lebanon, Ecuador, among of them are the well-known LPG cylinder manufacturers in the world, such as Manchester tank from US (Indian branch factory), TPA from Vietnam, Aygaz from Turkey, MBG from Tunisia, Cylinder works from Kenya,Ferrotechsteel from Philippines, BM Energy from Bangladesh. Our machine helps them achieve an obvious improvement on saving the
manpower and increasing the productivity.
Thus far, our machine is sold to US, Brazil, Turkey, Argentina, Thailand, Vietnam, Kenya, Tunisia, Nigeria, Bangladesh,
Philippines, Uganda, Sudan, Lebanon, Ecuador, among of them are the well-known LPG cylinder manufacturers in the world, such as Manchester tank from US (Indian branch factory), TPA from Vietnam, Aygaz from Turkey, MBG from Tunisia, Cylinder works from Kenya,Ferrotechsteel from Philippines, BM Energy from Bangladesh. Our machine helps them achieve an obvious improvement on saving the
manpower and increasing the productivity.
For more information, please ref to our homepage: www.longtermmachine.com; www.lpgmachinery.com
We can give you the most professional advice and guidance on the DOT certification.
Some pictures of our exhibition before 2020.We travel to Europe, Southern East Asia, South Amercia, North America, Africa every year.
FAQ
Q: What size of fire extinguisher your machine can produce?
A: 2kg, 4kg,6kgs and 13kgs fire extinguishers and other size according customers’ requirement.
Q: Can you design machines according fire extinguisher technical drawing?
A: Sure, please send your technical drawing to us.
Q: What are the benefits to choose your machines?
A: Our machines are strong and reliable for long term industrial manufacturing
We need to know following information to quote you correct machines:
1. Technical drawing of the fire extinguisher
2. Capacity, how many cylinders you need to make each 8 hours?
3. Size of of fire extinguisher
4. Do you have land or workshop for making fire extinguishers?
A: 2kg, 4kg,6kgs and 13kgs fire extinguishers and other size according customers’ requirement.
Q: Can you design machines according fire extinguisher technical drawing?
A: Sure, please send your technical drawing to us.
Q: What are the benefits to choose your machines?
A: Our machines are strong and reliable for long term industrial manufacturing
We need to know following information to quote you correct machines:
1. Technical drawing of the fire extinguisher
2. Capacity, how many cylinders you need to make each 8 hours?
3. Size of of fire extinguisher
4. Do you have land or workshop for making fire extinguishers?
