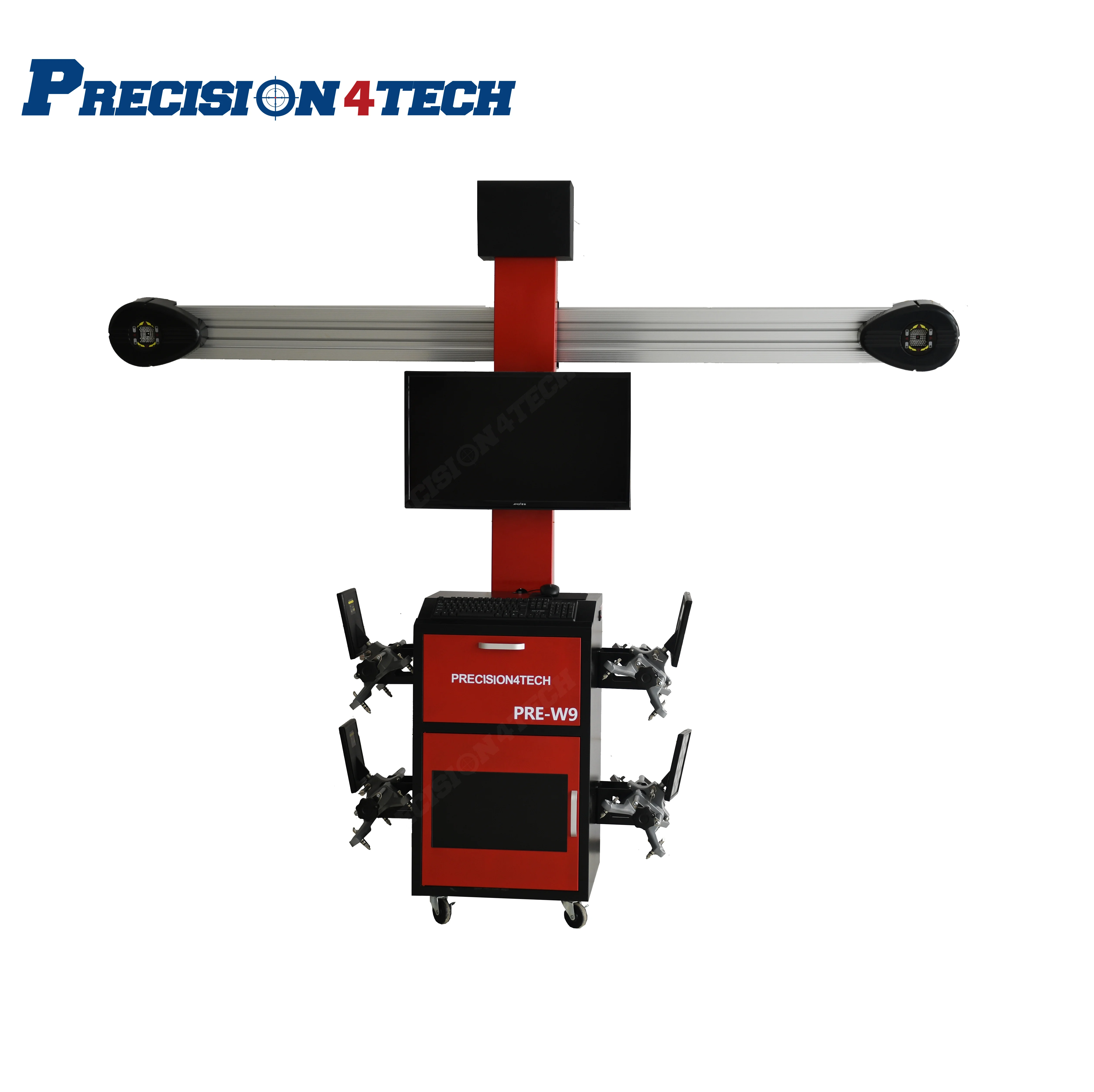

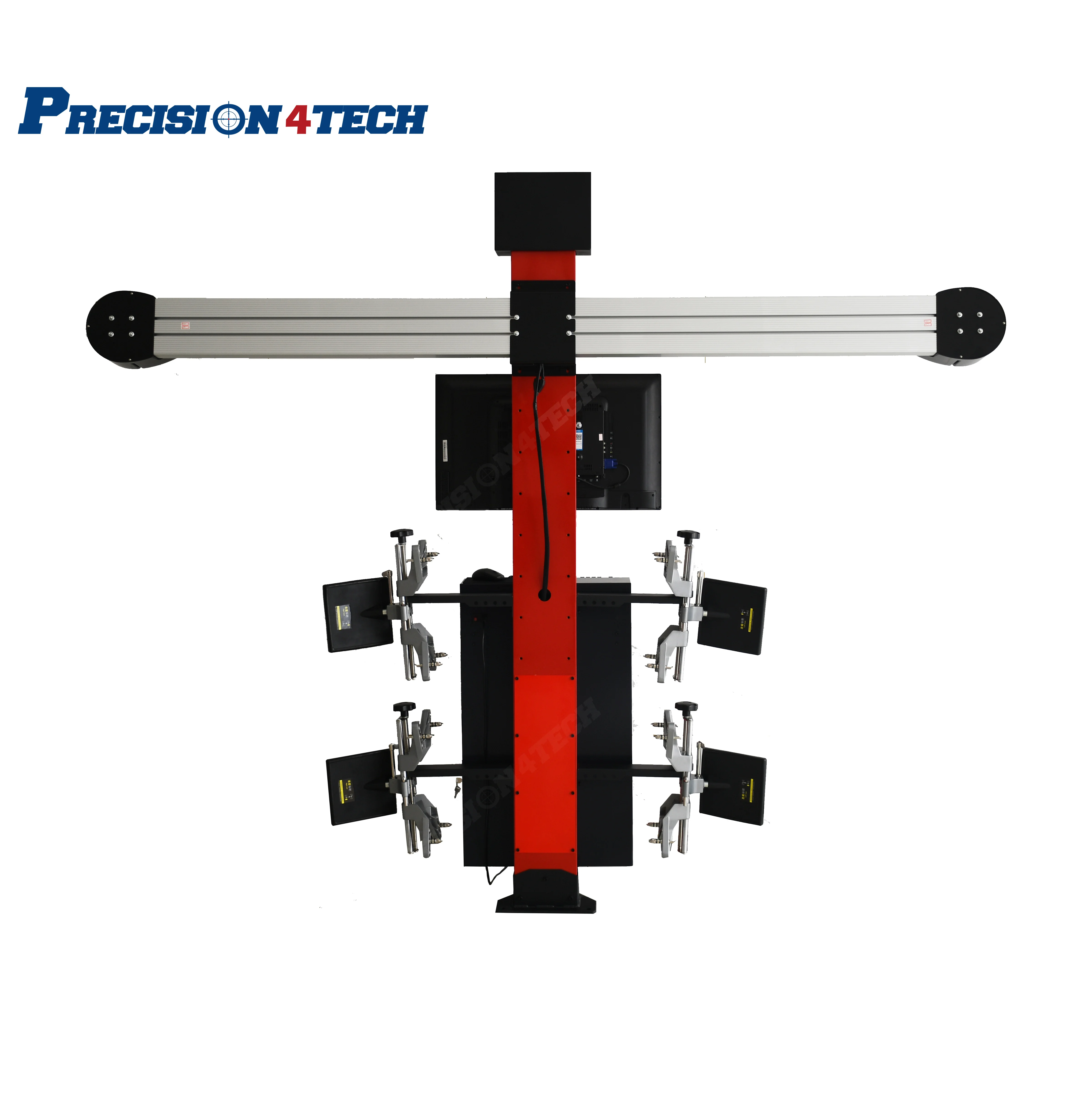

PRECISION Customized portable auto wheel alignment machine calibration tool PRE W9
- Category: >>>
- Supplier: Yantai Precision Science And Technology Co. Ltd.
Share on (1600836830625):
Product Overview
Description
Products Description
Standard configuration
500 million pixels camera, Waterproof target plates，Dell computer,

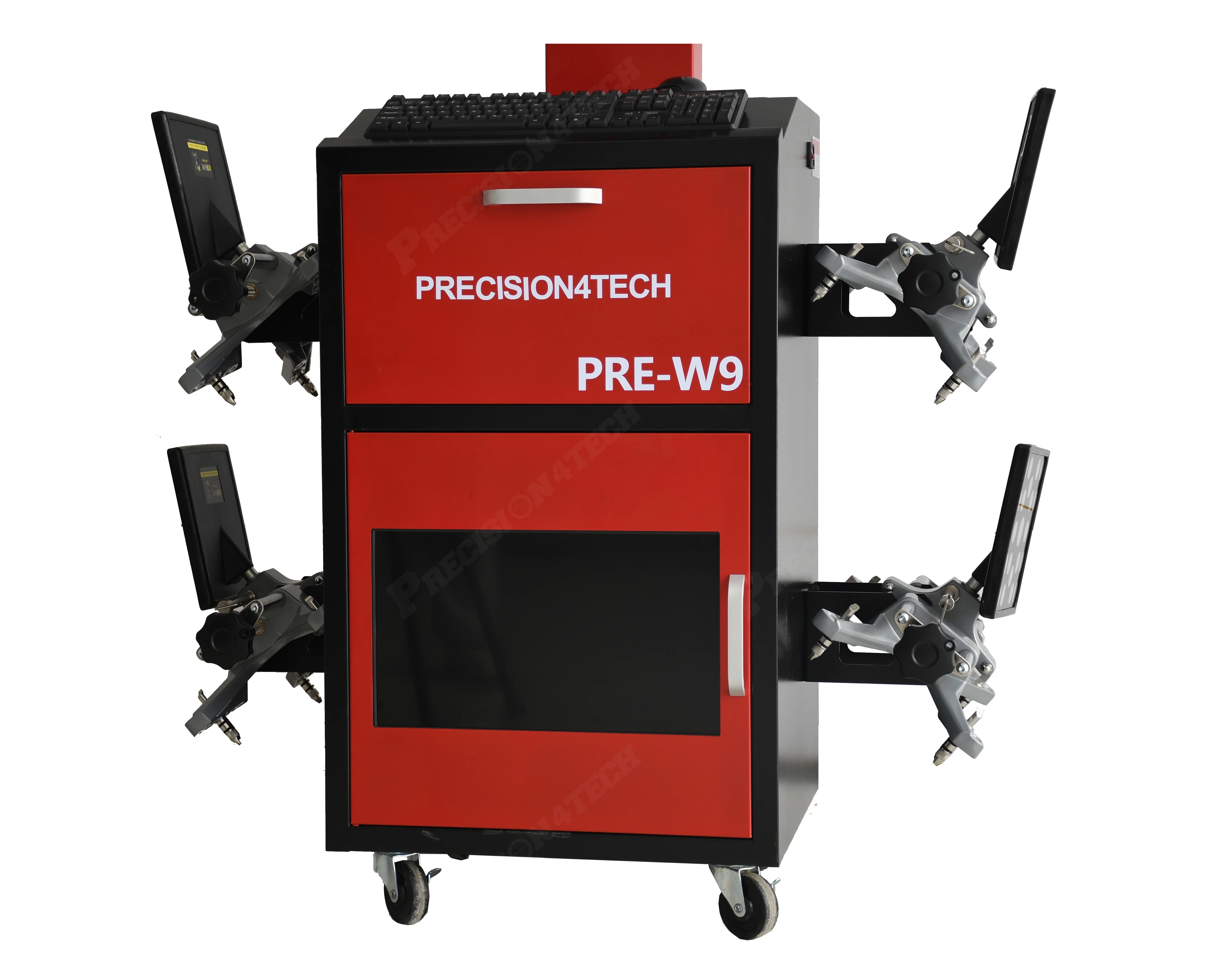

Luxury cabinet with two screens(32 inch LED TV and 19 inch monitor)，

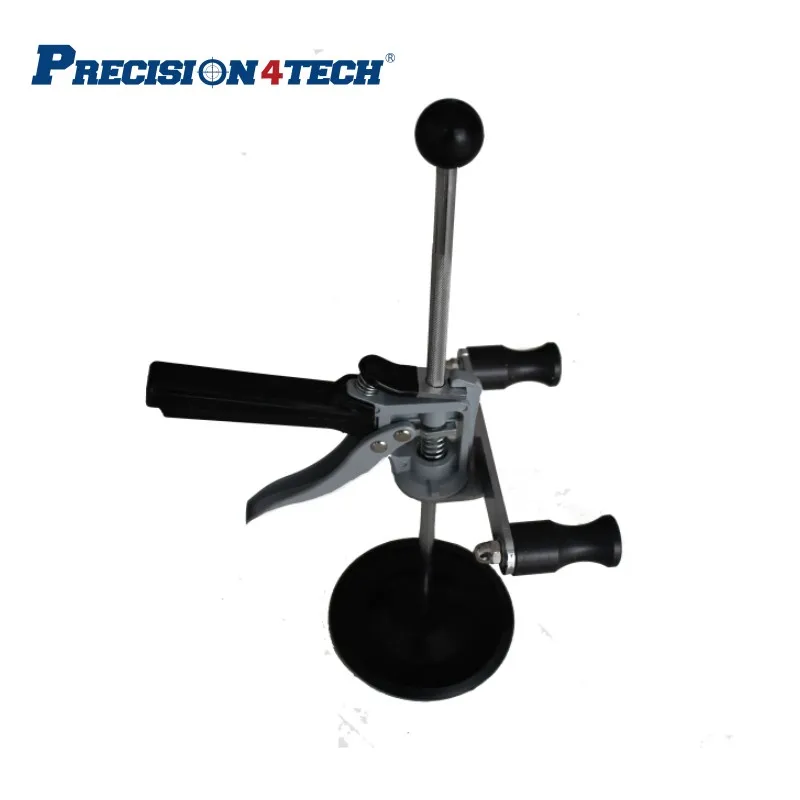

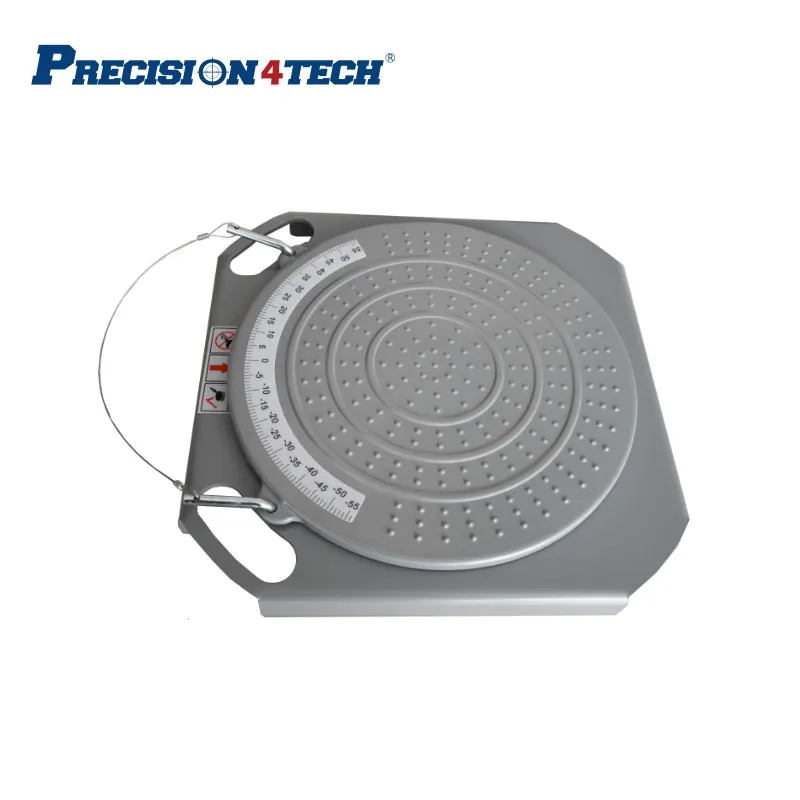

4-points clamp, Brake fixer, Steering Wheel fixer, Wedge pads, Steel Turntables, Turntable transition blocks,Remote tracking beam,voltage stabilizer.Printer(optional);19 inch monitor(optional)
Packing:Wooden case
Luxury cabinet with two screens(32 inch LED TV and 19 inch monitor)，
4-points clamp, Brake fixer, Steering Wheel fixer, Wedge pads, Steel Turntables, Turntable transition blocks,Remote tracking beam,voltage stabilizer.Printer(optional);19 inch monitor(optional)
Packing:Wooden case
Basic functions:
Parameters measurement such as Toe-in & Toe-out,Camber, Caster,SAI,Total Toe, Kingpin inclination, Set back, Thrust angle.
Extensive function
Remote tracking beam,
Free to push cars,setting cars distance,Up adjustment function,
Body Dimension Measurement, Axle distance measurement, Removing Tire Adjustment, Steering Wheel Adjustment,Engine Bay Adjustment,Toe Curvature Measurement, Lock Toe Adjustment.
Free to push cars,setting cars distance,Up adjustment function,
Body Dimension Measurement, Axle distance measurement, Removing Tire Adjustment, Steering Wheel Adjustment,Engine Bay Adjustment,Toe Curvature Measurement, Lock Toe Adjustment.
Products advantages:
1.Movable cabinet saves more space and makes work more convenient.
2.Economical standard installation,with two screens(19"LCD and 32" TV)
3.Remote tracking beam,technician can make measurement and adjustment on different of lifting levels.
4.Free to push cars function, greatly saves manpower, make work more efficiently.

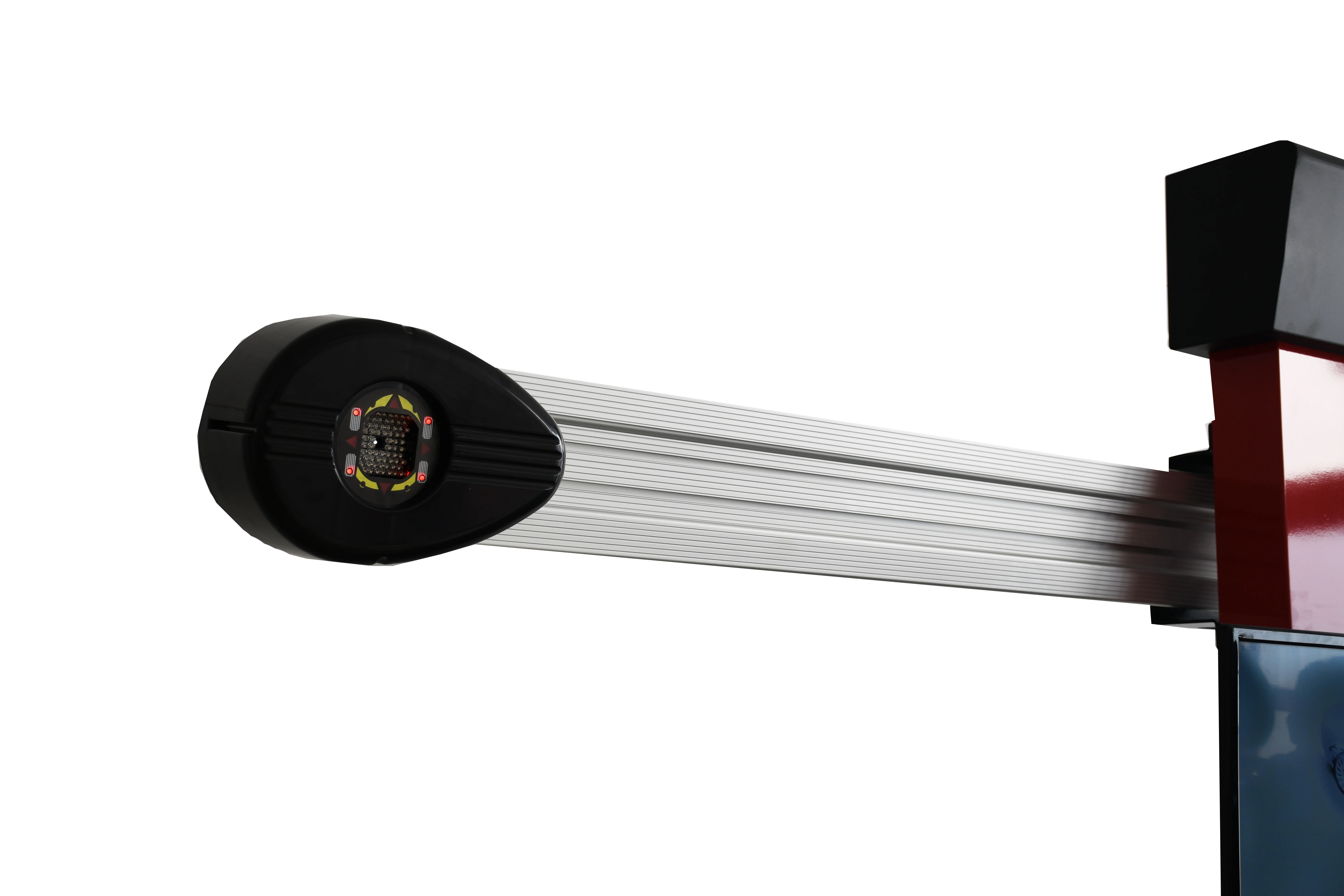

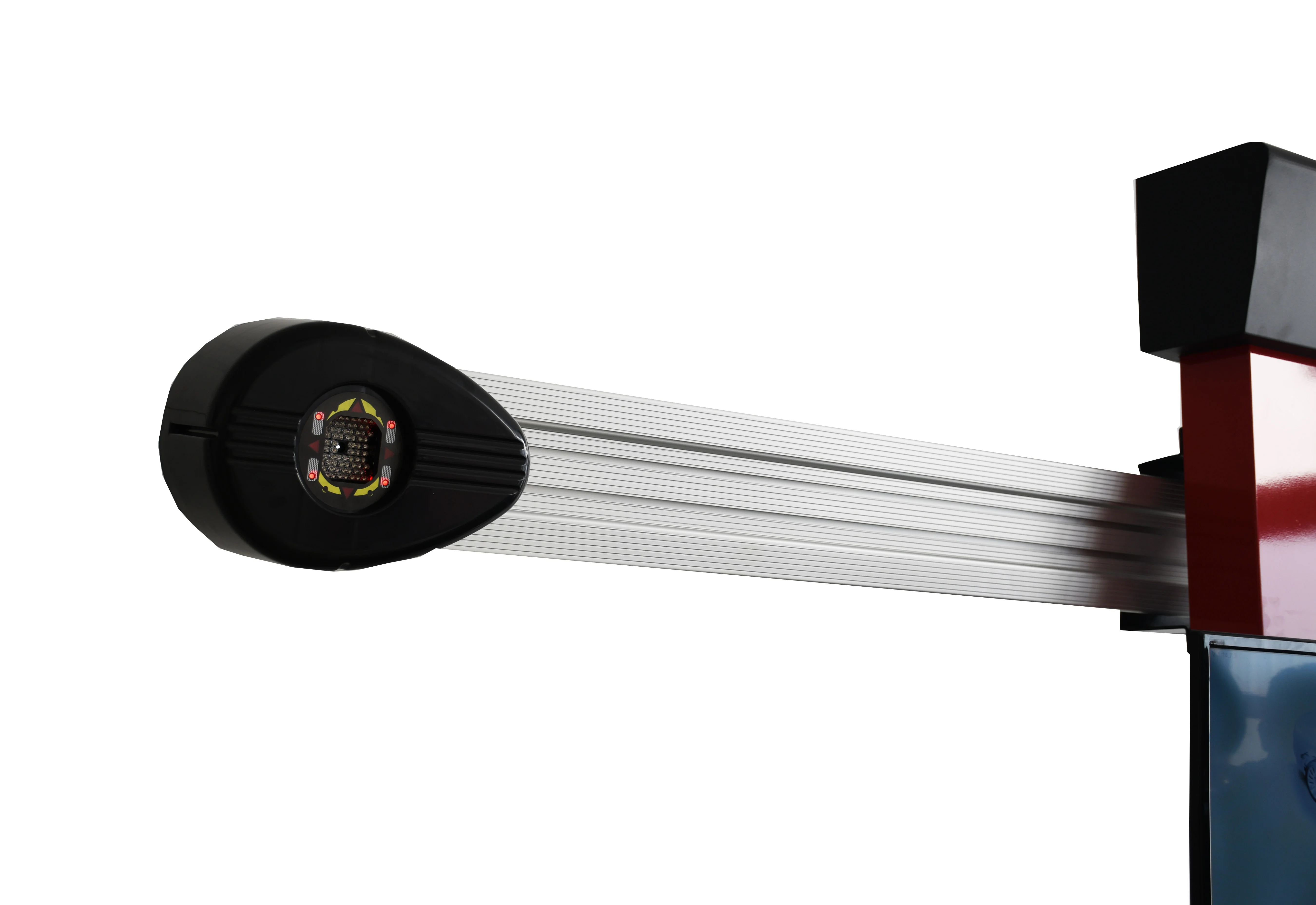

5.Double camera combined with four target disks to provide revolutionary measurement methods
6.Target disk device: No electronic component of the target disk, replacing the traditional IAN sub -sensor, eliminating the failure of the circuit
7.Equipment calibration: After the equipment is installed, it only needs to be calibrated once. The process is simple.
8.Measurement process: During the measurement, there is no need to perform steel ring compensation, which shortens the measurement time and improves accuracy
9.Software system: easy operation, four -wheel positioning data can be read within two minutes
10.Maintenance: Maintenance is simple and easy to do, built -in one -click restore system, software upgrade for free.
11.Customer certification: have been certified by major international automobile manufacturers.
2.Economical standard installation,with two screens(19"LCD and 32" TV)
3.Remote tracking beam,technician can make measurement and adjustment on different of lifting levels.
4.Free to push cars function, greatly saves manpower, make work more efficiently.
5.Double camera combined with four target disks to provide revolutionary measurement methods
6.Target disk device: No electronic component of the target disk, replacing the traditional IAN sub -sensor, eliminating the failure of the circuit
7.Equipment calibration: After the equipment is installed, it only needs to be calibrated once. The process is simple.
8.Measurement process: During the measurement, there is no need to perform steel ring compensation, which shortens the measurement time and improves accuracy
9.Software system: easy operation, four -wheel positioning data can be read within two minutes
10.Maintenance: Maintenance is simple and easy to do, built -in one -click restore system, software upgrade for free.
11.Customer certification: have been certified by major international automobile manufacturers.
Items | Accuracy | Range |
Total toe | ±0.01 | ±40° |
Camber | ±0.01 | ±45° |
Caster | ±0.02 | ±45° |
SAI | ±0.02 | ±45° |
Thrust angle | ±0.01 | ±45° |
Set back | ±0.01 | ±40° |
Max turn angle | ±0.02 | ±50° |
Wheel Deviation | ±2MM | 1219MM-2538MM |
Axle Deviation | ±2MM | 2006MM-4750MM |
Factory Photos
Certifications
Company Profile
Started as machinery manufacture in 2003, Precision focused on manufacturing for auto lift and auto body collision repair bench and parts till today. At the meaning time, standard paint booth and customzied paint booth are gradually included in the business line. As requirements of new open workshops and some certain distributors,we set up 2 sales teams for international market.One team is to supply very professional consult and service for manufacturing and customization of car bench, lift and spray booth. The other team is for one-stop equipments supplying.
Now there are 3 prodution bases for car lift, auto body collision repair frame machine (car bench) and spray booth manufacturing. The other related equipments are from partners' factories.
Experience is the most competitive factor to work with us, there are 2 experienced consultants over 50 years in garage workshop new opening design and after sale service. They can supply practical solutions for both end users and producers. Team members are energetic spread in technique, production, sales, export customs declaration departments, which will assure high quality products and right export procedures for customers.
Tested by CE, ISO9001, all products have been shipped to North/South American, South East Asia, Africa, Middle East, Europe, and Asia, as well as domestic market in China. Both OEM and ODM are acceptable. Welcome to contact us and looking forward to working with you.
Now there are 3 prodution bases for car lift, auto body collision repair frame machine (car bench) and spray booth manufacturing. The other related equipments are from partners' factories.
Experience is the most competitive factor to work with us, there are 2 experienced consultants over 50 years in garage workshop new opening design and after sale service. They can supply practical solutions for both end users and producers. Team members are energetic spread in technique, production, sales, export customs declaration departments, which will assure high quality products and right export procedures for customers.
Tested by CE, ISO9001, all products have been shipped to North/South American, South East Asia, Africa, Middle East, Europe, and Asia, as well as domestic market in China. Both OEM and ODM are acceptable. Welcome to contact us and looking forward to working with you.
