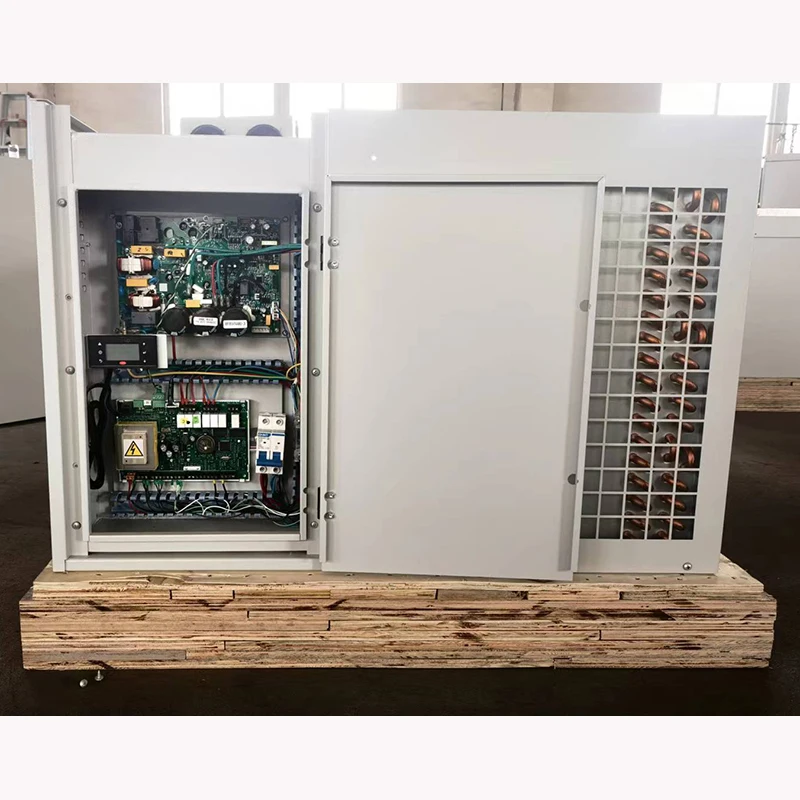

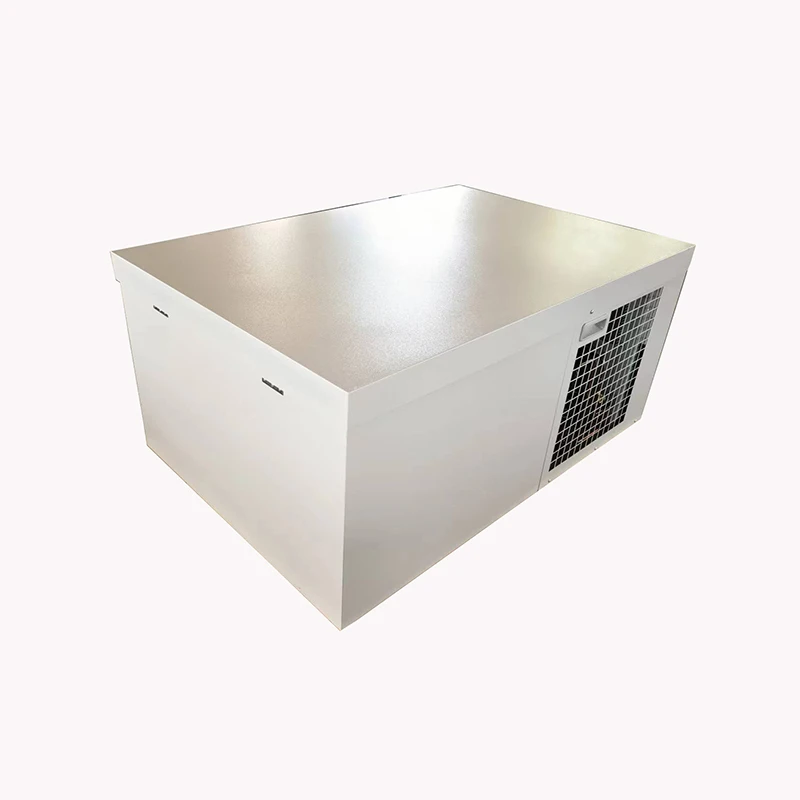

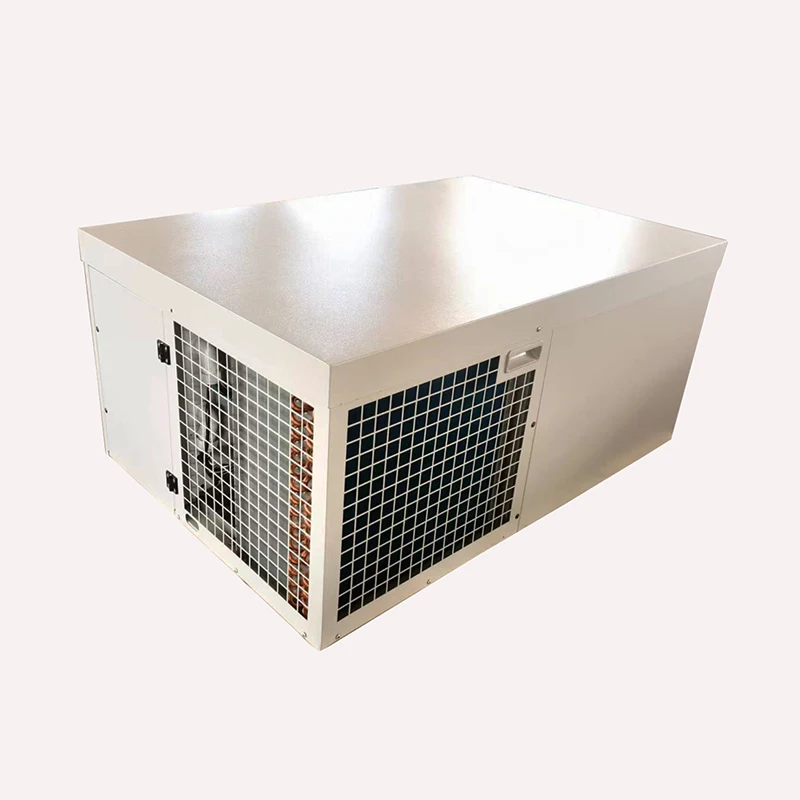

refrigeration mini condensing unit with sanyo 2HP compressor for cold storage cool room unit monoblock small refrigeration unit

Product Overview

Description





    The evaporator box is formed by Polyurethane foaming and has very good thermal insulation properties.

    The design of the system is weather proof which means it can be situated outside if required.

    The condenser is designed to handle harsh ambient temperatures above 45 °C.

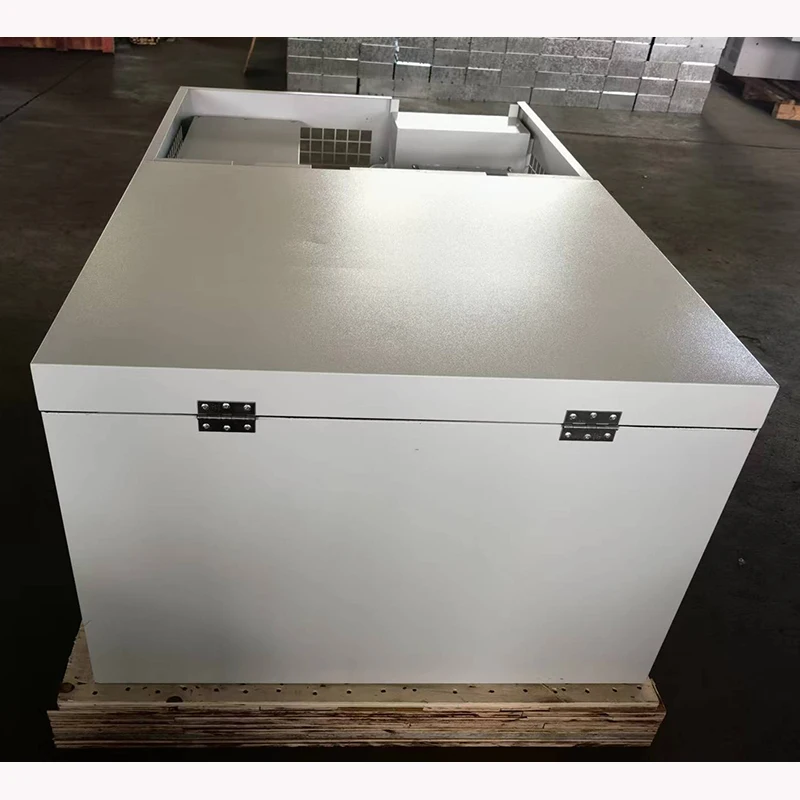

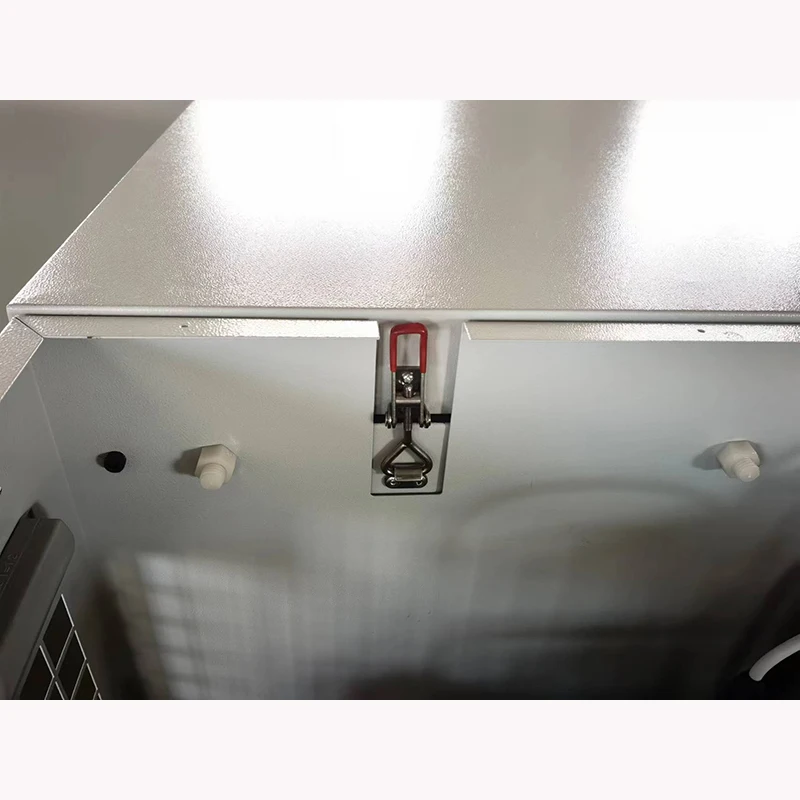

    The evaporation box is designed with stainless steel hinges and buckles, which greatly facilitates repair and maintenance.

Main Characteristics And Advantages Of Our Full DC Inverter Monoblock:

• Easy to install ,save a lot costs of material such as coppers and cost of labor ;


• The appearance design is beautiful and concise;


• Available from 1Hp and 4Hp;

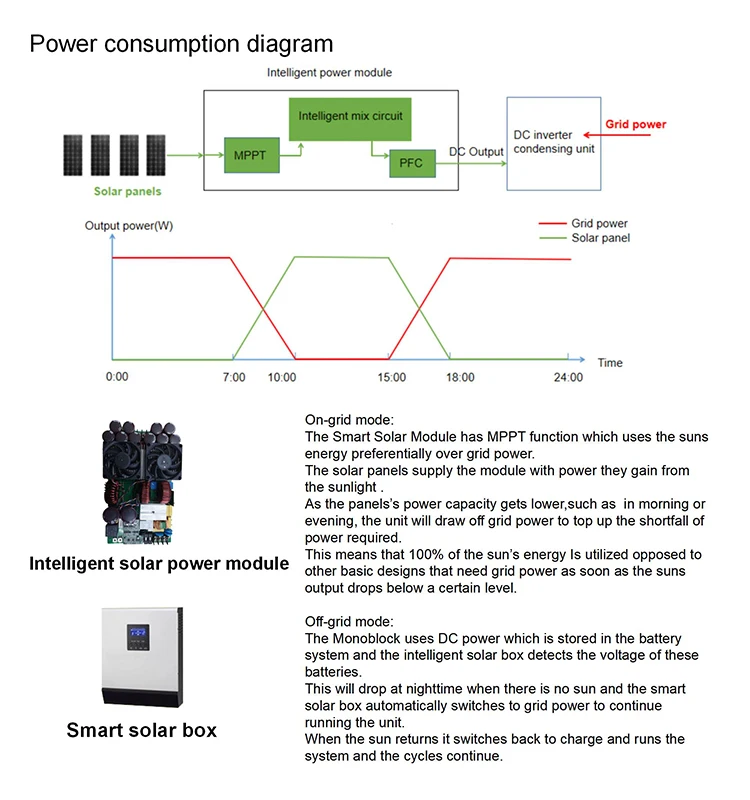

• System can be powered by a combination of AC and DC;


• User friendly English display, enabling easy navigation and setting of parameters;


• Multiple protection functions ;


• The operating frequency of the compressor varies between 15-80 hz,it is soft start,have not big start current;


• The system has inbuilt temperature set points allowing the frequency of the compressor to reduce as the temperature of the room arrives closer to its set point or increase as the demand increases making it very energy efficient;


• Accurate temperature control and minimal temperature fluctuation range;


• Supports advanced LOT platform for remote monitoring;

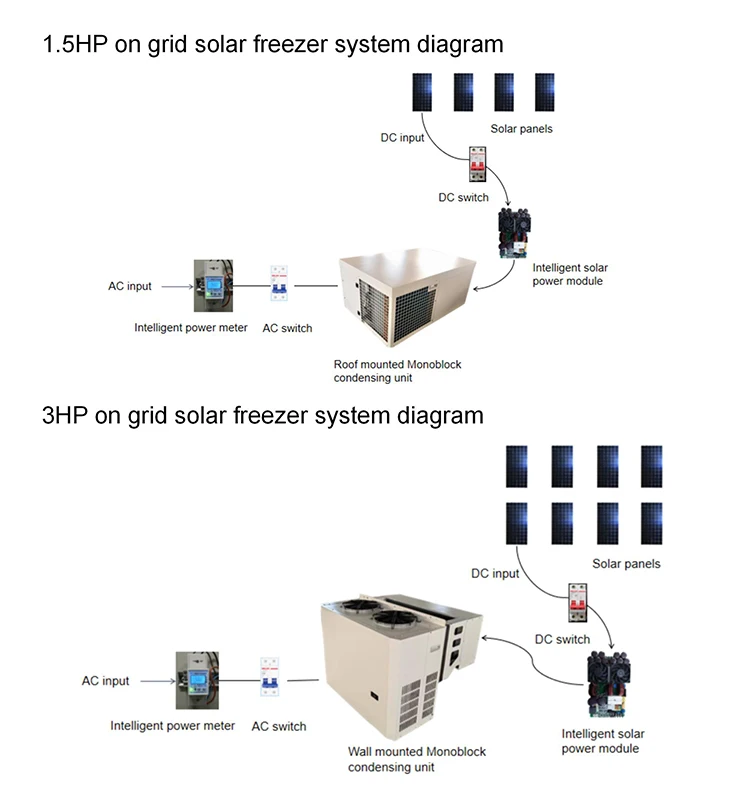

• Optional system configurations including:


•


          *Grid




          *Grid/solar




          *Off grid




          *Full remote monitoring and control with SMART ROOM function

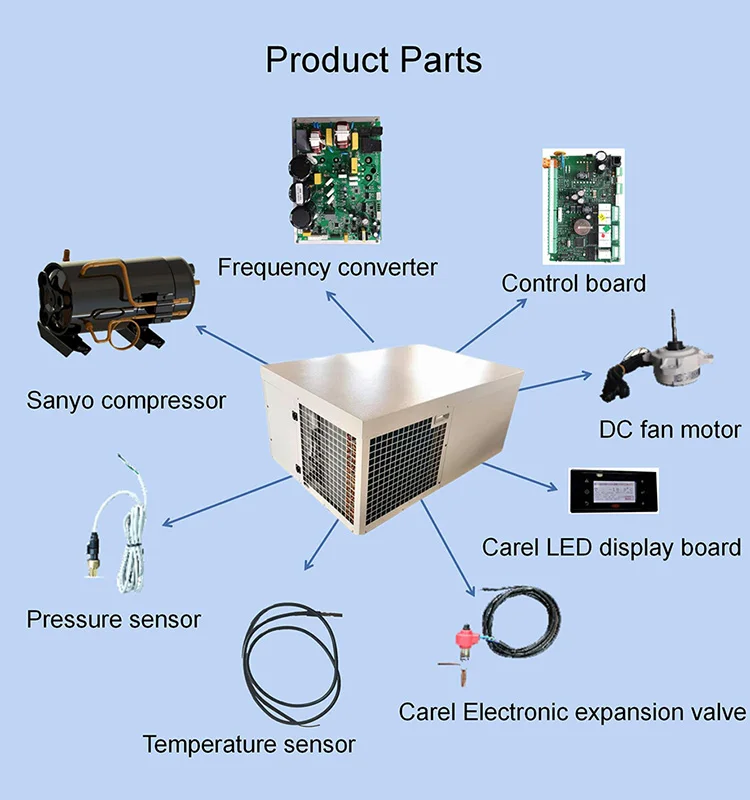

Main system configuration(3HP)
Inverter compressor	CRSS(Sanyo technique)
Variable frequency driver	Zhouju(Chinese brand)
Control Board	Carel(Italian brand)
Electronic expansion valve	Carel(Italian brand)
Pressure Sensor	Carel(Italian brand)
Temperature Sensor	Carel(Italian brand)
Liquid crystal display controller	Carel(Italian brand)
DC fan	Jingma(Chinese brand)
Sight glass	Danfoss(Denmark brand)
Liquid receiver	HPEOK(Chinese brand)
Electric Valves	Sanhua(Chinese brand)

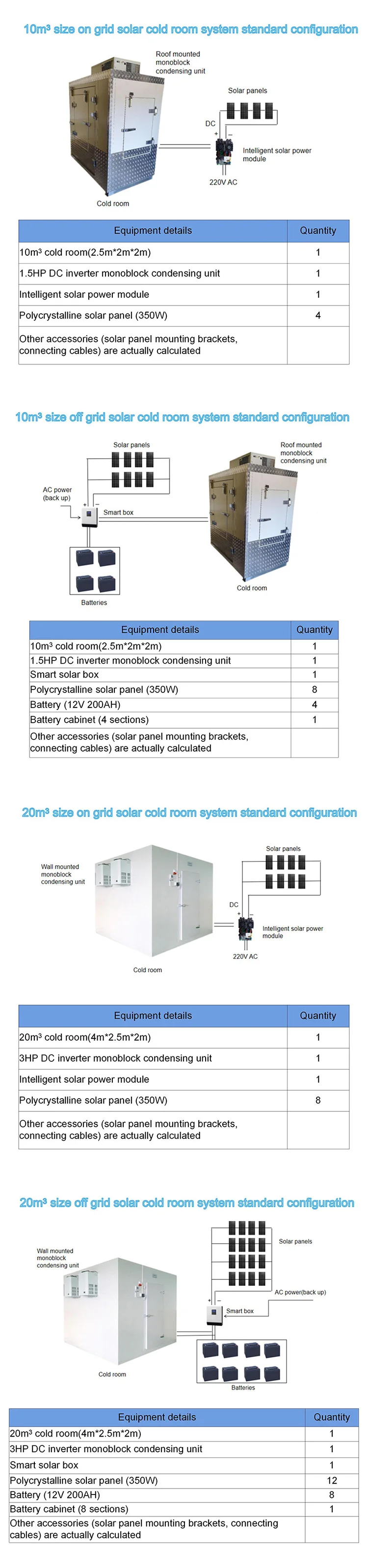

 10m³ and 20m³ size standardized solar cold room system





Q1:Are you a factory or a trading company?

A1:We have factory which produce refrigeration products and cold room.

Q2:What is the MOQ?

A2:One set

Q3:What is your warranty?

A3:One year for refrigeration products.

Q4:Can you provide OEM/ODM service?

A4:Yes,we can provide OEM/ODM service and make logo for you.

Q5:Can the product be customized according to specifications?

A5:You can tell me the size and use temperature of the cold room you want, then I can recommend the thickness of the cold room and the machine used for you.

Q6:What is your payment term?

A6:T/T,PayPal,Western union,L/C etc.

Q7:Can I visit your factory?

A7:Yes,we welcome you visit our factory and look foward to communicate with you face to face.
