Sunlink 8kw 10kw 48v SPI 10K U split phase Solar Inverter Off Grid Inverter for puerto rico
Sunlink 8kw 10kw 48v SPI-10K-U split phase Solar Inverter Off Grid Inverter for puerto rico
Sunlink 8kw 10kw 48v SPI-10K-U split phase Solar Inverter Off Grid Inverter for puerto rico
Sunlink 8kw 10kw 48v SPI-10K-U split phase Solar Inverter Off Grid Inverter for puerto rico
Sunlink 8kw 10kw 48v SPI-10K-U split phase Solar Inverter Off Grid Inverter for puerto rico
Sunlink 8kw 10kw 48v SPI-10K-U split phase Solar Inverter Off Grid Inverter for puerto rico
Sunlink 8kw 10kw 48v SPI-10K-U split phase Solar Inverter Off Grid Inverter for puerto rico

Sunlink 8kw 10kw 48v SPI 10K U split phase Solar Inverter Off Grid Inverter for puerto rico

Share on (1600837008792):


Price:$900.00 - $980.00

Quantity:


Product Overview

Description



Product Description

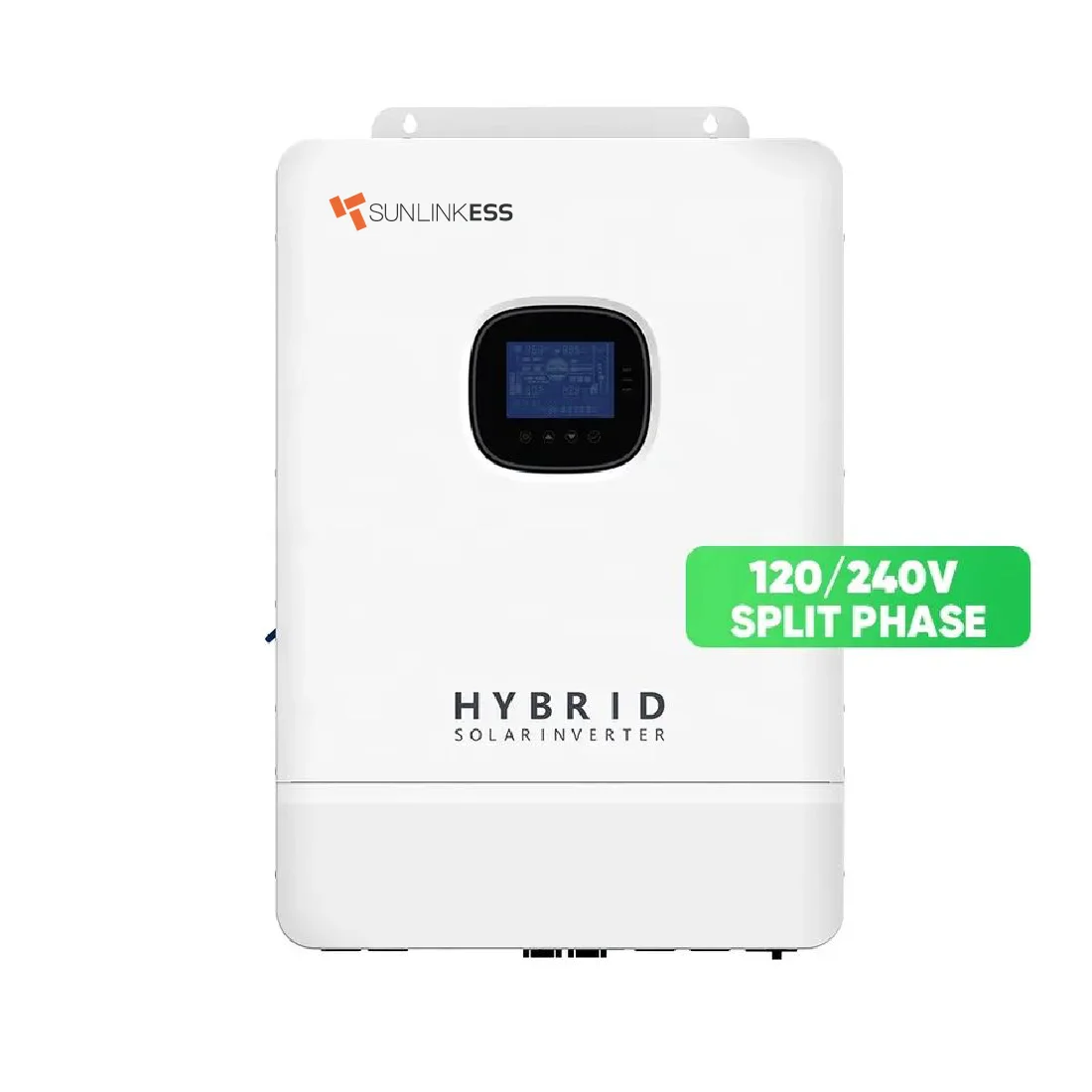

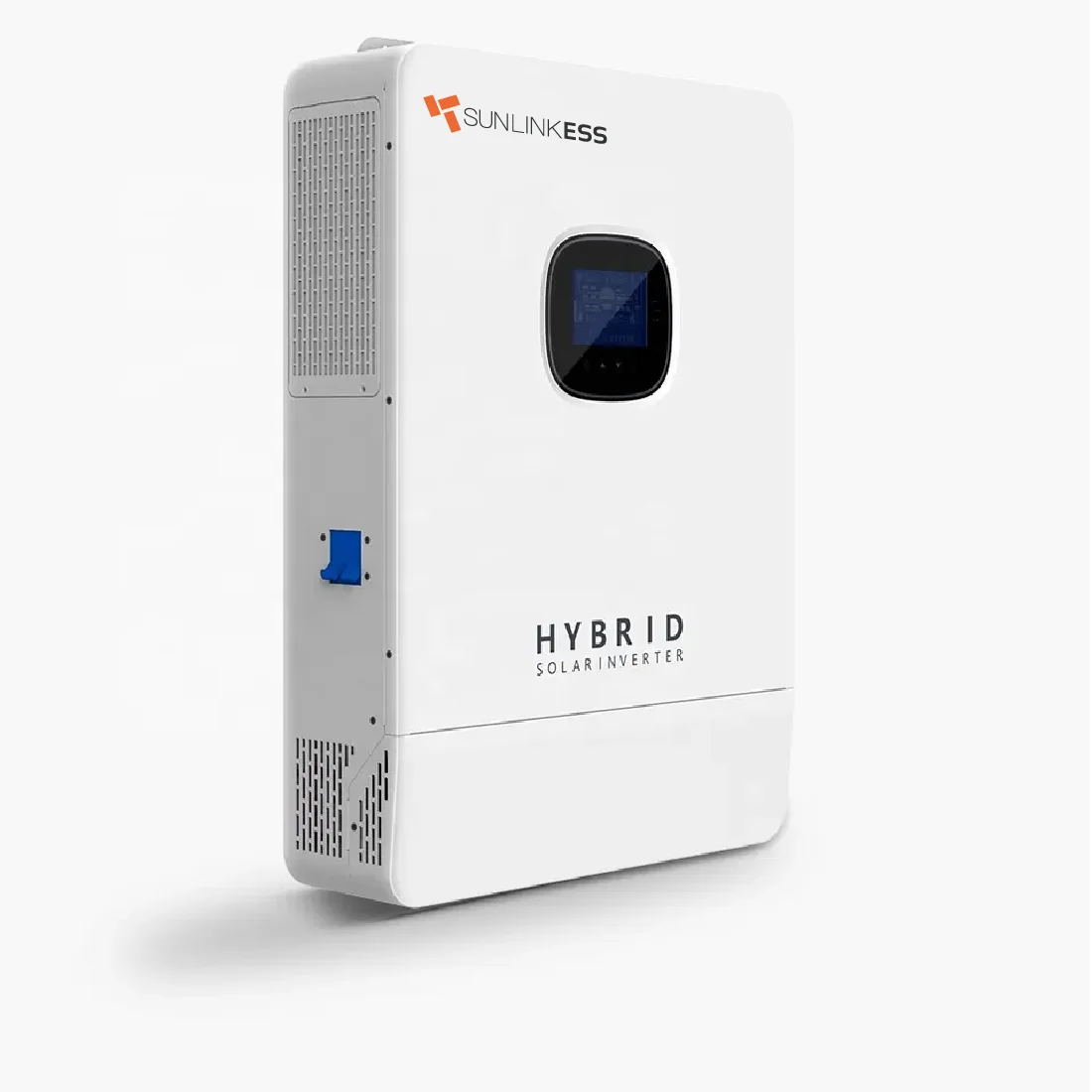

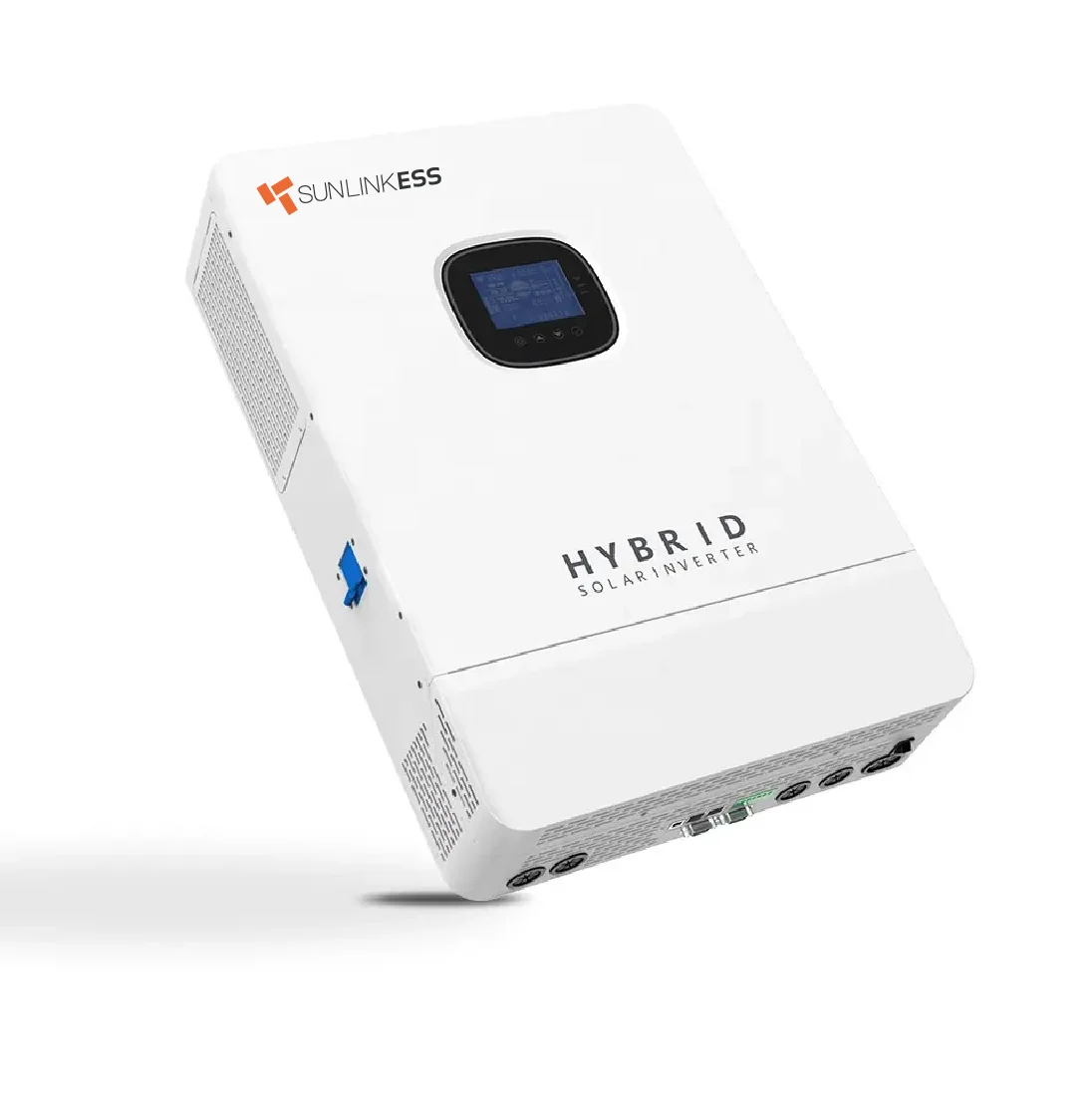

Sunlink 8kw 10kw 48v SPI-10K-U split phase Solar Inverter
Off Grid Inverter for puerto rico








Specification


MODEL
SPI-8K-U
SPI-10K-U
CAN BE
SET
Rated Output Power
8000W
10000W
Max.Peak Power
16000W
20000W

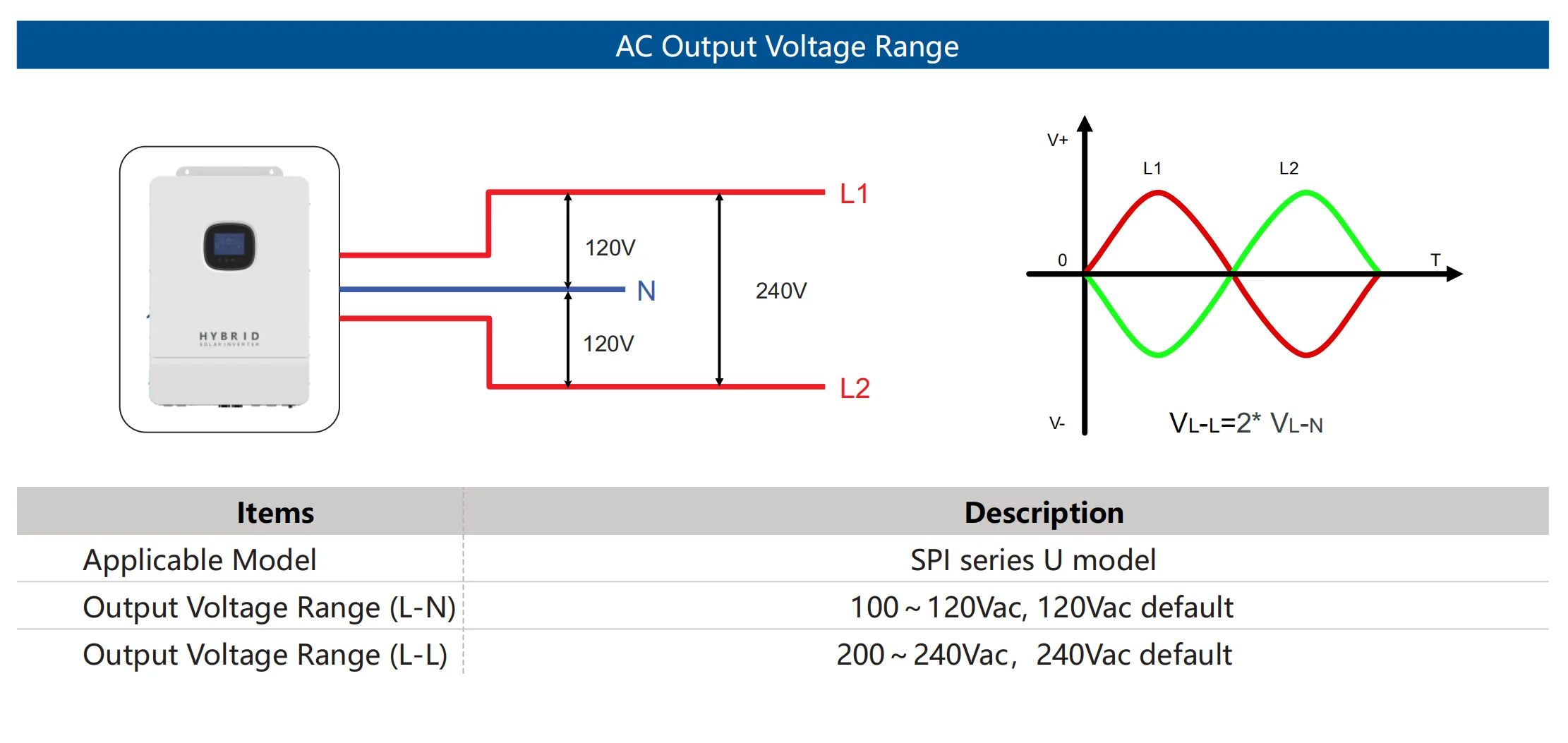

Rated Output Voltage
120/240Vac(L1/L2/N/PE split phase)
Y
Load Capacity of Motors
5HP
6HP
Rated AC Frequency
50/60Hz
Y
Waveform
Pure Sine Wave

Switch Time
10ms (typical)

Parallel Capacity
/

BATTERY
Battery Type
Li-ion / Lead-Acid / User Defined
Y
Rated Battery Voltage
48Vdc

Voltage Range
40～60Vdc
Y
Max.MPPT Charging Current
200A
Y
Max.Mains/Generator Charging
100A
120A
Y
Max.Hybrid Charging Current
180A
200A
Y
PV INPUT
Num. of MPPT Trackers
2
Max.PV Array Power
11000W
Max.Input Current
22/22A
Max.Voltage of Open Circuit
500Vdc
MPPT Voltage Range
125~425Vdc
UTILITY/ GENERATOR INPUT
Input Voltage Range
90～140Vac
Frequency Range
50/60Hz
Bypass Overload Current
63A
EFFICIENCY
MPPT Tracking Efficiency
99.9%
Max. Battery Inverter Efficiency
92%
General
Dimensions
620*435*130mm (2*1.4*0.4ft)
Weight
20kg (44lb)
21kg (46.3lb)
Protection Degree
IP20, Indoor Only
Operating Temperature Range
-10~55℃,>45℃ derated
Humidity
-25℃~60℃
Cooling Method
Internal Fan
Warranty
2Years
COMMUNICATION
Embedded Interfaces
RS485/CAN/USB/ Dry contact
Y
External Modules(Optional)
Wi-Fi/GPRS
Y
CERITIFACATION
Safety
IEC62109-1, IEC62109-2,UL1741
RoHs
Yes
EMC
EN61000-6-1, EN61000-6-3, FCC 15 class B

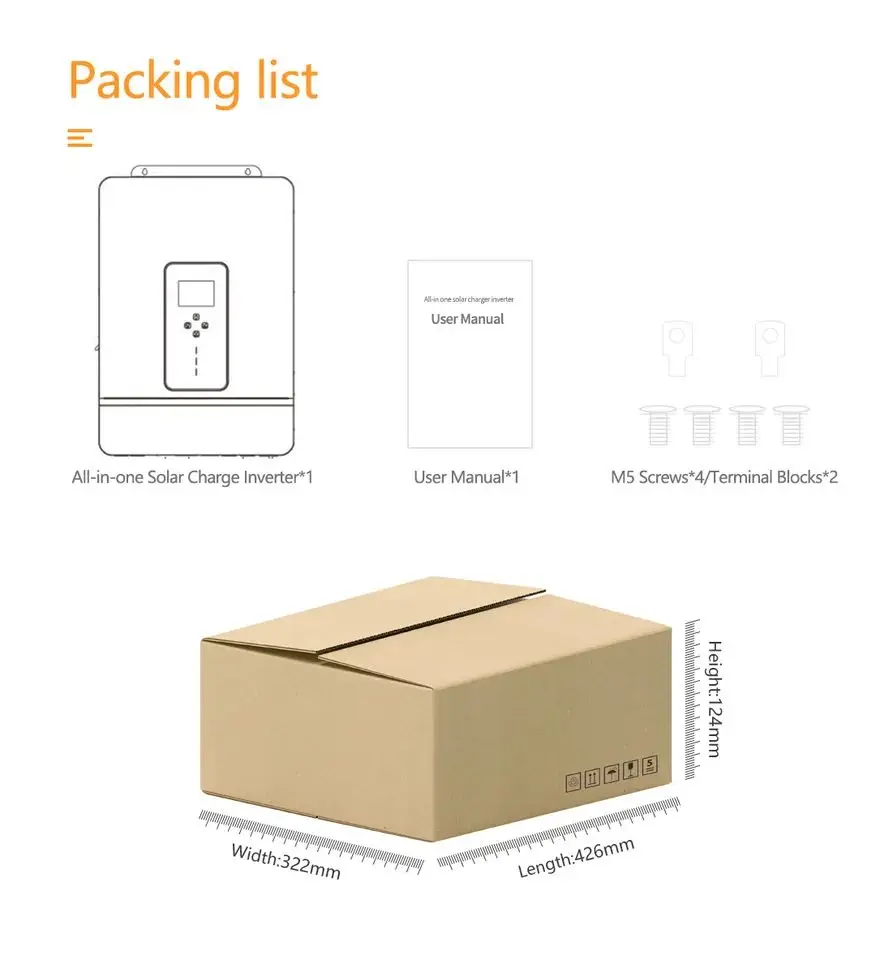

Packing & Delivery





62cm * 44.5cm * 13cm 27kg

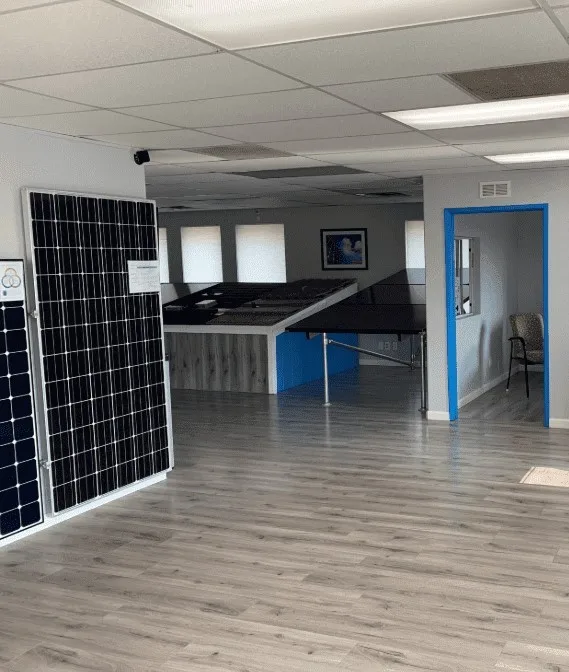

Company Profile








Sunlink（Xiamen）New Energy Technology Co.,Ltd ,
established in 2019, mainly focus on solar product supply chain integration.
With our reliable, professional engineers, highly talented sales team, deep cooperation with powerful brand suppliers and 7-24 sale service system,
we provide our clients with safe, stable and efficient solutions for all different kinds of solar projects.
You can always find the most suitable One-Stop photovoltaic system solution for your need.


FAQ


Q1.What kind of certificates you have for your inverters? A1:CE(IEC/EN62109-1,-2),ROHS2.0,cETL 2021 Q2.Are u a manufacturer or
trading company? A2:We are a state-level high-tech enterprise that integrates pluralism,R&D and manufacturing solar charge
controller ,solar inverter charger Q3.Can I buy one sample for testing? A3:Sure,we have a 10 years experience R&D team and in
timely after sale service,can help you fix any technical problem or confusion. Q4.How is the delivery? A4:Sample:1-2 working days
Order:within 7 working days depending on the order quantities OEM order:15-20 working days after confirming the sample Q5.How is
your customers service? A5:All solar product will be tested strictly one by one before leaving factory.And the defective rate is
below 0.1% we do try our best to provide a good customer service.
