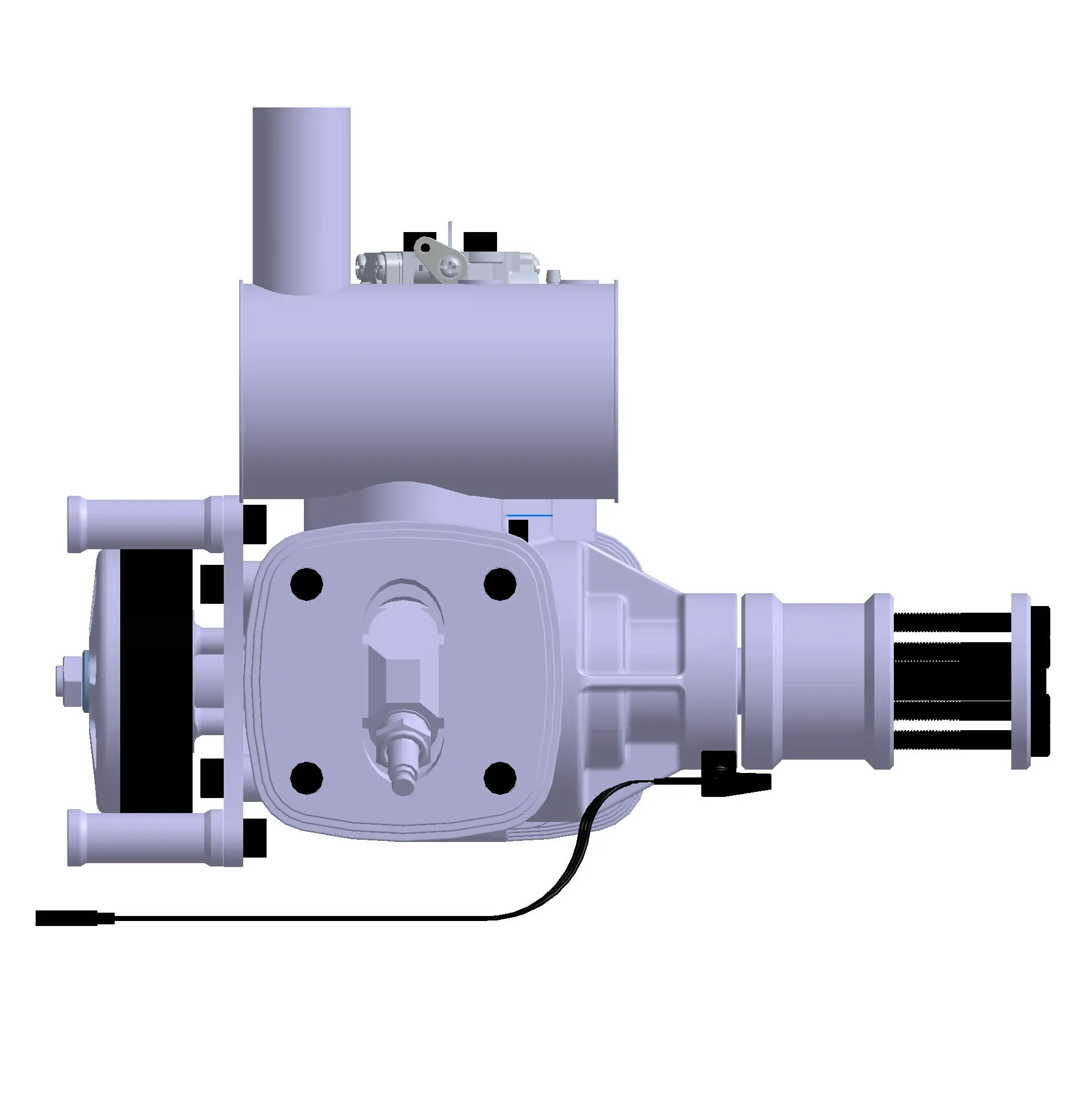

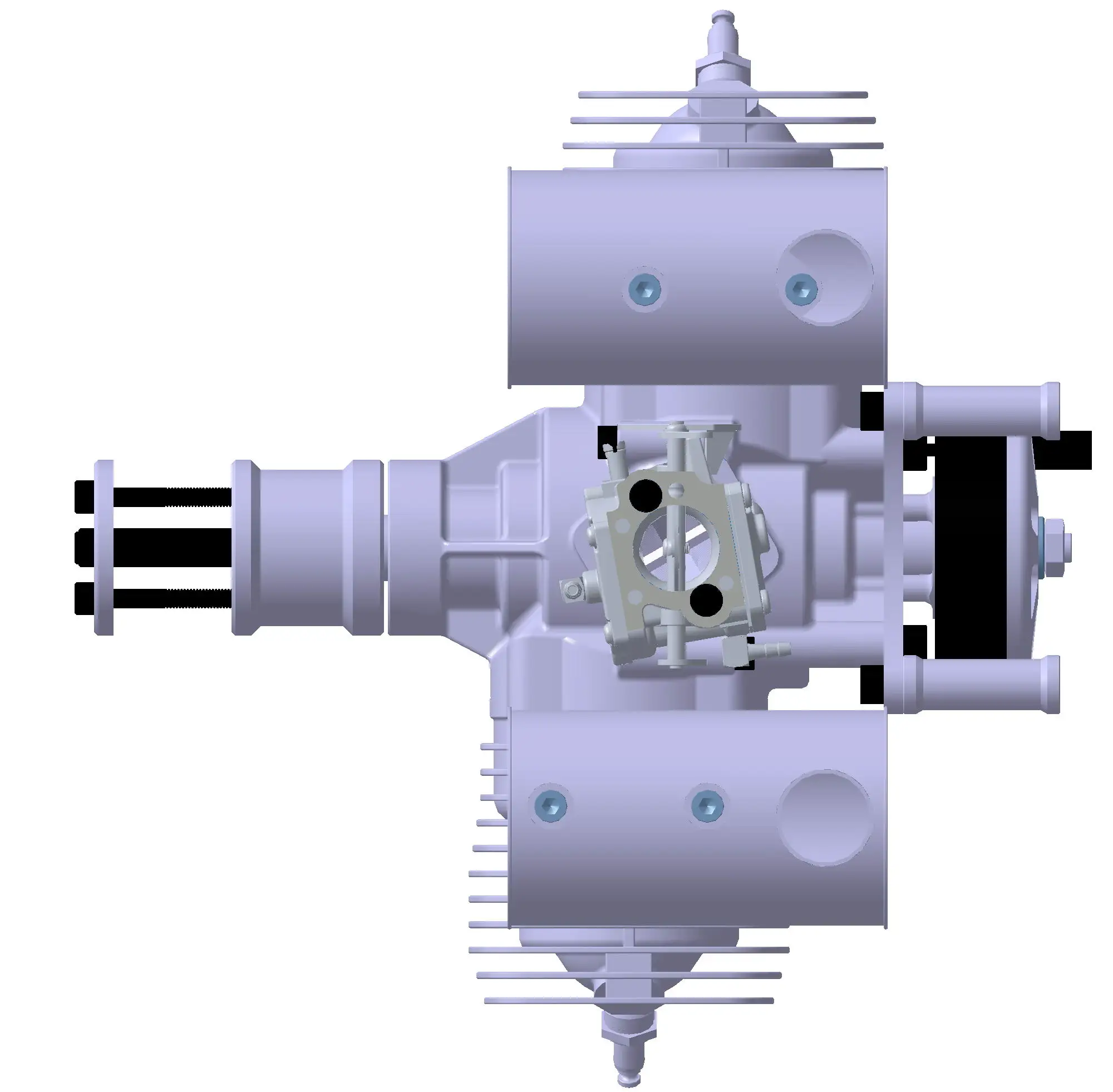

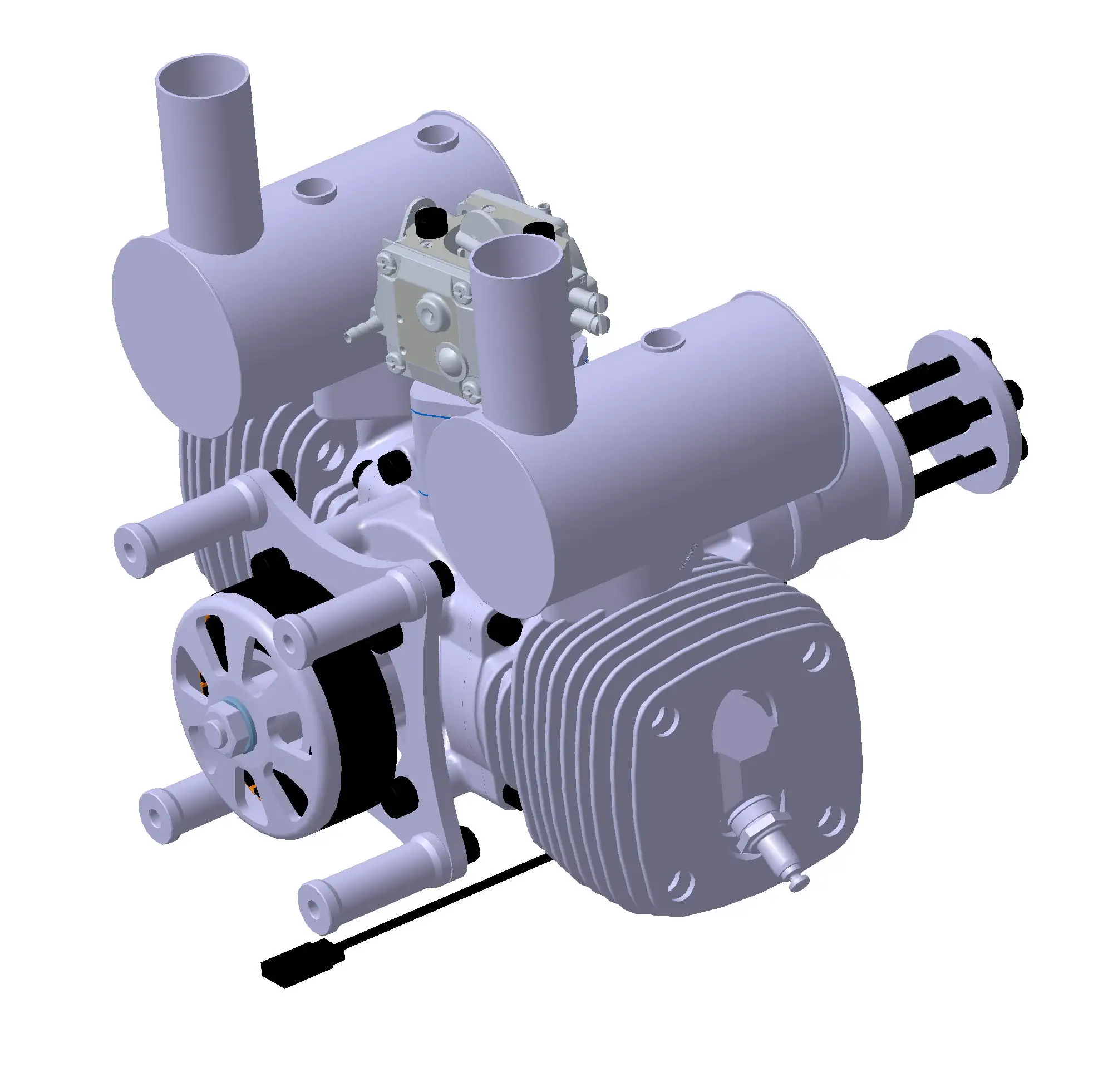

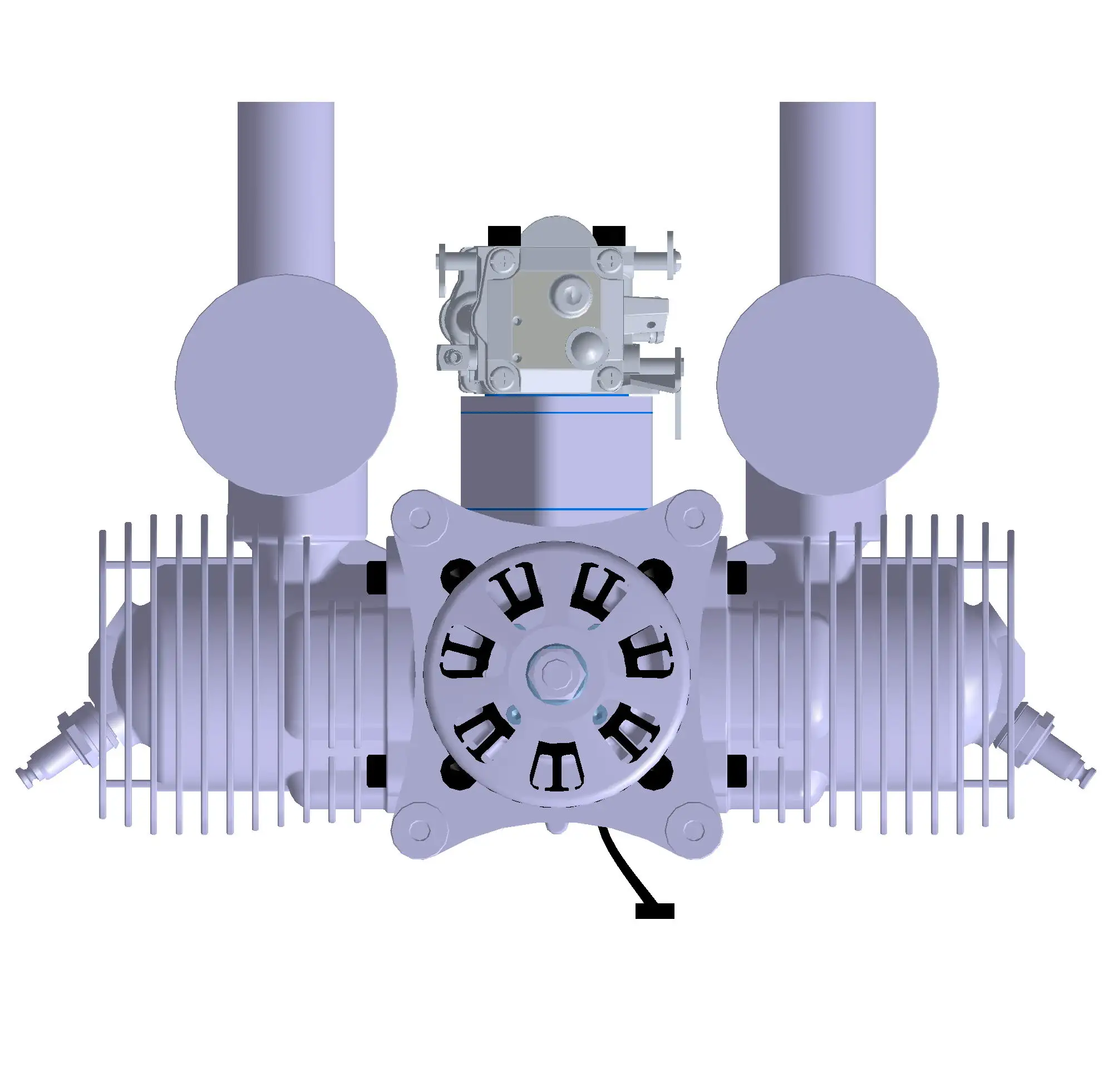

The UAV is horizontally opposed with a two cylinder two stroke gasoline model airplane engine 130cc
- Category: >>>
- Supplier: Jiangxi Hangxin Technology Co. Ltd.
Share on (1600837080180):
Product Overview
Description
Product Description
Engine parameter
Cylinder diameter: 48mm
Stroke: 36mm
Volume: 130cc (2x65cc)
Compression ratio: 8.5
Carburetor: Walbro WJ71
Speed range: 1200-7200rpm
Maximum power: 13.1 HP/7500rpm
Static tension: 29kg (50-200 meters above sea level)
Igniter:automatic entry igniter (RoHS and CE certified)
Spark plug: CM6
Igniter Power supply: DC 6V-14.4V 1000mAH
Weight: Engine 2800 g, igniter 200 g
Fuel: 93# unleaded gasoline + fully synthetic 2T lubricating oil
Lubrication ratio: gasoline: lubricating oil = 35:1
Recommended propeller: 26x12, 27x10, 28x10 (two-blade propeller)
发动机参数
气缸直径:48mm
中风:36毫米
体积:130cc (2x65cc)
压缩比:8.5
化油器:Walbro WJ71
转速范围:1200-7200rpm
最大功率:13.1 HP/7500rpm
静张力:29kg(海拔50-200米)
点火器:自动入口点火器(RoHS和CE认证)
火花塞:CM6
点火器电源:直流6V-14.4V 1000mAH
重量:发动机2800克，点火器200克
燃料:93#无铅汽油+全合成2T润滑油
润滑比:汽油:润滑油= 35:1
推荐螺旋桨:26x12、27x10、28x10(双叶螺旋桨)
Stroke: 36mm
Volume: 130cc (2x65cc)
Compression ratio: 8.5
Carburetor: Walbro WJ71
Speed range: 1200-7200rpm
Maximum power: 13.1 HP/7500rpm
Static tension: 29kg (50-200 meters above sea level)
Igniter:automatic entry igniter (RoHS and CE certified)
Spark plug: CM6
Igniter Power supply: DC 6V-14.4V 1000mAH
Weight: Engine 2800 g, igniter 200 g
Fuel: 93# unleaded gasoline + fully synthetic 2T lubricating oil
Lubrication ratio: gasoline: lubricating oil = 35:1
Recommended propeller: 26x12, 27x10, 28x10 (two-blade propeller)
发动机参数
气缸直径:48mm
中风:36毫米
体积:130cc (2x65cc)
压缩比:8.5
化油器:Walbro WJ71
转速范围:1200-7200rpm
最大功率:13.1 HP/7500rpm
静张力:29kg(海拔50-200米)
点火器:自动入口点火器(RoHS和CE认证)
火花塞:CM6
点火器电源:直流6V-14.4V 1000mAH
重量:发动机2800克，点火器200克
燃料:93#无铅汽油+全合成2T润滑油
润滑比:汽油:润滑油= 35:1
推荐螺旋桨:26x12、27x10、28x10(双叶螺旋桨)
Generator parameter
2000rpm output: DC12V 3.5A
3500rpm Output: DC14V 13A
Continuous output above 4000rpm: DC14V 14.5A 200W
发电机参数
2000rpm输出:DC12V 3.5A
输出:DC14V 13A
连续输出4000rpm以上:DC14V 14.5A 200W
Rectifier parameter
Output voltage: DC14V±0.5V
Maximum output current: 13A-15A
Maximum input voltage: < 120V
Maximum power: ≥200W
Maximum temperature resistance: < 200℃
整流器参数
输出电压:DC14V±0.5V
最大输出电流:13A-15A
最大输入电压:< 120V
最大功率:≥200W
最高耐温:< 200℃
2000rpm output: DC12V 3.5A
3500rpm Output: DC14V 13A
Continuous output above 4000rpm: DC14V 14.5A 200W
发电机参数
2000rpm输出:DC12V 3.5A
输出:DC14V 13A
连续输出4000rpm以上:DC14V 14.5A 200W
Rectifier parameter
Output voltage: DC14V±0.5V
Maximum output current: 13A-15A
Maximum input voltage: < 120V
Maximum power: ≥200W
Maximum temperature resistance: < 200℃
整流器参数
输出电压:DC14V±0.5V
最大输出电流:13A-15A
最大输入电压:< 120V
最大功率:≥200W
最高耐温:< 200℃
