Product Overview
Description

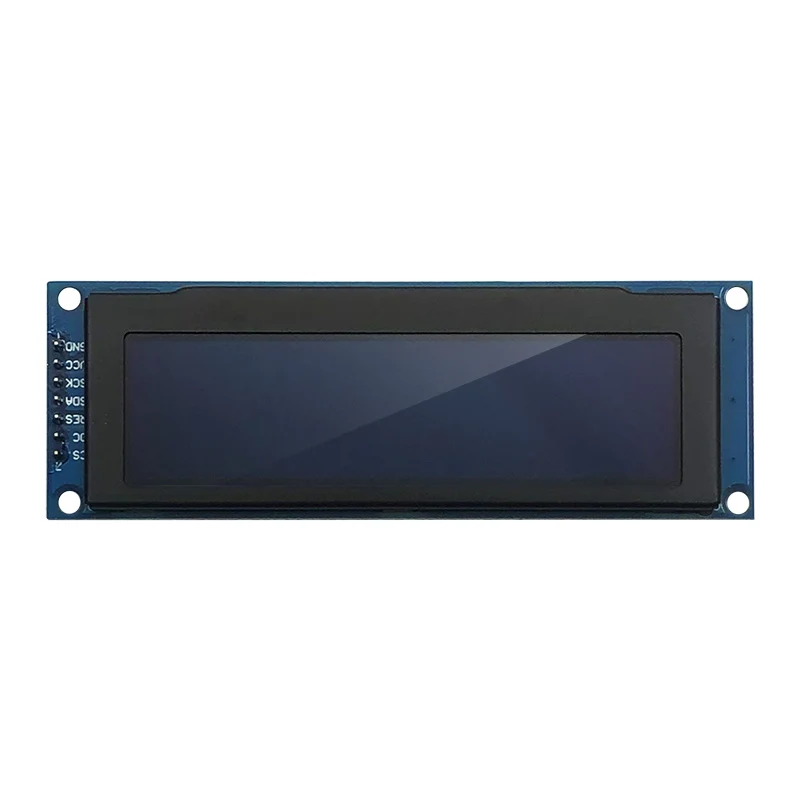

3.12" Inch 256x64 COF OLED Display Module SPI Interface 16 Greyscale 3.3V Power Supply SSD1322
3.12" 256x64 COF OLED Display, Greyscale OLED Description
* Driver IC: SSD1322U.
* Resolution: 256x64

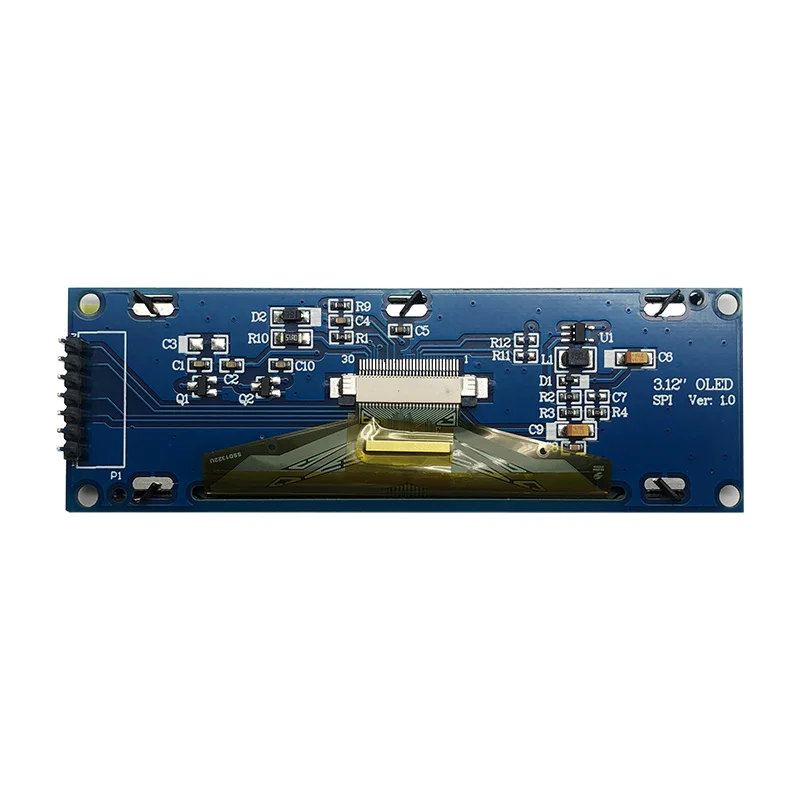

* Four holes PCB are easy to install
* Ultra-low power consumption: full screen lit 0.08w
* with 4 wire SPI interface, it is convenient to use with different machines
* Supports many control chip : fully compatible with Arduino 51 series,msp430 series , stm32/2 CSR IC etc

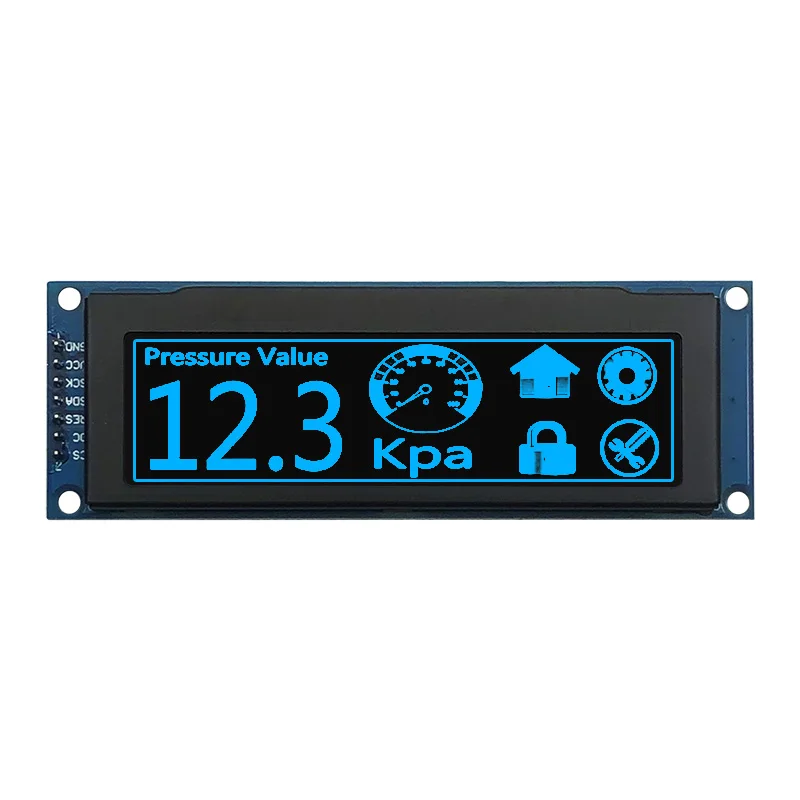

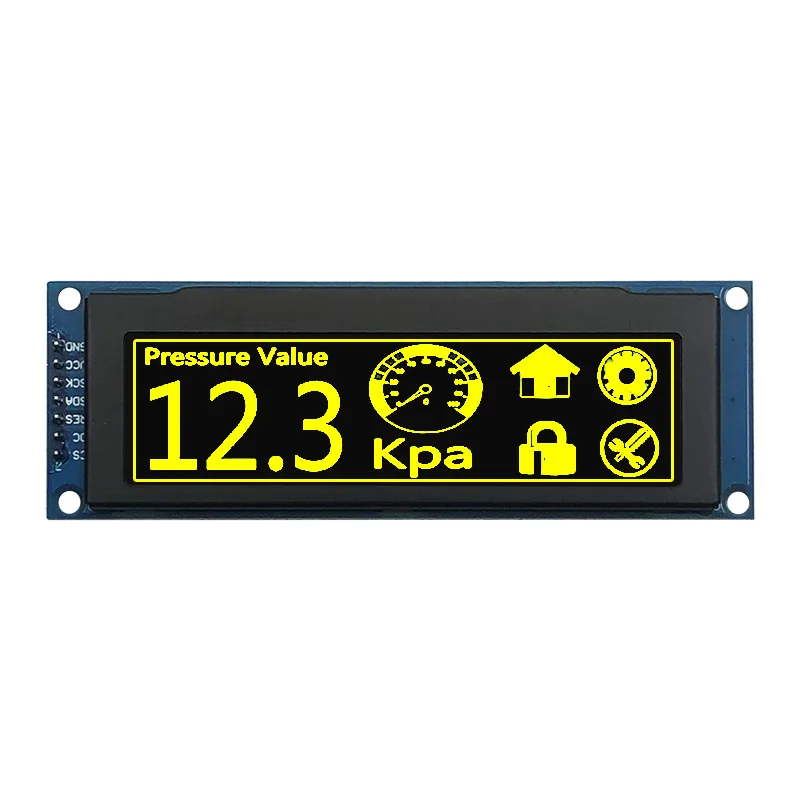

* Color: Blue White Yellow Green optional
* Pin Definition:
* 1 GND ( Power Ground )
* 2 VCC ( Module power Voltage 3V - 5V)
* 3 SCK ( Clock line )
* 4 SDA ( Data line )
* 5 RES ( This pin is reset signal input. When the pin is pulled LOW, initialization of the chip is executed. Keep this pin pull
HIGH during normal operation.)
* 6 DC (This pin is Data/Command control pin connecting to the MCU. When the pin is pulled HIGH, the data at D[1:0] will be
interpreted as data. When the pin is pulled LOW, the data at D[1:0] will be transferred to a command register. )
* 7 CS (This pin is the chip select input connecting to the MCU. The chip is enabled for MCU communication only when CS# is
pulled LOW (active LOW).
SFOM312YZ7-25664A01 is a monochrome 3.12 inch 256x64 Graphic OLED display module. this OLED module has a 50,000 hours lifetime.
and it can be compatible with a wide variety of microcontrollers including Raspberry Pi and ESP32.
Display Type | PM OLED | ||||||
Display Size | 3.12 inch OLED | ||||||
Display Format | 256X64 Dots | ||||||
Display Color | Monochrome (White Green Blue Yellow) | ||||||
Viewing Area | 78.8(W)mm×21.18(H)mm | ||||||
Active Area | 76.78(W)mm×19.18(H)mm | ||||||
Pixel Pitch | 0.3(W)mm×0.3(H)mm | ||||||
Pixel Size | 0.28(W)mm×0.28(H)mm | ||||||
