ELP 16mp Auto focus USB Webcam with Metal Case Day & Night Vision AF USB Camera IMX298 4K Mini PC Camera UVC USB2.0 For Scan

Product Overview

Description

ELP 16mp Auto focus USB Webcam with Metal Case Day & Night Vision AF USB Camera IMX298 4K Mini PC Camera UVC USB2.0 For Scan AI Recognition



Features:

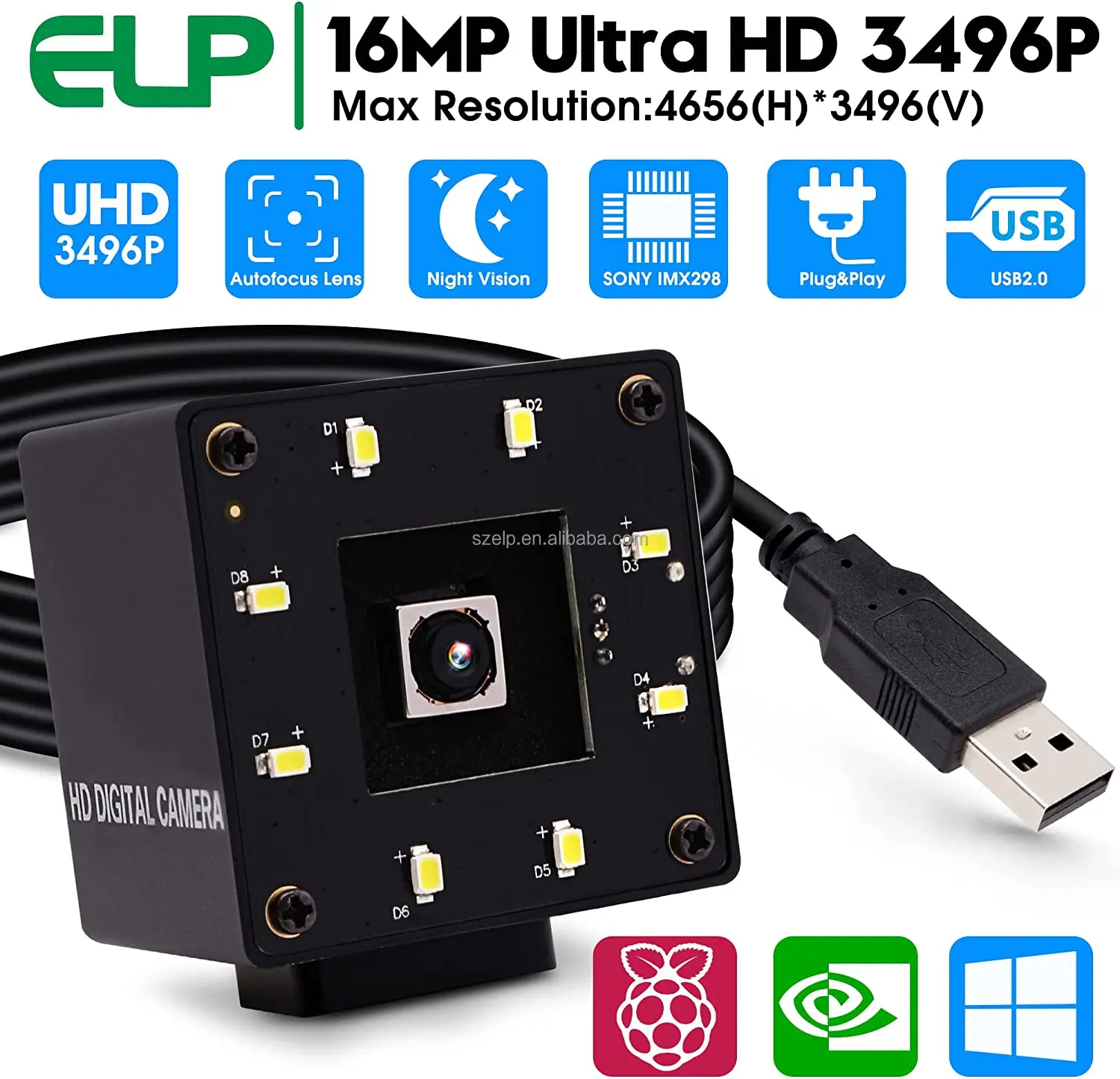

-High Quality Imaging: This small camera module adopts 16MP IMX298 sensor for sharp image and accurate color reproduction, still picture resolution: 4656 x 3496 Max.
-Autofocus: Shoot objects in close and distance on the same camera, automatically controlled without lens adjustment tool, clearer and easier than the fixed focus camera.

-With 10PCS White LED borad for low light condition: LED brightness is manually adjustable by Switch beside
-Frame Rates: MJPG 10fps@4656x3496/4160x3120/3264x2448/2592x1944; 30fps@2320x1744/1080P/720; YUY2 10fps@960P/720P/800x600
-Plug&Play: UVC-compliant, just connect the camera to PC, laptop, Android device or Raspberry Pi with the included USB cable without extra drivers to be installed.
-Applications: This small 38mmx38/32*32mm camera board is highly recommended for a home surveillance system, monitoring 3D Printer, object recognition and tracking, or other machine vision applications which demand high resolution.



Specification:

Model	ELP- USB16MP01-KAF68W
Sensor	IMX298
Sensor Size	1/2.8inch
Pixel Size	1. 12um x 1.12um
Image Area	6.4mm x 5.3mm
Max. Resolution	4656(H) X 3496(V)     16 Megapixel
Compression Format	MJPEG / YUY2 (YUYV)
Resolution & Frame Rate	4656 x 3496 MJPEG@ 10fps  YUY2@ 1fps  4208 x 3120 MJPEG@ 10fps  YUY2@ 1fps 4160 x 3120 MJPEG@ 10fps  YUY2@ 1fps  4000 x 3000 MJPEG@ 10fps  YUY2@ 1fps 3840 x 2160 MJPEG@ 10fps  YUY2@ 1fps  3264 x 2448 MJPEG@ 10fps  YUY2@ 1fps 2592 x 1944 MJPEG@ 10fps  YUY2@ 1fps  2320 x 1744 MJPEG@30fps  YUY2@ 1fps 2048 x 1536 MJPEG@30fps  YUY2@ 1fps  1920 x 1080 MJPEG@30fps  YUY2@5fps 1600 x 1200 MJPEG@30fps  YUY2@5fps   1280 x 960 MJPEG@30fps  YUY2@ 10fps 1280 x 720 MJPEG@30fps  YUY2@ 10fps  1024 x 768 MJPEG@30fps  YUY2@ 10fps 800 x 600 MJPEG@30fps  YUY2@ 15fps    640 x 480 MJPEG@30fps  YUY2@30fps
Min Illumination	0.5 Lux
Shutter Type	Electronic Rolling Shutter / Frame Exposure
Connecting Port Type	USB2.0 High Speed
Free Drive Protocol	USB Video Class ( UVC)
AEC	Support
AWB	Support
AGC	Support
Adjustable Parameters	Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, Gain, White Balance, Backlight Contrast, Exposure
Lens Parameter	AF LENS     Focus: 3.2mm , DFOV: about 78 Degree , HFOV: about 68 Degree
Power Supply	USB BUS POWER    4P-2.0mm Socket
Operating Voltage	DC 5V
Working Current	150mA~280mA
Working Temperature	- 10~70C
Storage Temperature	-20~85C
Board Size /Weight	38X38mm (Compatible 32X32mm) / about 30g
Cable	Standard 1m / Optional 2m,3m,5m
Operating System Request	WinXP/Vista/Win7/Win8/Win9/Win10/Win11 etc. Linux with UVC (above Linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC

Effect Shows:



Pictures:



16MP Ultra HD Max Resolution 4656(H) X 3496(V) 16 Megapixel high pixel technology for sharp image and accurate color reproduction.

Autofocus

--shoot objects at millimeter level and in the distance on the same camera, automatically controlled without lens adjustment tool, closer and easier than the fixed focus camera.

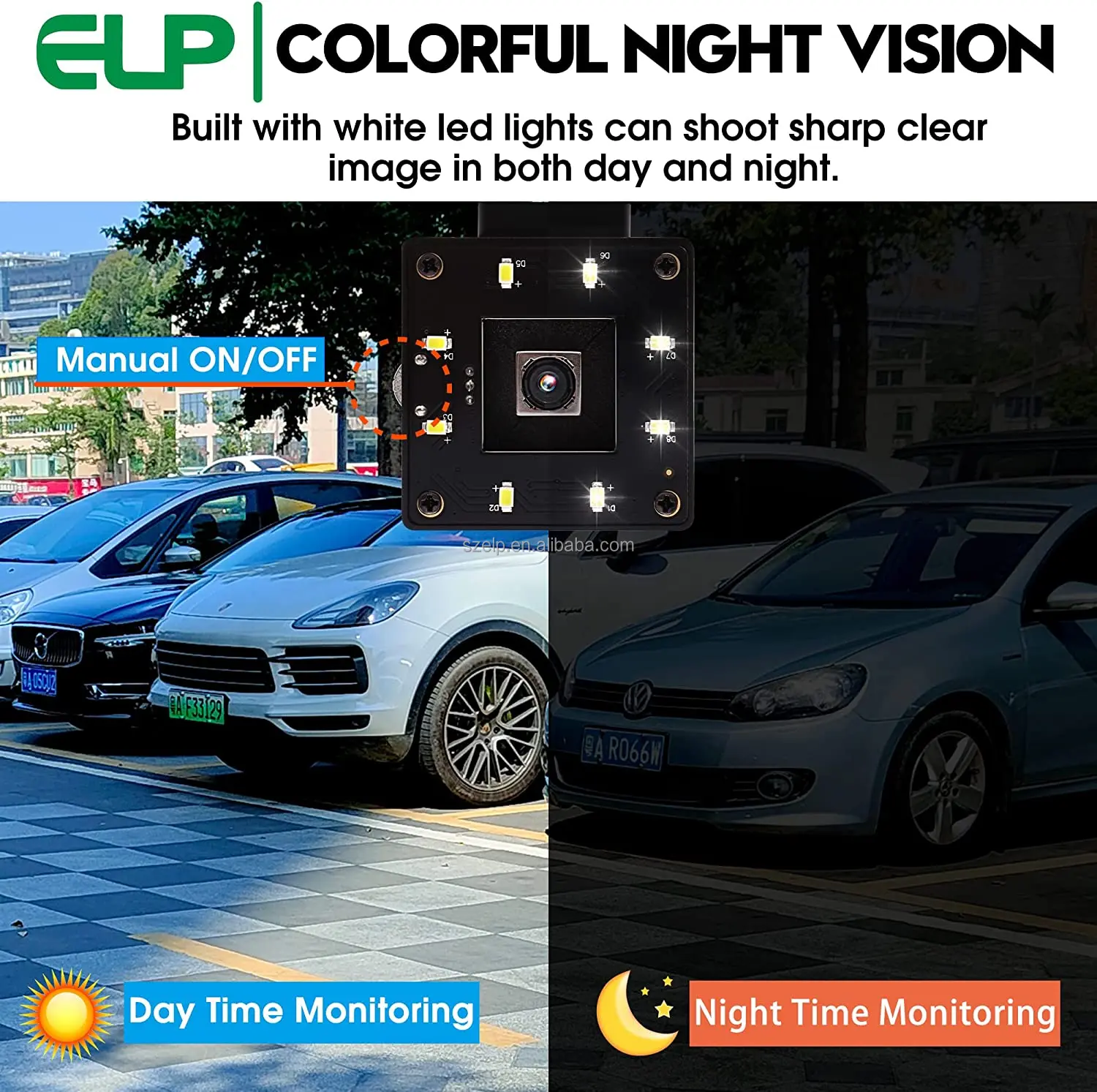

Day Night Vision

Manually Brightness adjustable white led lights:

16mp mini size usb camera with white led lights,can capture sharp clear image in both day and night.

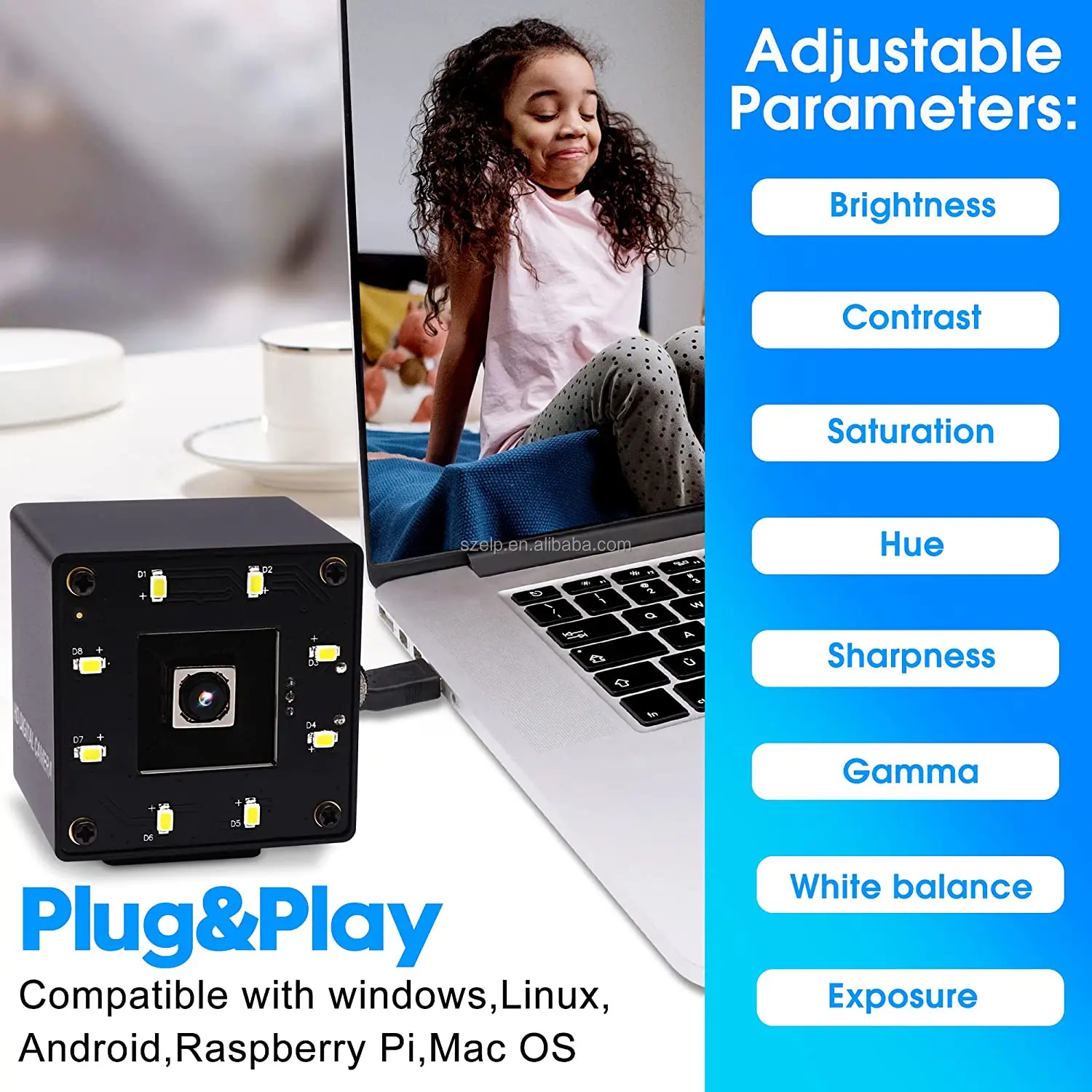

Adjustable Parameters:

Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,White balance, Backlight Contrast, Exposure

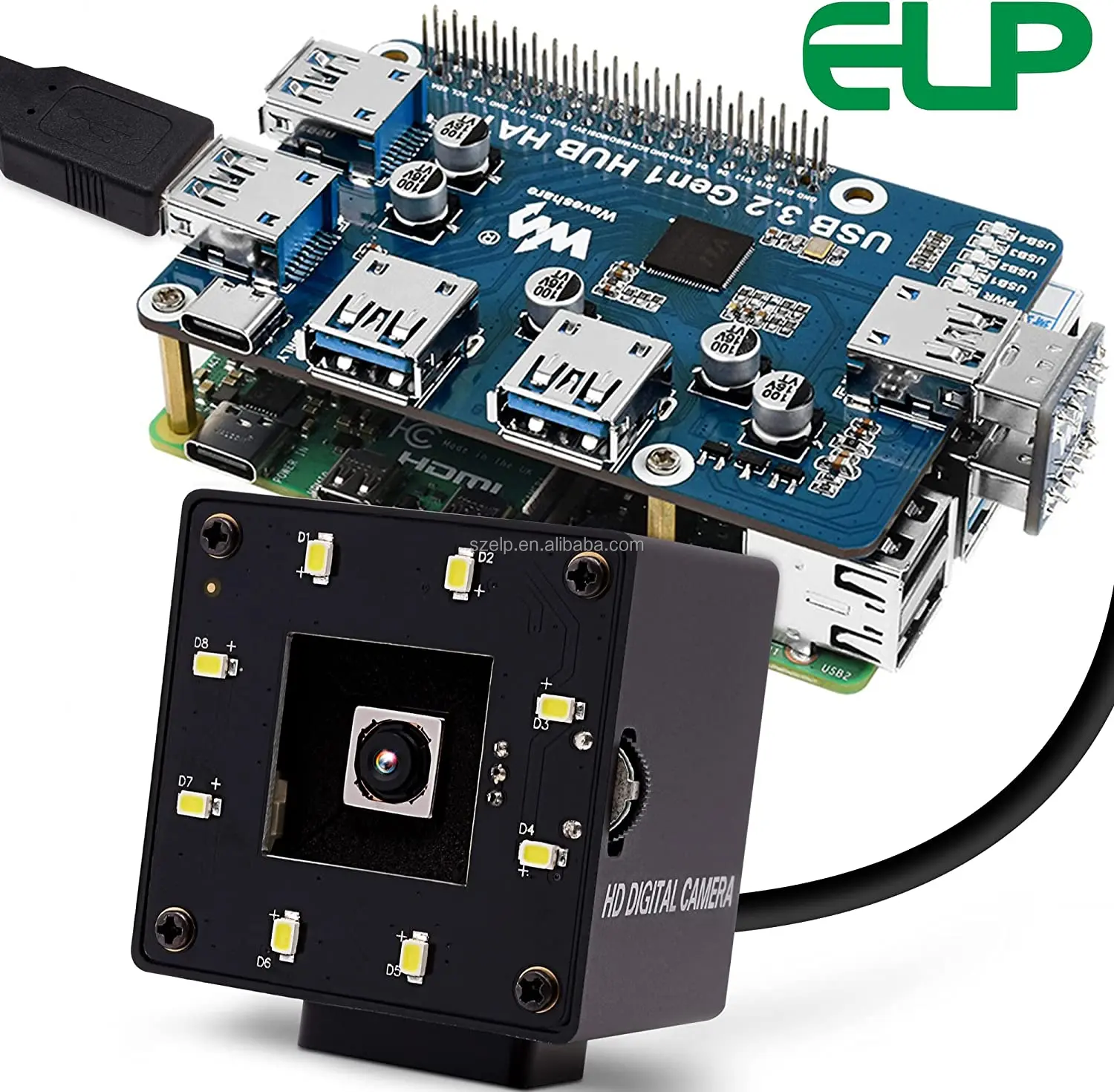

FOR RASPBERRY PI:

It can work with already preinstalled camera software instead of builtin camera.

Support Android development board,Raspberry Pi development board,Jetson Nano,etc.

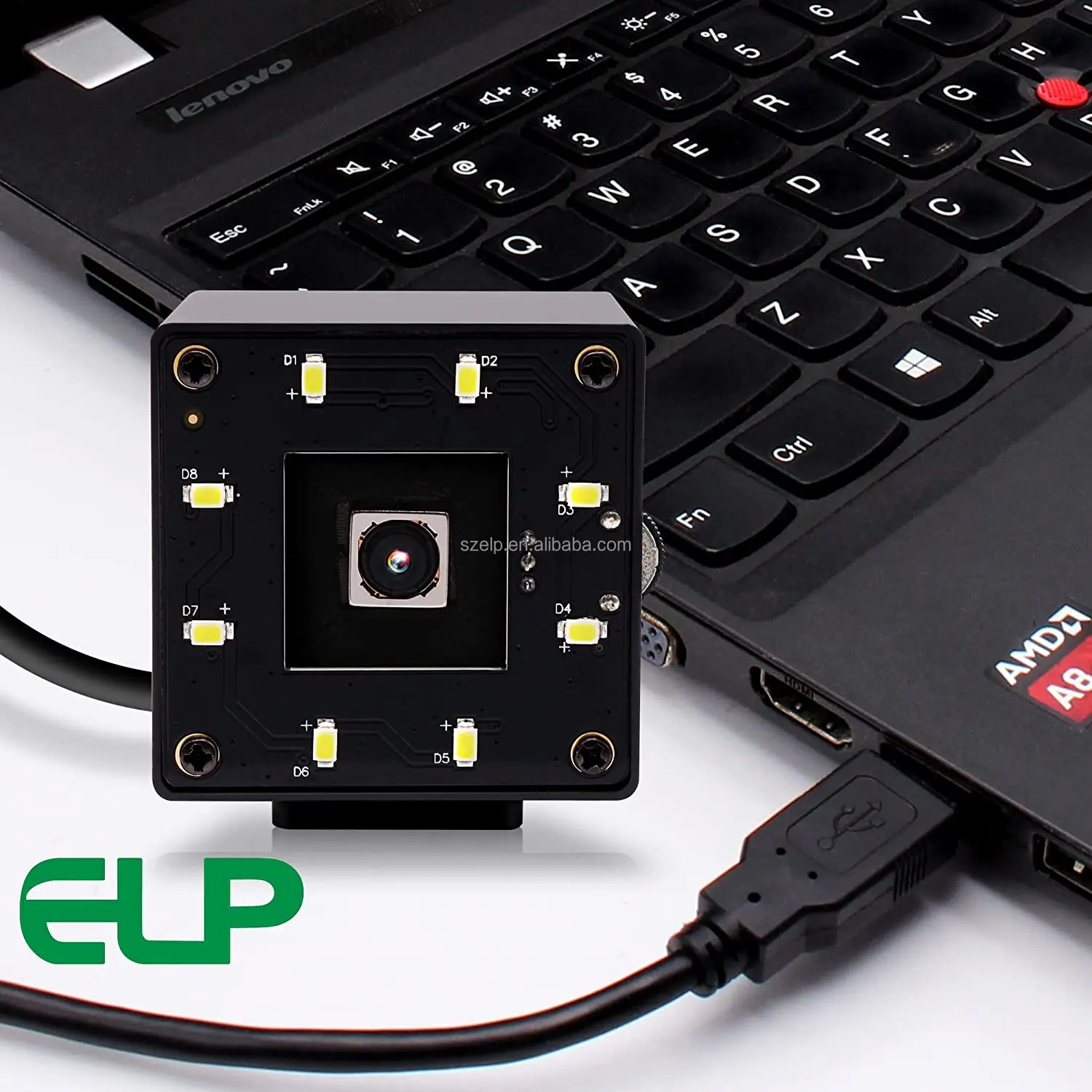

FOR PC:

Support windows,linux,mac,Android,raspberry Pi

Very easy to use,UVC compliant,free driver,just plug in and go.
