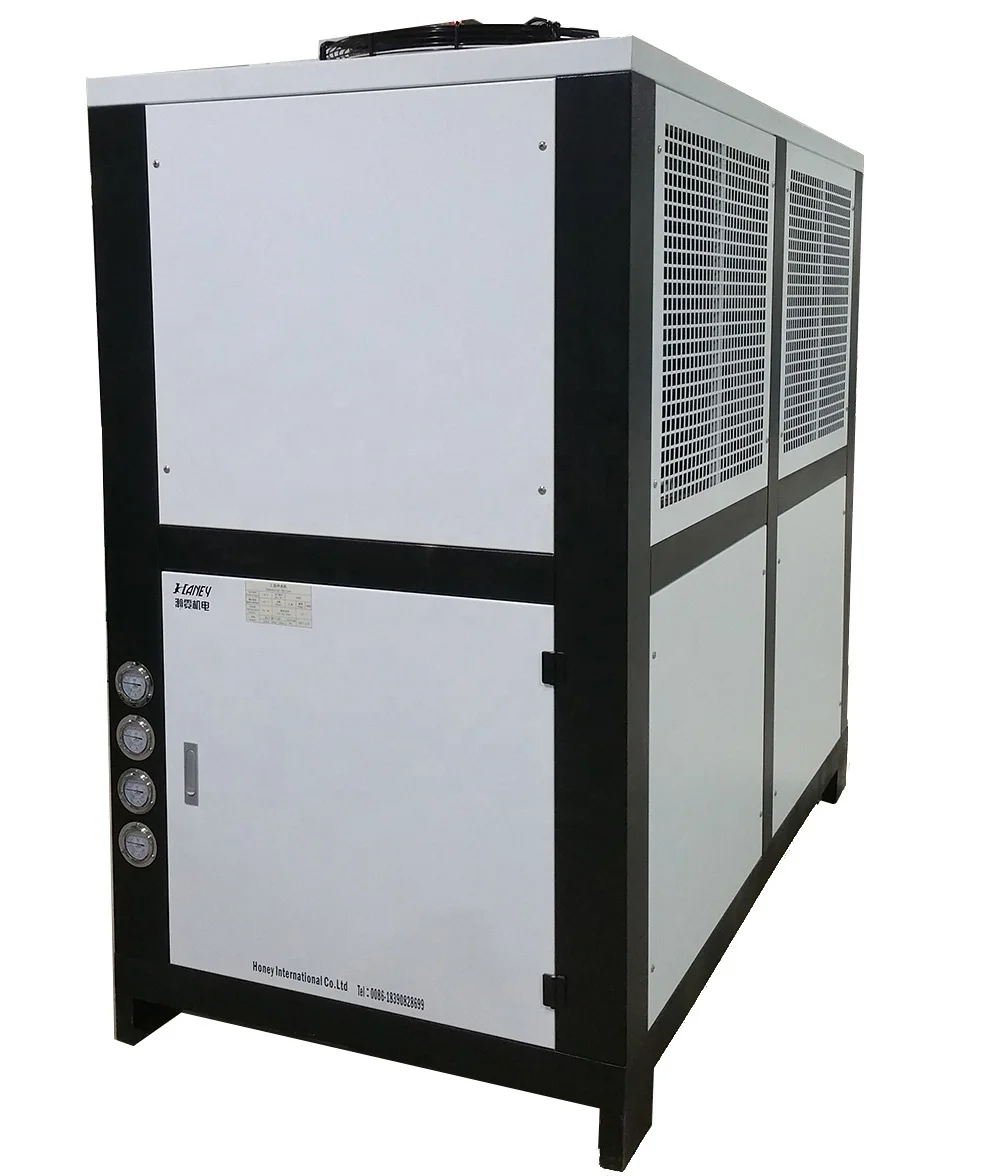

Haney 15HP portable small air cooling and water chiller for mini cooling system chillers de enfrimiento agua
- Category: >>>
- Supplier: Liuyang Haney Electromechanical Equipment Co. Ltd.
Share on (1600837497679):
Product Overview
Description
Product Description
Haney wholesale price CE standard plastic industry small industrial water coled chiller
Specification
model | HN-5HP | HN-10HP | HN-15HP | HN-20HP |
Size(l*w*h)mm | 1000*650*1100mm | 1400*600*1060mm | 1400*800*1250mm | 1550*860*1320mm |
working voltage | AC3N-380V | AC3N-380V | AC3N-380V | AC3N-380V |
Refrigerating capacity | 15kw | 30kw | 45kw | 60kw |
compressor power | 4kw | 8kw | 12kw | 16kw |
maximum flow | 55l/min | 110l/min | 169l/min | 220l/min |
pump power | 1hp | 1hp | 2hp | 3hp |
N.W.(kgs) | 170kgs | 270kgs | 350kgs | 510kgs |

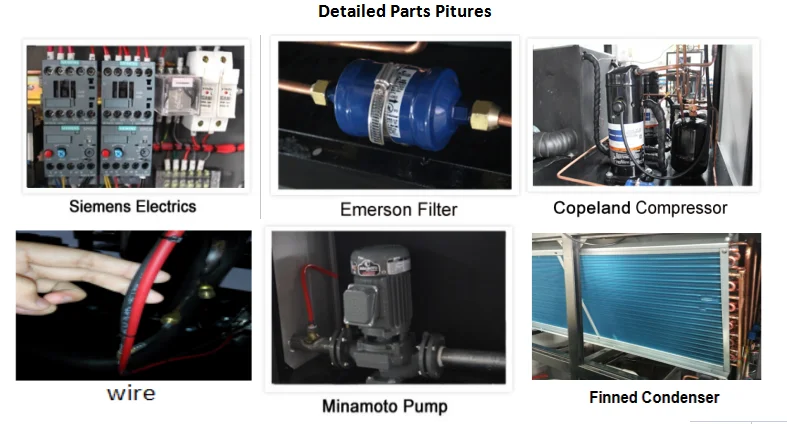

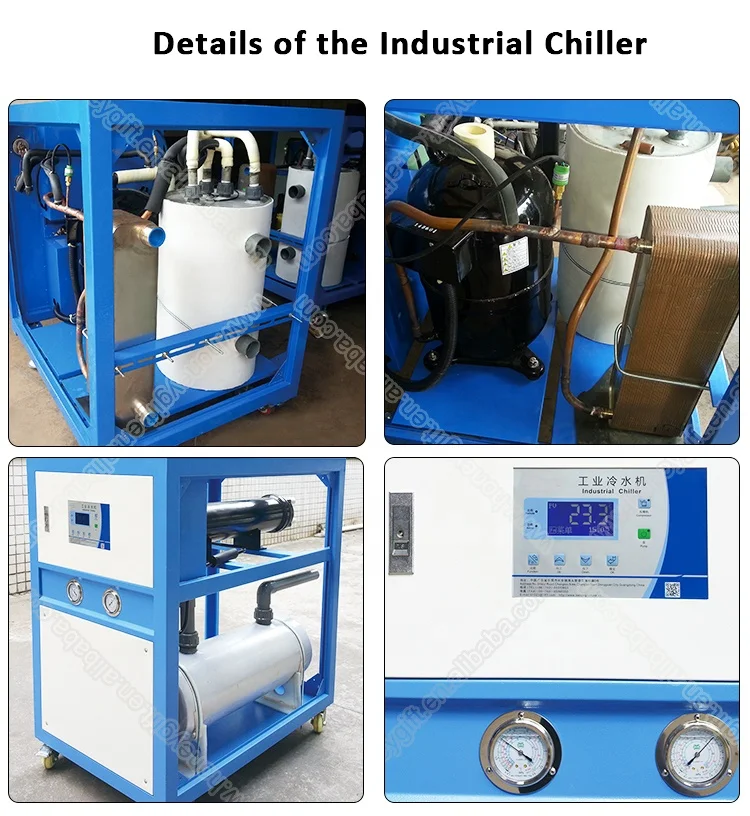

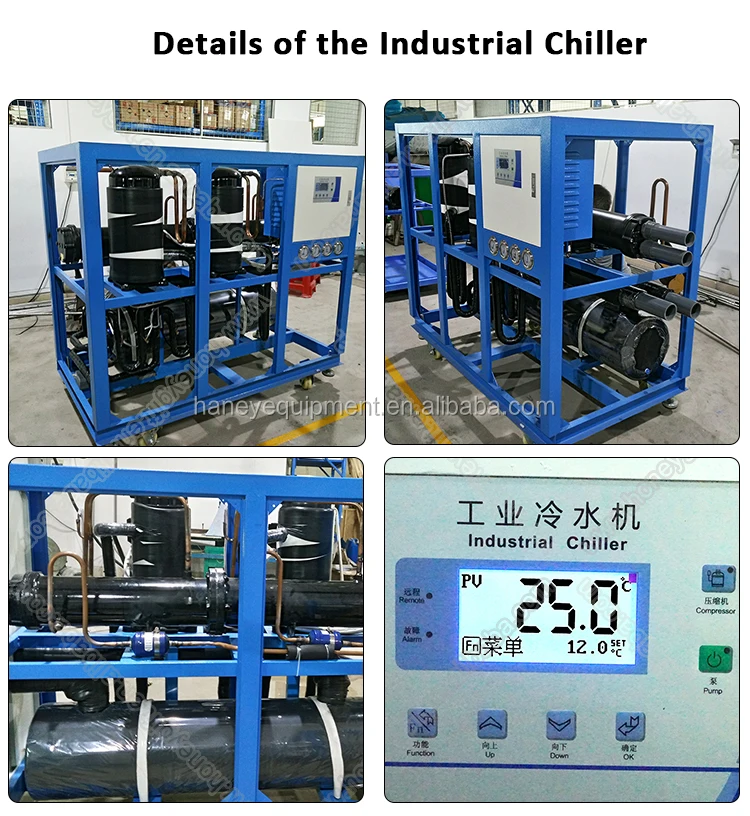

Chiller configuration description:
* compressor:choose SANYO,COMPELAND valley,and other imported brands closed vortex compressor.
* condenser:imports and large air volume design of axial flow fan,imported heat fan,so the heat exchanger effect is
remarkable.Match the low and high efficiency of the noise of the fan motor,big air volume,small vibration,good heat dissipation
effect,the fan is made of high strength hard aluminum alloy blade a stamping forming,and the two balance check strict action;
* evaporator condenser adopts imported heatt exchange tubes,low copper pipe outside surface processed into trapezoidal rib
tube,increase the heat transfer area,enhanced heat transfer performance.Copper pipe inner surface is smooth,reduce the water
pressure,and easy cleaning and maintenance.Water pump:adopt Taiwan source made brand.
* Dry filter:we use the United States ALCO;Temperature control is Italian Willy brand;Electrical appliance is adopted Taiwan
Jiver brand; the fault display board is single chip.
* Above are our standard configuration,OEM requirements are workable.
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profie
Haney industrial chiller is widely used in plating gold,silver,zinc,nickel,copper,chrome,
anodizing,electrolysis,Electrophoresis…and win high reputation among our customer. Several innovative technologies obtain national patents and users worldwide.
anodizing,electrolysis,Electrophoresis…and win high reputation among our customer. Several innovative technologies obtain national patents and users worldwide.
FAQ
Q:What's the application for your industrial chiller?
A: It is used for industrial area,include plating,hard chrome,anodizing,injection molding......to chill liquid.
Q:Is your chiller scroll or screw type?
A:It is scroll type.
Q:Is your industrial chiller water or air cooled type?
A:Both type is workable per to your usage.
Q:Is it direct or indirect cooled type?
A:For normal anodizing or hard anodizing,direct cooled will be needed.
for hard chrome plating,indirect cooled type is necessary.
Q:What information needed for choosing the right model.
A:We have to know capacity of liquid, original temperature and the temperature you'd like to chill to, then recommend suitable power for you to use well.
