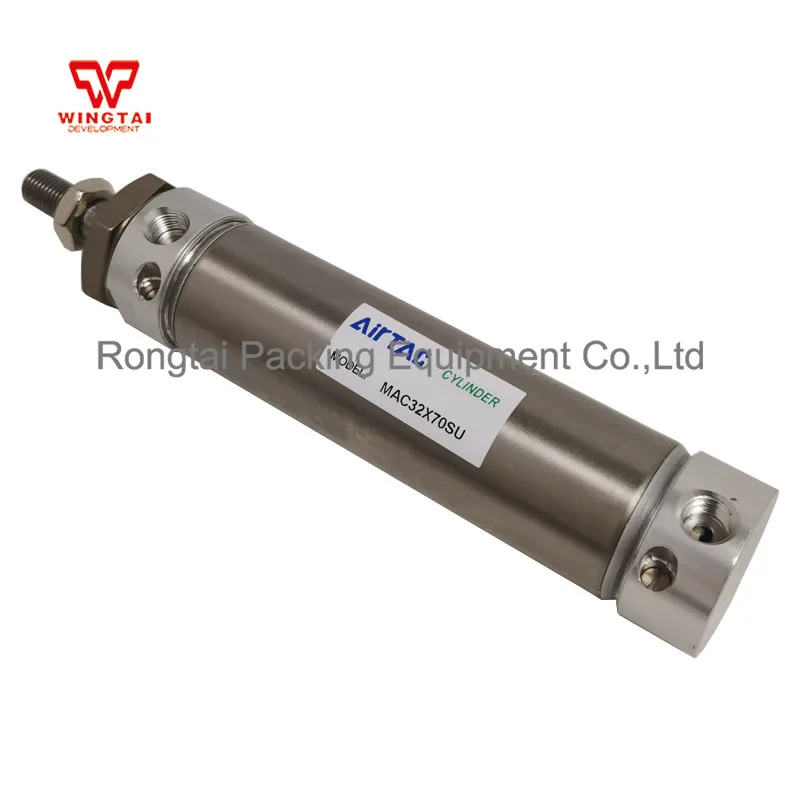

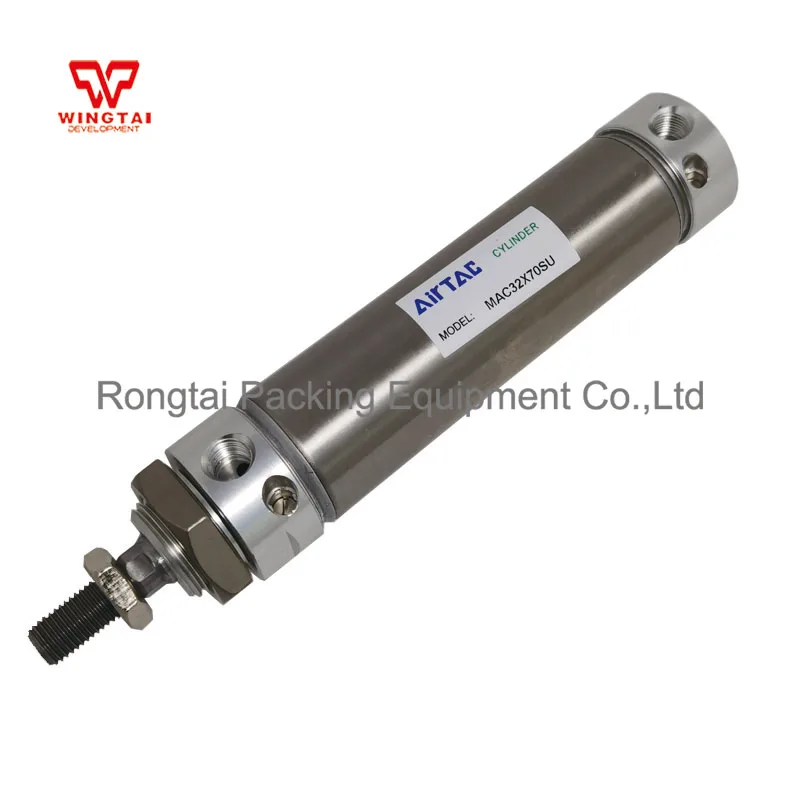

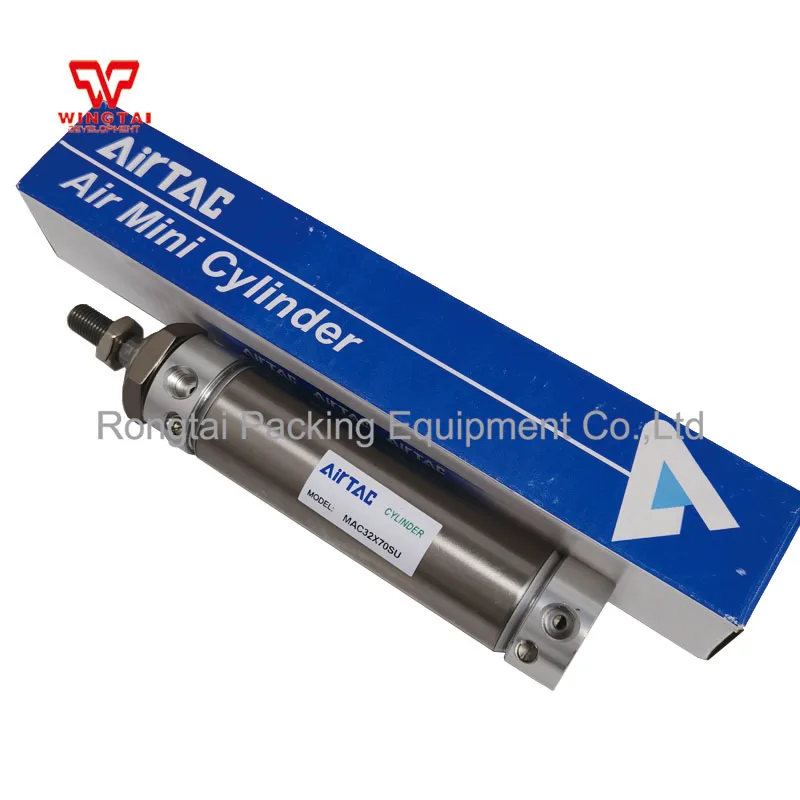

AirTAC Air Mini Cylinder Model MAC32X70SU
- Category: >>>
- Supplier: Shantou Rongtai Packing Equipment Co. Ltd.
Share on (1600837586466):
Product Overview
Description
Product Description
Brand: AirTAC
Model: MAC32X70SU
Name: Air Mini Cylinder
Model: MAC32X70SU
Name: Air Mini Cylinder
Place of Origin:Taiwan,China
Product Features
2. The piston seal adopts special-shaped bidirectional seal structure with compact size and oil storage function;
3. The front and rear covers are equipped with fixed anti-collision pads, which can reduce the reversing impact of the cylinder;
4. Various back cover forms make cylinder installation more convenient;
5. The front and rear cover and stainless steel cylinder body adopt the structure of close-fitting package, and the connection is
reliable;
6, the cylinder USES high-precision stainless copper pipe, high strength, corrosion resistance;
7, a variety of specifications of cylinder and cylinder installation accessories for customer to choose to use;
8. All cylinders in this series are magnetized.
The inner diameter（mm） | 16 | 20 25 32 40 | 50 63 | |||||
Action type | MSA/MTA | Single acting type | — | |||||
MA/MAD/MAJ | Double acting type | — | ||||||
MAR | — | Double acting type | ||||||
MAC/MACD/MACJ | — | Complex action buffer type | ||||||
Working medium | air（Filtered through a filter screen over 40um） | |||||||
Service pressure range | Double acting type | 0.1 ~1.0MPa(15~145psi)(1.0~10.Obar) | ||||||
Single acting type | 0.2~1.0MPa(28~145psi)(2.0~10.0bar) | |||||||
Guaranteed pressure resistance | 1.5MPa(215psi)(15bar) | |||||||
Working temperature°C | -20-70 | |||||||
Service speed rangemm/s | Double acting type：30-800 Single acting type：50-800 | |||||||
Range of travel tolerances | 0~150+1.0 >150+1.4 | |||||||
The buffer type | MAC | MACD、MACJseries：Adjustable buffer Other series：crash pad | ||||||
Pipe caliber① | M5x0.8 | PT1/8 | PT1/4 | |||||
①There are NPT and G teeth for selection. In addition: See page P403~426 for the sensor switch
