Anti Vibration Mounting Spring Vibration Isolator Anti vibration Restrained Spring Mounts for HVAC System
- Category: Shock Absorber >>>
- Supplier: Bellking Vibration Reduction Equipment Manufacturing (kunshan) Co. Ltd.
Share on (1600837602263):
Product Overview
Description
Product Description

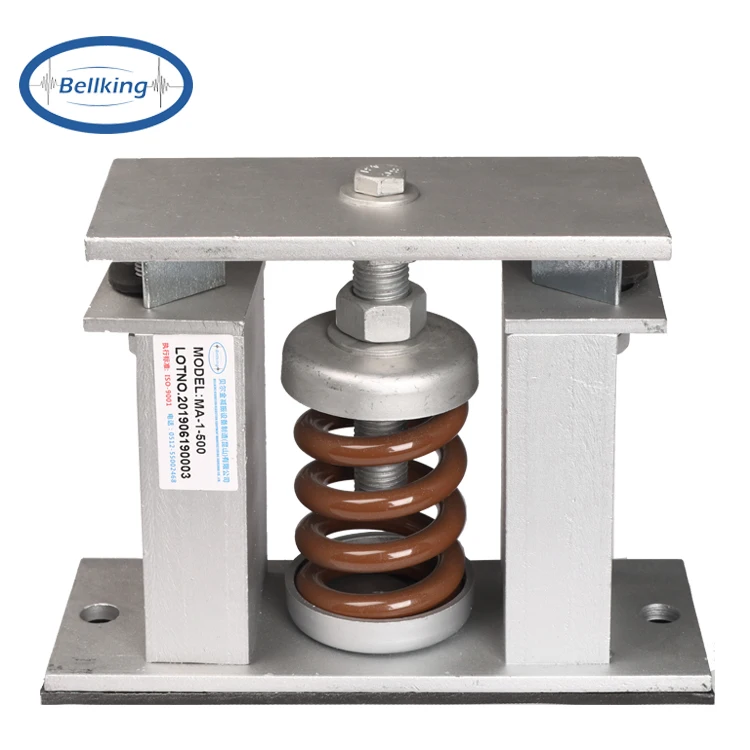

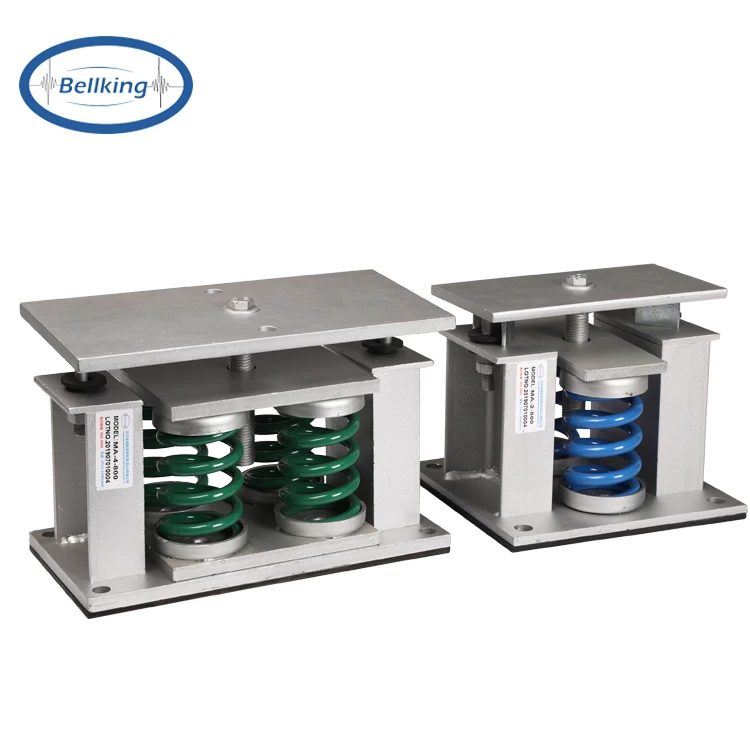

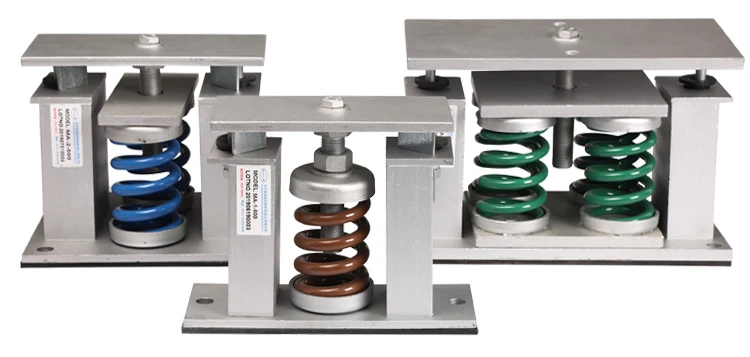

| Product Name | spring mount vibration isolator - type MA |
| Characteristics | . The spring is designed with low natural frequency and surface treatment by ED and stoving varnish. . Spring has very long service life which is processed by heat treatment and stress removal. . The ontology is treated with longzine. . The bottom is anti-skid and stopper bolt design, which is very safety. . Simple installation and height adjustable according to actual need. . Good vibration attenuation and can increase the service life of equipment. . Deflection is 25mm under nominal load. |

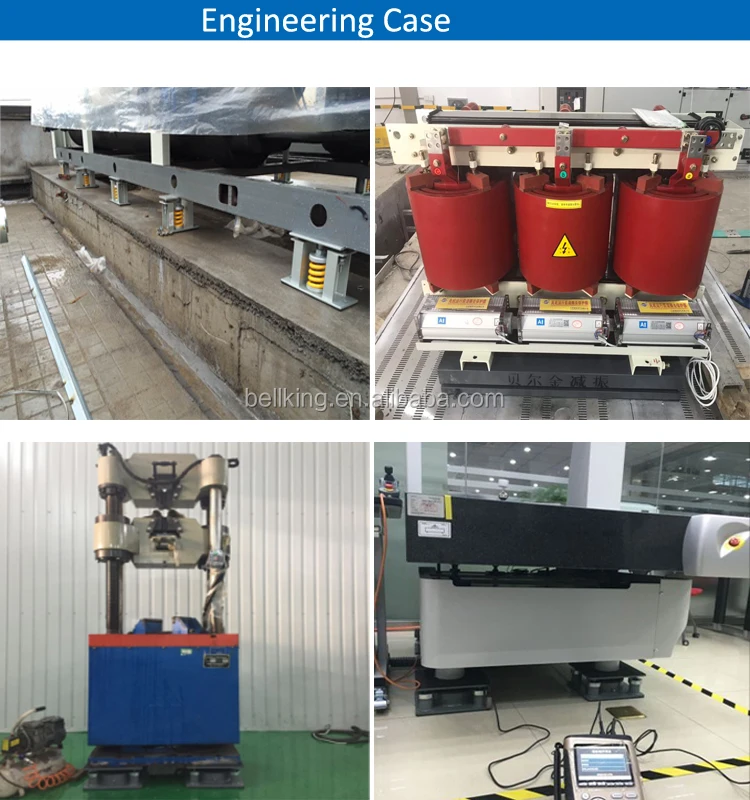

| Application | . Heavy machinery. . Chillers, water cooling tower. . Firing pump, Exhaust fan. . Generator, Air compressor |

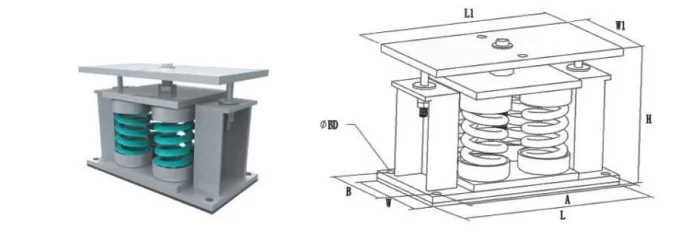

| Spec | Size (mm) | Bolt | |||||||
| L | W | L1 | W1 | A | B | H | BD | ||
MA-1 | 260 | 100 | 210 | 100 | 230 | 0 | 200 | 16 | M12 |
MA-2 | 235 | 220 | 235 | 120 | 195 | 180 | 200 | 16 | |
MA-4 | 320 | 165 | 320 | 165 | 290 | 135 | 220 | 14 | |
MA-6 | 400 | 170 | 400 | 170 | 370 | 140 | 220 | 18 | |
MA-9 | 420 | 250 | 420 | 250 | 384 | 214 | 220 | 18 | |
Type | Rated Capacity Kg | Spring Rate Kg/mm | Rated Deflection mm |
MA-1-100 | 90-110 | 4.2 | 25 |
MA-1-200 | 160-210 | 7.1 | 25 |
| MA-1-300 | 220-320 | 10.8 | 25 |
MA-1-400 | 360-430 | 14.2 | 25 |
MA-1-500 | 470-530 | 19.2 | 25 |
MA-1-600 | 530-650 | 22.6 | 25 |
MA-1-700 | 650-700 | 26.0 | 25 |
MA-1-850 | 700-850 | 33.6 | 25 |
| MA-1-1000 | 850-1000 | 46.0 | 25 |
| MA-2-800 | 700-850 | 28.4 | 25 |
| MA-2-1000 | 950-1050 | 38.3 | 25 |
MA-2-1200 | 1050-1250 | 45.2 | 25 |
MA-2-1400 | 1250-1400 | 52.0 | 25 |
MA-2-1700 | 1400-1700 | 68.0 | 25 |
MA-2-2000 | 1850-2150 | 92.1 | 25 |
MA-4-1200 | 880-1300 | 43.2 | 25 |
MA-4-1600 | 1450-1700 | 56.8 | 25 |
| MA-4-2000 | 1800-2000 | 76.6 | 25 |
| MA-4-2400 | 2000-2400 | 90.3 | 25 |
| MA-4-2800 | 2400-2800 | 103.2 | 25 |
| MA-4-3400 | 2800-3400 | 136.0 | 25 |
MA-4-4000 | 3200-4000 | 184.1 | 25 |
MA-6-3600 | 3000-3600 | 135.5 | 25 |
MA-6-4200 | 3600-4200 | 155.9 | 25 |
MA-6-5100 | 4200-5100 | 204.0 | 25 |
MA-6-6000 | 4600-6100 | 276.0 | 25 |
MA-9-5400 | 4700-5800 | 216.0 | 25 |
MA-9-6300 | 5800-6400 | 252.0 | 25 |
MA-9-7500 | 6500-7500 | 305.0 | 25 |
| MA-9-9000 | 7600-9000 | 359.0 | 25 |
Packaging & Shipping
- Packaging Details:Carton Box with Pallet or Wooden Case
- Delivery Time:20 Working Days
Company Information
Q : Are you trading company or manufacturer?
A: We are manufacturer of industrial workshop damping vibration and micro-vibration absorbing products with many year experience in China.
Q: How long is your delivery time?
A: If we have stock, we can delivery immeditary. If no stock, depends on QTY, but normally no more than 20 working days.
Q: Can the products be manufactuered by customer's requirement?
A: Yes, OEM service available
Q: What do you need to know for fast quotation?
A: It would be highly appreciated if we have the details of detailed drawing for OEM order, model, end connection type, flange standard and material, medium, pressure, temperature and other working conditions.
Q: Visting company is allowed or not?
A: Yes, we welcome customers visiting our company. We are located in Kunshan, Jiangsu Prov., China.
