Prima Power Genius Laser Cutting Machine 4020
$13,550.00-15,800.00
Fabric Laser Cutting Machines/2022 new product /Stainless Steel Laser Cutting Machines
- Category: >>>
- Supplier: Zhongpin Intelligent Machinery Co. Ltd.
Share on (1600837610784):
Product Overview
Description
Product Description
Model | ZPG-6020T |
Laser type | Fiber laser |
Laser working medium | Fiber |
Laser wavelength | 1060-1080 nm |
Rated output power | 2000W |
Beam quality (BPP, mm*mrad) | 1.27 |
Maximum cutting length | 6000mm |
Pipe section size | 15-230mm |
Maximum movement speed | 120m/min |
Maximum speed of chuck | 100r/min |
positioning accuracy | 0.03mm/m |
Repeatability | ±0.02mm |
Maximum weight of single tube | 350kg |
Maximum acceleration | 1G |
Power supply rated parameters | 3PH 380V 50Hz |
Total power protection level | IP54 |

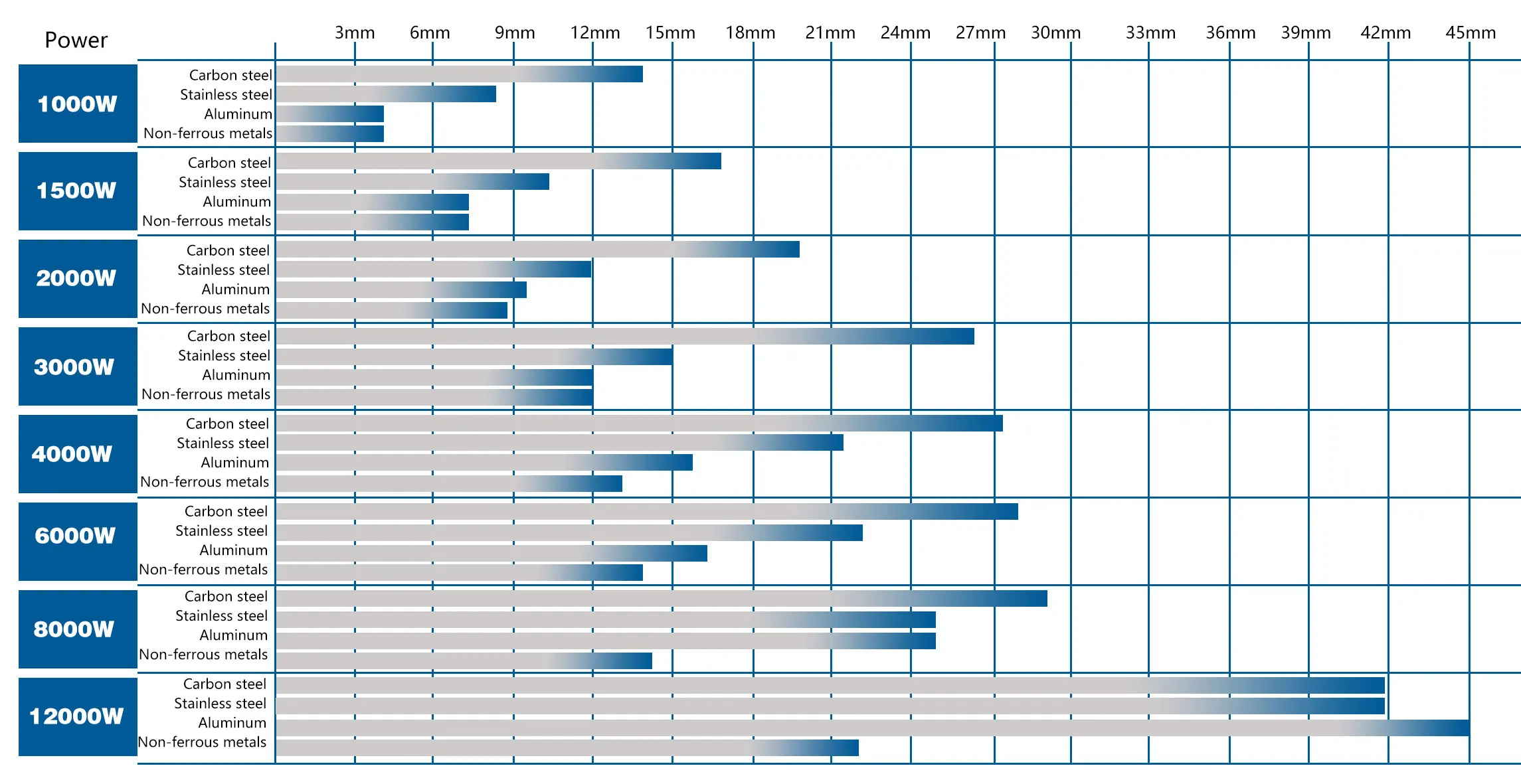

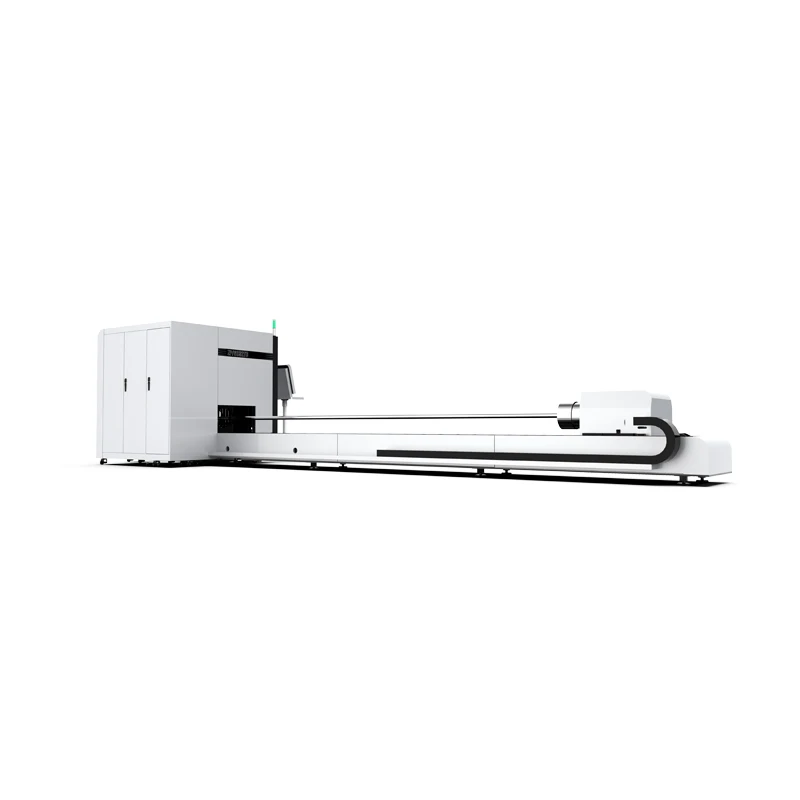

ZPG T Series Tube Laser Cutting Machine ：
ZPG T Series fiber laser tube cutting machine is a fully automatic laser tube cutting machine. This series of products is the preferred model in metal pipe processing industry.
The bed is made of honeycomb carbon structure after annealing treatment and welded by precision welding process. It has extremely high strength and stability. The running speed of the machine can reach 80 m/min，which is can process round pipes with diameter less than 350 mm and square pipes with side length less than 140 mm.
ZPG T Series fiber laser tube cutting machine is a fully automatic laser tube cutting machine. This series of products is the preferred model in metal pipe processing industry.
The bed is made of honeycomb carbon structure after annealing treatment and welded by precision welding process. It has extremely high strength and stability. The running speed of the machine can reach 80 m/min，which is can process round pipes with diameter less than 350 mm and square pipes with side length less than 140 mm.
Main configuration of machine：
No. | Name of spare part | Qty.(set/sets) | Origin and manufacturer |
01 | Fiber laser | 1 | Max |
02 | Laser power supply | 1 | Max |
03 | Precision chiller | 1 | Han Li |
04 | Dedicated laser cutting head | 1 | Raytools |
05 | Machine bed | 1 | Zhongpin Standard |
06 | High-precision guide rail | 3 | Taiwan LAPPING |
07 | Gear rack | 3 | German ROTALIN |
08 | Precision servo reducer | 3 | Japan NAGASAWA |
09 | Pneumatic Components | 1 | AIRTAC/SMC |
10 | Workbench | 1 | Zhongpin Standard |
11 | Scrap car | 8 | Zhongpin Standard |
12 | Control cabinet | 1 | Zhongpin Standard |
13 | Circuit breaker/contactor/relay | 1 | Schneider, OMRON |
14 | Servo motor and driver | 4 | Delta |
15 | CNC system (including control software, handheld box, dongle, wireless signal transmitter) | 1 | CYPTUBE |

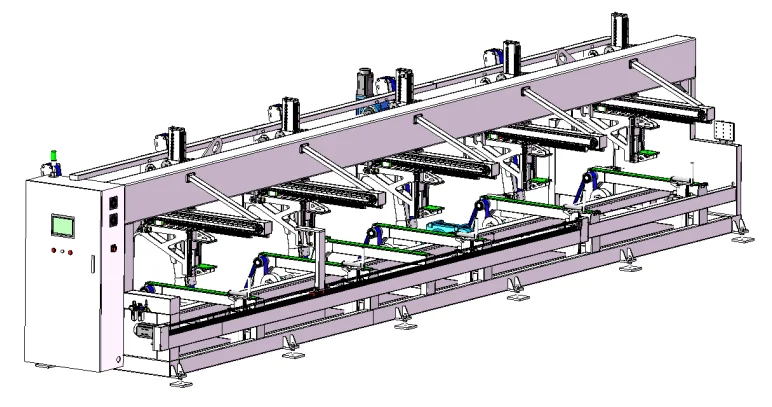

Loading manipulator technical parameters：
1. The whole machine is composed of raw material tube material warehouse, belt feeder, sorting and shifting feeder, synchronous jacking device, feeding clamp, numerical control system, starting system, etc.
2. The feeding manipulator of the pipe cutting machine is suitable for round pipe specifications φ20-φ160mm, suitable for square pipe side length 15×15mm-110×110mm, single pipe weight ≤350kg, pipe length 1000-6000mm.
3. The material warehouse of the raw material pipe can carry 3000kg at most, and the pipe length is 1000-6000mm.
4. The 5 sets of mechanical synchronous feeders are driven by servo motors via precision reducers and synchronous shafts, which are used to sort out 1 pipe and wait for feeding.
5. The 5 sets of synchronous ejectors are driven by 5 sets of air cylinders, and the synchronous lifting is realized through synchronous shafts and gear racks.
6. The running distance of the material pushing positioning push rod is 3.2-12.1 meters.
7. The telescopic feeding clamp is driven by a servo motor through the synchronous shaft, and the left 3 groups are equipped with pneumatic clutches. According to the length of the pipe, the opening and closing of the clutch are automatically controlled, so that the feeding clamp can achieve 2 groups of synchronization or 3 groups, 4 groups, and 5 groupssynchronous feeding.
1. The whole machine is composed of raw material tube material warehouse, belt feeder, sorting and shifting feeder, synchronous jacking device, feeding clamp, numerical control system, starting system, etc.
2. The feeding manipulator of the pipe cutting machine is suitable for round pipe specifications φ20-φ160mm, suitable for square pipe side length 15×15mm-110×110mm, single pipe weight ≤350kg, pipe length 1000-6000mm.
3. The material warehouse of the raw material pipe can carry 3000kg at most, and the pipe length is 1000-6000mm.
4. The 5 sets of mechanical synchronous feeders are driven by servo motors via precision reducers and synchronous shafts, which are used to sort out 1 pipe and wait for feeding.
5. The 5 sets of synchronous ejectors are driven by 5 sets of air cylinders, and the synchronous lifting is realized through synchronous shafts and gear racks.
6. The running distance of the material pushing positioning push rod is 3.2-12.1 meters.
7. The telescopic feeding clamp is driven by a servo motor through the synchronous shaft, and the left 3 groups are equipped with pneumatic clutches. According to the length of the pipe, the opening and closing of the clutch are automatically controlled, so that the feeding clamp can achieve 2 groups of synchronization or 3 groups, 4 groups, and 5 groupssynchronous feeding.
8. The numerical control system adopts a numerical control program controller + touch screen. Teaching memory mode programming can switch between automatic working mode and manual mode, suitable for different working conditions. The intelligent automatic start-stop system, energy-saving, and environmental protection.
9. The installed power of the whole set of equipment is 15KW. A 380V60A AC power supply and a compressed air source with a working pressure of 0.6MPa are required.
9. The installed power of the whole set of equipment is 15KW. A 380V60A AC power supply and a compressed air source with a working pressure of 0.6MPa are required.
10. The working environment of this machine should meet the temperature of 0-45℃, the relative humidity is less than 80%, no flammable and explosive, strong electromagnetic interference, no corrosive gas, no liquid splash, and good lighting indoor environment.
