Price:$900.00 - $1,000.00

Quantity:


Product Overview

Description





Scope of application




vedio description

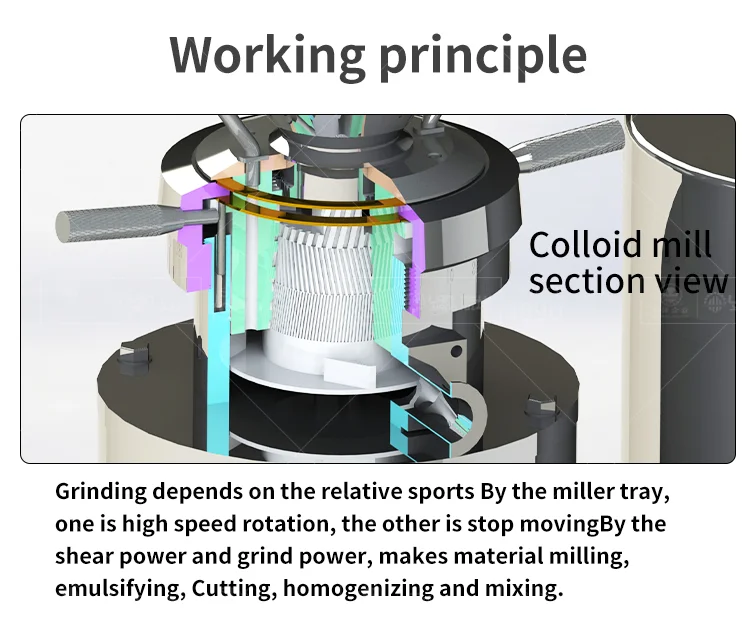

Working Principle:
Colloid mill principle basic function is shearing, grinding and high speed stirring. Grinding process happened in the relative movement between the two teeth with one revolving in high speed, which makes the material between the teeth receive strong shearing and abrasion in addition to high frequency vibration and high speed swirl, While the other stays still to make materials that passing between tooth-from slopes receive great shear force and friction, the above forces effectively evenly disperse, emulsify, smash the material, JM series is a new equipment that wet processes superfine grain, which is used emulsify, mix and blend and smash various semi-liquids, sauce, paste and latex emulsion.




Check the model :the model size of colloid mill determines its output .

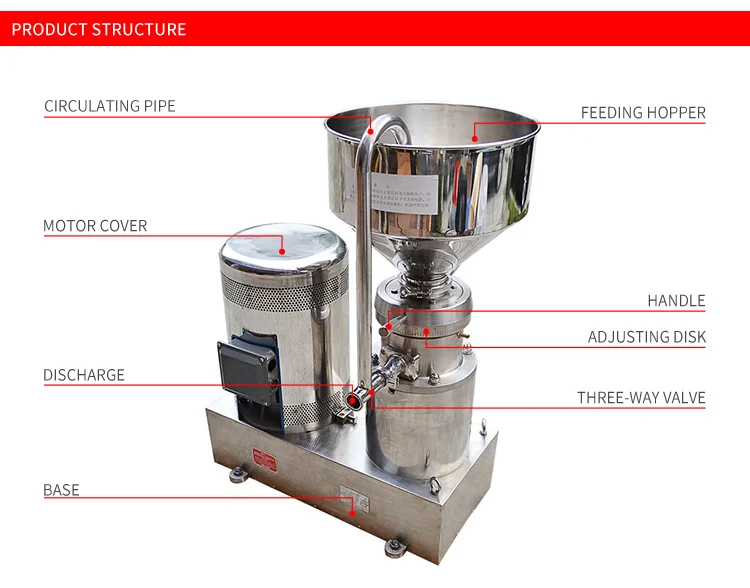

Circulation pipe is suitable for materials with low viscosity and need to be recycled and refluxed for grinding ,such as soybean milk ,mung bean beverage,etc .


1.A pair of conical rotating teeth in the colloid mill move relative to the fixed teeth .The materials pass through the gap between the fixed and rotating teeth and are subjected to shear force ,friction ,centrifuge and high -frequency vibration to achieve the purpose of crushing ,emulsifying ,homogenizing and dispersing ,
2.The crushing efficiency of fine ultra-fine particles is high .The forces of shearing ,grinding and high-speed stirring are adopted .The crushing and grinding depend on the relative movement of the tooth bevel of the grinding disc .
3.Colloid mill is an ideal equipment for wet crushing at present .Under the complex forces of high-frequency vibration and high-speed vortex ,materials are ground ,emulsified ,crushed ,mixed ,dispersed and homogenized .


Model
80
100
120
140
200
Emulsifying fineness UM
3-40
2-40
2-40
2-40
2-40
Adjustable rang MM
1-0.01
1-0.01
1-0.01
1-0.01
1-0.01
Capacity T/H
0.3-1
0.52-2
0.7-3
1-4
2-7
Motor power KW
4
5.5
7.5
11
15
Voltage V
380
380
380
380
380
Speed R/Min
2900
Grinding disc diameter MM
Φ80
Φ100
Φ120
Φ140
Φ200
Outlet diameter
Φ25
Φ32
Φ40
Φ50
Φ65
Inlet diameter
Φ50
Φ50
Φ65
Φ80
Φ120
Cooling water pipe diameter
Φ1/4''
Φ1/4''
Φ1/4''
Φ1/4''
Φ1/4''
Dimension  mm
650
750
750
910
980
Width
380
440
440
460
520
Height
760
750
750
840
950
N.W(KG)
120/140
182/187
190/205
257/275
355
G.W(KG)
130/150
192/200
200/223
270/288
380

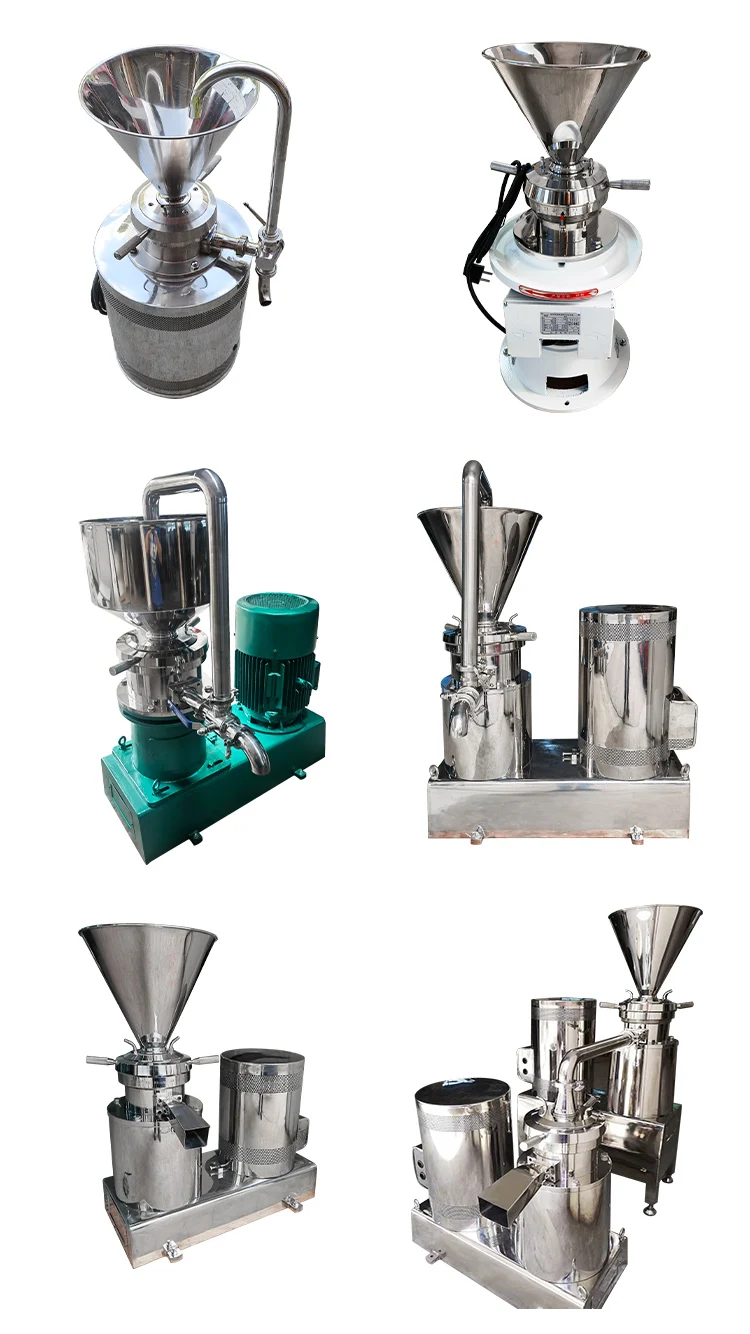

Machine Show

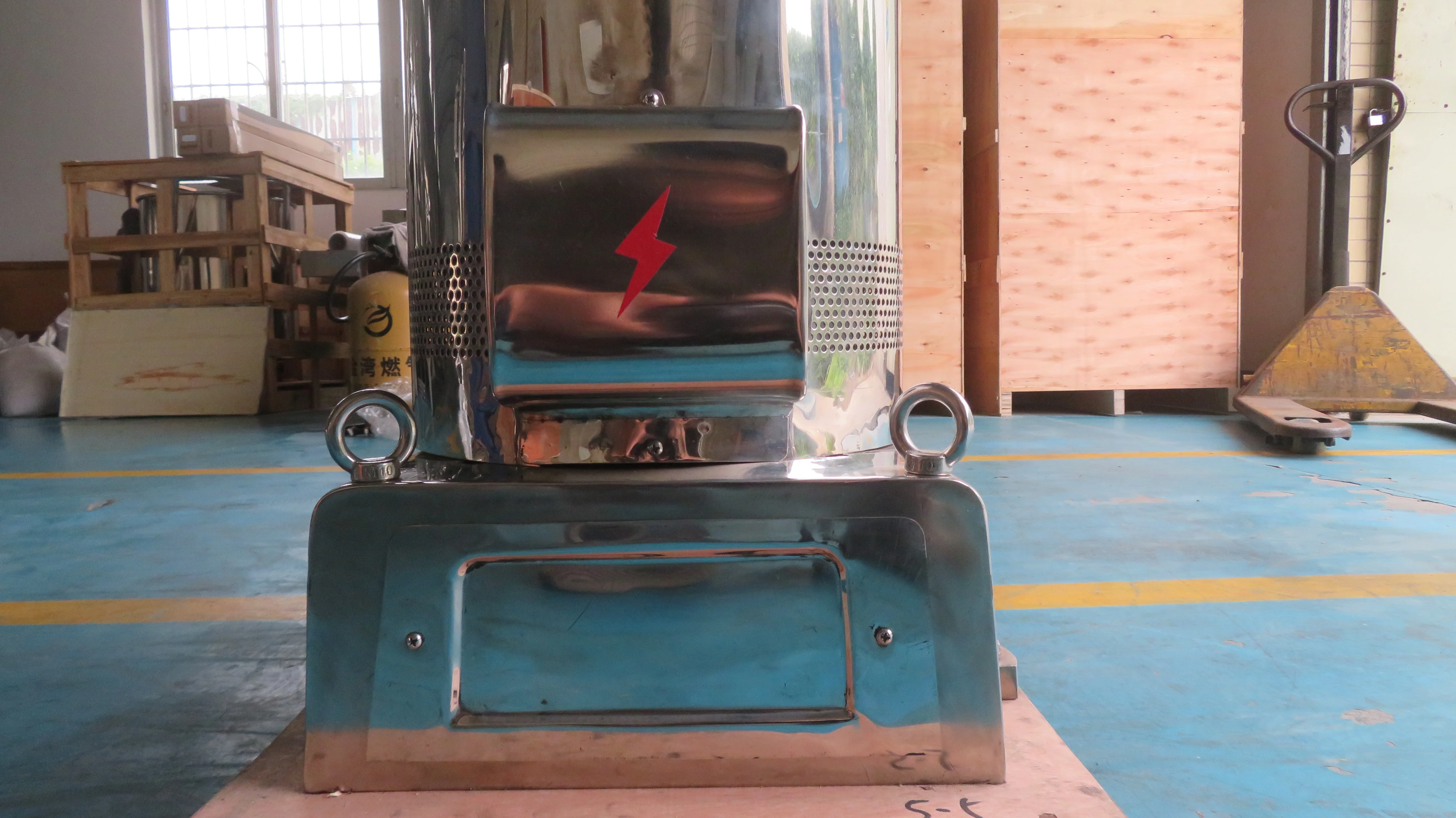

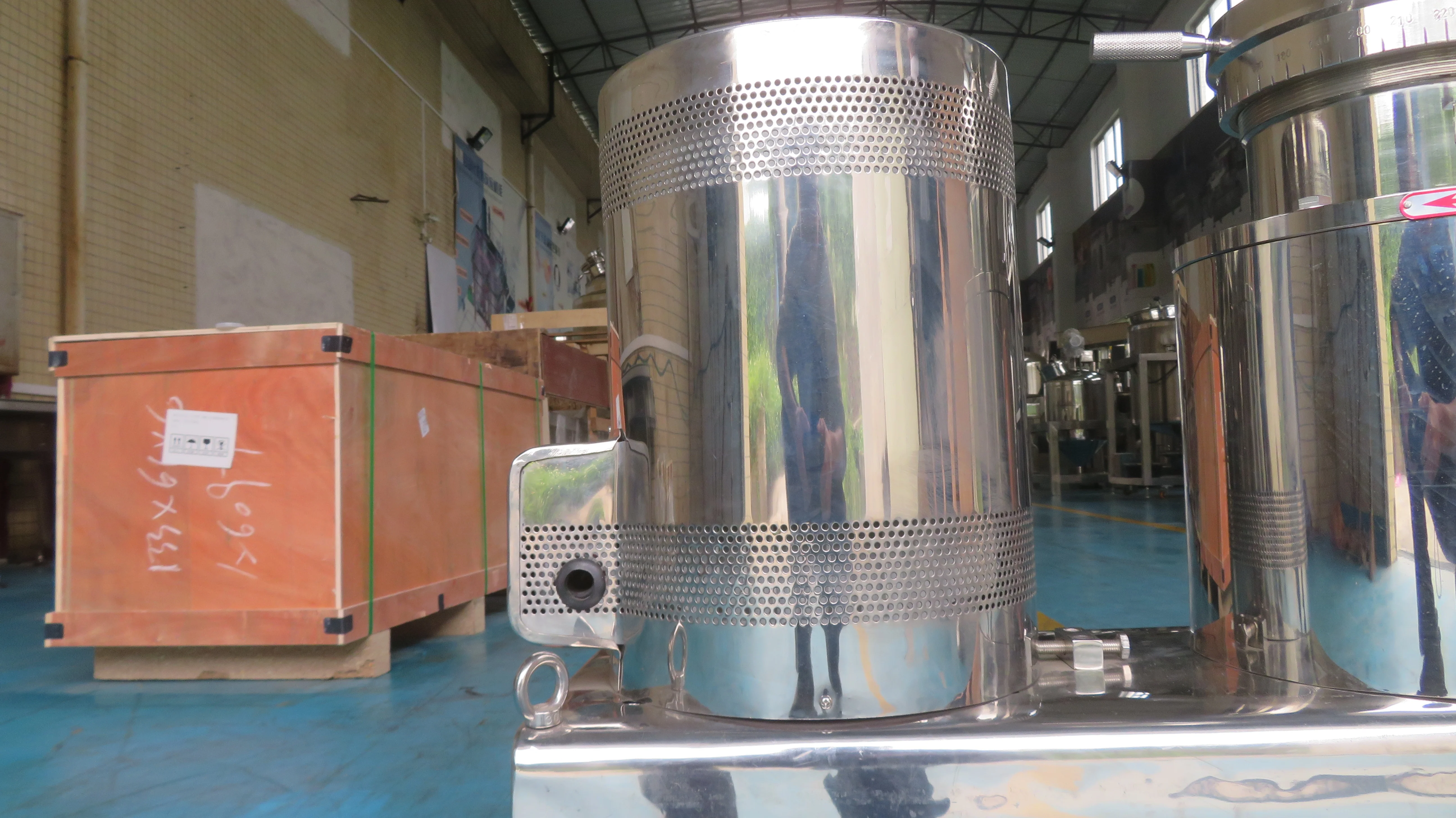

Details Show

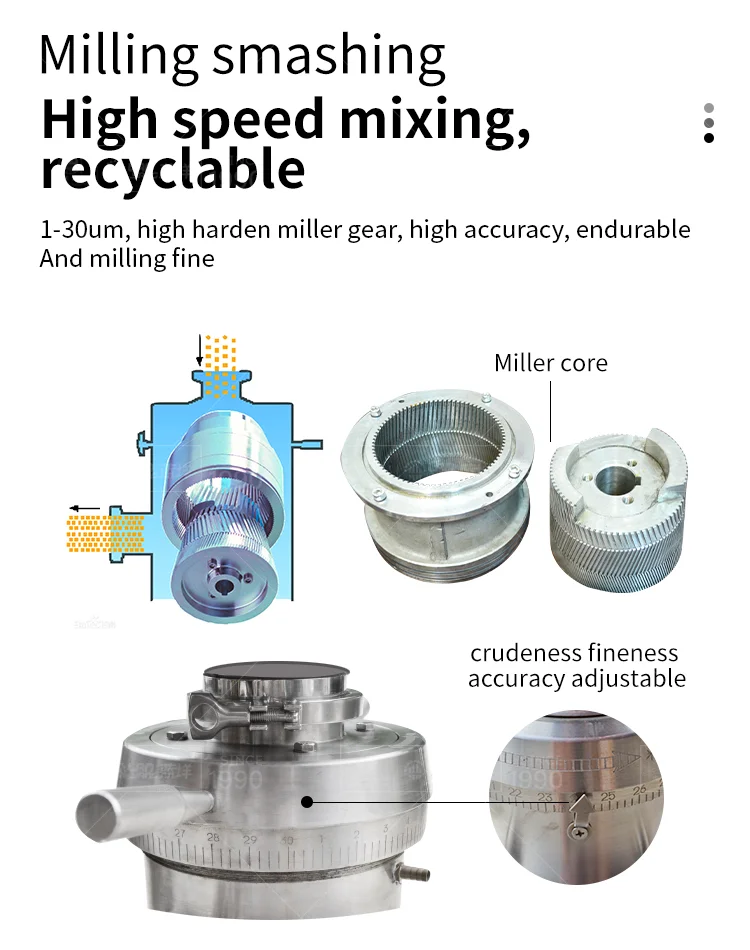

Moving miller tray makes sure the material effectively mill and grind
Cutter feeder suitable for the liquidity material with little granule and solid
Miller tray outlet suitable for liquidity and lotion material with little granule

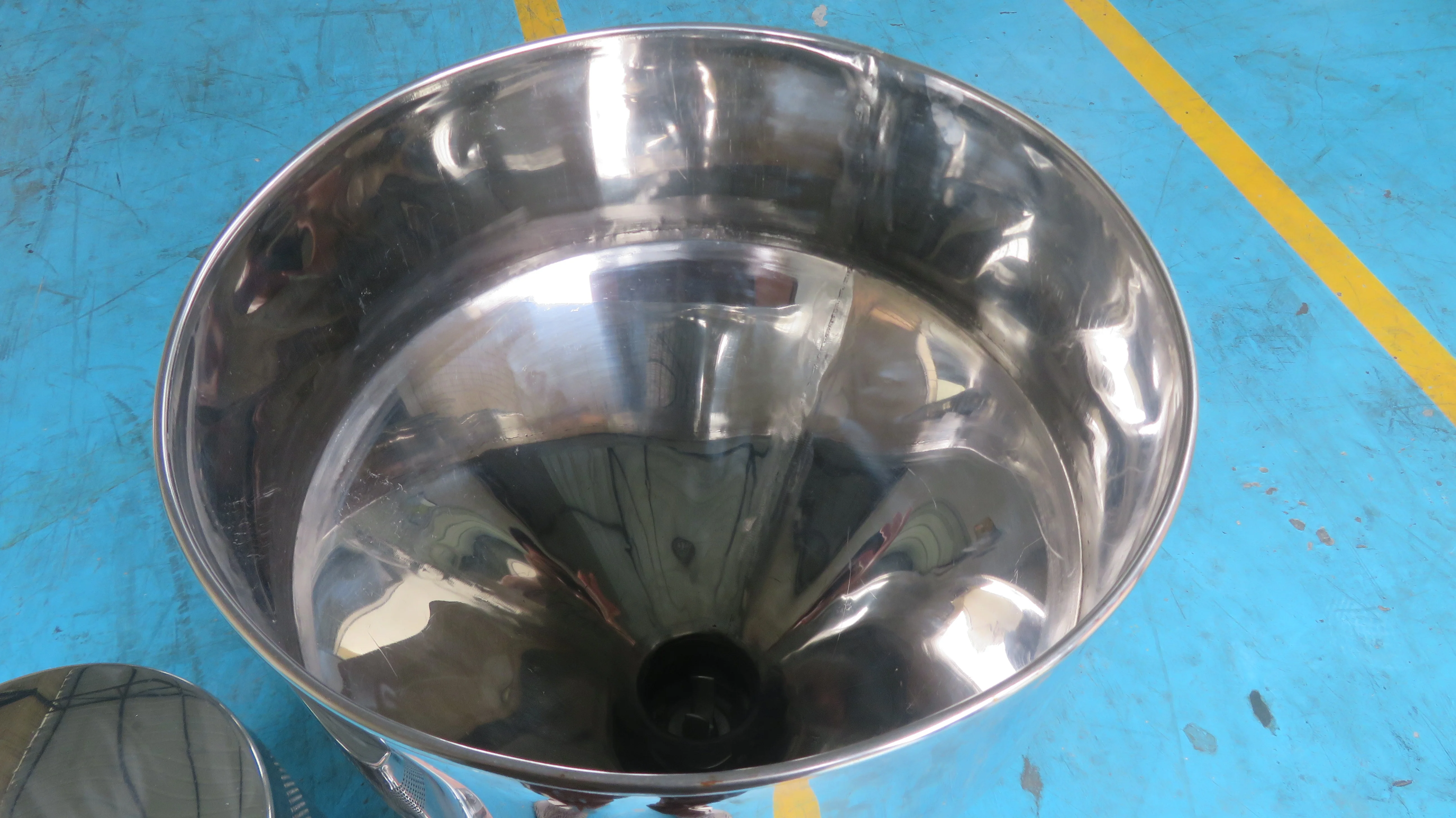

Material hopper made of SUS304 ,meet the food processing and sanitary

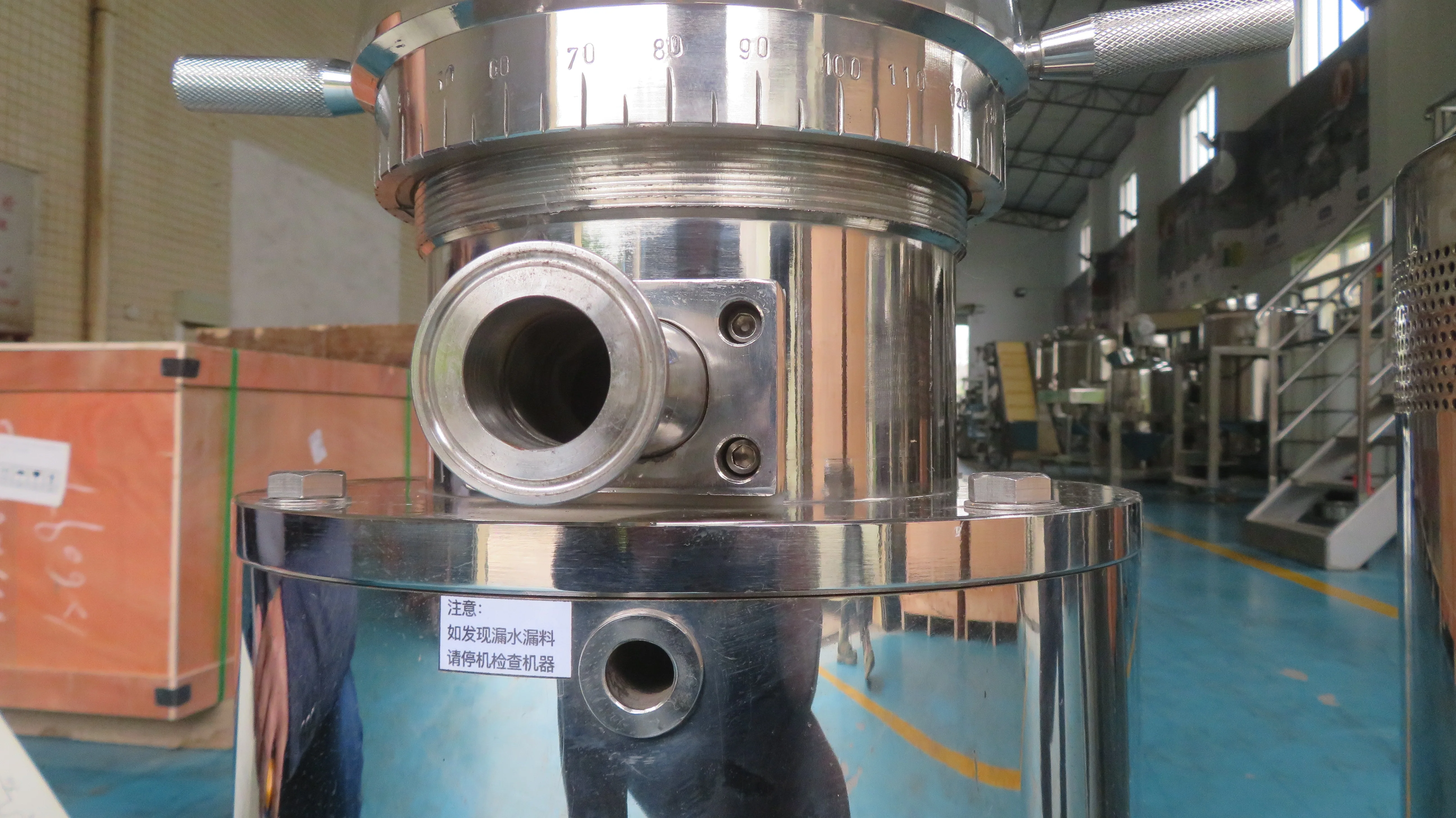

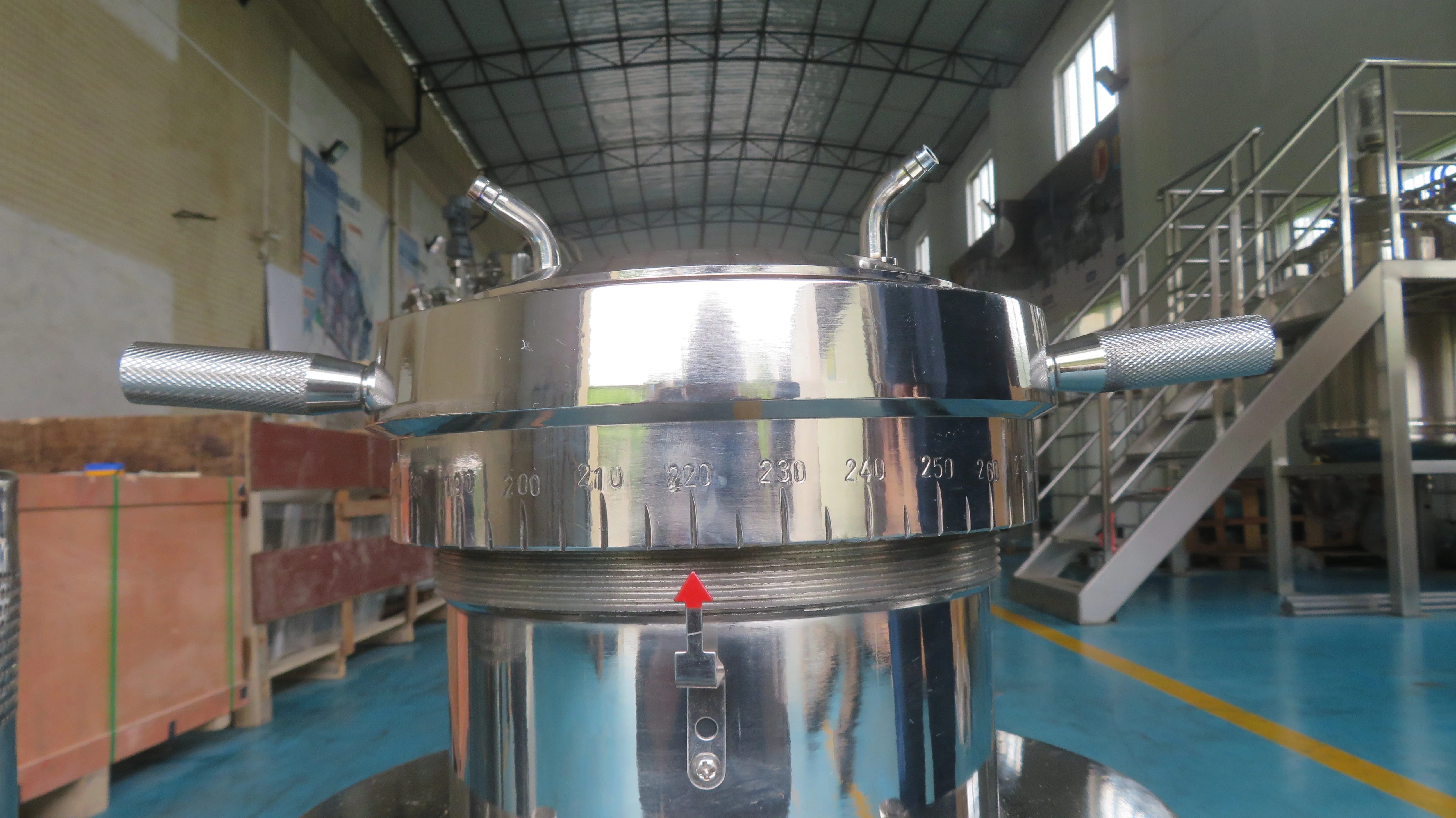

The grinding mesh can be adjusted by hand bar which operation is easy
client miller tray makes sure the good shear and cutting via the gear and gap
