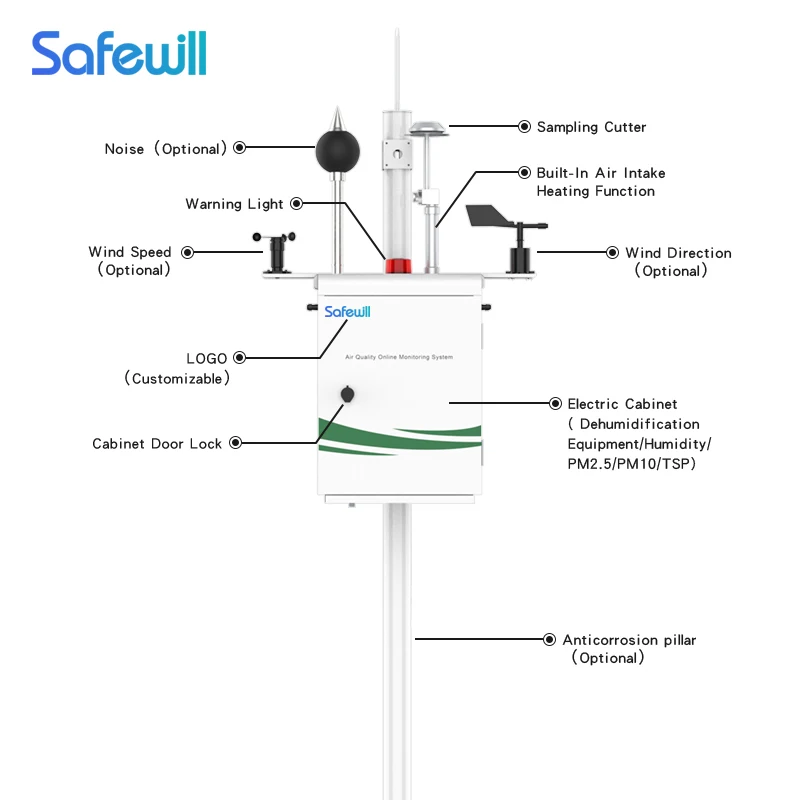

SAFEWILL ES80A A6 outdoor air pollution online gas analyzers air quality monitor
- Category: >>>
- Supplier: Shenzhen Safewill Technology Co. Ltd.
Share on (1600837676831):
Product Overview
Description
Products Description
Product Name | SAFEWILL ES80A-A6 Air Quality Online Monitoring System | ||||||
Detection Method | Diffusion / Suction | ||||||
Data Transmission | RS485 Modbus/4G LTE Optional | ||||||
Preheat Time | 90 Seconds | ||||||
Temperature/ Humidity | -20℃~50 ℃/10%RH ~95%RH (No Condensation) | ||||||
Power Supply/Consumption | AC220V/50Hz/Optional Solar Power Supply/80W（MAX） | ||||||
Size | 620*440*160MM | ||||||
The Main Material | Cold Rolled Steel Plate | ||||||
Installation Method | Outdoor Column Installation | ||||||
Protection Class | IP53 | ||||||
The Standard Gas Configuration | ||||||||
Gas Type | Measuring Range | Resolution | Indication Error | T90 | ||||
O3 | 500ppb | 1ppb | ≤±10%FS | 120S | ||||
NO2 | 500ppb | 1ppb | ≤±10%FS | 120S | ||||
SO2 | 500ppb | 1ppb | ≤±10%FS | 120S | ||||
CO | 50ppm | 0.1ppm | ≤±10%FS | 120S | ||||
Optional Gases | ||||||||
Gas Type | Measuring Range | Resolution | Indication Error | T90 | ||||
TVOC | 10ppm | 0.01ppm | ≤±10%FS | 120S | ||||
H2S | 20ppm | 0.1ppm | ≤±10%FS | 120S | ||||
NH3 | 20ppm | 0.1ppm | ≤±10%FS | 120S | ||||
Particulate Technical Parameters | ||||||||
Project | Technical Indicators | |||||||
Measuring Range | PM2.5/10/TSP：(0-2000) μg/m3 | |||||||
Sampling Cutter | Cyclone Physical Cutter | |||||||
Sampling Time | Adjustable, Default Five Minutes | |||||||
Resolution | 1ug/m3 | |||||||
Sampling Mode | Suction Type | |||||||
Air Intake Heating | Heating And Dehumidifying According To Air Humidity | |||||||
Malfunction Alarm | Real-Time Display Of Fault Alarms | |||||||
Zero Method | Automatic zero calibration | |||||||
Meteorological And Other Parameters(Optional) | ||||||||
Parameters | Range | Resolution | Accuracy | |||||
Temperature | -30℃--50℃ | 0.1℃ | ±1℃ | |||||
Humidity | 0-95%Rh | 1%Rh | ±5%Rh | |||||
Wind Speed | 0~60m/s | 0.1 m/s | ±1m/s | |||||
Wind Direction | 0-360° | 1° | / | |||||
Atmospheric Pressure | 600—1100hPa | 1 hPa | / | |||||
Noise | 30dB(A)~130dB(A) (A-weighted) | / | ±3dB | |||||
Rainfall | 0~4mm/min | 0.1mm | ±0.4mm (≤10mm) ±4%(>10mm) | |||||
Illumination | 0~200,000 Lux | / | ±7% (25℃) | |||||
UV Radiation | 0~400mW/㎡ | 1mW/㎡ | ±5% | |||||
