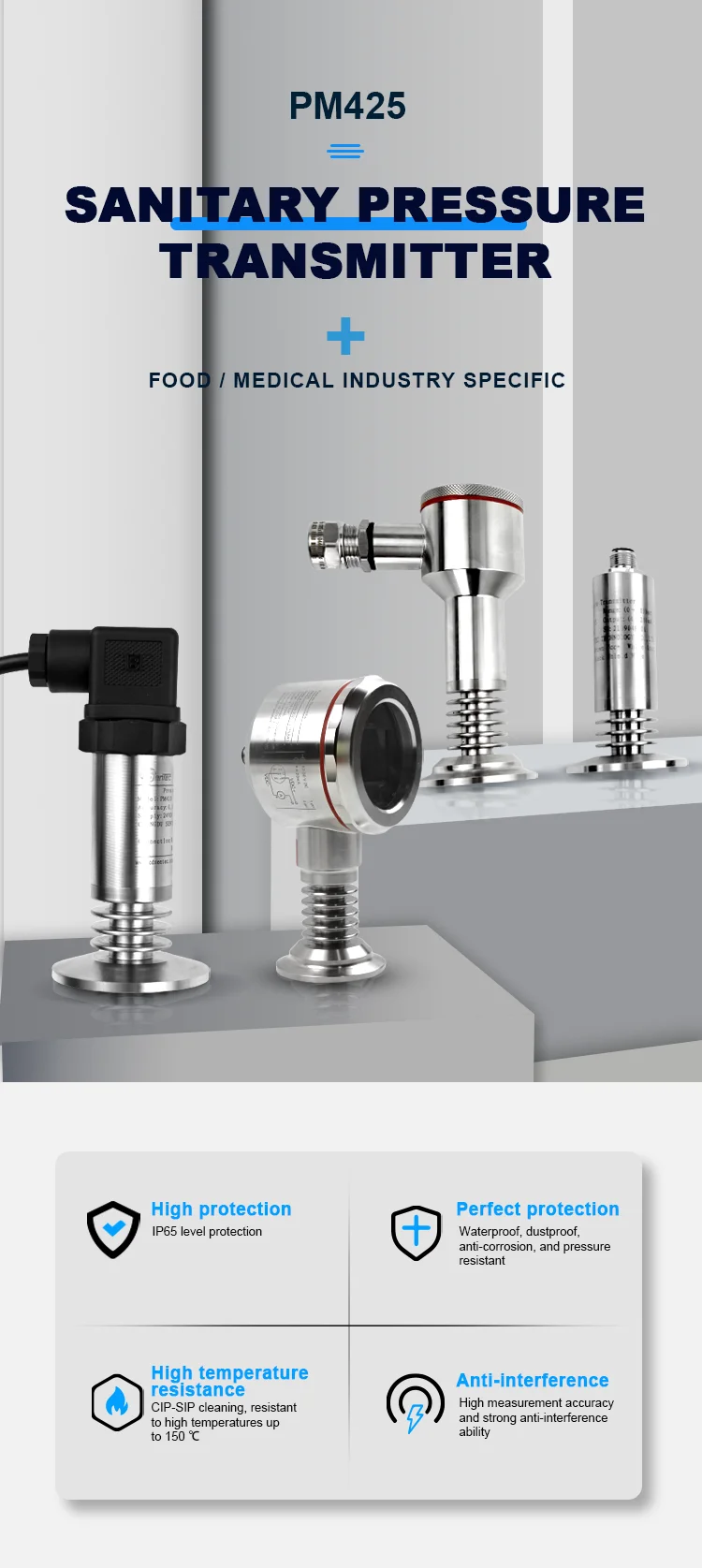

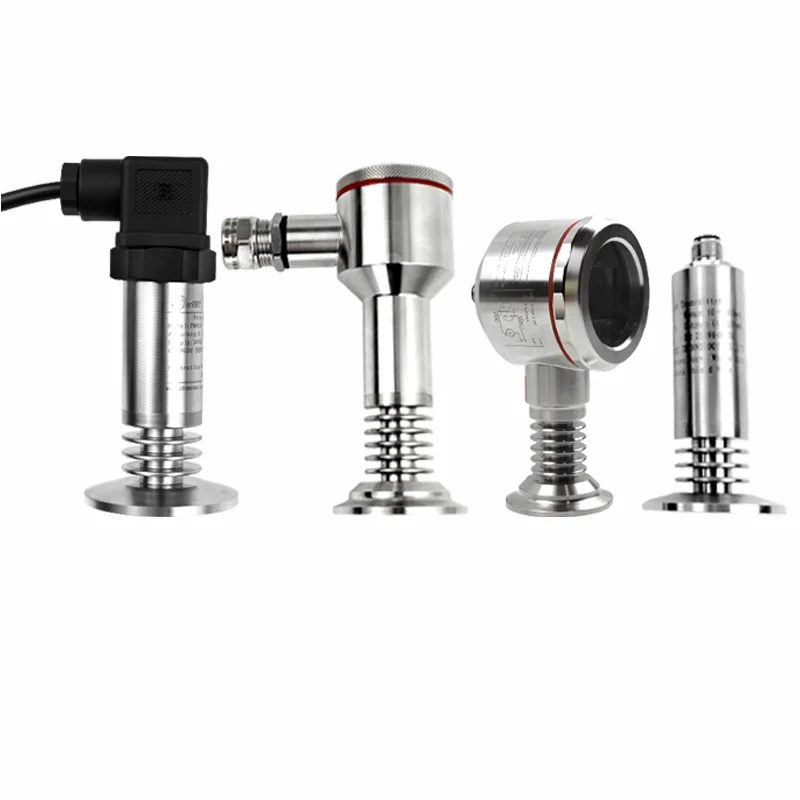

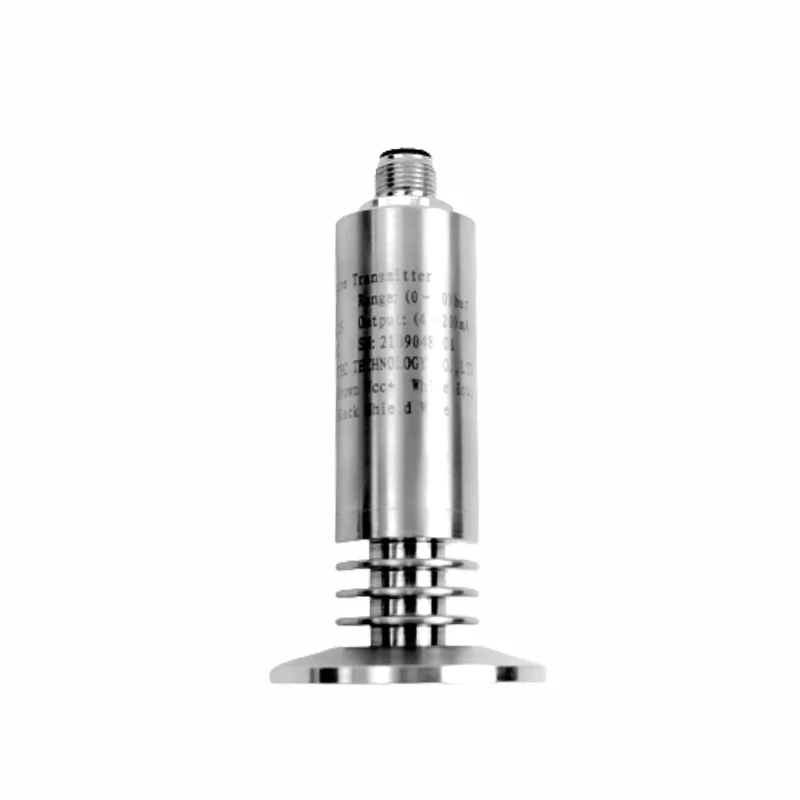

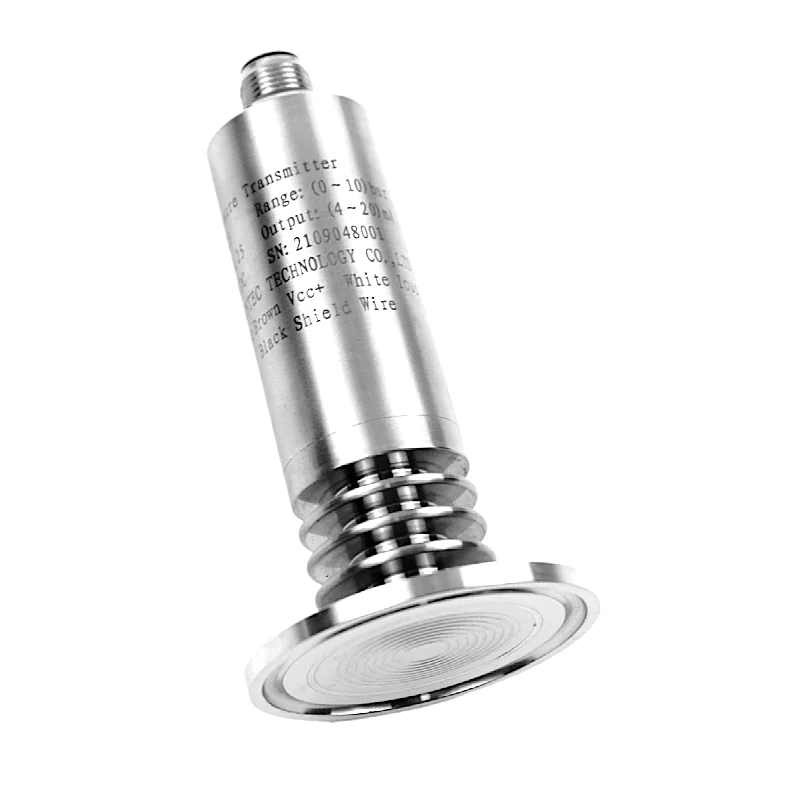

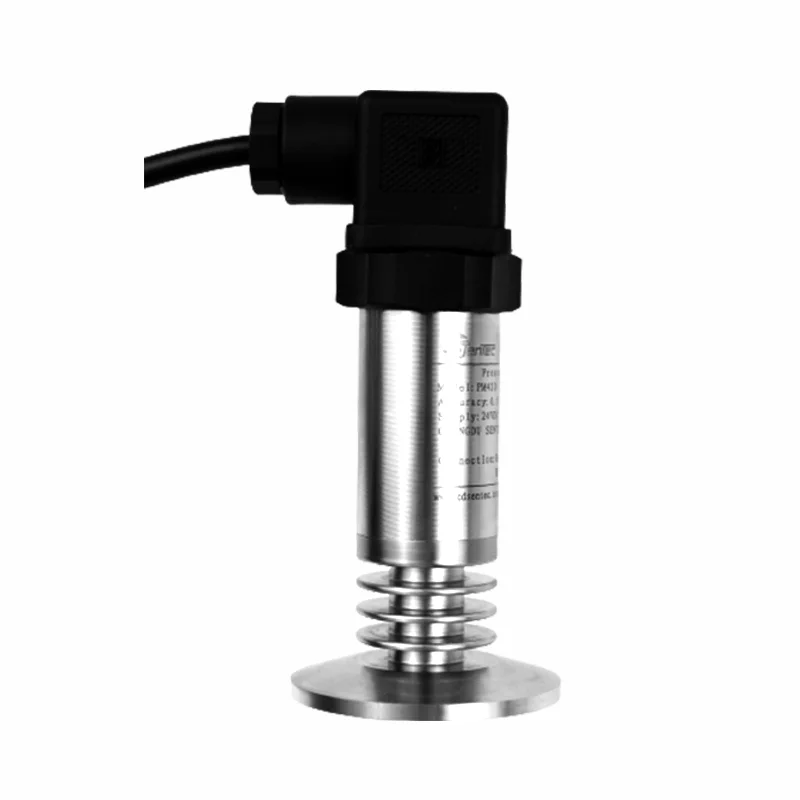

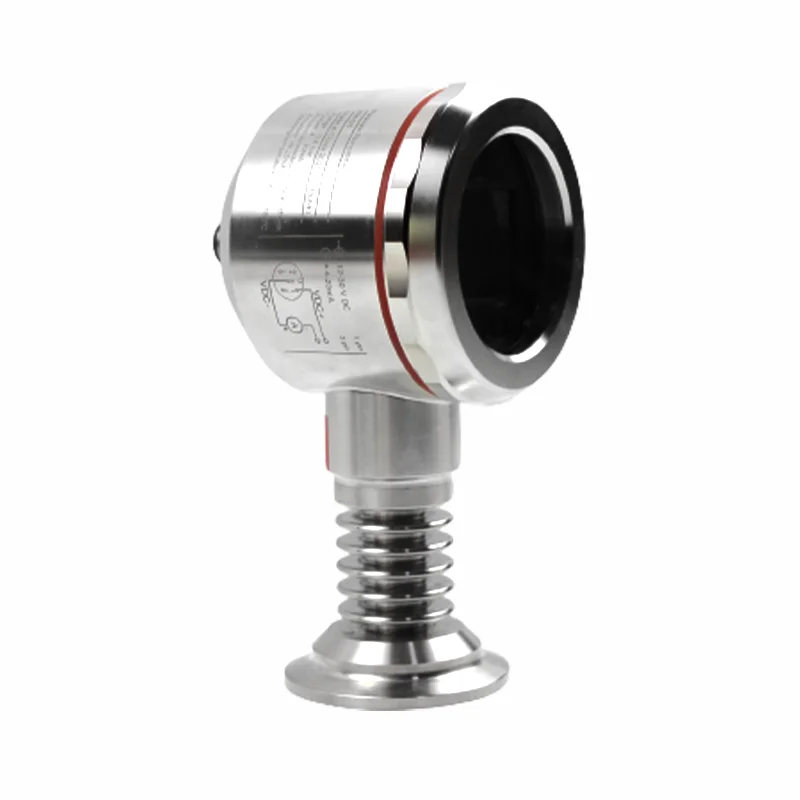

SENTECPM425Sanitary gauge pressure sensor with digital display and stainless steel seal for food beverage and pharmaceutical use
- Category: >>>
- Supplier: Chengdu Sentec Technology Co. Ltd.
Share on (1600837709217):
Product Overview
Description

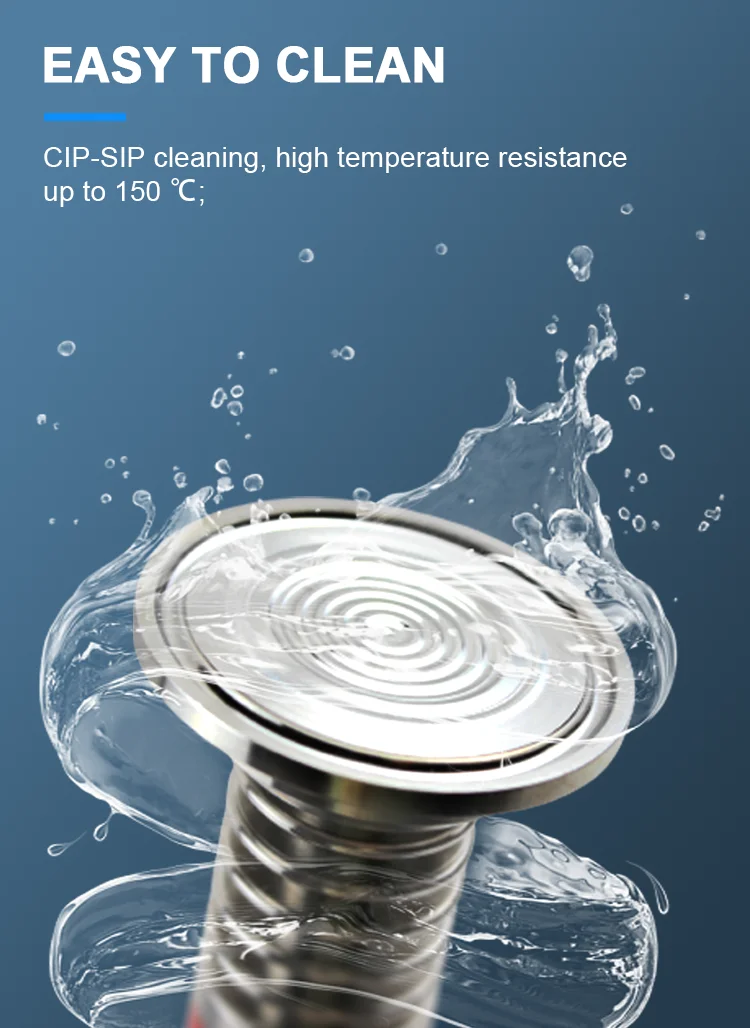

PM425 flat film pressure transmitter is all sanitary stainless steel design, with stainless steel seal. The sanitary design conforms to EHEDG / GMP standard. It is suitable for food, beverage, pharmaceutical and bioengineering industries with special requirements. This product is connected by stainless steel shell and antiseptic sterile stainless steel process to meet the requirements of sanitary level measurement. The highest temperature resistance of the sensor is 150 ° C ~ 200 ° C. It is easy to use and easy to operate without disassembly during cleaning and high temperature sterilization. The product is equipped with integrated integrated circuit, supporting 4-20mA / 1-5vdc analog output and Hart, RS232, RS485 digital communication.

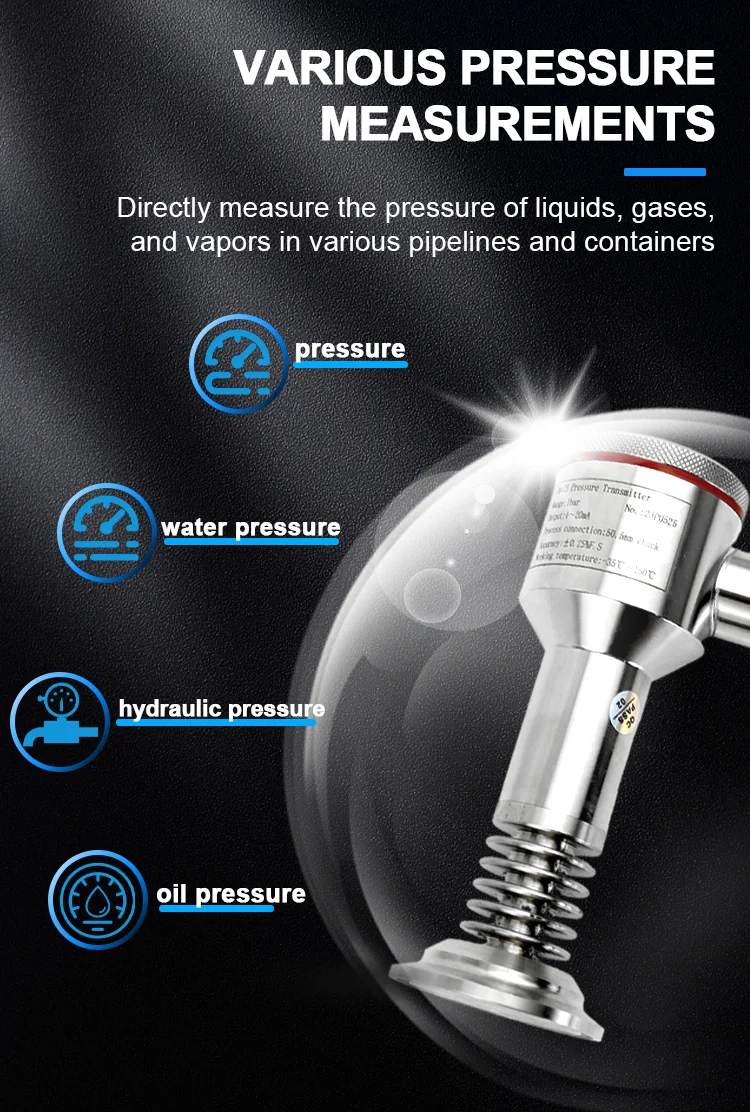

Application: CIP-SIP process control; food, beverage, pharmaceutical and other health fields and fine chemical industry measurement; pressure measurement in various pipelines and containers; measurement of thermal medium, corrosive medium, high temperature viscous medium or crystalline medium.
Range | -0.1MPa...0kPa~10kPa...100MPa | ||||

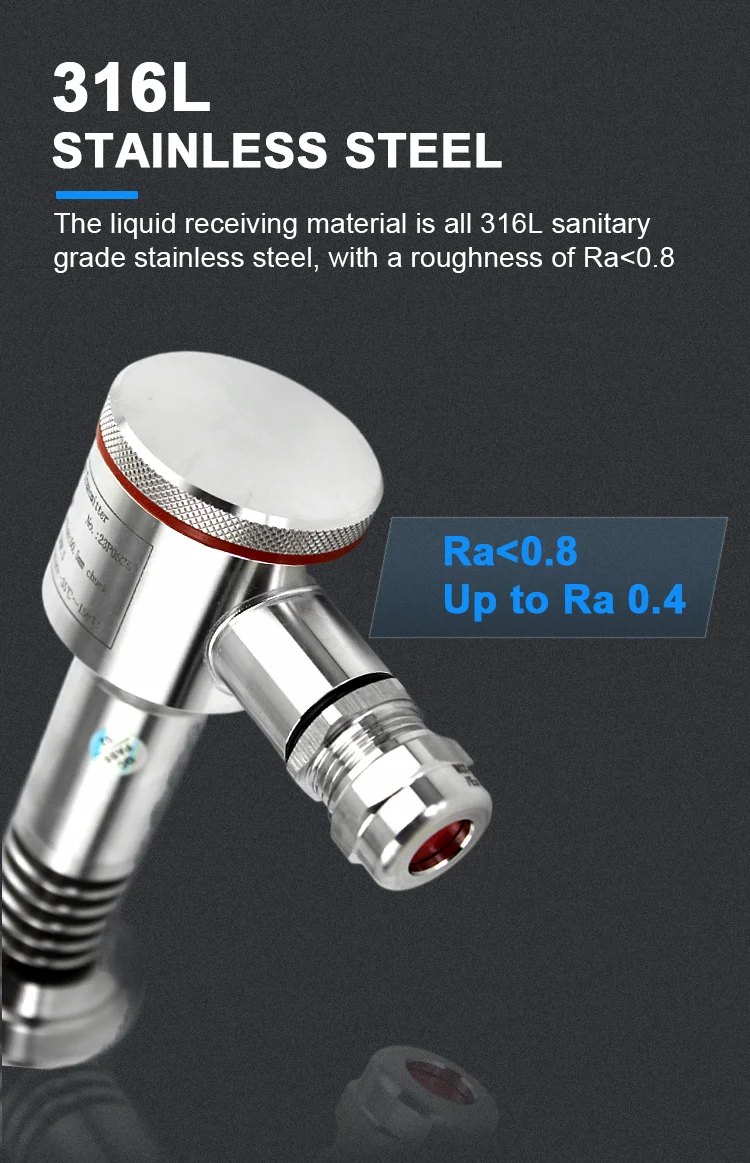

Fluid material | Standard: 316L stainless steel ceramics, typical: khashi alloy or gold plated diaphragm | ||||
Display range | -1999~9999 | ||||

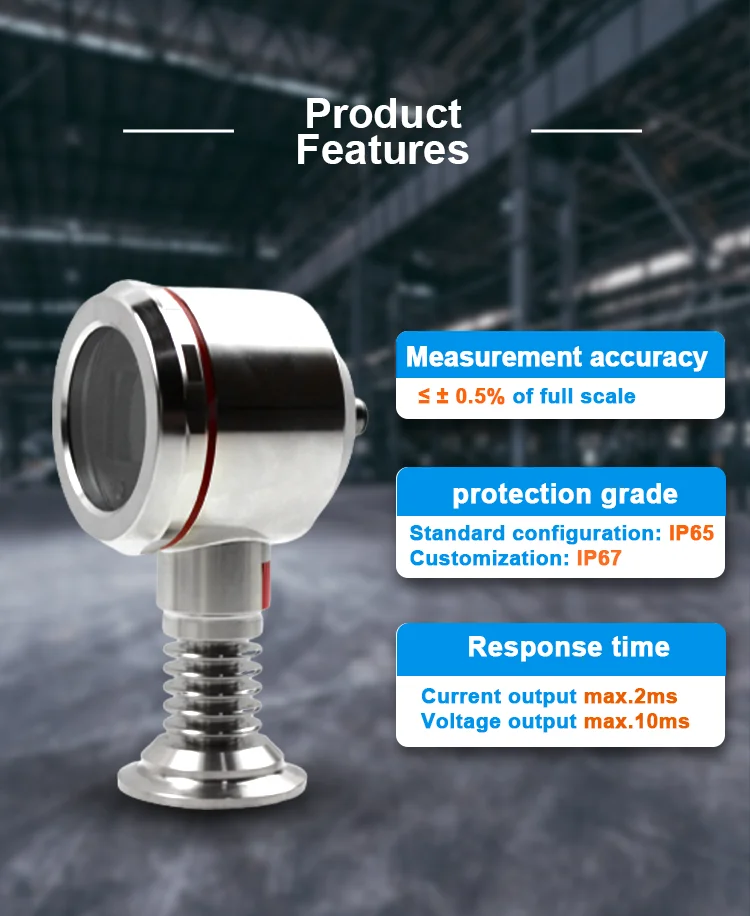

Accuracy | 0.1% (custom), 0.25% (typical), 0.5% (maximum) | ||||

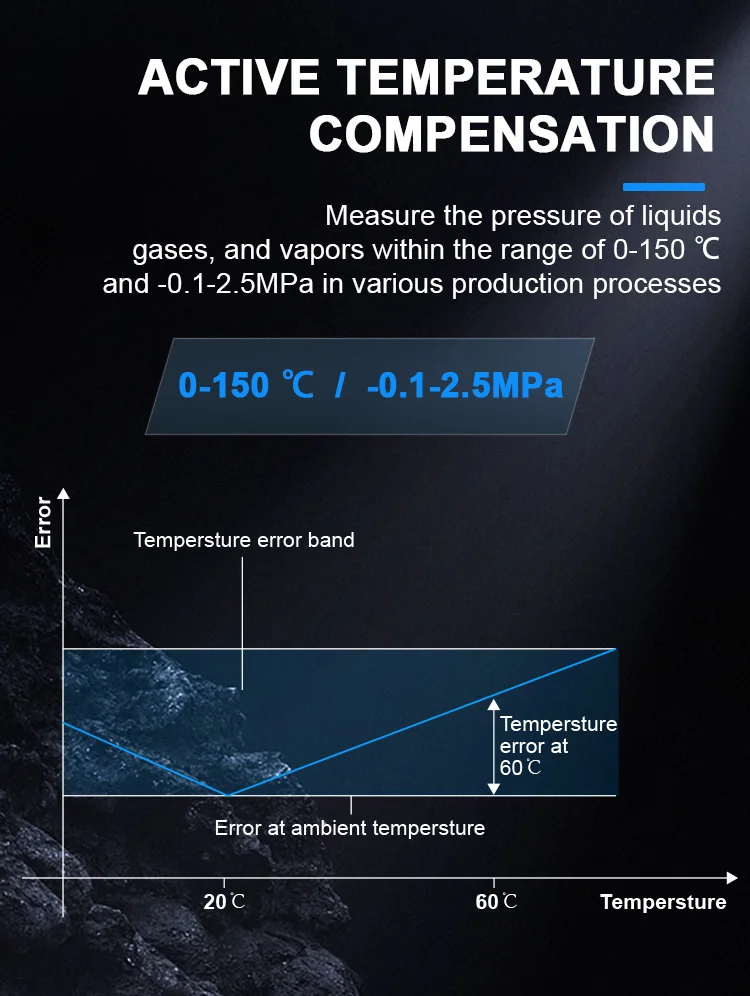

Temperature Drift | ≤±0.05%FS/°C (temperature range -20~85°C) | ||||
Zero point | ≤±0.02%FS/°C (Typical), ≤±0.04%FS/°C (Max) | ||||
Full point | ≤±0.02%FS/°C (Typical), ≤±0.04%FS/°C (Max) | ||||
Compensation temperature | 0°C~50°C(≤100kPa), -10°C~70°C(>100kPa) | ||||
Heat return difference | ≤±0.5%FS | ||||
Filling flfluid | 1. Silicone oil 2.Synthetic oil or sanitary oil | ||||
Response time | Current output max. 2ms, Voltage output max. 10ms | ||||
Storage temperature | -40°C~125°C | ||||
Medium temperature | -30°C~300°C | ||||
Mechanical impact | 100g/1ms | ||||
Mechanical vibration | Max. 20g: 15~2000Hz | ||||
Power supply | 12 ~ 36VDC (Power consumption of 30mA) | ||||
Output Signal | Analog output: 4mA~20mA (superimposable HART protocol).0V~10V Digital output: RS485 Control output: Switch: 2 way, analog quantity: 1 way | ||||
Load error | < 0.5% | ||||
Protection leve | IP65/IP67 | ||||
Certifications
Packing&Shipping
Q:What kind of products do you offer ?
A:SenTec supply pressure sensors, level sensors, temperature sensors , fiow sensors and environment sensors. Export more than 70+countries.
Factory Wholesale Sanitary Pressure Transmitters For Food And Milk Industry
Q:Could I get samples?
A:Yes,we have half-stock ready products for customized sample.
Factory Wholesale Sanitary Pressure Transmitters For Food And Milk Industry
Q:How about the quality of the magnets?
A:We have the certification of ISO, Europe standard ATEX, CE and ROSH ect.
Factory Wholesale Sanitary Pressure Transmitters For Food And Milk Industry
Q:What is the delivery time?
A:For standard specification,delivery time 5-7days; For customized specification 10-20days.
Factory Wholesale Sanitary Pressure Transmitters For Food And Milk Industry
Q: What is your terms of payment ?
A: We could accept T/T, Paypal, WU ,Trade Assurance.
Factory Wholesale Sanitary Pressure Transmitters For Food And Milk Industry
Q: What is the warranty for your product ?
A: Warranty: 12-24Month, Lifetime maintenance
Factory Wholesale Sanitary Pressure Transmitters For Food And Milk Industry
Q. How can l get the quotation or send my inquiry to?
A. Send your inquiry to us by the inquiry from on the right-side or the bottom of this page.
1. What is the Measuring medium? Water, oil or others.
2. How about Measuring range: 0-5m or..?
3.What would be the processing pressure and temperature？
4. Which signal output:4-20mA, RS485 or..?
5. Require quantity?
A:SenTec supply pressure sensors, level sensors, temperature sensors , fiow sensors and environment sensors. Export more than 70+countries.
Factory Wholesale Sanitary Pressure Transmitters For Food And Milk Industry
Q:Could I get samples?
A:Yes,we have half-stock ready products for customized sample.
Factory Wholesale Sanitary Pressure Transmitters For Food And Milk Industry
Q:How about the quality of the magnets?
A:We have the certification of ISO, Europe standard ATEX, CE and ROSH ect.
Factory Wholesale Sanitary Pressure Transmitters For Food And Milk Industry
Q:What is the delivery time?
A:For standard specification,delivery time 5-7days; For customized specification 10-20days.
Factory Wholesale Sanitary Pressure Transmitters For Food And Milk Industry
Q: What is your terms of payment ?
A: We could accept T/T, Paypal, WU ,Trade Assurance.
Factory Wholesale Sanitary Pressure Transmitters For Food And Milk Industry
Q: What is the warranty for your product ?
A: Warranty: 12-24Month, Lifetime maintenance
Factory Wholesale Sanitary Pressure Transmitters For Food And Milk Industry
Q. How can l get the quotation or send my inquiry to?
A. Send your inquiry to us by the inquiry from on the right-side or the bottom of this page.
1. What is the Measuring medium? Water, oil or others.
2. How about Measuring range: 0-5m or..?
3.What would be the processing pressure and temperature？
4. Which signal output:4-20mA, RS485 or..?
5. Require quantity?
As the specifications affect the price difference, page price for reference only. The final price is subject to our final confirmation.
