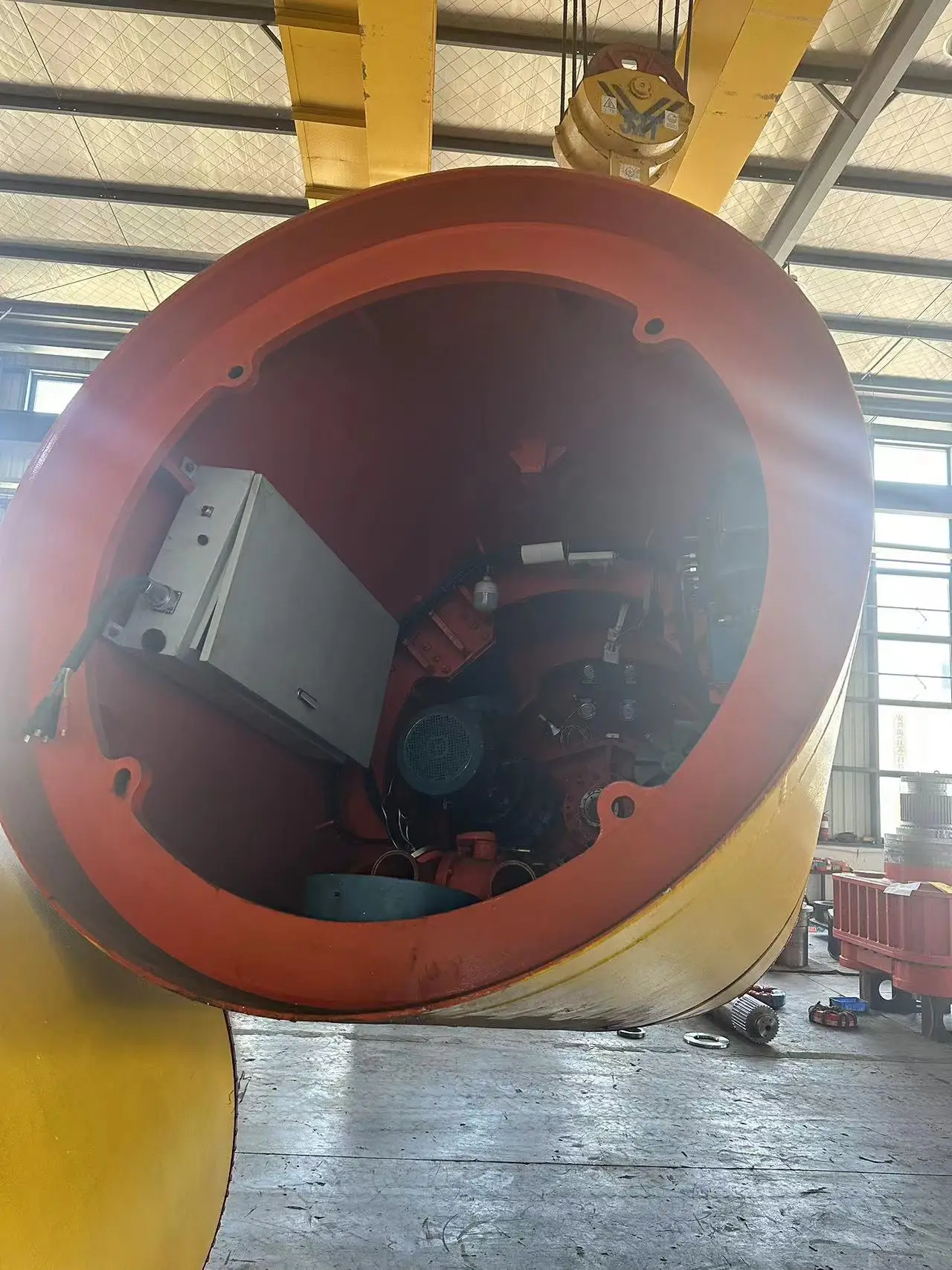

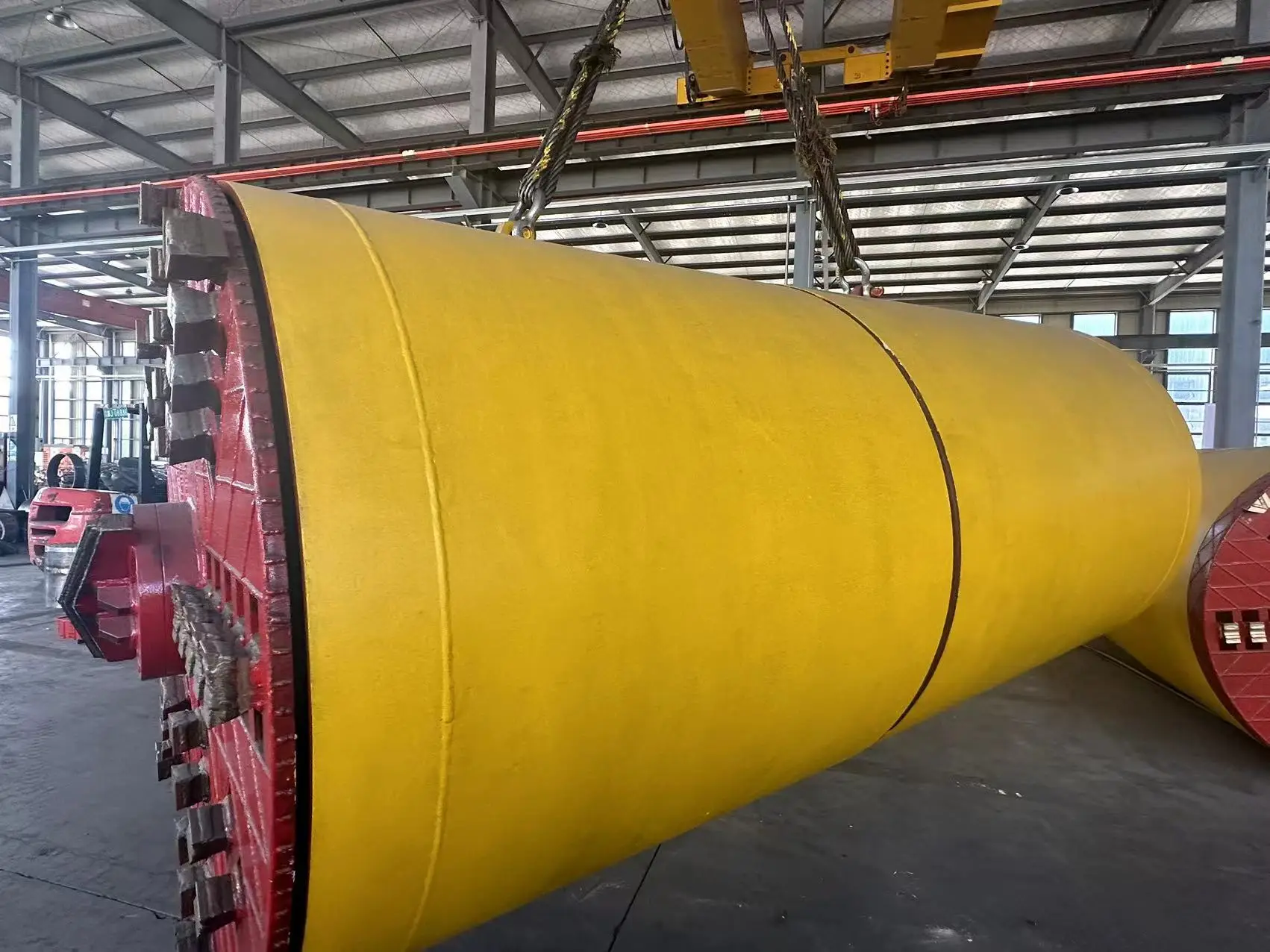

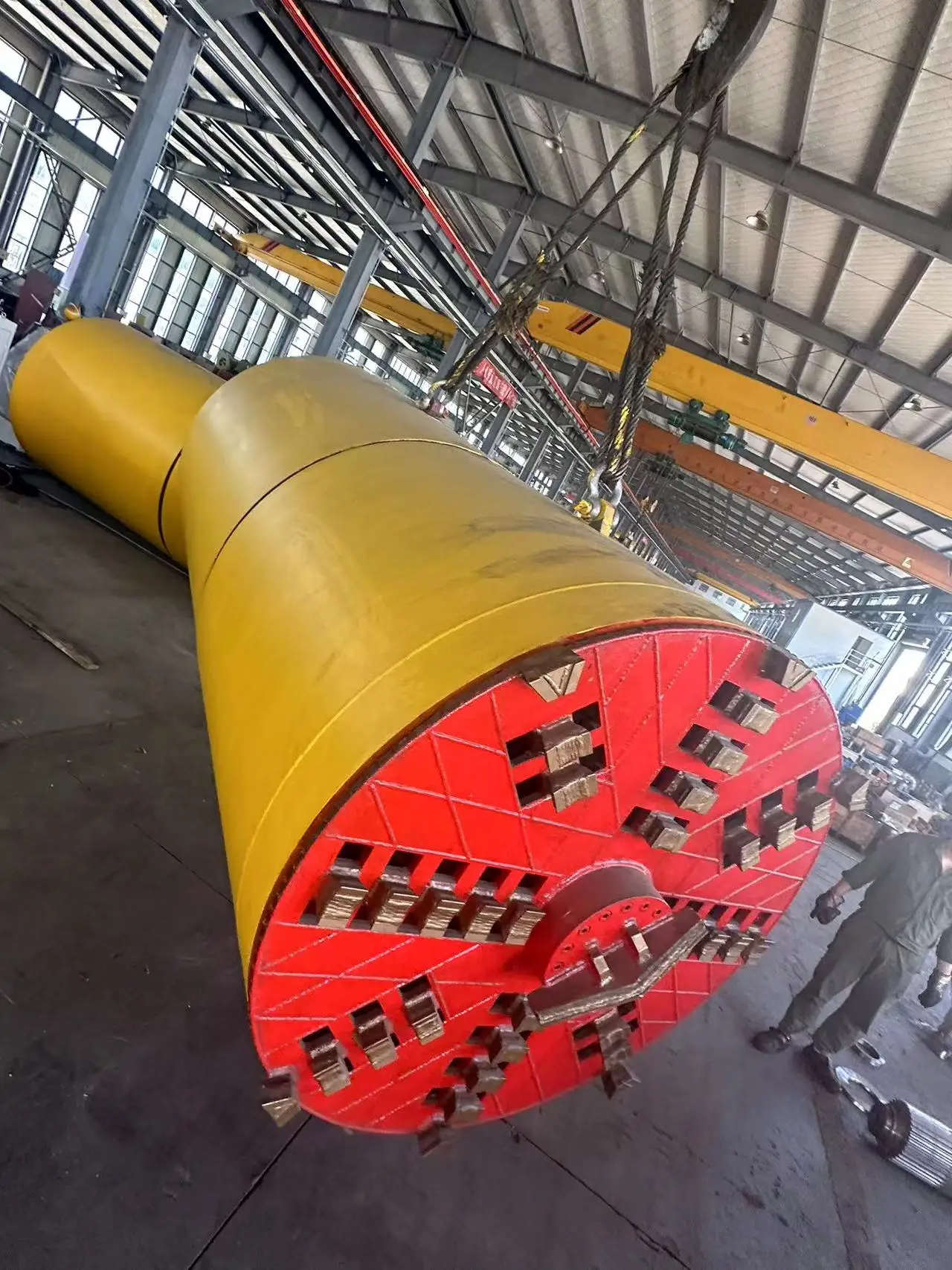

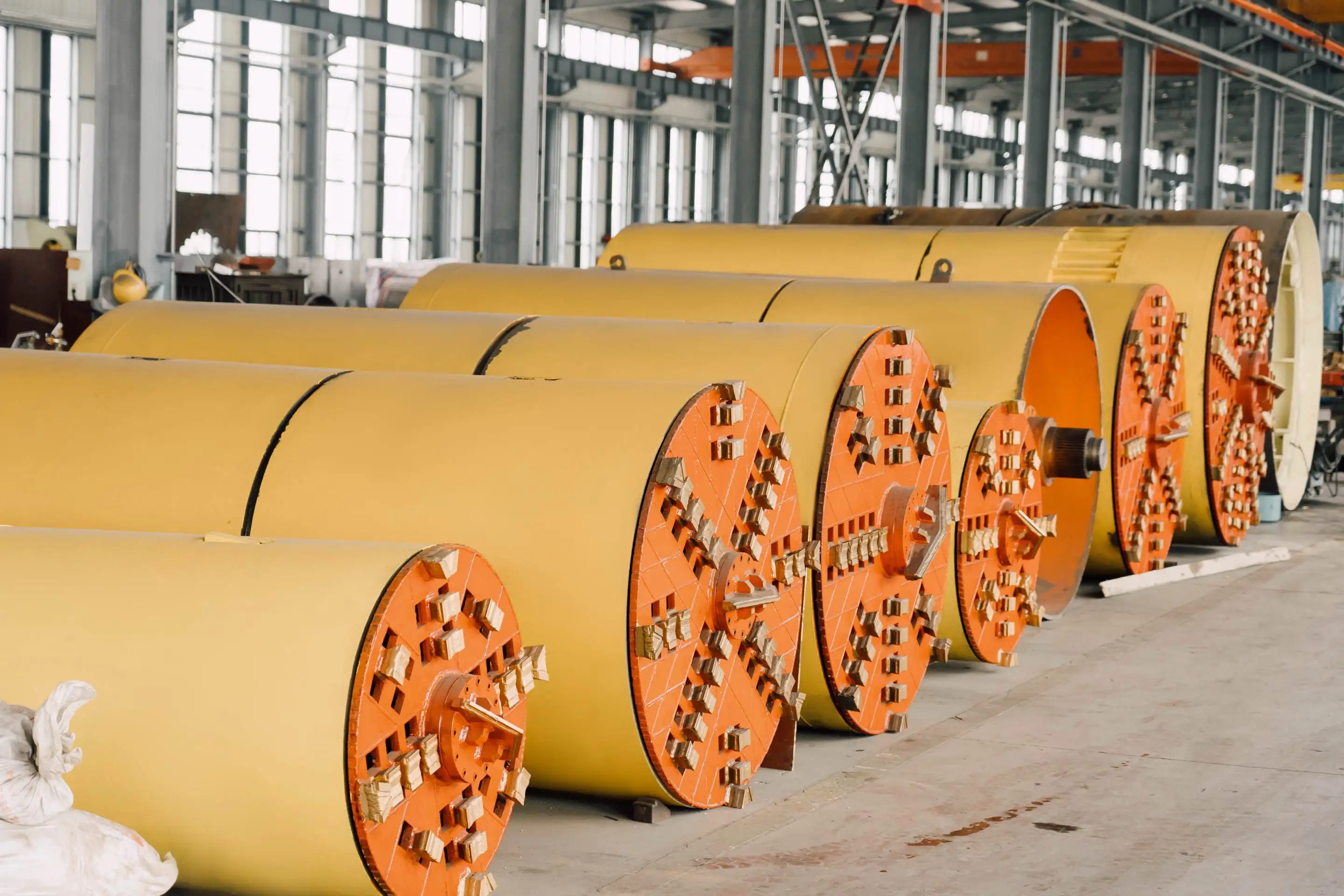

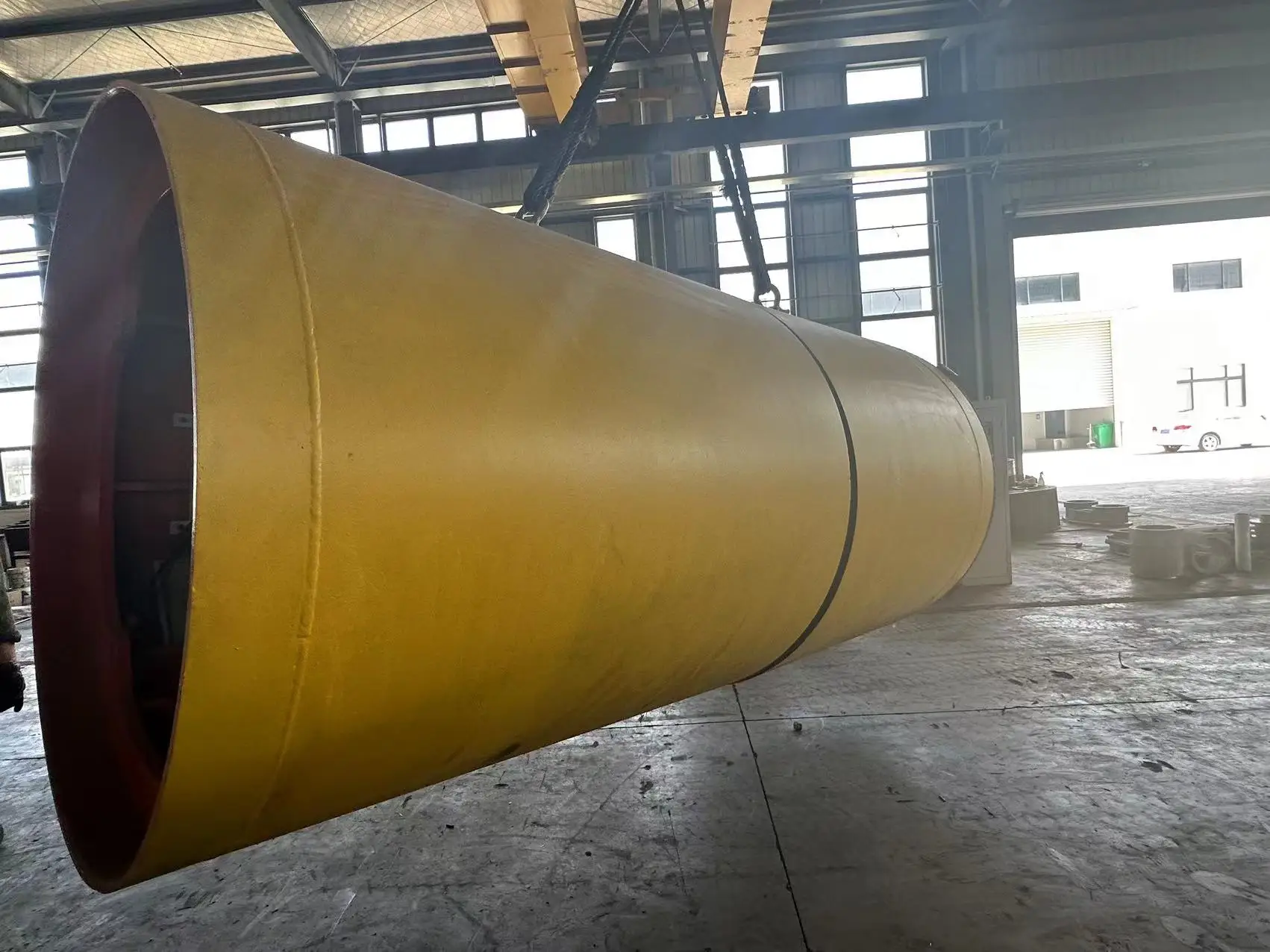

Economical High Efficient Full Face Cutting Mixed Formation Pipe Jacking Machine
- Category: >>>
- Supplier: Yancheng Baolilai Precision Machinery Manufacturing Co. Ltd
Share on (1600837835284):
Product Overview
Description
Iype | φDxL(mm | (KN.m) | (KWxSet) | (TxSet) | (r/min) | (°) | (Kw) | (mm) |
Dimension | Torque | Dowe | Steering jacks | RPM | Correction Angle | Steering Pump Station | Surrty Pipe Diam. | |
NPD800 | 1020x3600 | 38 | 22x1 | 48x4 | 4.58 | 2.5 | 3 | 100 |
NPD1000 | 1220x3600 | 45.2 | 30x1 | 48x4 | 4.58 | 2.5 | 3 | 100 |
NPD1200 | 1460x3600 | 152.5 | 22x2 | 48x4 | 4.58 | 2.5 | 3 | 100 |
NPD1350 | 1640x3600 | 152.5 | 22x2 | 63x4 | 2.29 | 2.7 | 4 | 100 |
NPD1500 | 1820x3800 | 180.8 | 30x2 | 80x4 | 2.29 | 2.7 | 4 | 100 |
NPD1650 | 2000x3800 | 180.8 | 30x2 | 80x4 | 2.29 | 2.7 | 4 | 100 |
NPD1800 | 2180x4200 | 406.8 | 30x3 | 63x8 | 1.53 | 2.7 | 4 | 100 |
NPD2000 | 2420x4200 | 406.8 | 30x3 | 80x8 | 1.53 | 2.7 | 7.5 | 150 |
NPD2200 | 2660x4200 | 406.8 | 30x3 | 80x8 | 1.53 | 2.7 | 7.5 | 150 |
NPD2400 | 2900x4500 | 723 | 30x4 | 120x8 | 1.15 | 3 | 7.5 | 150 |
NPD2600 | 3140x4500 | 723 | 30x4 | 120x8 | 1.15 | 3 | 7.5 | 150 |
NPD2800 | 3380x4500 | 1300 | 30x6 | 120x8 | 0.92 | 3 | 15 | 150 |
NPD3000 | 3620x5200 | 1300 | 30x6 | 200x8 | 0.92 | 3 | 15 | 150 |
NPD3500 | 4180x5200 | 1808 | 30x8 | 200x8 | 0.92 | 3 | 15 | 150 |
NPD4000 | 4840x5400 | 2160 | 30x8 | 200x8 | 0.76 | 3 | 15 | 150 |
Product introduction

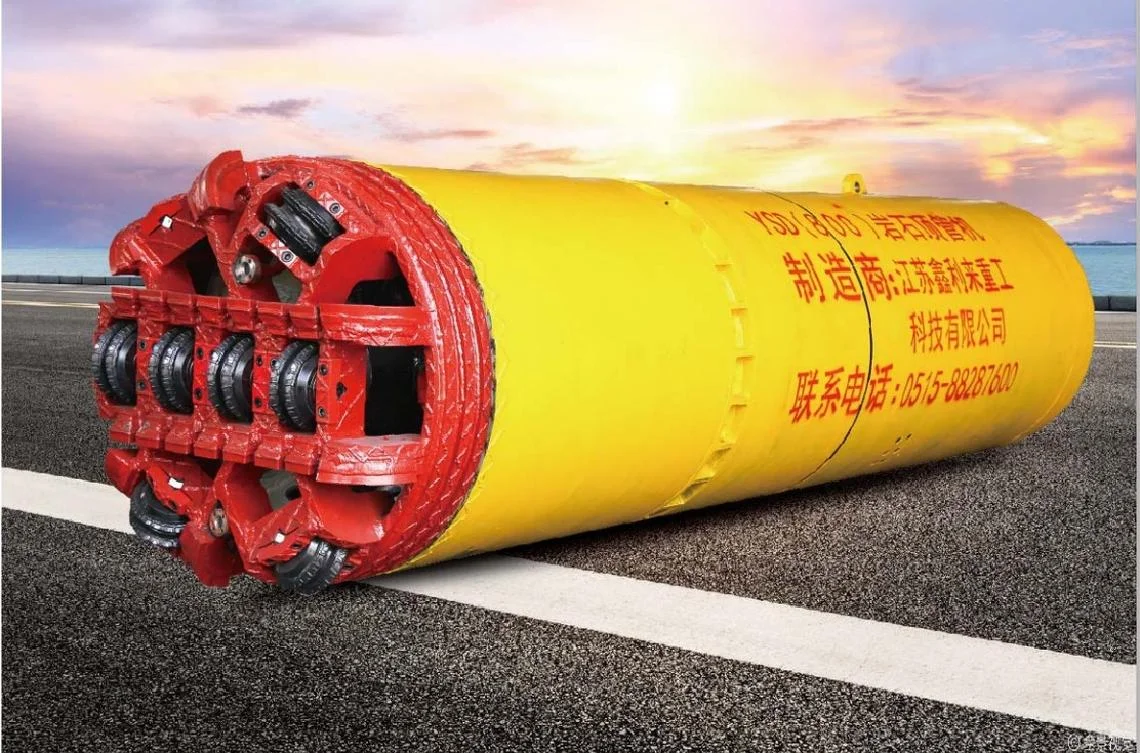

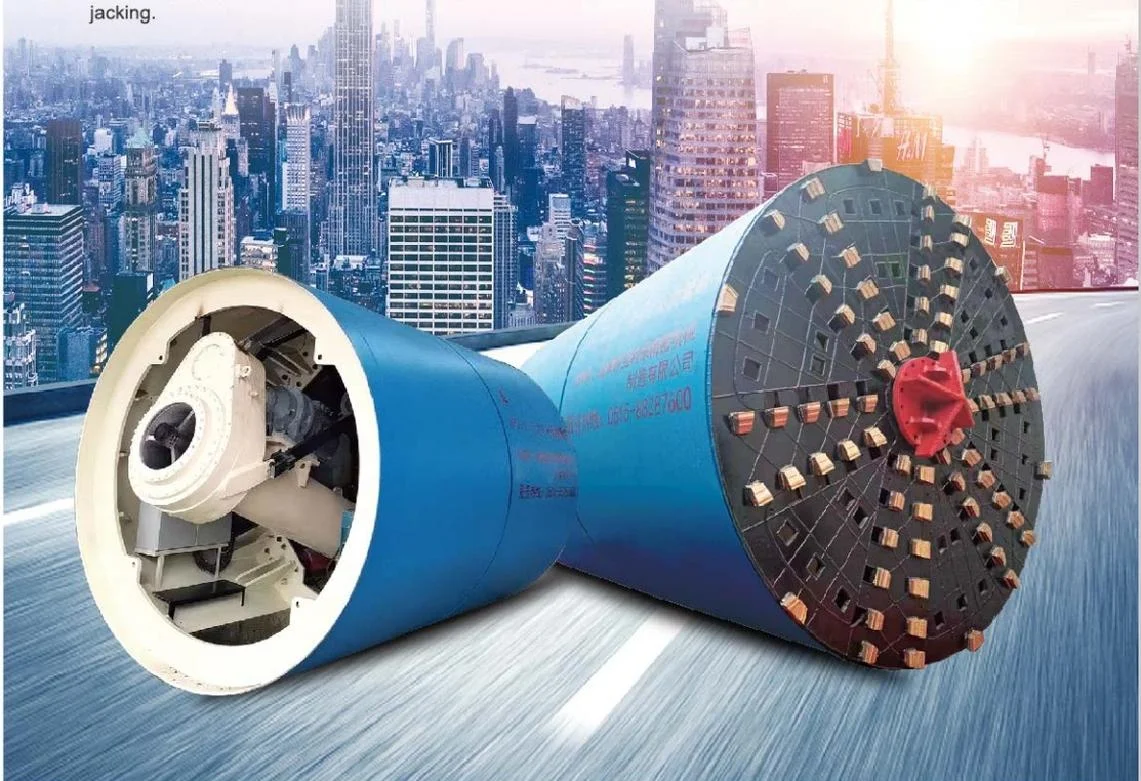

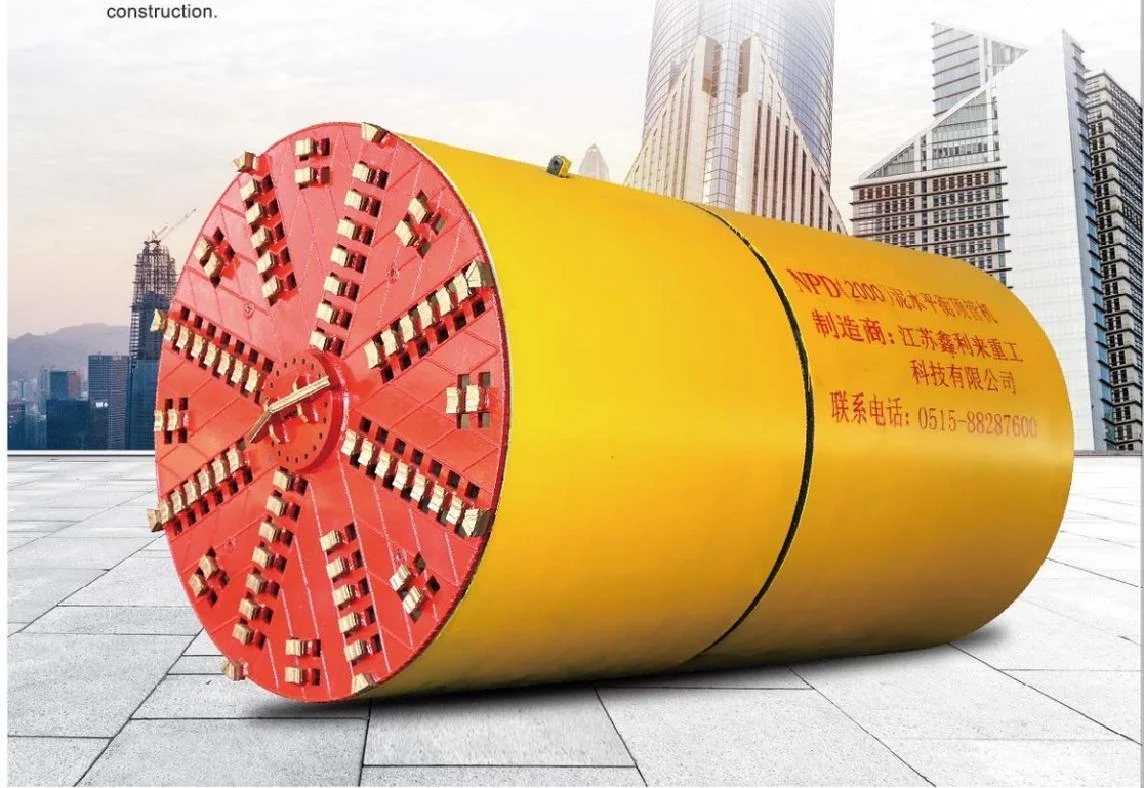

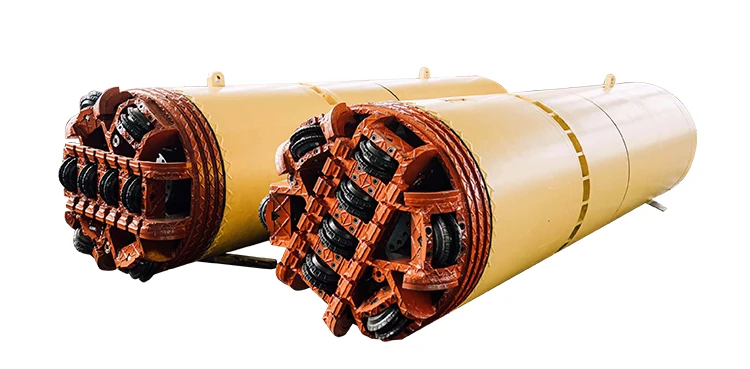

Suitable for sand layer, gravel layer, rock layer, etc. (up to 150MPa) adopts internal gear ring transmission mechanism, with large transmission torque and no central shaft; Maintenance personnel can enter the mud bin and replace the maintenance cutting hob during construction; The large-diameter cone crushing device can carry out secondary crushing; Able to carry out long-distance excavation; Adopt computer to collect data and control.
· Suitable for sand layer, gravel layer, rock layer, etc.
· The inner gear ring transmission mechanism, the transmission torque is large, the center shaft and no center shaft;
· Maintenance personnel in the construction process can enter the mud bin, replace the maintenance cutting hob;
· Large diameter cone crushing device can be secondary crushing;
· Able to drive long distance;
· The use of computer data collection and control.
· The inner gear ring transmission mechanism, the transmission torque is large, the center shaft and no center shaft;
· Maintenance personnel in the construction process can enter the mud bin, replace the maintenance cutting hob;
· Large diameter cone crushing device can be secondary crushing;
· Able to drive long distance;
· The use of computer data collection and control.
Q1.WHAT ARE YOUR TERMS OF PACKING?
A:Generally,we pack our tillers in plywood,suitable for shipping container.
Q2.WHAT IS YOUR TERMS OF PAYMENT?
A:30%T/T deposit payment before production,70%balance payment before delivery.We will send you photos of products and packages before you pay the balance
Q3.WHAT ARE YOUR TERMS OF DELIVERY?
A:EXW,FOB,CIF.
Q4.HOW ABOUT YOUR DELIVERY TIME?
A:30%T/T deposit payment before production,70%balance payment before delivery.We will send you photos of products and packages before you pay the balance
Q5.CAN YOU PRODUCE ACCORDING TO THE SAMPLES?
A:Generally,we will need about 25 days to produce a 20ft container,about 45 days to produce a 40ft container.The specific lead time depends on which products and quantity of your order.
Q6.WHAT IS YOUR SAMPLE POLICY?
A:Our moq is 3 units,we can supply the sample order.
Q7.HOW IS YOUR WARRANTY POLICY?
A:We supply one year whole machine warranty.
Also we can supply all kinds of spare parts for purchasing and replacing them in the future if needed.
Also we can supply all kinds of spare parts for purchasing and replacing them in the future if needed.
