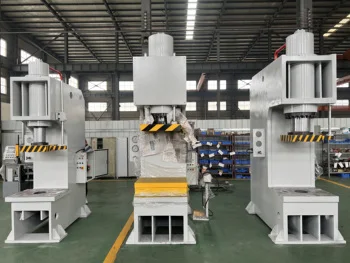

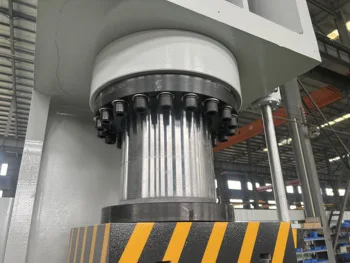

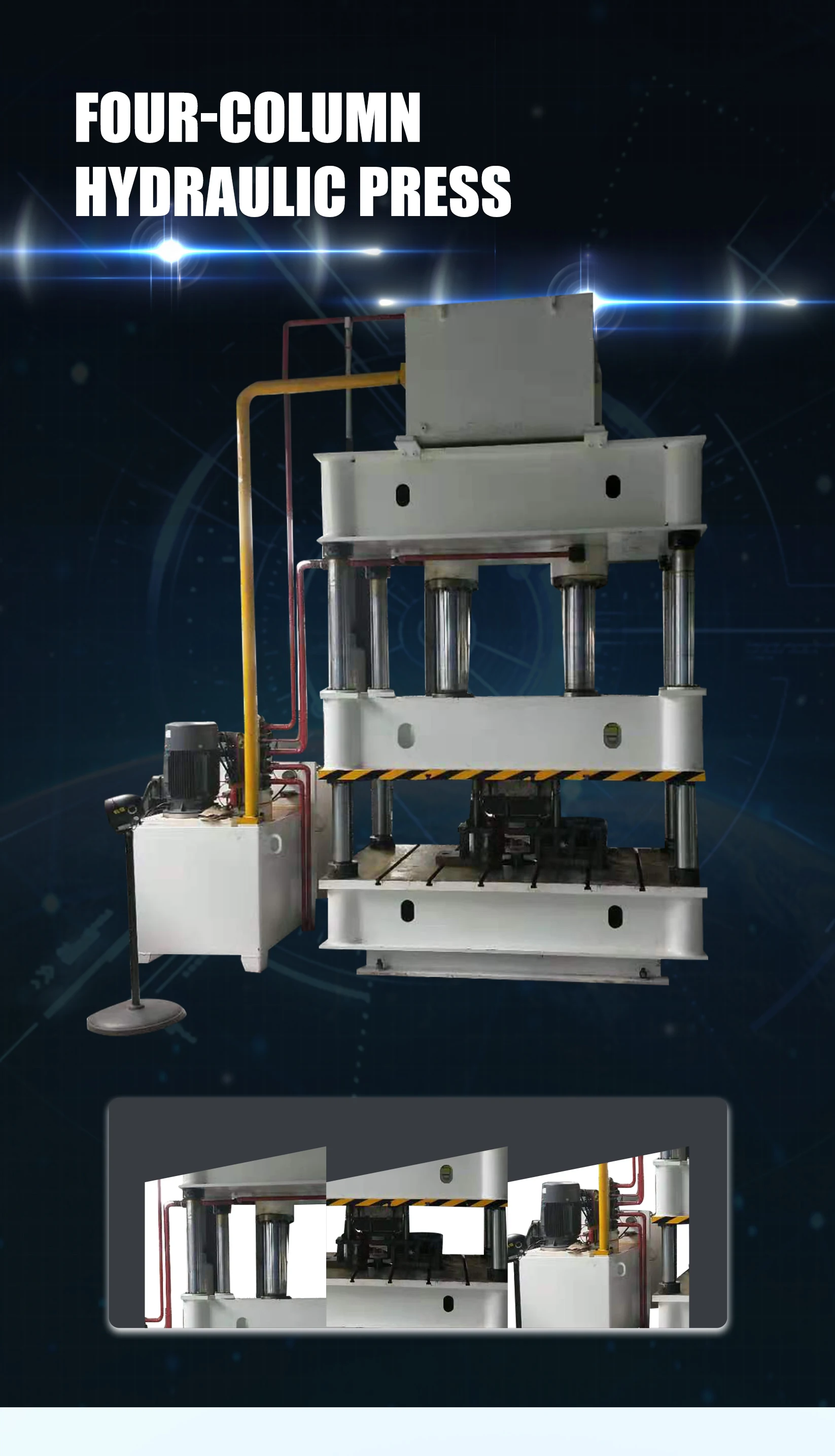

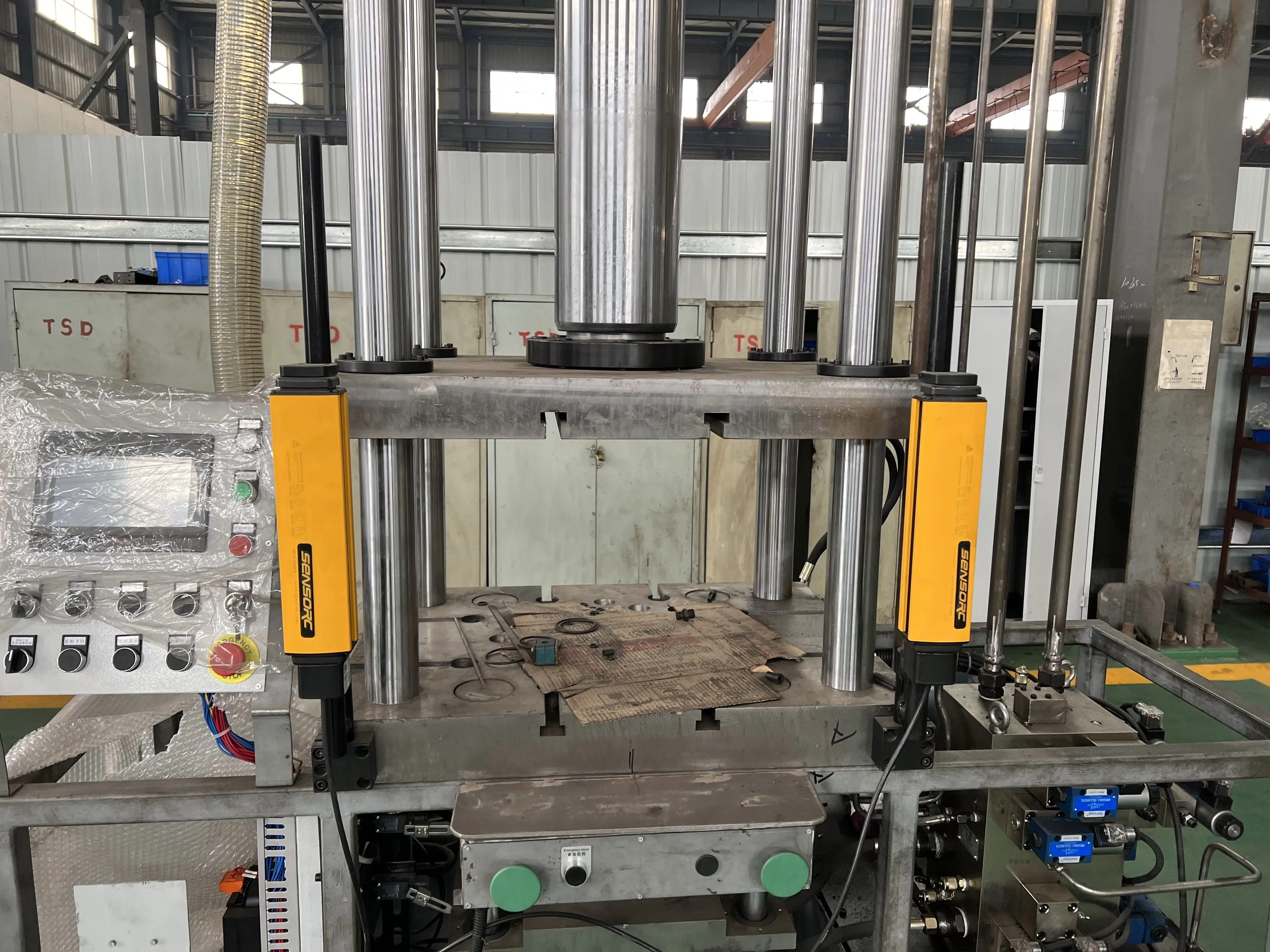

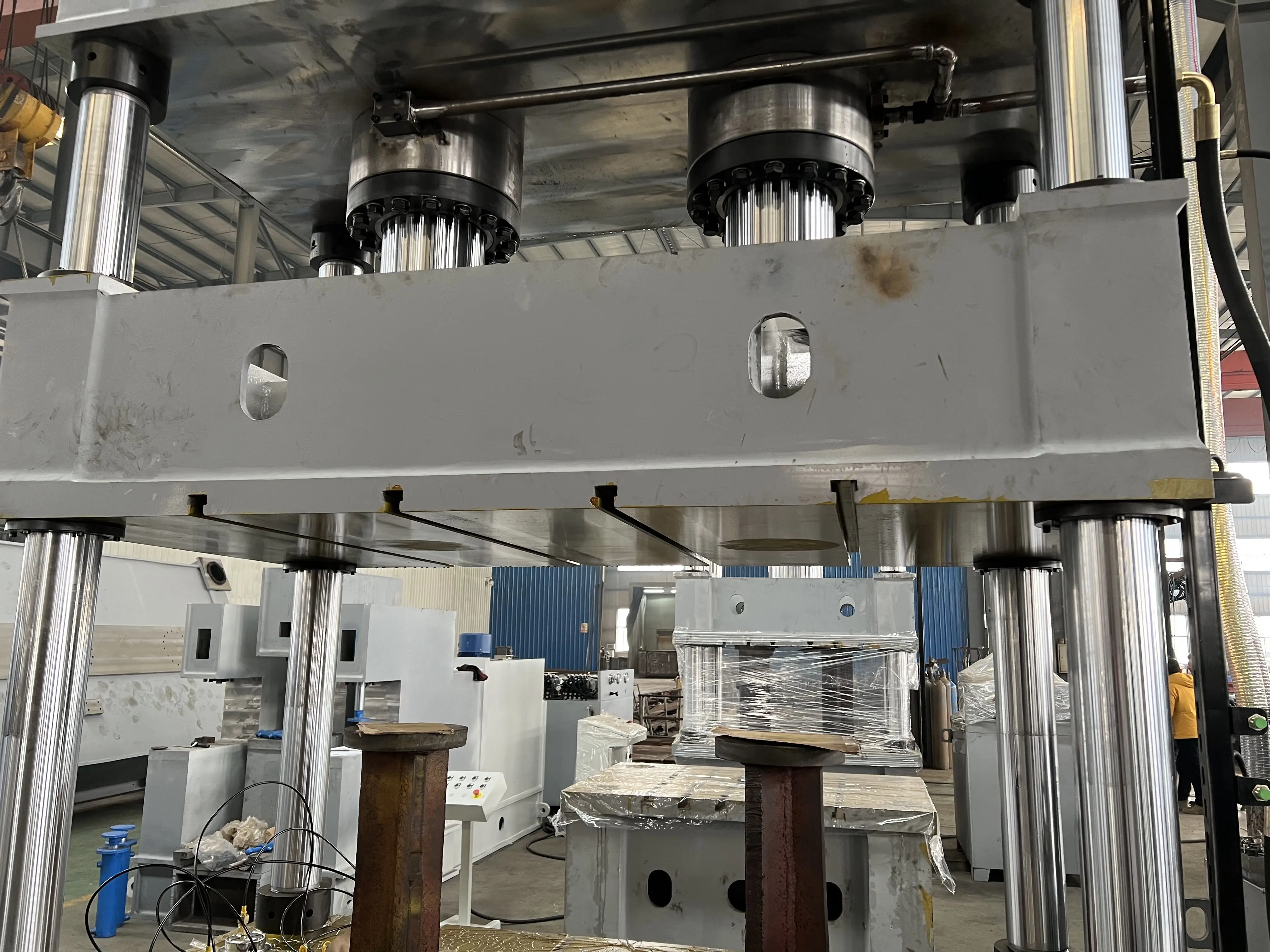

1000t hydraulic press fast four column 1000t four column hydraulic press bulletproof insert plate helmet hydraulic
- Category: >>>
- Supplier: Nanjing Wanguo Machinery Technology Co. Ltd.
Share on (1600837876426):
Product Overview
Description
Features
1.Low power consumption, high sealing reduce the production cost.
2.The structure is simple,the operation is simple.
2.The structure is simple,the operation is simple.
3.Full-scale security protection and noise reduction processing, provides the high quality production environment.
We truly ensure that the wearing parts are not easily damaged, avoiding frequent replacement of the above mentioned wearing parts by customers, improving the work efficiency and reducing our after-sales costs.
Item | 63 | 100 | 160 | 200 | 315 | 400 | 500 | 630 | 800 |
Nominal force(KN) | 630 | 1000 | 1600 | 2000 | 3150 | 4000 | 5000 | 6300 | 8000 |
Knockout force(KN) | 160 | 250 | 250 | 400 | 630 | 630 | 1000 | 1600 | 2000 |
Daylight(MM) | 700 | 800 | 800 | 1120 | 1250 | 1250 | 1500 | 1500 | 1500 |
Slide stroke(MM) | 500 | 500 | 650 | 710 | 800 | 800 | 900 | 900 | 900 |
Knockout stroke(MM) | 200 | 200 | 200 | 250 | 300 | 300 | 360 | 360 | 360 |
Descent speed(MM/S) | 38 | 38 | 40 | 80 | 120 | 100 | >100 | >100 | >100 |
Pressing speed(MM/S) | 10 | 10 | 8 | 5-12 | 5-12 | 4-10 | 4-10 | 5-12 | 5-12 |
Return speed(MM/S) | 95 | 70 | 65 | 70 | 65 | 50 | 50 | 60 | 90 |
Table L-R area(MM) | 550 | 630 | 800 | 900 | 1200 | 1200 | 1400 | 1600 | 2000 |
Table F-B area(MM) | 630 | 630 | 800 | 900 | 1200 | 1200 | 1400 | 1600 | 1600 |
Table hight above floor(MM) | 550 | 550 | 550 | 550 | 700 | 700 | 715 | 500 | 300 |
Overall L-R dimension(MM) | 2370 | 2200 | 1150 | 2450 | 2830 | 2850 | 3300 | 3600 | 4800 |
Overall F-B dimension(MM) | 900 | 1200 | 800 | 1300 | 1500 | 1500 | 1500 | 1800 | 2854 |
Hight above floor(MM) | 2770 | 2800 | 2600 | 3650 | 4300 | 4400 | 5400 | 5300 | 5400 |
Motor power(KW) | 7..5 | 11 | 11 | 15 | 22 | 22 | 30 | 44 | 60 |
Application Fields
This series of hydraulic press used for metal drawing, bending, flanging,cold extrusion, blanking or punching , and so on, also applies to adjusting, pressing and all kinds of powder and plastic products forming.
For more information,please contact us：
https://njwgmachine.en.alibaba.com/minisiteentrance.html?spm=a2700.details.cordpanyb.2.212d2b9eVehVYE&from=detail&productId=1600349203788
Q: what is the minimum order quantity?
A:Minimum order quantity: 1 piece.
Q: how long is the delivery time?
A: we have enough spare parts in stock to ensure the delivery time. The general delivery time is 20 days. If it is an urgent order, we can deliver it within 15 days.
Q: what terms of payment do you accept?
A: we support various payment methods, and we can accept a 30% deposit.
Q: where is the market for this product? What are the market advantages?
A: our market covers the whole European and American countries and exports to more than 45 countries. Wanguo has its own product quality, new product development ability and reliable pre-sales and after-sales service.
Q: can you explain the warranty terms?
A: usually our warranty period is one year.
A:Minimum order quantity: 1 piece.
Q: how long is the delivery time?
A: we have enough spare parts in stock to ensure the delivery time. The general delivery time is 20 days. If it is an urgent order, we can deliver it within 15 days.
Q: what terms of payment do you accept?
A: we support various payment methods, and we can accept a 30% deposit.
Q: where is the market for this product? What are the market advantages?
A: our market covers the whole European and American countries and exports to more than 45 countries. Wanguo has its own product quality, new product development ability and reliable pre-sales and after-sales service.
Q: can you explain the warranty terms?
A: usually our warranty period is one year.
