6MP Starlight, активный устрашающий 8CH IP PoE NVR комплект F1.0 объектив красный синий свет наружная IP система безопасности сети видеонаблюдения
- Category: Surveillance Systems >>>
- Supplier: Shenzhen,Besview,Security,Limited
Share on:
Product Overview
Description
Product Description
Model | NVR301-08LS3-P8 | NVR301-16LS3-P8 | ||
Video/Audio Input | ||||
IP Video Input | 8-ch | 16-ch | ||
Network | ||||
Incoming Bandwidth | 64Mbps | |||
Outgoing Bandwidth | 48Mbps | |||
Remote Users | 128 | |||
Protocols | TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SMTP | |||
Video/Audio Output | ||||
HDMI/VGA Output | HDMI: 4K(3840x2160)/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz VGA: 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz | |||
Recording Resolution | 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | |||
Audio Output | 1-ch, RCA | |||
Audio Compression | G.711A, G.711U | |||
Synchronous Playback | 8-ch | 16-ch | ||
Live view display | 1/4/6/8/9 | 1/4/6/8/9/16 | ||
Corridor Mode Screen | 3/4/5/7/9 | 3/4/5/7/9/10/12/16 | ||
Snapshot | ||||
FTP/Schedule/Event Snapshot | 1-ch snapshot, up to D1 resolution | |||
Decoding | ||||
Decoding format | Ultra 265/H.265/H.264 | |||
Live view/Playback | 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | |||
Capability | 1 x 4K@30, 4 x 5MP@25, 4 x 4MP@25, 4 x 3MP@25, 4 x 1080p@30, 8 x 720p@30 | 1 x 4K@30, 4 x 5MP@25, 4 x 4MP@25, 4 x 3MP@25, 4 x 1080p@30, 8 x 720p@30, 16 x D1@25 | ||
Hard Disk | ||||
SATA | 1 SATA interface | |||
Capacity | up to 6TB for each disk | |||
Smart | ||||
VCA Search | Behavior Search | |||
Smart Intrusion Prevention (SIP) by Camera | 4-ch(supports channel 1-4; Alarm only, no image) | |||
General Alarm | ||||
General Alarm | Motion, Tampering, Video Loss, Alarm Input | |||
Alert Alarm | IP Conflict, Network Disconnected, Disk Offline , Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal | |||

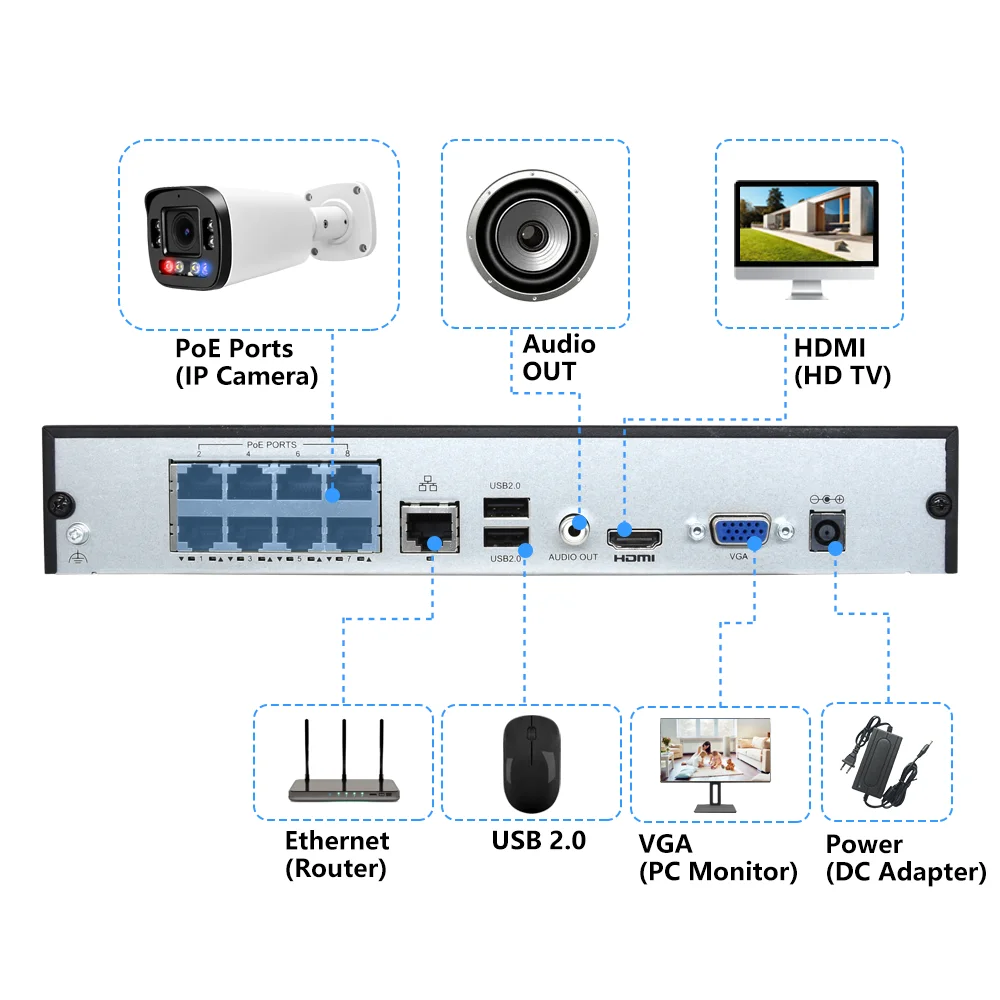

External Interface | ||||
Network Interface | 1 RJ45 10M/100M self-adaptive Ethernet Interface | |||
USB Interface | Rear panel: 2 x USB2.0 | |||
RS232 | NA | |||
RS485 | NA | |||
Alarm In | NA | |||
Alarm Out | NA | |||
PoE | ||||
Interface | 8 RJ45 10M/100M self-adaptive Ethernet Interface | |||
Max Power | Max 30W for single port Max 75W in total | |||
Supported Standard | IEEE 802.3at, IEEE 802.3af | |||
General | ||||
Power Supply | 52V DC Power Consumption: ≤9 W (without HDD) | |||
Working Environment | -10°C ~ + 55°C (+14°F ~ +131°F), Humidity ≤ 90% RH (non-condensing) | |||
Dimensions (W×D×H) | 270mm × 205mm × 46mm (10.6"×8.1"×1.8") | |||
Weight (without HDD) | ≤0.8 kg (1.76 lb) | |||
Certification | ||||
Certification | CE, FCC, UL, ROHS, WEEE | |||
CE | EN 55032: 2015, EN 61000-3-3: 2013, EN IEC 61000-3-2: 2019, EN 55035: 2017 | |||
FCC | Part15 Subpart B, ANSI C63.4 | |||
Specification
27PCS/CTN
G.W/CTN: 20.8kg
L*W*H: 455*455*310mm
N.W: 0.55kg
G.W: 0.65kg
Color Box Size:
145*145*75mm
G.W/CTN: 20.8kg
L*W*H: 455*455*310mm
N.W: 0.55kg
G.W: 0.65kg
Color Box Size:
145*145*75mm
Company Profile
Besview Security Limited is the leading manufacturer with more than 19 years experiences in advanced security & surveillance solutions.
We have a powerful R&D team with more than 50 engineers, the production area is over 1500 square meters. All our products would be strictly inspected by our QC department before shipment.
Besview devotes itself to HD Analog Camera, IP Camera, DVR and NVR development and production. Especially, we built tight cooperation with other accessory factories to concentrate a one-stop source for all security product purchasing. We are mainly focus on every detail of products and customers service.
Under the joint efforts of all Besview employees, our products are spread the all over global market like: Americas, Europe, Asia, Middle East etc. We will do it better and better hand in hand in future, join us! Let's create a win-win situation together.
Besview excellent sales and after-sales team are always at your best service!
We have a powerful R&D team with more than 50 engineers, the production area is over 1500 square meters. All our products would be strictly inspected by our QC department before shipment.
Besview devotes itself to HD Analog Camera, IP Camera, DVR and NVR development and production. Especially, we built tight cooperation with other accessory factories to concentrate a one-stop source for all security product purchasing. We are mainly focus on every detail of products and customers service.
Under the joint efforts of all Besview employees, our products are spread the all over global market like: Americas, Europe, Asia, Middle East etc. We will do it better and better hand in hand in future, join us! Let's create a win-win situation together.
Besview excellent sales and after-sales team are always at your best service!
FAQ
1. who are we?
We are based in Guangdong, China, start from 2016,sell to North America(40.00%),Western Europe(20.00%),Southern Europe(10.00%),Eastern Asia(10.00%),Domestic Market(10.00%),Mid East(5.00%),Southeast Asia(5.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Network Camera, Analog Camera, Network Video Recorder, Digital Video Recorder, Surveillance Systems
4. why should you buy from us not from other suppliers?
Our company with more than 19 years experiences in advanced security & surveillance solutions. Products are spread the all over global market like Americas, Europe, Asia, Middle East etc.
5. what services can we provide?
Accepted Delivery Terms: FOB,EXW,Express Delivery；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish
We are based in Guangdong, China, start from 2016,sell to North America(40.00%),Western Europe(20.00%),Southern Europe(10.00%),Eastern Asia(10.00%),Domestic Market(10.00%),Mid East(5.00%),Southeast Asia(5.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Network Camera, Analog Camera, Network Video Recorder, Digital Video Recorder, Surveillance Systems
4. why should you buy from us not from other suppliers?
Our company with more than 19 years experiences in advanced security & surveillance solutions. Products are spread the all over global market like Americas, Europe, Asia, Middle East etc.
5. what services can we provide?
Accepted Delivery Terms: FOB,EXW,Express Delivery；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish
