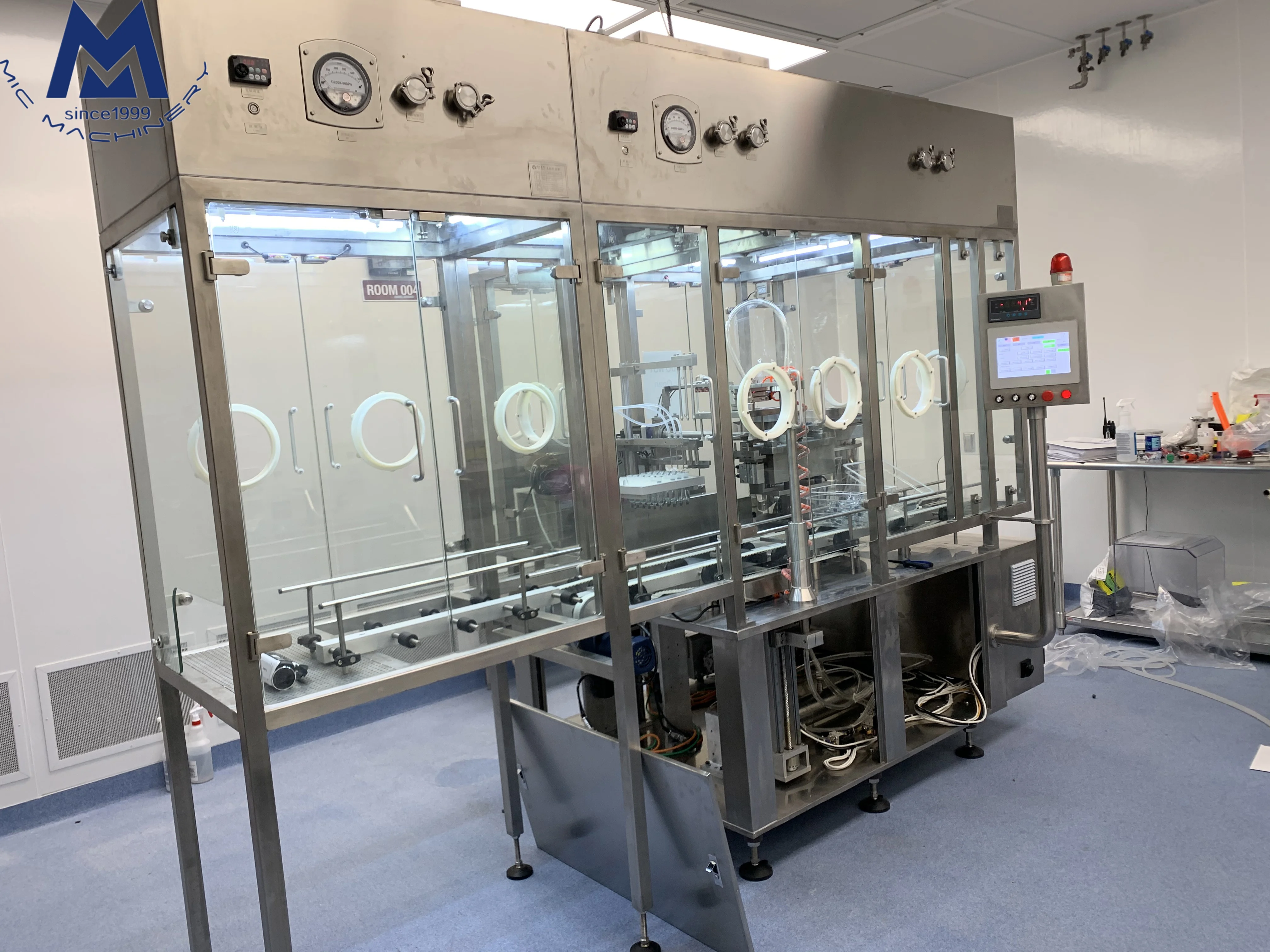

Automatic high speed line 1cc prefilled nest filling and closing syringe assembly machine
- Category: >>>
- Supplier: Zhangjiagang Mic Machinery Technology Co. Ltd.
Share on (1600837880848):
Product Overview
Description

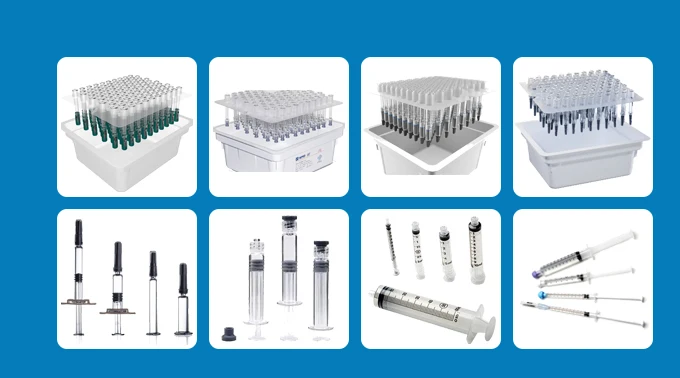

PRODUCT APPLICATION
PRODUCT DESCRIPTION
Automatic sterile aseptic high speed liquid gel vacuum prefilled pre filled syringe filling machine
1. This machine is driven by a full servo motor system and adopts updated mechanical transmission.
2. The filling speed and filling volume is adjustable, the vacuum filling time is adjustable, the vacuum stoppering is also adjustable. It's very suitable for various viscosity material such as dental gel, sticky cream, oil and so on.
3. The HMI touch screen can save multi-standard production programs. After replacing the specifications, you can directly all the corresponding program screen.
4. This machine is easy to operate and running stable.
PRODUCT PARAMETER
Technical Parameter | ||||||||
Servo motion controller | Beckhoff (Germany) | AC contactor | Schneider (France) | |||||
Servo motor | Kossi (Italy) | Breaker | Schneider (France) | |||||
Servo driver | Kossi (Italy) | Relay | Panasonic (Japan) | |||||
Touch screen (HMI) | Pro-face (France) | Photoelectric sensor | Leuze (Germany) | |||||
Filling system: Peristaltic pump for liquid product. Ceramic rotary valve piston pump for viscosity product. | ||||||||
DETAILED IMAGES
Automatic Robotic Transport Unit for Nest
Manually tear sealed paper and take out the lining paper, then put the nest which has plastic syringe or glass syringe on the chain conveyor, it will transport the nest to the liquid filling station automaticlly.

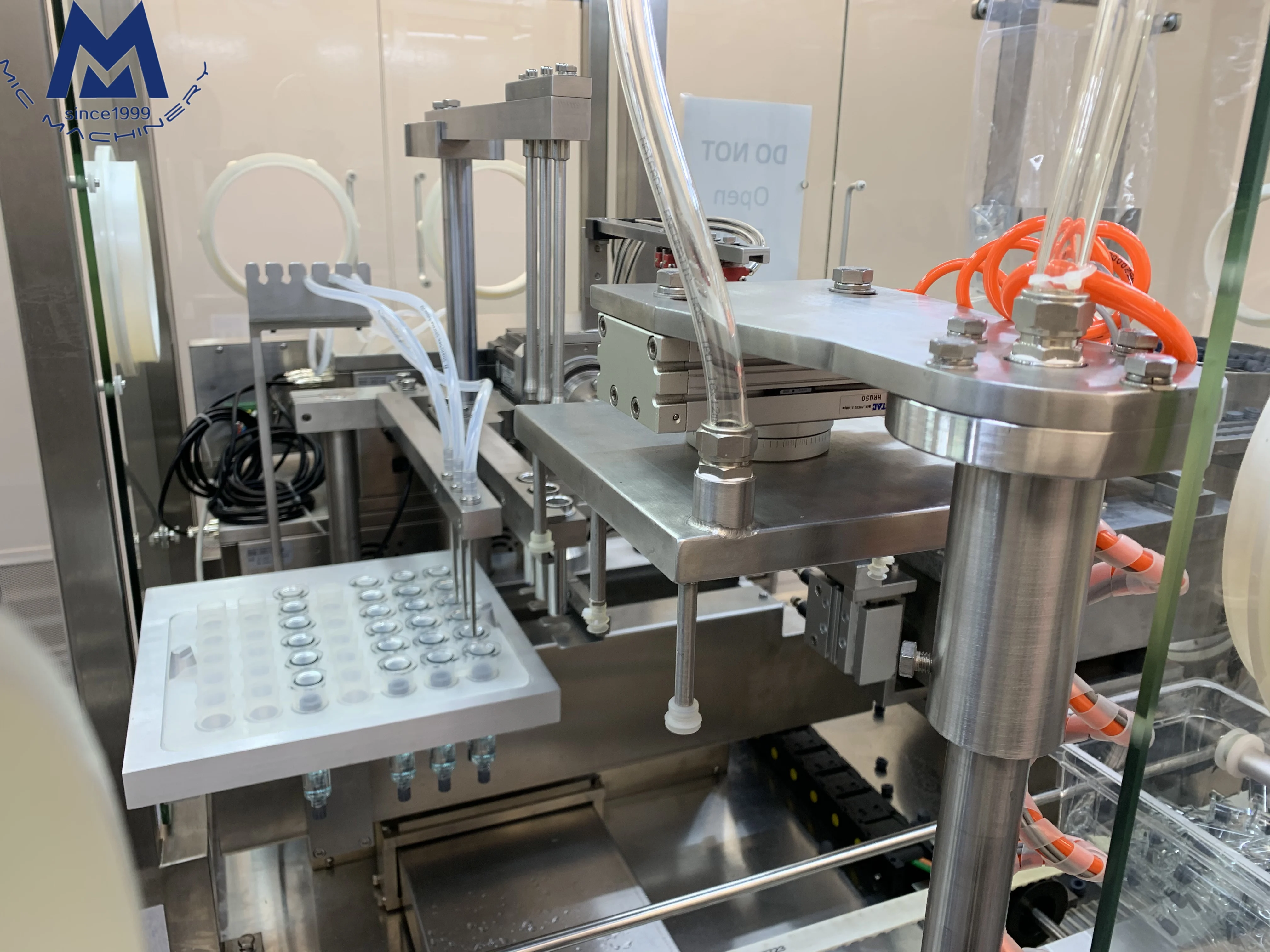

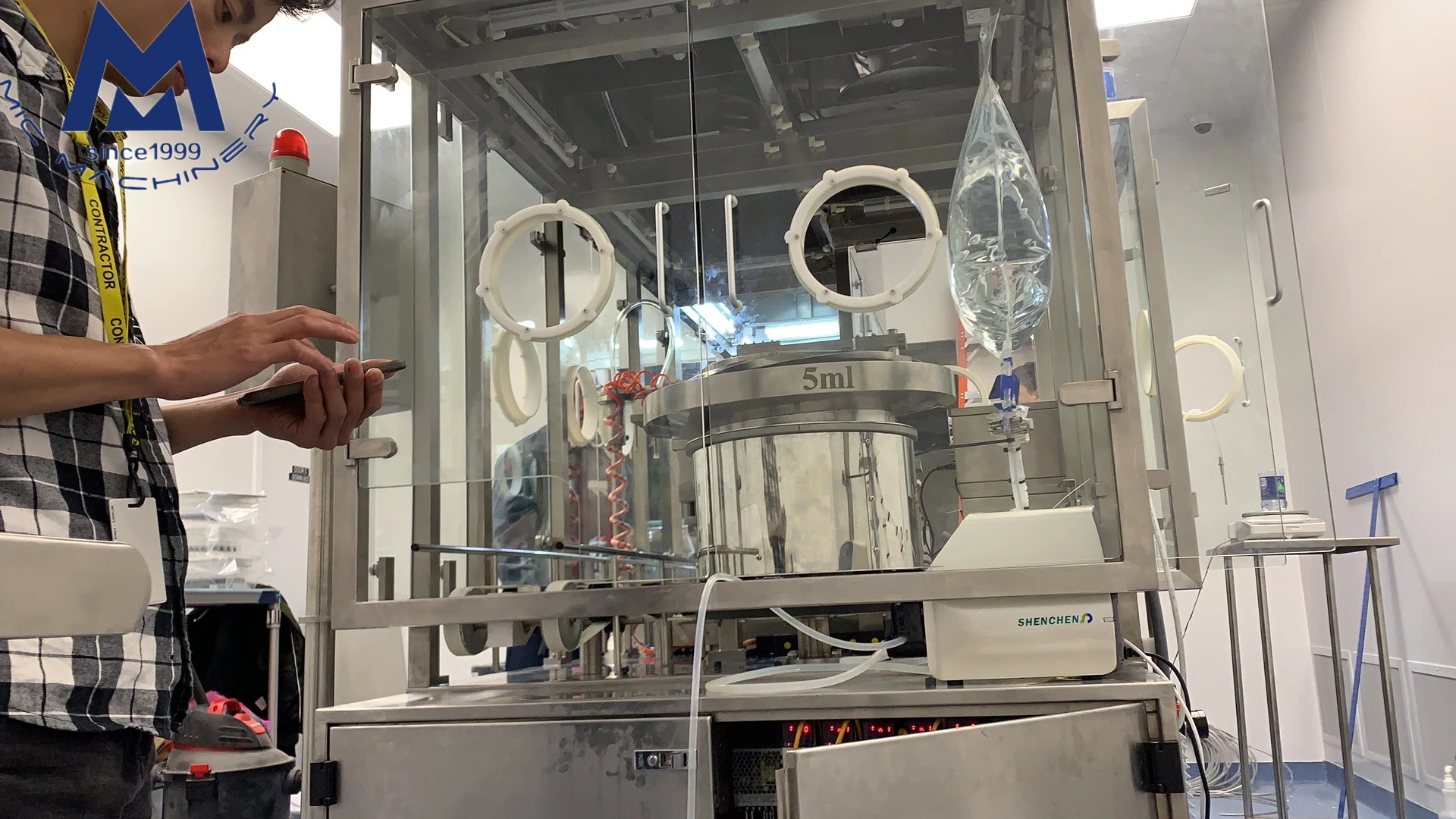

Automatic Vacuum Filling System and Stoppering Station
This machine adopts peristaltic pump to fill the liquid into the syringes, we can also add the N2 injection function if you need. It will make 3/4/5 filling nozzles according to your syringe's volume. At the same time, the rubber stoppering is synchronized, when filling finished then adding the rubbers immediately.

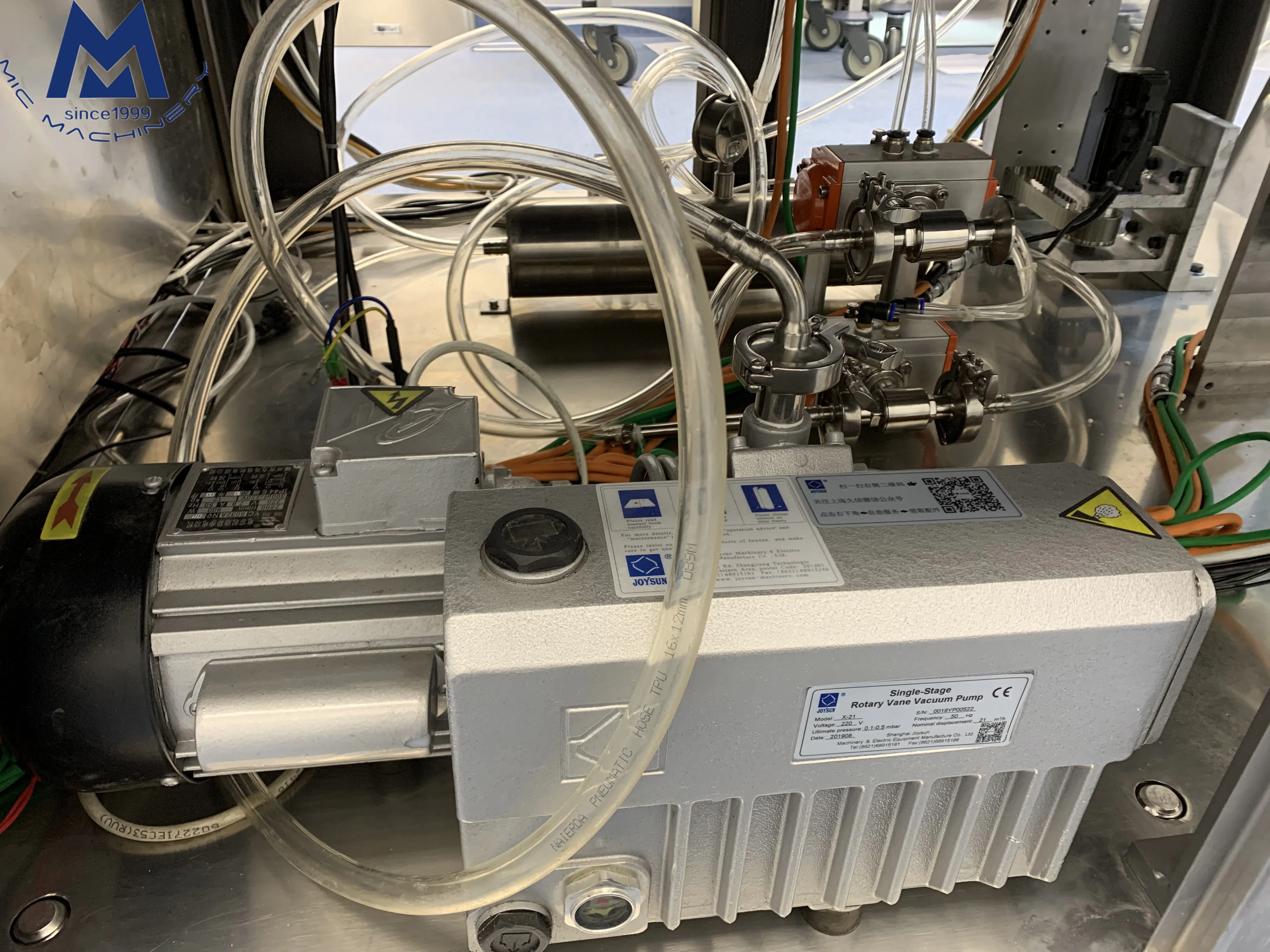

If your products is high viscosity gel, then we will use ceramic piston pump and rotary valve to fill, in order to prevent the bubbles caused, the filling process is vacuum.

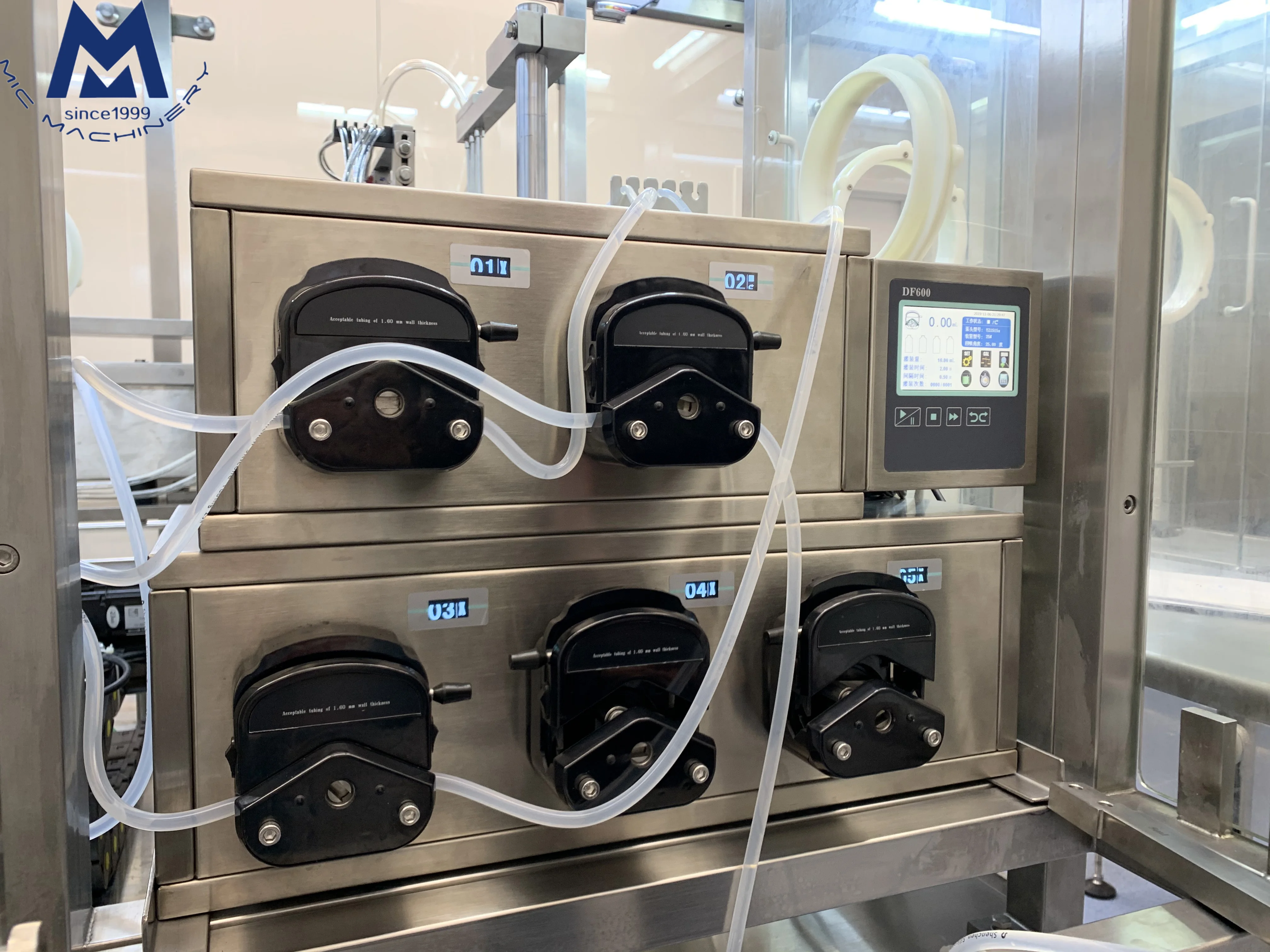

Automatic Peristaltic Pump Filling System
This machine adopts high precision peristaltic pump servo filling system, the parameter is adjustable on the HMI.

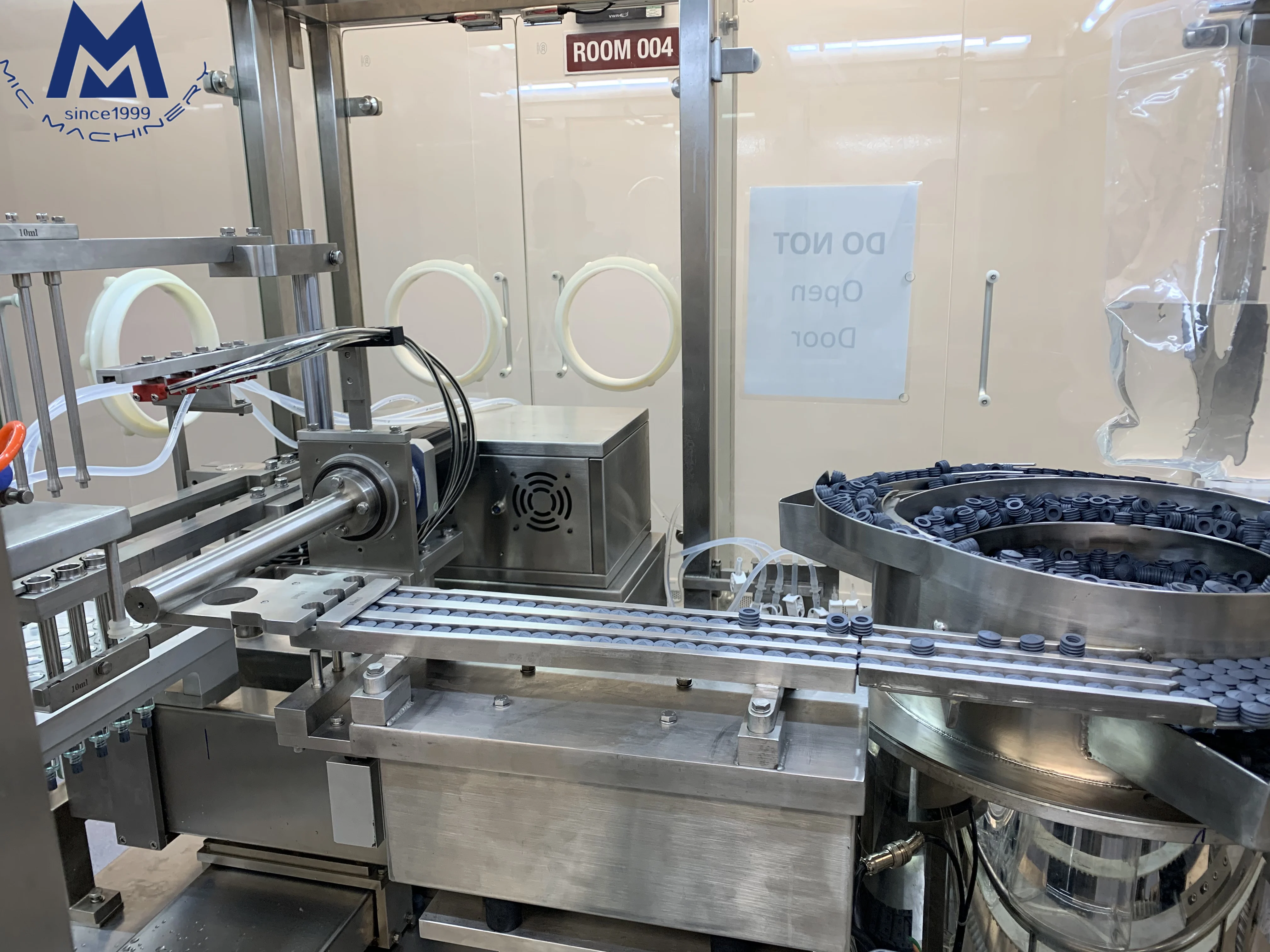

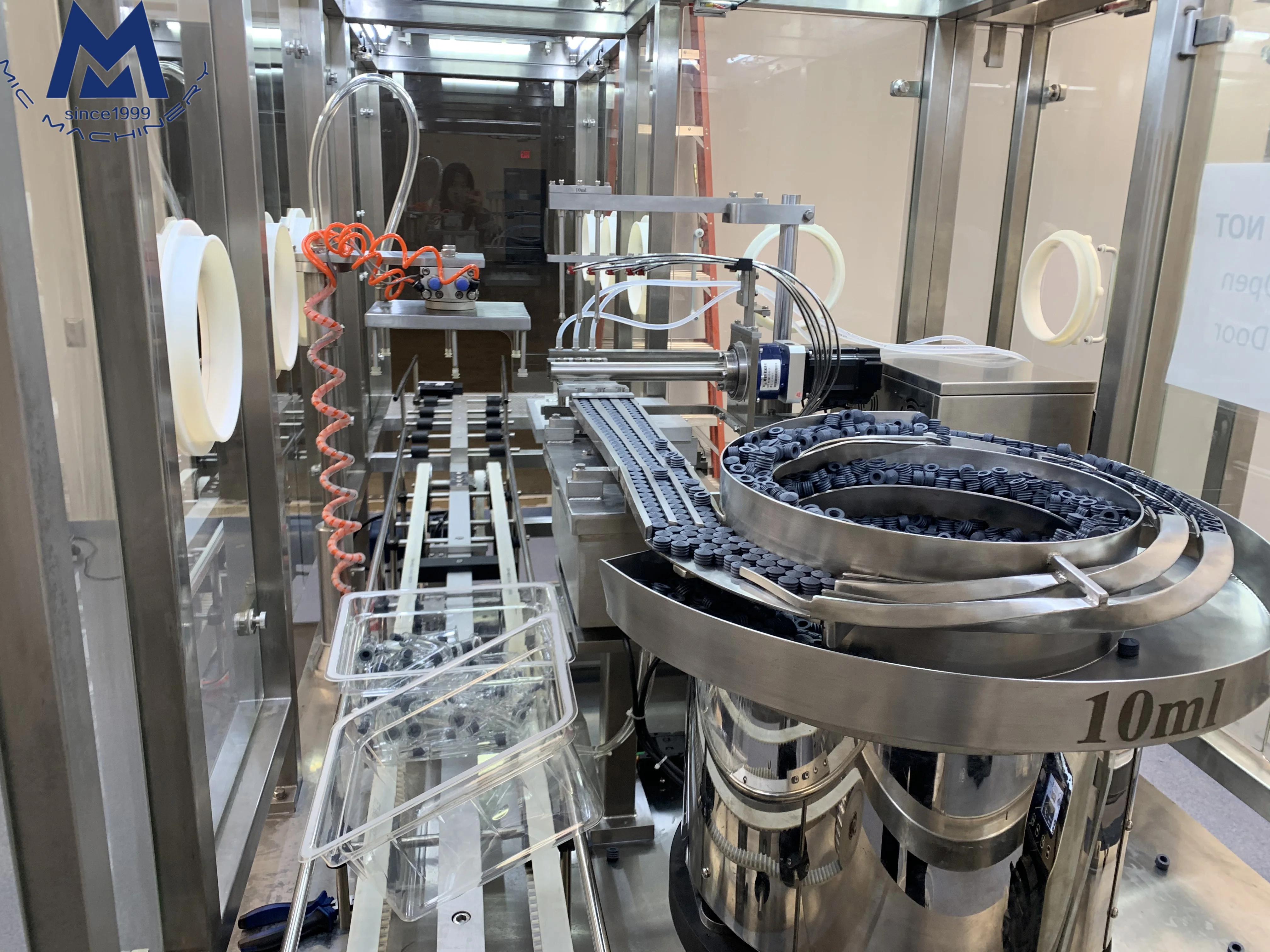

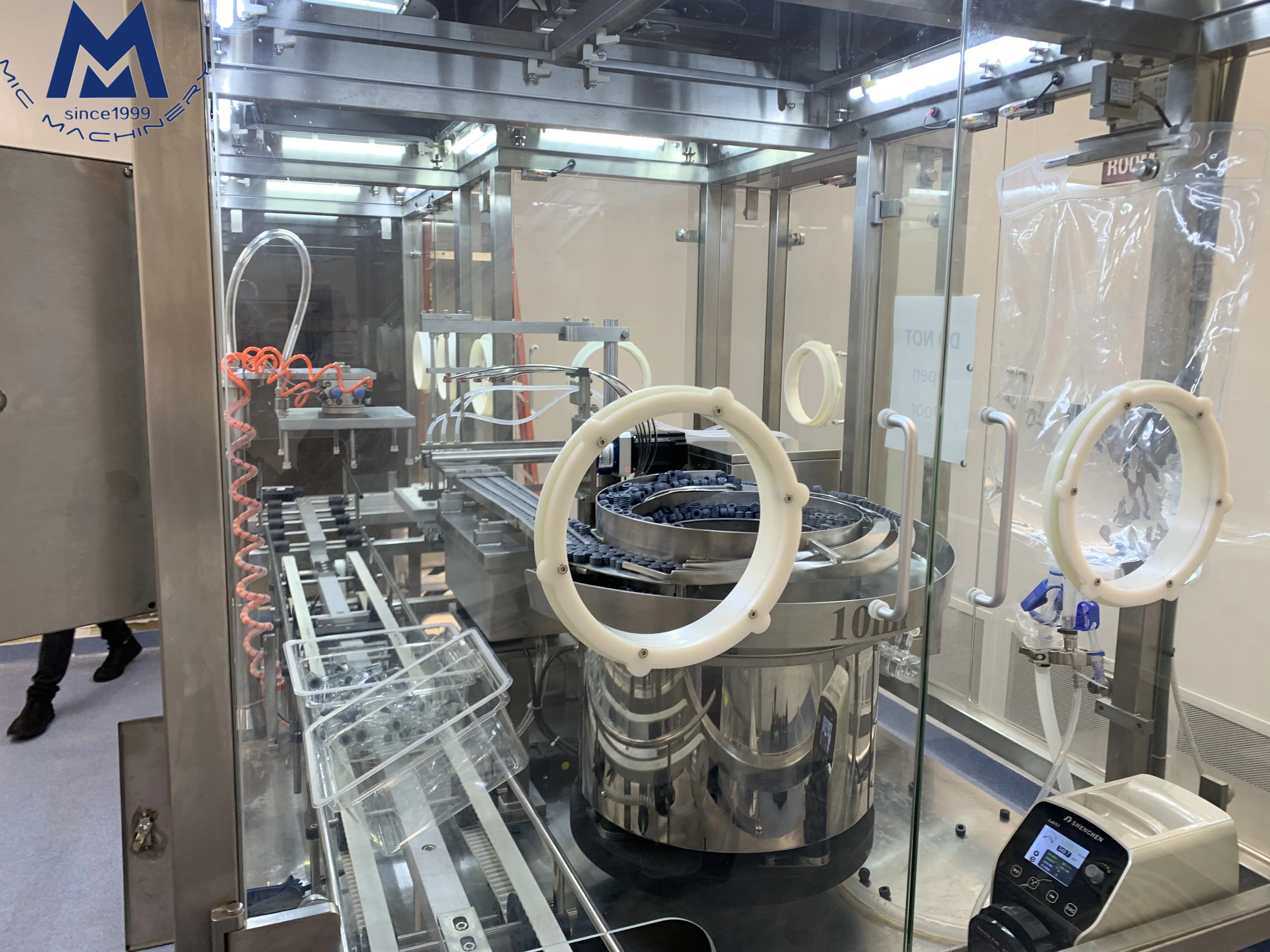

Automatic Sorting and Feeding Rubbers
The high precision vibrating plate will vibrate and feed the rubbers into the stoppering station through the multi-row guide rail. We can make the different vibrating plate according to your different size rubbers.
Finished Product Output
When the nest is finished filling and stoppering, the chain conveyor will deliver it to the output hole automaticlly.
PRODUCT REAL SHOT
