4.0T Sunshine Hydraulic Auto Scissor Lift (QJY J 40B)
- Category: >>>
- Supplier: Yantai Haide Science And Technology Co. Ltd.
Share on (1600837890286):
Product Overview
Description
Product Description
Feature:
1.Minimum platform height is only 210 mm,suitable for on ground installation.
2.Max lifting height of the main platform is1850mm,the width of platform up to 630mm.
3.Equipped with autometic waring alarm,photocell leveling security sensor.
4.Puching design ramp,slip-resistant performance is much better.

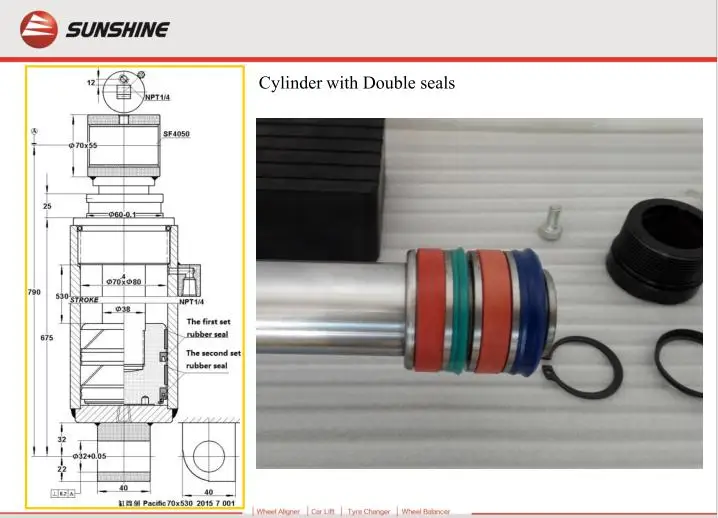

5.Imported hydraulic seals,the whole system is reliable
6.with 4 synchronous cylinders design,high accurate synchronization,platforms leveling easy adjustment.

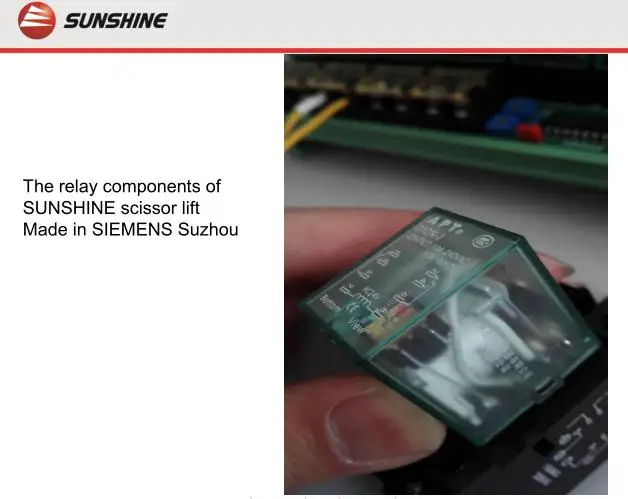

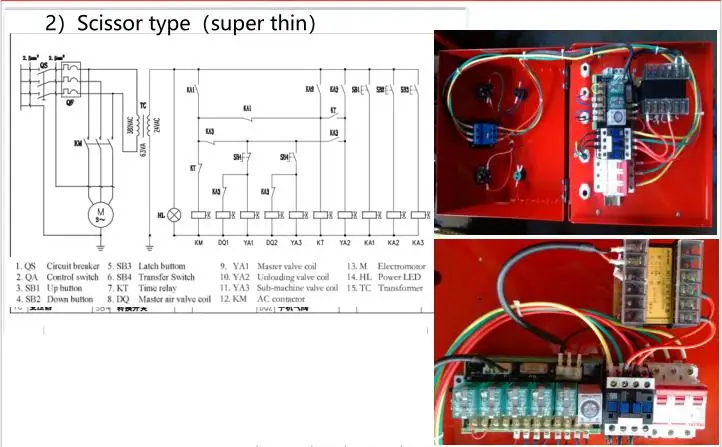

7.Control system with printing PCB and Siemens electrical parts,stable performance
The overall design is very suitable for vehicle alignment,ROC and body inspection,maintenance services.
3.Equipped with autometic waring alarm,photocell leveling security sensor.
4.Puching design ramp,slip-resistant performance is much better.
5.Imported hydraulic seals,the whole system is reliable
6.with 4 synchronous cylinders design,high accurate synchronization,platforms leveling easy adjustment.
7.Control system with printing PCB and Siemens electrical parts,stable performance
The overall design is very suitable for vehicle alignment,ROC and body inspection,maintenance services.

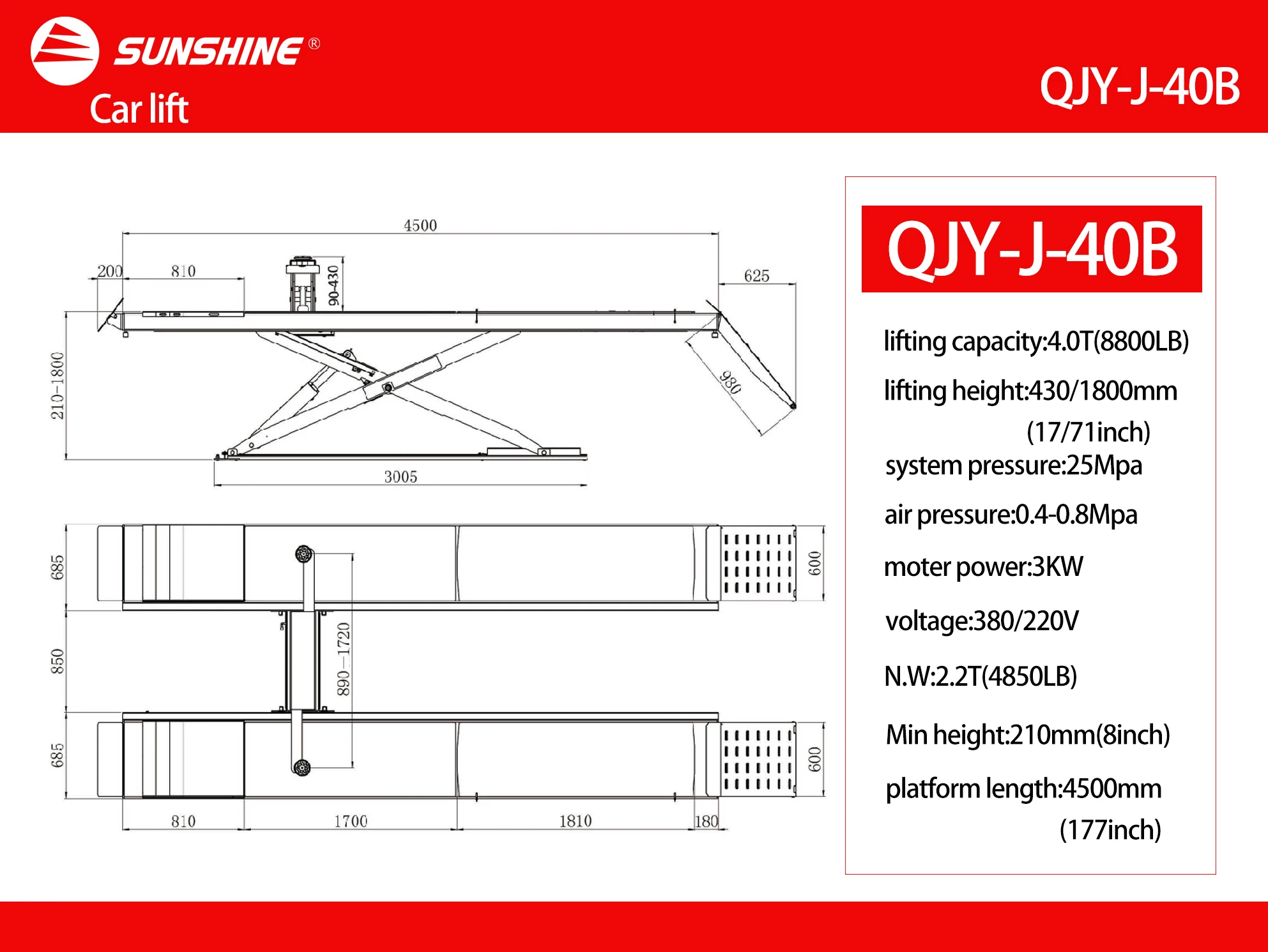

Model | Lifting capacity | Motor power | System pressure | air pressure | Min. height | platform length | N.w | voltage | lifting height |
QJY-J-40B | 4.0T | 3KW | 25Mpa | 0.4-0.8Mpa | 210mm | 4500mm | 2.5T | 380v /220v | 400/ 1800mm |

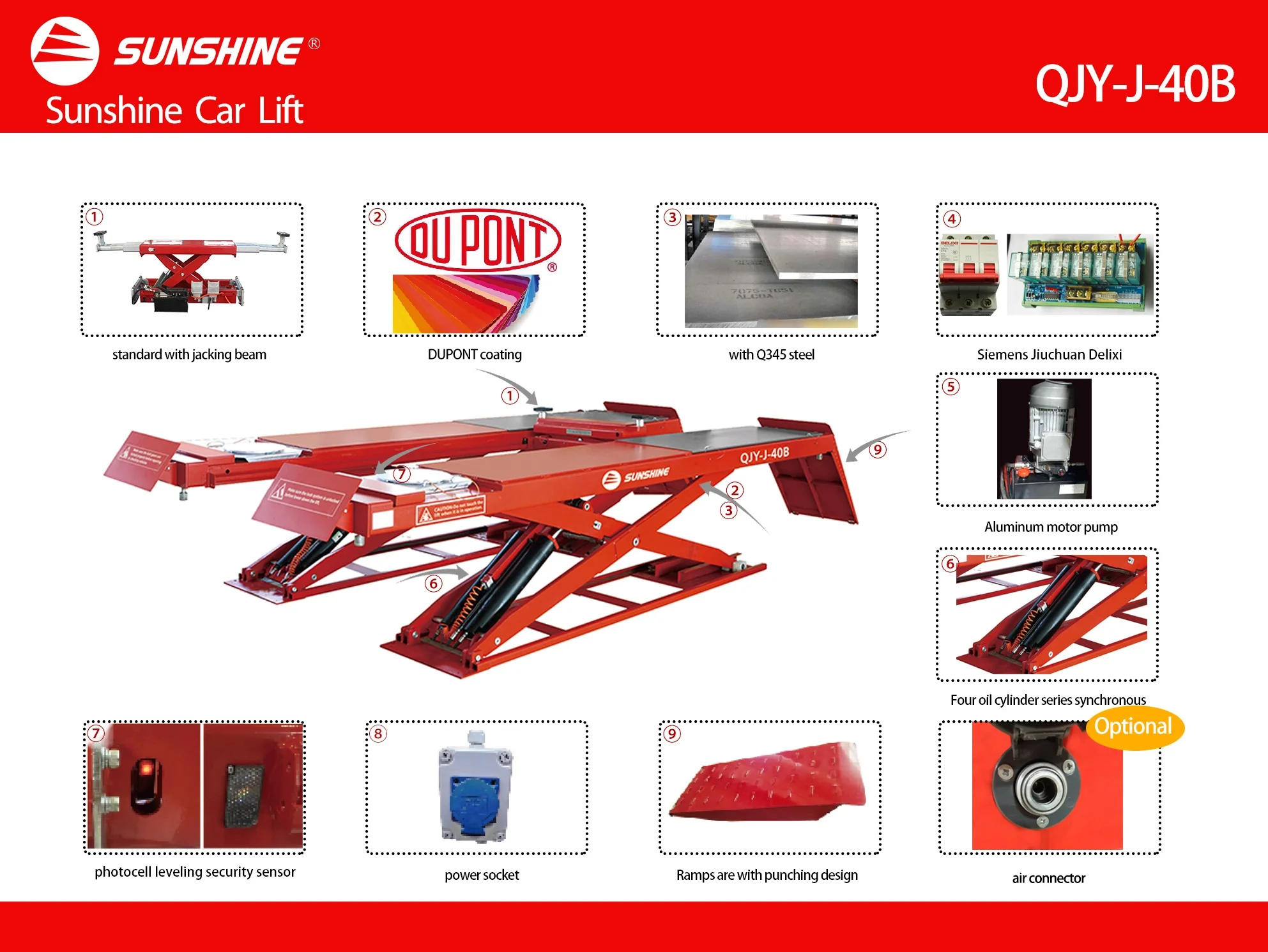

Detailed Images
Flip design front block,beautiful and practical
Sub-platform can be extended,
suitable for more longer vehicles
Ramp withpunching design,better slip-resistant performance
Photocell leveling security sensor
Power socket
Chassis LED lighting [Optional]
Packing&Shipping
4850 x 660 x 320mm/191 x 26 x 12.6in (2pcs);
520 x 460 x 1160mm/20.5 x 18.1 x 45.7in (1pc);
1160 x 600 x 250mm/45.7 x 23.6 x 9.8in (1pc)
Cubic Meter: 3.0cbm
Shipping: 6 pieces / 20’ container
520 x 460 x 1160mm/20.5 x 18.1 x 45.7in (1pc);
1160 x 600 x 250mm/45.7 x 23.6 x 9.8in (1pc)
Cubic Meter: 3.0cbm
Shipping: 6 pieces / 20’ container
Port: usually from Qingdao port

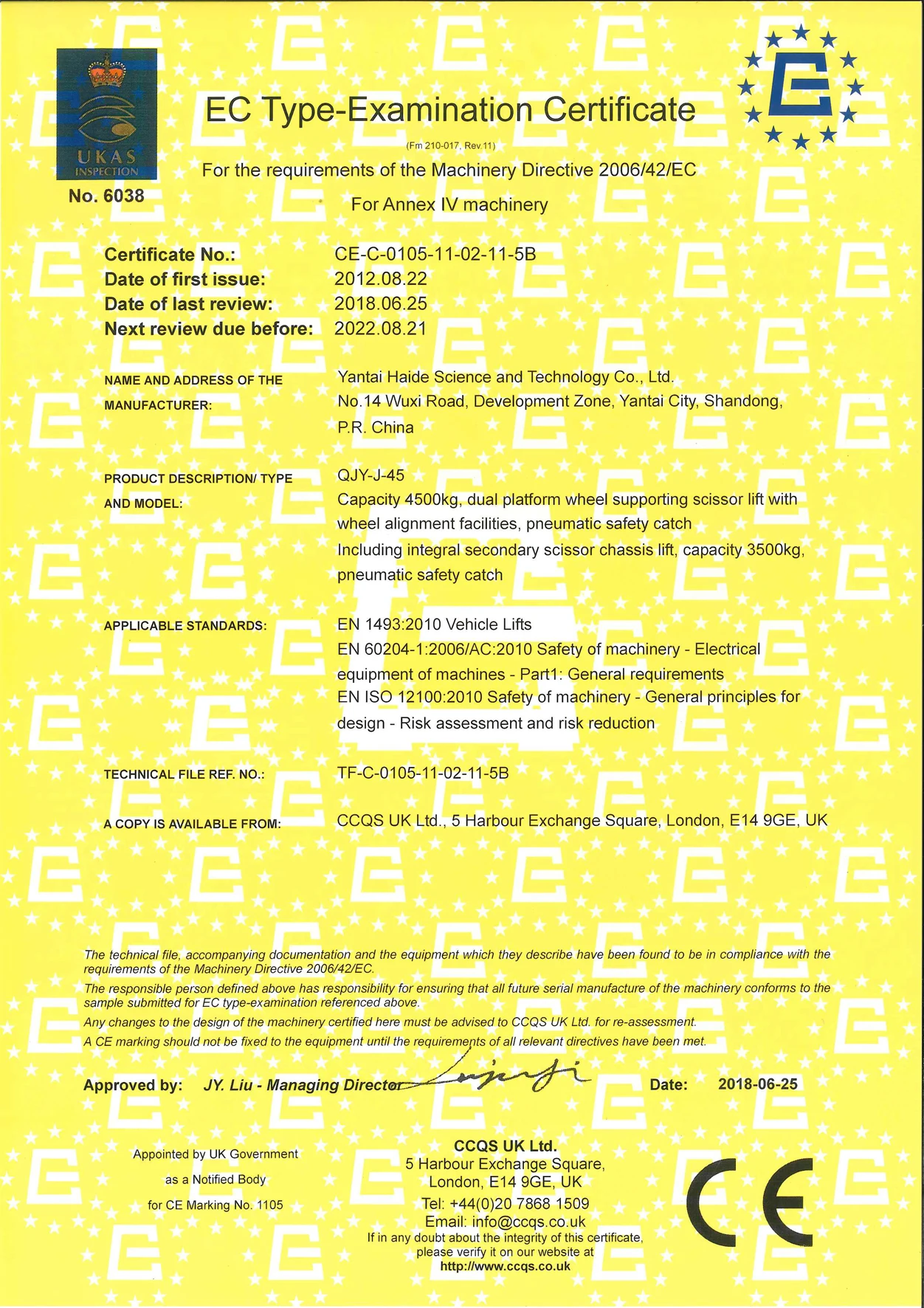

Certifications
Company Introduction
Yantai haide science and technology co.,ltd. is a joint-stock enterprise specializing in manufacturing and marketing of four-wheelalignments,lifts,tire changer,wheel balancer and other auto inspection instruments.
Since founded in August,1998,our company has built a reputation for innovation and visionary leadership in the application of thenewest technologies to automotive car service equipment.
Our company,which has three production bases for wheel alignment,car lift and tire service equipment,covered a ground area of 45,000 square meters,with a completed building area of 30,000 square meters including two manufacturing bases.The newly introduced equipment,together with advanced surface processing production line,has provided the guarantee for its super quality.It is the first national company that has established its own training base.
Our company adheres to long-term independently developed,independent production,has complete independent intellectual property rights.our products include the whole range of wheel alignment and car lift,tire changer,wheel balancer.Now our company is a primary supplier for major car manufacturers and 4S shops and is all highly appreciated by our customers,while many products have been exported to Australia,India,Japan,Italy,Russia,Sweden,Saudi Arabia and other countries.
We have a staff of more than 400 members,and 20 of whom are engineers with master's or doctor's degree working at the Technology Research Center.Marketing network covering the whole country,with nearly one hundred professional sales and service team,more than twenty provinces in the country has established sales and service network.
Since founded in August,1998,our company has built a reputation for innovation and visionary leadership in the application of thenewest technologies to automotive car service equipment.
Our company,which has three production bases for wheel alignment,car lift and tire service equipment,covered a ground area of 45,000 square meters,with a completed building area of 30,000 square meters including two manufacturing bases.The newly introduced equipment,together with advanced surface processing production line,has provided the guarantee for its super quality.It is the first national company that has established its own training base.
Our company adheres to long-term independently developed,independent production,has complete independent intellectual property rights.our products include the whole range of wheel alignment and car lift,tire changer,wheel balancer.Now our company is a primary supplier for major car manufacturers and 4S shops and is all highly appreciated by our customers,while many products have been exported to Australia,India,Japan,Italy,Russia,Sweden,Saudi Arabia and other countries.
We have a staff of more than 400 members,and 20 of whom are engineers with master's or doctor's degree working at the Technology Research Center.Marketing network covering the whole country,with nearly one hundred professional sales and service team,more than twenty provinces in the country has established sales and service network.
Exhibition
