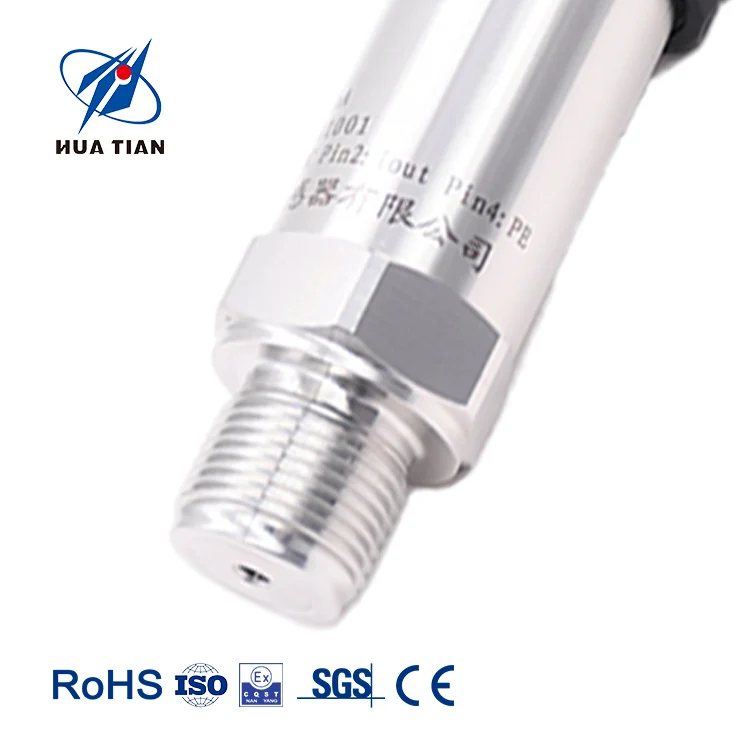

Huatian CYB4212 Oil Fuel 4 20ma Optional Stainless Steel Pressure Transmitter
- Category: >>>
- Supplier: Tianshui Huatian Sensor Co. Ltd.
Share on (1600837906080):
Product Overview
Description
CYB4212 IP65 sanitary type diaphragm100mpa module pressure transmitter
Product Paramenters

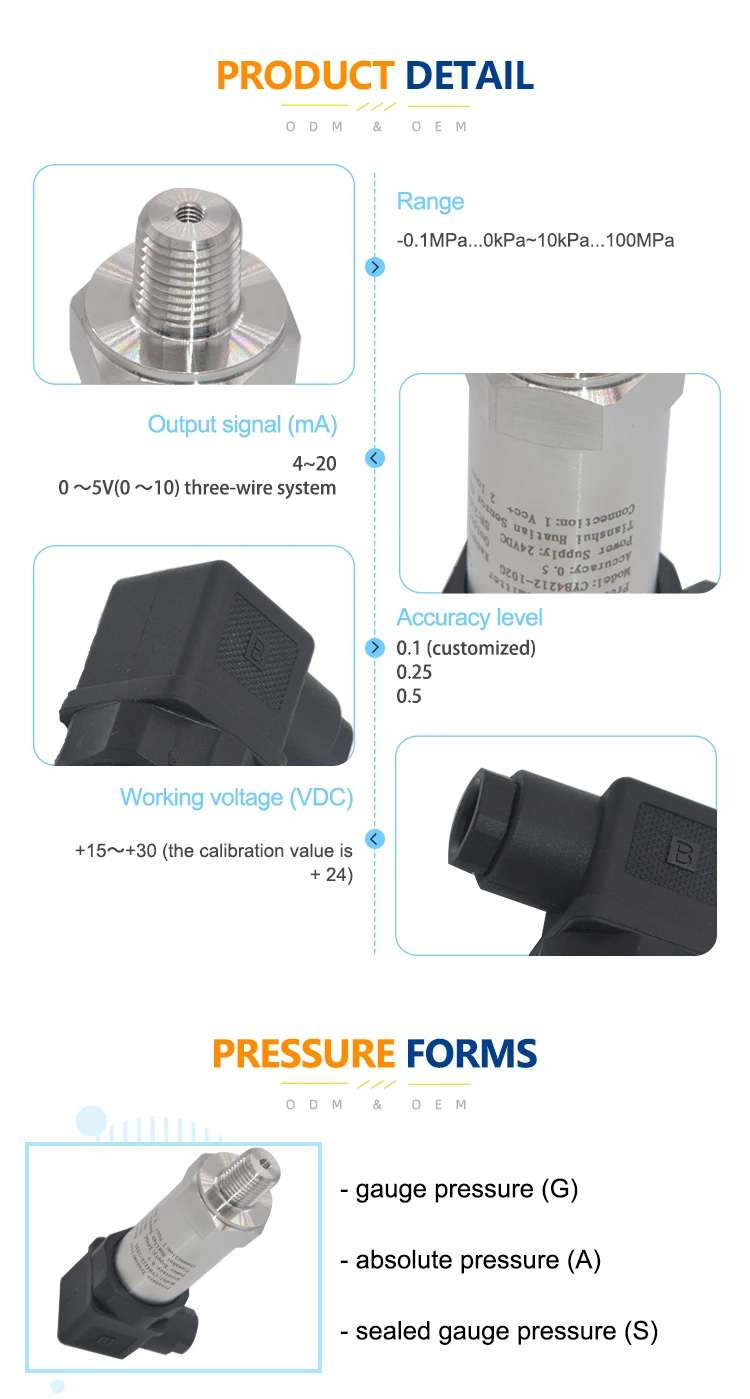

Range MPa | -0.1MPa...0kPa~10kPa...100MPa | ||||
Type of pressure | G,A,S | ||||
Output signal (mA) | 4~20 | ||||
0 ——5V(0 ——10) three-wire system | |||||
Accuracy level | 0.1 (customized) | 0.25 | 0.5 | ||
Nonlinearity (FS%) | <0.1 | <0.2 | <0.4 | ||
Hysteresis,Repeatability (FS%) | <0.05 | <0.05 | <0.1 | ||
Zero point and sensitivity temperature drift (%FS/°C) | <0.015 | <0.03 | <0.05 | ||
Long-term stability(%FS/year) | <0.1 | <0.2 | <0.5 | ||
Working voltage (VDC) | +15——+30 (the calibration value is + 24) | ||||
Compensation temperature (°C) | 0-+50 (<200kPa) , -10°C~70°C (>200kPa) | ||||
Working temperature (°C) | -40 ——+85 | ||||
Overload capacity (%) | <200 (<10MPa ) ; <150 (>100MPa) | ||||
Load resistance (Q) | R= (U-12.5) /0.02-RD Among them: U is the power supply voltage, RD is the internal resistance of the cable | ||||
Response time (10%——90%) | <1ms | ||||
Measuring medium | Fluids compatible with 304, 316L or ceramics | ||||
Diaphragm material | 316L,Titanium alloy or ceramic optional | ||||
Shell material | 304, 316L | ||||
Interface | 304> 316L is optional | ||||
Protection level | IP65 (IP68 customizable) | ||||
1、\tWaterproof liquid level outlet, waterproof grade IP68；
2、\tFlat film structure, easy to clean ；
3、\tPressure port M20^1,5> G1/2 is optional；
Products Description
CYB4200 series pressure transmitter is a rod-shaped small-profile pressure transmitter.

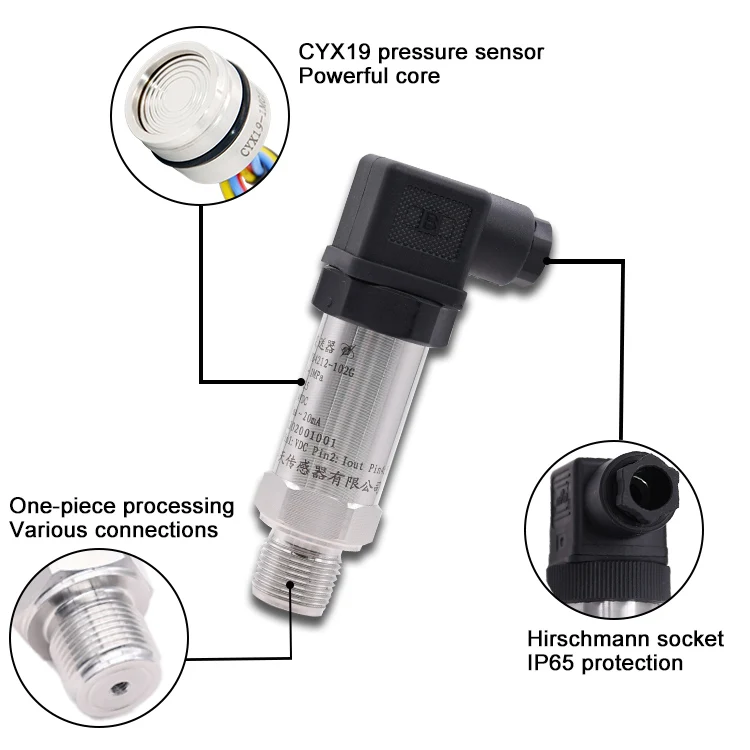

Select high-reliability silicon piezoresistive pressure sensor as the sensitive core, after temperature compensation, digital circuit correction and signal conditioning, output standard industrial applications and networking signals.
Each type of product has undergone careful design, component screening, process verification and curing, cyclic loading to remove stress, aging, environmental simulation testing and other processes to ensure that each product is stable and reliable.
Details Images
Application

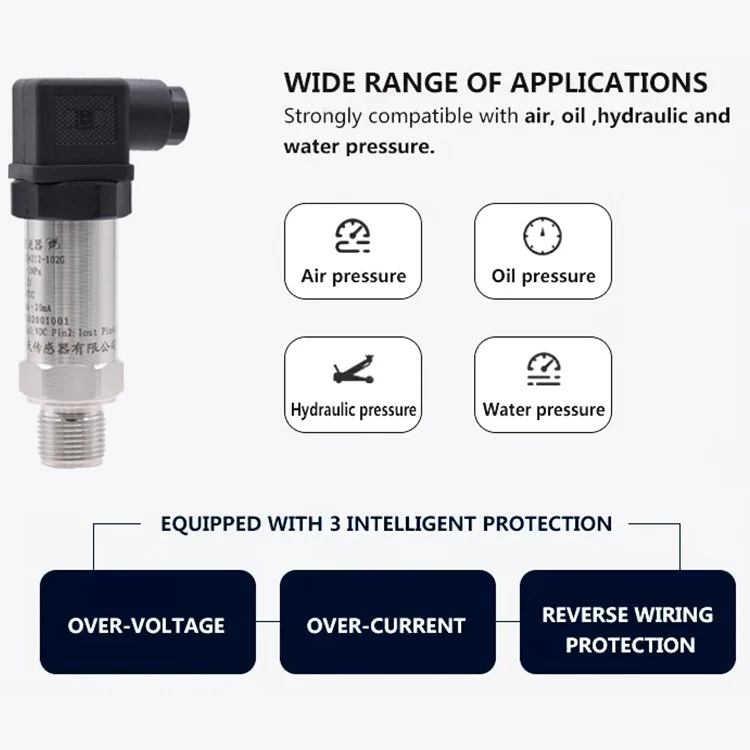

The CYB4200 series pressure transmitter is widely used in various pressure measurement users with its excellent accuracy and reliability. Especially in the coal mine, oil field, chemical industry, civil explosion, environmental protection, medicine, water affairs, shipping and other industries, Huatian brand pressure transmitters have been widely recognized by customers.
