Скатерть, скатерть, занавеска, ПЭТ/ПВХ/ПЭ/ПЭВА, пленка, машина для глубокой печати
- Category: Printing Machine >>>
- Supplier: Jiangyin,Lucky,King,Commercial,Trading,Co.,Ltd.
Share on:
Product Overview
Description
Product Description

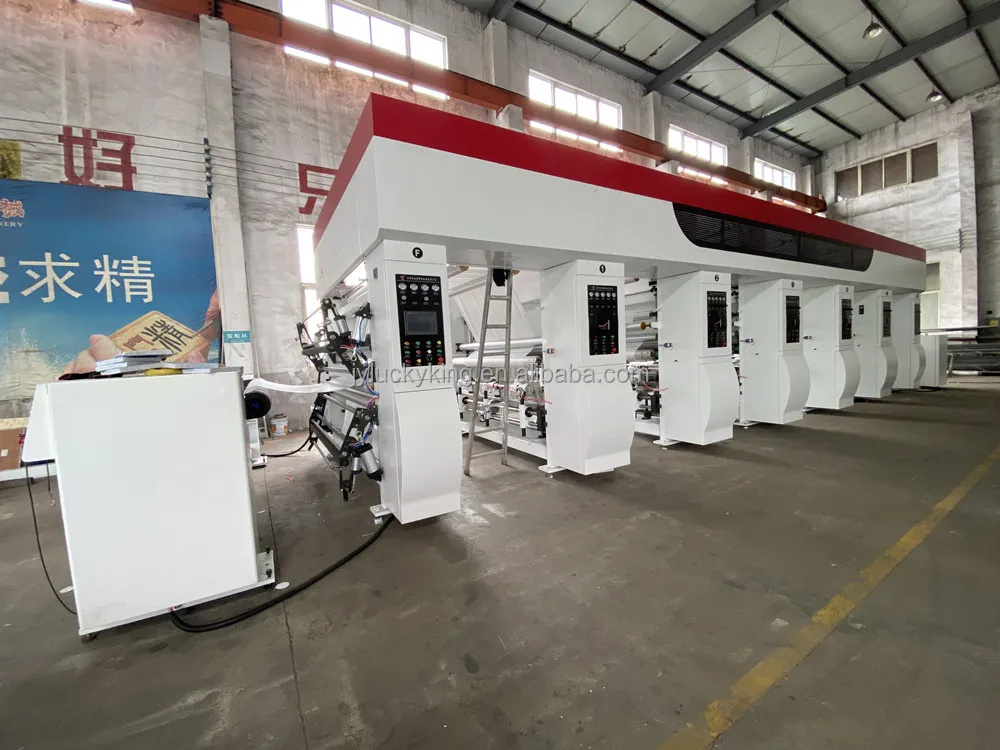

JYLK-TC62300B Unit type gravure printing machine is a high quality and high cost performance product which designed by our company according to the market requirement.This machine is suitable for multi-color continuous printing. Seven motor and four floating roller automatic tension control system, shaft-less and pneumatic lock up, unwind and rewind automatically connect material, pneumatic
air shaft, register by computer lengthways, reasonable structure, easy operation, quick printing speed, high accuracy, less waste and other advantages. Imported famous brand spare parts ensure the machine high reliability and stability.

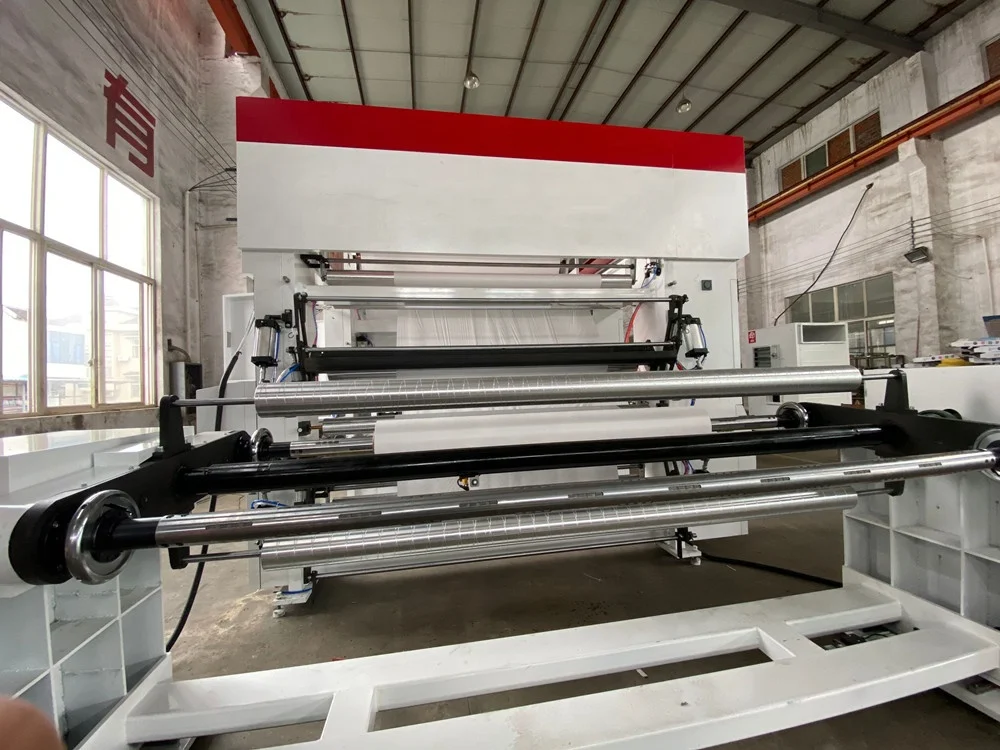

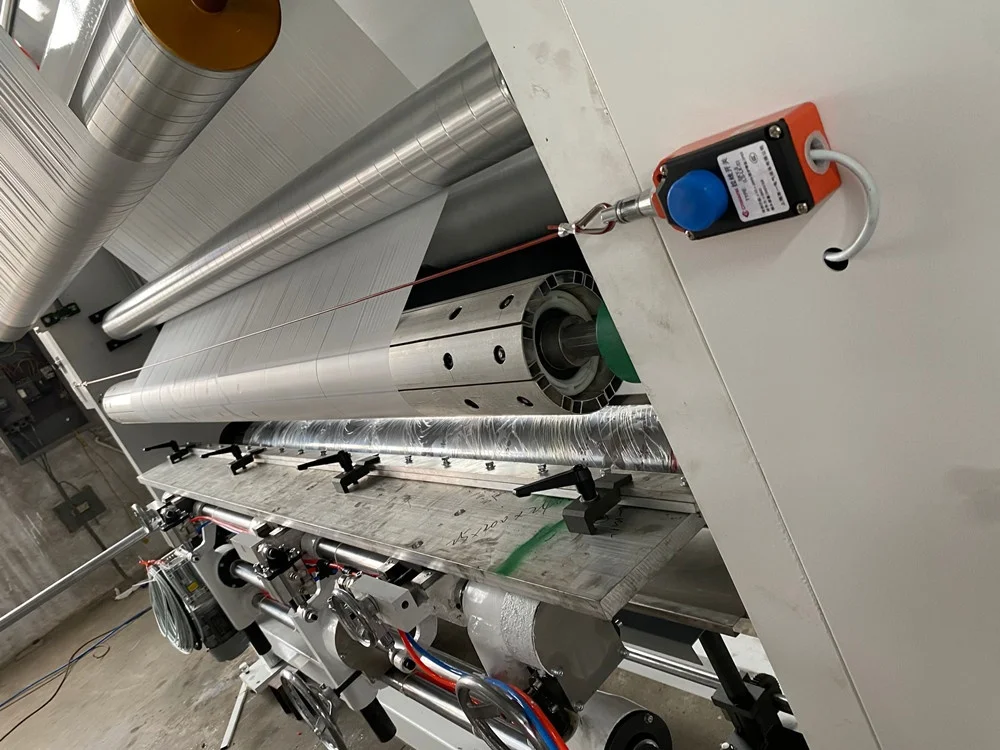

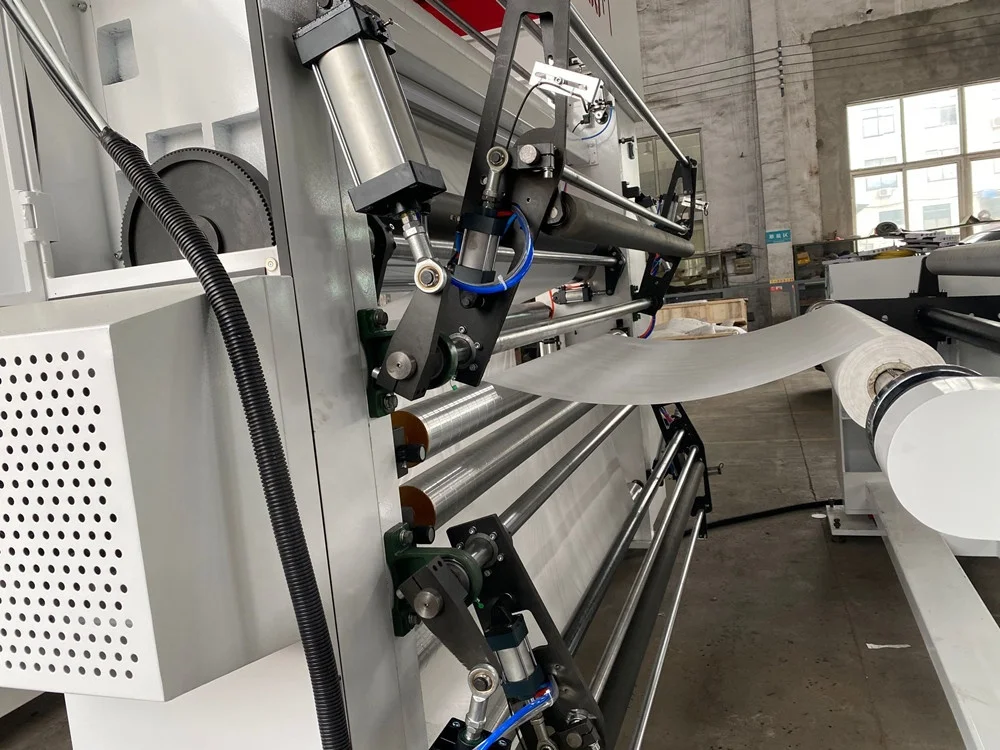

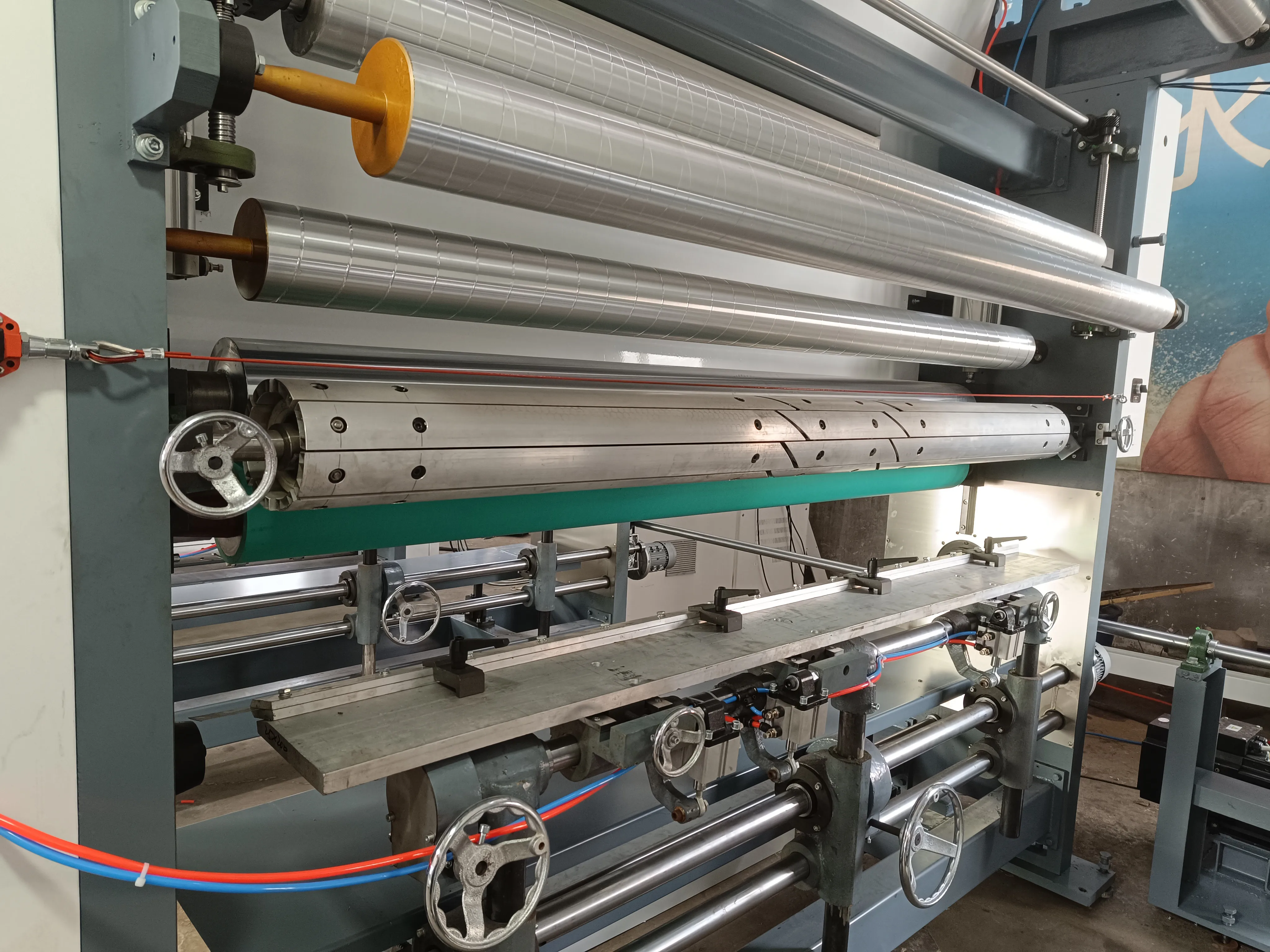

Detailed Images

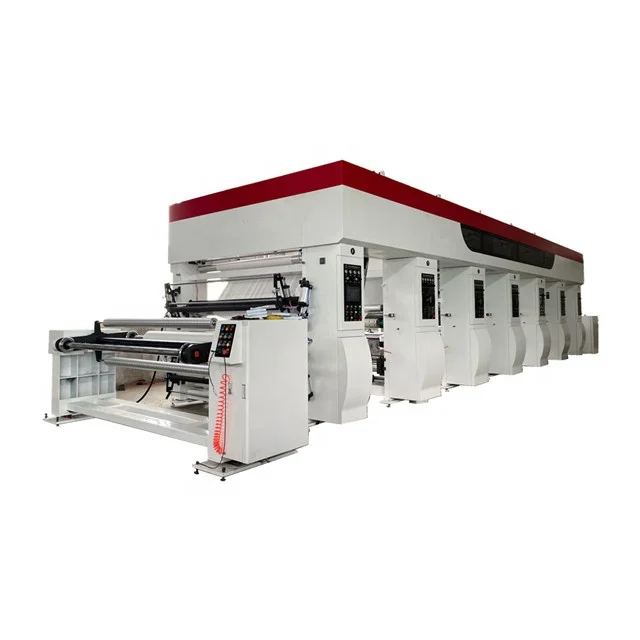

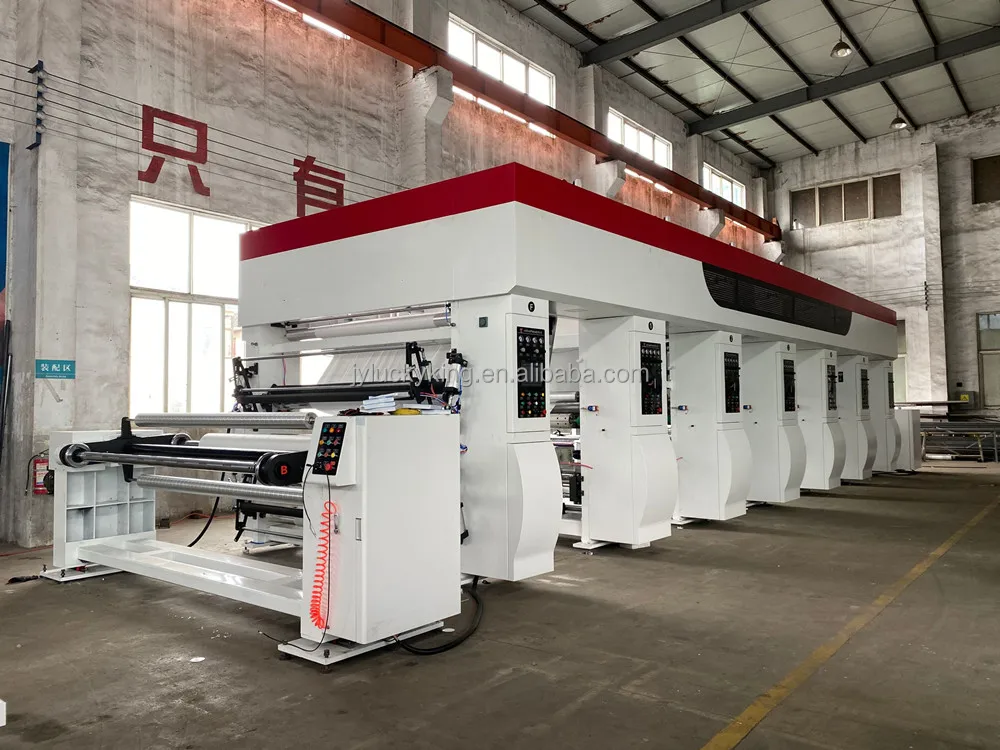

Tablecloth/Table Cover/Curtain PET/ PVC/ PE/ PEVA Film Rotogravure Printing Machine
This machine is specially designed and manufactured for printing all kinds of multi-color tablecloth materials such as
PET,PVC, PVDC,PE, and other similar materials.
PET,PVC, PVDC,PE, and other similar materials.
Roll type | Printing material all kinds of soft PVC/PE Film | ||||
Main description | Flow direction :from left to right | ||||
Print colors: 5 colors | |||||
Printing width: 2300mm | |||||
Mechanical speed :160m/min | |||||
Printing speed :150m/min | |||||
Printing cylinder dia :Ф200mm-Ф550mm | |||||
Shaftless install printing cylinders | |||||
Tension range: 3-30KG | |||||
Registration precision: ≤±0.02mm | |||||
Elongation : ≤0.25% | |||||
Unwinding dia : max.600mm | |||||
Rewinding dia: max.600mm | |||||
Unwinding &rewinding paper core diameter: Ф76mm | |||||
Doctor blade vibrate: ±5mm | |||||
Drying way : electrical heating | |||||
Main motor power supply:15KW(Servo Motor) | |||||
Total supply: 286kw | |||||
Air supply: ≥6mpa | |||||
Weight: 25000kg | |||||
Ink supply :Pneumatic diaphragm pump | |||||
Printing pressure: 1500KG | |||||

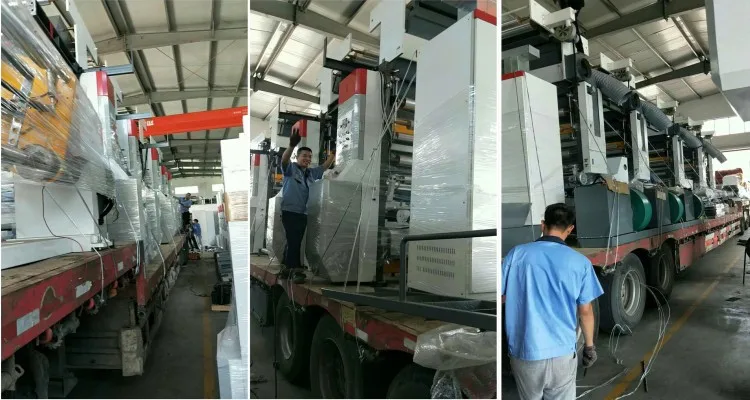

Packing & Delivery
Our Services
• Your inquiry related to our product & price will be replied within 24hours.
• Well-trained & experienced staff are to answer all your inquiries
• OEM & ODM projects are both available.
• Your business relationship with us will be confidential to any third party.
• Good after-sale service offered, please get back to us if you got any questions.
Our four promises
We can do the designs according to the customers' requirements.
We can offer you the high quality & reasonable price.
We can offer you a good after-sell service.
Prompt delivery.
If you request quotation by CIF ,please let ue know the port of destination so as to check the freight with our forwarder.
Q: Where is you factory location? How could I visit there?
A: -We are in Jiangyin City, Wuxi , Jiangsu province , China.
If you want to visit us,We could pick you up from Wuxi Airport. or you can take high speed trian ,we will pick up you from
Wuxi East Train Station or Jiangyin Train Station
Skype: w404398276
Mobile Phone:+86-15852594903
Whatsapp: 0086-15852594903
Wechat: 15852594903
Web: www.jyluckyking.en.alibaba.com
Add: NO.6, Xinyuan Road,Jiangyin City,Jiangsu Province, China
