Product Overview
Description
Product Description
*Usage and Characteristics*

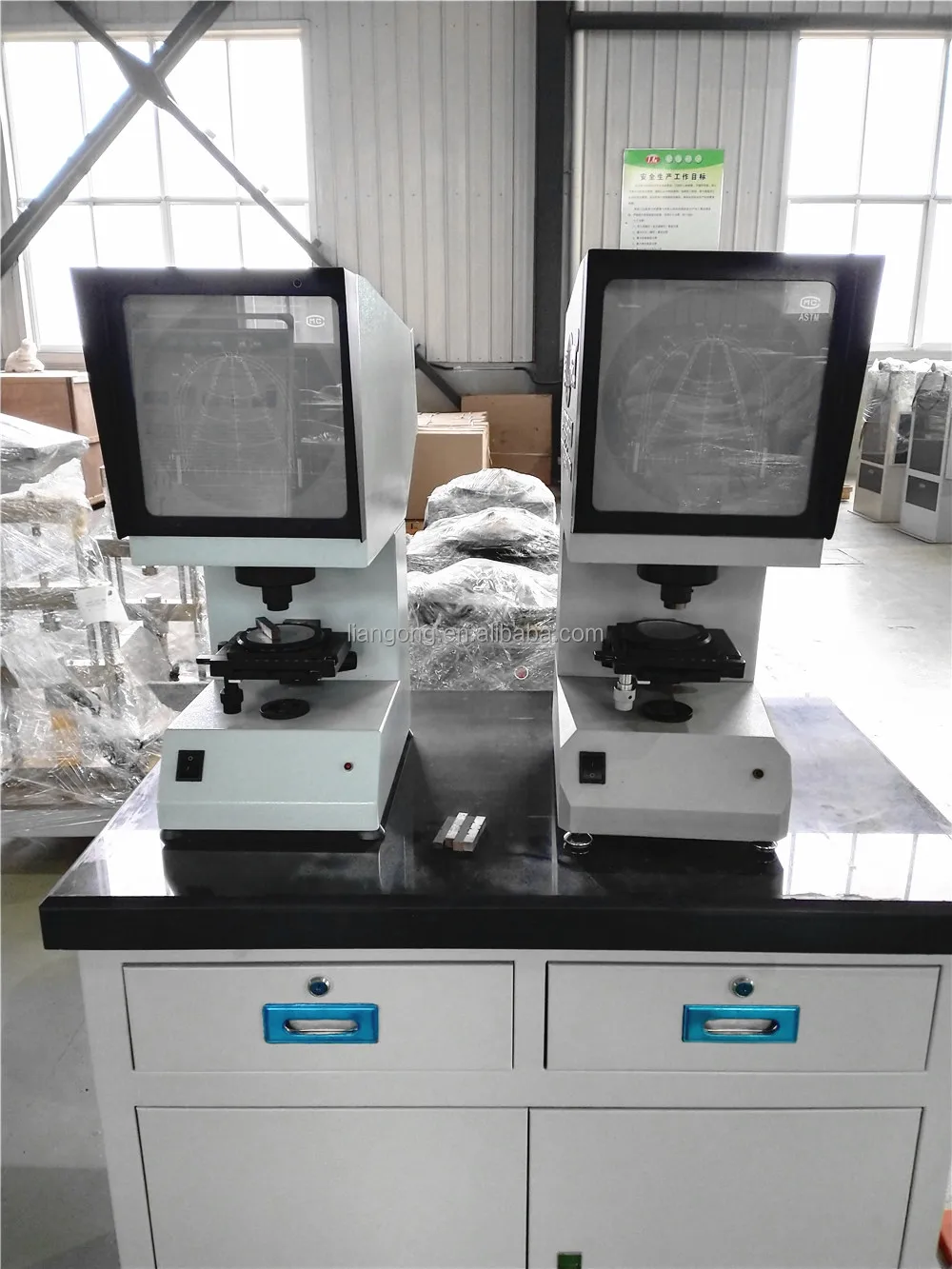

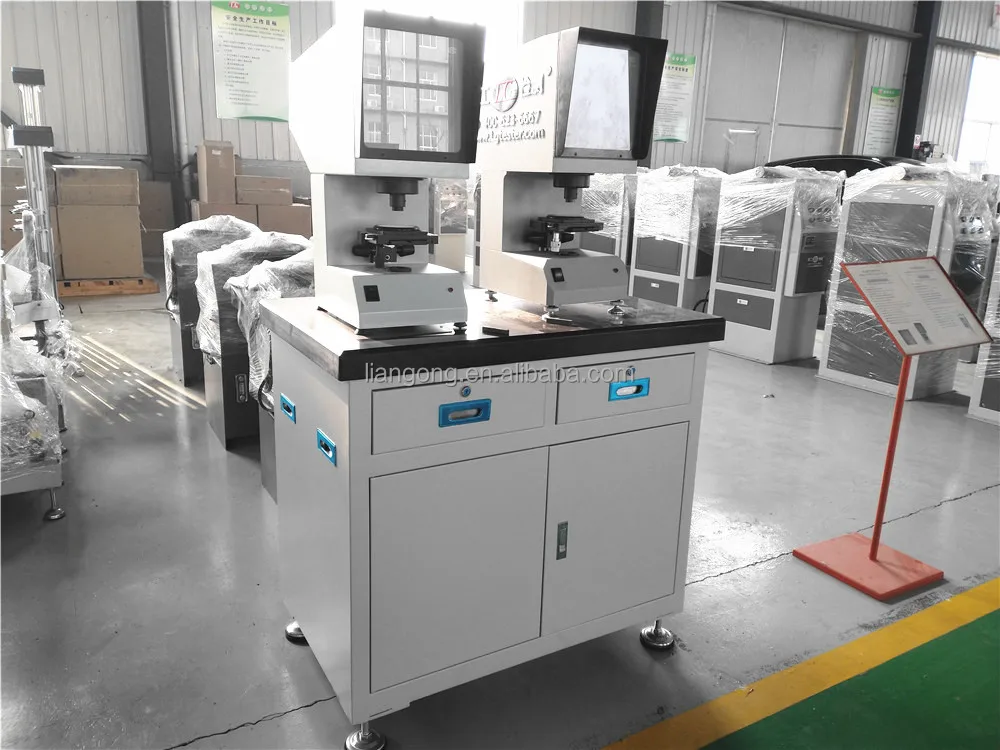

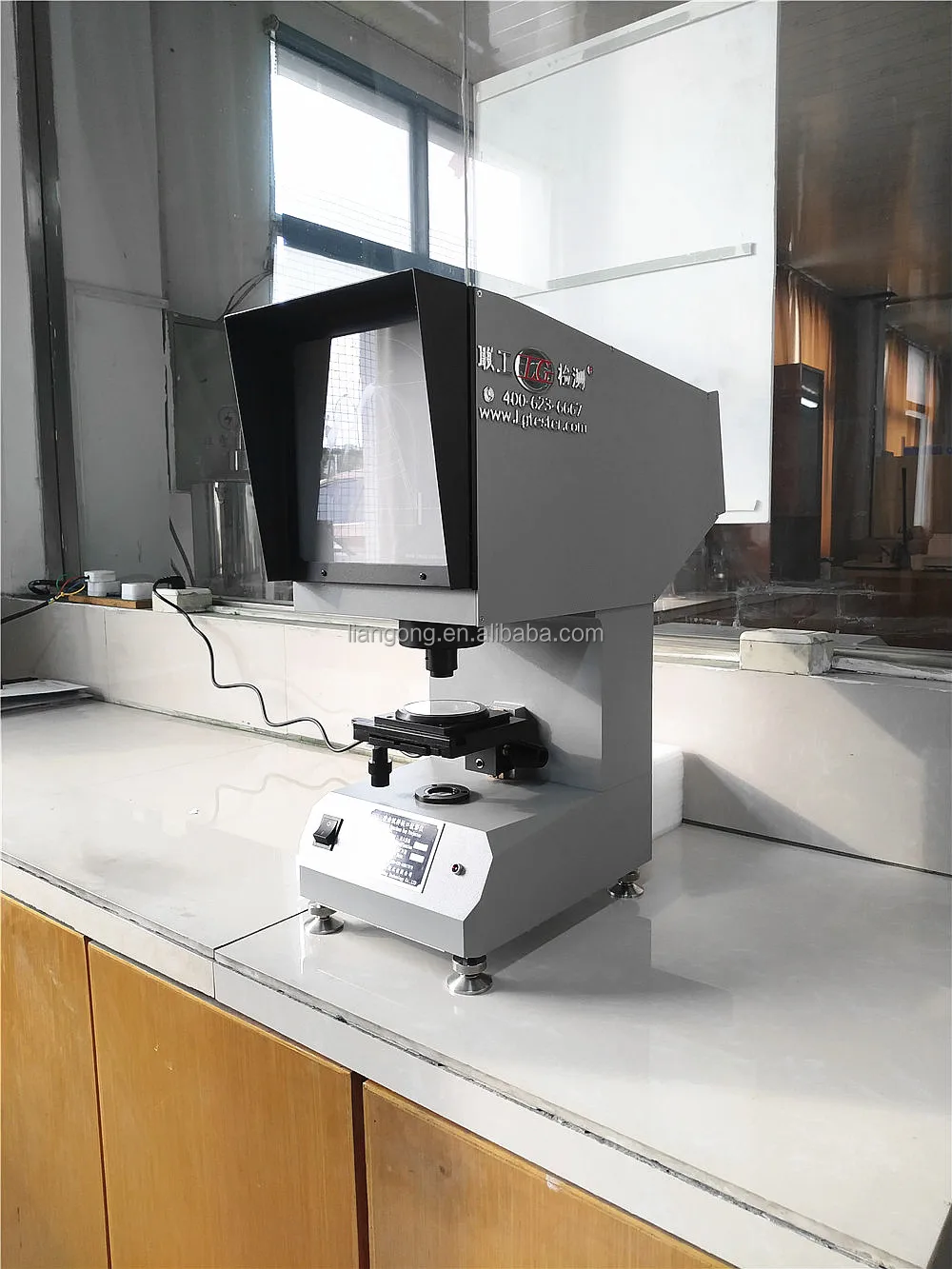

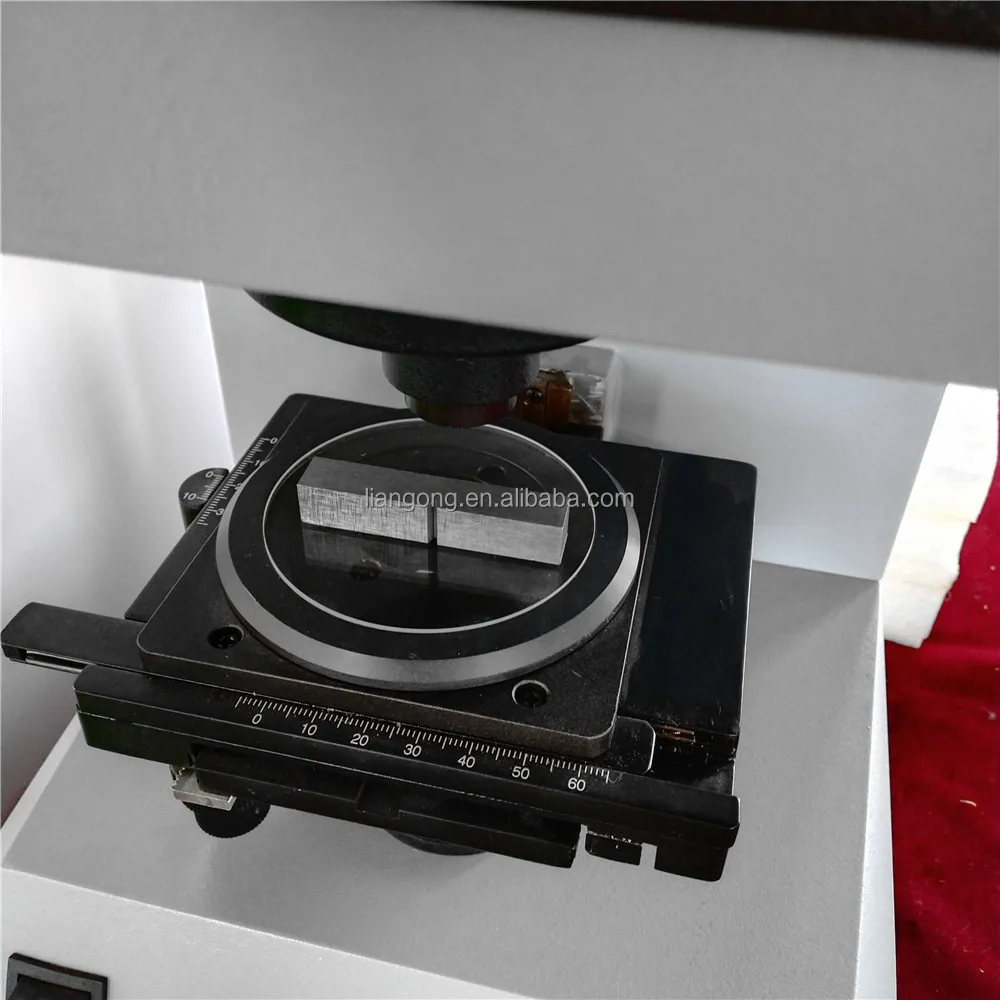

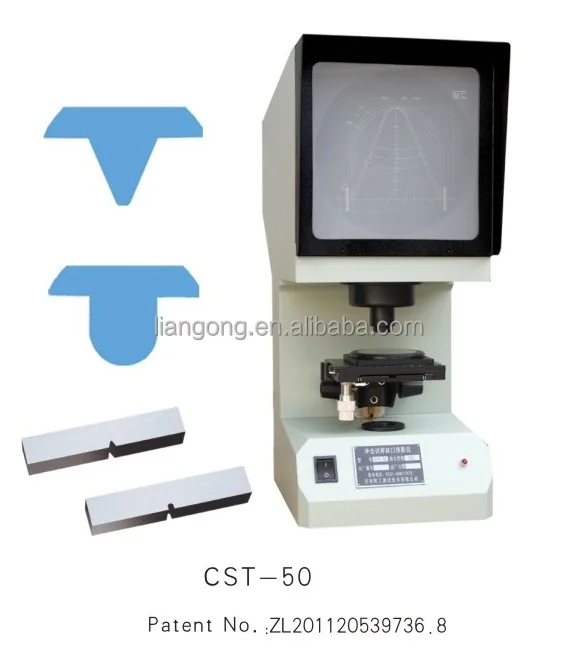

CST-50 Type Impact Specimen Gap Projector, based on the practical requirement of the domestic customers and according to the demand of impact specimen gap in GB/T229 , it is the special equipment which checks the Charpy V-type and U-type gaps precision. The instrument magnifies impact specimen gap’s outline and projects it onto screen to compare with standard sample drawing of the impact specimen V-type or U-type gaps. This helps to examine whether the tested impact specimen gap is qualified or not.\tWhich can meet American standard,European standard ASTM E23-02a,EN10045,ISO 148,ISO83 and so on.
*Advantages*

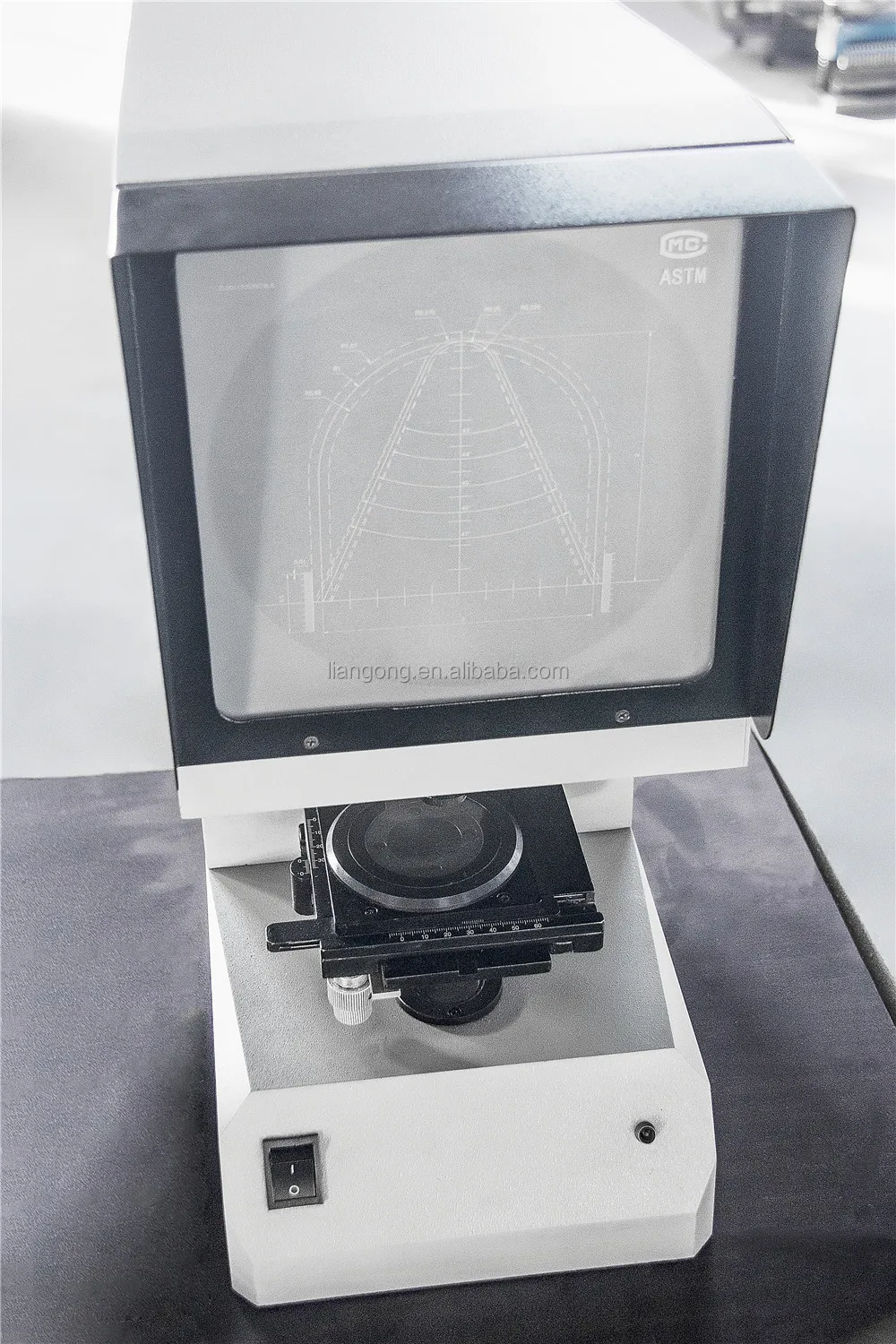

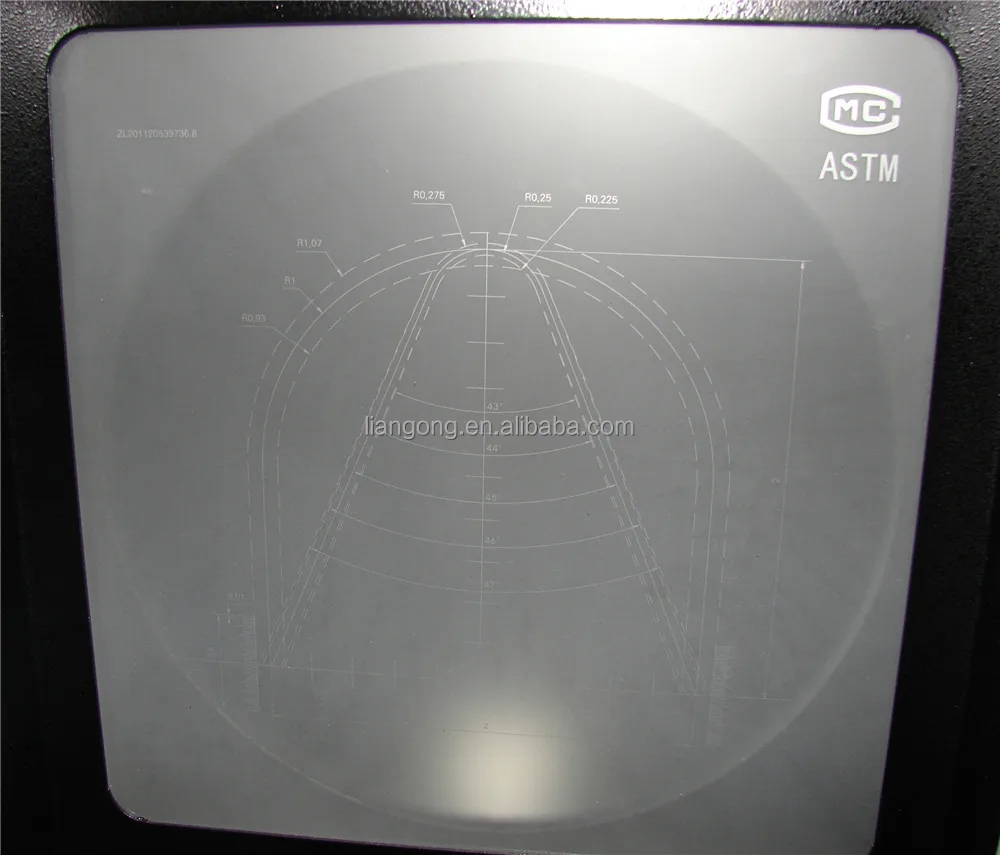

This machine only needs electrical source and is easy to operate. The screen of this testing equipment has visible graduation and labels tolerance zone, angle value, depth line. So you can read the gap error accurately and it can satisfy ASTM En-23 and some other international standards. We can manufacture projectors which satisfy the demand for testing 3mm or 5mm gap according to clients’ requests.
*Main Technical Parameters*
Model | CST-50 |
Magnification | 50X |
Objective lens magnification | 2.5X |
Projection objective magnification | 20X |
Projection screen diameter | Φ200 mm |
Workbench size | Square table (110X125)mm Round table Φ90 mm Workbench glass diameter: Φ70 mm |
Worktable stroke | Longitudinal ±10 mm Transverse ±10 mm Lifting ±12 mm (no scale) |
The table rotation range | 0 ° -360 ° (no scale) |
Light source (halogen tungsten lamp) | 12V 100W |
Power | 220V 150W |
Dimensions (length * width * height) | (510 * 220 * 600) mm |
Weight | about 20kg |
Detailed Images
Company Introduction
Certifications
Customer Photos
Packing&Shipping
Standard Export Plywood package per set
After Sales Service
Warranty
The testing machine is guaranteed for a year by Jinan Liangong Testing Technology Co., LTD and has whole-life service (including machinery, clamps, hardware, software).
Training
1. We will provide you the operation video about how to install and operate the equipment. We also sincerely welcome every customer to visit and learn the equipment operation.
2. We can arrange engineer to train the operation of equipment to customer’s company when you need.
Maintenance services
Consultation services. We answer your question timely via the telephone or email. Our exquisite technology, excellent quality, competitive price, good service and you give us the concern and support, there will be enjoyable and long-term friendly cooperation.
Because professional,its leading. We are committed to every customer to provide timely, efficient, high quality service!
FAQ
1. Are you manufacturer or trading company?
We are professional manufacturer for making testing machine, charpy testing machine,broaching machine, temperature champer, etc for many years.
2. What is your payment terms?
We accept TT, West Union, L/C, and other payment terms.
3. What is your delivery time?
Generally is about 10 days for standard testing machine, but for non-standard machines, it needs to be customized.
4. Can you accept customers' inspection or third party inspection?
Yes, we totally accept inspection before shipment. Welcome to our factory.
5. Why choose your company?
We are manufacturing testing machines for more than 10 years, and our products have exported all the world. We constantly study and research new projects, and some of our products have won patents. We also get the CE, ISO certificates. High quality products and service are our main center.
