Price:$70.00 - $80.00

Quantity:


Product Overview

Description

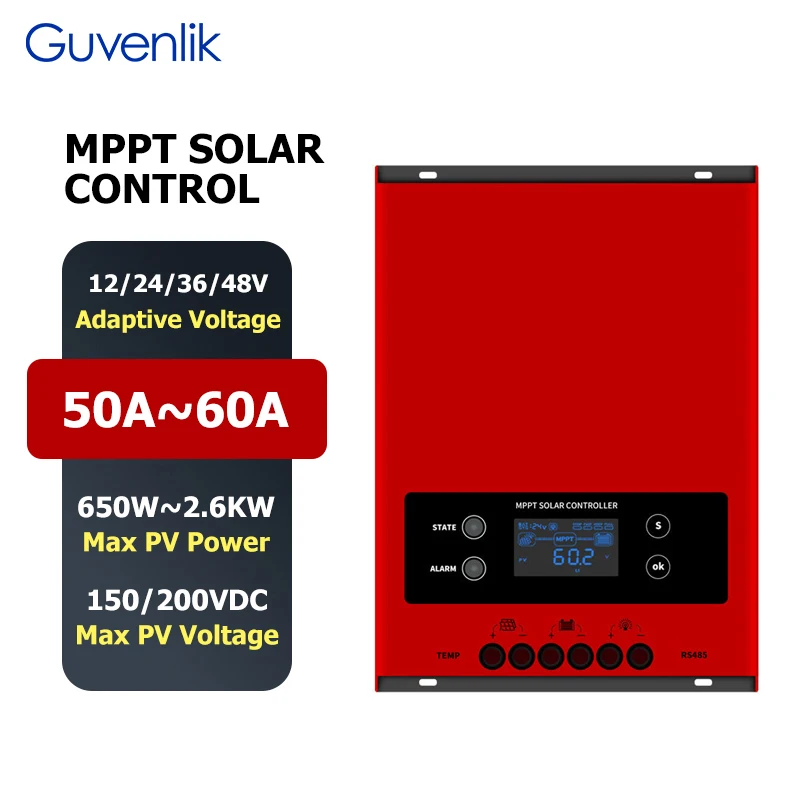

Guvenlik 50A-60A 12V-48V WiFi 4G 200VDC Built In Battery Hybrid Mppt Charge Controller
1.Small and exquisite in appearance.

2.Based on MPPT controller algorithm design, can quickly track the maximum power point of photovoltaic array in anyenvironment; support various lead acid batteries. lithium batteries or other types of batteries.

3.The protection function can be widely used in various fields such as RVs communication base stations, household systems and field monitoring systems.


Products Description

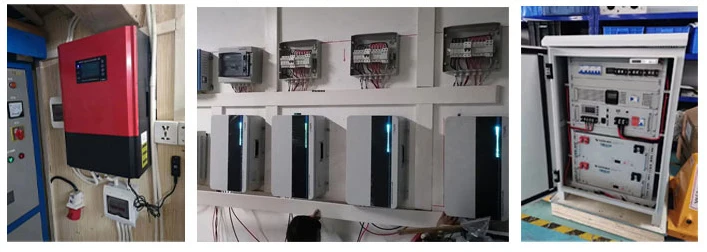

Client Feedback




Product Paramenters


Model
48L50
48L60
48H50
48H60



Product Category
Controller type
Controller with Maximum Power Point Tracking (MPPT)
MPPT efficiency
≥99.5%
No-load static loss
0.5W~1.2W
system voltage
Auto
Cooling method
Fan cooling




Input characteristics
PV Maximum Open Circuit Voltage
(VOC)
150Vdc
200Vdc
Start charging voltage point
3V higher than battery voltage
Input low voltage protection point
2V higher than the current battery voltage
Input overvoltage protection point
150Vdc
200Vdc


Rated input power
12V system
650W
780W
650W
780W
24V system
1300W
1560W
1300W
1560W
36V system
1950W
2340W
1950W
2340W
48V system
2600W
3120W
2600W
3120W



Charging
characteristics
Applicable battery type
Lead-acid battery / Li-ion battery
Lithium battery activation
Optional
Charge rated current
50A
60A
50A
60A

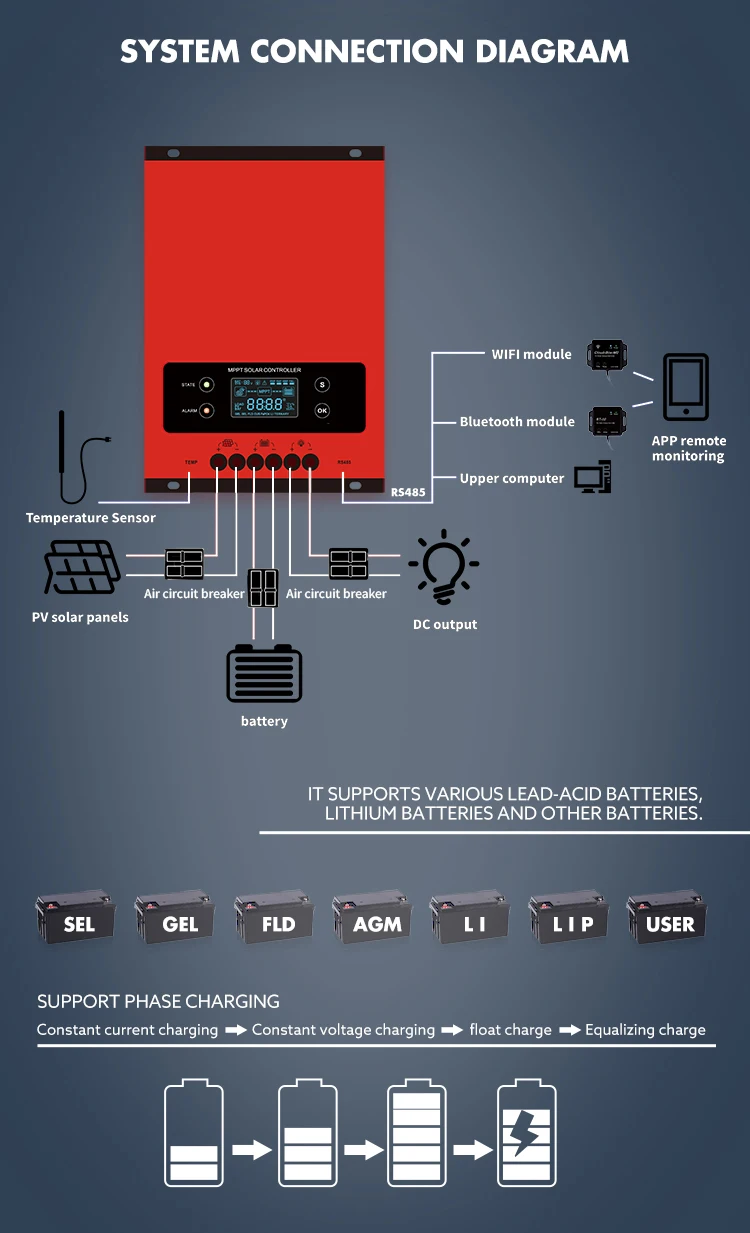

charging method
Lead acid battery fast charge equal charge floating charge lithium battery fast charge equal charge

Load
characteristics
load voltage
same battery voltage
Rated load current
 30A
Load control method
Normally open and normally closed mode dual period control mode/light control mode/light control-fixed time control mode

Display/Communication

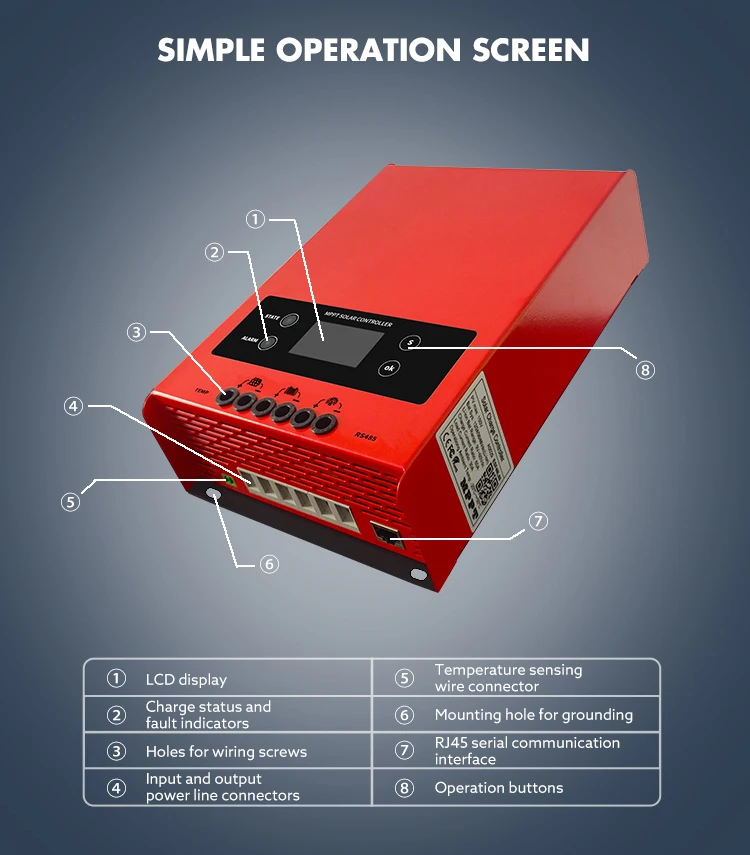

Display method
High definition LCD segment code back light display
communication method

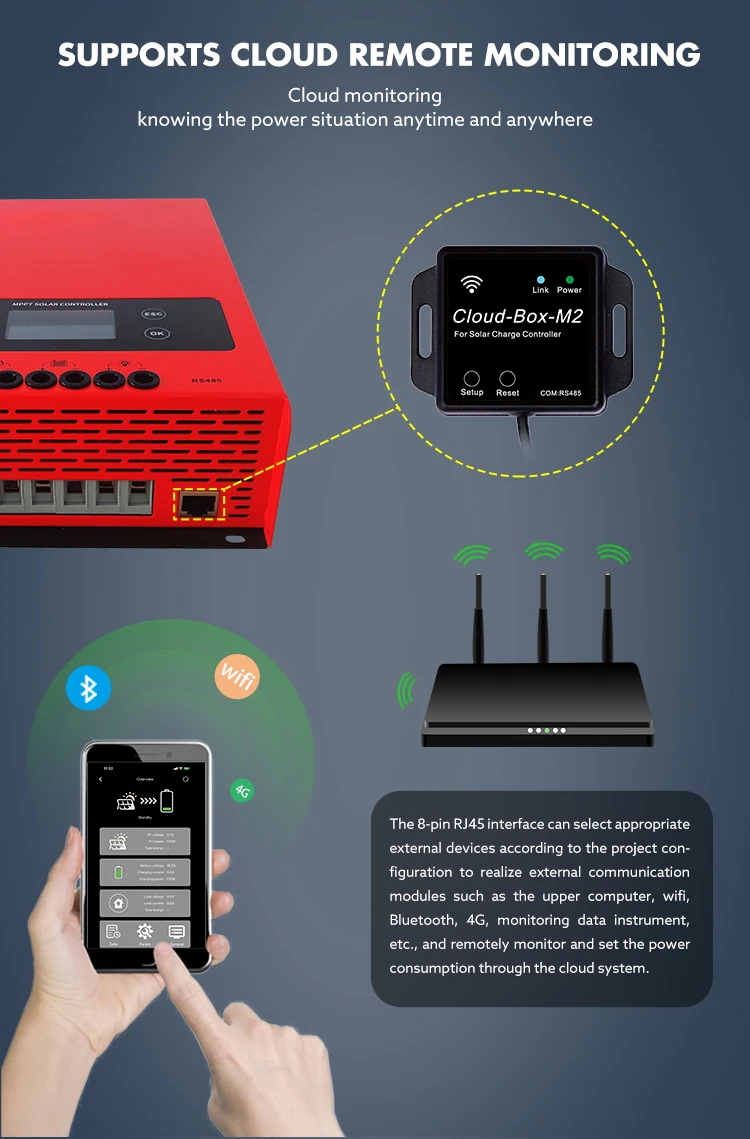

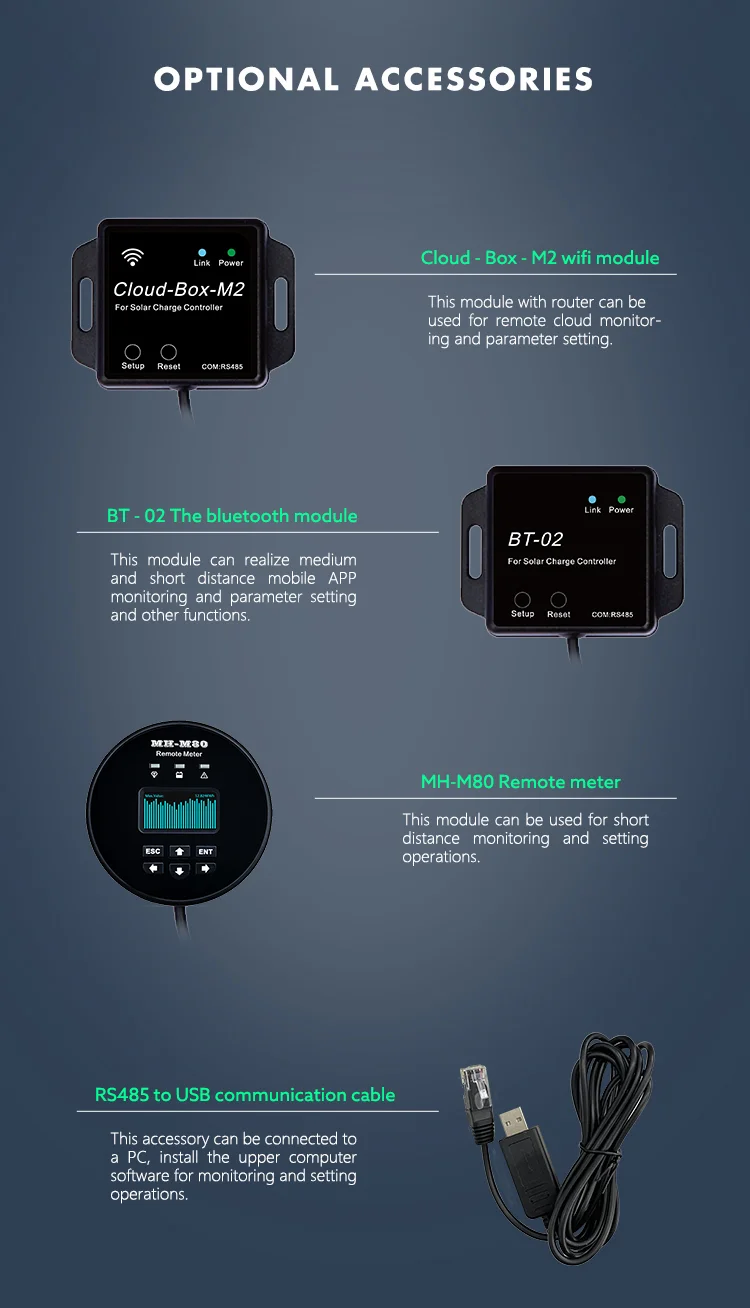

8-pin RJ5 interface RS85/support host computer monitoring/support external BluetoothWIFI module expansion to
realize app cloud monitoring support external monitoring header






Other
Properties
Protective function
Input and output over-voltage protection,anti-reverse connection protection, battery drop protection,etc
Working temperature
-20°℃~+50℃
Storage temperature
-40°℃~+75℃
IP protection class
IP21
Maximum wire size
20mm
Net weight (kg)
1.84
Gross weight(kg)
2.81
Product size (mm)
240*166*65
Packaging size (mm)
299*203*70


Company Profile






FAQ


Note 1: Some customers report Solar Grid Tie Inverter connecting solar panels, No light.
This is because the customer has extended the solar panel connection cable. (Positive and negative poles are opposite)

Note 2: Some customers reported using the grid tie solar Inverter for less than 1 month, and the product showed a red light. stop working.
This is because customers use solar panels of different specifications. For 600W, please use 2PCS solar panels with the same specifications. (Voltage, current, power, all need to be the same)
Recommended solar panel: 2X300W Voc36-50V. Voc(of a solar panel) must be in the 36-50V range to ensure the good output efficiency Please do not install outdoors, avoid rain. You can install Solar Microinverters in a ventilated, dry, cool place.

Due to the special properties of solar panels, a wider range of voltage designs can achieve more energy. DC18-50V input, many customers will think that Solar micro-inverters can be used with DC18V/50V. This is a wrong understanding!
