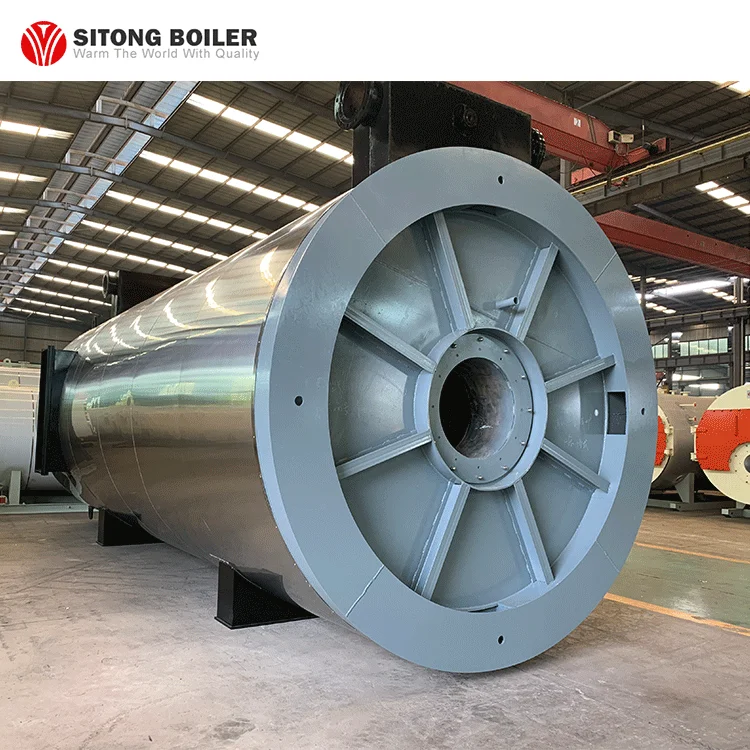

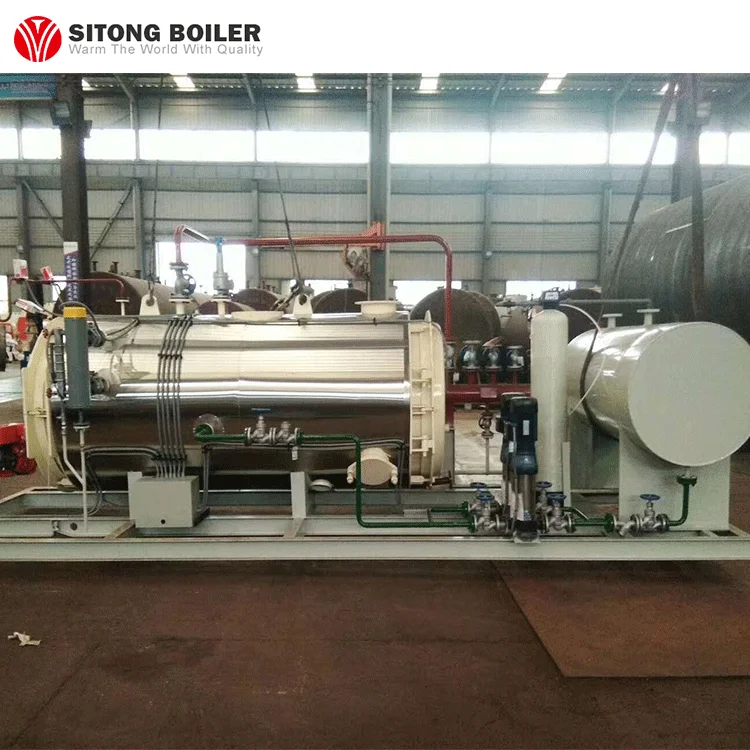

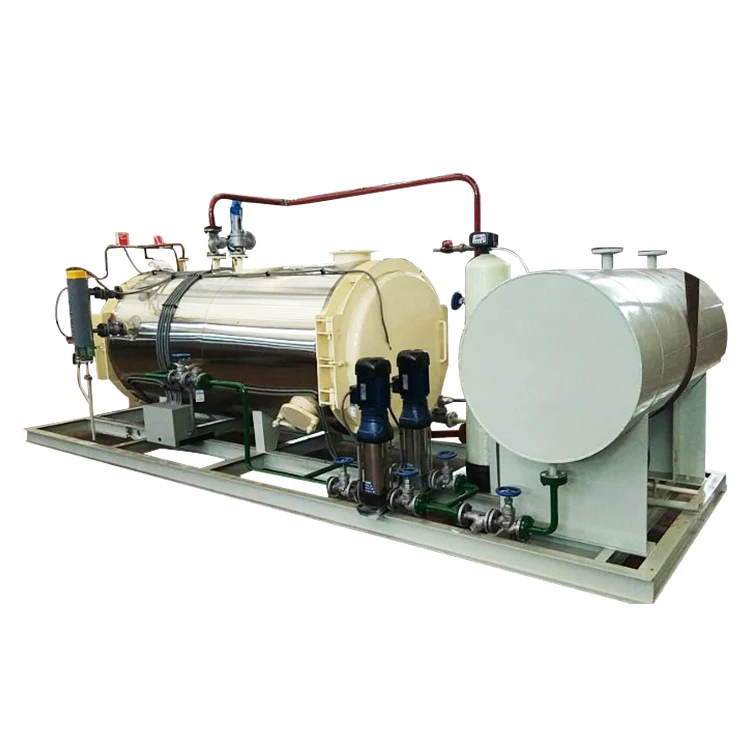

600000Kcal Natural Gas Fired Thermal Oil Boiler Heater with Italy Burner
- Category: Boilers >>>
- Supplier: Henan Province Sitong Boiler Co. Ltd.
Share on (1600838097480):
Product Overview
Description
600000Kcal Natural Gas Fired Thermal Oil Boiler Heater with Italy Burner
Product Description
The thermal oil heater is a kind of special industrial furnace which uses diesel oil as the fuel, the furnace takes heat carrier oil as medium and uses the hot oil circulating pump force the medium to make liquid circulation; then the thermal energy will be transmitted to the devices and back to the furnace to be reheated.
This series boiler have advanced program control system, equipped with liquid level controller , pressure controller, temperature controller, and alarms to make sure the boiler work orderly and safe. So it is a kind of safe boiler with high efficiency and low power consumption.

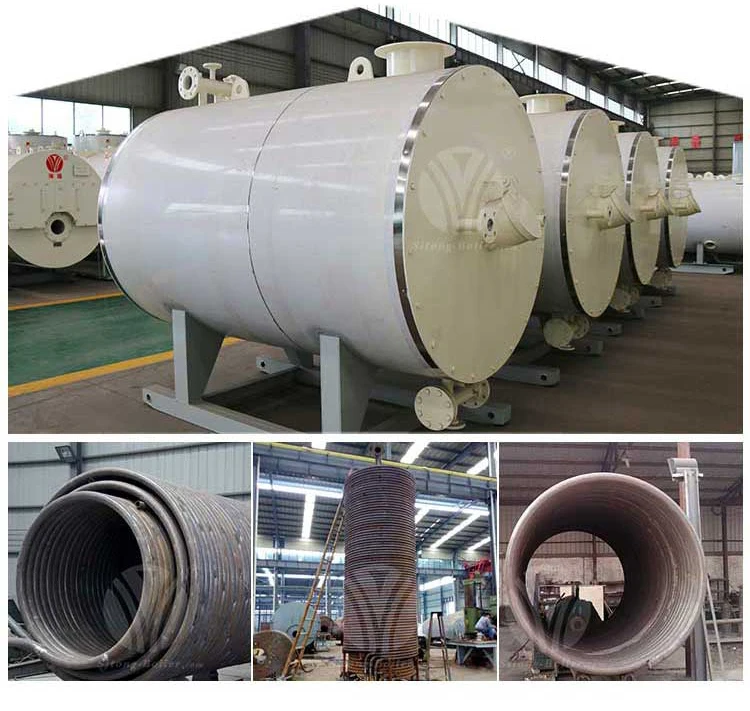

Features of Natural Gas Fired Thermal Oil Boiler Heater with Italy Burner
1. It is convenient to be adjusted, and can supply balanced heat to satisfy the hard work required to precise temperature.
2. Less heat loss, high Thermal Efficiency.
3. Excellent Struture, advanced techniques.
4. Simple operation, serious control.
Ask for More Information and Price
Technical Parameters of Natural Gas Fired Thermal Oil Boiler Heater with Italy Burner
Model | YYW-120YC | YYW-230YC | YYW-350YC | YYW-470YC | YYW-700YC | YYW-930YC | YYW-1200YC |
| |||||||
Item | |||||||
Rated power(KW) | 120 | 230 | 350 | 470 | 700 | 930 | 1200 |
Design | 0.9 | ||||||
pressure(Mpa) | |||||||
Rated working | 0.6 | ||||||
pressure(Mpa) | |||||||
Highest working | 320 | 320 | 320 | 320 | 320 | 320 | 320 |
temperature(C) | |||||||
Furnace oil | 0.1 | 0.2 | 0.28 | 0.38 | 0.55 | 0.75 | 1 |
volume(m3/h) | |||||||
Circulation oil | 12.5 | 32 | 40 | 60 | 80 | 100 | 100 |
volume(m3/h) | |||||||
Pipe connection diameter(DN) | 50 | 65 | 80 | 80 | 100 | 125 | 125 |
Thermal Efficiency | 75 | 80 | 85 | 85 | 85 | 85 | 85 |
(%) | |||||||
Size (m) | 1.5x1.1x1.4 | 2.0x1.2x1.5 | 2.5x1.3x1.6 | 2.7x1.6x1.9 | 3.1x1.6x1.9 | 3.8x1.7x2.0 | 3.8x1.8x2.1 |
Weight (t) | 2 | 2.9 | 3.7 | 4.5 | 4.9 | 5.5 | 6.5 |
Packaging & Shipping
The YYW Series gas oil fired thermal oil boiler is transport to Pakistan, 7 big trucks are used for this shipping. Customer uses the boiler for his textile mill.
Company Information
Customer Visiting
Bangladesh customer visited Sitong Boiler factory in August 2016 for a coal fired boiler. He would like to use the boiler for his plywood factory. He was very interested in the YYW series gas oil thermal oil boiler.
Business Exhibition of Natural Gas Fired Thermal Oil Boiler Heater with Italy Burner
Certification of Natural Gas Fired Thermal Oil Boiler Heater with Italy Burner
FAQ
Related Products
 |  |  |

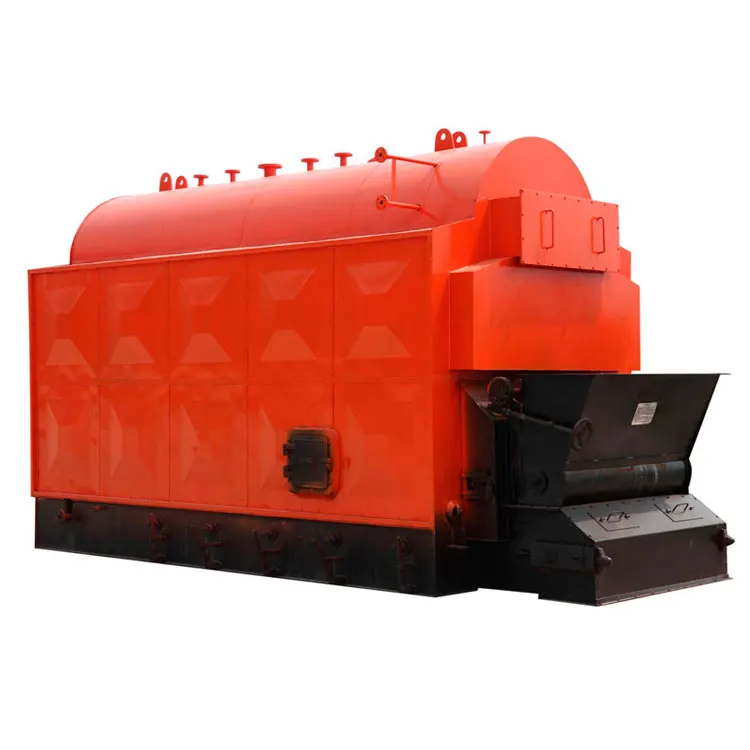

| DZL Coal Biomass Steam Boiler | WNS Gas Oil Steam Boiler | WDR Electric Steam Boiler |
 |  |  |

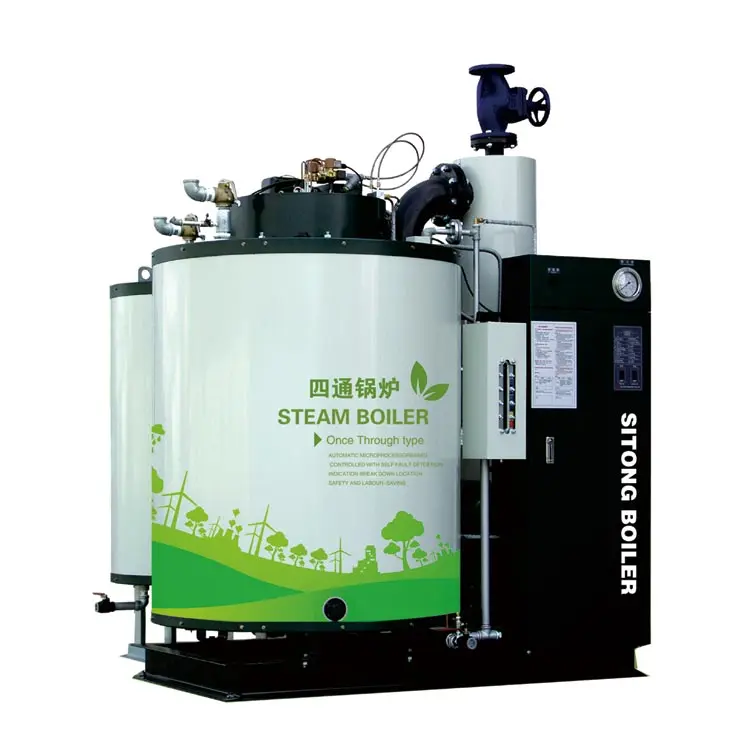

| Once Through Steam Boiler | SZL Coal Biomass Steam Boiler | Coal Biomass Thermal Oil Boiler |
