Iot Smart multiparametic online Water Quality monitory monitoring Sonde Sensor rs485 analyzer instruments controller
- Category: >>>
- Supplier: Yantai Chemins Instrument Co. Ltd.
Share on (1600838158952):
Product Overview
Description

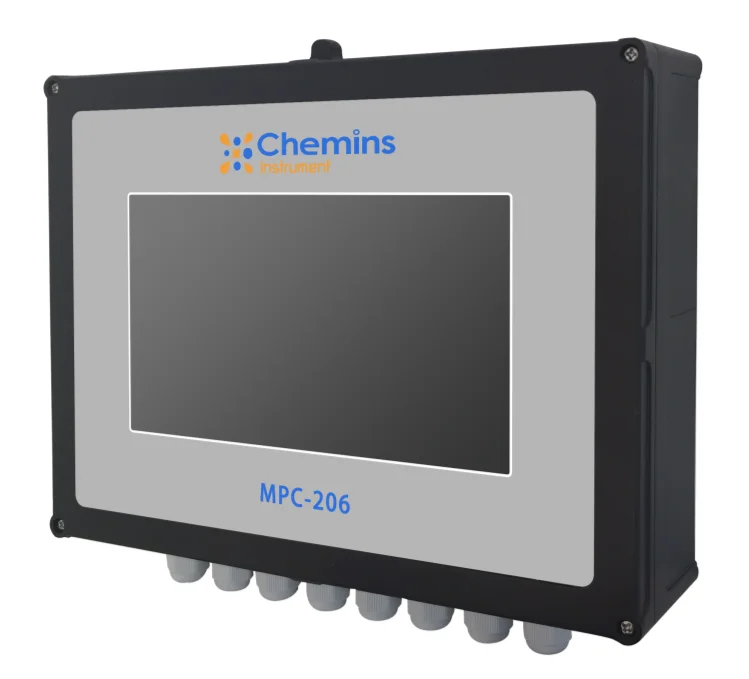

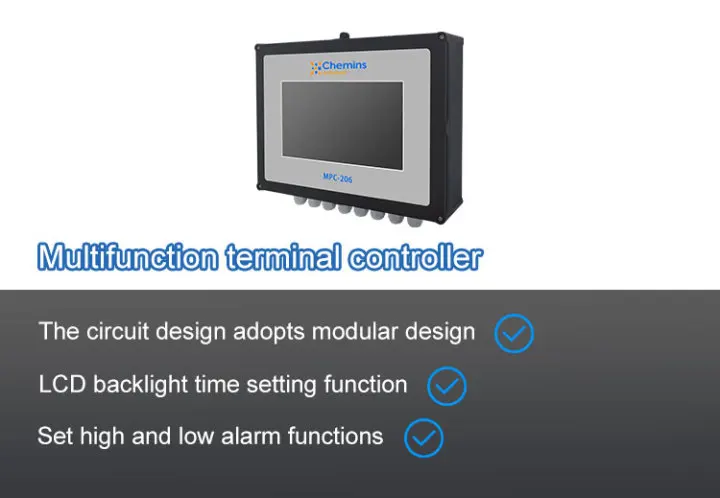

MPC-206 multifunction terminal
MPC-206 multifunctional terminal can be used with various sensors with 485 interface in our company, and can display the measured values and electrode states in real time. It is widely used in surface water, municipal sewage, industrial wastewater, sewage treatment, waterworks, industrial processes, aquaculture and other industries.
The equipment has five independent RS-485 input interfaces (one for standby), which can be connected with sensor measurement data respectively; There is one RS-485 interface, which is collected as a slave; Cooperate with periphery to realize automatic control of parameters. With 7-inch color LCD touch screen, it can simultaneously read 5 sensors and 6 factors.
The instrument displays the measured data of the sensor on the LCD screen, and can store the test data for 85 days.
The equipment has five independent RS-485 input interfaces (one for standby), which can be connected with sensor measurement data respectively; There is one RS-485 interface, which is collected as a slave; Cooperate with periphery to realize automatic control of parameters. With 7-inch color LCD touch screen, it can simultaneously read 5 sensors and 6 factors.
The instrument displays the measured data of the sensor on the LCD screen, and can store the test data for 85 days.
1、AC220V room power supply (L/N/PE)，7-inch color LCD screen, touch operation
2、1 RS-485 output interface, which is collected as a slave (485A/485B)
3、2-channel passive switch signal input, showing high and low liquid level status (IN1 high [normally open]/IN2 low [normally closed])
4、The output of 3-way relay controls the external circulation waterway (RL2 injection pump /RL3 injection valve /RL4 sample discharge valve/other standby)
5、4+1 (standby) RS-485 input interface to read the sensor values (CH1/CH2/CH3/CH4/CH5)
6、Eight Gland connectors for outgoing lines
7、Save the test data for up to 85 days, and overwrite the data in turn after 85 days.
8、External expandable DTU module for wireless data transmission (optional)
9、Built-in DTU module can be used for data remote transmission according to H/J212-2017 protocol (optional)
10、Maintenance-free, long service life and low cost.
11、The sensor can be calibrated.
12、With real-time clock function
2、1 RS-485 output interface, which is collected as a slave (485A/485B)
3、2-channel passive switch signal input, showing high and low liquid level status (IN1 high [normally open]/IN2 low [normally closed])
4、The output of 3-way relay controls the external circulation waterway (RL2 injection pump /RL3 injection valve /RL4 sample discharge valve/other standby)
5、4+1 (standby) RS-485 input interface to read the sensor values (CH1/CH2/CH3/CH4/CH5)
6、Eight Gland connectors for outgoing lines
7、Save the test data for up to 85 days, and overwrite the data in turn after 85 days.
8、External expandable DTU module for wireless data transmission (optional)
9、Built-in DTU module can be used for data remote transmission according to H/J212-2017 protocol (optional)
10、Maintenance-free, long service life and low cost.
11、The sensor can be calibrated.
12、With real-time clock function
Products Description
Specification
HangZhou CHEMINS INSTRUMENT Co.,LTD was established in 2011, is a high-tech enterprise specializing in water environment monitoring.The company has a complete research, product, sales and technical service team, dedicated to the innovation and application of various water environment monitoring technologies, providing professional and comprehensive sensor solutions for river and lake water quality monitoring and marine environment monitoring.
FAQ
1. who are we?
We are based in Shandong, China, start from 2011,sell to Domestic Market(30.00%),Southeast Asia(15.00%),South
America(10.00%),Western Europe(10.00%),Northern Europe(6.00%),South Asia(5.00%),Eastern Europe(5.00%),North
America(5.00%),Africa(3.00%),Southern Europe(3.00%),Mid East(3.00%),Eastern Asia(2.00%),Central America(2.00%),Oceania(1.00%).
There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
PH meter,Conductivity meter,Turbidity sensor,COD meter,dissolved oxygen meter
4. why should you buy from us not from other suppliers?
null
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Western Union,Escrow;
Language Spoken:English,Chinese
We are based in Shandong, China, start from 2011,sell to Domestic Market(30.00%),Southeast Asia(15.00%),South
America(10.00%),Western Europe(10.00%),Northern Europe(6.00%),South Asia(5.00%),Eastern Europe(5.00%),North
America(5.00%),Africa(3.00%),Southern Europe(3.00%),Mid East(3.00%),Eastern Asia(2.00%),Central America(2.00%),Oceania(1.00%).
There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
PH meter,Conductivity meter,Turbidity sensor,COD meter,dissolved oxygen meter
4. why should you buy from us not from other suppliers?
null
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Western Union,Escrow;
Language Spoken:English,Chinese
