Round Square Rectangular Soap Mixing Molding Unmolding Cutting Stamping Wrapping Machine Soap Making Production Machine Line
Brief Introduction
It is the production line for making soap.From mixing to get the soap mixture,after solidification,get the soap base, then unmolding out of the molds, and then cutting,stamping and packaging.

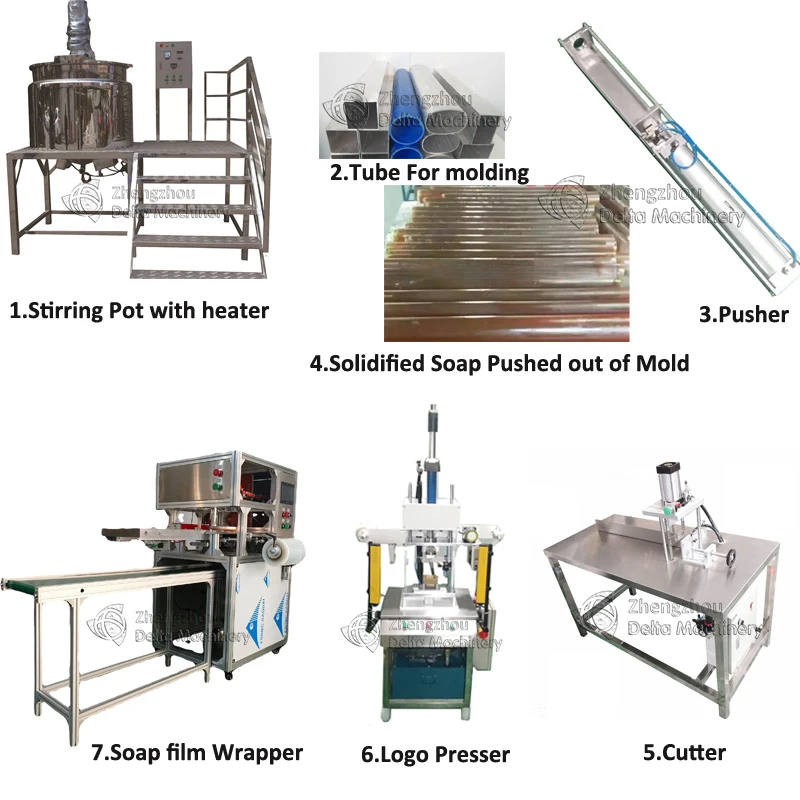

Work Process:

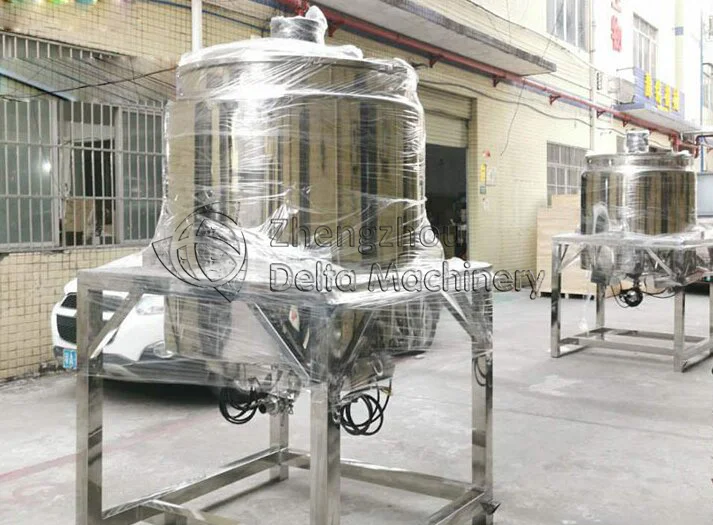

1.Mixing:Mixing tank for soap mixture with agitator and blender to ensure Uniform distribution of additives to achieve the desired consistency and texture.
2.Molding:Once the soap mixture is ready, it is poured into molds. The molds can be of various shapes and sizes, depending on the desired final product.Soap-filled molds for cooling and solidification.
3.Un-molding :Once the soap has solidified, it is removed from the molds.
4.Cutting:cut into bars or other desired shapes.
5.Stamping:The soap bars is stamped with logos, brand names, or patterns.
6.Packaging:the soap bars are packaged into film wrappers, or other packaging methods suitable for retail sale or distribution.
2.Molding:Once the soap mixture is ready, it is poured into molds. The molds can be of various shapes and sizes, depending on the desired final product.Soap-filled molds for cooling and solidification.
3.Un-molding :Once the soap has solidified, it is removed from the molds.
4.Cutting:cut into bars or other desired shapes.
5.Stamping:The soap bars is stamped with logos, brand names, or patterns.
6.Packaging:the soap bars are packaged into film wrappers, or other packaging methods suitable for retail sale or distribution.
There are Three production lines:semi-auto and fully auto,and Manual Type for home use or small scale business.To Learn more,please contact with us freely:whatsapp 0086 13014504187
Machine Specification

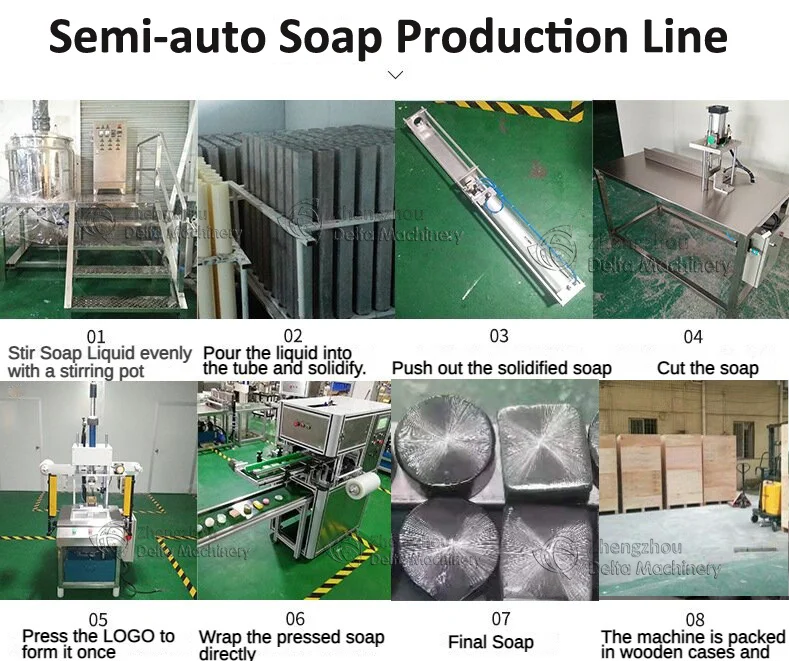

Semi-auto soap production line | ||||||||||
Item | Name | Specification | item | Name | Specification | |||||
1 | Stirring pot with heater | Volume:500L(also there is 300L) Stir speed:0-300r/min Dia.of paddle:80cm Heating type:electric Temperature:0-100℃ Machine height:240cm | 4 | Cutter | Capacity:15-30pcs/min Power:pneumatic Pressure:5-8mpa Machine material:304sus,aluminum Dimension:1100*580*1450mm | |||||
2 | Mold | Shape:round,oval,square,rectangular. Diameter of round:63,65,67,56mm Length of round:49.5-50cm Materials of round:PVC Aluminum oval size:52*82mm Aluminum rectangular :50*70mm Aluminum square:58*58mm | 5 | Logo presser | Power:2.2kw Drive:hydraulic Logo pressing mold material: 45#steel,aluminum Weight:180kg Dimension:1000*700*1850mm | |||||
3 | pusher | Power:pneumatic Pressure:5-8mpa Speed:3seconds/time Weight:25kg Dimension:1450*150*140mm | 6 | Soap film wrapper | Soap size range:30~90mm Soap thickness range:0~30mm Film outside dia.range:0~200mm Film width range:0~230mm Power:150w Air pressure:4-6kgf/cm3 Weight:110kg | |||||

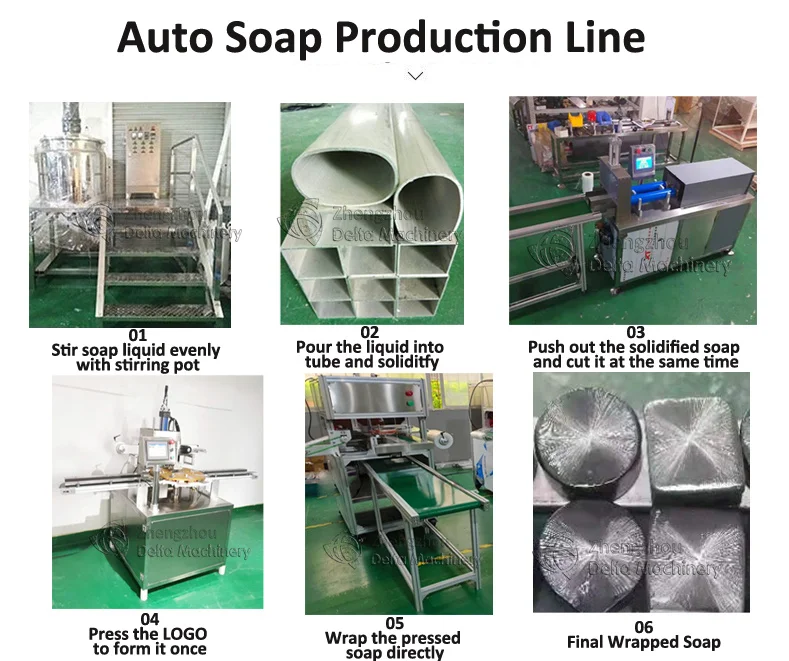

Auto soap production line | ||||
Item | Machine name | Specification | ||
1 | Stirring pot with heater | Same as above semi-auto soap production line | ||
2 | Mold | Same as above semi-auto soap production line | ||
3 | Pusher and cutter ,double rows | Cutting speed:120pcs/min power:1.2kw Pushing device:automatic controllable by system Weight:260kg Dimension:3000*600*1450mm | ||
4 | Drum logo presser | Automatic control rotating Applied soap:round and square Working speed:25pcs/min Air pressure:0.4-0.6mpa Power:3.75kw | ||
5 | Soap film wrapper | Same as above semi-auto soap production line | ||
Related machine

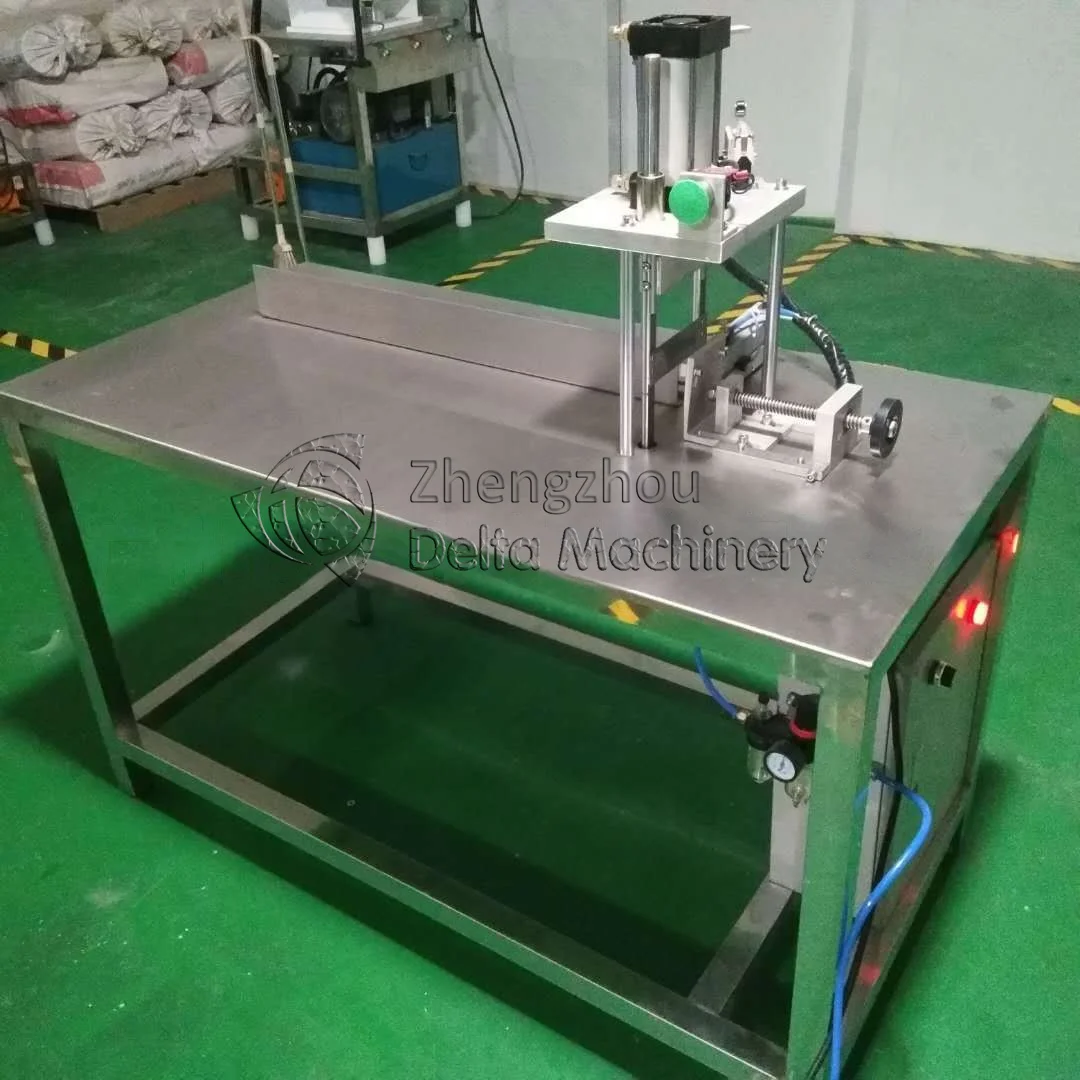

Bar Soap Stripper Manual
Function:to cut bar soap base into strips.
Soap Cutter Slicer
Function:To cut the soap base into slices with the thickness you want.

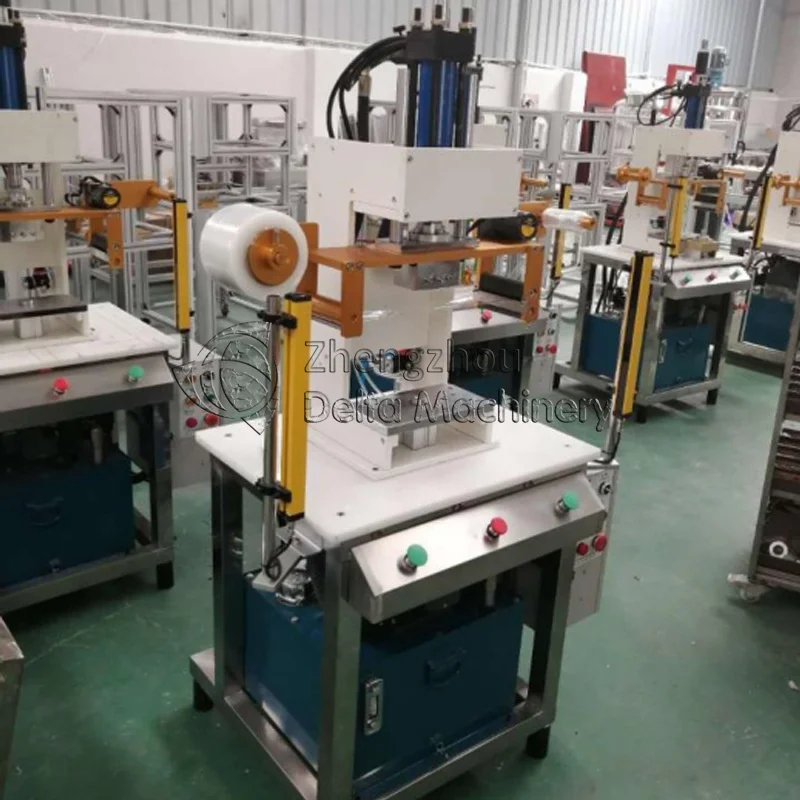

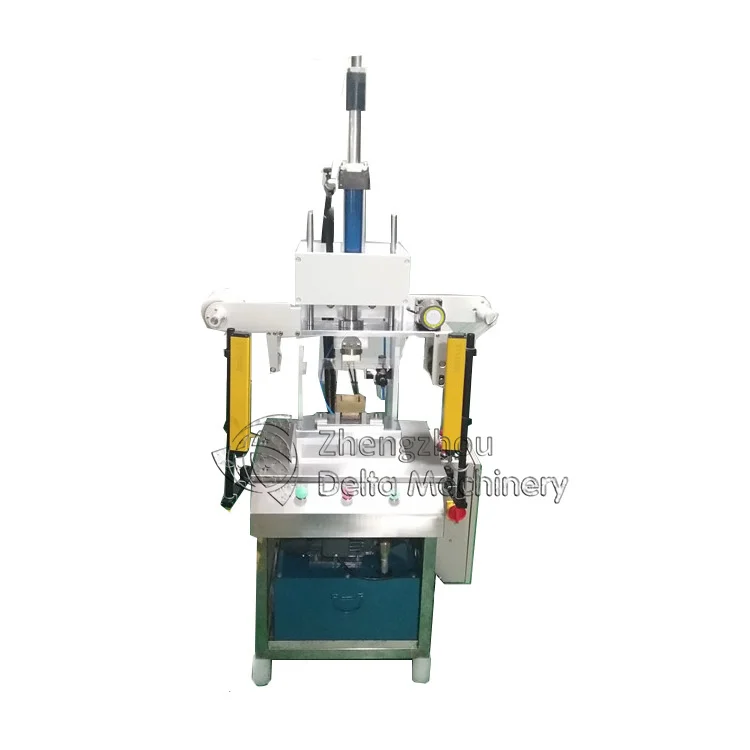

Soap Stamp Machine Maual
Function:To stamp the soap with logo,
Stamping Die/Mold (Custom-made)

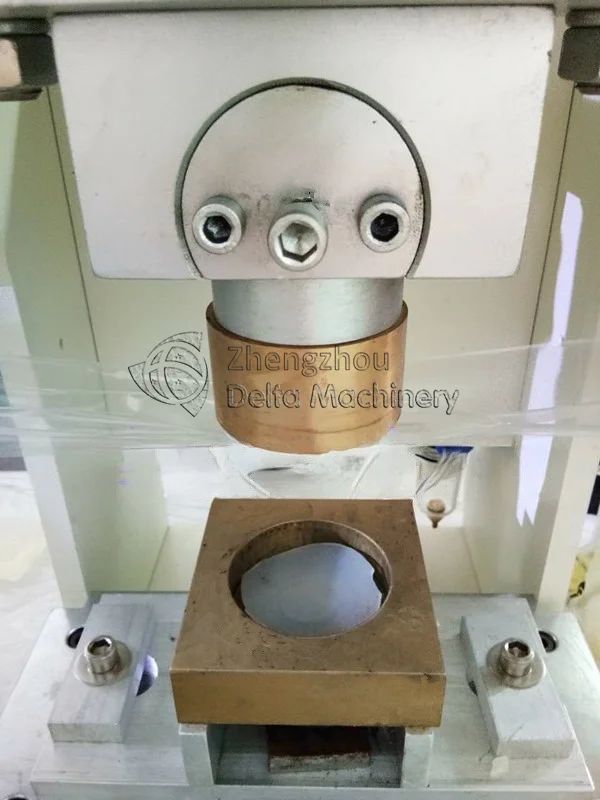

Maual Soap Pleat film Wrapper

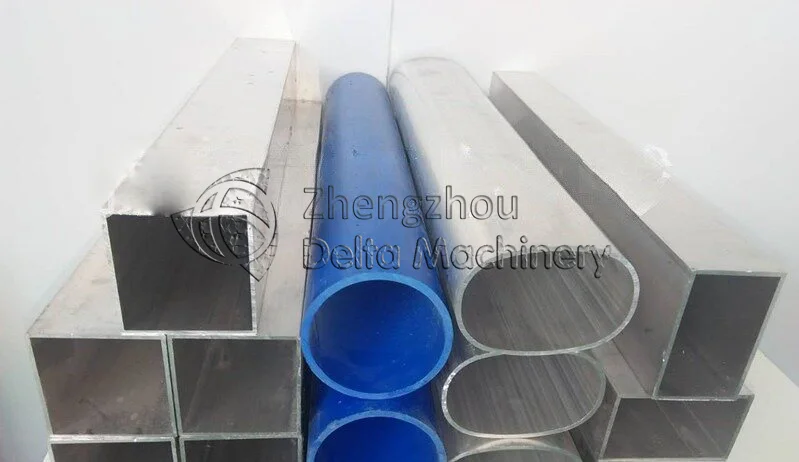

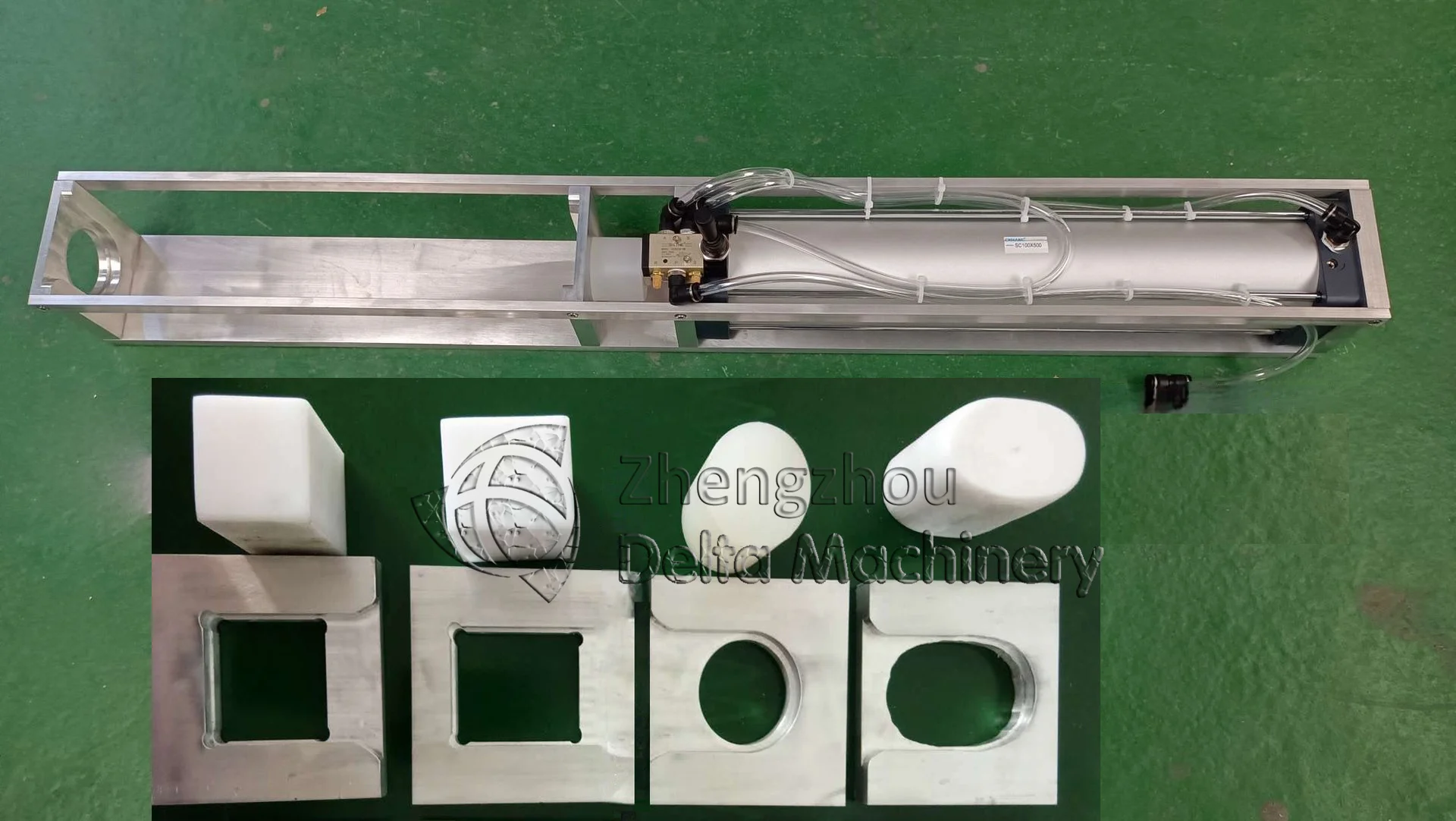

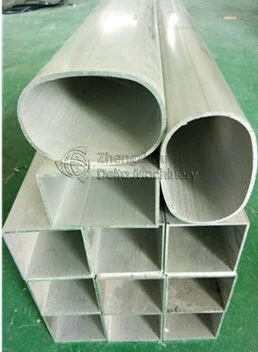

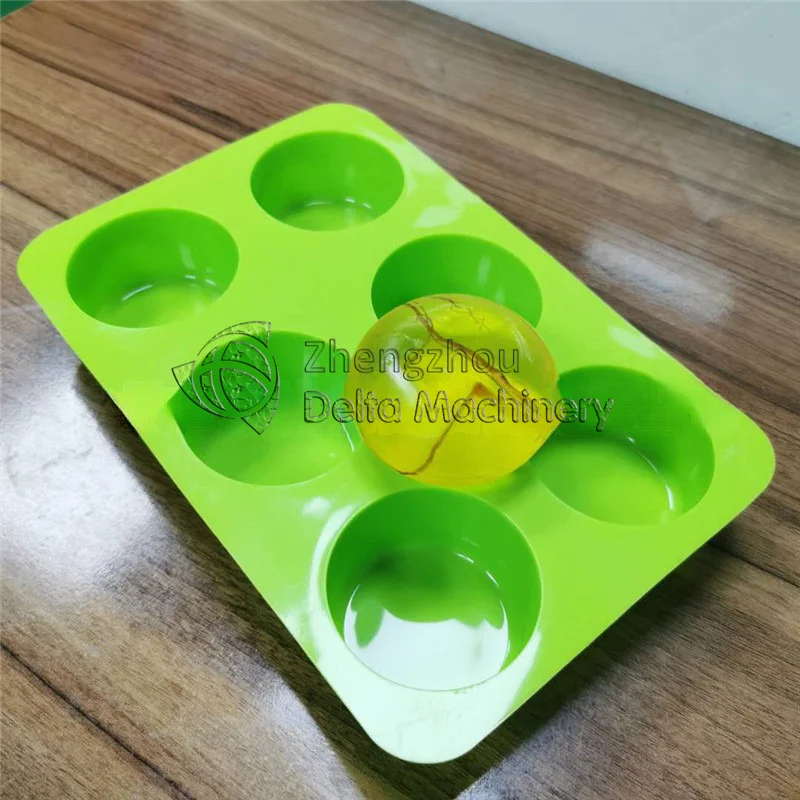

Molds Custom-made

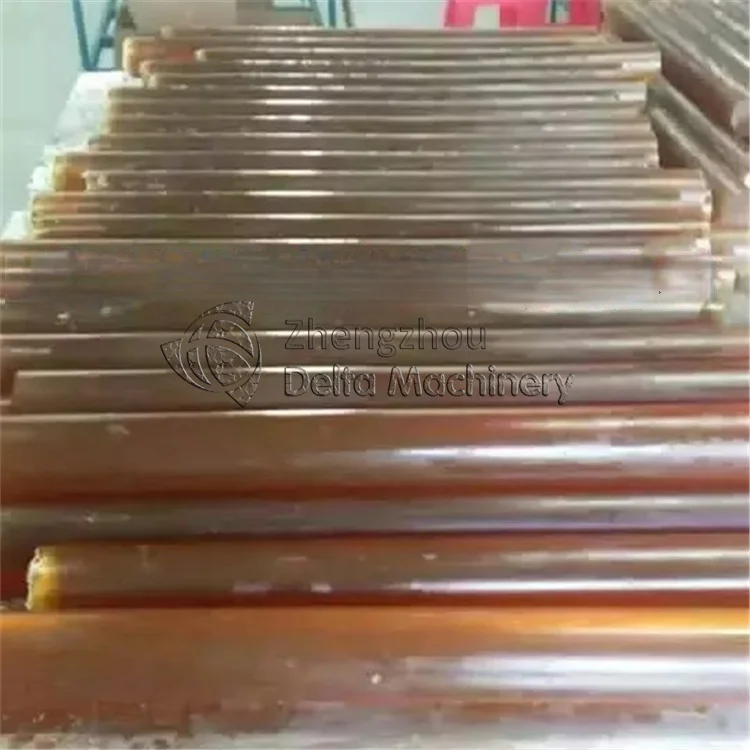

Soap-filled Molds With Various Shapes and Size for Soap Base
Shape:round,oval,square,rectangular.Diameter of round:63,65,67,56mm.Length of round:49.5-50cm.Materials of round:PVC.Aluminum oval size:52*82mm.Aluminum rectangular :50*70mm.Aluminum square:58*58mm.
Note:Aslo There are other types of Molds,and other shapes and size.Welcome to contact with us freely for more details.

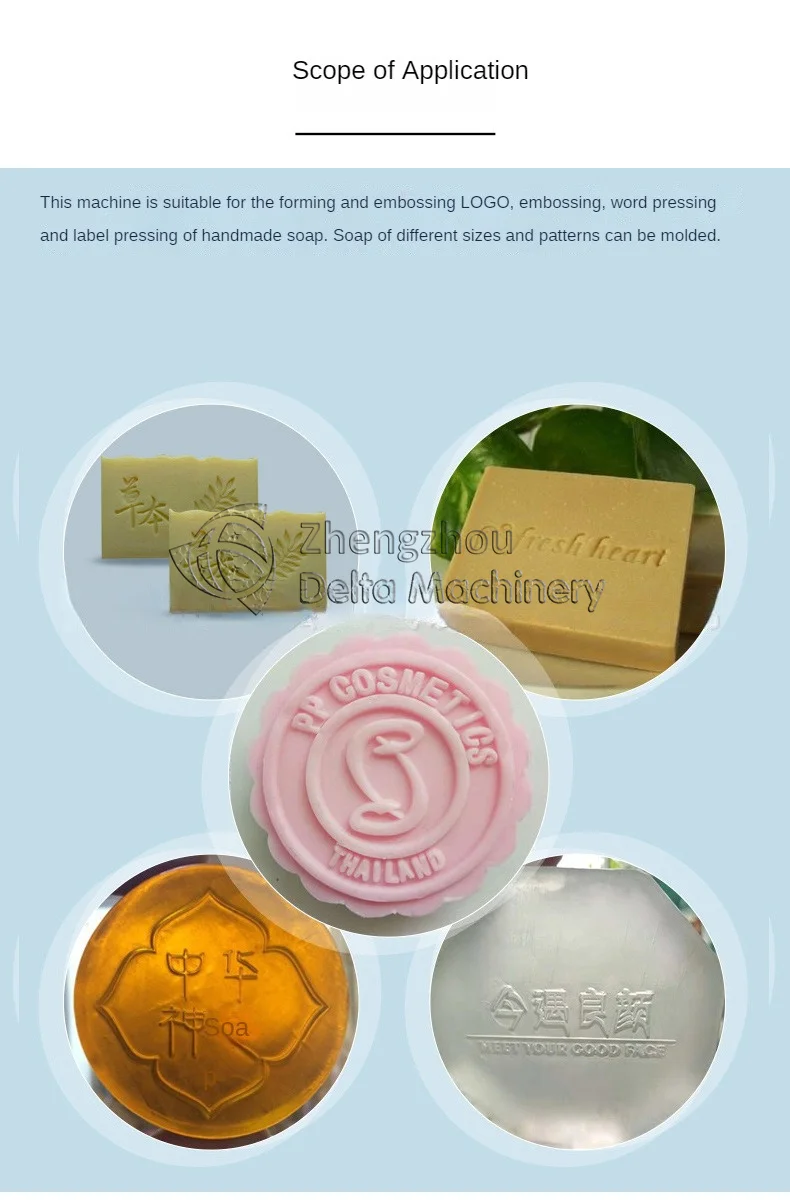

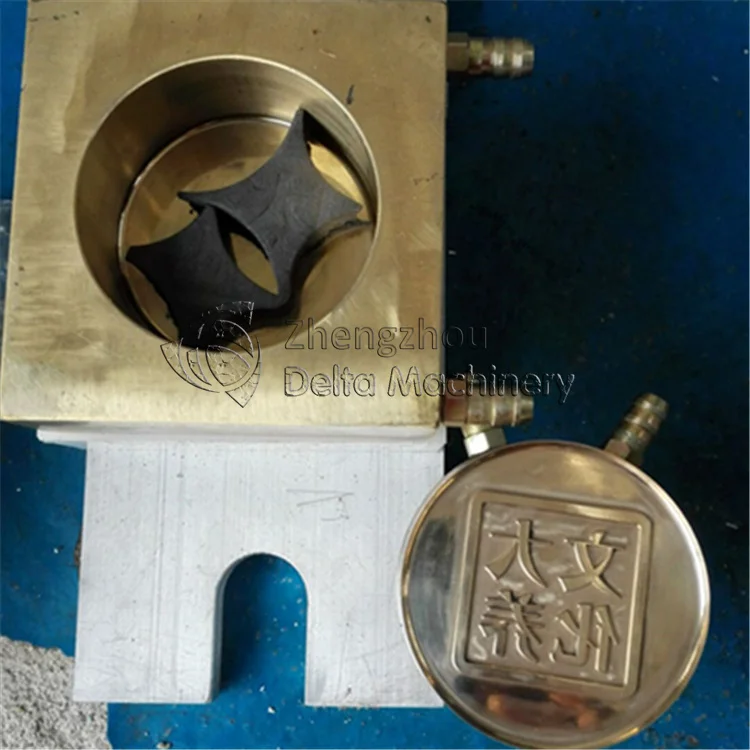

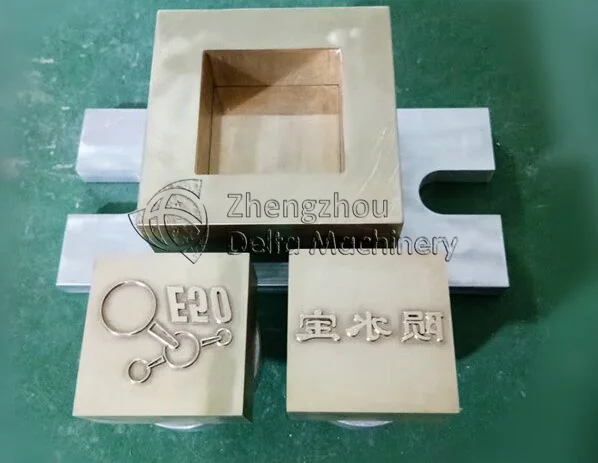

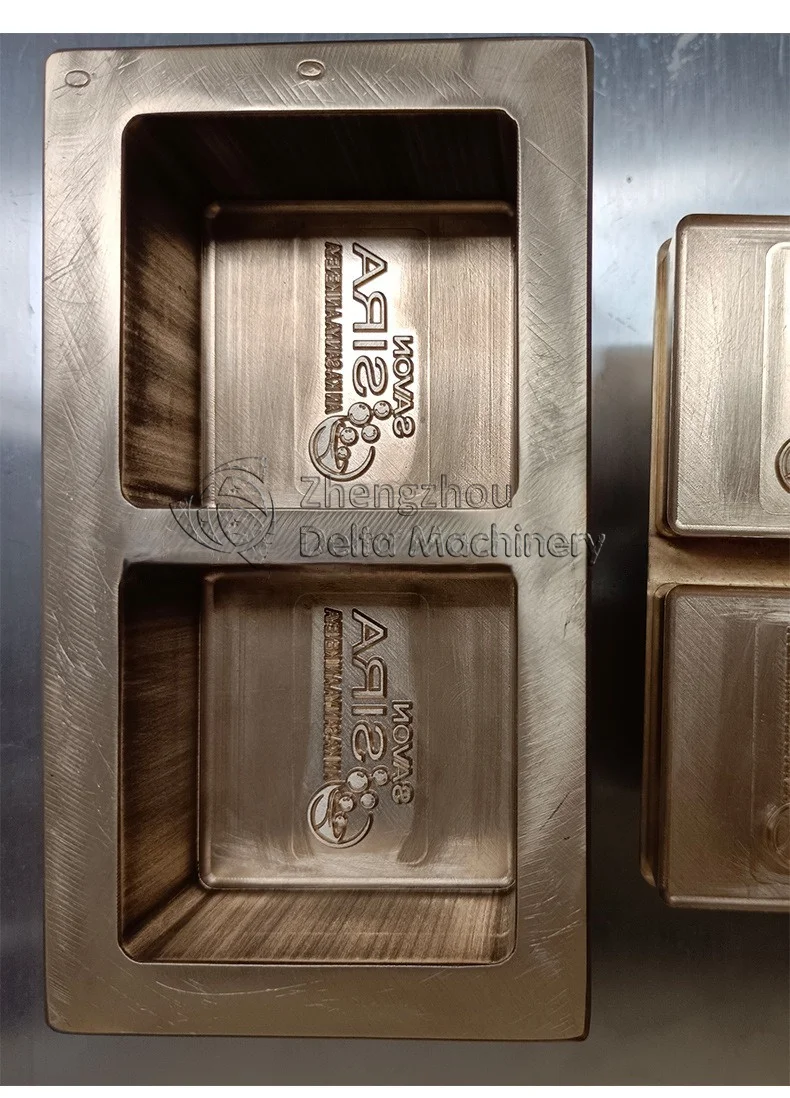

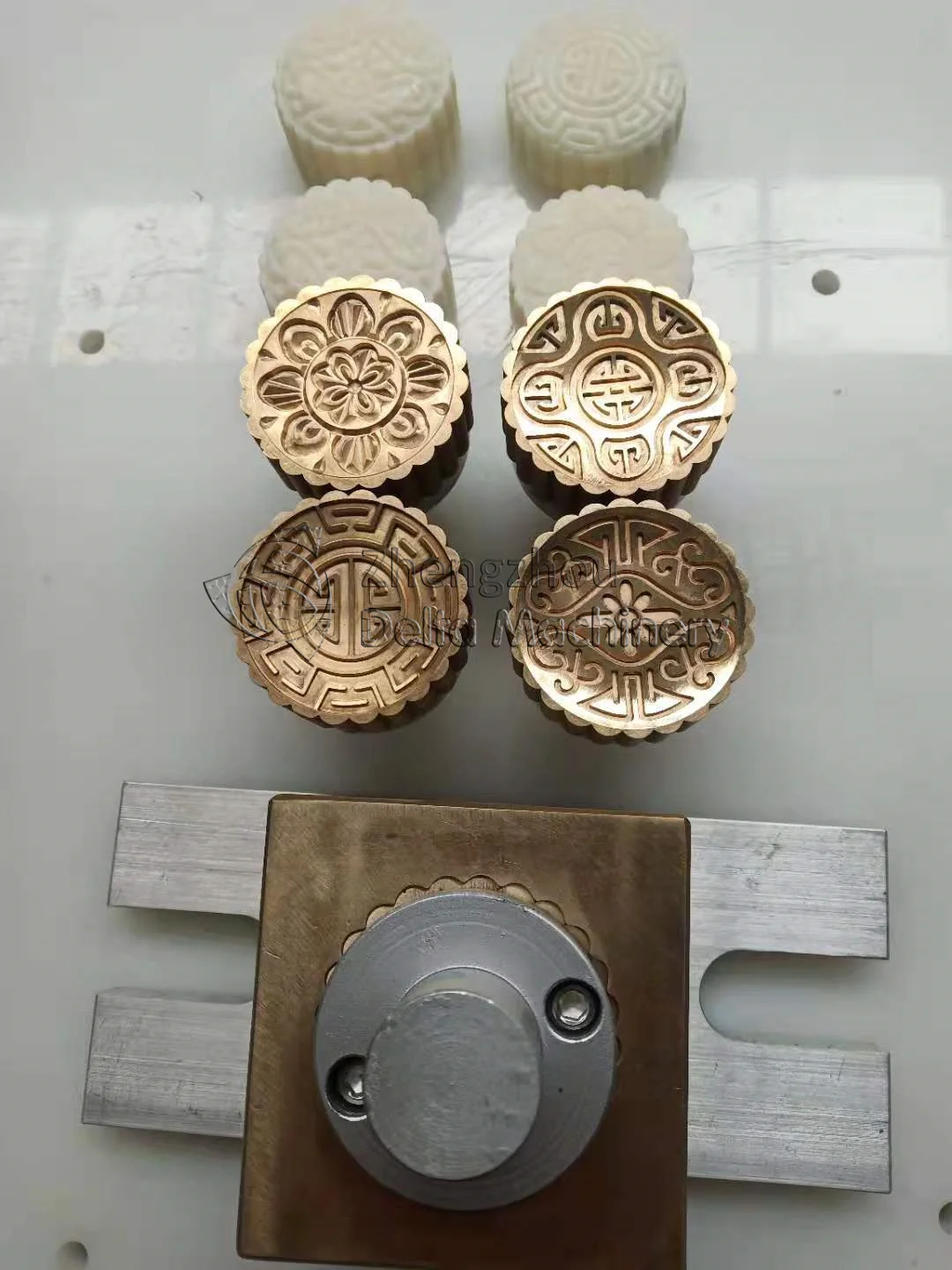

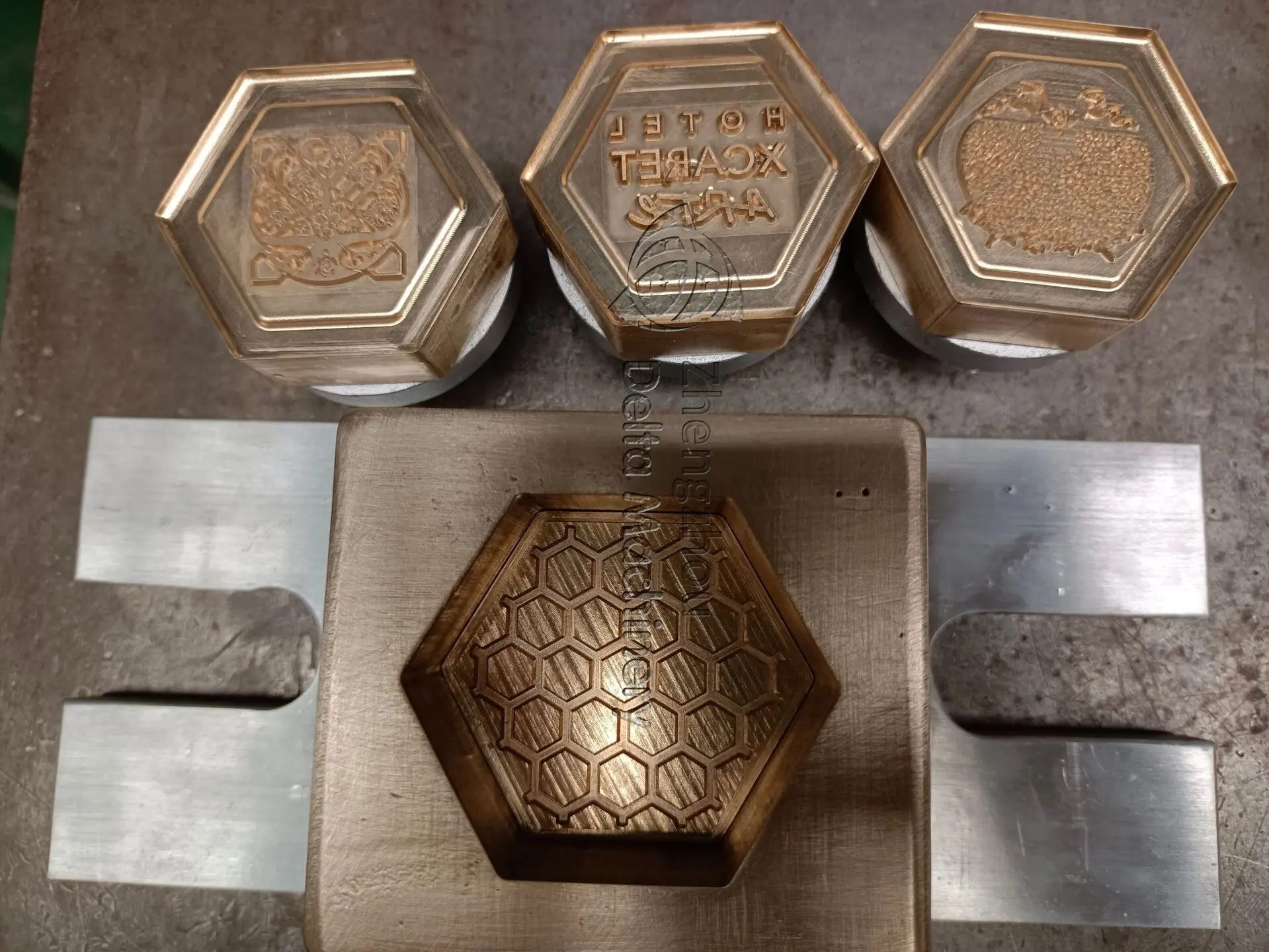

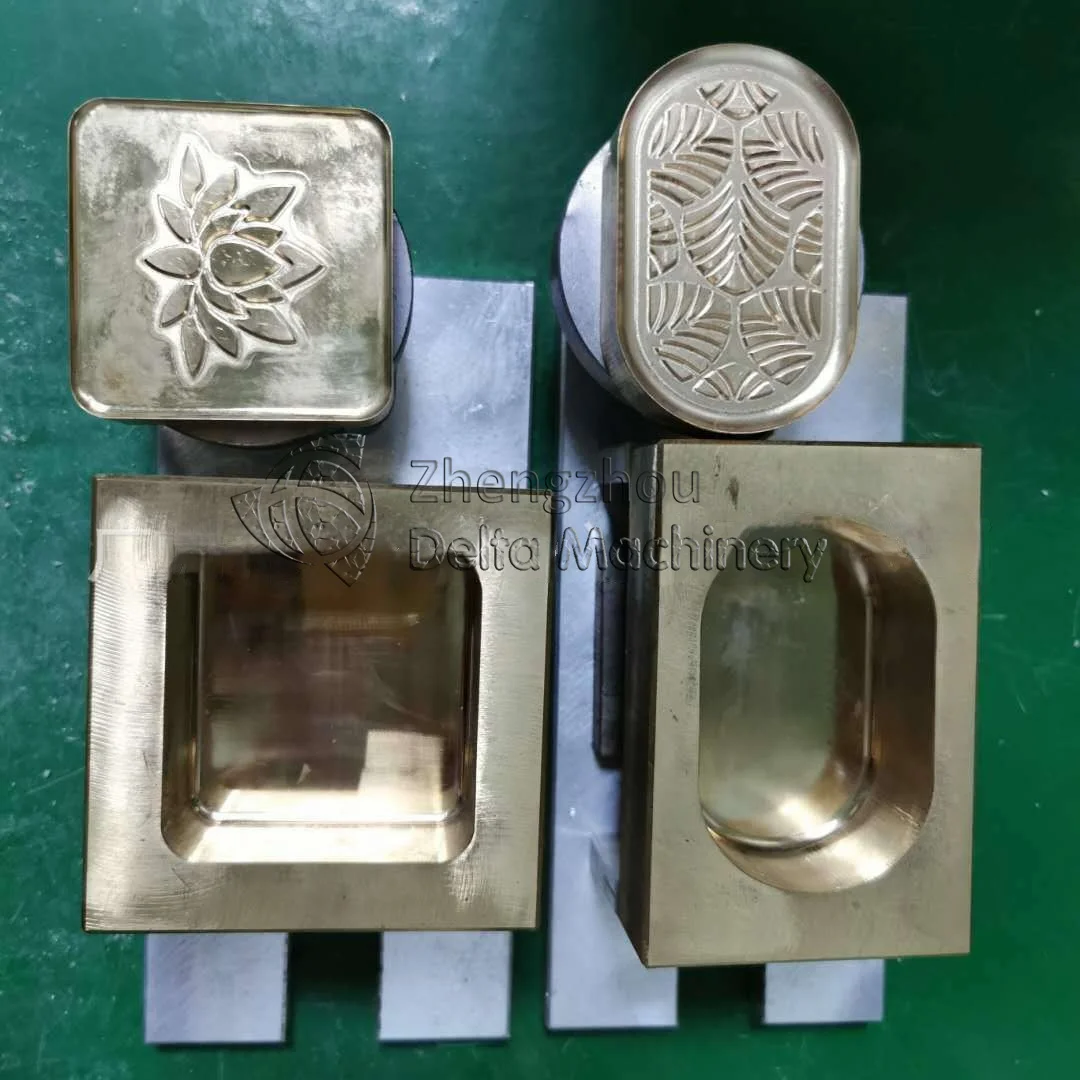

Stamping Dies Or Molds:Multiple Stamp Designs
The machine can accommodate different stamp designs, allowing manufacturers to switch between various logos, patterns, or brand names easily,allowing manufacturers to customize their soap bars with unique designs, logos, or patterns, helping to create brand identity and differentiation in the market.

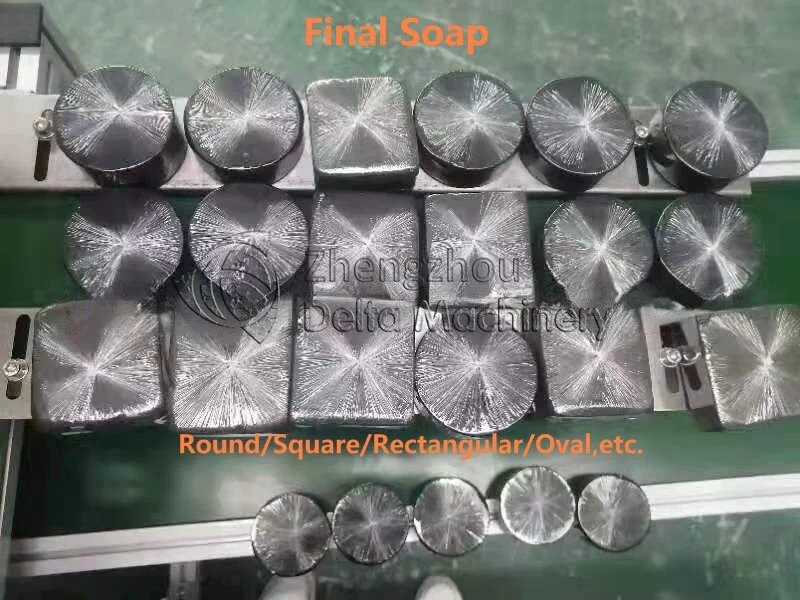

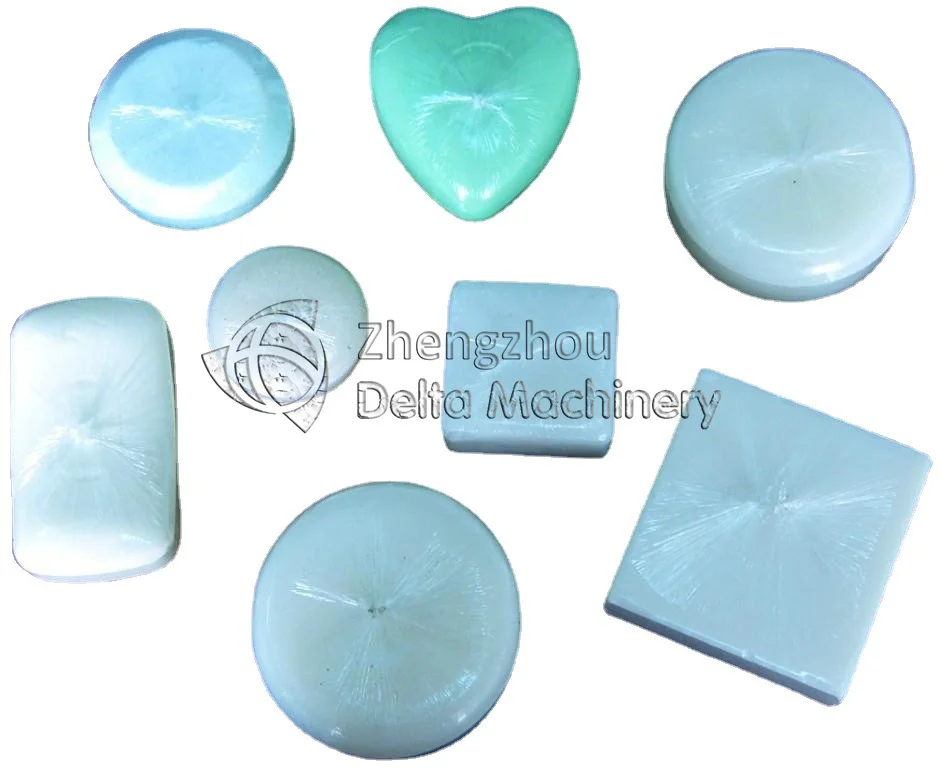

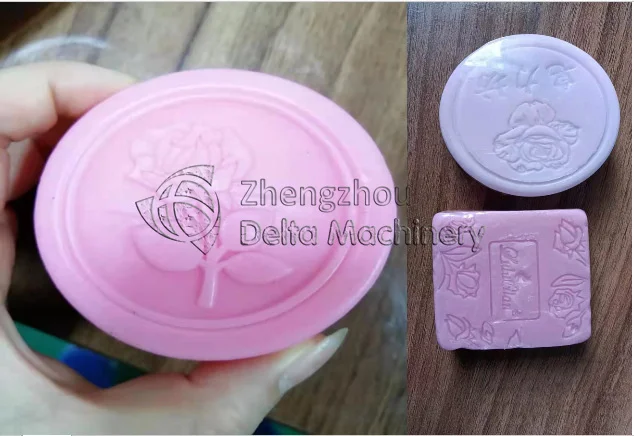

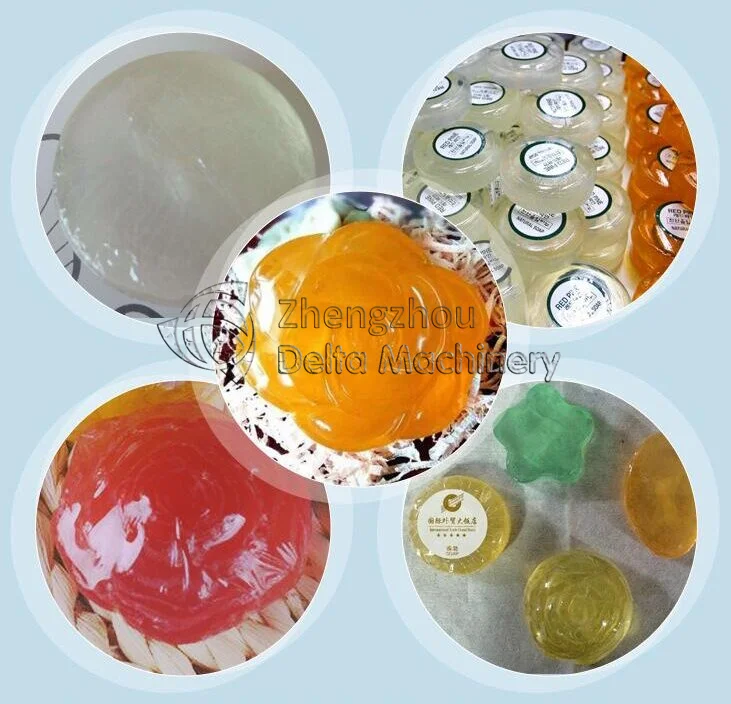

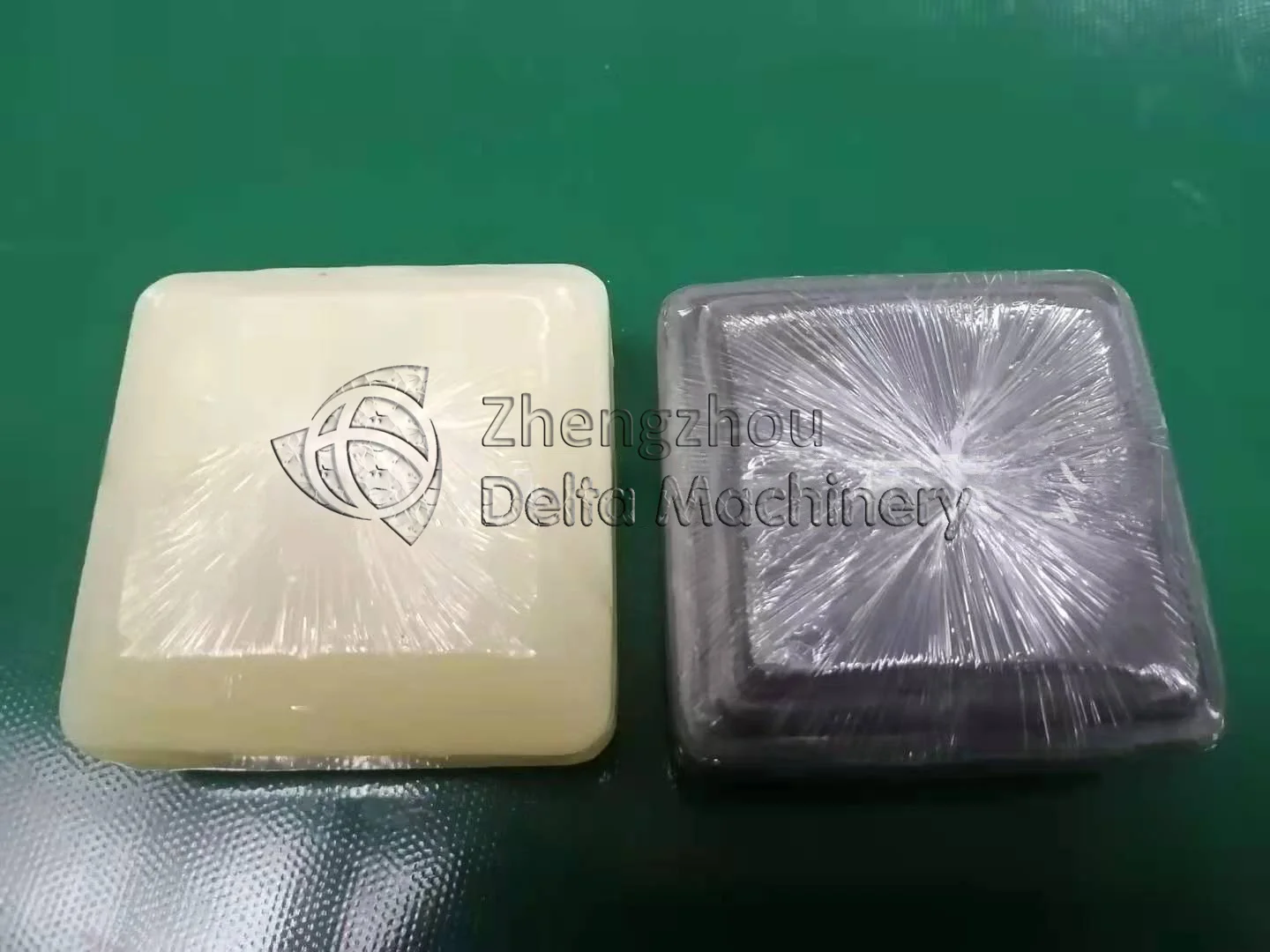

Finished Product

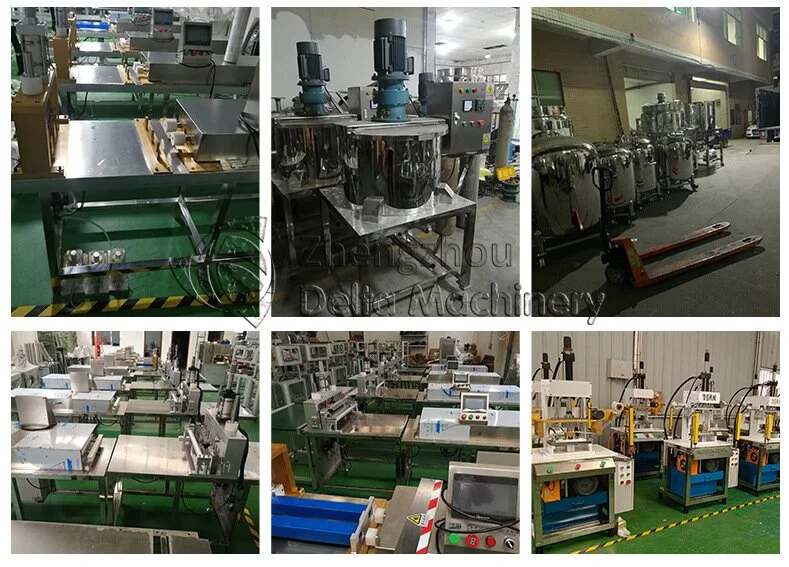

Details Images
CONTACT
Service & FAQ & Company
MOQ | Usually 1 set, or based your order, Preferential wholesale price. |
Voltage | 110V ~415V, 50/60 HZ Single/Three phase , Customize the voltage according to your local voltage. |
Guarantee | Quality guarantee term is for one year, During guarantee period, free technical support and free spare parts supply. |
Payment term | T/T, Western Union, RMB in Alipay/Wechat/Cash, E-checking, MoneyGram, L/C, Credit card,etc. |
Documents offer | By express/courier:express waybill By air:airway bill By sea:B/L, commercial invoice, packing list, sales contract, CO, FE, FTA or as your request. |
How to install and maintain the machine | we can teach you install or maintain the machine by video, email ,pictures.....if large project , we can arrange our engineer help you to install or maintain it in your country. If you need spare parts, we can supply for free or cost price, you pay express cost. |
Assignment of engineers and training | we can supply manual book, work video, install video, pictures first, we can also assign our engineers to go abroad for installing or training machines for our users. |
