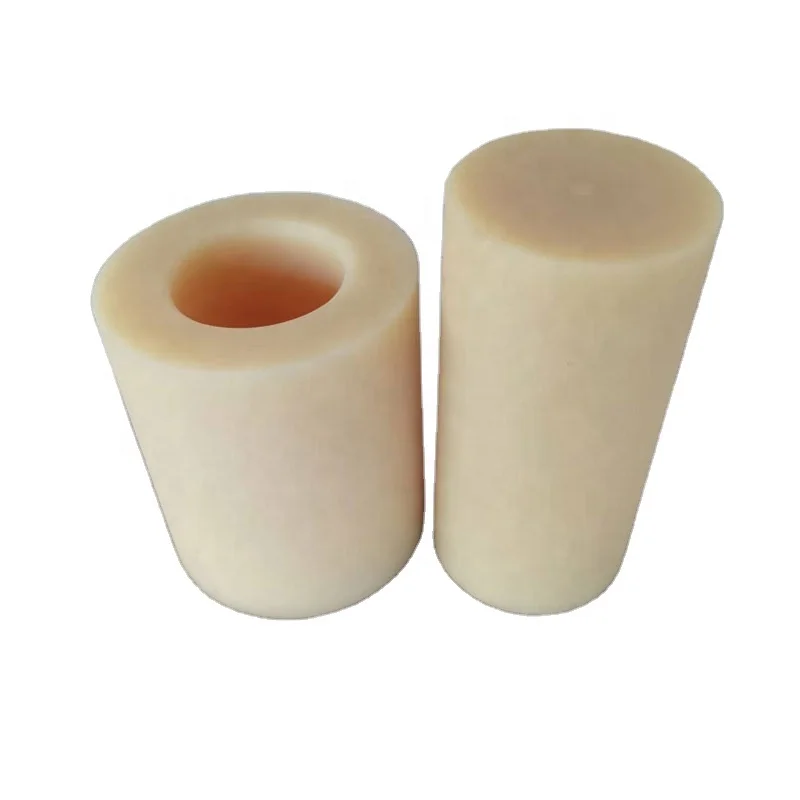

Custom Plastic Nylon PA6/MC Nylon Tube Polyurethane nylon Bar impact resistant Polyurethane rod
- Category: >>>
- Supplier: Zhangjiakou Kenuo Engineering Plastics Co. Ltd.
Share on (1600838458609):
Product Overview
Description
Products Description
Complete Specifications Arbitrary Zero Cutting Free cut any thickness or color nylon sheets
Nylon products has the following charactenistics such as stable properties, good srystallinty, low innerstress, good tensile strength and good self lubricat
High mechanical strength, can adapt to large machinery
Outstanding fatigue resistance, product repeated twists and turns can still maintain the original mechanical strength.
MC Nylon
MC nylon is a kind of engineering plastics used in comprehensive industries, has been applied almost every industrial field. The caprolactam monomer is first melted, and added catalyst, then poured it inside moulds at atmosphere pressure so as to shape in different castings, such as: rod, plate, tube. The molecule weight of MC Nylon can reach 70,000-100,000/mol, three times than PA6/PA66. Its mechanical properties are much higher than other nylon materials, such as: PA6/PA66.

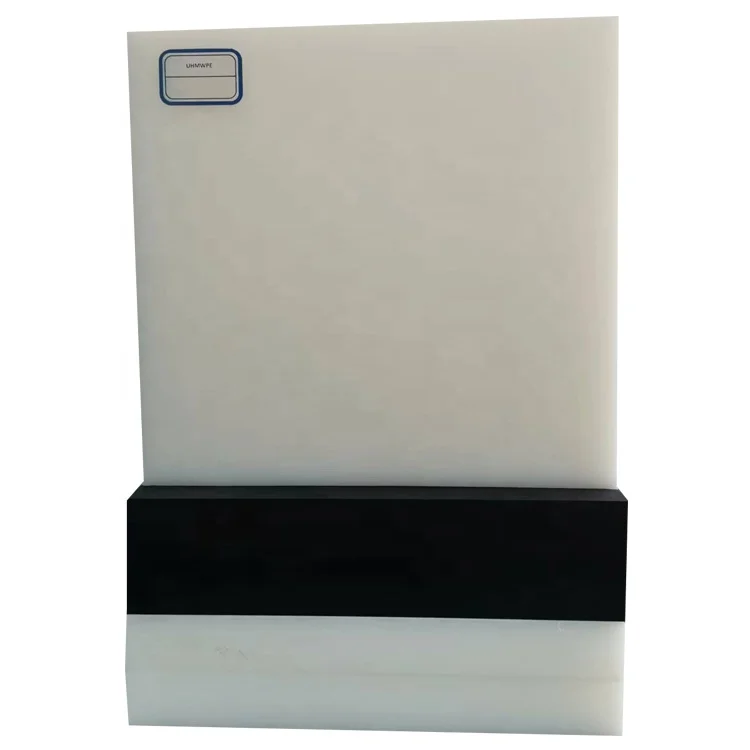

Sheet
Color：Natural、White、Black、Green、Blue、Yellow、Rice Yellow、Gray and so on. Sheet Size：
1000X2000X(Thickness:5-300mm）、1220X2440X(Thickness:5-300mm) 、1000X1000X(Thickness:5-300mm）、1220X1220X(Thickness:5-300mm)
1000X2000X(Thickness:5-300mm）、1220X2440X(Thickness:5-300mm) 、1000X1000X(Thickness:5-300mm）、1220X1220X(Thickness:5-300mm)

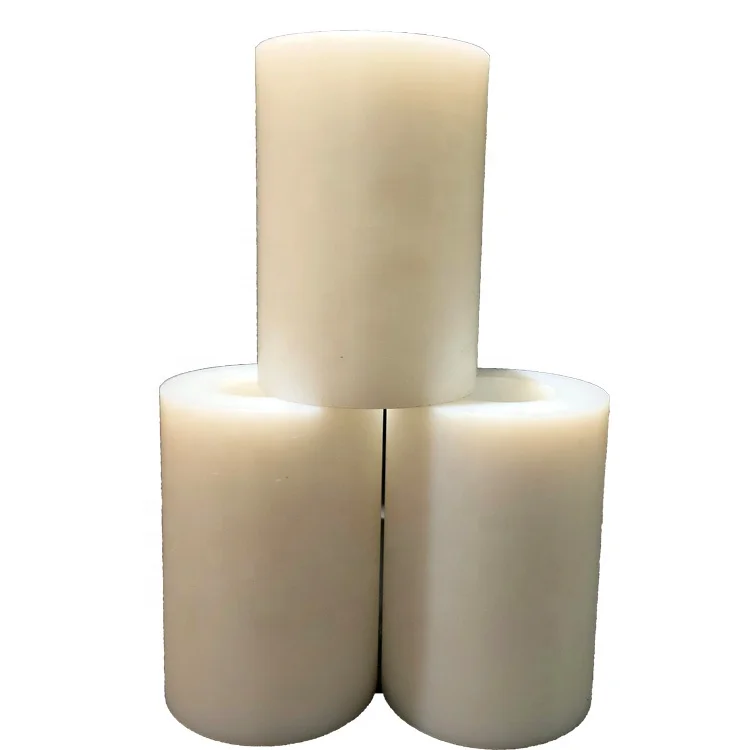

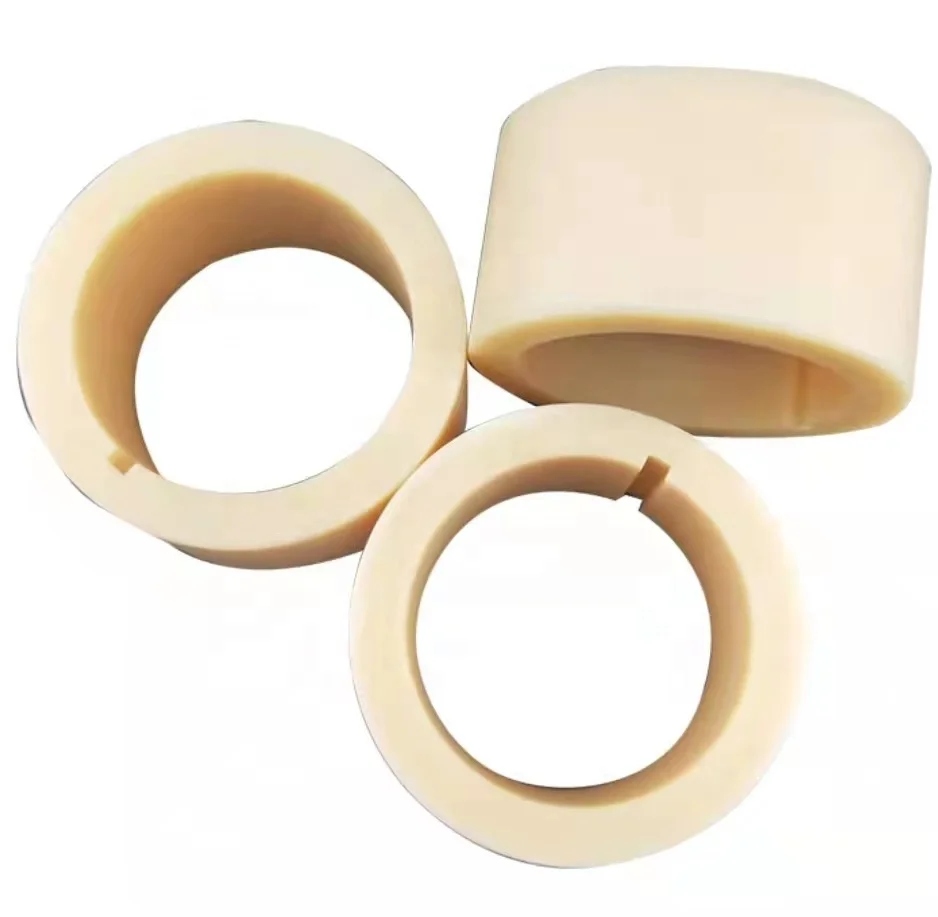

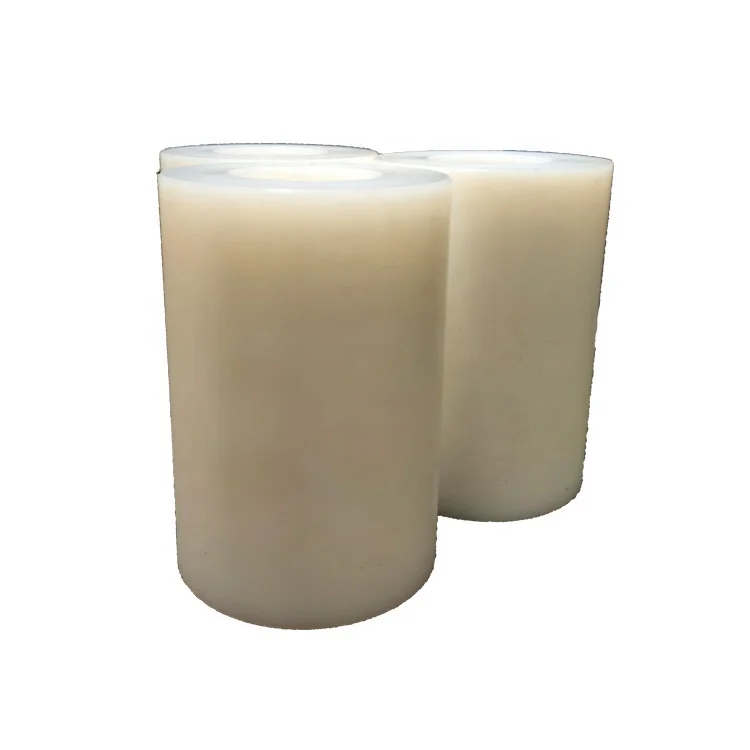

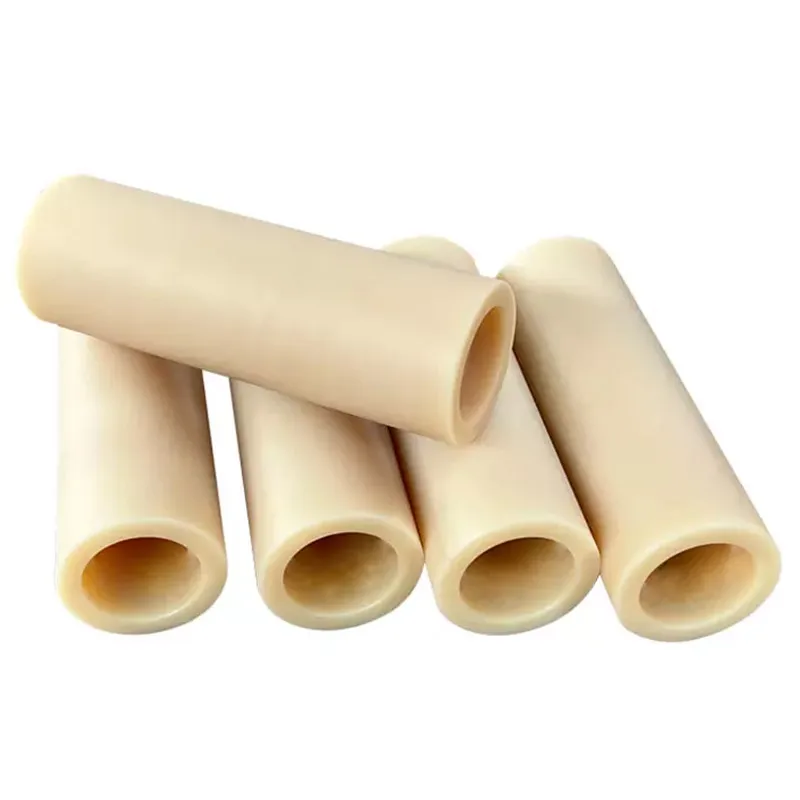

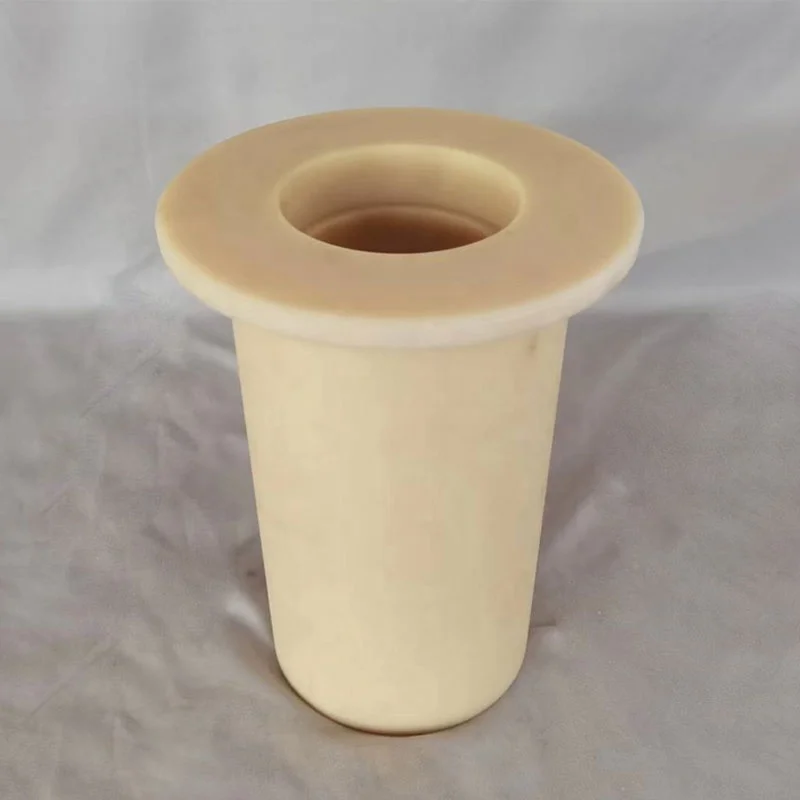

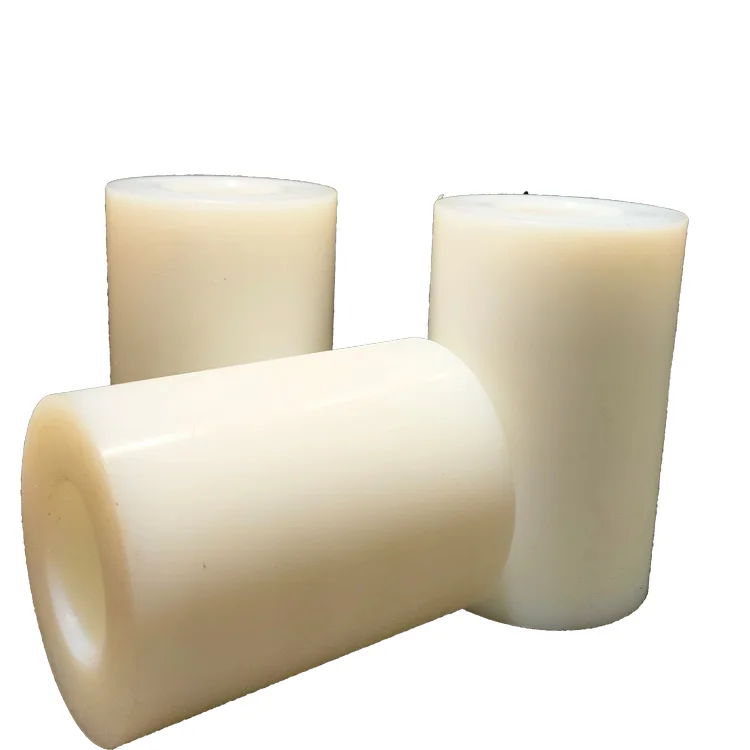

Rod /Tube
Color：Natural、White、Black、Green、Blue、Yellow、Rice Yellow、Gray and so on.
Rod Size: Φ10-Φ800X1000mm Tube Size: (OD)50-1800 X (ID)30-1600 X Length(500-1000mm)
Property | Item No. | Unit | MC Nylon (Natural) | Oil Nylon+Carbon (Black) | MC Nylon+MSO2 (Light black) |
1 | Density | g/cm3 | 1.25 | 1.25 | 1.25 |
2 | Water absorption (23℃ in air) | ％ | 1.8-2.0 | 1.8-2.0 | 2.4 |
3 | Tensile strength | MPa | 89 | 75.3 | 78 |
4 | Tensile strain at break | ％ | 29％ | 22.7 | 25 |
5 | Compressive stress(at 2%nominal strain) | MPa | 51 | 51 | 49 |
6 | Charpy impact strength (unnotched) | KJ/m2 | No break | No break | No break |
7 | Charpy impact strength (notched) | KJ/m2 | ≥5.7 | ≥6.4 | 3.5 |
8 | Tensile modulus of elasticity | MPa | 3190 | 3130 | 3300 |
9 | Ball indentation hardness | N2 | 164 | 150 | 160 |
10 | Rockwell hardness | -- | M87 | M88 | M84 |
Good Reputation
Professional Company
Company introduction
Zhangjiakou Kenuo engineering Plastic CO.LTD is established on 2009, located in Zhangjiakou, Hebei province, which is one of the
host places of 2022 Winter Olympic Games and 150KM away from Beijing.Our factory area over 660 thousand square meters, Including 6 thermoplastic manufacture lines with capacity 5400 Tone each, hundreds irregular parts
manufacture lines too. The main products including;
Ultra-high molecular weight (UHMW-PE); Engineering Plastics;Rare-Earth Nylon Product; Polytetrafluoroethylene. The products are widely used in industry, construction industry, ice and snow sports industry,
shipbuilding and Marine transportation industry and other industries.my company set up the goal of high technology, high starting
point and high level at the beginning of the factory. Our products have been widely used all over the world , and also have been exported to Europe, America, Asia, and Africa etc.
host places of 2022 Winter Olympic Games and 150KM away from Beijing.Our factory area over 660 thousand square meters, Including 6 thermoplastic manufacture lines with capacity 5400 Tone each, hundreds irregular parts
manufacture lines too. The main products including;
Ultra-high molecular weight (UHMW-PE); Engineering Plastics;Rare-Earth Nylon Product; Polytetrafluoroethylene. The products are widely used in industry, construction industry, ice and snow sports industry,
shipbuilding and Marine transportation industry and other industries.my company set up the goal of high technology, high starting
point and high level at the beginning of the factory. Our products have been widely used all over the world , and also have been exported to Europe, America, Asia, and Africa etc.

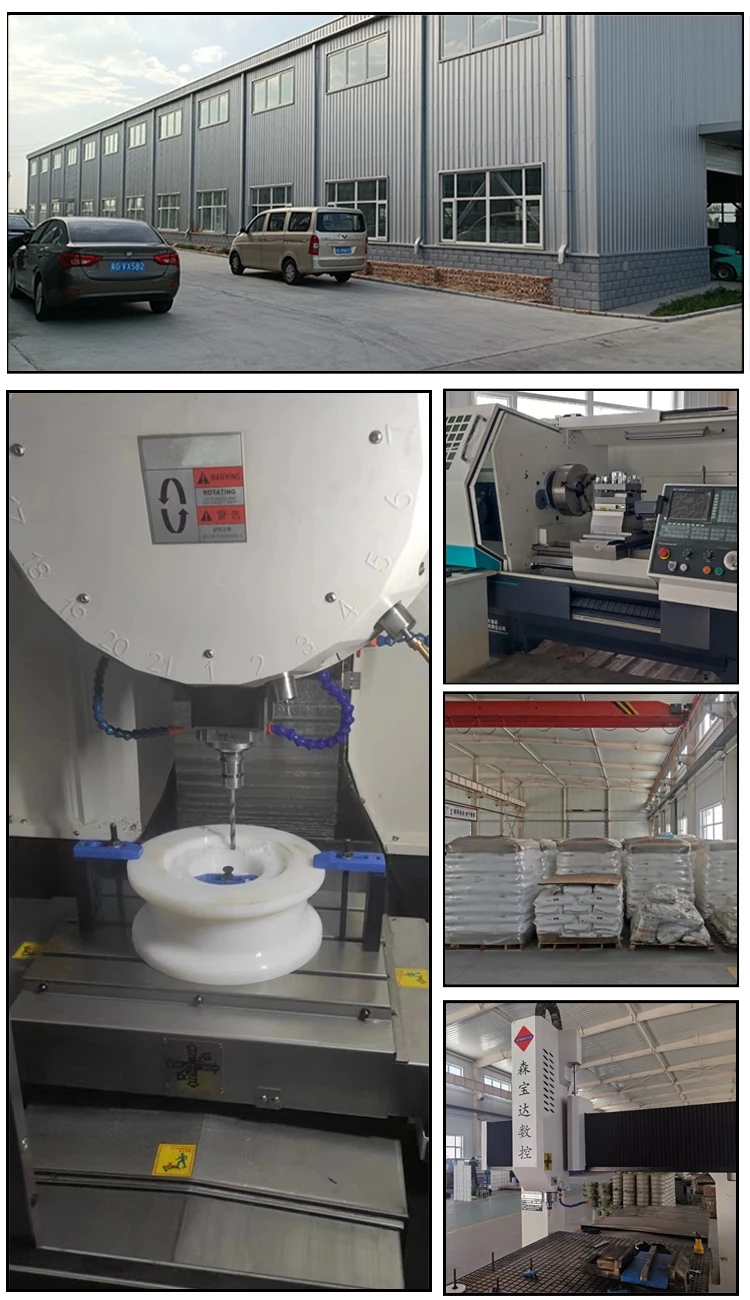

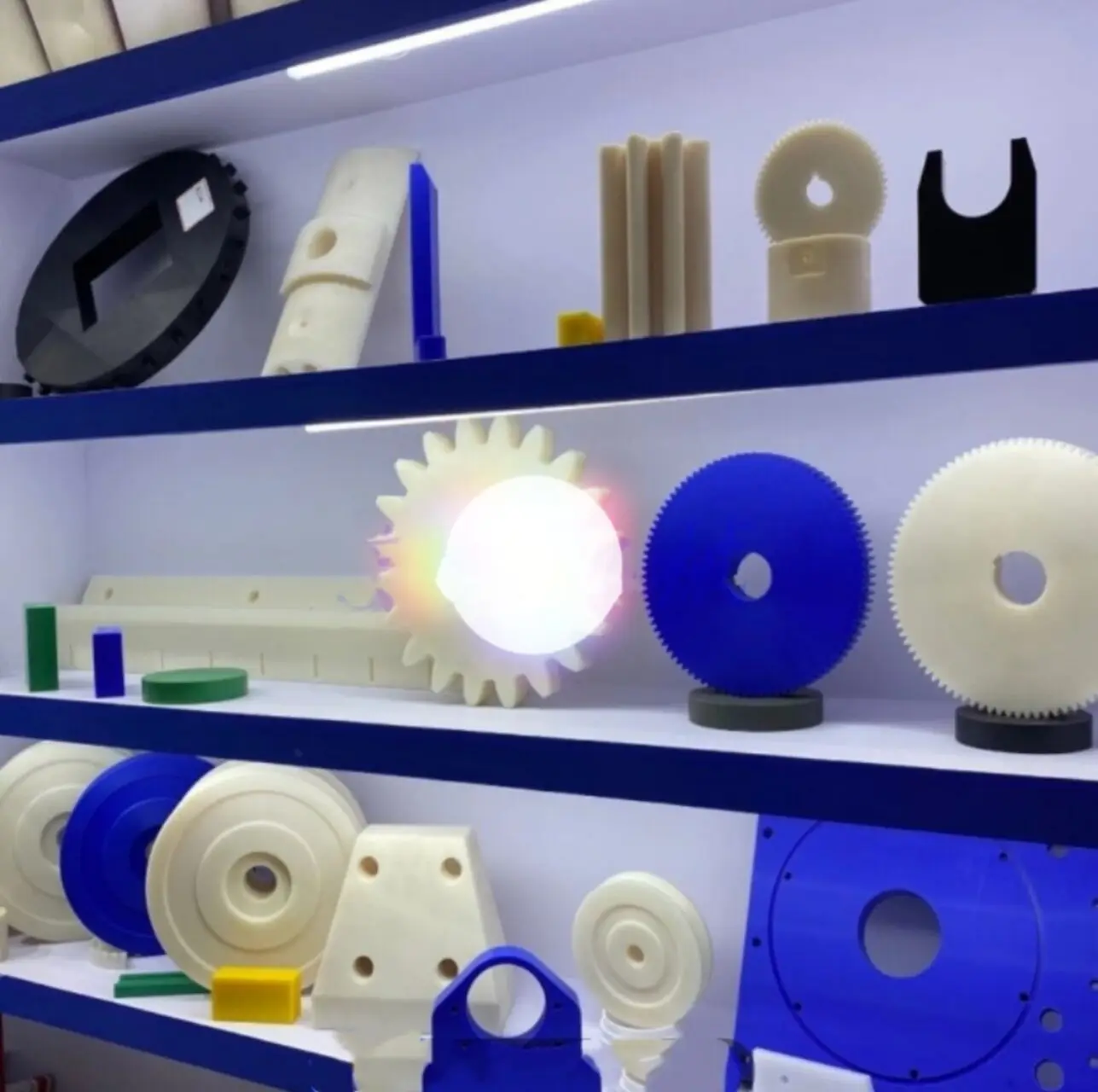

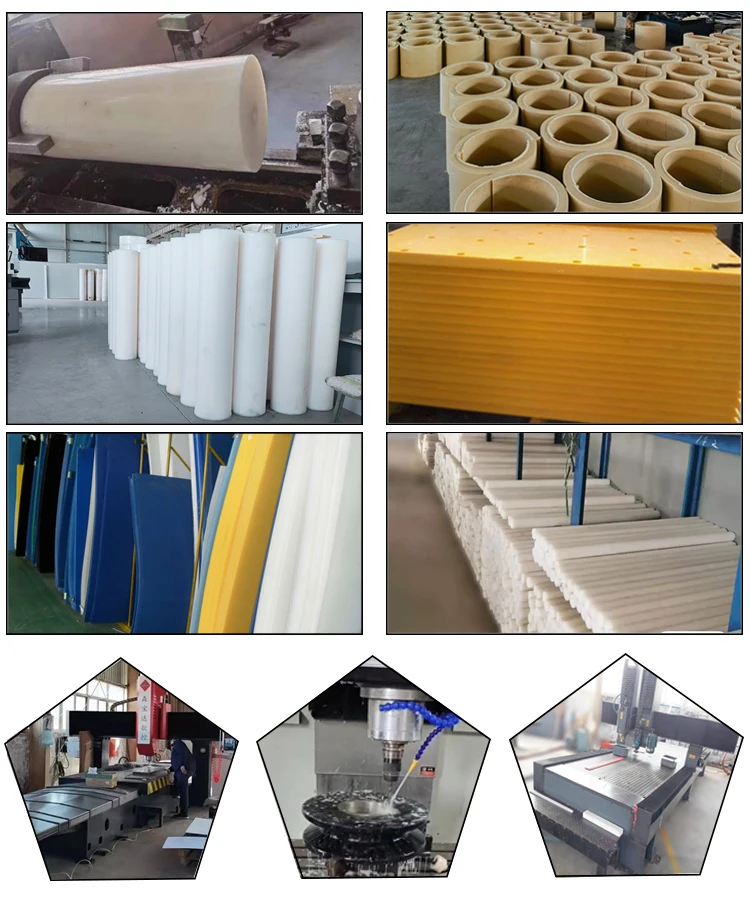

Our Factory
Rich experience in production customized
Specializing in the production of "engineering plastic accessories" of high-tech enterprises, the company has a set of imported production equipment and CNC processing equipment, processing means advanced, strong technical force.

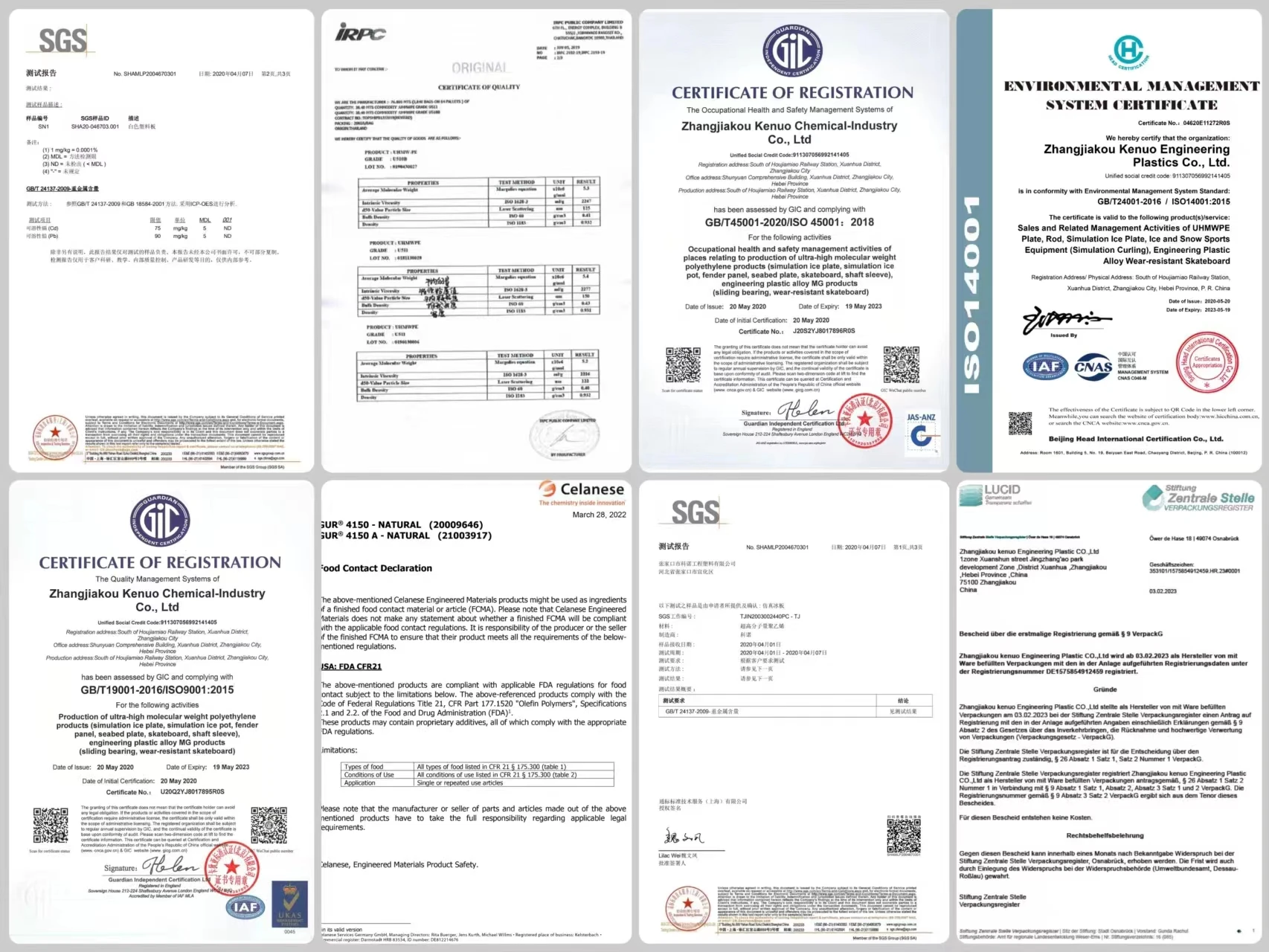

Certifications
Application
The Exhibition
FAQ
Q1. What is the size of the board?
A1. Nylon board: conventional size 1000*2000*(10-100)UHMWPE board
conventional size 1000*2000*(20-100) 1250*3130* 1250*4250 POM board: conventional size 1000*2000*thickness
Q2. Can the board be cut into small pieces?
O3. What are the colors of the boards?
Q4. What are your processing equipment?
A4. CNC machining center, CNC lathe, milling machine, engraving
machine, molding machine
Q5. Can you help assembling the product after it is made?
A1. Nylon board: conventional size 1000*2000*(10-100)UHMWPE board
conventional size 1000*2000*(20-100) 1250*3130* 1250*4250 POM board: conventional size 1000*2000*thickness
Q2. Can the board be cut into small pieces?
A2. Regular plates can be cut into small pieces as required
O3. What are the colors of the boards?
A3. Nylon board: beige black, blue other colors can be customized UHMWPE
board white black.green. blue. yellow. other colors can be customized POM board: white, black
board white black.green. blue. yellow. other colors can be customized POM board: white, black
Q4. What are your processing equipment?
A4. CNC machining center, CNC lathe, milling machine, engraving
machine, molding machine
Q5. Can you help assembling the product after it is made?
A5. It's okay
Q6.How many days will the samples be finished? And how about the mass production?
A6.Generally the samples will be sent immediately by the air express in 3-5 days if the goods are in stock
A6.Generally the samples will be sent immediately by the air express in 3-5 days if the goods are in stock
