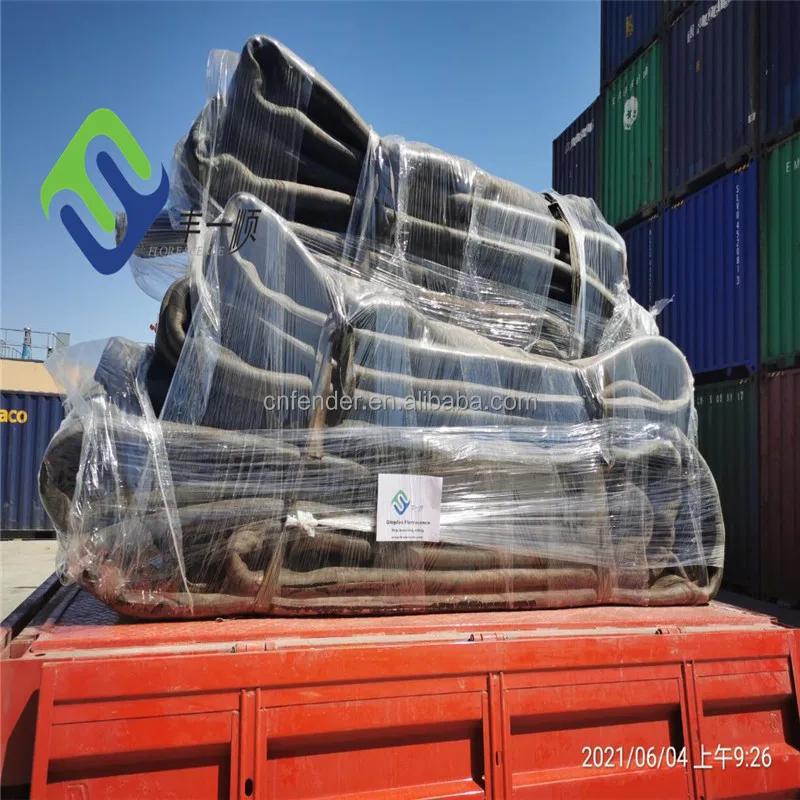

heavy duty ship launching salvage marine dock marinated ship rubber airbag
heavy duty ship launching salvage marine dock marinated ship rubber airbag
heavy duty ship launching salvage marine dock marinated ship rubber airbag
heavy duty ship launching salvage marine dock marinated ship rubber airbag
heavy duty ship launching salvage marine dock marinated ship rubber airbag
heavy duty ship launching salvage marine dock marinated ship rubber airbag
heavy duty ship launching salvage marine dock marinated ship rubber airbag

heavy duty ship launching salvage marine dock marinated ship rubber airbag

Share on (1600838459740):


Price:$2,000.00

Quantity:


Product Overview

Description









Size Range: (airbag size depend on ship size)
Diameter (D):
From 0.6m to 2.8m
Effective Length (EL):
From 5.0m to 28.0m
Total Length (TL):
From 7.0m to 31.0m
Standard Number of Layers:
Usually 3-12 layers


Guaranteed Working Pressure
Type
D=0.8m
D=1.0m
D=1.2m
D=1.5m
D=1.8m
D=2.0m
FL3 layers
0.13Mpa
0.10Mpa
0.09Mpa
0.07Mpa
0.06Mpa
0.05Mpa
FL4 layers
0.17Mpa
0.13Mpa
0.11Mpa
0.09Mpa
0.08Mpa
0.07Mpa
FL5 layers
0.21Mpa
0.17Mpa
0.14Mpa
0.11Mpa
0.09Mpa
0.08Mpa
FL6 layers
0.25Mpa
0.20Mpa
0.17Mpa
0.13Mpa
0.11Mpa
0.10Mpa
FL7 layers
0.29Mpa
0.23Mpa
0.20Mpa
0.15Mpa
0.13Mpa
0.12Mpa
FL8 layers
0.33Mpa
0.26Mpa
0.23Mpa
0.17Mpa
0.15Mpa
0.14Mpa
FL9 layers
0.37Mpa
0.29Mpa
0.26Mpa
0.19Mpa
0.17Mpa
0.16Mpa
FL10 layers
0.41Mpa
0.32Mpa
0.29Mpa
0.21Mpa
0.19Mpa
0.18Mpa
