30 80V 48 volt constant current led driver ultra slim led tube light driver
- Category: >>>
- Supplier: Guangzhou Yuhui Lighting Industrial Co. Ltd.
Share on (1600838513567):
Product Overview
Description
Specifications | ||
P/N | YH-01H | |
Input Voltage(VAC) | 100V-300V | |
Output Voltage(VDC) | 30V-150V | |
Output Current (mA) | 100-350mA | |
Typical Power (Watts) | 10-30W | |
Typical Efficiency (%) | 91% | |
Power Factor (PF) | 0.95 | |
THD | ≤20 | |
L*W*H | 109*16*14 | |
Warranty | 2 Year | |
Applicable to | T5 T8 T10 LED Tube Light | |
Product Description
This is a Non-isolated driver. Wide input voltage VAC90-264V, Current range 100-300mA adjustable , High efficiency , High PF >0.9.
Application: Inside LED Tubes & Bulbs & Down lights and so on . Use for office buildings, shopping malls, restaurants, schools, homes, factories, etc .
1. Ultra-small size design, low noise and safe features;
2. Adopt high-efficiency, low-consumption and stable imported chips to achieve energy saving and environmental protection purposes;
3. Constant output current. Ensure the safety and stability of LED use, improve the light efficiency of LED, and reduce light
decay
4. Overload, overvoltage, short circuit, overcurrent protection ensure power supply safety;
5. Wide voltage AC input, no need to distinguish between positive and negative poles;
6. The red at the output is positive and the white is negative.
2. Adopt high-efficiency, low-consumption and stable imported chips to achieve energy saving and environmental protection purposes;
3. Constant output current. Ensure the safety and stability of LED use, improve the light efficiency of LED, and reduce light
decay
4. Overload, overvoltage, short circuit, overcurrent protection ensure power supply safety;
5. Wide voltage AC input, no need to distinguish between positive and negative poles;
6. The red at the output is positive and the white is negative.

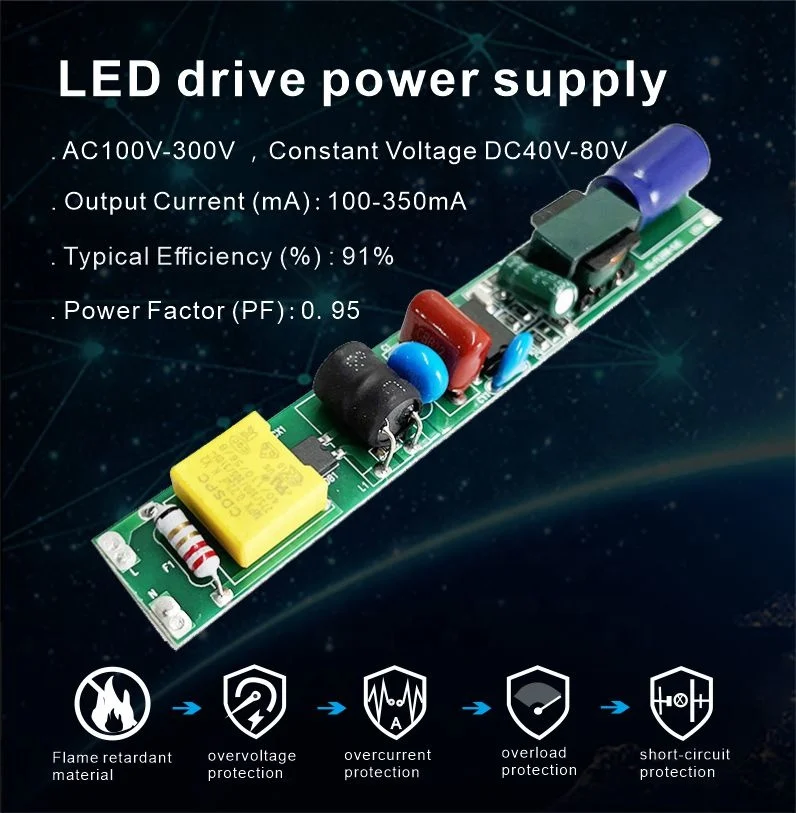

Driver function
Short circuit protection, open circuit protection, over voltage protection, overheat protection, making it more stable and safer when working;
Short circuit protection, open circuit protection, over voltage protection, overheat protection, making it more stable and safer when working;

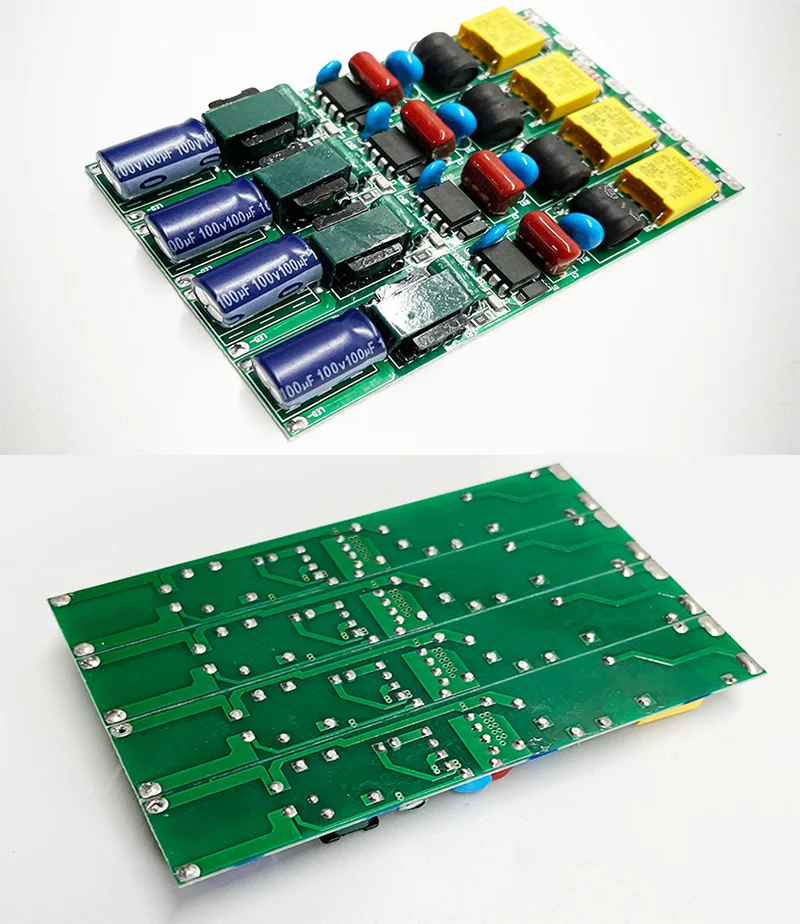

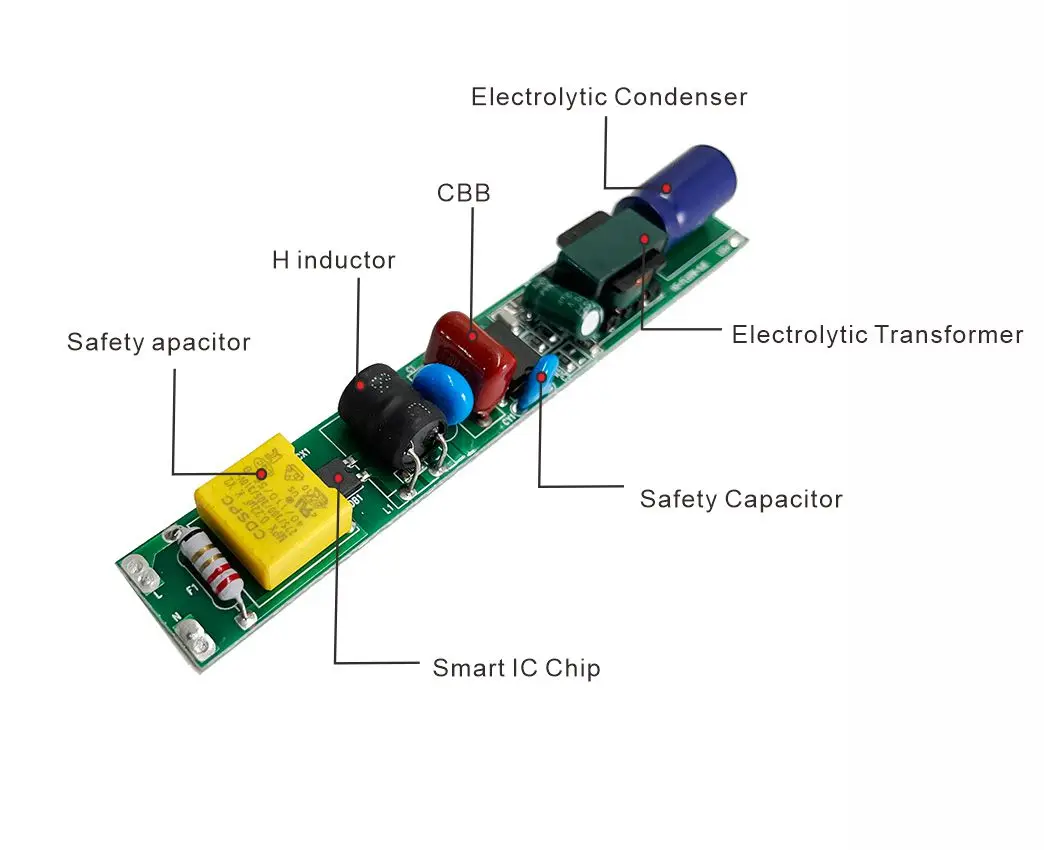

PCB board
Use high-insulation PCB double-panel, high-conductivity copper foil lines, and reasonable design of the circuit to ensure
efficient driving
Use high-insulation PCB double-panel, high-conductivity copper foil lines, and reasonable design of the circuit to ensure
efficient driving
product application

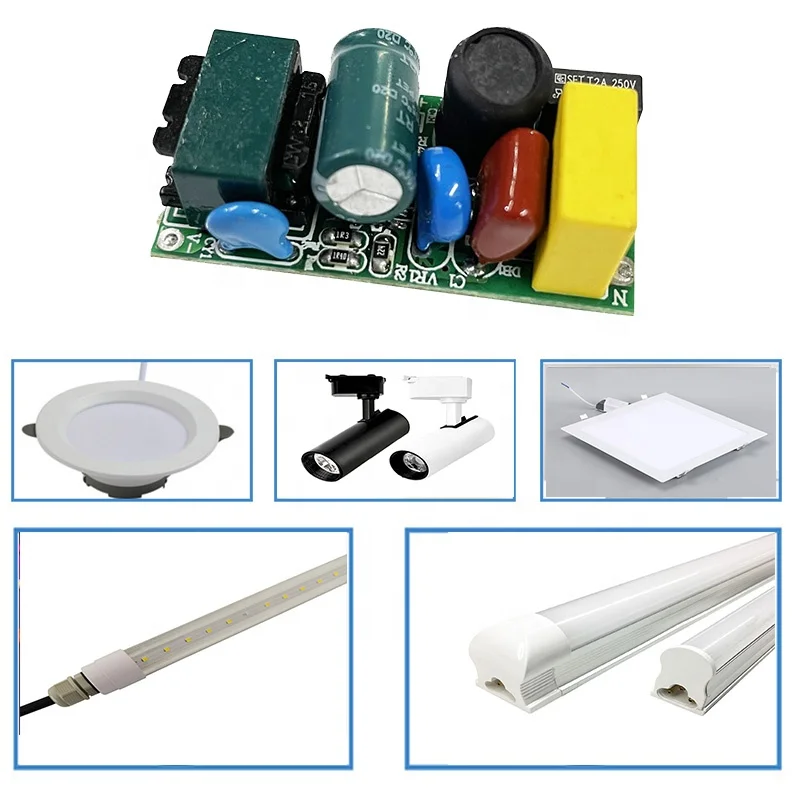

Application Scenarios
Use for office buildings, shopping malls, restaurants, schools, homes, factories, etc .
Company Profile
Packing
FAQ
Q1. Can I have a sample order for led driver?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks based on order quantity.
Q3. Do you have any MOQ limit for led driver order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led driver?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on led driver product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1-5 years warranty to our products .
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks based on order quantity.
Q3. Do you have any MOQ limit for led driver order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led driver?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on led driver product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1-5 years warranty to our products .
