High precision Full CNC EDM erosion die sinker machine D450 mold making Taiwan system
- Category: >>>
- Supplier: Ipretech Machinery Company Limited
Share on (1600838529335):
Product Overview
Description
Product Description
Specification

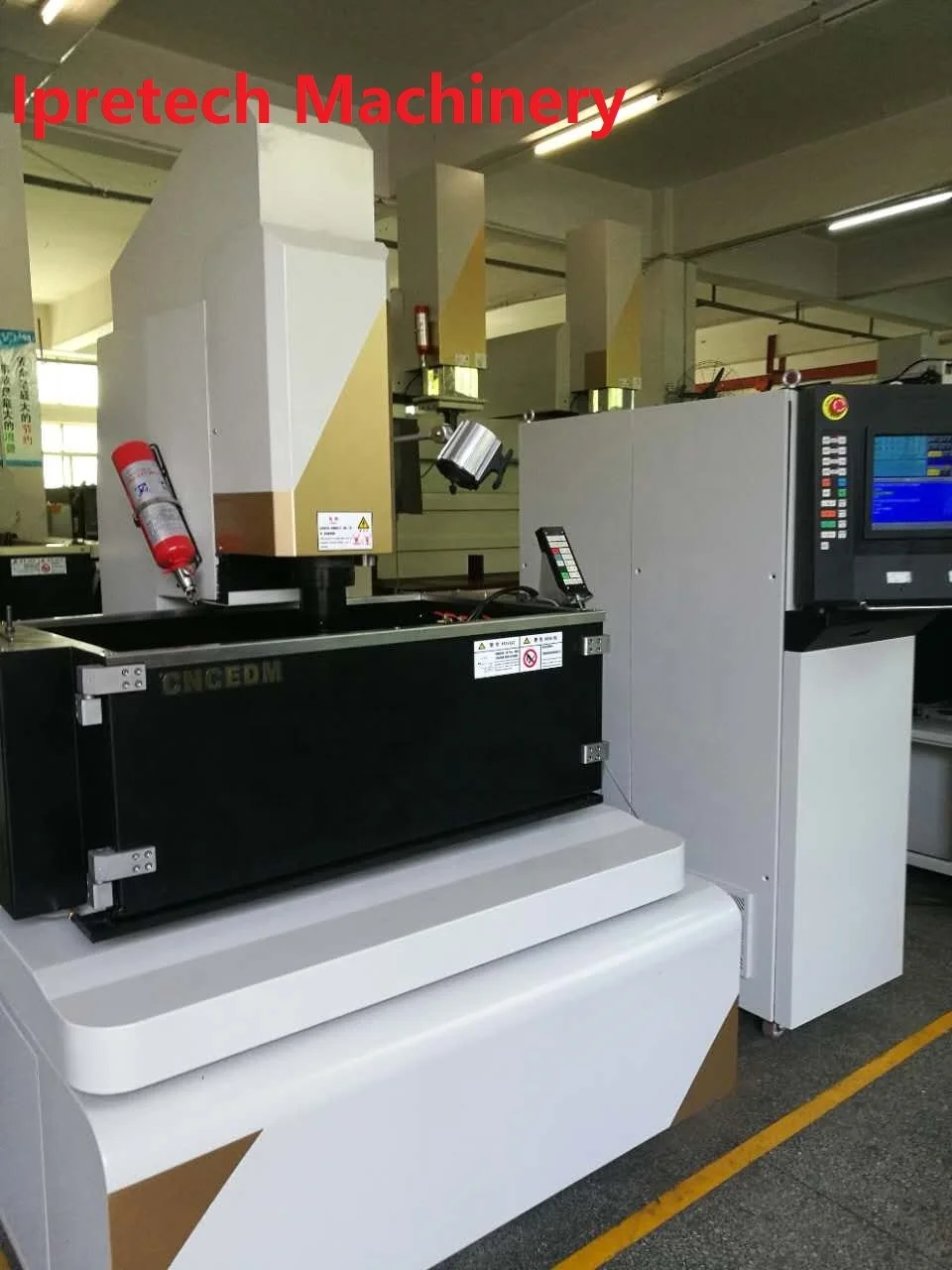

Ipretech ZNC EDM Erosion D450
This model adopts Taiwan C-Tek software and the modular controller system. The motor can be chosen from Japanese SANYO DC servo motor, or AC motor.
HT-300 iron resin casting bed with high rigidity and high precision nature with V-slide design. The bed of the machine is cast by aging treatment, and the accuracy can be maintained for a long time.High-quality imported oil pumps, triaxial linear encoders, built-in various types of expert databases, all facilitate the
operator. Automatic alarm systems, fire extinguishers and power cuts are designed for the safer operation.
Extensive processing: suitable for copper, graphite, steel, upper chamber, and special shaped hole processing
operator. Automatic alarm systems, fire extinguishers and power cuts are designed for the safer operation.
Extensive processing: suitable for copper, graphite, steel, upper chamber, and special shaped hole processing
CODE | ITEM | DETAILS | ||||
1 | Worktable（Width×Length） | mm | 700*400 | |||
2 | CNC Type | |||||
3 | Full CNC system | |||||
4 | Max.Load Bearing Of Worktable | kg | 1000 | |||
TRAVEL | ||||||
5 | X Axis | mm | 450 | |||
6 | Y Axis | mm | 350 | |||
7 | Z Axis | mm | 300 | |||
8 | Working Table To Electrode Min/Max Distance | mm | 320-620 | |||
STRUCTURE INDEX | ||||||
9 | Display Method | 15” TFT-LCD | ||||
10 | Working Tank Inner Size | mm | 1080*700*450 | |||
11 | Vertical Controller Weight | kgs | 250 | |||
POWER SOURCE | ||||||
12 | Min. Electrode Consumption | <0.2% | ||||
13 | Working Current | A | 30/50/75 | |||
14 | Min. Driving Unit | um | 5 | |||
15 | Power Requirement | 380/415 V, 50/60 Hz for three-phase | ||||
CONTROLLER INDEX | ||||||
16 | Controller Method | NC Closed-Cloop, All Axis | ||||
17 | Coordinate System | INC, ABS | ||||
18 | Control System | HMI Platforms | ||||
19 | Processing Mode | Square,Cross,Circle, Hexagon,Side Long | ||||
20 | X,Y,Z Min Setting Size | mm | 0.005(0.001) | |||
21 | X,Y,Z Min Setting Size | mm | 9999.995(9999.9999) | |||
22 | Shaking Pattern | XY(Z locked) or XYZ simultation moving | ||||
ENVIRONMENTAL REQUIREMENT | ||||||
23 | Environmental Temperature Requirement | 0℃～40℃ | ||||
24 | Relative Humidity | 20%～80% | ||||
ACCURACY | ||||||
27 | Positioning Accuracy | mm | <0.005 | |||
28 | Repositioning Accuracy | mm | <0.003 | |||
29 | Max Working Surface Roughness | um | Ra<0.1~0.15 | |||
30 | Max. Working Efficiency | m3/min | 360/550 | |||

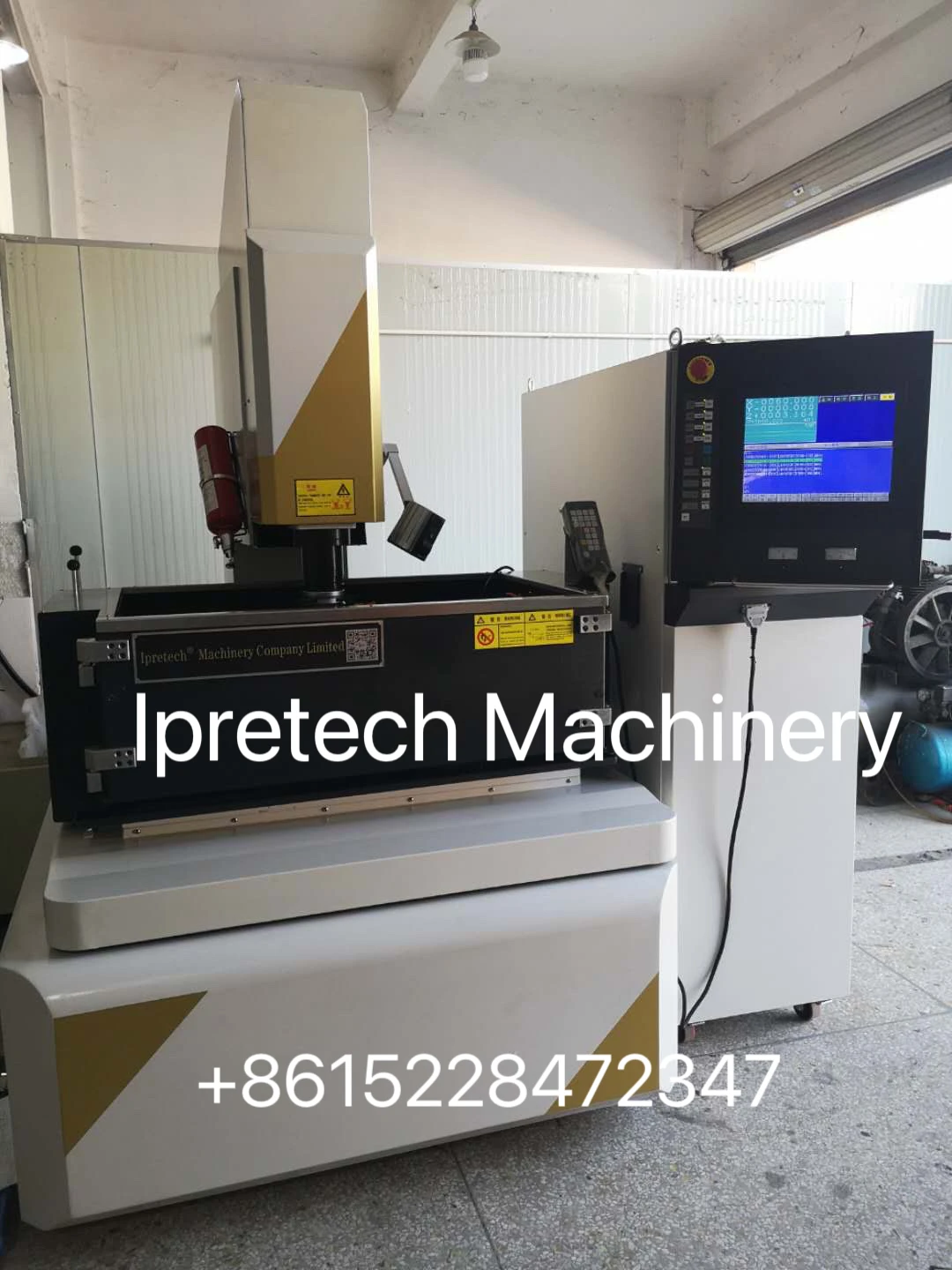

CNC EDM EROSION D450
1.The machine is designed by special CAD software, in good structure and high precision, and has reasonable back-oil groove to insure clean and beautiful machine.
2. Principal axis adopt high precision DC servomotor to insure high quality and long machine life.
3. Principal axis adopt precision screw (made in Taiwan), lubrication adopt spindle box lubricate, without noise, without high temperature, less friction and high precision.
4. X,Y axis adopt high precision repressed bearing working in high precision ball screw,with good rigidity and portability
operation.
5. Can arbitrarily choose the methods of removing scrap iron, sweeping oil or sucking oil, also choose process that the
workpiece is not submerged in oil.
6. It suits to process cavity, hole and special shape parts in copper, plumbago, steel.
2. Principal axis adopt high precision DC servomotor to insure high quality and long machine life.
3. Principal axis adopt precision screw (made in Taiwan), lubrication adopt spindle box lubricate, without noise, without high temperature, less friction and high precision.
4. X,Y axis adopt high precision repressed bearing working in high precision ball screw,with good rigidity and portability
operation.
5. Can arbitrarily choose the methods of removing scrap iron, sweeping oil or sucking oil, also choose process that the
workpiece is not submerged in oil.
6. It suits to process cavity, hole and special shape parts in copper, plumbago, steel.
Packing & Delivery
wooden packing
Company Profile
Ipretech machinery company limited is an integrated research & development, manufacturing, import & export as one of the professional CNC machinery tool enterprises. Mainly engaged in a full ranges production of electric sparking series CNC machine and milling machine, machine center, CNC lathe and so on. Our company all products are independent research and development, design and manufacture by advanced design idea & method, the machine body adopts modularization, solid sealed box type structure, after artificial aging qualified castings and a long time the natural aging, obtain complete and reliable stability, with our company independent research and development of the circuit system and software, has excellent mechanical and electrical matching performance, thus greatly improve the stability of product electrical performance.
Under the leadership of our boss Mr.JiaYi, the company has gained two systems ISO9001:2000 Quality System Certification and ISO14001:1996 Environmental System Certification, And own appearance design patent certificate and utility model patent certificate, science and technology enterprise qualification certificate 16pcs, ALSO ovserve contracts and keep promises etc. qualification and honor. Ipretech machinery have grown up to be one of the Top EDM manufacturer and Exporter in China. Our market covers the United States, Mexico, Brazil, Argentina, Chile, South Korea, Indonesia, Malaysia, Vietnam, India, Pakistan, Russia, Turkey,Egypt, Italy, Poland, the Czech republic, Hungary and the United Kingdom.
Ipretech Machinery business philosophy are keeping R&D, 5S production, Integrity management, Dedicated Service" all the ipretech staff are devoting ourselves into company innovation,production and developing.Ipretech machinery have been worked together with many new high-tech enterprise, several colleges and universites. Such as THU Tsinghua University, Nanjing SouthEast University, Wuhan university of science and technology.
Under the leadership of our boss Mr.JiaYi, the company has gained two systems ISO9001:2000 Quality System Certification and ISO14001:1996 Environmental System Certification, And own appearance design patent certificate and utility model patent certificate, science and technology enterprise qualification certificate 16pcs, ALSO ovserve contracts and keep promises etc. qualification and honor. Ipretech machinery have grown up to be one of the Top EDM manufacturer and Exporter in China. Our market covers the United States, Mexico, Brazil, Argentina, Chile, South Korea, Indonesia, Malaysia, Vietnam, India, Pakistan, Russia, Turkey,Egypt, Italy, Poland, the Czech republic, Hungary and the United Kingdom.
Ipretech Machinery business philosophy are keeping R&D, 5S production, Integrity management, Dedicated Service" all the ipretech staff are devoting ourselves into company innovation,production and developing.Ipretech machinery have been worked together with many new high-tech enterprise, several colleges and universites. Such as THU Tsinghua University, Nanjing SouthEast University, Wuhan university of science and technology.
FAQ
1. who are we?
We are based in Jiangsu, China, start from 2016,sell to Domestic Market(40.00%),North America(20.00%),Western Europe(10.00%),Southeast Asia(10.00%),Eastern Europe(10.00%),South America(5.00%),Southern Europe(5.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
EDM WIRE CUT,EDM Small hole dirll,EDM Erosion die sinking,CNC Milling Machine,Metal engraving machine
4. why should you buy from us not from other suppliers?
Ipretech machinery company limited is an integrated research & development, manufacturing, import & export as one of the professional CNC machinery tool enterprises. Mainly engaged in a full ranges production of all kinds of edm wirecut, drill, die sinking
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Russian
We are based in Jiangsu, China, start from 2016,sell to Domestic Market(40.00%),North America(20.00%),Western Europe(10.00%),Southeast Asia(10.00%),Eastern Europe(10.00%),South America(5.00%),Southern Europe(5.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
EDM WIRE CUT,EDM Small hole dirll,EDM Erosion die sinking,CNC Milling Machine,Metal engraving machine
4. why should you buy from us not from other suppliers?
Ipretech machinery company limited is an integrated research & development, manufacturing, import & export as one of the professional CNC machinery tool enterprises. Mainly engaged in a full ranges production of all kinds of edm wirecut, drill, die sinking
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Russian
