2023 0512 Sk250 Three axis 220/380V Grinding Wheel Size 200*17*31.75/32 grinding machine for metal
- Category: >>>
- Supplier: Yancheng Dafeng Ruihua Machinery Manufacturing Co. Ltd.
Share on (1600838535273):
Product Overview
Description

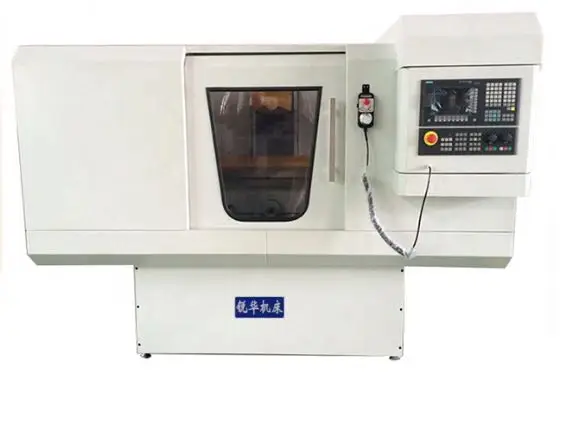

SK250 3-Axis CNC Surface Grinder
1. The machine tool has reasonable structure, good rigidity, beautiful appearance and convenient operation.
2. The machine tool control system adopts Guangzhou CNC three-axis system, three-axis ball screw servo drive, front and rear transmission adopts direct connection, electronic oil pump, equipped with three-axis hand pulse, to ensure accuracy, precise positioning, automatic feeding according to the program, and automatic , And fast forward and rewind function. High degree of automation.
grinding machine for metal
技术规格 | Technical specifications | Unit | SK250 | |
工作台台面尺寸 (长×宽) | Table size (length×width) | mm | 500*250 | |
工作台T型槽 | Workbench T-slot | mm×n | 14×1 | |
磨削工件最大尺寸(长×宽) | Maximum size of grinding workpiece (L×W) | mm | 500x250 | |
工作台纵向最大行程 | Maximum longitudinal stroke of worktable | mm | 550 | |
工作台横向最大行程 | Maximum horizontal stroke of worktable | mm | 280 | |
工作台面至主轴中心最大距离 | Maximum distance from table surface to spindle center | mm | 470 | |
工作台滑道 | Workbench slide | 一V一Flat rail | ||
工作台最大承受量(不包括吸盘) | Maximum capacity of worktable (not including suction cup) | Kg | 300 | |
砂轮尺寸 (外径×宽度×内径 ) | Grinding wheel size | mm | 200x17x31.75/32 | |
主轴电机 | Spindle motor | Kw | 1.5 | |
主轴转速 | Spindle speed | r/min | 3600 | |
进给量 | Feed rate | Mm/格 | 0.1-0.005 | |
永磁吸盘规格 | Permanent magnet chuck specifications | mm | 450*150 | |
机床外形尺寸(长×宽×高) | Machine size (length×width×height) | mm | 2500x1500x1800 | |
毛重、净重 | Gross weight, net weight | KG | 1100/1200 |
Main products
Company Profile
ABOUT US
Sharing the concept of "the creation, the innovation, and sharing co-prosperity", RuiHua pursuits the target of "first- class enterprise, first-class products, first-class service, first- class efficiency" , making efforts to create greater value for the customers.
Yancheng Dafeng RuiHua Machinery Manufacturing Co.,ltd is a high-tech enterprises, engaged in surface grinding manchine researching and development, production, sales and service. Covering an area of 10000 square meters.
RuiHua has been focused on surface grinding manchine for 17 years.
Our customers are very satisfied with the products.Most of the products are exported to Middle East,Middle Asia,and the European.We are one of the best suppliers on ALIBABA.COM.We have the bestproducts,and we take custom orders.https://ruihuamachine.en.alibaba.com/
Certifications
Q: Are you trading company or manufacturer ?
A: We are factory.
A: We are factory.
Q: This is the first time I use this kind of machine, is it easyto operate?
A: There is English manual that show you how to use machine. If you still have any question,please contact us by
e-mail/trademanager online service.
A: There is English manual that show you how to use machine. If you still have any question,please contact us by
e-mail/trademanager online service.
Q: How to install?
A: We adjusted machines well before we deliver. When customers receive them, you can work with them directly.
A: We adjusted machines well before we deliver. When customers receive them, you can work with them directly.
Q: How to ensure the safety?
A:Here have the overload and over heat protection, it ensure working people safety.
A:Here have the overload and over heat protection, it ensure working people safety.
