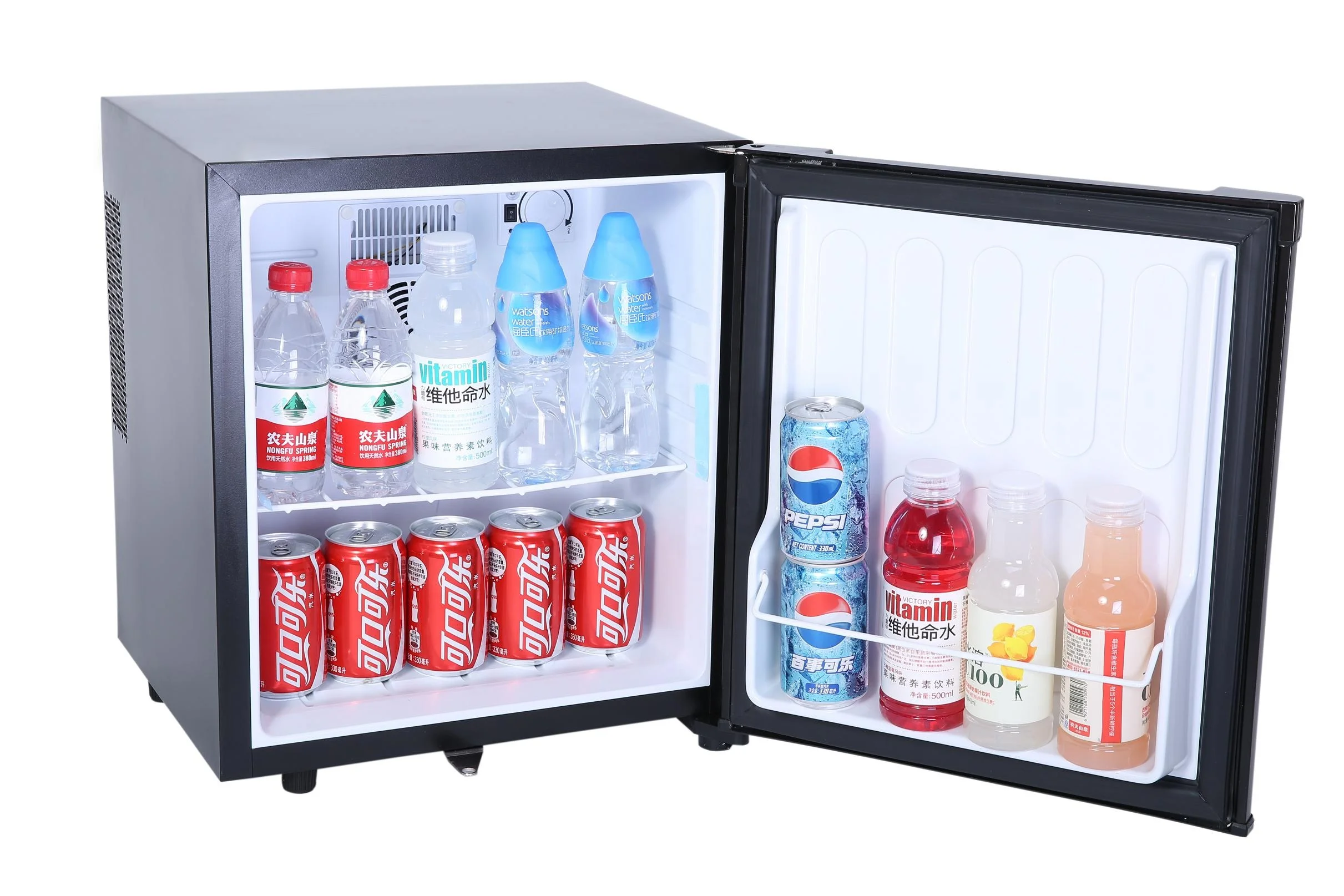

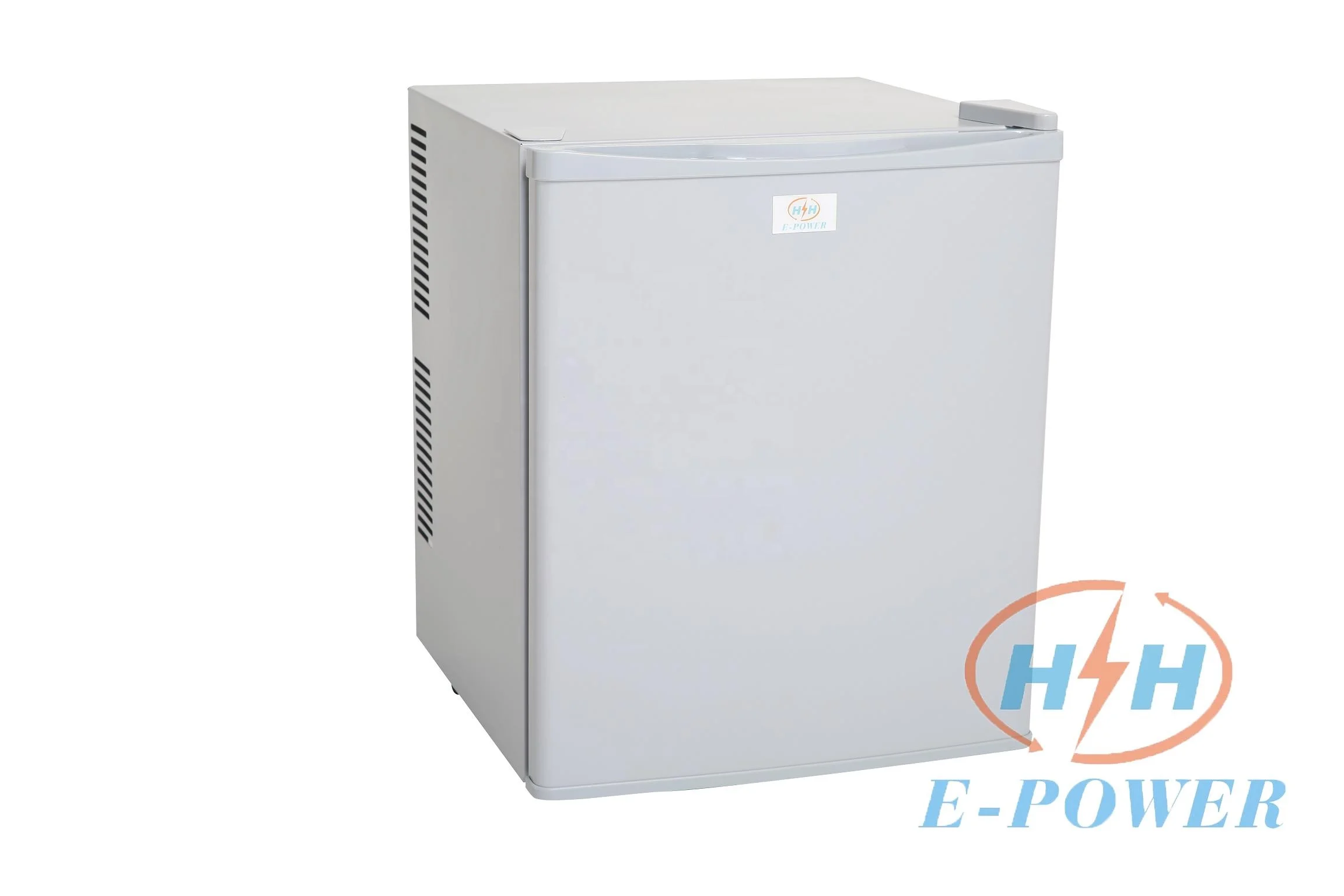

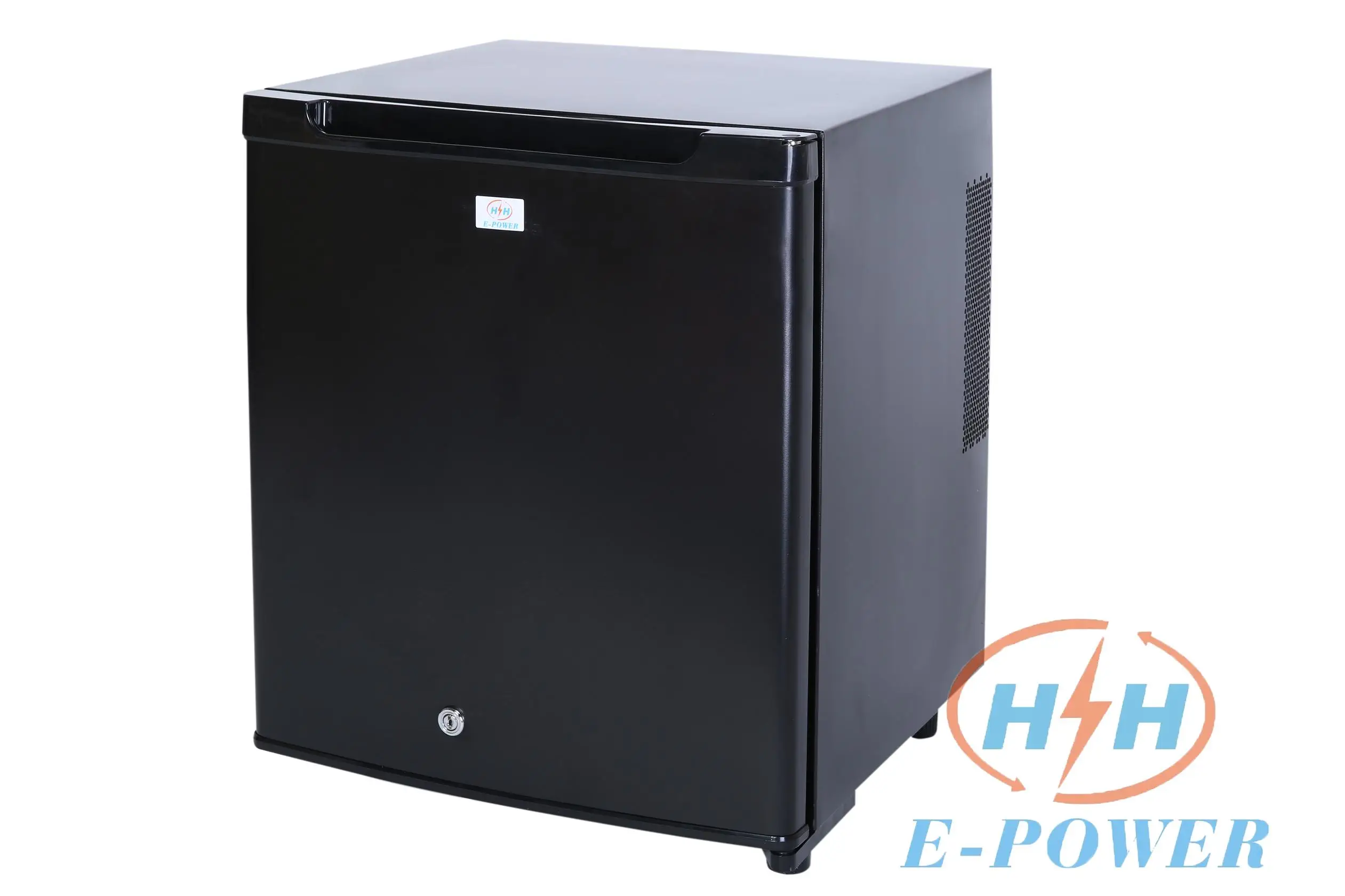

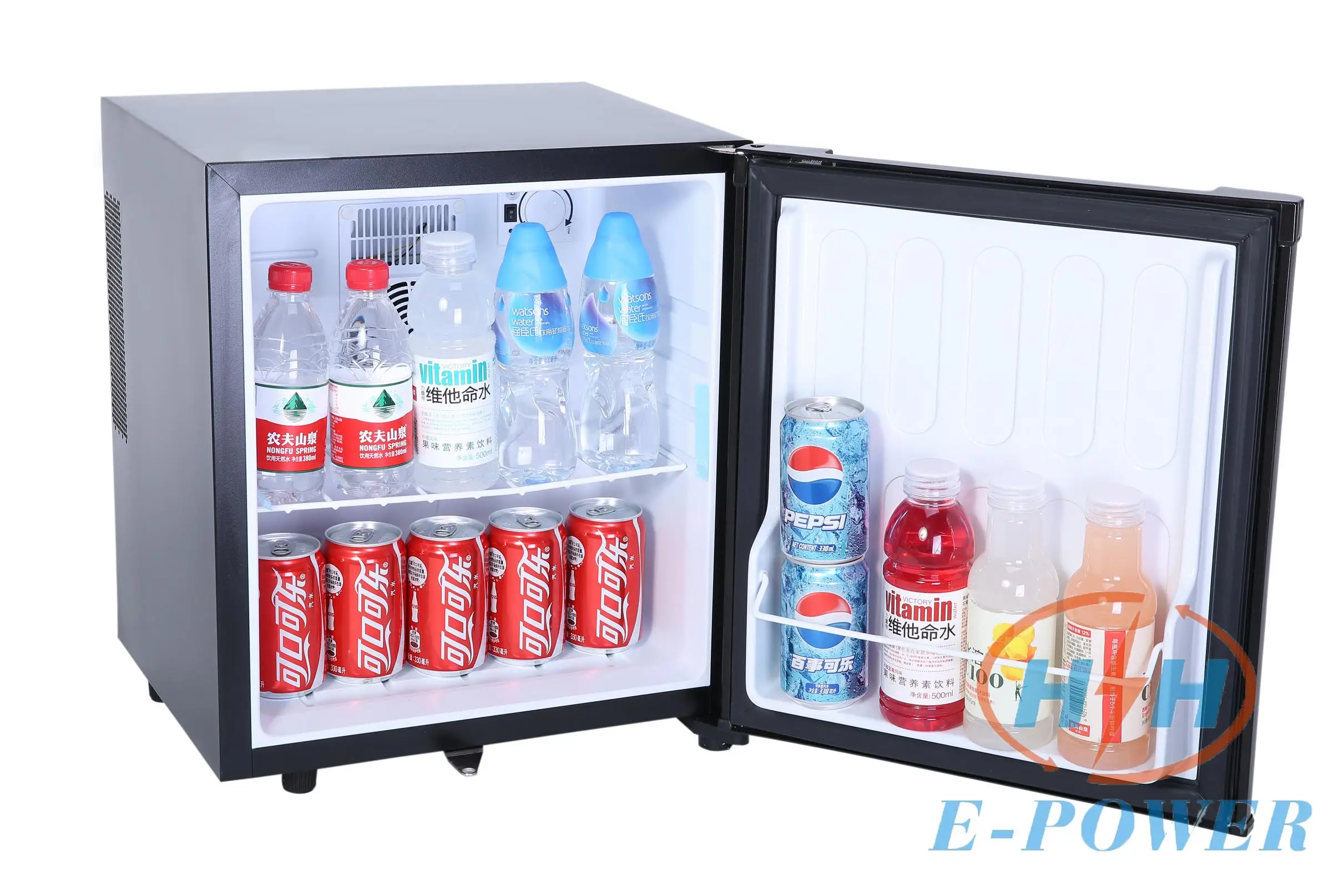

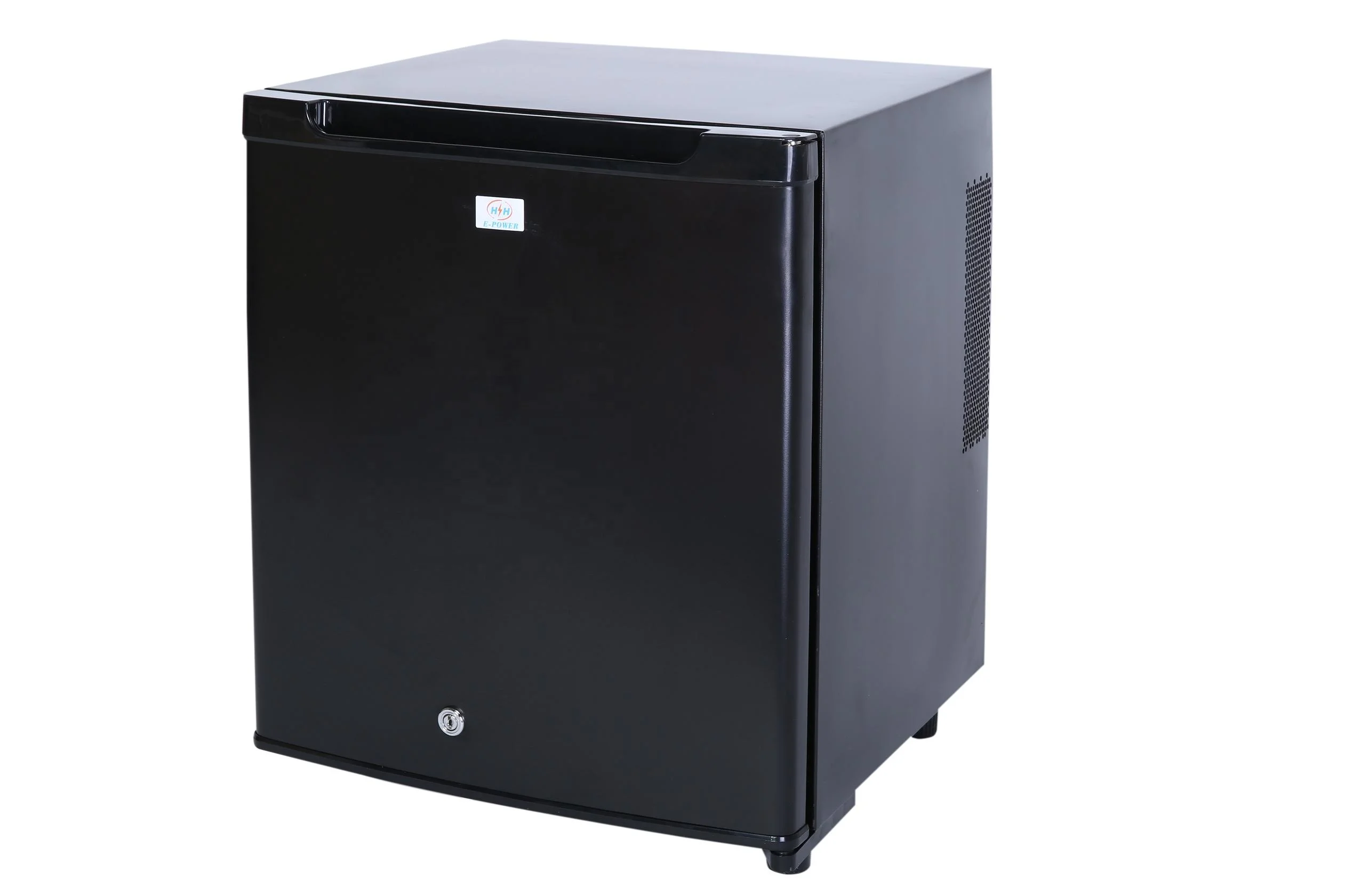

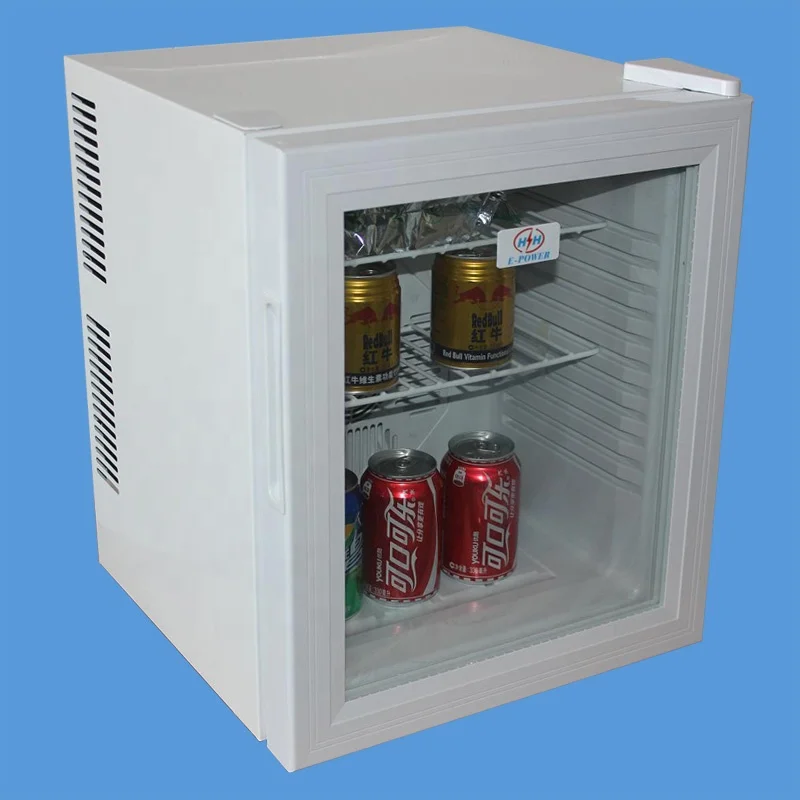

Thermoelectric minibar fridge solid door 30L for hotel room

Product Overview

Description



⟨1⟩Photo
⟨2⟩Cooling system	Thermoelectric/Semi conductor
⟨3⟩HS CODE	8418291000
⟨4⟩Model	BC-30FB
⟨5⟩Capacity	30Liters
⟨6⟩Working voltage	110~250V
⟨7⟩Temperature range	Soild door:3~11℃(at 25℃)

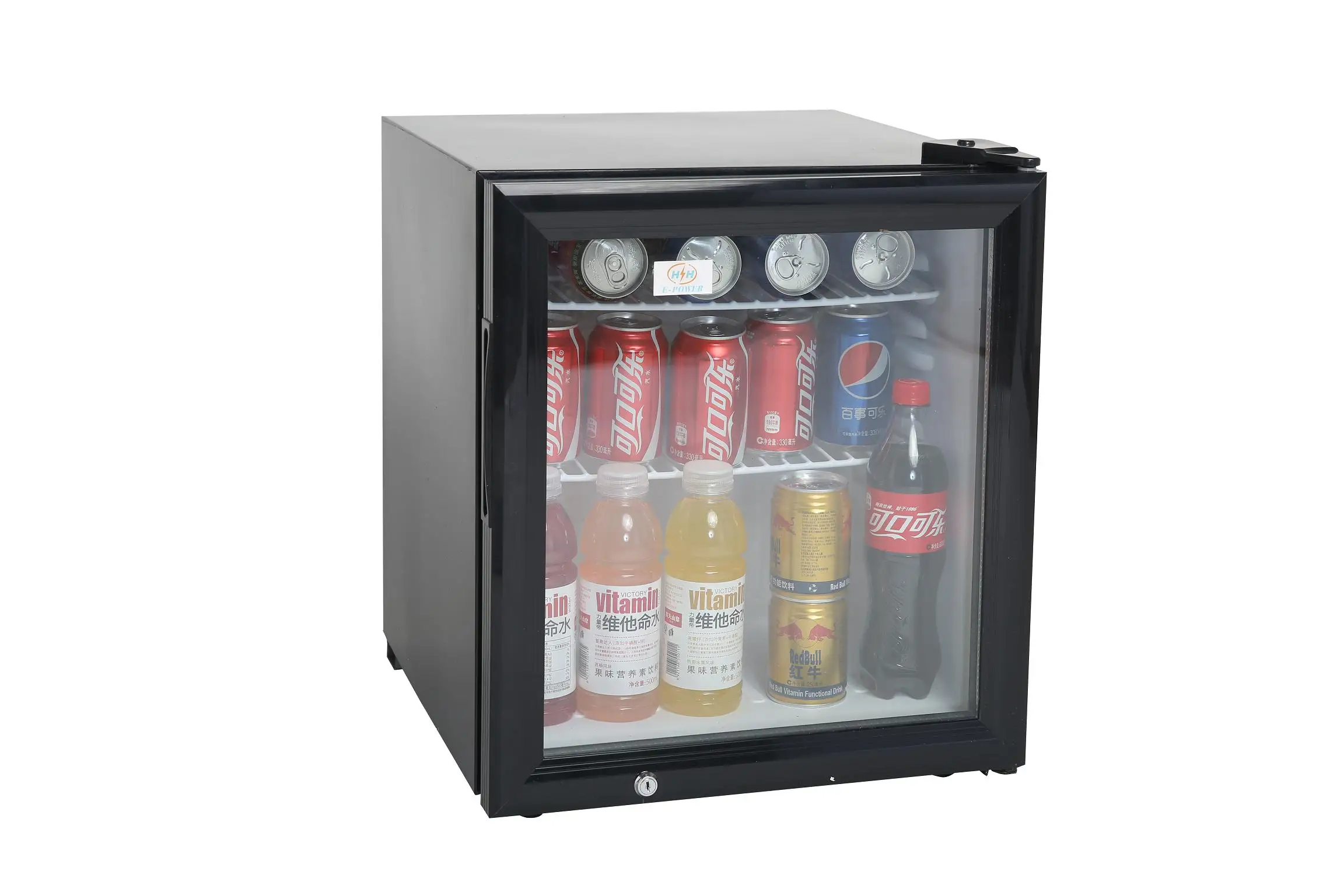

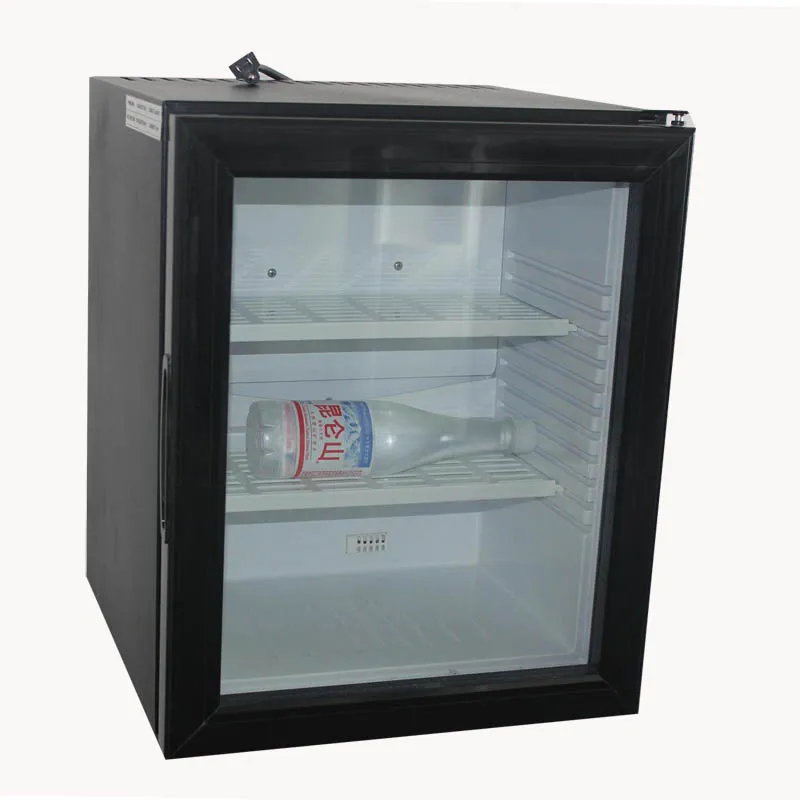

	Glass door:8~15℃(at 25℃)
⟨8⟩Power	50W
⟨9⟩Weight	Net/Gross=8.5/10Kg
⟨10⟩Product size	(W*D*H) 420*400*485mm
⟨11⟩Package size	(W*D*H) 482*449*546mm









1,About Thermoelectric system minibar(Principles)

  The thermoelectric cooling system,also called Petter Effect,It's a solid state method of heating transfer through dissimillar(P shape and N shape) semiconductor materials.

  The completes system includer a semi-conductor module(P&N shape semi-conductors clamped with two ceramic chips), an internal and an external heat exchanger,to obtain higher energy efficiency,low-speed and noise fans are fitted with heat exchangers.

  During operation,direct current goes through the semiconductor module which causes heat to be transferred from inside to outside,the heat is removed from an insufated which results in an ideal cooling compartment.

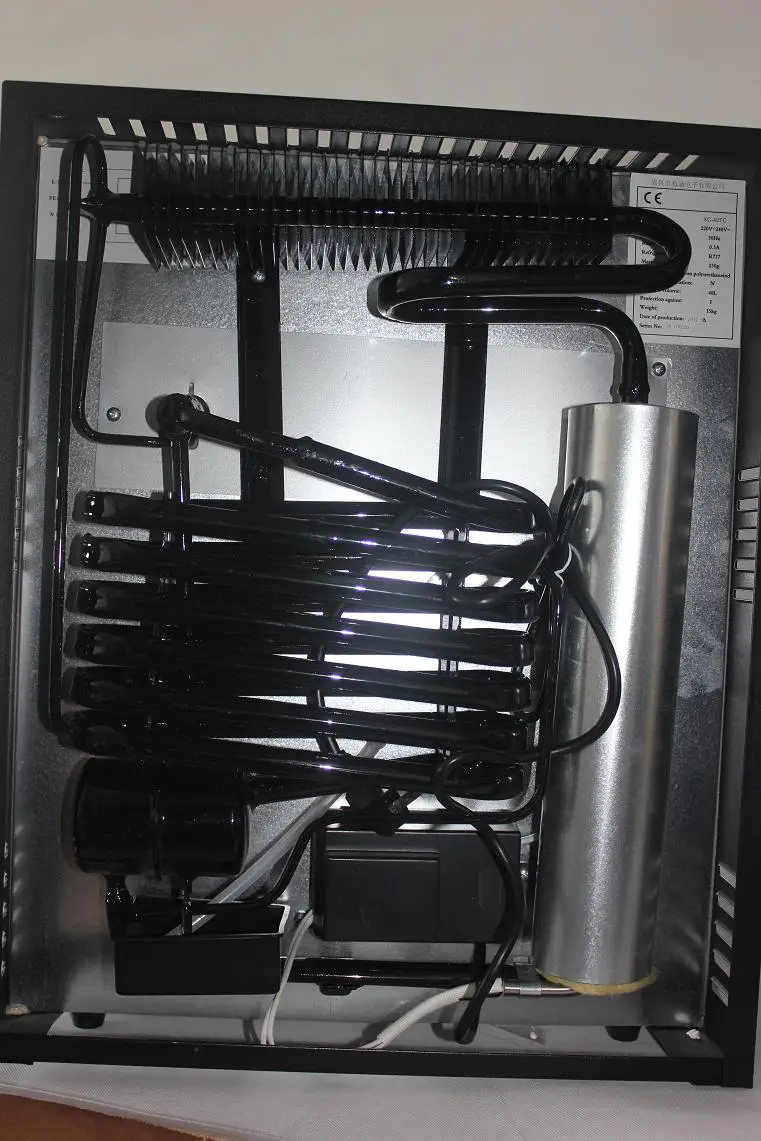

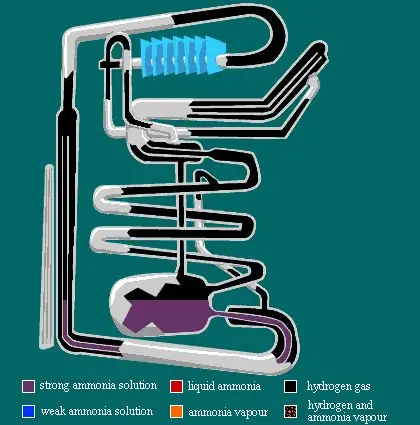

2,About absorption system minibar



2.1:Heat is applied boiling ammonia/water mixture

2.2: Water and weak ammonia is here running to absorber coils

2.3:Rectifier this condenses water from the vapor-leaving pure ammonia vapor to rise

2.4:Ammonia vapor is condensed to liquid the more liquid ammonia made,the better.

2.5:The ammonia liquid flows to the inside evaporator,where hydrogen lowers the pressure,evaporatiing the ammonia removing heat

2.6:the ammonia liaquid continues to evaporate,this is the fresh food evaporater.

2.7:Absorption coils weak water/ammonia solution from the boiler side is run through these,absorbing the ammonia out of the hyderogen,leaving the hydorogen free to rise to the lop.

2.8:Leveling chamber strong ammonia solution ready fro boiling and starting the cycle over again.







 3,About Compressor cooling minibar

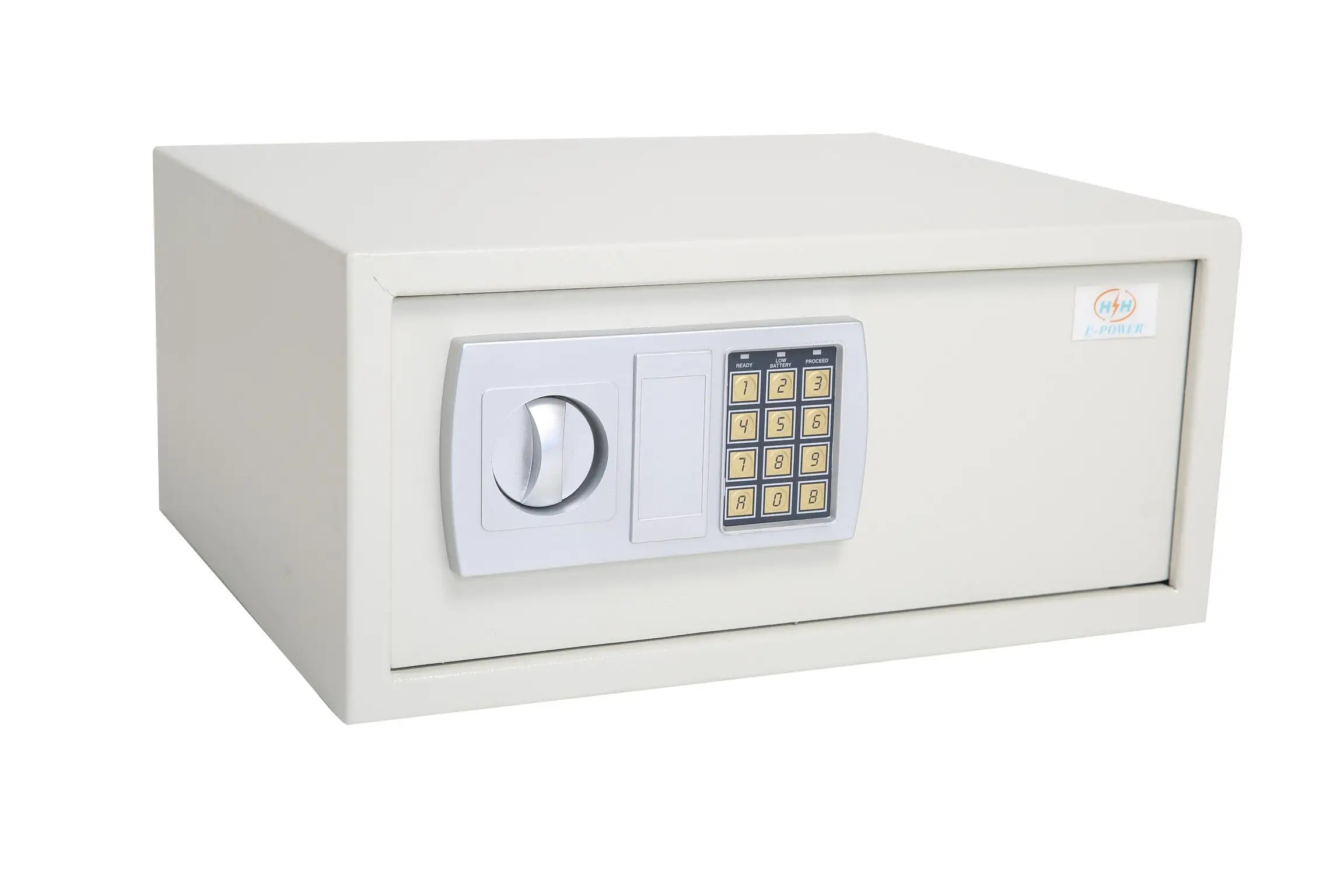

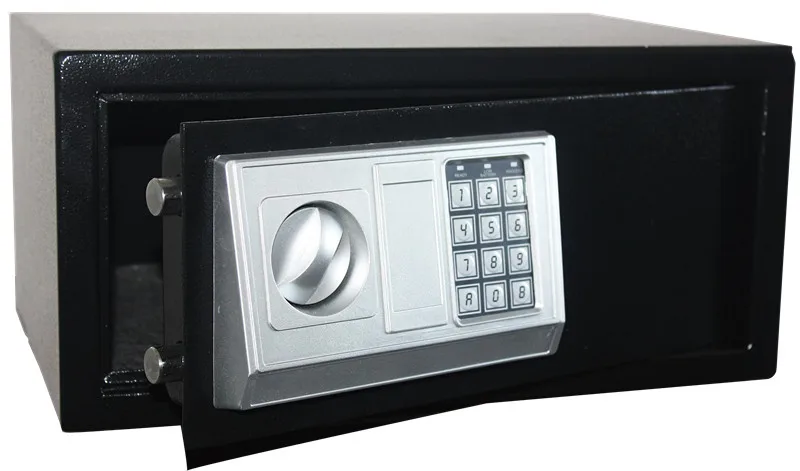

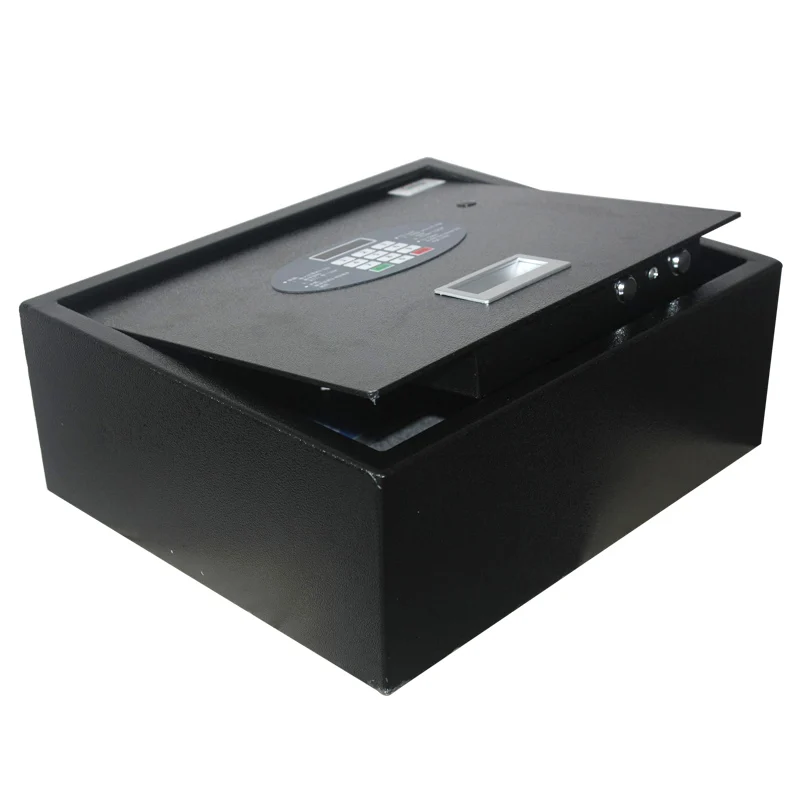

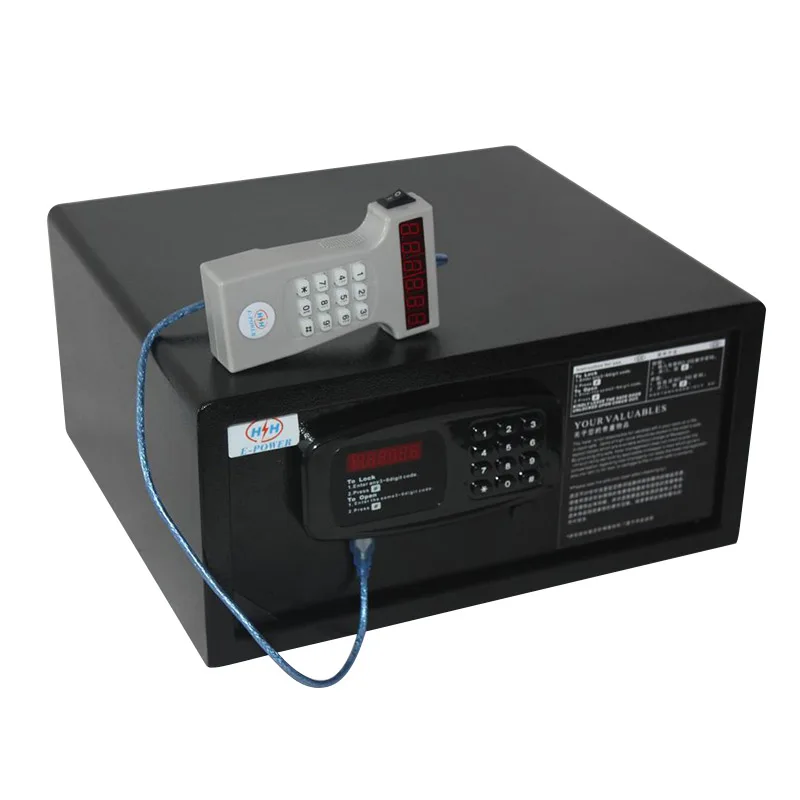

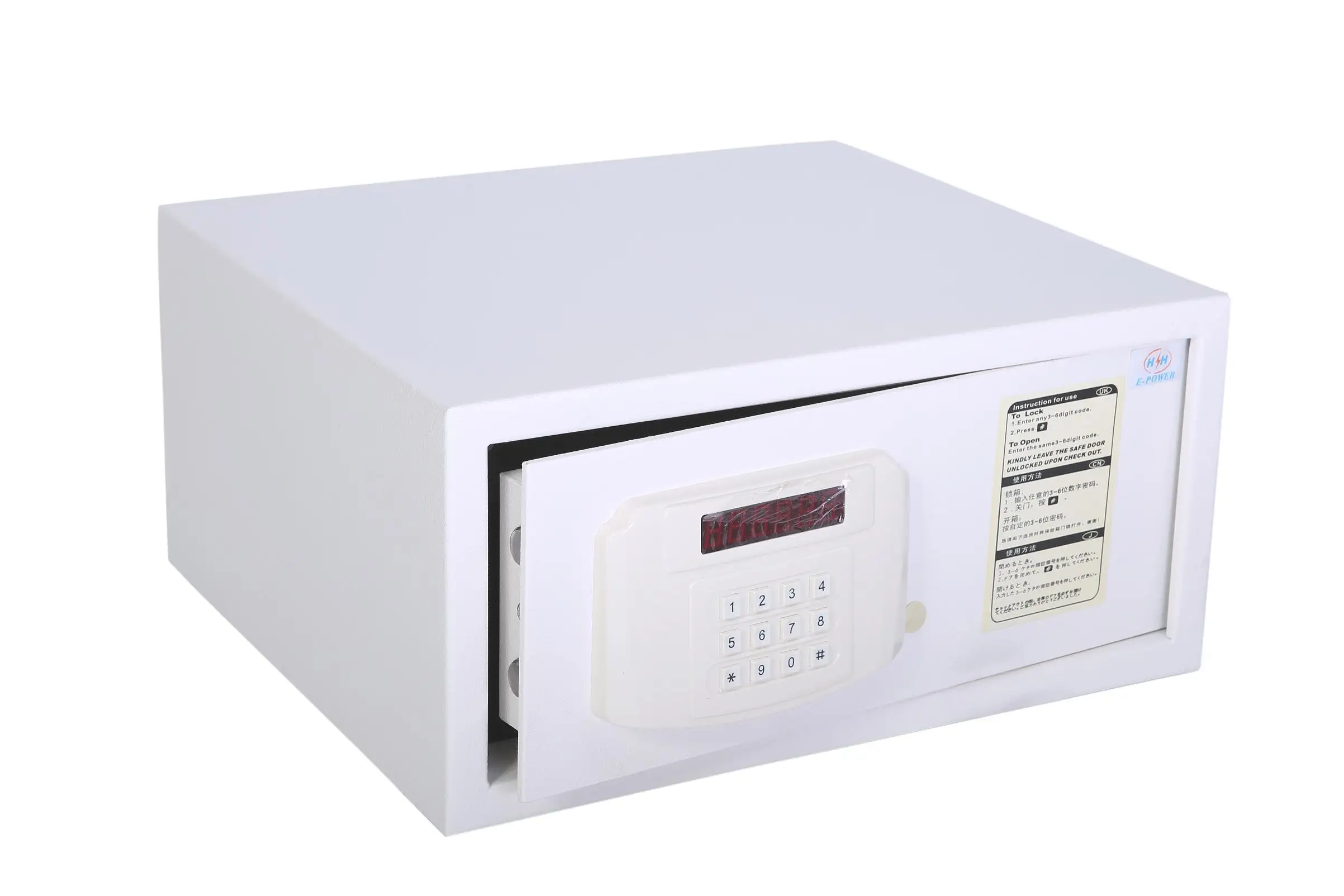

4,Safe case for hotel guest room

4.1,Security alerts.

Make it installed before the use of safe

Please modify personal codes and master codes

Don’t put mechanical emergency key in the safe

4.2,Main feature.

Usage: deposit laptop and other valuables

Operation :Micro-motor engine,with code operation

Manage:open&close with 3-6 digit personal codes or (and) 6 digit master codes.

Safety: wrongly input code by 4 times, hold on 5 minutes.

4.3,Open and close with code.

    1,close by personal code

Input any 3 ~6 digit code then press the “#” key, “ CLOSED” display , the safe is closed.

    2,open by personal code

Input your 3~6 digit code then “OPENED” display, the safe is opened.

    3,open by master code

Press “#” twice, “ SUPER” display , then input Master code  (factory Master code is ”000000”) , “OPENED” display , the safe is opened.



4.4,Change master code.

Make sure that the safe is opened , and the operation is as follows:

Press "#” twice quickly ,show “PROG”,enter the original master password(factory master code is”000000”),press “#” key,show “CODE” ,input 6 new master password,press “#”,”DONE” , next “new code” finally “GOOD” display, shows it is successful .

4.5,Change personal code.

       Input new 3-6 bits personal code.

      Press “#” , “CLOSE”display , the door is closed.

Attention:

1, Press “♥” to cancel when code is wrong.

2,When code is wrongly input, “E-CODE”display , issued a warning buzzer sounds can be re-operation at this time.

3,wrongly input code by 3 times, “HOLD-5”display ,the safe will be locked for 5 minutes.

4,Master code is forgotten, please press reset switch on the circuit board to restore factory master code (000000).

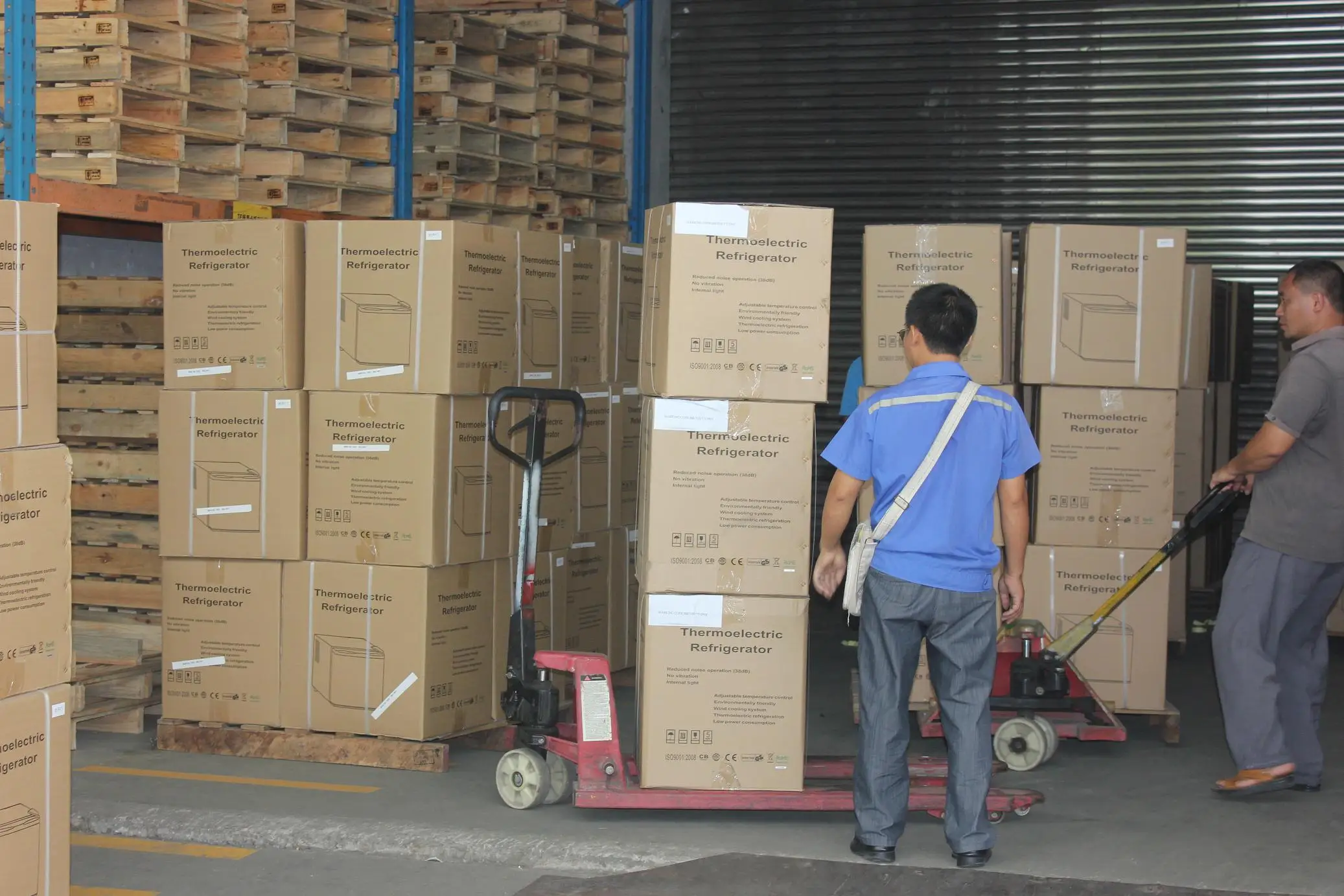

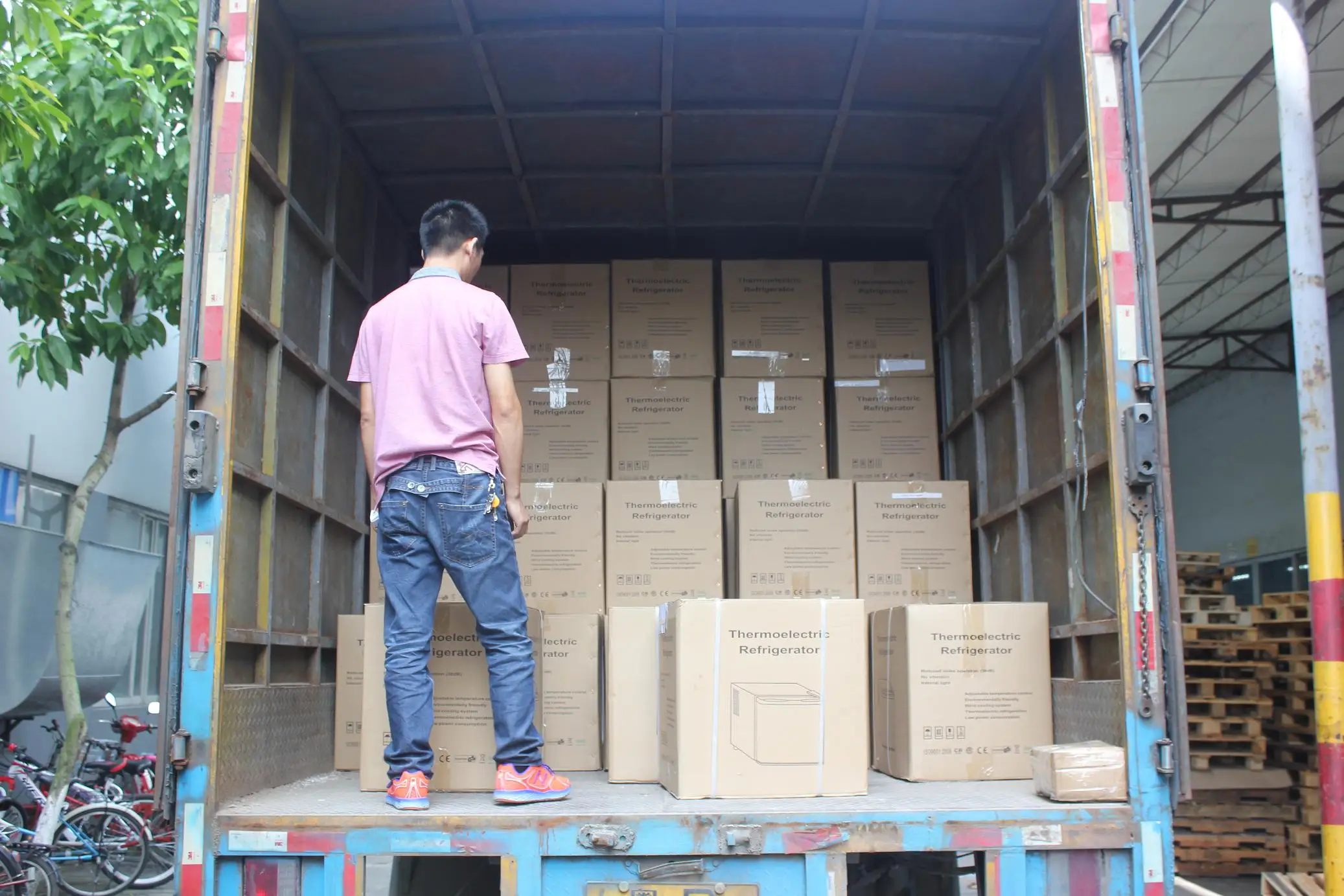

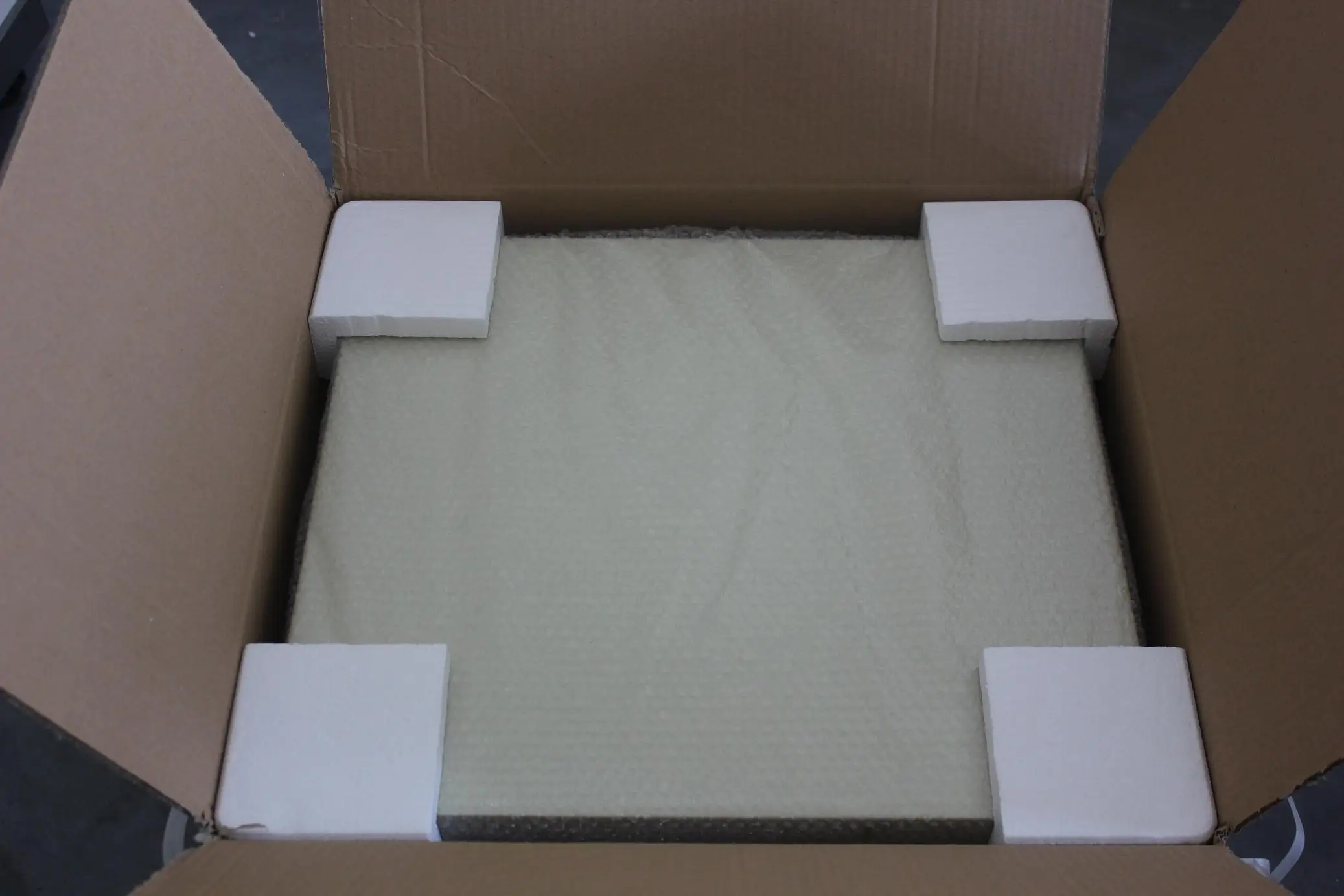

5,Shipment and Delivery







6,Contact us

   6,1  Tel phone:0086 573-82221252

   6,2 Mob/Wehcat:0086 13586445076

   5,3 Skype:andychen369

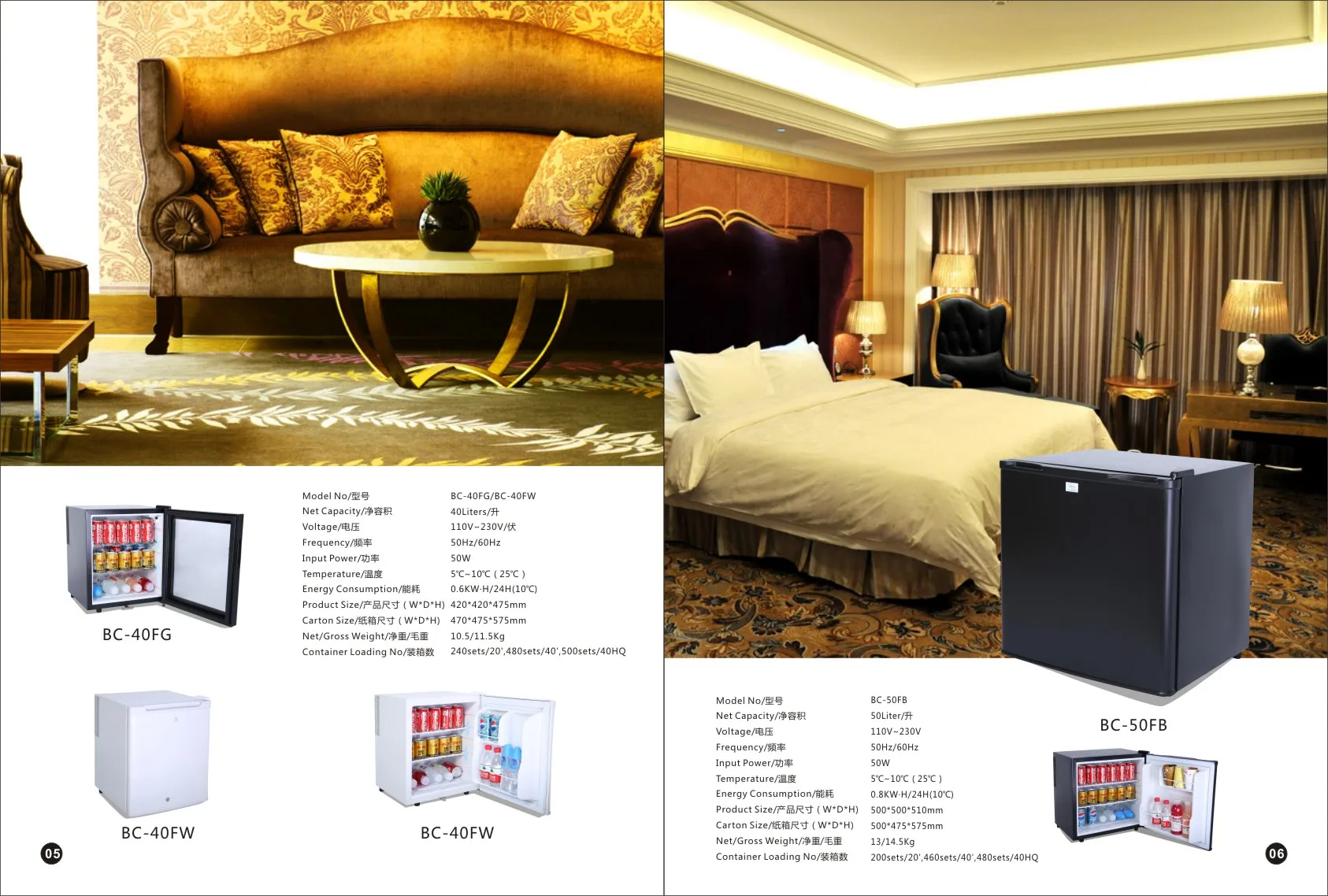

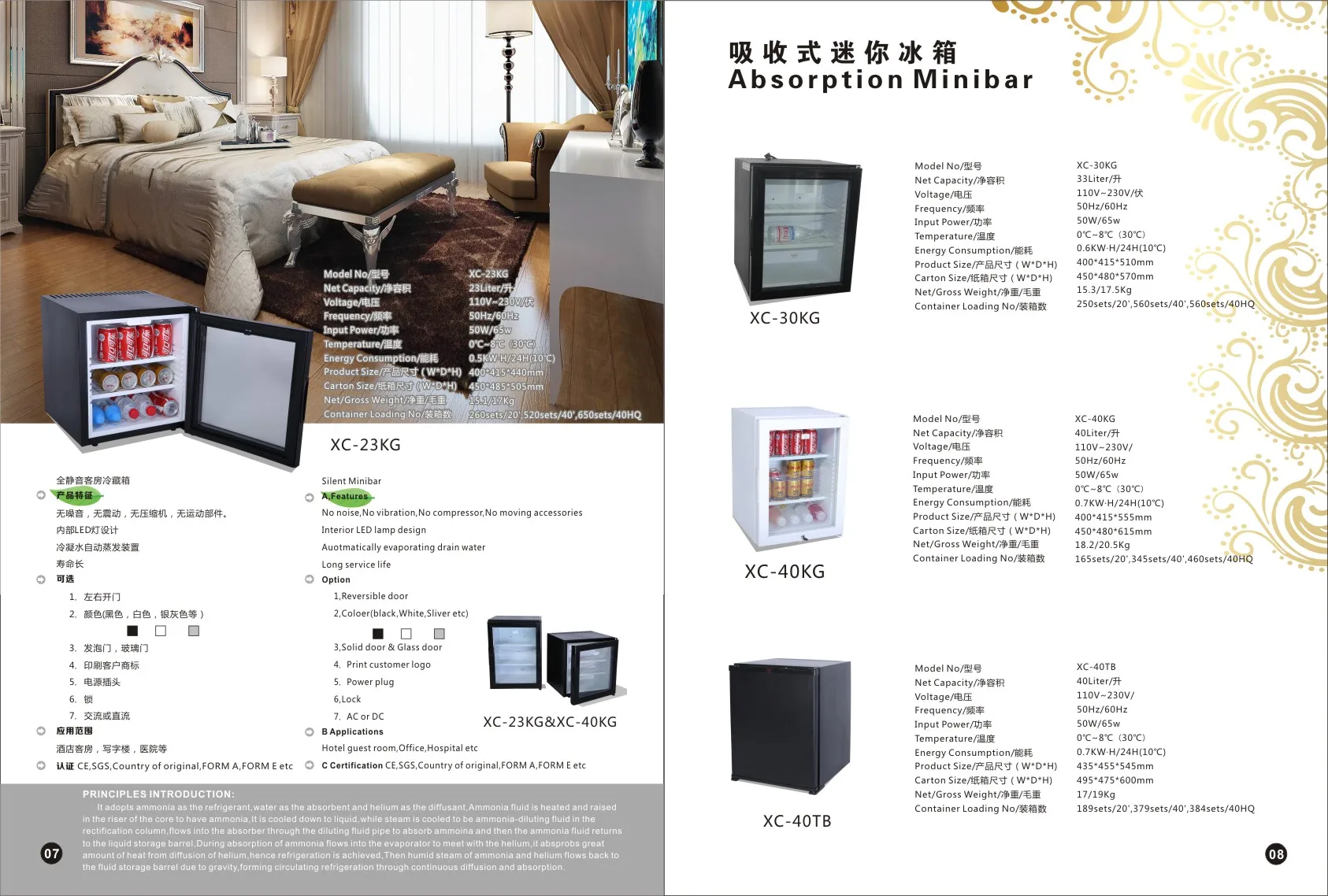

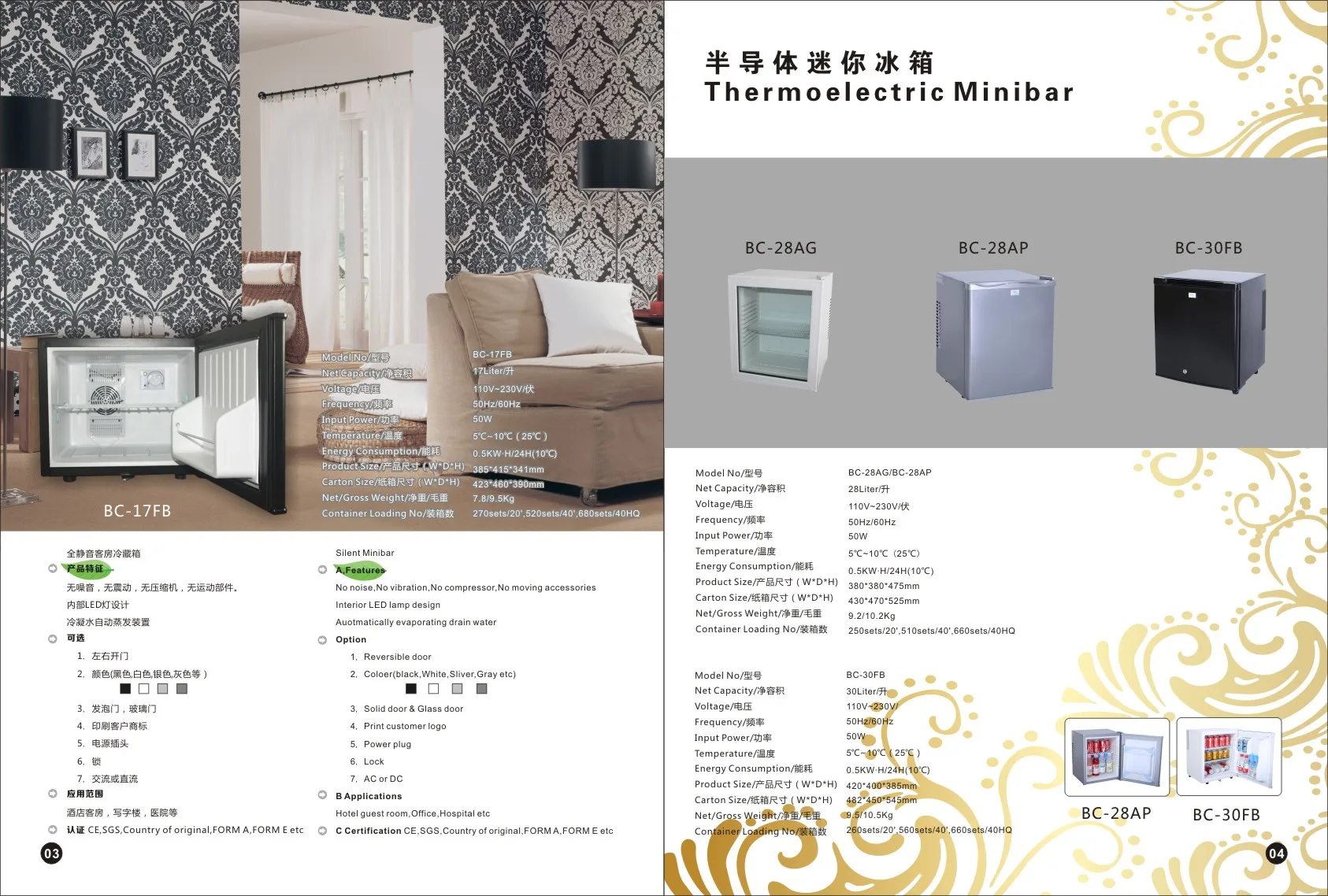

7,Catalog show
