NJ424 NJ1004EM NJ1005EM NJ1026 NJ2205 NJ2311 RN206M F 554377 Import Cylindrical Roller Bearings
- Category: >>>
- Supplier: Zaozhuang Yiding Bearing Co. Ltd.
Share on (1600838624752):
Product Overview
Description

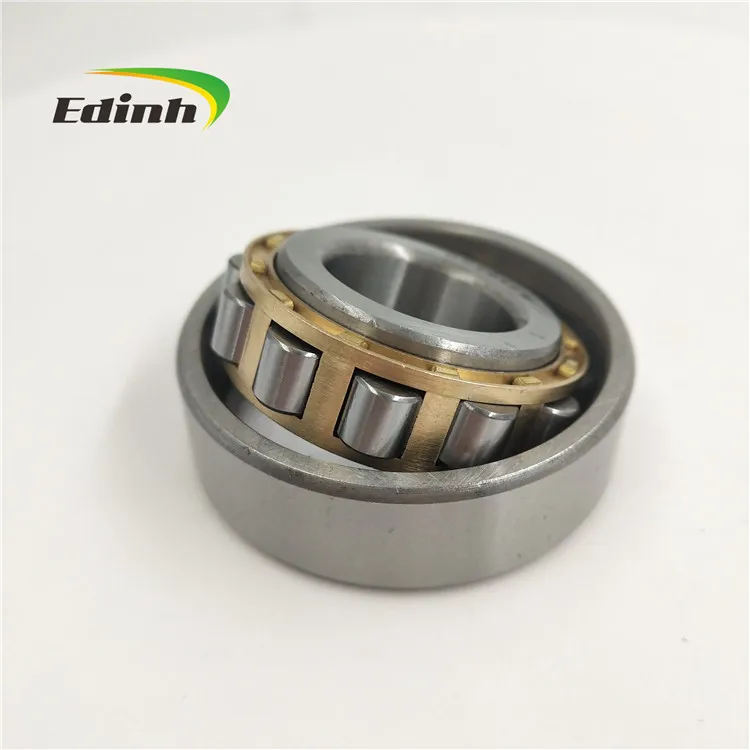

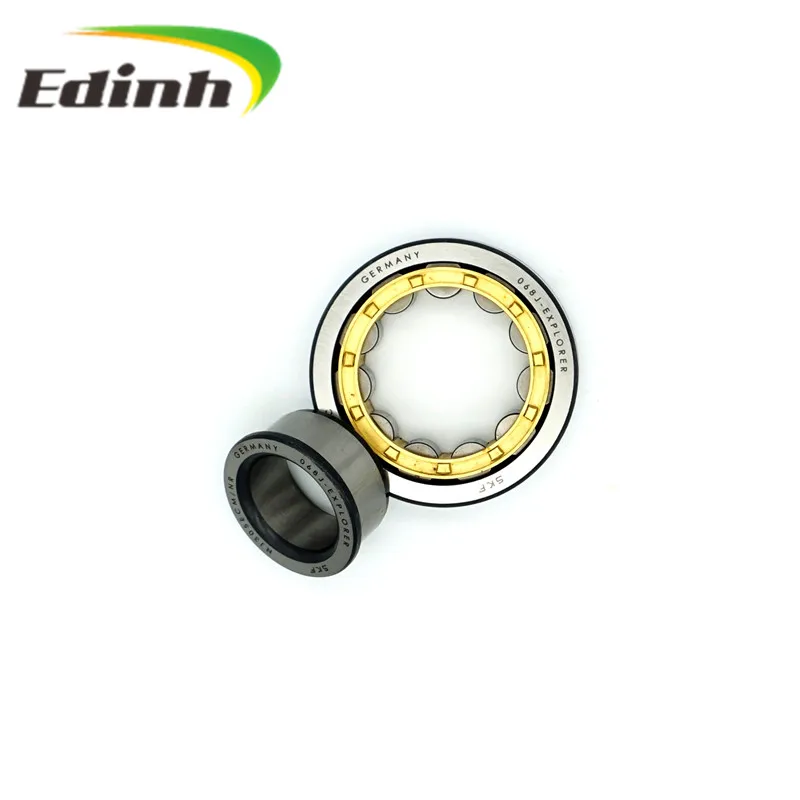

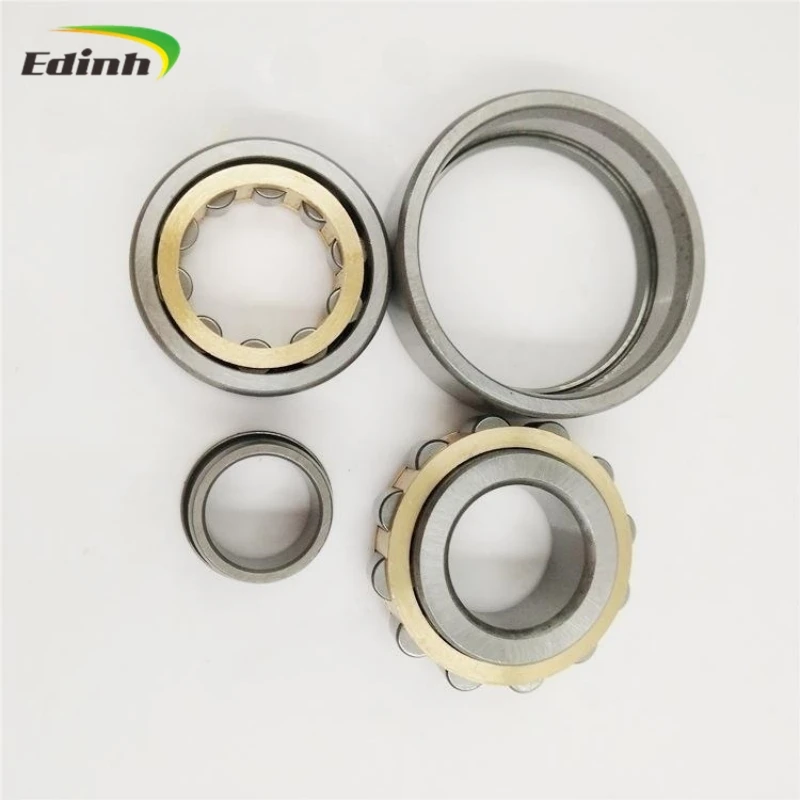

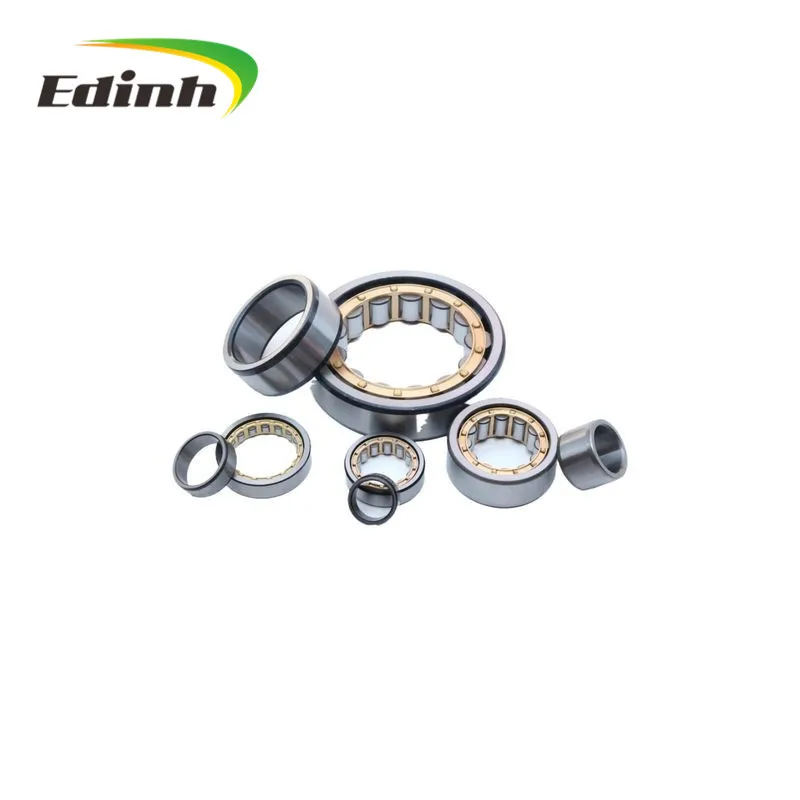

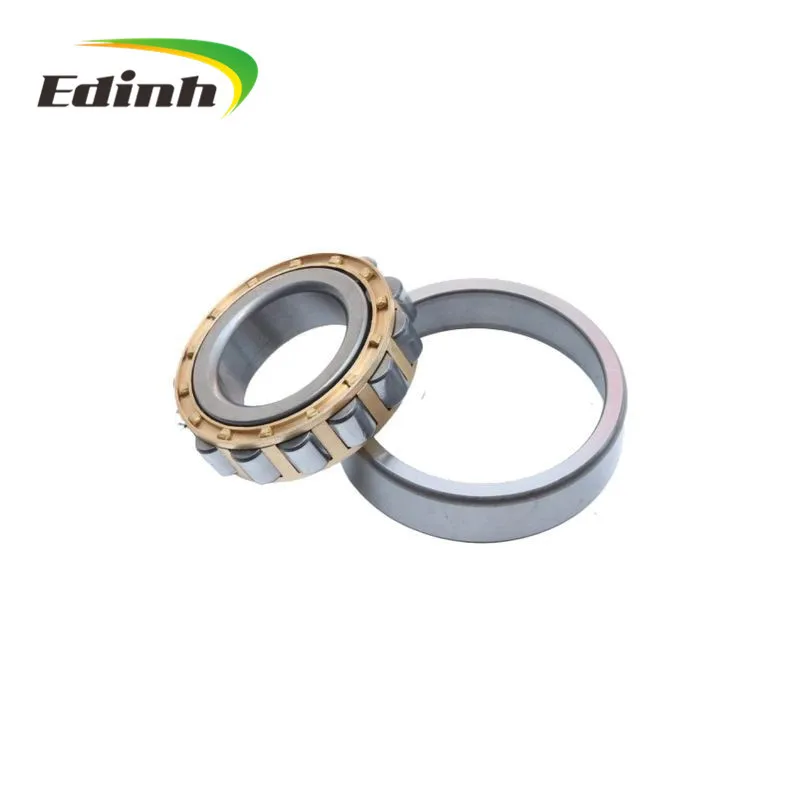

NJ424 NJ1004EM NJ1005EM NJ1026 NJ2205 NJ2207EM NJ2311 RN206M F-554377 Import Cylindrical Roller Bearings
Product Description
Product Name | Cylindrical Roller Bearing |
Material | Chrome Steel GCr15 |
Ball Bearings Feature | 1 Long life span 2 High rotating speed&Low noise |
Bearing Package | Pallet,wooden case,commercial packaging or as customers' requirement. |
Service | OEM Customized Service Provided |
Sample Policy | Sample Charge Free, Courier Charge Required |
Lead Time | 3 - 5 Days for In-stock Products, Others need be Negotiated |
Application | Household appliances, power tools, small motor, medical equipment, office equipment, sports equipment, electronic equipment, etc. |
Cylindrical Roller Bearing Features :
1. The roller and raceway for the line contact or offline contact, radial bearing capacity big, apply to under heavy load and
impact load.
2. The friction coefficient is small, suitable for high speed, the limit speed close to the deep groove ball bearings.
3. The N type and NU type axial movement, can adapt to shaft caused by thermal expansion or installation error and shell the change of relative position, can be used for free end bearing.
4. On the shaft or hole of the processing and the demand is higher, bearing outer axis relative deflection after installation to be kept under strict control, so as not to cause contact stress concentration.
5. The inner ring or outer ring separable, easy to install and disassemble.
1. The roller and raceway for the line contact or offline contact, radial bearing capacity big, apply to under heavy load and
impact load.
2. The friction coefficient is small, suitable for high speed, the limit speed close to the deep groove ball bearings.
3. The N type and NU type axial movement, can adapt to shaft caused by thermal expansion or installation error and shell the change of relative position, can be used for free end bearing.
4. On the shaft or hole of the processing and the demand is higher, bearing outer axis relative deflection after installation to be kept under strict control, so as not to cause contact stress concentration.
5. The inner ring or outer ring separable, easy to install and disassemble.
size information
Bearings No. | Specification | Weight | ||||
d mm | D mm | B mm | kg | |||
NJ426M | 80 | 200 | 48 | 8.56 | ||
NJ428M | 140 | 350 | 82 | 48.74 | ||
NJ2203EM | 17 | 40 | 16 | 0.09 | ||
NJ2204EM | 20 | 47 | 18 | 0.149 | ||
NJ2205EM | 25 | 52 | 18 | 0.17 | ||
NJ2206EM | 30 | 62 | 20 | 0.329 | ||
NJ2207EM | 35 | 72 | 23 | 0.45 | ||
NJ2208EM | 40 | 80 | 23 | 0.429 | ||
NJ2209EM | 45 | 85 | 23 | 0.671 | ||
NJ2210EM | 50 | 9o | 23 | 0.65 | ||
NJ2211EM | 55 | 100 | 25 | 0.773 | ||
NJ2212EM | 60 | 110 | 28 | 1.27 | ||
NJ2213EM | 65 | 120 | 31 | 1.45 | ||
NJ2214EM | 70 | 125 | 31 | 1.7 | ||
NJ2215EM | 75 | 130 | 31 | 1.8 | ||
NJ2216EM | 80 | 140 | 33 | 2.36 | ||
NJ2217EM | 85 | 150 | 36 | 2.8 | ||
NJ2218EM | 85 | 150 | 36 | 2.8 | ||
NJ2219EM | 95 | 170 | 43 | 4.94 | ||
NJ222OEM | 100 | 180 | 46 | 5.99 | ||
NJ2222EM | 110 | 200 | 53 | 7.5 | ||
NJ2224EM | 120 | 215 | 58 | 9.55 | ||
NJ2226EM | 130 | 230 | 64 | 11.9 | ||
NJ2228EM | 140 | 250 | 68 | 15 | ||
NJ2230EM | 150 | 270 | 73 | 18.1 | ||
NJ2232EM | 160 | 290 | 80 | 24.7 | ||
NJ2234EM | 220 | 400 | 108 | 63.5 | ||
NJ2236EM | 180 | 320 | 86 | 31 | ||
NJ2238EM | 190 | 340 | 92 | 38.5 | ||
NJ2304EM | 20 | 52 | 21 | 0.216 | ||
NJ2305EM | 25 | 62 | 24 | 0.404 | ||
NJ2306EM | 30 | 72 | 27 | 0.6 | ||
NJ2307EM | 35 | 8o | 31 | 0.88 | ||
NJ2308EM | 40 | 90 | 33 | 1.1 | ||
NJ2309EM | 45 | 100 | 36 | 1.49 | ||
NJ2310EM | 50 | 110 | 40 | 1.85 | ||
NJ2311EM | 55 | 120 | 43 | 2.83 | ||
NJ2312EM | 60 | 130 | 46 | 3.39 | ||
NJ2313EM | 65 | 140 | 48 | 3.69 | ||
NJ2314EM | 70 | 150 | 51 | 4.62 | ||
NJ2315EM | 75 | 160 | 55 | 6.33 | ||
NJ2316EM | 80 | 170 | 58 | 6.94 | ||
NJ2317EM | 85 | 180 | 60 | 7.92 | ||
NJ2318EM | 90 | 190 | 64 | 9.55 | ||
NJ2319EM | 95 | 200 | 67 | 11 | ||
NJ2320EM | 100 | 215 | 73 | 14.3 | ||
NJ2322EM | 110 | 240 | 80 | 19.2 | ||
NJ2324EM | 120 | 260 | 86 | 24.3 | ||
NJ2326EM | 130 | 280 | 93 | 31.2 | ||
NJ2328EM | 140 | 300 | 102 | 37 | ||
NJ2330EM | 150 | 320 | 108 | 46.3 | ||
RN203M | 17 | 33.9 | 12 | 0.055 | ||
RN204M | 20 | 40 | 14 | 0.078 | ||
RN205M | 25 | 45 | 15 | 0.085 | ||
Our Services
Samples | OK |
OEM | OK |
Certifications
Packing & Shipping
package | 1)Neutral package + carton package 2)Carton package + pallet 3)Wood package + pallet |
Delivery Time | 1-3 days after order |
Shipping | by air to door address / by sea to sea port |
Company Information
FAQ
Q:Are you factory or trading company?
A:We are factory.
Q:Where is your factory located in?
A:Shandong
Q:Could I get samples before order?
A:Yes,sure,we can send you samples,let you check quality first.
Q:What is your MOQ?
A:1 Pcs
Q:What is your delivery time?
A:For small quantity we have in the stock,large quantity need 10-15 days.
Q:What is your payment terms?
A:Western Union,TT,Paypal.
Q:Do you supply OEM?
A:Sure
A:We are factory.
Q:Where is your factory located in?
A:Shandong
Q:Could I get samples before order?
A:Yes,sure,we can send you samples,let you check quality first.
Q:What is your MOQ?
A:1 Pcs
Q:What is your delivery time?
A:For small quantity we have in the stock,large quantity need 10-15 days.
Q:What is your payment terms?
A:Western Union,TT,Paypal.
Q:Do you supply OEM?
A:Sure
