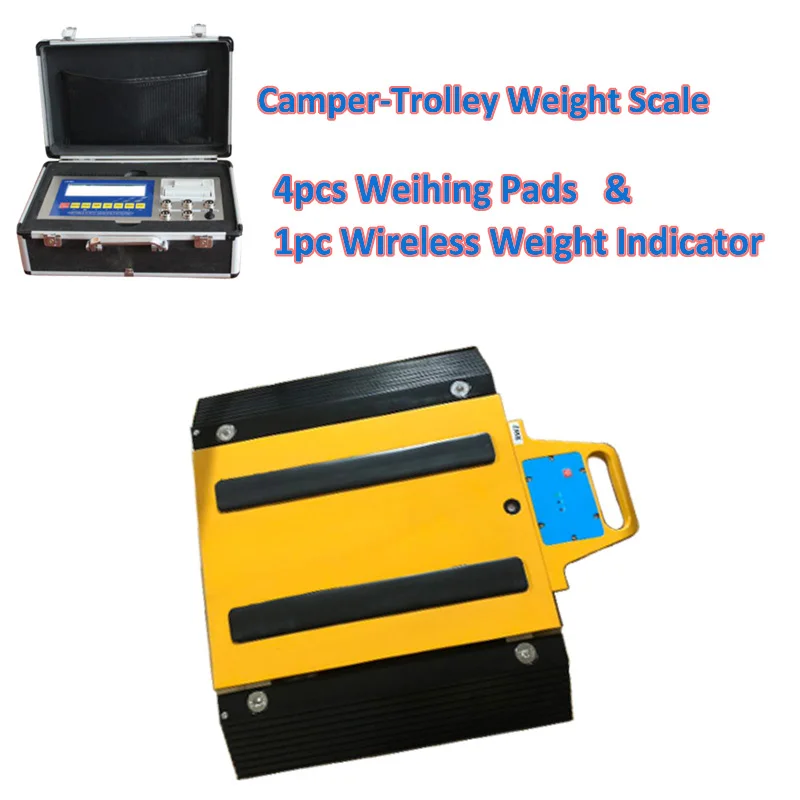

Mobile Vehicle Weigh Pads Camper Trolley Van Weighing Scales with Wireless Weight Indicator

Product Overview

Description

Mobile Vehicle Weigh Pads Camper Trolley Van Weighing Scales with Wireless Weight Indicator

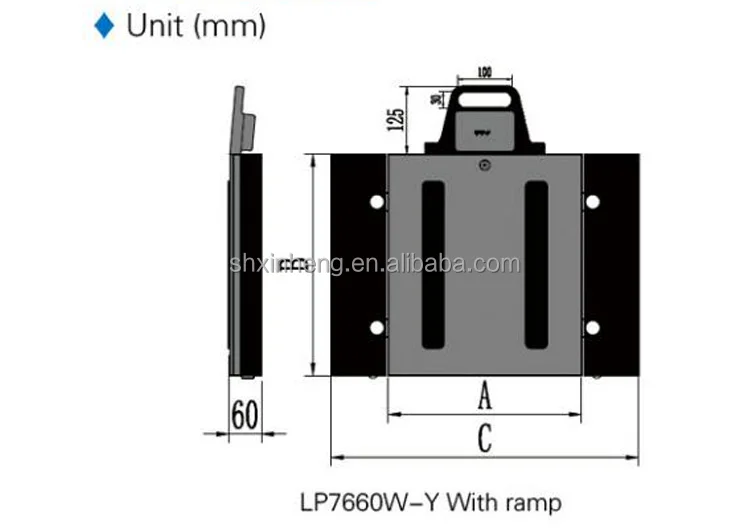

Dimensions & Specifications:



Item NO.	Capacity	A (mm)	B (mm)	C (mm)	Weight (kg)
7660W-Y-3040-0.5t~5t	0.5t~5t	300	400	540	15
7660W-Y-4050-1.5t~5t	1.5t~5t	400	500	640	18
7660W-Y-4570-5t~15t	5t~15t	450	700	690	30
7660W-Y-5090-10t~20t	10t~20t	500	900	740	50
7660W-Y-6090-10t~20t	10t~20t	600	900	840	65

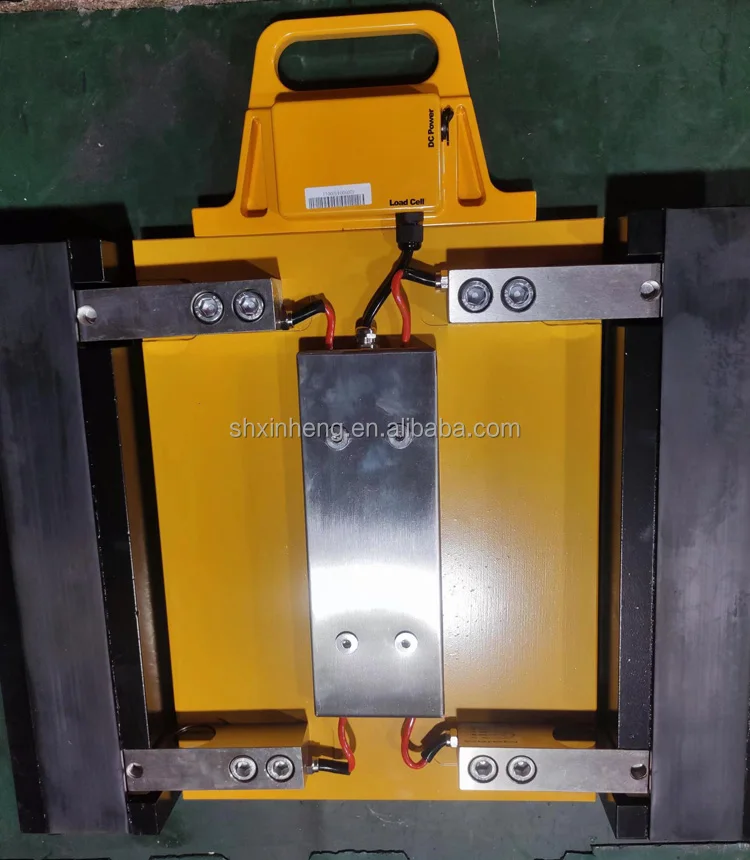

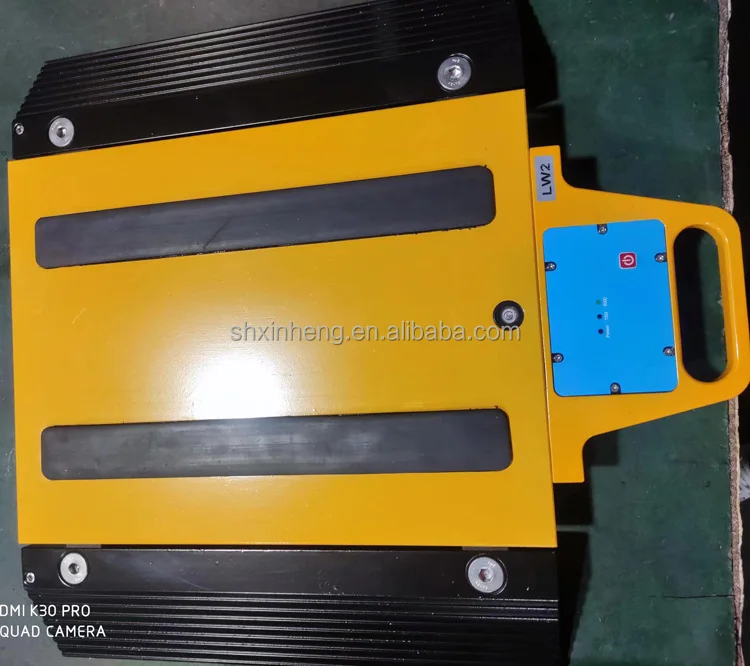

Main Features of Scale Body:

• Wireless weighing plate, suitable for static weighing;


• Made of special aluminum, easy to carry and strong in structure, suitable for most working environments;


• IP67 1,000Ω high impedance alloy steel load cells;


• Maximum transmission distance: 80m


• Equipped with transmitter and radio modules for data transmission between external devices;


• Power supply: lithium battery

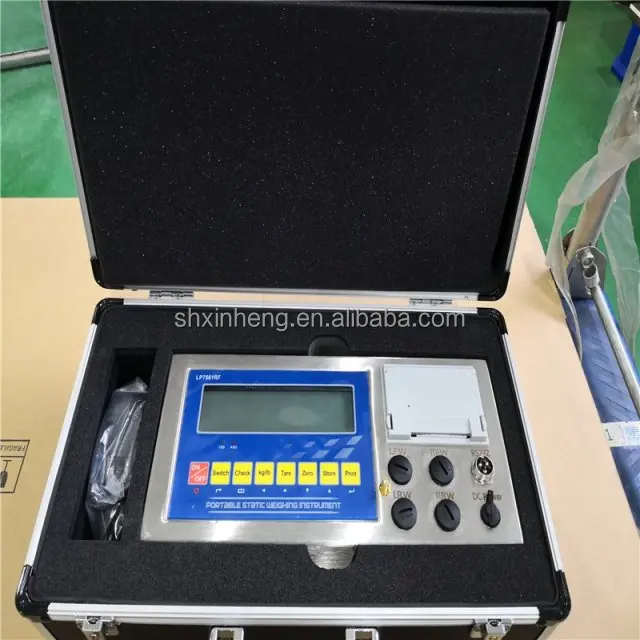

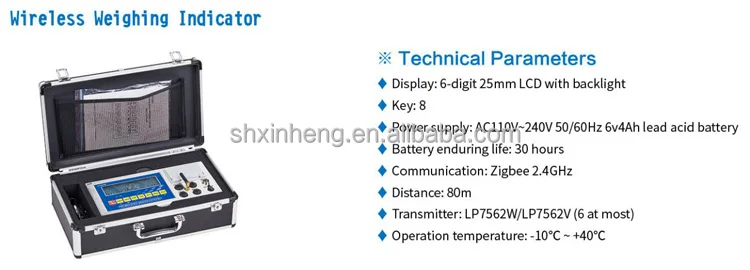

Main Features of Wireless Weighing Indicator:

• Display: 6-digit 25mm LCD with backlight


• Keys: 8


• Power supply: AC110V~240V 50/60Hz 6V/4Ah lead acid battery


• Battery enduing life: 30 hours


• Communication: Zigbee 2.4GHz


• Distance: 80m


• Operation temperature: -10℃ ~ +40℃



Contact us now to get the suitable model for you!
