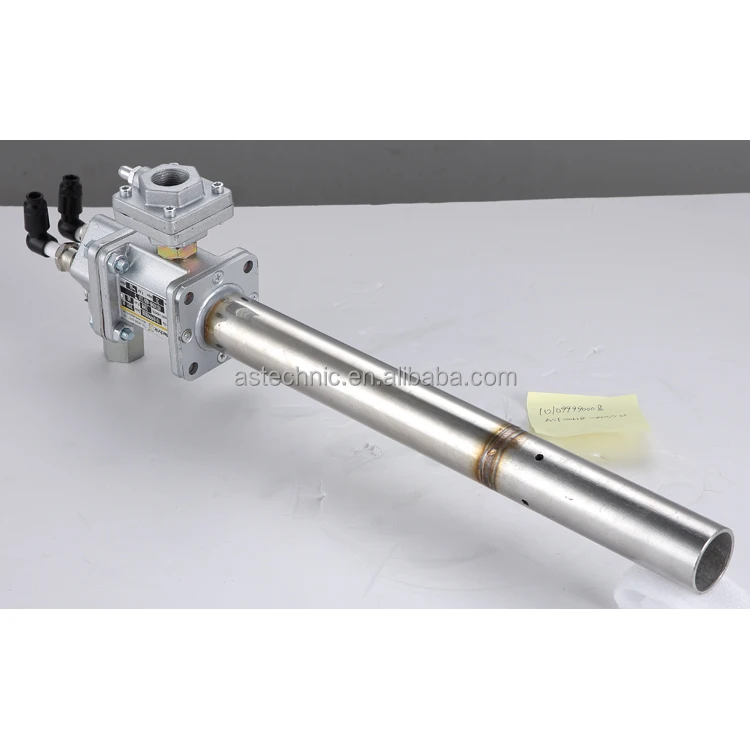

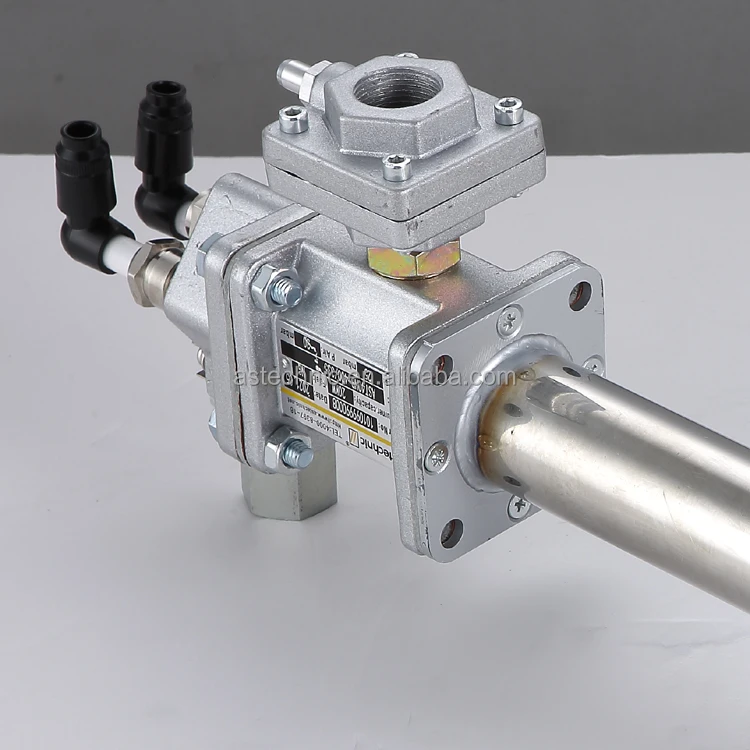

Electrostatic coating industrial furnace gas burner power 20KW
- Category: >>>
- Supplier: Foshan Deshi Electric Appliance Technology Co. Ltd.
Share on (1600838648928):
Product Overview
Description
AST-40 ignition gun
Wide adjustment range, stable flame combustion
characteristic
Heating mode: direct heating, combustion air is normally open.
Ignition/detection mode: single electrode ignition detection.
Installation method: flange connection.
Burner structure: modular design, easy to maintain.
Application: regenerative burner ignition/small power open hearth furnace.
Flame characteristics: the flame has strong rigidity and is not easy to be affected by the
main burner to cause flameout.
Control mode: on/off pulse control/open flame
The gas and air are supplied independently and mixed at the front combustion head.
The gas inlet and air inlet are equipped with orifice pressure measuring devices.
The extremely high back pressure ensures that the ignition burner will not backfire.
Product Description
Air housing: die cast aluminum
Maximum applied furnace temperature: 1050 ℃
Fire tube material: SUS 310S
Combustion head: SUS 310S
Preheating air: normal temperature
Power: 20KW
Air inlet pressure: 50mbar
Gas inlet pressure: 30mbar
Fuel: NG/LPG/COG
Adjustment ratio: 1:6
Wide adjustment range, stable flame combustion
characteristic
Heating mode: direct heating, combustion air is normally open.
Ignition/detection mode: single electrode ignition detection.
Installation method: flange connection.
Burner structure: modular design, easy to maintain.
Application: regenerative burner ignition/small power open hearth furnace.
Flame characteristics: the flame has strong rigidity and is not easy to be affected by the
main burner to cause flameout.
Control mode: on/off pulse control/open flame
The gas and air are supplied independently and mixed at the front combustion head.
The gas inlet and air inlet are equipped with orifice pressure measuring devices.
The extremely high back pressure ensures that the ignition burner will not backfire.
Product Description
Air housing: die cast aluminum
Maximum applied furnace temperature: 1050 ℃
Fire tube material: SUS 310S
Combustion head: SUS 310S
Preheating air: normal temperature
Power: 20KW
Air inlet pressure: 50mbar
Gas inlet pressure: 30mbar
Fuel: NG/LPG/COG
Adjustment ratio: 1:6
NOTE：
There are differences between product data and testing, only for reference. Due to different batches, there will be updated
differences in product data, appearance, packaging and color. subject to physical products.We reserve the right to update. No further notice will be given.
There are differences between product data and testing, only for reference. Due to different batches, there will be updated
differences in product data, appearance, packaging and color. subject to physical products.We reserve the right to update. No further notice will be given.
