Hot Sale Quality Magnetic flap level meter Magnetic Level Meter Magnetic flap level meter
- Category: >>>
- Supplier: Shandong Dongpeng Automatic Control Instrument Co. Ltd.
Share on (1600838720046):
Product Overview
Description
Products Description

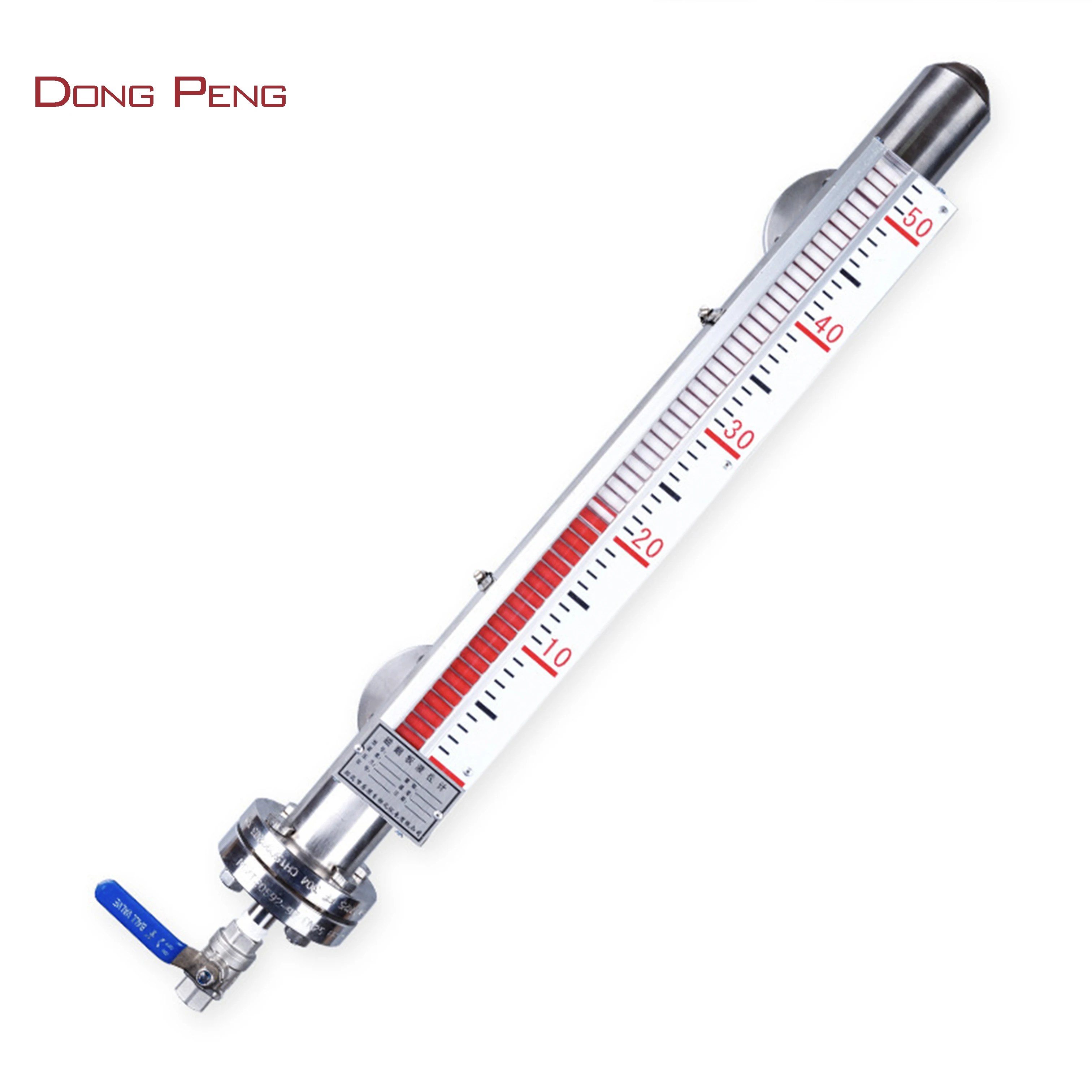

Low temperature anti frost type magnetic flip plate level gauge is a kind of novel to prevent turning the level of liquid level instrumentation, low temperature freezing it uses threshold condition of vacuum jacketed heat insulation technology, keep the jacketed vacuum state, thus effectively the isolation of cold, heat transfer, ensure the liquid level gauge body tube not freezing and frost, keeping always measured medium under the temperature of use to work normally. It provides a reliable guarantee for the liquid level measurement of low temperature and ultra-low temperature liquid media. It is suitable for liquid level measurement in petrochemical system where antifreeze and heat preservation are needed.
Therefore, it is widely used in electric power, petroleum, chemical, metallurgy, environmental protection, shipbuilding, construction, food and other industries in the production process of liquid level measurement and control. Large measuring range, with liquid level alarm switch, liquid level control switch, can realize the upper or lower limit of liquid level or boundary alarm and control, equipped with remote liquid level transmitter, can convert the liquid level, boundary signal into two-wire system 4~20mADC standard signal, realize remote inspection, indication, recording and control.
Therefore, it is widely used in electric power, petroleum, chemical, metallurgy, environmental protection, shipbuilding, construction, food and other industries in the production process of liquid level measurement and control. Large measuring range, with liquid level alarm switch, liquid level control switch, can realize the upper or lower limit of liquid level or boundary alarm and control, equipped with remote liquid level transmitter, can convert the liquid level, boundary signal into two-wire system 4~20mADC standard signal, realize remote inspection, indication, recording and control.
Technical Parameters
Item | Value |
Place of Origin | China |
Province | Shandong |
Brand Name | Dongpeng |
Measuring Range | 200-5000mm |
Measurement accuracy | +10mm |
Main body material | 304SS, 316SS, 316LSS |
Working pressure | ≤4.0MPa |
The proportion of medium | ≥0.5g/cm3 |
Medium temperature | -100-30℃ |
Medium viscosity | ≤0.02Pa.S |
Type of indicator | Aluminum alloy vacuum pane, stainless steel vacuum pane |
Float material | 316L, Ti |
Connecting Flange Size | DN20, DN25, DN50（HG20592-97）Special can be customized |
Electrical interface | Two wire system 4-20mA DC/HART, 250ΩLoad |
Explosion-Proof | ExiaIICT4-T6 ExdIICT4-T6 |
Protection level | IP 67 |
Optional Field | SUK series magnetic switch, UQD level transmitter, SCZ magneto strictive level gauge |
FAQ
1. Q: Where is your company located? Could I visit your factory?
A: Our company is located in Zhaoyuan, Shandong province, China. Sincerely invite you to visit our factory.
2. Q: How can I get some samples? Is it free?
A: Welcome to contact us by e-mail or Alibaba for your requirements. We can provide sample service.
3. Q: How does your factory do regarding QC?
A: Quality is priority. We always consider quality as the most important thing during the whole production process.
A: Our company is located in Zhaoyuan, Shandong province, China. Sincerely invite you to visit our factory.
2. Q: How can I get some samples? Is it free?
A: Welcome to contact us by e-mail or Alibaba for your requirements. We can provide sample service.
3. Q: How does your factory do regarding QC?
A: Quality is priority. We always consider quality as the most important thing during the whole production process.
Our factory has gained ISO9001.
4. Q: What is your after-sale service? How about the warranty?
A: We offer guarantee on our product for 12 months and we have the special after-sales service team.
5.Q: Can you offer OEM or design services?
A: Yes, We design and manufacture our products by ourselves.
We can make OEM according to your requirements, including packing, logo print etc.
6. Q: What about your delivery time? And how do you delivery the goods?
A: Once getting your prepayment, the production will be started immediately.
It is about 5-7 working days since payment and we usually deliver by DHL, UPS, FedEx or TNT,
4. Q: What is your after-sale service? How about the warranty?
A: We offer guarantee on our product for 12 months and we have the special after-sales service team.
5.Q: Can you offer OEM or design services?
A: Yes, We design and manufacture our products by ourselves.
We can make OEM according to your requirements, including packing, logo print etc.
6. Q: What about your delivery time? And how do you delivery the goods?
A: Once getting your prepayment, the production will be started immediately.
It is about 5-7 working days since payment and we usually deliver by DHL, UPS, FedEx or TNT,
Airline and sea shipping also optional. For urgent orders, please contact us to inquire about the stock situation.
7. Q: How to deal with the faulty?
A: Firstly, our products are produced in strict quality control system and the defective rate will be less than 0.15%.
Secondly, during the guarantee period, we will send new parts with new order for small quantity. For defective
7. Q: How to deal with the faulty?
A: Firstly, our products are produced in strict quality control system and the defective rate will be less than 0.15%.
Secondly, during the guarantee period, we will send new parts with new order for small quantity. For defective
batch products, we will repair them and resend them to you or we can discuss the solution including re-call
according to real situation.
