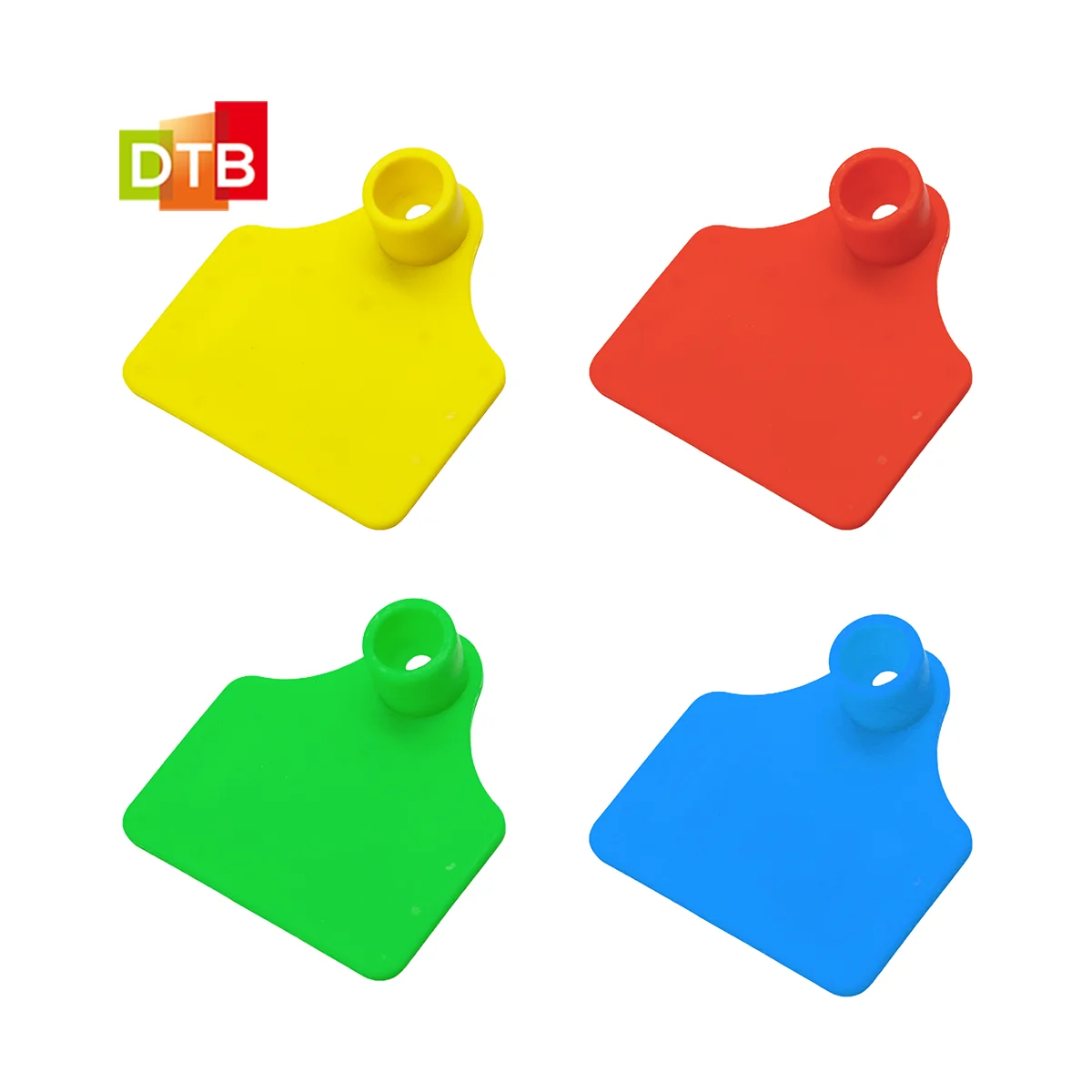

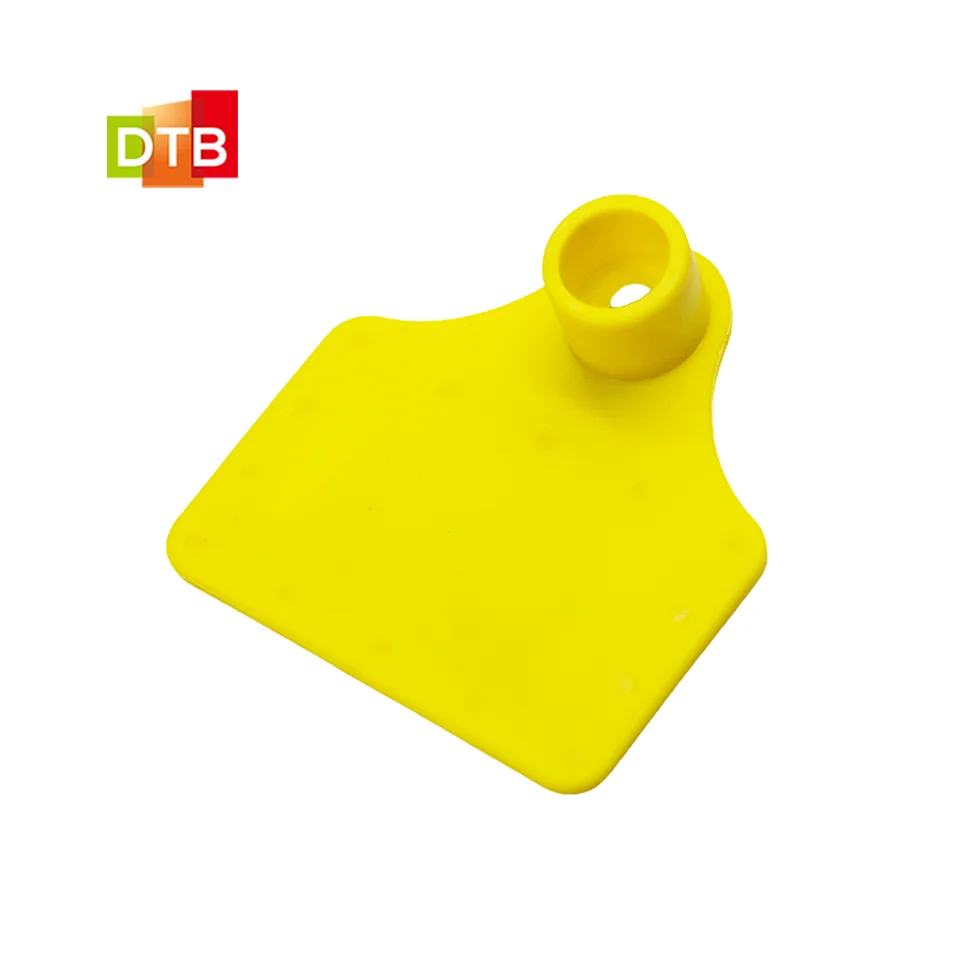

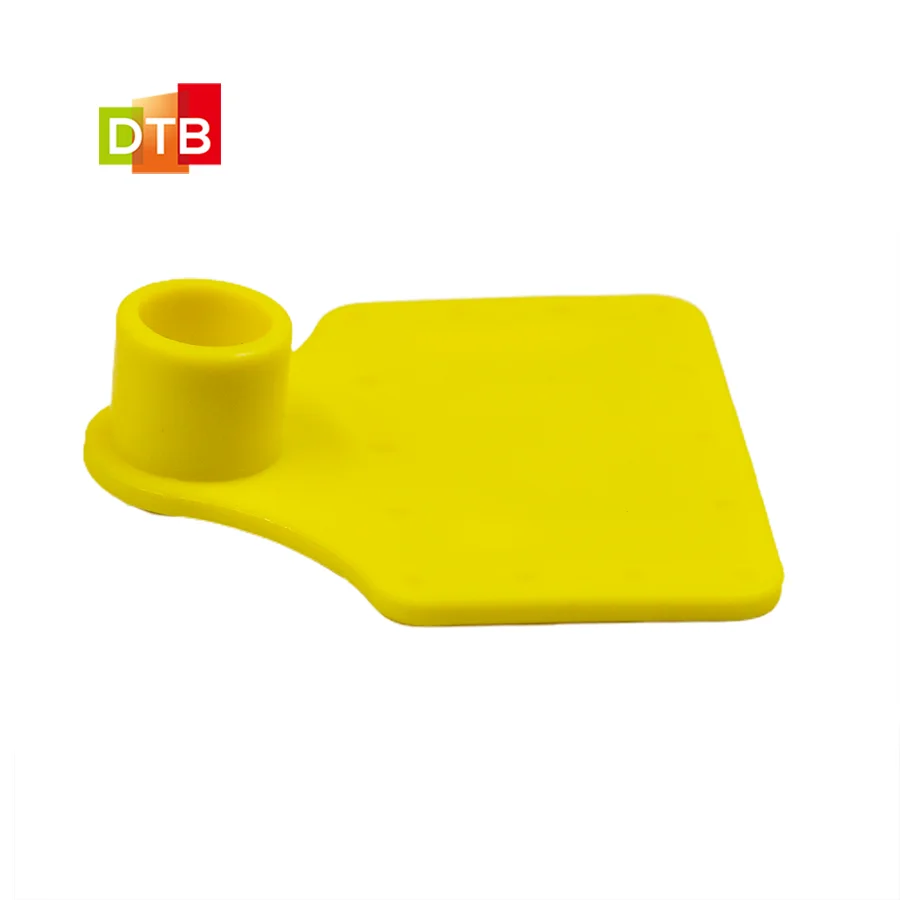

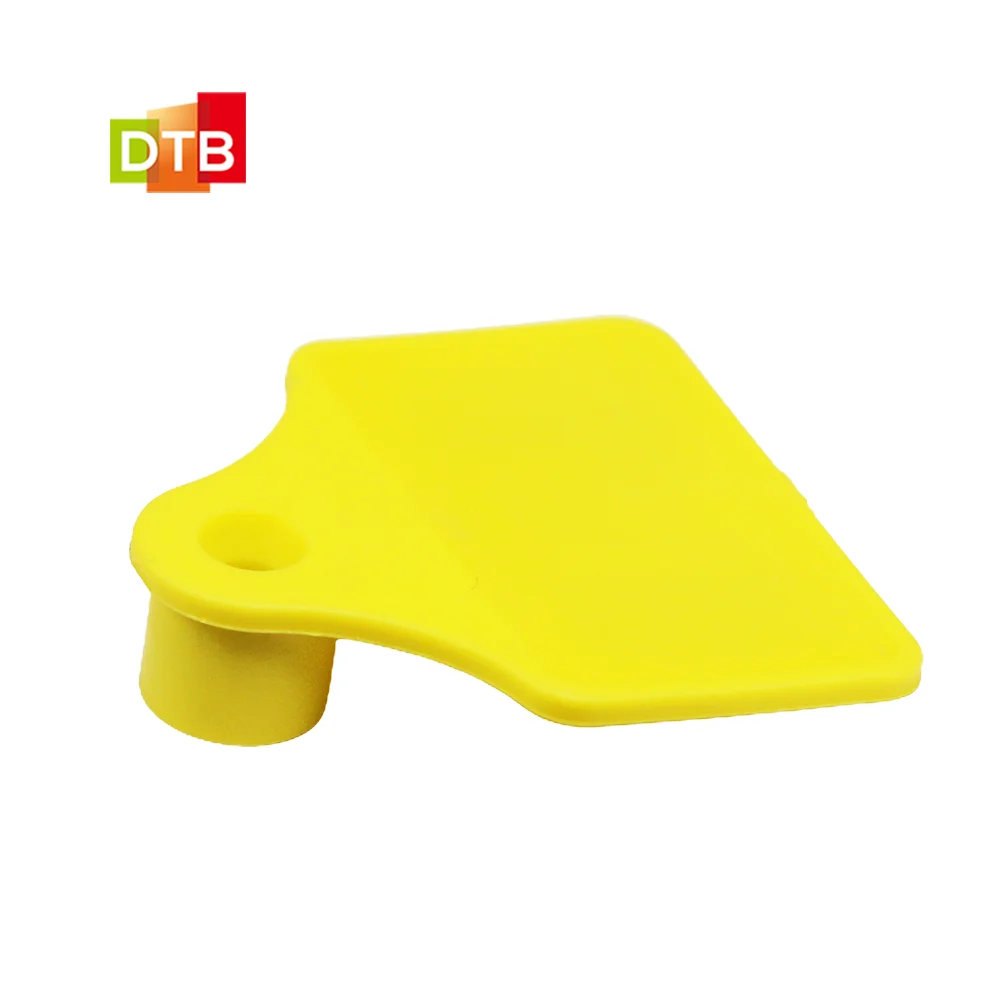

Customized RFID Cow ear label Sheep Pig Earmark Recognition Label RFID Animal Livestock Management Tag Card
- Category: >>>
- Supplier: Shenzhen DTB RFID Co. Ltd.
Share on (1600839054072):
Product Overview
Description
Servece Country | Clients | Annual Capacity | R&D Staff Percentage |
Details Images
Product Description
Mechanical Parameters | ||
Inlay Substrate | PET | |
Shell Material | TPU | |
Shell Color | Yellow (Can Be Customized) | |
Weight | About 4.8g / Piece | |
Thickness | 2 mm | |

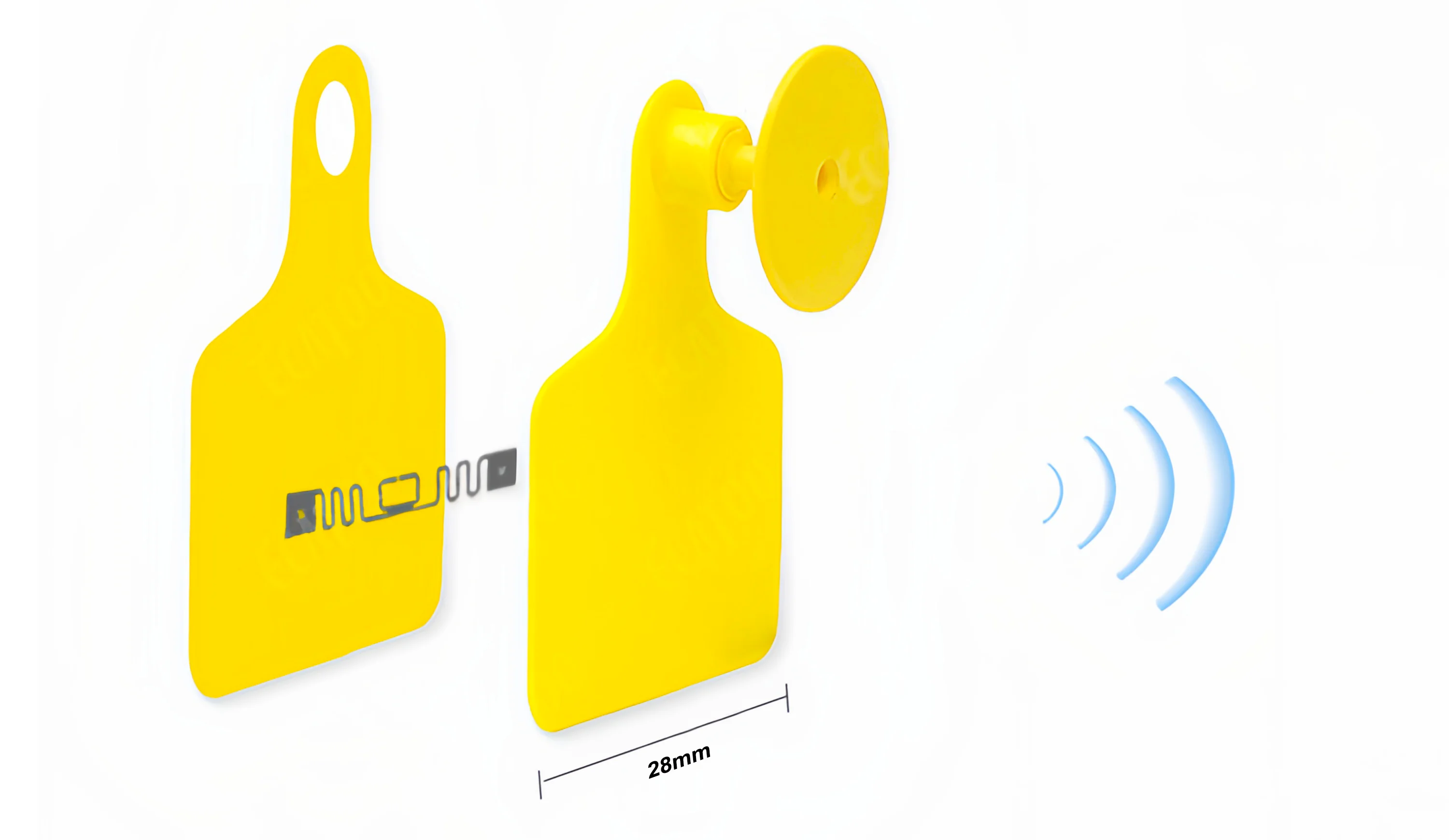

Antenna Dimensions | 45 * 28 * 2mm | |
Electrical Parameters | ||
Air Interface Protocol | EPC Global Class1 Gen2 ISO18000-6C | |
Frequency | (US Standard) 902-928MHz | |
IC Type | Impinj M730 | |
Memory | EPC 128 bits;TID 96 bits; User Memory:No | |
lC Life | 100,000 Times | |
Data Retention | 10 Years | |
Application Surface | Non Metal Surface | |
Reading Range | More than 4.5 m (US Standard, Handheld 1W) | |
Other Parameters | ||
Operating Temperature | -20℃~80℃ | |
Storage Temperature | -30°C～100°C | |
Sealing Level | IP67 | |
Certification | ROHS Certification | |

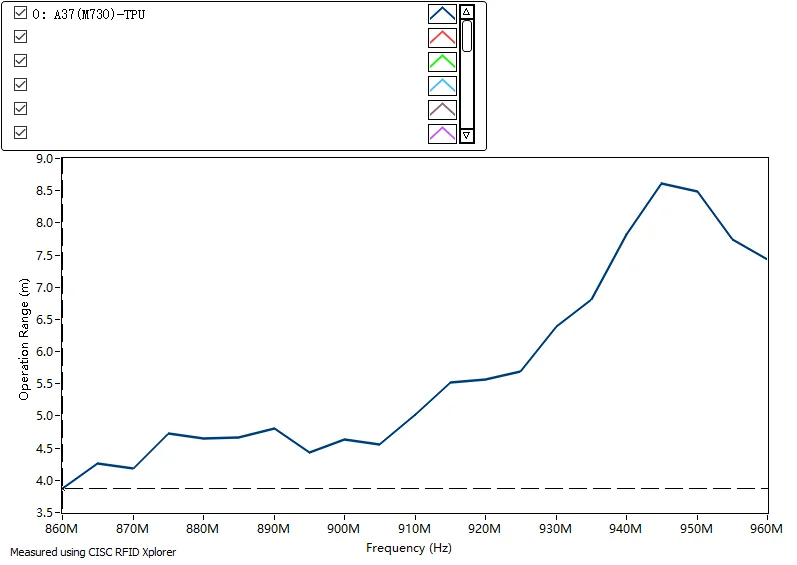

Read Range
Read Range of the label is related to the use environment, the antenna design of the reader, and the power size is also related to the antenna design and packaging process of the electronic label itself.

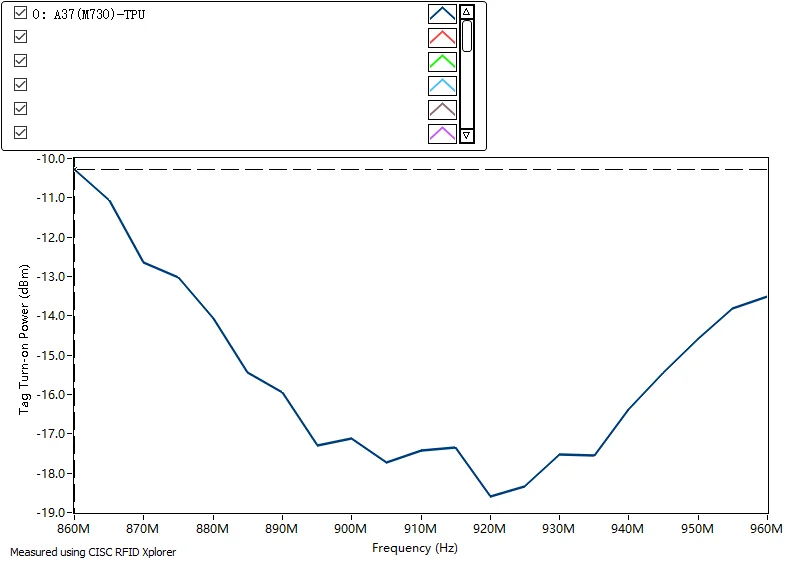

Directional Sensitivity
RFID's sensitivity mainly depends on whether the analysis capacity of the RF signal that is connected to the connection is matched, and the data processing of the back end, and the processing capacity of the data after the analytical analysi
Product Features
Feature:
1. Applicable to breeding population, prevention, meat quarantine, animal and livestock information management all areas.
2. Mark pigs for identification, breeding and vaccination, it is an essential tool in the farm.
3. The ear tags are used to track your livestock and prevent them from being stolen. Perfect for sheep, cattle, pigs, foxes and other animals.
4. Bright color is easy to identify, not easy to fade and deformation even in the -30℃ environment.

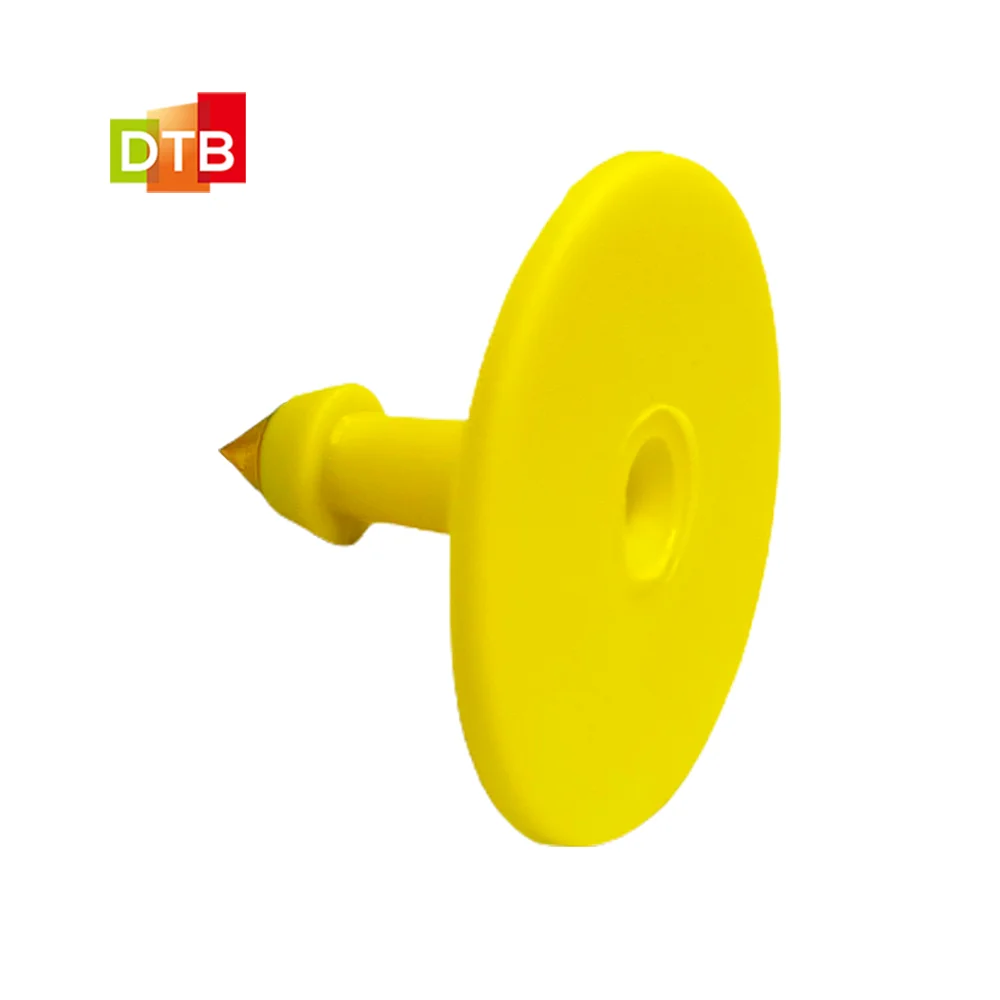

5. Modified TPU material with good toughness and tensile resistance and copper nail head is easier to use ear tag.
2. Mark pigs for identification, breeding and vaccination, it is an essential tool in the farm.
3. The ear tags are used to track your livestock and prevent them from being stolen. Perfect for sheep, cattle, pigs, foxes and other animals.
4. Bright color is easy to identify, not easy to fade and deformation even in the -30℃ environment.
5. Modified TPU material with good toughness and tensile resistance and copper nail head is easier to use ear tag.

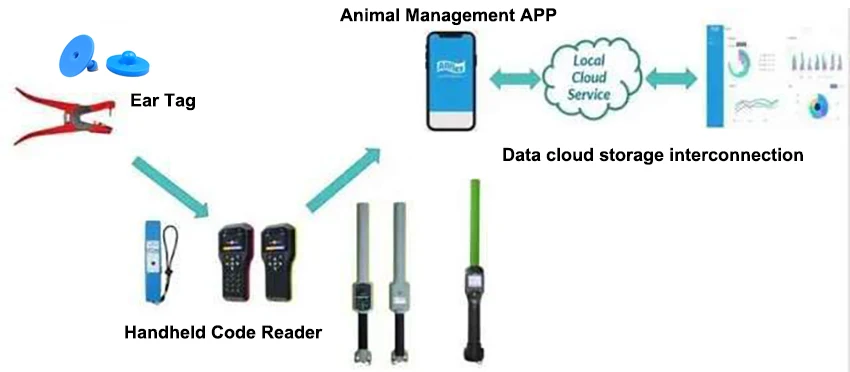

RFID Ear tag supporting system
Electronic ear markers are worn on the pig's ears. We use the code reader to scan the encoding of the electronic earmark near the electronic earmal. The reader will emit the inductive magnetic field, and the electronic earmark can communicate with the magnetic field induction, and communicate the number information stored by itself with the reader. The reader matches the Bluetooth connection with the pork field management software or APP to achieve data interconnection.

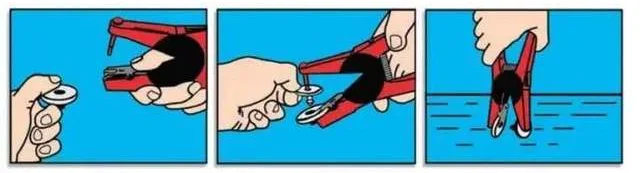

Before wearing an ear label, disinfect the ear labels and earmark pliers
