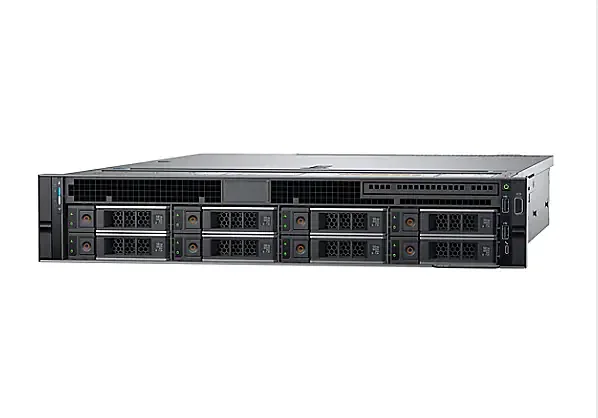

Dell EMC PowerVault R760 R7525 R750 R740XD2 pc server computer 2u home server server case 2u
- Category: >>>
- Supplier: Beijing Haoyue Weiye Science & Technology Co. Ltd.
Share on (1600839212263):
Product Overview
Description

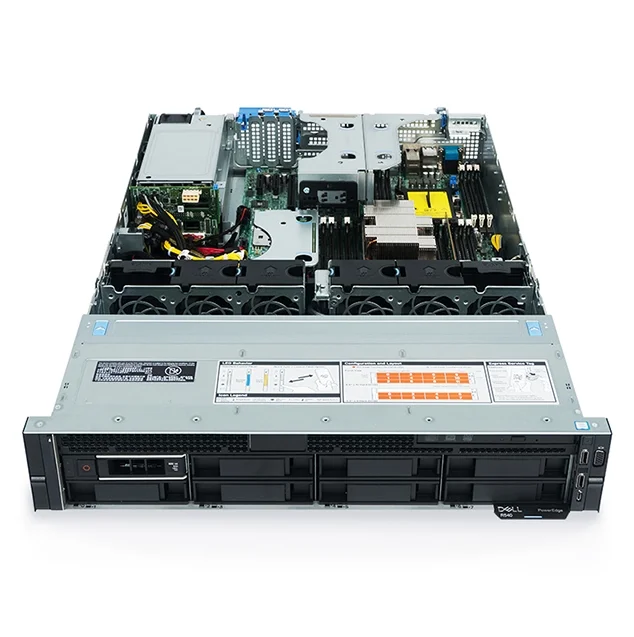

Original Dell Poweredge R540 Xeon 4210R 2.4GHz 10C cpu 2U rack server
Welcome to our shop, all products can be configured according to your needs parameter requirements to provide accurate quotation.
Please contact us by phone/wechat /whatsapp 86-13716324241
Email: ittrade@haoyueweiye.com
Please contact us by phone/wechat /whatsapp 86-13716324241
Email: ittrade@haoyueweiye.com
Product Description
The PowerEdge R540 delivers the versatility and flexibility to power a variety of applications. With a balanced set of
resources, expandability and affordability the R540 adapts to the demands of the modern data center with the ideal value
optimized design. Automatically optimize performance with one button application tuning and scale for future demands
with up to 14 3.5” drives.
* Scale compute resources with 2nd Generation Intel® Xeon® Scalable processors, and tailor performance based
on your unique workload requirements.
* Automatically optimize application performance with one-button tuning.
* Flexible storage with up to 14 3.5” drives.
* Free up storage with boot optimized M.2 SSDs
resources, expandability and affordability the R540 adapts to the demands of the modern data center with the ideal value
optimized design. Automatically optimize performance with one button application tuning and scale for future demands
with up to 14 3.5” drives.
* Scale compute resources with 2nd Generation Intel® Xeon® Scalable processors, and tailor performance based
on your unique workload requirements.
* Automatically optimize application performance with one-button tuning.
* Flexible storage with up to 14 3.5” drives.
* Free up storage with boot optimized M.2 SSDs
Specification
item | value |
Products Status | Stock |
Type | Rack |
Processor Main Frequency | 2.4GHz |
Processor Type | Intel Xeon 4210R 10C/20T |
Brand Name | Dell |
Model Number | Dell Poweredge R540 |
Place of Origin | China |
Model | Dell Poweredge R540 rack server |
Form Factor | 2U Rack Server |
Memory | 32GB (2*16gb) DDR4 2666MHz ram |
Hard Drive | 2TB 7.2 K SAS 3.5'' HDD |
Chassis | up to 12*3.5'' SAS/SATA HDD/SSD |
Power Supply | 2*495W/2*750W/2*1100W |
Warranty | 3Yr |
RAID Controller | H330 |
Maximum processor | 2 |
Fans | Hot plug power supplies with full redundancy option up to six fans |
Embedded Management | iDRAC9 |
RAID | C2, RAID 0 for HDDs or SSDs (Matching Type/Speed/Capacity) |
I/O and Ports | Network options 2 x 1GE LOM + (optional) LOM Riser 2 x 1GE or 2 x 10GE SFP+ or 2 x 10GE BaseT |

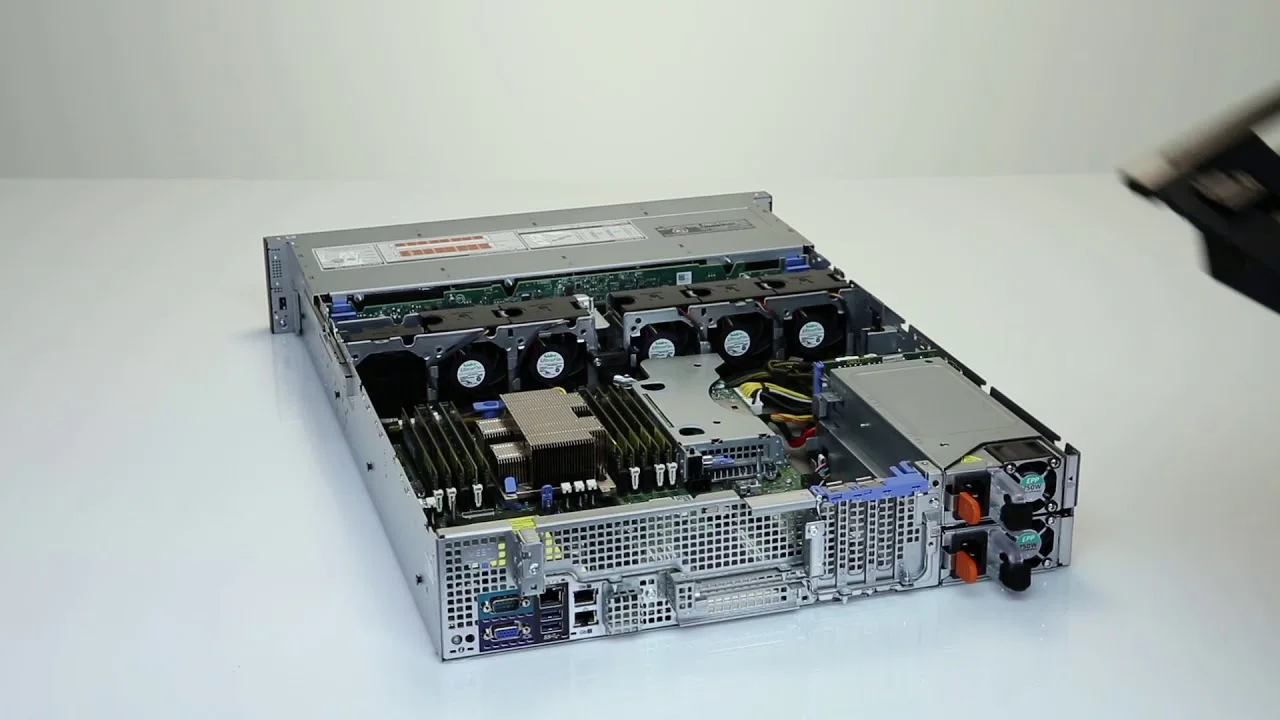

Details Images
Welcome to our shop, all products can be configured according to your needs parameter requirements to provide accurate quotation.
Please contact us by phone/wechat /whatsapp 86-13716324241
Email: ittrade@haoyueweiye.com
Please contact us by phone/wechat /whatsapp 86-13716324241
Email: ittrade@haoyueweiye.com

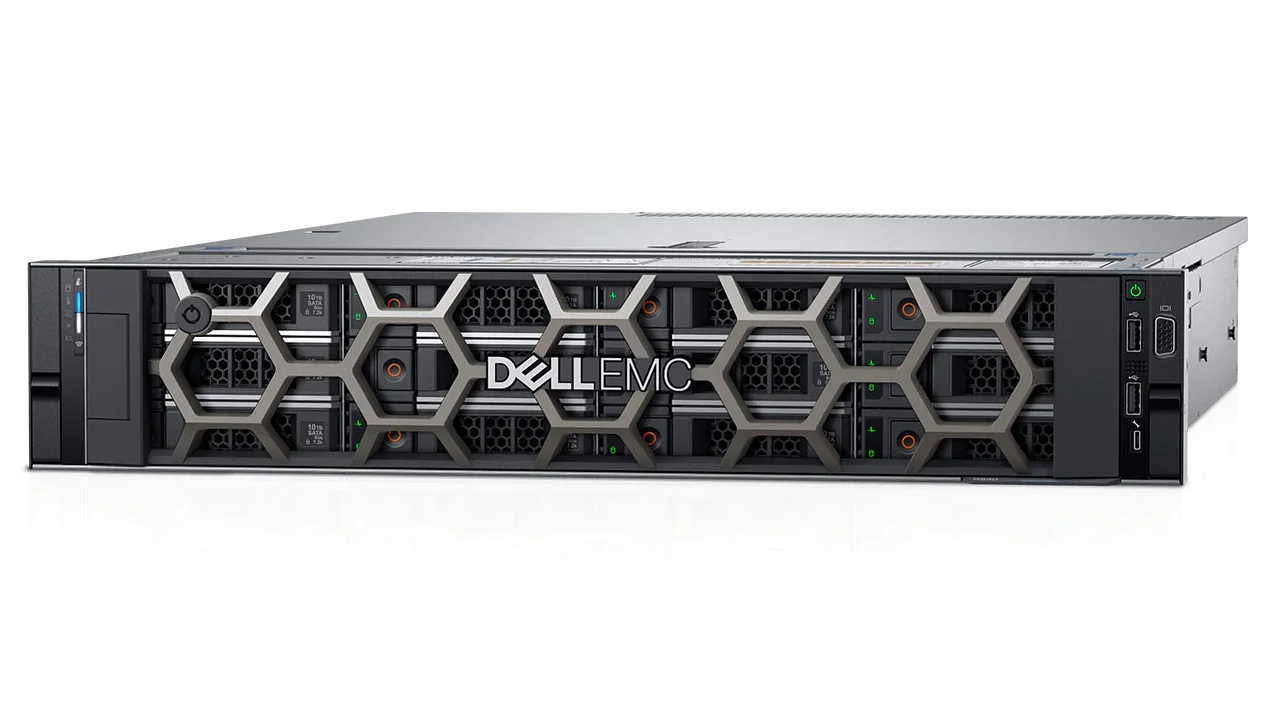

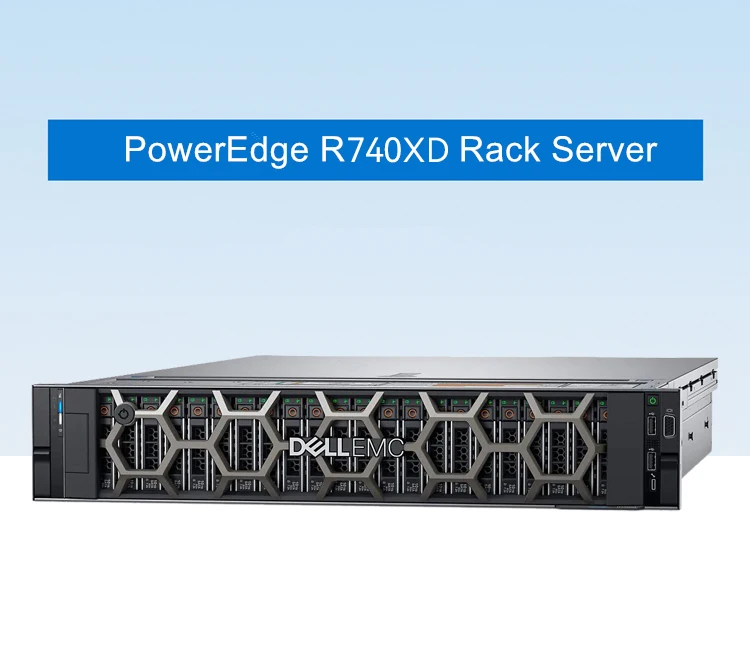

High Quality Dell PowerEdge R740xd Intel Xeon 4214 64GB Rack Server
Increase storage scalability and performance with up to 24 NVMe drives and a total of 32 x 2.5” or 18 x 3.5”drives in a 2U
dual-socket platform.
dual-socket platform.
Features
【1】Accomplish IT transformation with Dell EMC PowerEdge servers【2】Automate productivity with intelligent, embedded management
【3】Fortify your data center with comprehensive protection
Welcome to our shop, all products can be configured according to your needs parameter requirements to provide accurate quotation.
Please contact us by phone/wechat /whatsapp 86-13716324241
Email: ittrade@haoyueweiye.com
Please contact us by phone/wechat /whatsapp 86-13716324241
Email: ittrade@haoyueweiye.com

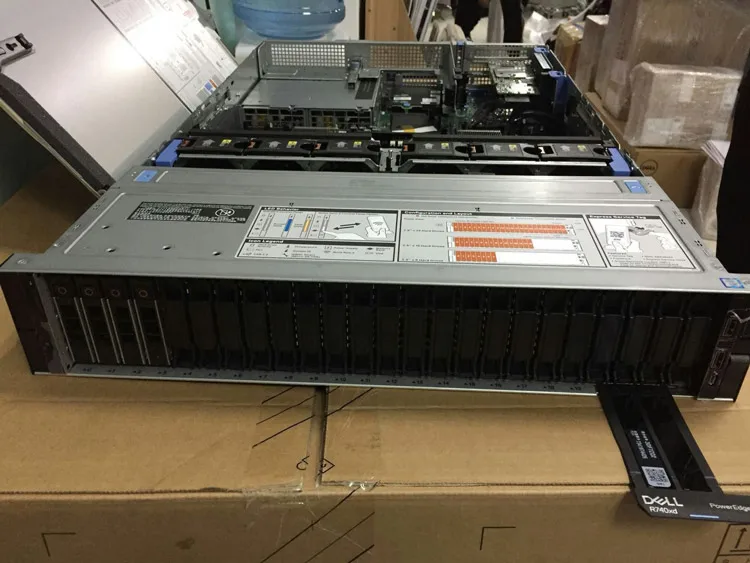

Front View

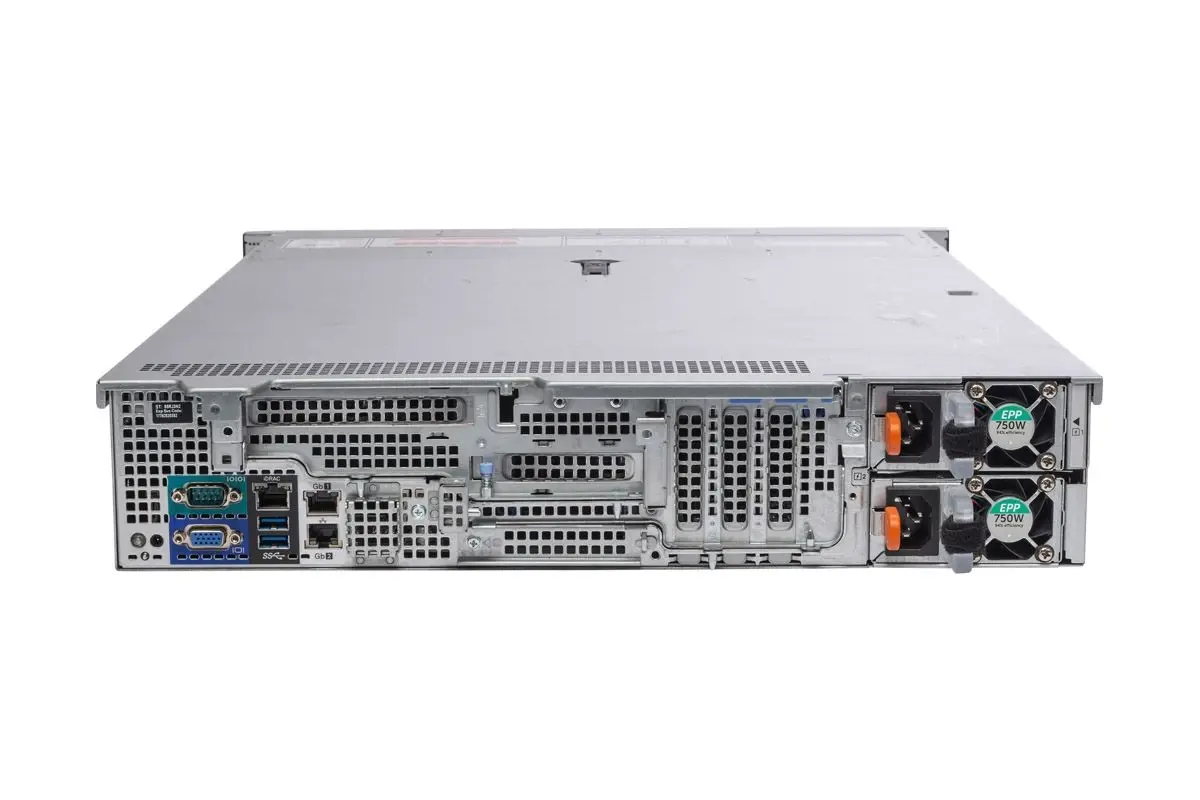

Rear View
Specification
Processor | Up to two 2nd Generation Intel Xeon Scalable processors with up to 28 cores per processor | ||||||
Form Factor | 2U Rack Server | ||||||
Operating System | Canonical Ubuntu Server LTS Citrix Hypervisor Microsoft Windows Server with Hyper-V Red Hat Enterprise Linux SUSE Linux Enterprise Server VMware ESXi | ||||||
Dimensions & Weight | Height 86.8m (3.4”) Width 434mm (17.1″) Depth 737.5mm (29.0″) Weight 33.1kg (73.0lbs.) | ||||||
Memory | |||||||
DIMM Speed | Up to 2933MT/s | ||||||
Memory Type | RDIMM LRDIMM NVDIMM DCPMM (Intel Optane DC persistent memory) | ||||||
Memory Module Slots | 24 DDR4 DIMM slots (12 NVDIMM or 12 DCPMM only) Supports registered ECC DDR4 DIMMs only | ||||||
Maximum RAM | RDIMM 1.53TB LRDIMM 3TB NVDIMM 192GB DCPMM 6.14TB (7.68TB with LRDIMM) | ||||||
Management | |||||||
Embedded / At-the-Server | iDRAC9 iDRAC RESTful API with Redfish iDRAC Direct Quick Sync 2 BLE/wireless module | ||||||
Consoles | OpenManage Enterprise OpenManage Power Center | ||||||
Mobility | OpenManage Mobile | ||||||
Tools | Dell EMC RACADM CLI Dell EMC Repository Manager Dell EMC System Update Dell EMC Server Update Utility Dell EMC Update Catalogs iDRAC Service Module OpenManage Server Administrator OpenManage Storage Services | ||||||
OpenManage Integrations | BMC Truesight Microsoft System Center RedHat Ansible Modules VMware vCenter | ||||||
OpenManage Connections | IBM Tivoli Netcool/OMNIbus IBM Tivoli Network Manager IP Edition Micro Focus Operations Manager I Nagios Core Nagios XI | ||||||
Ports | |||||||
Network Options | 4 x 1GbE 2 x 10GbE + 2 x 1bGE 4 x 10GbE 2 x 25GbE | ||||||
Front Ports | 1 x Dedicated iDRAC direct USB 2 x USB 2.0 1 x USB 3.0 (optional) 1 x VGA | ||||||
Rear Ports | 1 x Dedicated iDRAC network port 1 x Serial 2 x USB 3.0 1 x VGA | ||||||
Storage Controllers | Internal Controllers: PERC H330, H730P, H740P, HBA330 External Controllers (RAID): H840, 12 Gbps SAS HBA Software RAID: S140 Internal Boot: Boot Optimized Storage Subsystem (BOSS): HWRAID 2 x M.2 SSDs 240GB, 480 GB Internal Dual SD Module | ||||||
Accelerators | Up to three 300W or six 150W GPUs Up to three double-wide FPGAs or four single-wide FPGAs GPU and FPGA options available only on 24 x 2.5” drive chassis. Up to two GPUs are supported on NVMe configurations. | ||||||
Storage | |||||||
Front Bays | Up to 24 x 2.5” SAS/SSD/NVMe, max 184TB Up to 12 x 3.5” SAS, max 192TB | ||||||
Mid Bay | Up to 4 x 3.5” SAS, max 64TB Up to 4 x 2.5” SAS/SSD, max 30.72TB | ||||||
Rear Bays | Up to 4 x 2.5” SAS/SSD, max 30.72TB Up to 2 x 3.5” SAS, max 32TB | ||||||
Security | Cryptographically signed firmware Secure Boot Secure Erase Silicon Root of Trust System Lockdown (requires OpenManage Enterprise) TPM 1.2/2.0, TCM 2.0 optional | ||||||
Power Supplies | 495W Platinum 750W Platinum 750W Titanium 750W 240VDC 1100W Platinum 1100W 380VDC 1600W Platinum 2000W Platinum 2400W Platinum 1100W -48VDC Gold Hot plug power supplies with full redundancy option Up to 6 hot plugs fans with full redundancy | ||||||
Slots | |||||||
PCIe | 8 x Gen3 slots (4 x 16) | ||||||
Video Card | 1 x VGA | ||||||
Related products
Company Profile
Beijing Haoyue Weiye Science & Technology Co., Ltd is an information system integration high-tech company , established in 2013 and located in Beijing. We can supply:
Hardware: HP, IBM, DELL, EMC, Cisco Brands, including switches, servers, storage, routers, network modules, firewalls, memory, hard driver, etc.
Software: Win ULT, Win Pro, office, windows SVR STD , win server DCT, Sql server STD/Wkgp RUNTIME, Embd SQL Svr Std Ed RUNTIME,Rose ha for windows/Linux, Oracle DATEBASE std standard/PRO Enterprise 10g/11g/12c, etc.
Software: Win ULT, Win Pro, office, windows SVR STD , win server DCT, Sql server STD/Wkgp RUNTIME, Embd SQL Svr Std Ed RUNTIME,Rose ha for windows/Linux, Oracle DATEBASE std standard/PRO Enterprise 10g/11g/12c, etc.

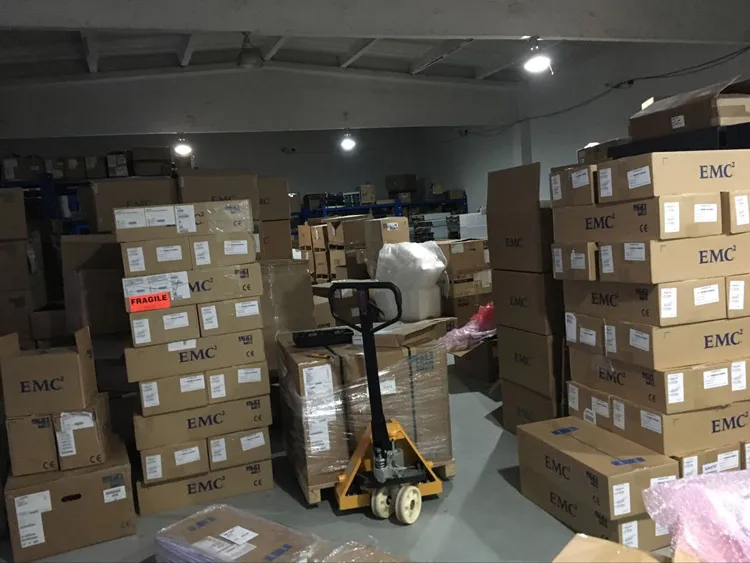

Warehouse
