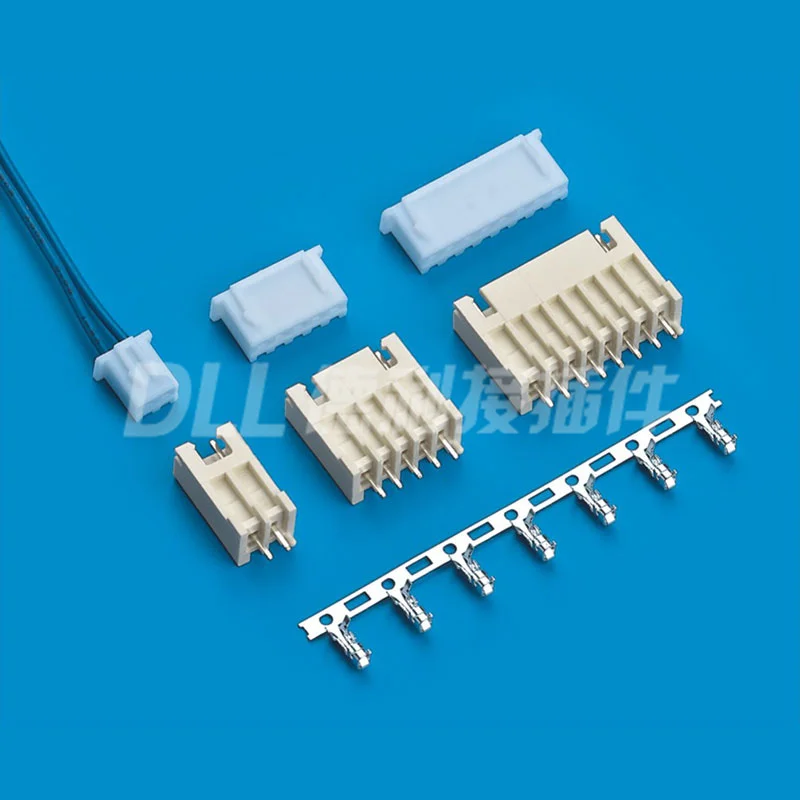

JST TJC3-H 2.5mm BH8B-XH-2 BH9B-XH-2 BH10B-XH-2 Wire to Board DIP Connector
JST TJC3-H 2.5mm BH8B-XH-2 BH9B-XH-2 BH10B-XH-2 Wire to Board DIP Connector

JST TJC3 H 2.5mm BH8B XH 2 BH9B XH 2 BH10B XH 2 Wire to Board DIP Connector

Share on (1600839718766):


Price:

Quantity:


Product Overview

Description



Classification

Classification

_02_03_04_05_06



Specification


_07






























Rated Voltage:



   250V AC,DC



Rated current:



   3A AC,DC



Contact resistance:



   20MΩ max



Insulation Resistance:



   1000MΩ min



Withstand Voltage:



   1000V AC/minute



Temperature:



   -25℃~+85℃









Material


_09


















Housing:



(Nylon) UL94-V0(2)



Terminal:



Phosphor Bronze,Tin Plated



Wafer:



(Nylon) UL94-V0(2)

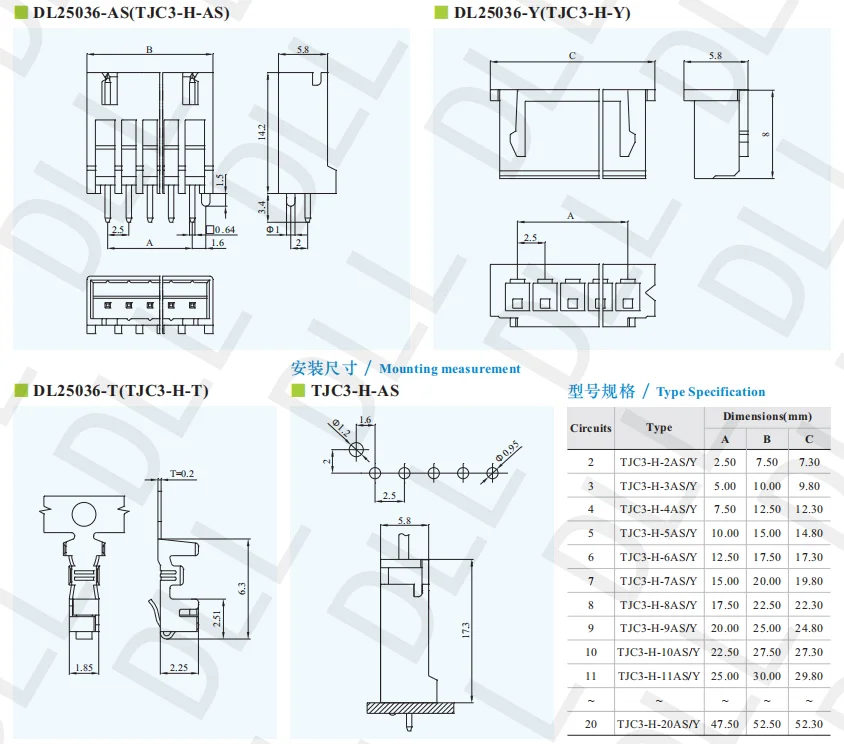

Drawing
