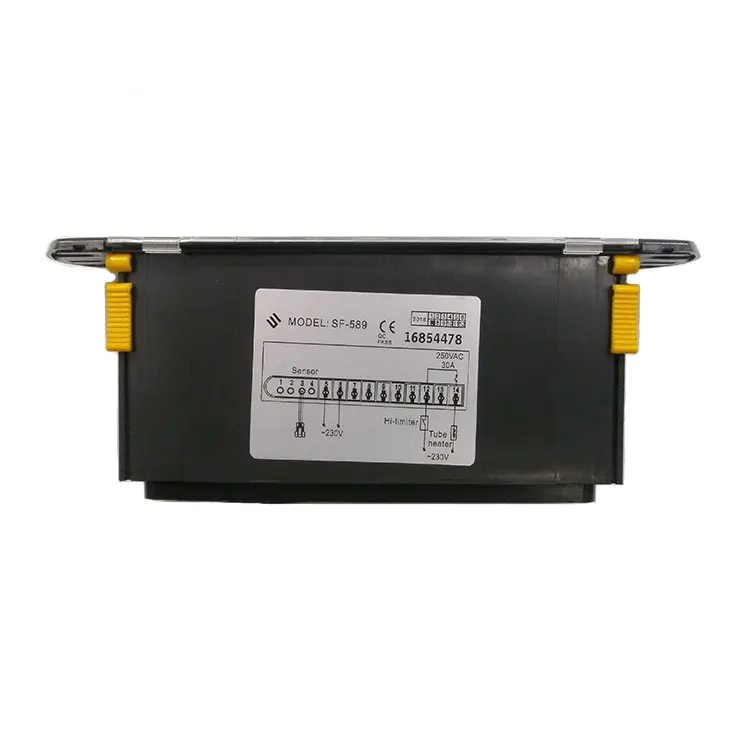

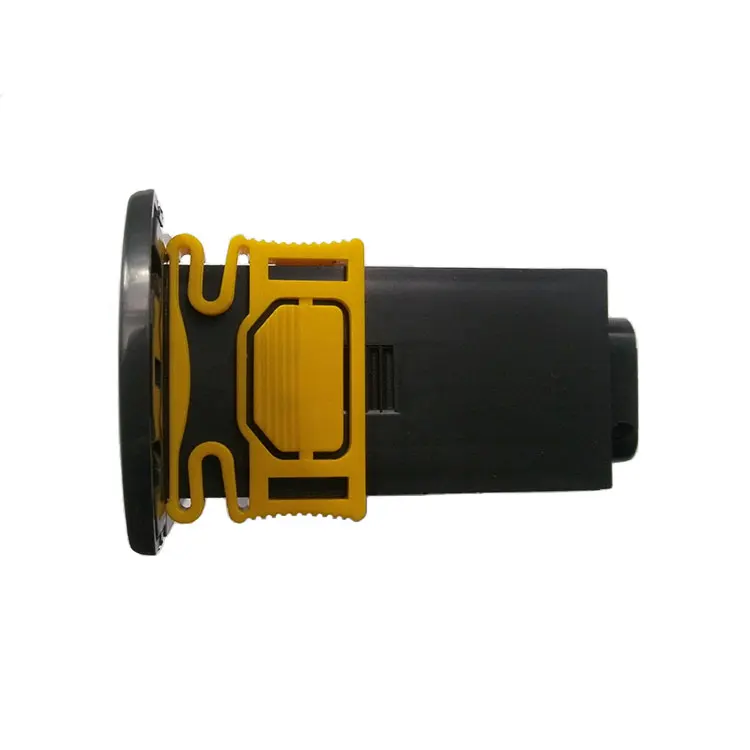

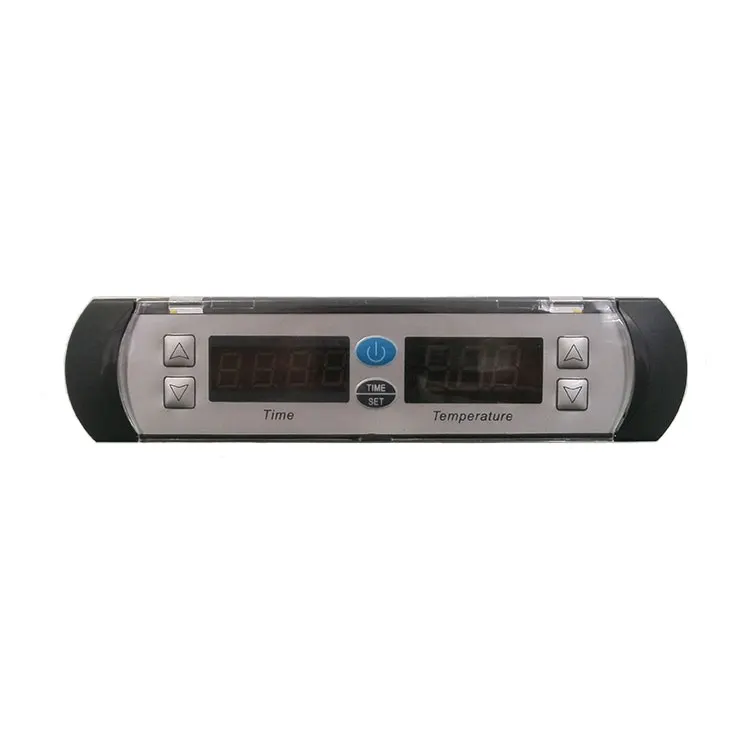

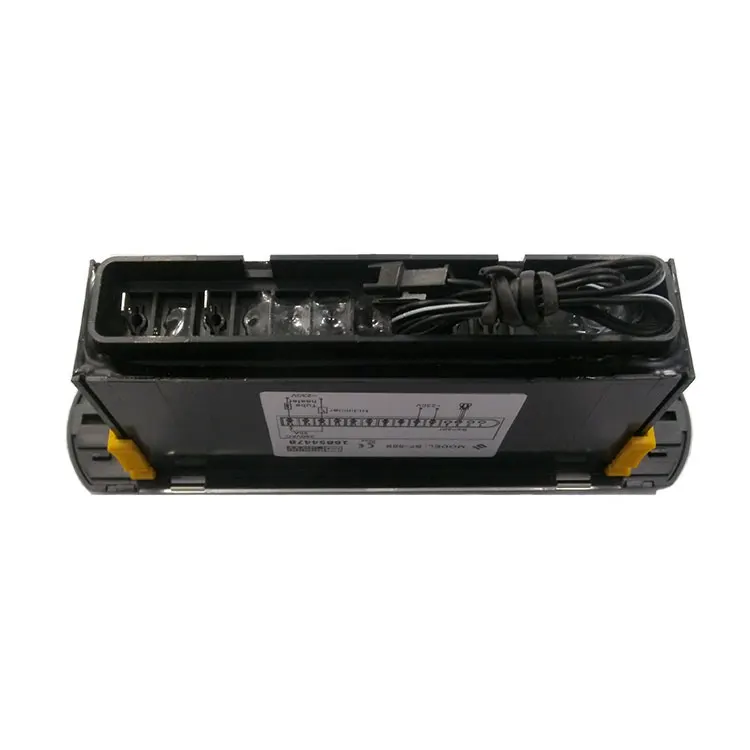

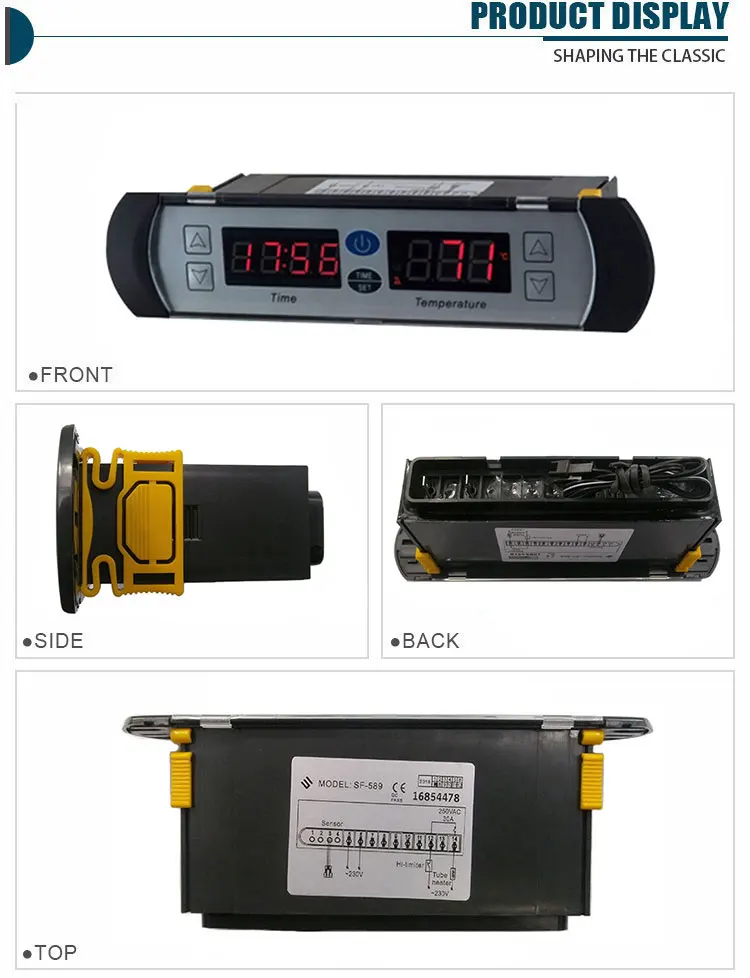

SF589 intelligent countdown double windows heating digital led temperature controller
- Category: >>>
- Supplier: Zhongshan Shangfang Instrument Meter Co. Ltd.
Share on (1600839720541):
Product Overview
Description
SF589 intelligent countdown double windows heating digital led temperature controller
Product Description
Features
Temperature Display/ Temperature Control
Countdown heating control
Celsius / Fahrenheit degrees
R-start delay /Value storing
Parameter locking/Self testing
Technical Data
Range of temperature displayed:-45~115℃(-49~239℉)
Range of set temperature:-45~110℃(-49~230℉)
Accuracy:±0.1℃(±0.1℉)
Temperature sensor: NTC,1 pc
Heatingr relay contact capacity: N.O. 30A/250VAC
Panel dimension:181(Length)×41(Width)×68(Depth)mm
Mounting hole dimension:138(Length)×32.5(Width)mm
Parameters
| Parameter | Function | Set range | Default |
| E1 | Lower setpoint limit | -45℃(-49℉)~Set temp. | 45.0℃/113℉ |
| E2 | Higher setpoint limit | Set temp.~110℃(230℉) | 95.0℃/203℉ |
| E3 | Temp. Hysteresis | 0.1~50.0 ℃/0.2~90.0 ℉ | 0.2℃/0.4℉ |
| E4 | Comp. start delay time | 00~10Min | 00Min |
| E5 | Offset on room temp. | -20~20.0 ℃/-36~36.0 ℉ | 1.5℃/2.7℉ |
| CF | Temperature unit | 00=℃ 01=℉ | 00 |
Related Products
Company Information
About us
Established in 1998, started from customizing digital temperature controllers for freezer manfacturers, according to the idea of "Credit standing roots quality, quality creats brand", and after years endeavor, Zhongshan Shangfang Instrument Meter Co., Ltd developed and produced a whole series of digital temperature&humidity controllers which widely used in refrigeration,air conditioning,heating,food and packaging machinery etc.
Shangfang controllers have the characters of compact design,easy operation,strongly anti-jamming and stable performance etc. The controllers are UL ,CE,CQC and RoHS approved.
Shangfang is ISO9001:2000 certified. Each production procedure is processed under austere safety& quality control, each product needs pass strick aging,environmental temperature& humidity tests before leaving factory to ensure the customers choose Shangfang all over the world can use the controllers of excellent quality.
Our Services
Packaging & Shipping
What Included:
SF-589 Digital Temperature Controller X 1

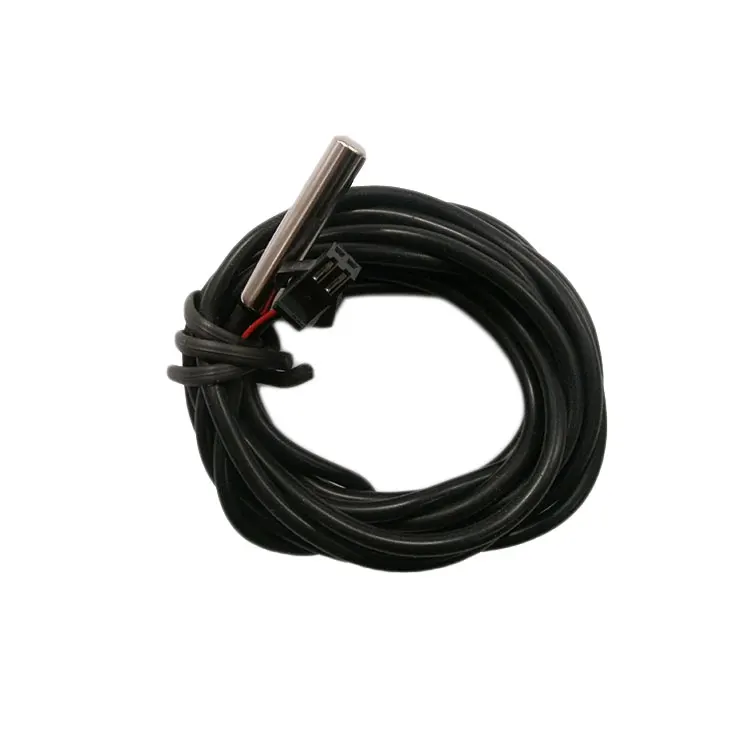

Temperature sensor X 1
