Automatic animal feeders poultry chicken farm feeding line broiler feeding and drinking system
- Category: >>>
- Supplier: Qingzhou Gongle Electric Fan Co. Ltd.
Share on (1600839775588):
Product Overview
Description
Automatic animal feeders poultry chicken farm feeding line broiler feeding and drinking system

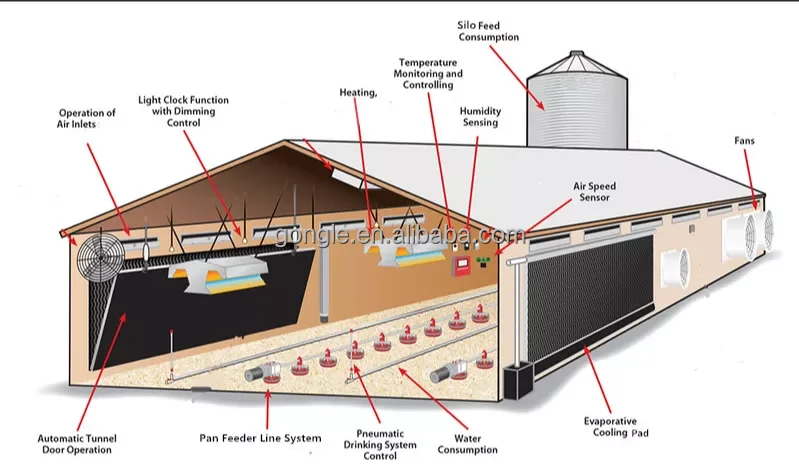

Design idea for broiler chicken farm new equipment installed:
Modern automatic broiler poultry house is designed according to customer's demand. Our company is very professional in designing variety of poultry house base on how many livestock you have and what size of poultry shed you want as well as what weight of chicken you want to raise to. Our team willingly help you figure out what size of poultry shed could meet your demand, and further more supply your poultry business with sufficient Automatic poultry farm equipment so as to support enough chicken raising according to your demand and our equipment is designed according to the practical chicken raising request and apply high technique skill in livestock husbandry shed so that it's realized the human intelligent management in tunnel vent broiler poultry house.
Modern automatic broiler poultry house is designed according to customer's demand. Our company is very professional in designing variety of poultry house base on how many livestock you have and what size of poultry shed you want as well as what weight of chicken you want to raise to. Our team willingly help you figure out what size of poultry shed could meet your demand, and further more supply your poultry business with sufficient Automatic poultry farm equipment so as to support enough chicken raising according to your demand and our equipment is designed according to the practical chicken raising request and apply high technique skill in livestock husbandry shed so that it's realized the human intelligent management in tunnel vent broiler poultry house.
Product Description
1.Main feeding line system | Convey feed from silo or manpower hopper into feeding line hopper automatically |
2.Vice feeding system | Convey feed into feeder pan automatically |
3.Nipple drinking system | Supply clean water to each nipple steady, chicken can drink water from 360 degree freely |
4.Ventilation system | Make chicken shed keep suitable temperature for different stage chicken |
5.Environment control system | Setting suitable climate situation according to different stage chicken requirement, through control ventilation fans, air let and cooling pad's on /off to control the chicken climate automatically. |
6.Cooling pad system | Make chicken house temperature come down quickly |
7.Spraying system | Cleaning, disinfecting, cooling chicken shed |
8.Heating system | Warm chicken house |
9.Curtain system | keep suns out & also operated as ventilation system for poultry house. |
product overview

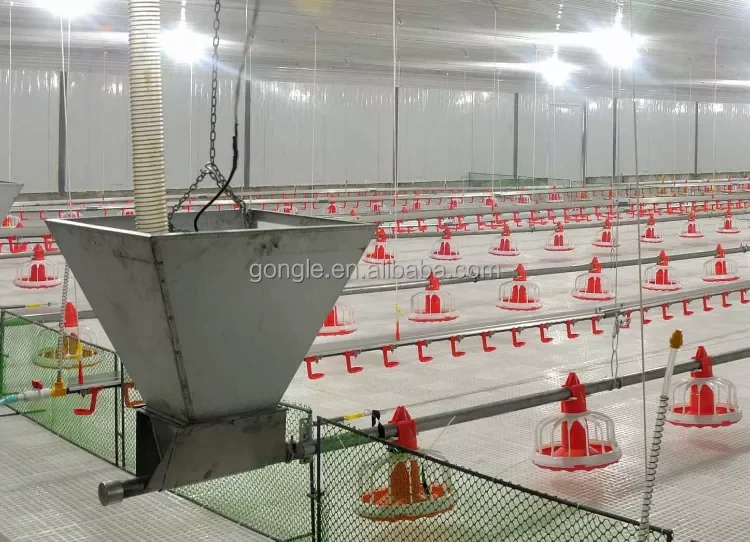

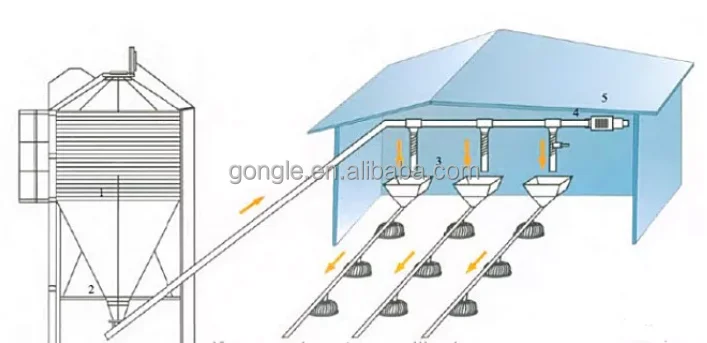

1.Main feeding line system-broiler chicken farm new equipment installed
(1).The main feed line system is transmit from silo or manpower hopper to the hopper of feeding system inside, control system indicates delivery system to work automatically.
(2).Feed of poultry raising farm is stored in the silo, so as to save large amount of package, and also to ensure the health of feed. Different specifications of silos are alternative to choose according to the daily consumption and the size of silo. Material of silo consist of galvanized sheet and glass fiber reinforced plastic.
(2).Feed of poultry raising farm is stored in the silo, so as to save large amount of package, and also to ensure the health of feed. Different specifications of silos are alternative to choose according to the daily consumption and the size of silo. Material of silo consist of galvanized sheet and glass fiber reinforced plastic.
(3).If you don't use silo, you can use manpower hopper.Usually,if you just build one or two farm,we suggest you use manpower hopper instead of silo.

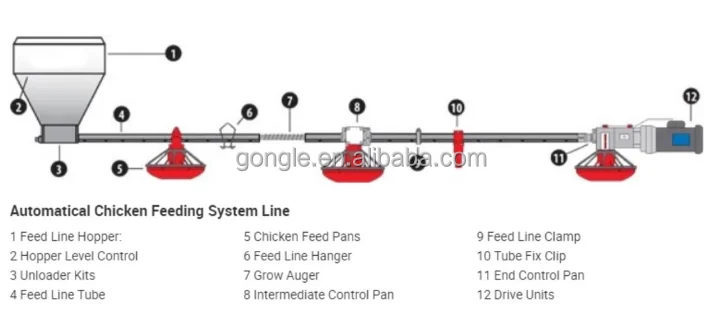

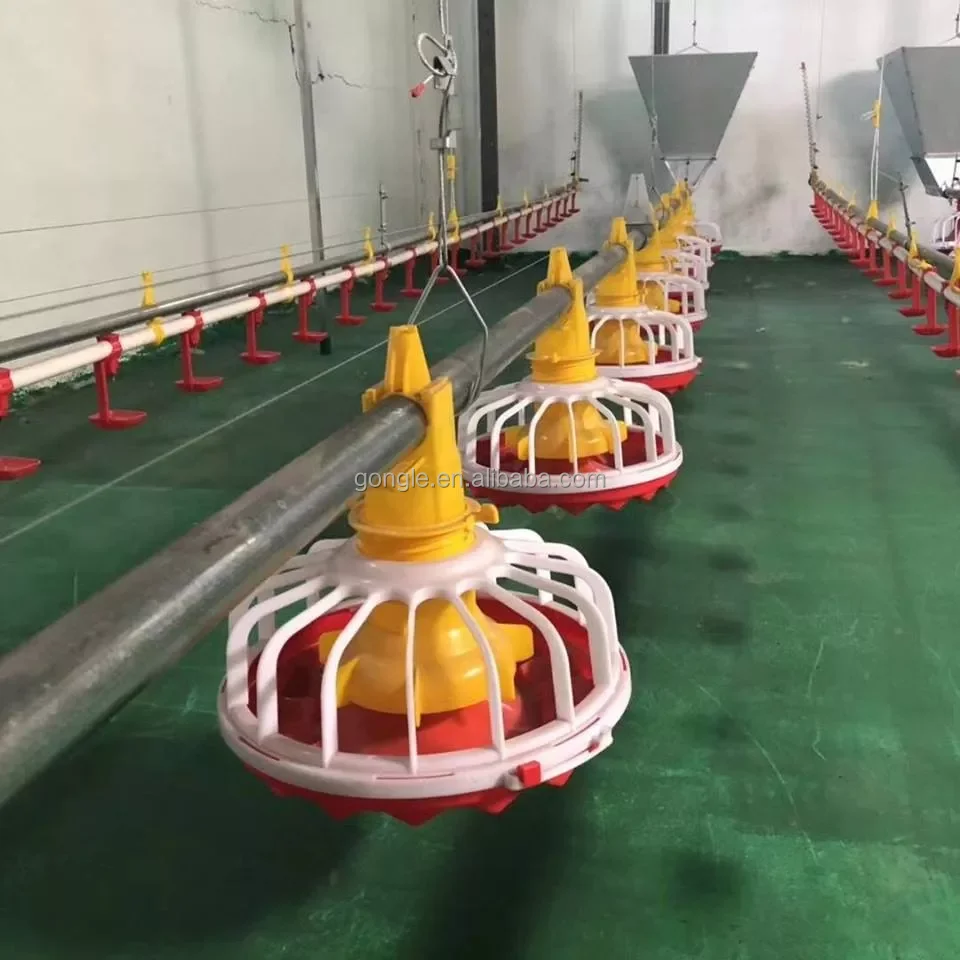

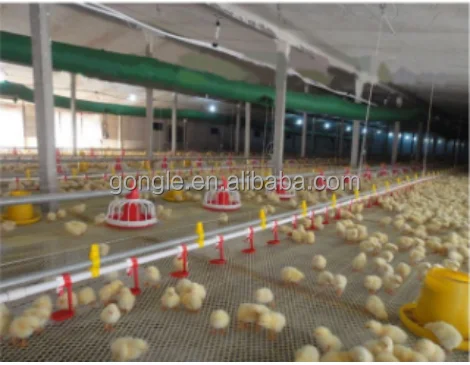

2.Automatic pan feeding line system-broiler chicken farm new equipment installed
1).Vice hopper:hot-dip double layer 275g galvanized sheet(70kg, 90kg,120kg,150kg are optional).
2).Feed bolts:Interface diameter is 45mm, including galvanized grid
3).Feed pipe:double sided galvanized layer thickness of not less than 275g/m2,diameter 45mm, 3m /pc ( 3-hole; 4-hole option)

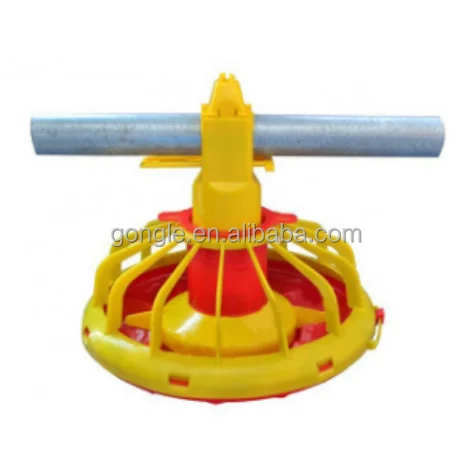

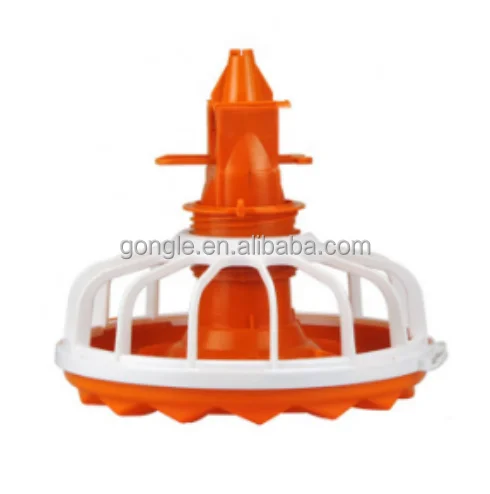

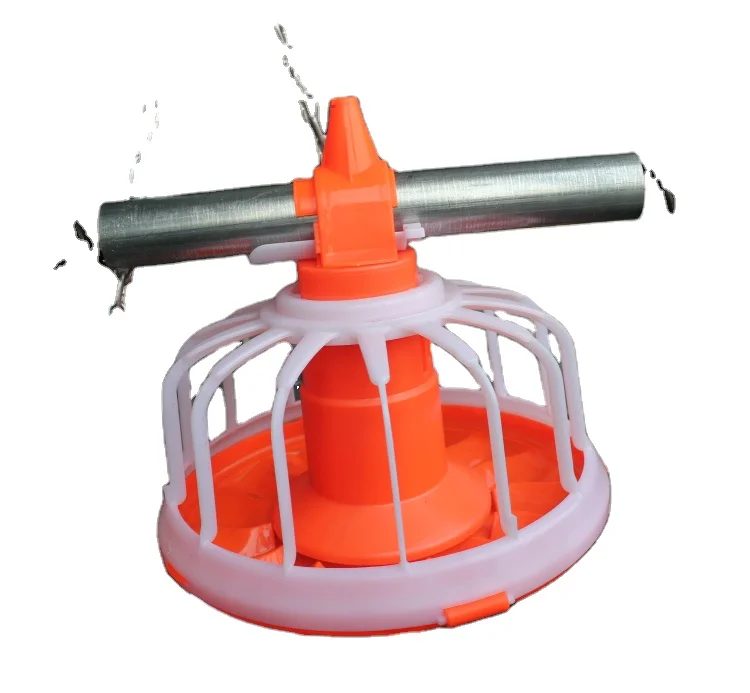

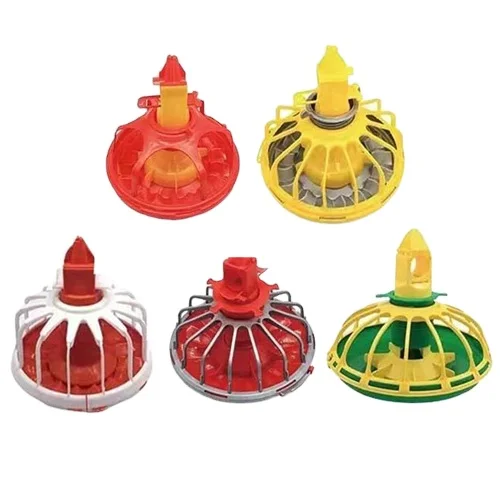

4).Feed pan:14/16 grill feed pan, ensure enough feeding space,from day old chicks to grow up chicken are reliable,Red PP material durable, easier to attract the birds feed.
5).Control pan:Including imported feed sensor, High sensitivity
6).Suspension system:Consist of steel wire rope, nylon rope, clips,winch,pulley,etc.
7).Driving motor:Power:0.75kw/1.1kw/1.5kw, Voltage:380V/220V, or as your requirement Frequency:50hz/60hzthree phase/single phase.Max length of feed line:160m
3).Feed pipe:double sided galvanized layer thickness of not less than 275g/m2,diameter 45mm, 3m /pc ( 3-hole; 4-hole option)
4).Feed pan:14/16 grill feed pan, ensure enough feeding space,from day old chicks to grow up chicken are reliable,Red PP material durable, easier to attract the birds feed.
5).Control pan:Including imported feed sensor, High sensitivity
6).Suspension system:Consist of steel wire rope, nylon rope, clips,winch,pulley,etc.
7).Driving motor:Power:0.75kw/1.1kw/1.5kw, Voltage:380V/220V, or as your requirement Frequency:50hz/60hzthree phase/single phase.Max length of feed line:160m

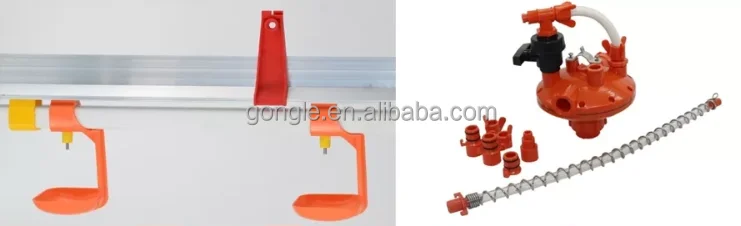

3.Automatic nipple drinking line system-broiler chicken farm new equipment installed
1).Front part of nipple drinking system:Adjust water supplying pressure and stabilizing drinking volume,this part is usually

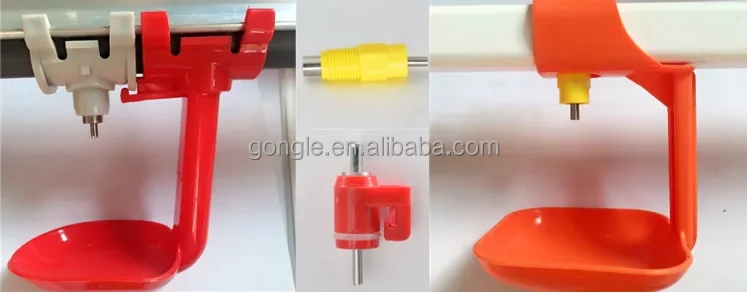

installed in control system.Consist of:filter, pressure regulator, water meter,water pipe.2)Nipples with drip up:3m/12nipples ,3m/15nipples are optional Nipple type:steel stainless nipple / double sealing nipple ,Drip cup: PP material
3)Lifting and suspension system:Correct height for drinking system is very important for chicken (both higher and lower can effect chicken bone’s distortion ,it’s bad for chicken growth, and also can have some water wasting),it’s very easy to adjust drinking system’s height if use this system.
4)Water display level pipe:Use high transparency & impact resistant material, it’s sturdy and durable, and convenient to watch water level.This device with advanced design, it’s very easy to take down and clean.
5)Pressure regulator:Regulating stability, high switching performance,water supply is sufficient& equality,recoil cleaning with good cleaning result and can save time and water.
6)Doser:Can add medicine into drinking system automatically.Don’t use power, it’s economic and reliable.
Accurate, after setting, it can adjust medicine volume according to water pressure change.
Its easy to control and maintain with good corrosion resistance.
installed in control system.Consist of:filter, pressure regulator, water meter,water pipe.2)Nipples with drip up:3m/12nipples ,3m/15nipples are optional Nipple type:steel stainless nipple / double sealing nipple ,Drip cup: PP material
3)Lifting and suspension system:Correct height for drinking system is very important for chicken (both higher and lower can effect chicken bone’s distortion ,it’s bad for chicken growth, and also can have some water wasting),it’s very easy to adjust drinking system’s height if use this system.
4)Water display level pipe:Use high transparency & impact resistant material, it’s sturdy and durable, and convenient to watch water level.This device with advanced design, it’s very easy to take down and clean.
5)Pressure regulator:Regulating stability, high switching performance,water supply is sufficient& equality,recoil cleaning with good cleaning result and can save time and water.
6)Doser:Can add medicine into drinking system automatically.Don’t use power, it’s economic and reliable.
Accurate, after setting, it can adjust medicine volume according to water pressure change.
Its easy to control and maintain with good corrosion resistance.

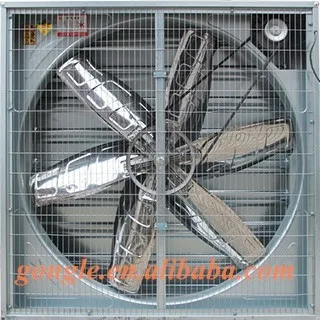

4.Automatic ventilation system-broiler chicken farm new equipment installed

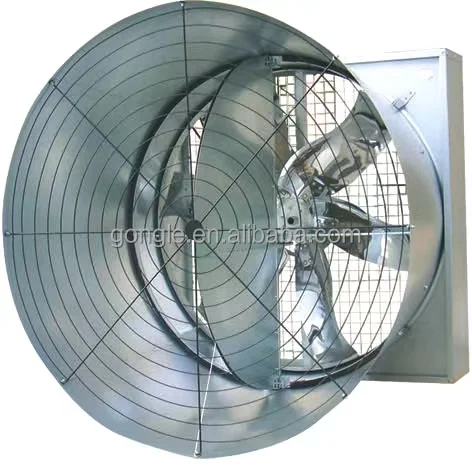

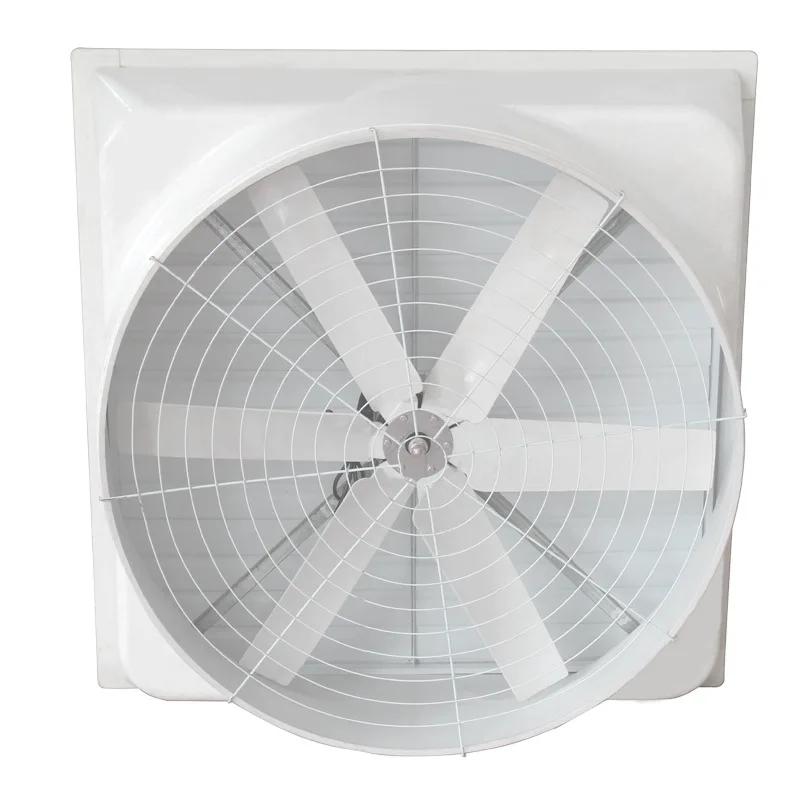

The main parts of ventilation system is the big fan and small fan. They are controlled by the control system. The NO. of the fansto run was decided by the temperature of the poultry house. Some clients choose butterfly cone fan (tunnel ventilated fans) base on local climate.

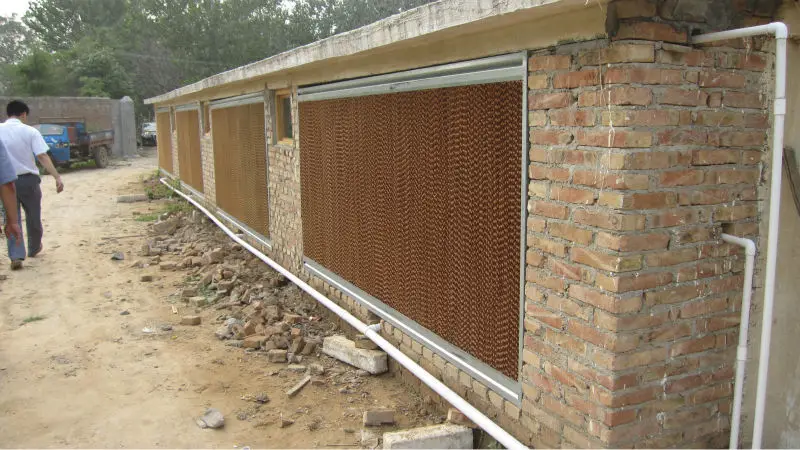

5.Cooling pad system-broiler chicken farm new equipment installed
Evaporative cooling pad system works in the condition of negative pressure, the cooling pad is installed on
one side of the wall, fan installed other side. When air flow through cooling pads, the water evaporation
absorbs a lot amount of heat. The height of cooling pad is 1.5-2.2m, length about 3m, the area of cooling
pad in chicken house is about 6-8 times than the fans.
one side of the wall, fan installed other side. When air flow through cooling pads, the water evaporation
absorbs a lot amount of heat. The height of cooling pad is 1.5-2.2m, length about 3m, the area of cooling
pad in chicken house is about 6-8 times than the fans.
Relevant products
.Spray & disinfecting system
Curtain system
Heater system
Control box
temperature control
Light trap
Relevant products
FAQ
1.Are you a factory or trade company?
A: We are a professional factory with an experience of more than 40 years.
2. How about a discount?
A:It's according to the detailed quantities and the trade item of your order,and different stage price will be different , if you really want low price we will suggest you choose lower stage product , in our company , we don't have bad quality products , you can reassure about the quality.For more details, pls contact our sales.
3.How can i get a gurantee?
A: We can offer one year after-sales service by free to change the broken parts.(not including the delivery cost)
4.If it is accepted if i use my own brand?
A: Sure. OEM products is ok and also we can provide our own brand products , it's according to your request .
5. Your delivery time?
A: Generally, we can finish in one week. In busy season, maybe two or three weeks.
6. production quality control.
A: We have an independent QC team. Our QC team do sample inspection
during production and 30% final inspection before shipment.
7. MOQ?
A: Even one sample is available, but the price will be higher .
8. Your payment terms?
A: 30% by T/T in advance,70% by L/C or T/T against copy of BL.
A: We are a professional factory with an experience of more than 40 years.
2. How about a discount?
A:It's according to the detailed quantities and the trade item of your order,and different stage price will be different , if you really want low price we will suggest you choose lower stage product , in our company , we don't have bad quality products , you can reassure about the quality.For more details, pls contact our sales.
3.How can i get a gurantee?
A: We can offer one year after-sales service by free to change the broken parts.(not including the delivery cost)
4.If it is accepted if i use my own brand?
A: Sure. OEM products is ok and also we can provide our own brand products , it's according to your request .
5. Your delivery time?
A: Generally, we can finish in one week. In busy season, maybe two or three weeks.
6. production quality control.
A: We have an independent QC team. Our QC team do sample inspection
during production and 30% final inspection before shipment.
7. MOQ?
A: Even one sample is available, but the price will be higher .
8. Your payment terms?
A: 30% by T/T in advance,70% by L/C or T/T against copy of BL.
