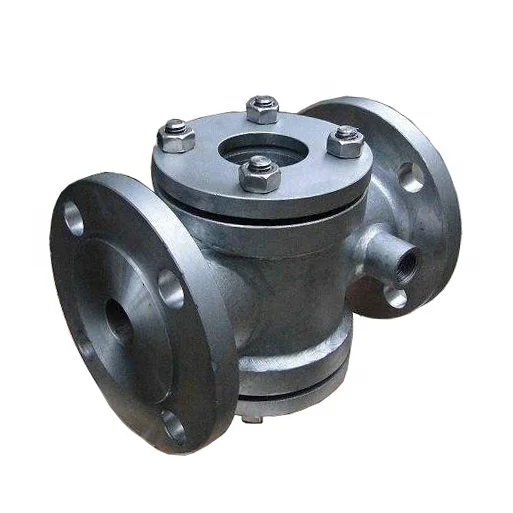

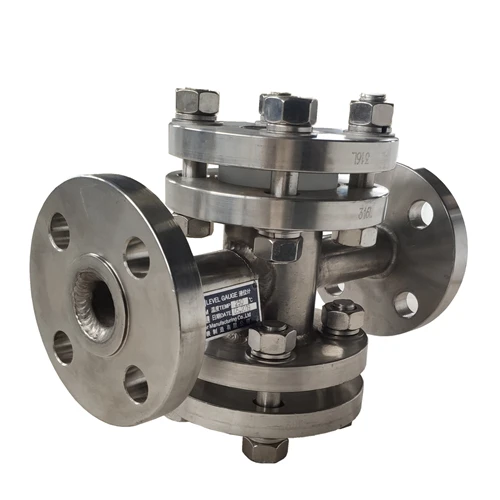

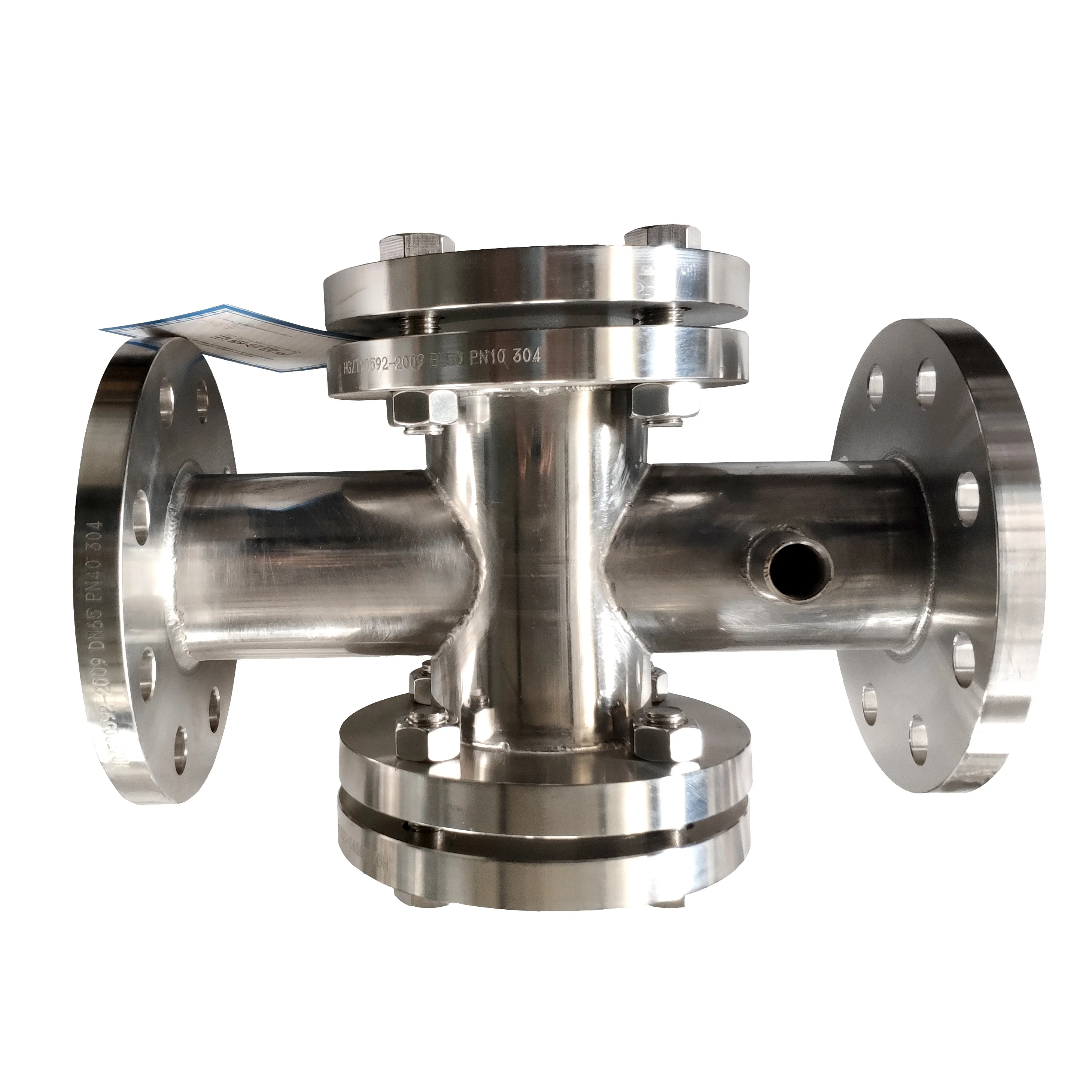

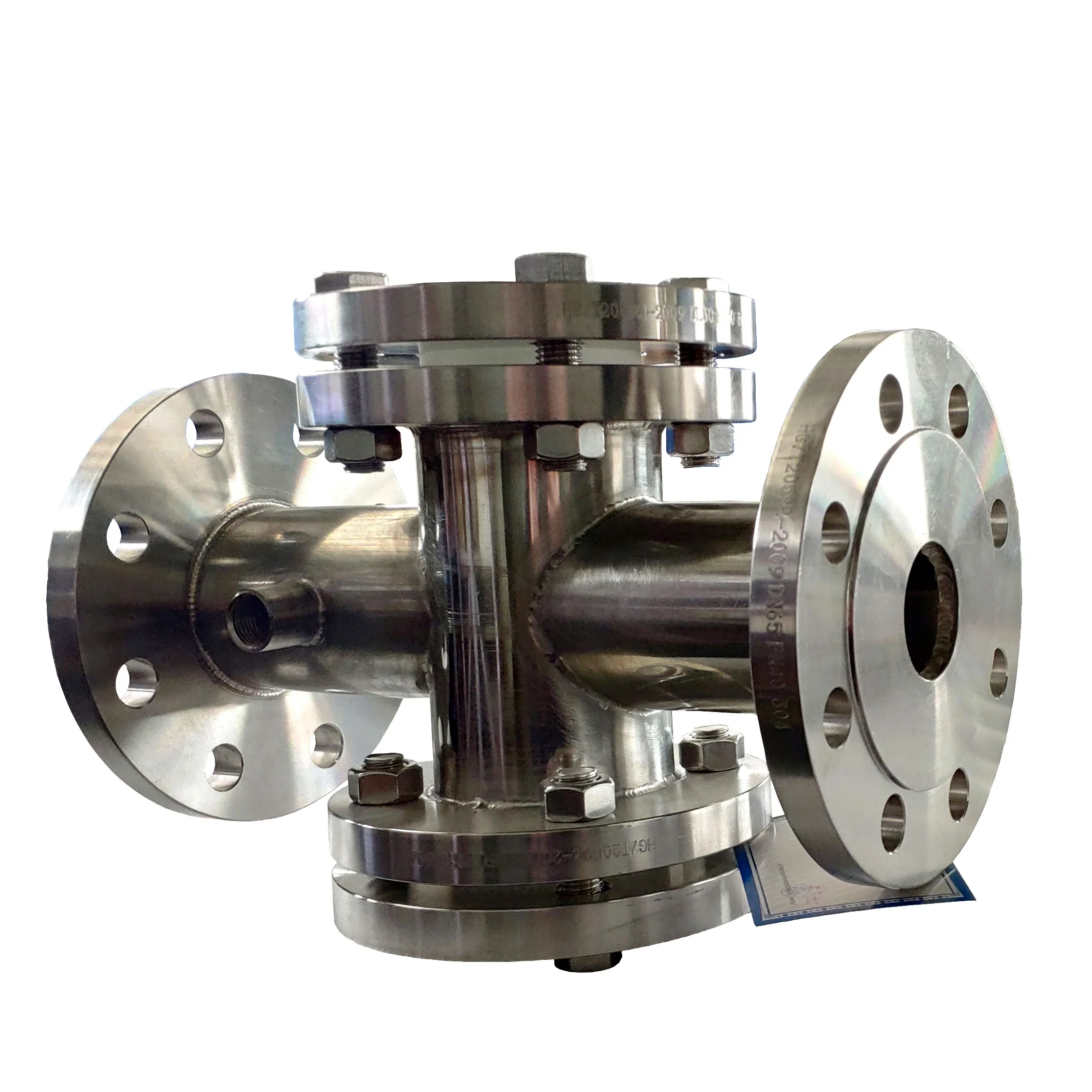

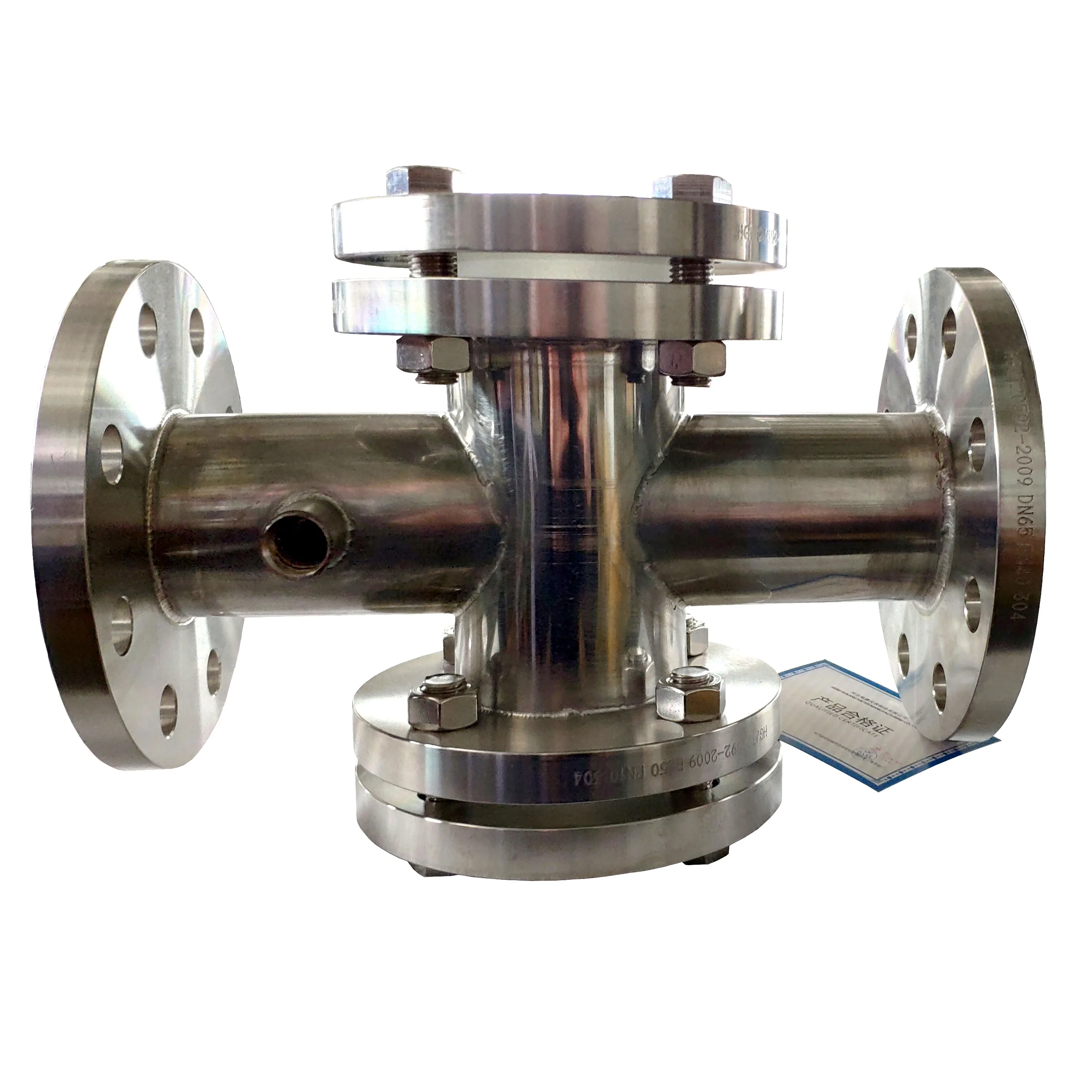

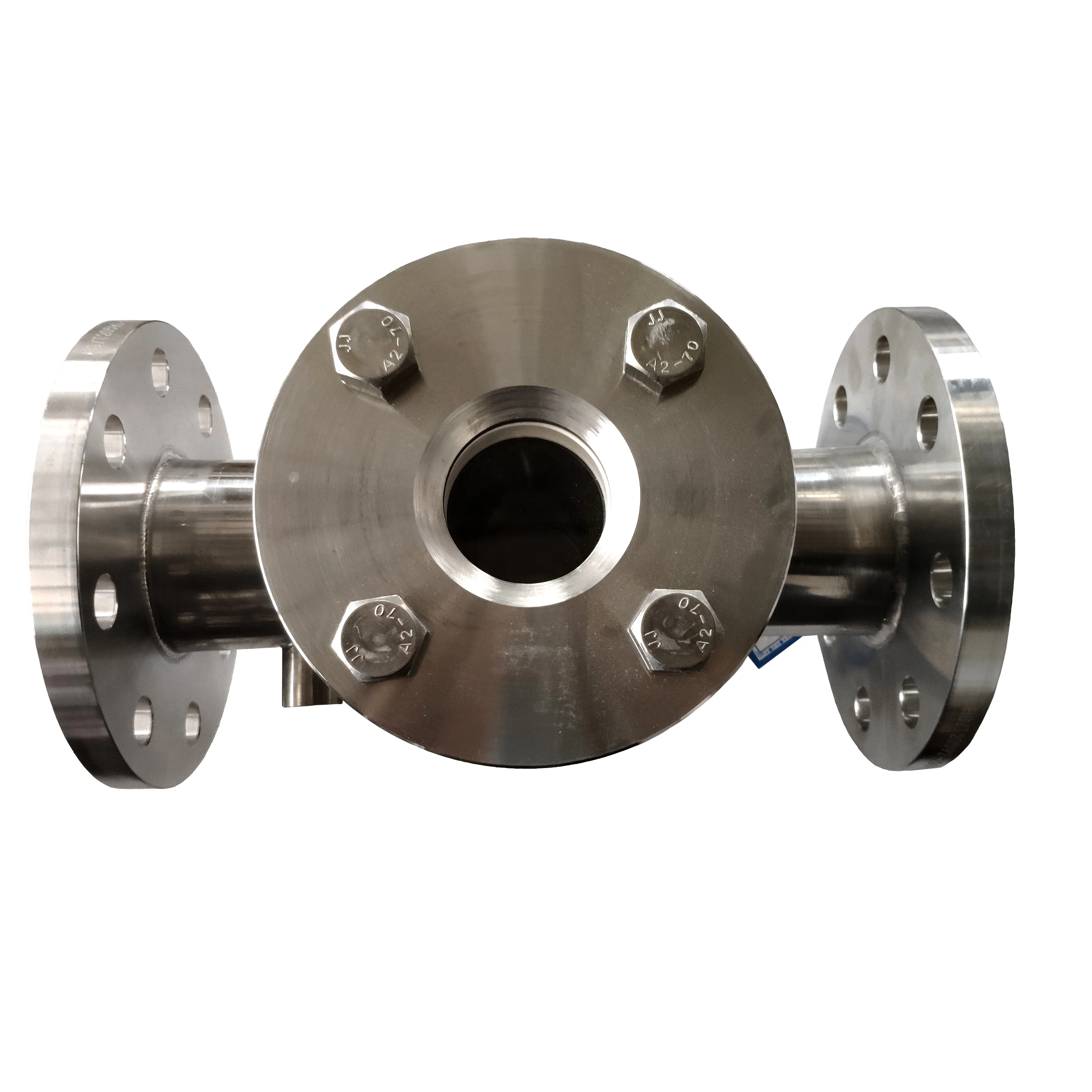

Hot water/oil heat tracing high pressure stainless steel sight glass Flange Full Bore Sight Glass
- Category: >>>
- Supplier: Hebei Xukang Meter Manufacturing Co. Ltd.
Share on (1600839835552):
Product Overview
Description
Products Description

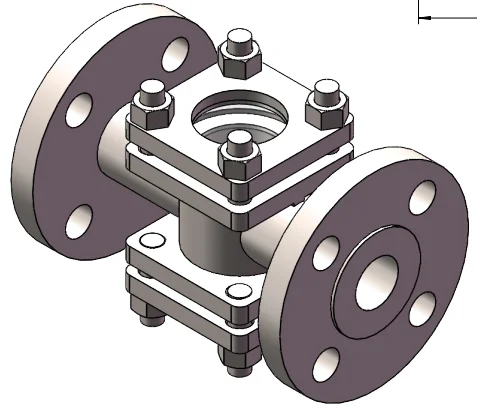

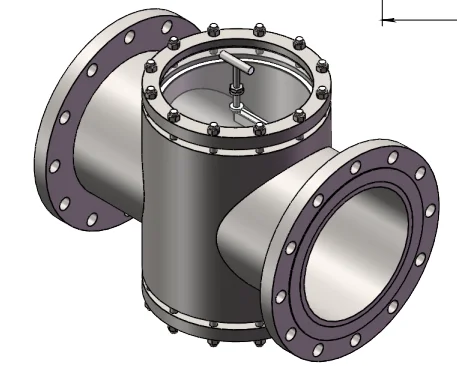

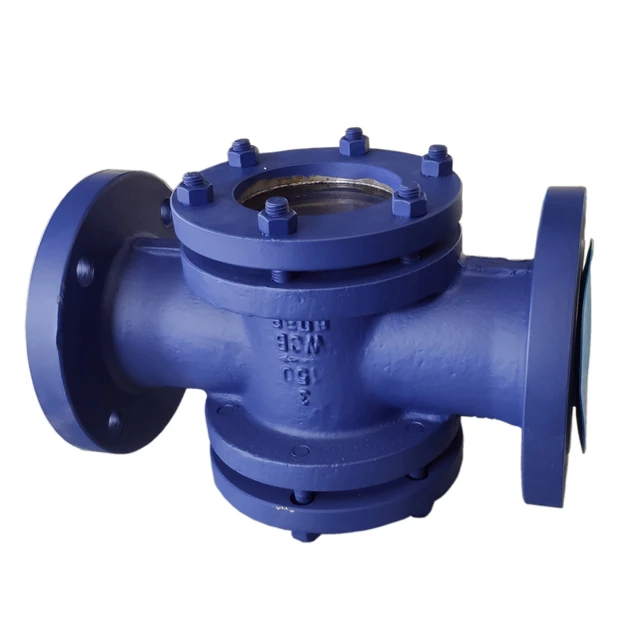

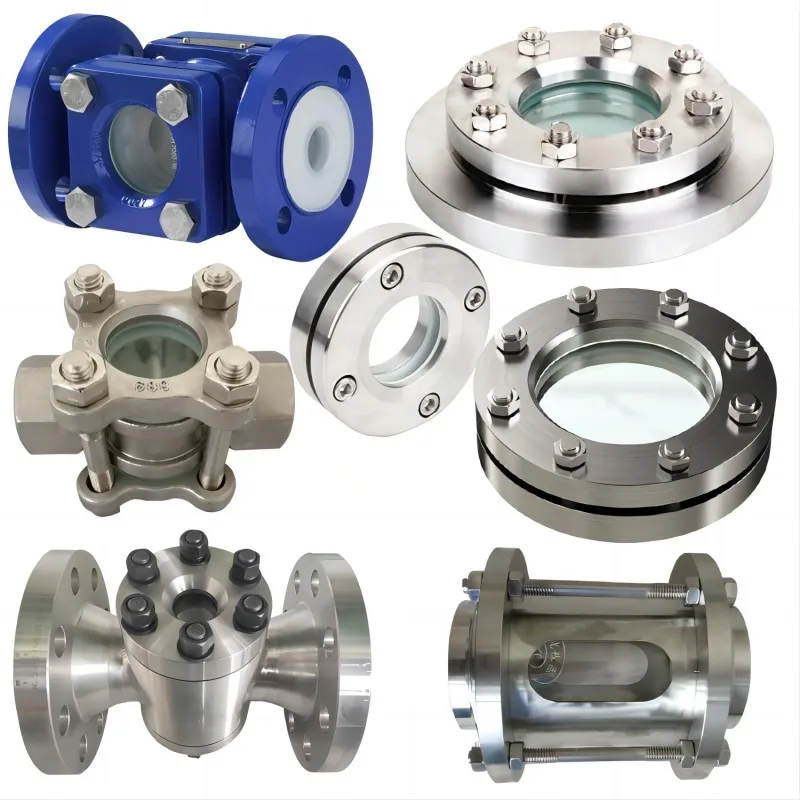

Double window sight glass
Sight glass is committed to helping customers to monitor and verfify the flowing medium such as petroleum products,liquefied gases,solvents or hazardous and corrosive chemicals and liquids.Monitoring Sensing and Revealing the fluids in operation,to help you keep them under your control for safety and trouble shooting in economical ways.
It can be used in chemical tower with high temperature, strong corrosivity, easy poisoning, great danger and easy crystallization to ensure its safe production.It has the characteristics of small installation size, small driving torque, simple and quick operation, and at the same time it has a good flow regulation function and closed seal characteristics, the sight glass in large and medium caliber, medium and low pressure, it is the dominant form of the sight glass.
Flanged units are available in five styles designed to accommodate various mounting positions, fluid characteristics, flow rates and directions:
1. Plain Style - May be installed in any position to observe fluid flow in any direction. These style indicators are usually employed to detect either the presence or absence of solutions, or to observe fluids for turbulence, color or clarity.
2. Drip Tube Style - This style is well suited for vertical lines with downward flow direction. These units are particularly recommended for applications characterized by low or intermittent flow rates, such as distillation processes.
3. Flapper Style - Recommended for monitoring either horizontal or vertical lines with upward flow. The flapper position indicates current flow rate. Flapper style indicators are the appropriate choice for use with clear and semi-opaque solutions.
4. Rotator Style - This style indicator may be installed in any position to indicate flow in any direction. The visibility of rotor motion makes this style particularly well-suited for monitoring clear, translucent or dark solutions.
It can be used in chemical tower with high temperature, strong corrosivity, easy poisoning, great danger and easy crystallization to ensure its safe production.It has the characteristics of small installation size, small driving torque, simple and quick operation, and at the same time it has a good flow regulation function and closed seal characteristics, the sight glass in large and medium caliber, medium and low pressure, it is the dominant form of the sight glass.
Flanged units are available in five styles designed to accommodate various mounting positions, fluid characteristics, flow rates and directions:
1. Plain Style - May be installed in any position to observe fluid flow in any direction. These style indicators are usually employed to detect either the presence or absence of solutions, or to observe fluids for turbulence, color or clarity.
2. Drip Tube Style - This style is well suited for vertical lines with downward flow direction. These units are particularly recommended for applications characterized by low or intermittent flow rates, such as distillation processes.
3. Flapper Style - Recommended for monitoring either horizontal or vertical lines with upward flow. The flapper position indicates current flow rate. Flapper style indicators are the appropriate choice for use with clear and semi-opaque solutions.
4. Rotator Style - This style indicator may be installed in any position to indicate flow in any direction. The visibility of rotor motion makes this style particularly well-suited for monitoring clear, translucent or dark solutions.
Product Paramenters
Caliber | DN15 ~ DN500 |
Production Process | Integral Casting/ Welding |
Shell material | carbon steel、stainless steel、glass reinforced plastic、carbon steel lined with fluorine、FRPP plastic、PVC、PVDF+FPR、TI |
Window material | sodium-calcium glass, high borosilicate glass, quartz glass and plexiglass, Aluminosilicate Glass |
Sealing ring material | nitrile rubber, polytetrachloroethylene, graphite composite |
the maximum allowable temperature of sodium-calcium glass is 150℃; The maximum allowable temperature of borosilicate glass is 280℃. The maximum allowable temperature of quartz glass is 550℃. | |
Operating pressure | PN0.6~2.5Mpa（Max 2500LB） |
Connection mode | Flange / Thread/Tri-clamp |
Products Design Ability
We have two excellent engineers，who have many years' experience of designing industrial meters and valve fittings.They could design products according to clients' requirements and work on dealing with the problems occurring in production.
Company Introduction
Company introduction

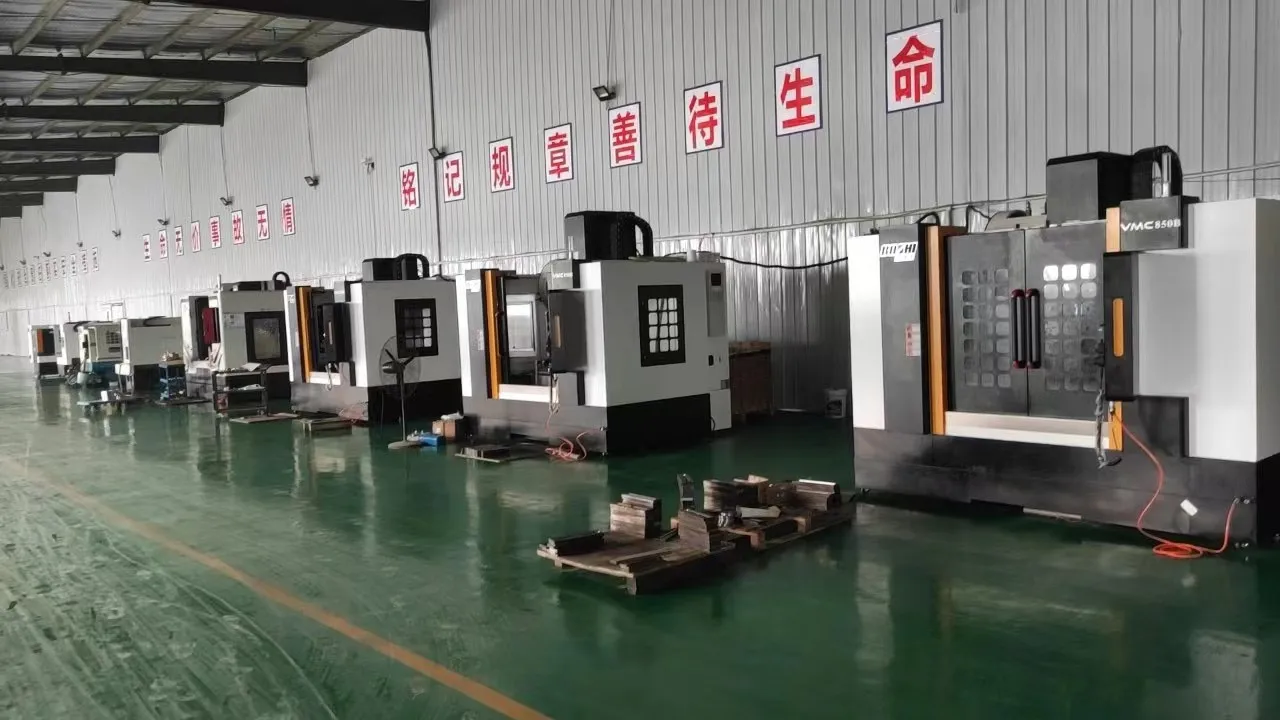

Hebei Xukang Meter Manufacturing and Tianjin U-ideal Instrument Co., Ltd as a group, have more than 20years products research and development experience. And have 16years export experience, 5000m2 factory, tens of new machines.Hebei Xukang Meter Manufaturing Co. Ltd adopts a combination marketing of domestic and foreign trade, having a marketing network across the country and abroad. We will try to provide customers the best quality and service through integrating the best resource and to become the excellence corporation.
Our products range:
1. Flowmeter: Electromagnetic flowmeter, ultrasonic flowmeter, vortex flowmeter, gear flowmeter, rotor flowmeter, mass flowmeter, etc
2. Level gauge: Magnetic float level gauge, glass plate level gauge, glass tube level gauge, ultrasonic level gauge, oil level gauge, float switch, radar level gauge, etc.

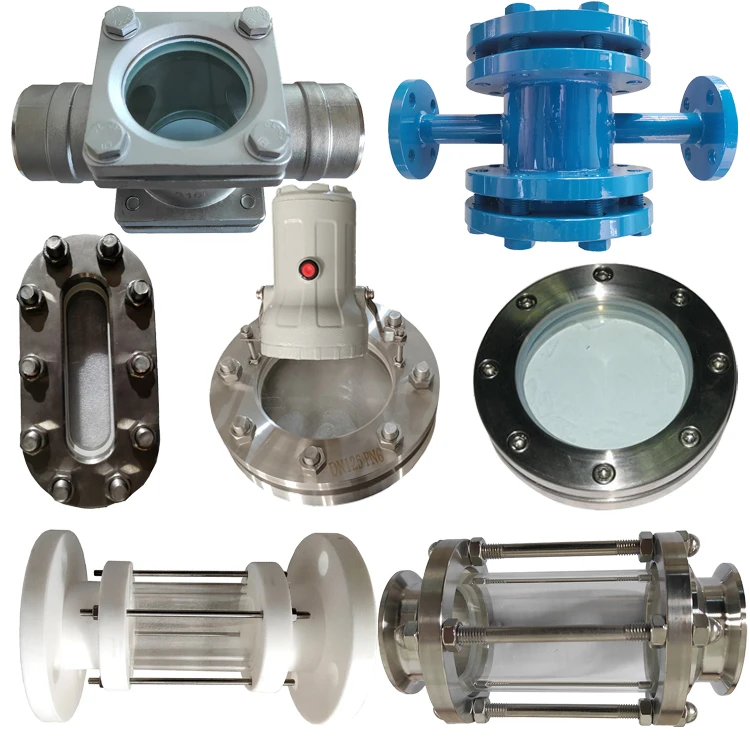

3. Sight Glass: Straight sight glass, tube sight glass, flange sight glass, three way sight glass etc.
4. Strainers: Quick Open Basket Filter Strainer,Y Type,T Type,Basket Strainer,Self -Cleaning Strainer, Industrial Duplex Basket Strainer,Intelligent Control Self-Cleaning Piping Strainer,etc.
5. Valves: air valve, Strainer, gate valve, check valve, globe valve, ball valve, butterfly valve, pressure reducing valve, control valve, safety valve, angle valve, Titanium alloy valve, thermostatic valve, needle valve, plug valve, etc.
6. Flanges and Pipe fittings:all kinds of flanges, elbow, tee, caps, union,plug,coupling,reducer, pipes and steels etc.
Transportation
For small order quantity,we can send them to you by express delivery,TNT,DHL,UPS OR EMS etc. For big order quantity ,we will advise you to use Air Shipping or Sea Shipping through your nominated forwarder agent or our long-term cooperated agent.
