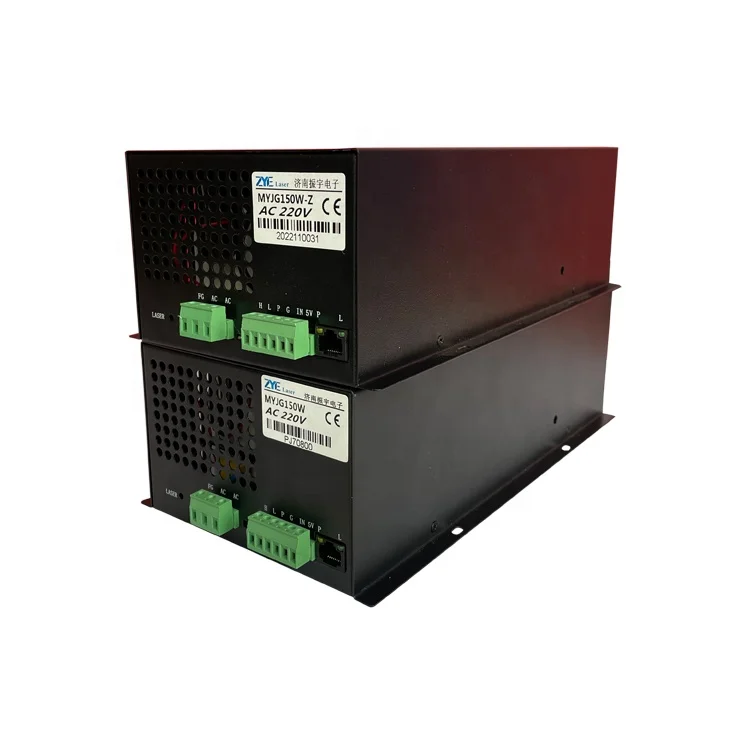

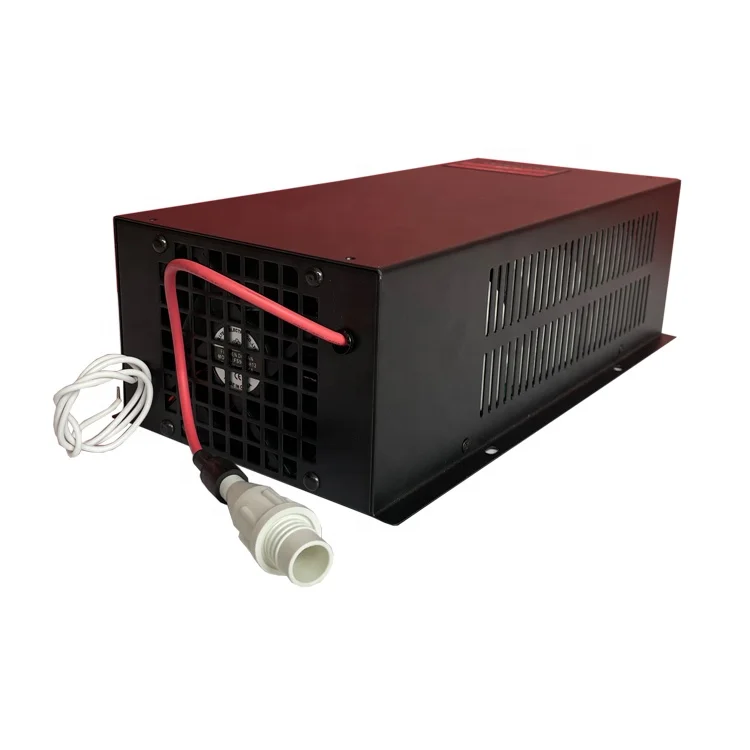

150w Co2 Laser Power Supply Myjg 150w For Laser Tube Co2 100w 130w 150w laser cutting machine spare part
- Category: >>>
- Supplier: Guangdong Juncut CNC Equipment Co. Ltd
Share on (1600839848680):
Product Overview
Description
Product Description
MYJG-60W Laser Power Supply is the spareparts of the CO2 laser machine，Suitable for use in 60W, 80W .

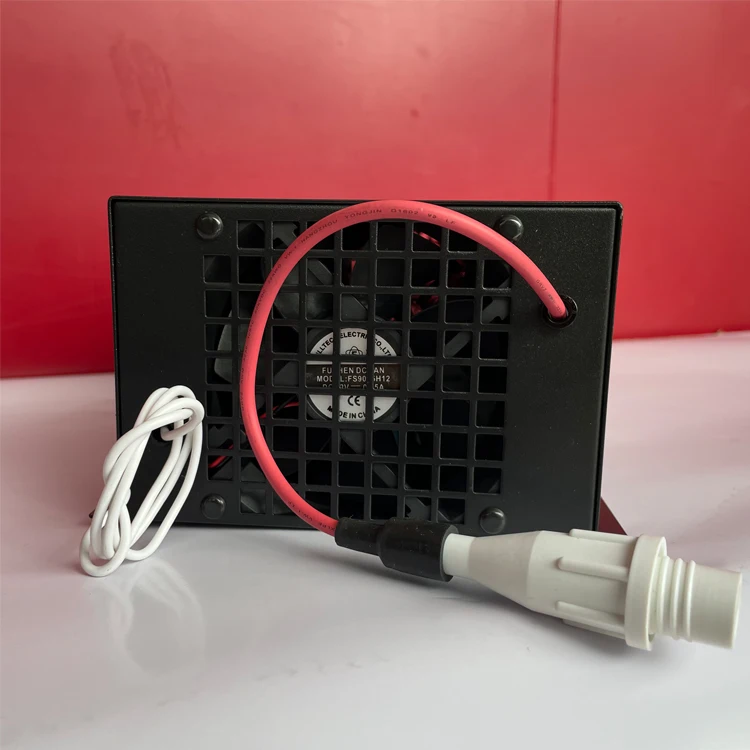

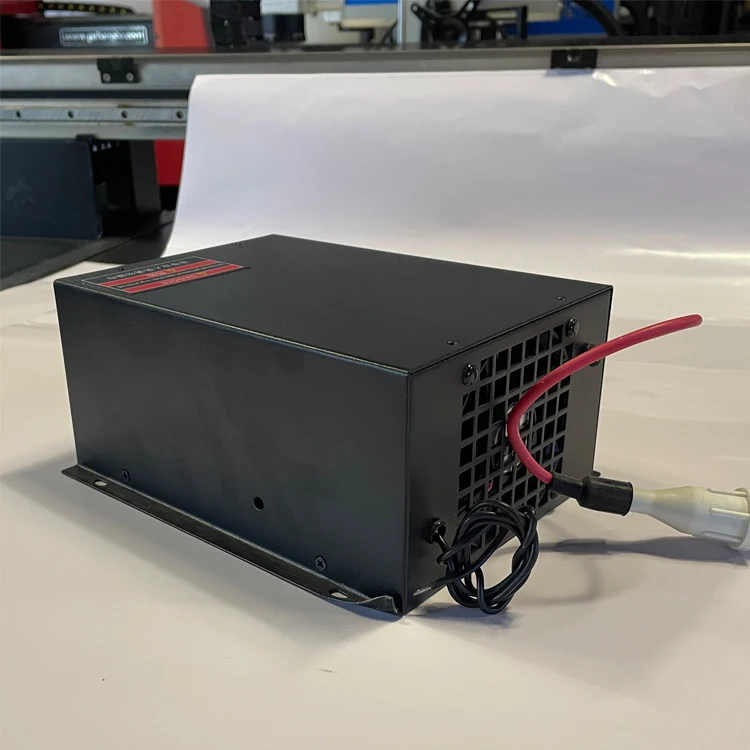

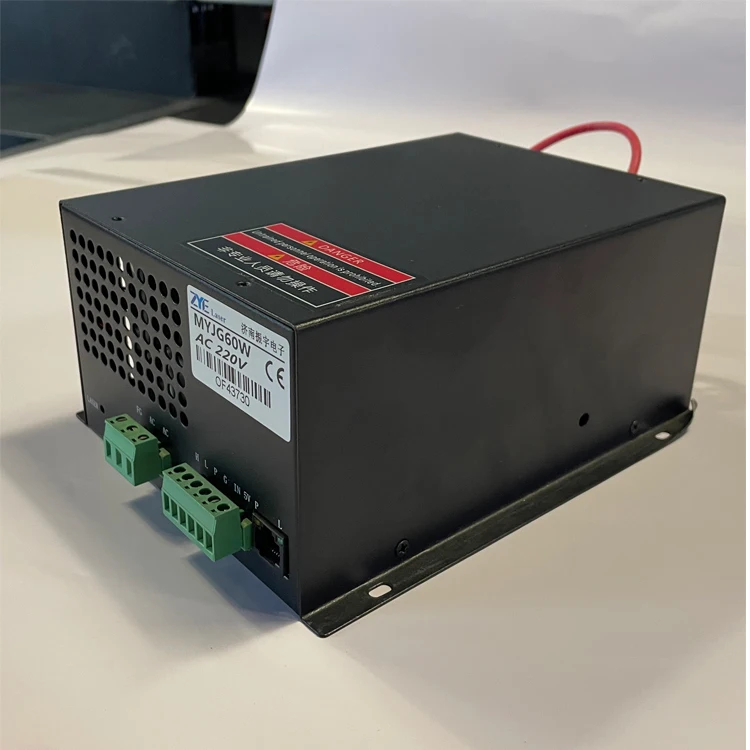

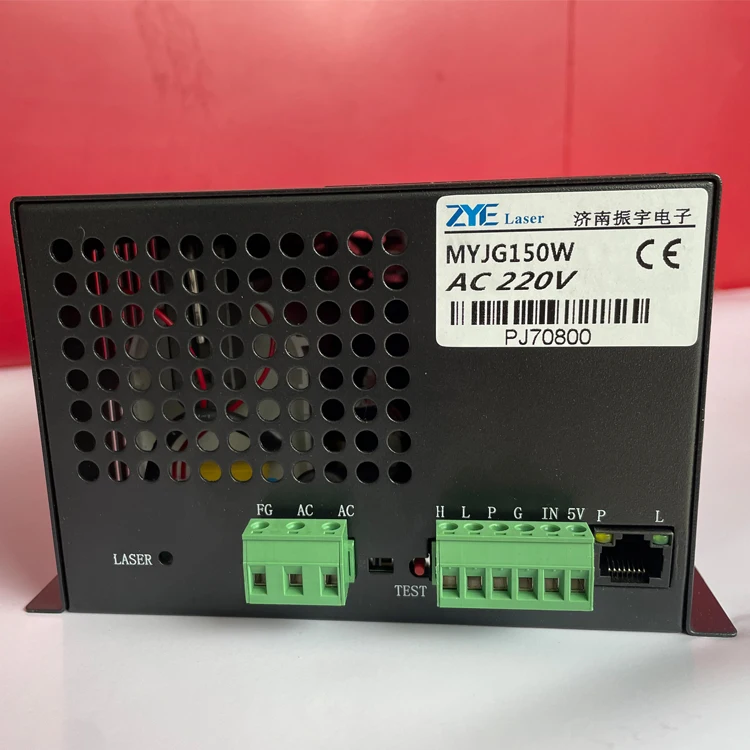

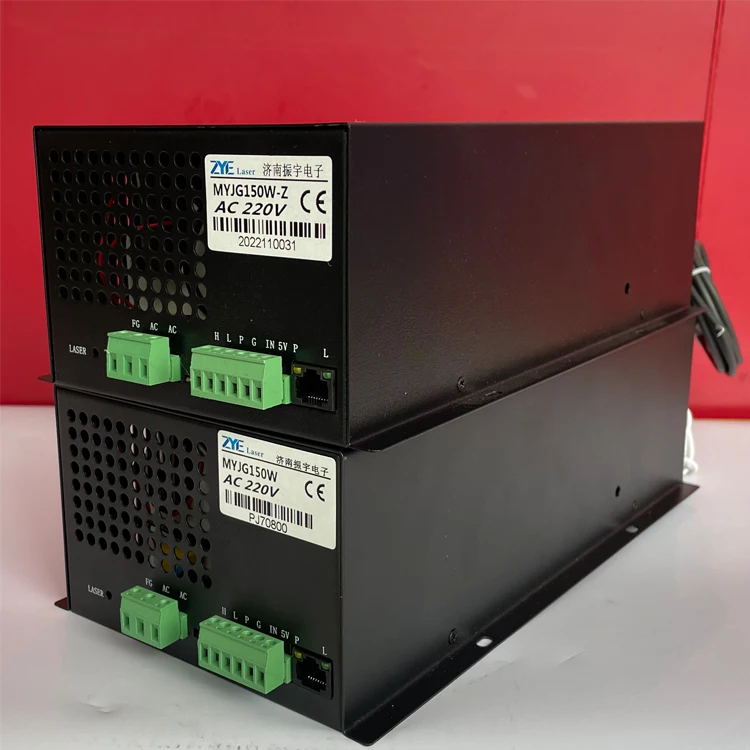

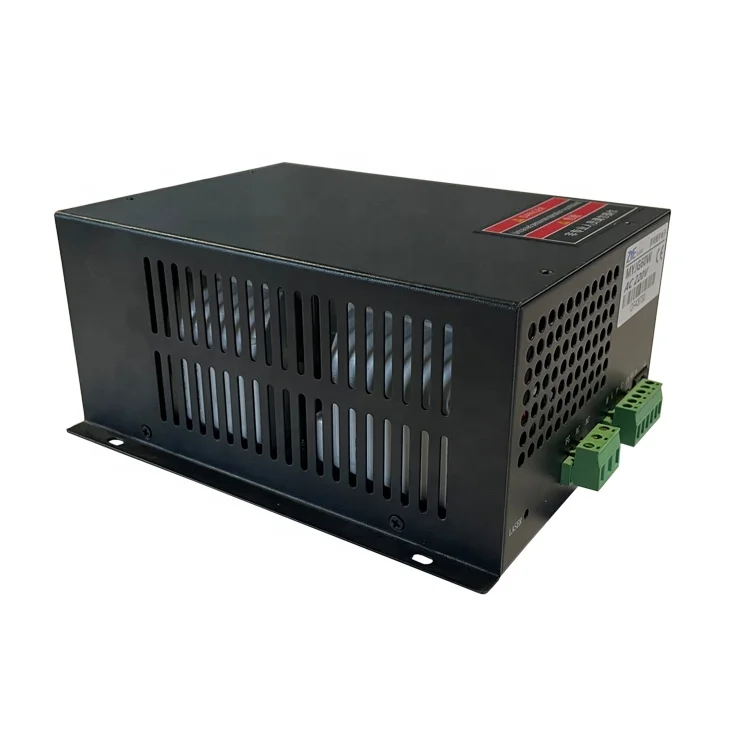

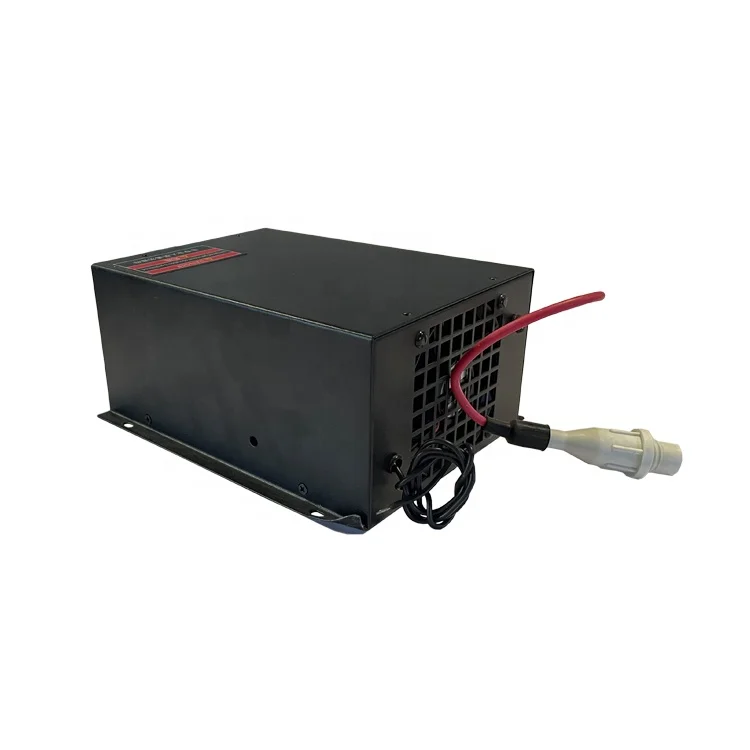

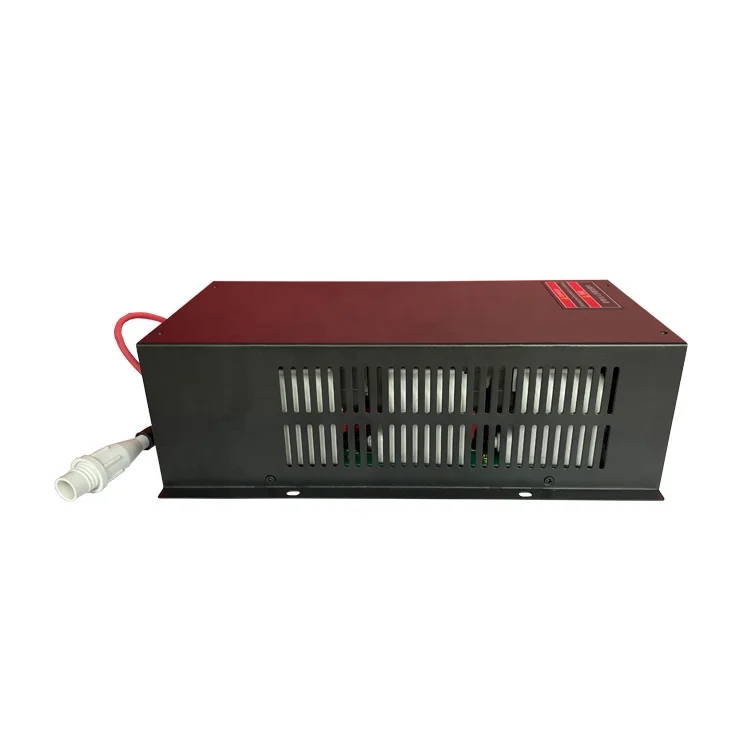

Details Images
sample show
Product Paramenters
Input | Input Voltage | AC220V or AC110V（to be specified when placing order） | |||
AC frequency | 47—440HZ | ||||
Cold Surge Current | ≤60A(AC220V Input) | ≤30A(AC110 Input) | |||
Current Leakage | ≤0.7MA（AC220V Input） | ≤0.4MA(AC110V Input) | |||
Output | Maximum Input Voltage | DC 22~34KV | |||
Maximum Output Current | DC 22~38MA | ||||
Efficiency | ≥90﹪（full load） | ||||
MeanTime Between Failure (MTBF) | ≥10000H | ||||
Response Speed | ≤1ms（from the switch Signal is given to the output current up to 90% of the setting current） | ||||

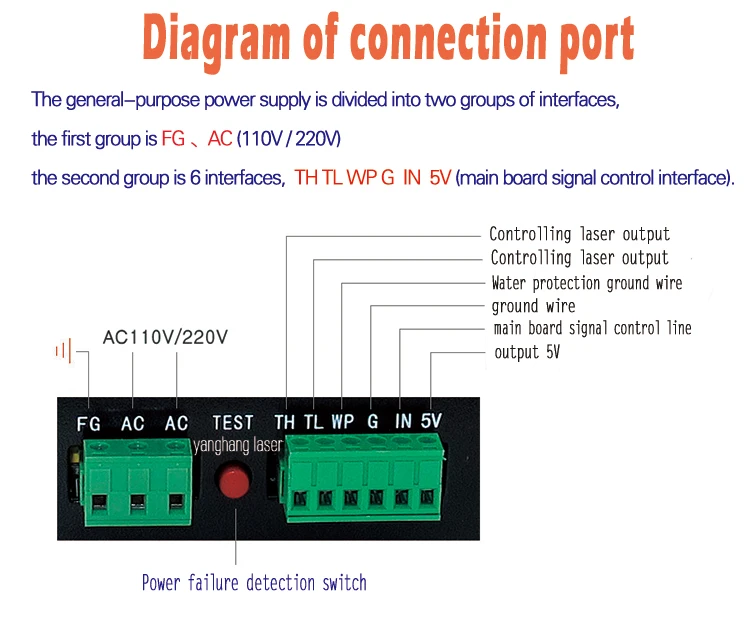

Control Interface | TTL level switch control; high or low effective level can be chosen (details refer to the control terminal specification) | ||||
Withstand Voltage | Input-Output, Input-Shell: AC1500V 10MA 60S; Output negative is connected with machine shell. | ||||
Protection | can work in open-circuit condition for a short time（Require a good protective earthing and avoid arc between the positive and the machine shell） | ||||
Environment | Operating Temperature：-10~40℃），Relative Humidity (RH)≤90﹪ | ||||
Cooling Way | Force-Air Cooling (FAC) | ||||
Dimension | L×W×H=325*240*97(mm)(normal type) | ||||
Product packaging
Model No. | Power | MAX output Voltage | Size(mm) | N.W(kg) |
MYJG-50W | 50W | 22KV | 171*161*91 | 1.5 |
MYJG-60W | 60W | 24KV | 197*161*91 | 2.1 |
MYJG-80W | 80W | 26KV | 230*161*91 | 2.8 |
MYJG-100W | 100W | 28KV | 230*161*91 | 2.8 |
MYJG-130W | 130W | 30KV | 305*161*91 | 3.6 |
MYJG-150W | 150W | 34KV | 305*161*91 | 3.6 |
Customer Photos
FAQ
1.Q:OEM & ODM could be offered?
A:Yes, we support OEM & ODM. As a factory we can produce what you want per your special design.
A:Yes, we support OEM & ODM. As a factory we can produce what you want per your special design.
2.Q:Logo printing could be offered?
A:Yes, the logo are available, it can be silk screen printing, laser engraving or sticker.
3.Q:What are your strengths?
A:We has been providing and manufacturing laser parts and solutions .Whether the quality or price, we have absolute advantage.Best Quality & Best Service with Competitive price.Best After sale service and Technical support.
4. Q:How to choose the suitable parts?
A:Please send us the photo about the parts you are using now or let us know your needs,will recommend you suitable parts.
5.Q:Will you supply samples for test the quality?
A:We are honored to offer you samples,the sample charge and shipping cost will be pay by buyer.We can refund the money when you place the order.
6. What's your parts warranty?
A:No human factors,the parts warranty time is 1 year.If the parts arrived with defects or damage,please send back picture or video immediately,we will replace you a new spare parts.
A:Yes, the logo are available, it can be silk screen printing, laser engraving or sticker.
3.Q:What are your strengths?
A:We has been providing and manufacturing laser parts and solutions .Whether the quality or price, we have absolute advantage.Best Quality & Best Service with Competitive price.Best After sale service and Technical support.
4. Q:How to choose the suitable parts?
A:Please send us the photo about the parts you are using now or let us know your needs,will recommend you suitable parts.
5.Q:Will you supply samples for test the quality?
A:We are honored to offer you samples,the sample charge and shipping cost will be pay by buyer.We can refund the money when you place the order.
6. What's your parts warranty?
A:No human factors,the parts warranty time is 1 year.If the parts arrived with defects or damage,please send back picture or video immediately,we will replace you a new spare parts.
7.What's your parts delivery time?
A:Usually within 1-3 working days if parts are in stock, if not,it need 4~15 days to customize.
A:Usually within 1-3 working days if parts are in stock, if not,it need 4~15 days to customize.
