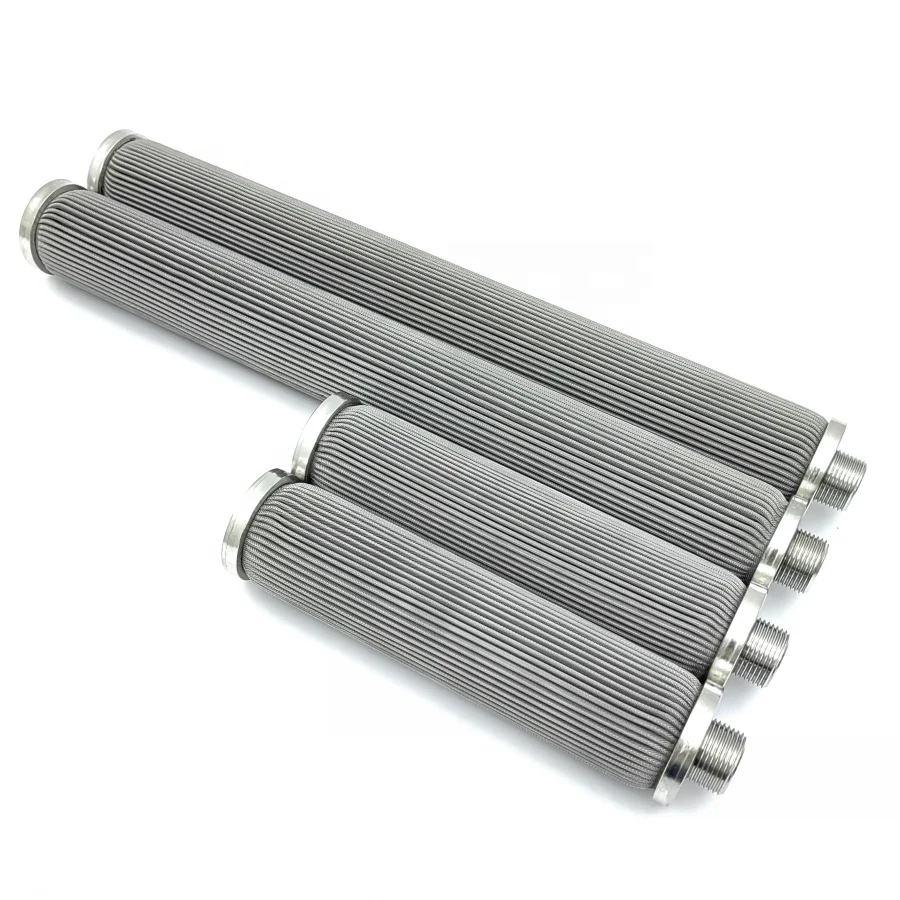

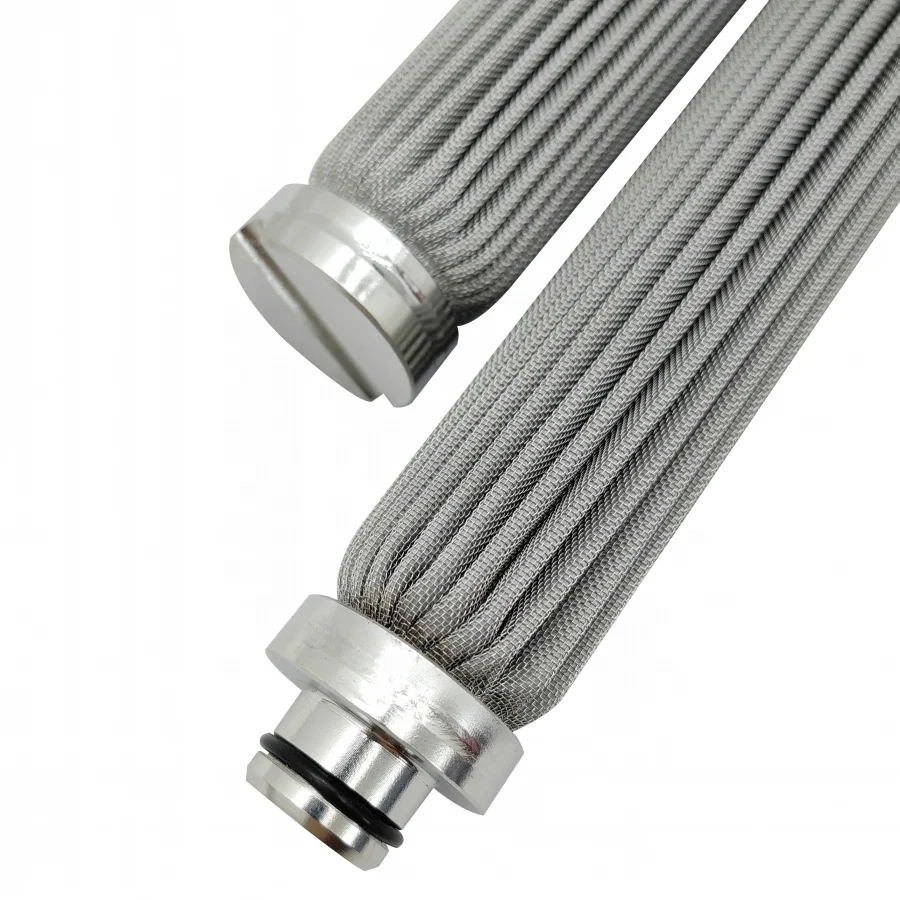

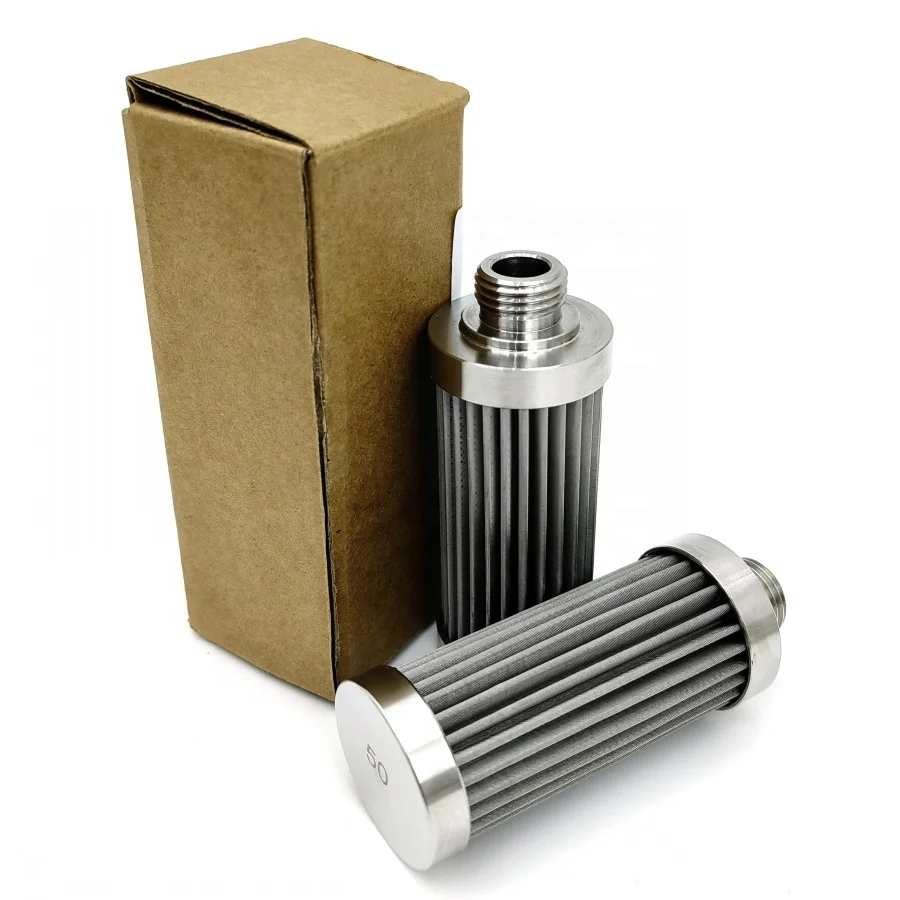

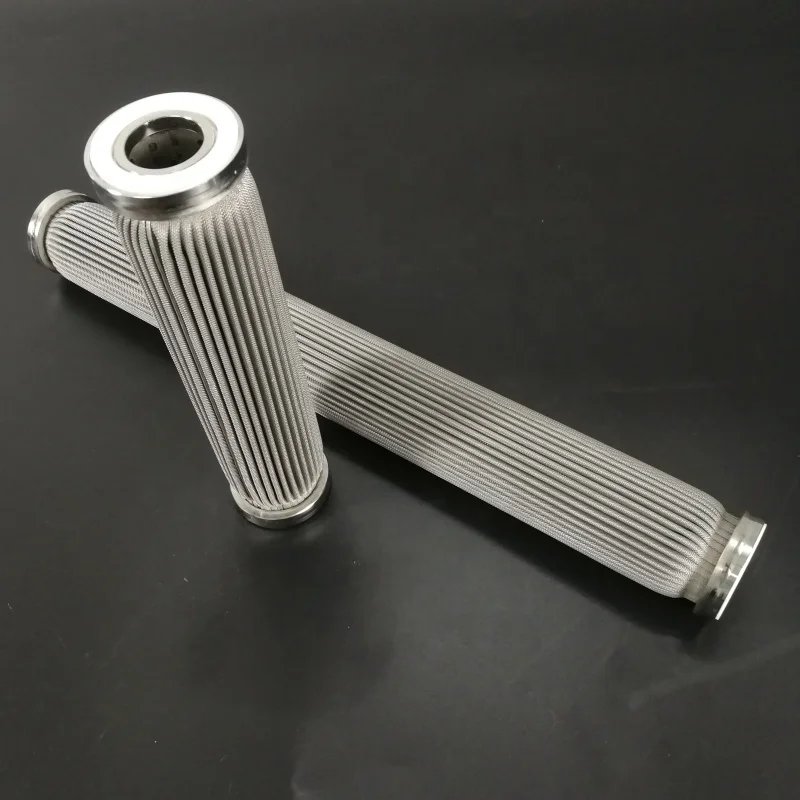

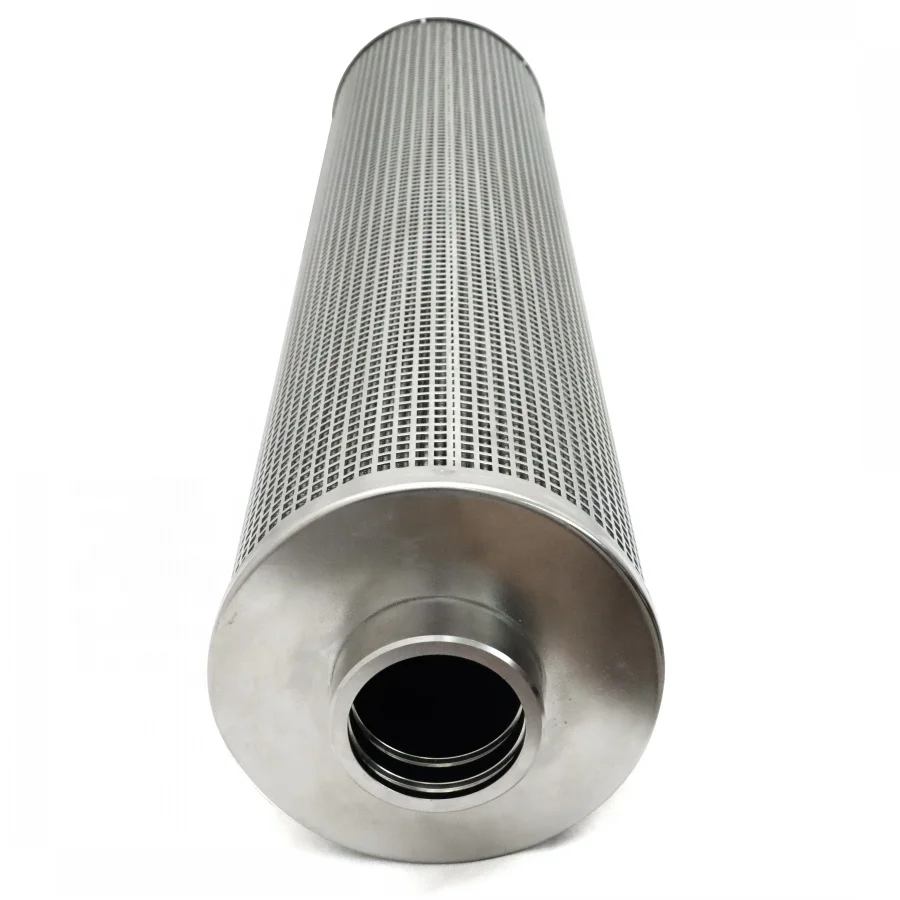

Customized high temperature washable ss 304 316L stainless steel pleated filter cartridge element for oil water filtering
- Category: >>>
- Supplier: Guangzhou Lvyuan Water Purification Equipment Co. Ltd.
Share on (1600839889507):
Product Overview
Description
Product Description
Fiter Cartridge dimensions | ||
Length | 5'' (125mm), 10'' (250mm), 20'' (500mm), 30'' (750mm), 40'' (1000mm) | |
Diameter | Ø25, 30, 50, 60, 65, 70mm | |
Other dimensions | Customized by customer's request. | |
Material of constructions | ||
Filter media | SUS304, 316, 316L stainless steel | |
Connector type | Flat, Insert type, Thread type, Fin | |
End caps | DOE, SOE, 215, 222, 226, M20, M30, M42, 1'' NPT/BSP or as request. | |
Outside protection net | Optional | |
Sealing material | Silicone, NBR, EPDM, Buna, Teflon, etc | |
Performance | ||
Removal rate | 1, 3, 5, 10,20, 30, 40, 50, 100um, etc | |
Effective Surface area | 0.65sqm per 10" cartridge element | |
Operation Temperature | ≦480℃ | |
Cleaning method | back flushing, ultrasonic or other non-abrasive cleaning | |
Maximum Operating Pressure differential | 4.0bar | |
